SZY-SA7101Weather Sensor

TEL: +886 2 86984245FAX: +886 2 86984108 Add: 15F, No.81,Sec.1, Hsin Tai Wu Rd.,Hsi-Chih 221, Taipei Hsien, Taiwan DEXATEK TECHNOLOGY LTD., TEL: +886 2 86984245FAX: +886 2 86984108 Weather Sensor SPEC/SA7101 Feature Bluetooth Wirelesstemperature, humidity, pressure Sensor High precision non-contact temperature measurement (+/-0,5ºC) Temperature ranges: -20°C to +85°C for ambient temperature Use Bluetooth Low Energyand havelow power consumption technology  Easily manipulateusing.  FreeAPPDownload: APPis free download from apple storeor google play.  DeviceMaxdistance30Minopenspaces,duetotheexternalenvironmentare subject to change.  Low battery alarm:when thebattery charge is remainedto 28%will show the low battery alarm you. TEL: +886 2 86984245FAX: +886 2 86984108 Add: 15F, No.81,Sec.1, Hsin Tai Wu Rd.,Hsi-Chih 221, Taipei Hsien, Taiwan DEXATEK TECHNOLOGY LTD., TEL: +886 2 86984245FAX: +886 2 86984108 Specification BluetoothBluetooth 4.0 Consumption0.28mA Humidity Sensor0 to99% RH operating range ±3-4.5% RH (@0~80% RH) *2 ±5.5-7%RH (@80~99% RH) Temperature Sensor–20 to +85 ºC operating range ±0.5-1ºC(@0~70ºC) ±1.25ºC(@70~85ºC) ±2.5ºC(@0~-20ºC) Pressure Sensor260 to 1260 mbar absolute pressure range High-resolution mode: 0.020 mbar RMS ConsumptionLow power consumption: Low resolution mode: 5.5μA High resolution mode: 30 μA DimensionApprox.80x22mm (W x H) WeightApprox.30g Working VoltageTwo AAA batteries *1 Operation TimeStandbyfor six monthsabove Device connectBlueLEDpermanent bright Operating range30 M othersPer second broadcast once. 2 minutes device transmits the information to the mobile phone. 8sets weather station can be installed at the same time *1:If thetemperature is below 10°C or 50F, suggestusingrechargeable batteries to replace disposable batteries. *2: Recommended humidity operating range is20–80%, RH(non-condensing) over–10 to +60ºC. Prolonged operation beyond these ranges may result in a shift of sensor reading with slow recovery time. System Requirement iOS-iphone4s or above -ipad3 or above -ipad mini or above -ipod touch5 or above Android-Support Android 4.3or above iOS-SupportiOS7or above TEL: +886 2 86984245FAX: +886 2 86984108 Add: 15F, No.81,Sec.1, Hsin Tai Wu Rd.,Hsi-Chih 221, Taipei Hsien, Taiwan DEXATEK TECHNOLOGY LTD., TEL: +886 2 86984245FAX: +886 2 86984108 Bluetooth Smart Ready product Website :http://www.bluetooth.com/Pages/Bluetooth-Smart-Devices-List.aspx ManufacturerProduct NameType of Product AppleiPad (Air, Mini, 3 rd & 4 th gen)Tablet AppleiPhone (5s, 5c, 5 & 4s)Phone AppleiPod touch 5thPortable Media Player GoogleNexus 5, Nexus 4Phone GoogleNexus 7, Nexus10Tablet HTCOne, One MaxPhone MotorolaDroid RAZR, Ultra, Maxx, MiniPhone MotorolaMoto G, XPhone SamsungGalaxy SeriesPhone SonyXperia SeriesPhone SonyXperia SeriesTablet Accessories (Package Contents) Quick Installation Guide Two AAA batteries Connection chart When you install batteries ready, weather sensor will be broadcast automatically. TEL: +886 2 86984245FAX: +886 2 86984108 Add: 15F, No.81,Sec.1, Hsin Tai Wu Rd.,Hsi-Chih 221, Taipei Hsien, Taiwan DEXATEK TECHNOLOGY LTD., TEL: +886 2 86984245FAX: +886 2 86984108 Test report 1. Specification 1.1 SA-7101 Spec ItemSpec ItemSpec Value Electrical Radio Carrier Frequency2.4G Operating Distance30M in Openspaces Battery RequirementAAA batteriesx2pcs Operation Voltage3V Power consumption0.186mA 2. Environmental Requirement Test Equipment Equipment :Temperature Test Chamber Manufacturer :KSON Model Number :THS-C2T-100 Date of Calibration:Jul. 8, 2013 Laboratory Ambiance Condition Temperature : 15 ~ 35°C Humidity :25 ~ 75 %RH 2.1 Temperature & Humidity Test: Chamber settingsTest Device 0ºC the data cannot refer when the temperature was below to 0ºC 0ºC1.8ºC32% -5ºC-4ºC36% -10ºC-8.9ºC30% -15ºC-13.7ºC42% -20ºC-18.7ºC49% 20ºC 20%20ºC23% 30%20ºC30% TEL: +886 2 86984245FAX: +886 2 86984108 Add: 15F, No.81,Sec.1, Hsin Tai Wu Rd.,Hsi-Chih 221, Taipei Hsien, Taiwan DEXATEK TECHNOLOGY LTD., TEL: +886 2 86984245FAX: +886 2 86984108 40%19.8ºC41% 50%19.8ºC49% 60%19ºC57% 70%20ºC66% 80%20ºC76% 25ºC 20%25ºC23% 30%25ºC31% 40%24ºC41% 50%24ºC49% 60%24ºC56% 70%24ºC66.5% 80%24.8ºC76% 30ºC 20%29.9ºC24% 30%29ºC32% 40%29ºC41% 50%29ºC56% 60% 29°C57% 70%29.7ºC65.5% 80%29.8ºC77% 35ºC 20%34.9ºC26% 30%34.93ºC3% 40%34ºC41% 50%34.9ºC49% 60%35ºC57% 70%35.1ºC70% 80%35ºC76% 40ºC 20%39ºC26% 30%40ºC31% 40%39.8ºC38% 50%39.9ºC49% 60%40ºC58% 70%40ºC66% TEL: +886 2 86984245FAX: +886 2 86984108 Add: 15F, No.81,Sec.1, Hsin Tai Wu Rd.,Hsi-Chih 221, Taipei Hsien, Taiwan DEXATEK TECHNOLOGY LTD., TEL: +886 2 86984245FAX: +886 2 86984108 80%40ºC76% 45ºC 20%44ºC24% 30%45ºC31% 40%45ºC40% 50%45ºC49% 60%45.4ºC57% 70%45ºC65.5% 80%45.2ºC76.5% Setup Photo: TEL: +886 2 86984245 FAX: +886 2 86984108 Add: 15F, No.81,Sec.1, Hsin Tai Wu Rd.,Hsi-Chih 221, Taipei Hsien, Taiwan Connection Chart DEXATEK TECHNOLOGY LTD., TEL: +886 2 86984245 FAX: +886 2 86984108
BLE Temperature/Humidity/Pressure Sensor SPEC Feature
Bluetooth Wireless Temperature/Humidity/Pressure Sensor
High precision non-contact temperature measurement (+/- 0,5ºC)
Temperature/Pressure ranges: -20°C to +85°C for ambient temperature
low power consumption technology: Use Bluetooth L ow E n e r g y
Easily manipulate using.
Free APP Download: APP is free download from apple store.
Device Max distance 30M in open spaces, due to the external environment are subject to change. Specification Bluetooth Bluetooth 4.0 consumption 0.35mA Humidity Sensor ± 4.5 % RH (maximum @ 20–80% RH) Temperature Sensor ±0.5 ºC accuracy (typical) ±1 ºC accuracy (maximum @ 0 to 70 °C) 0 to 100% RH operating range –20 to +85 ºC operating range Pressure Sensor 260 to 1260 mbar absolute pressure range High-resolution mode: 0.020 mbar RMS TEL: +886 2 86984245 FAX: +886 2 86984108 Add: 15F, No.81,Sec.1, Hsin Tai Wu Rd.,Hsi-Chih 221, Taipei Hsien, Taiwan Connection Chart DEXATEK TECHNOLOGY LTD., TEL: +886 2 86984245 FAX: +886 2 86984108 Low power consumption: Lo…

Text truncated - open the document above for the full version.

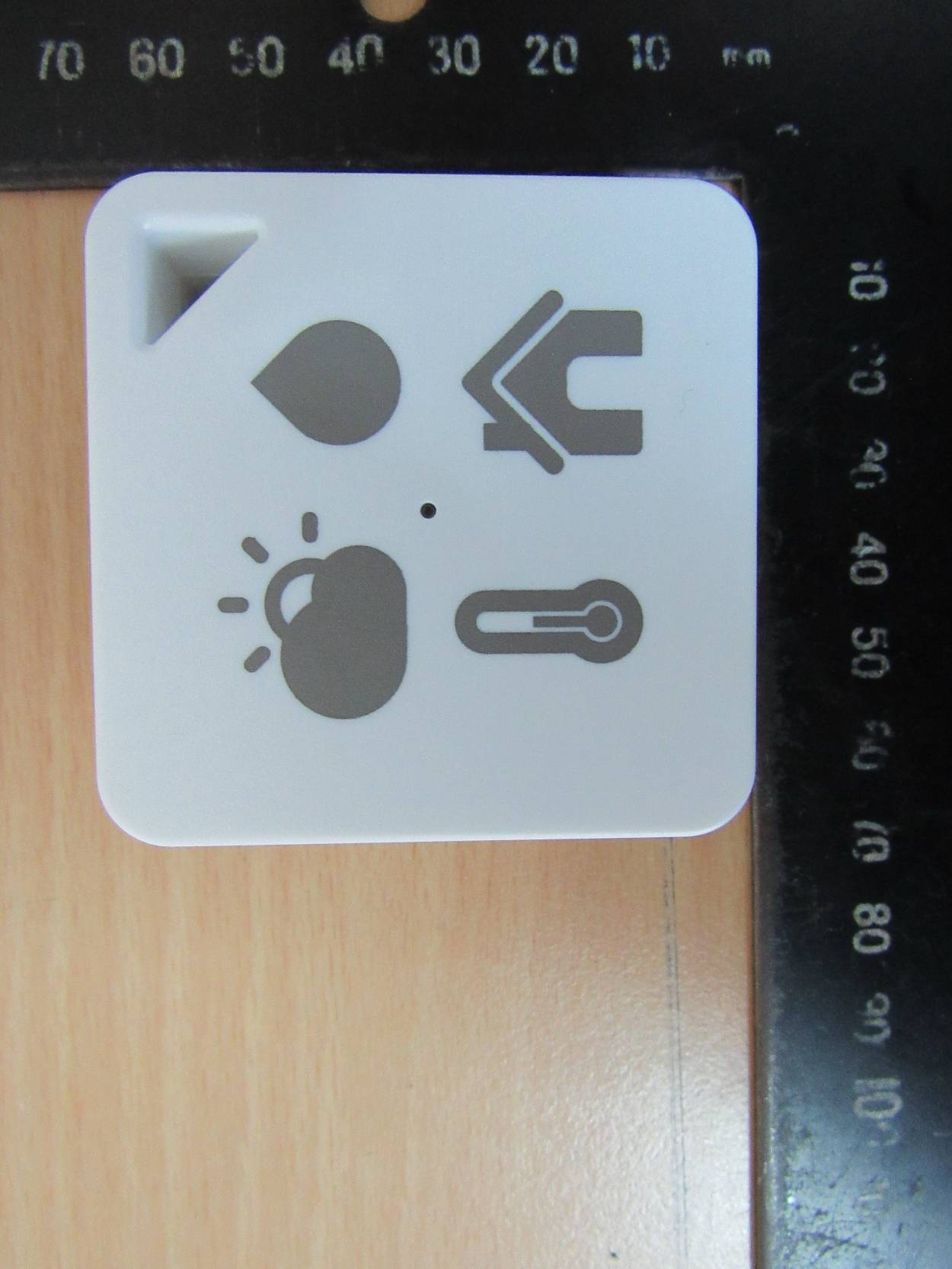

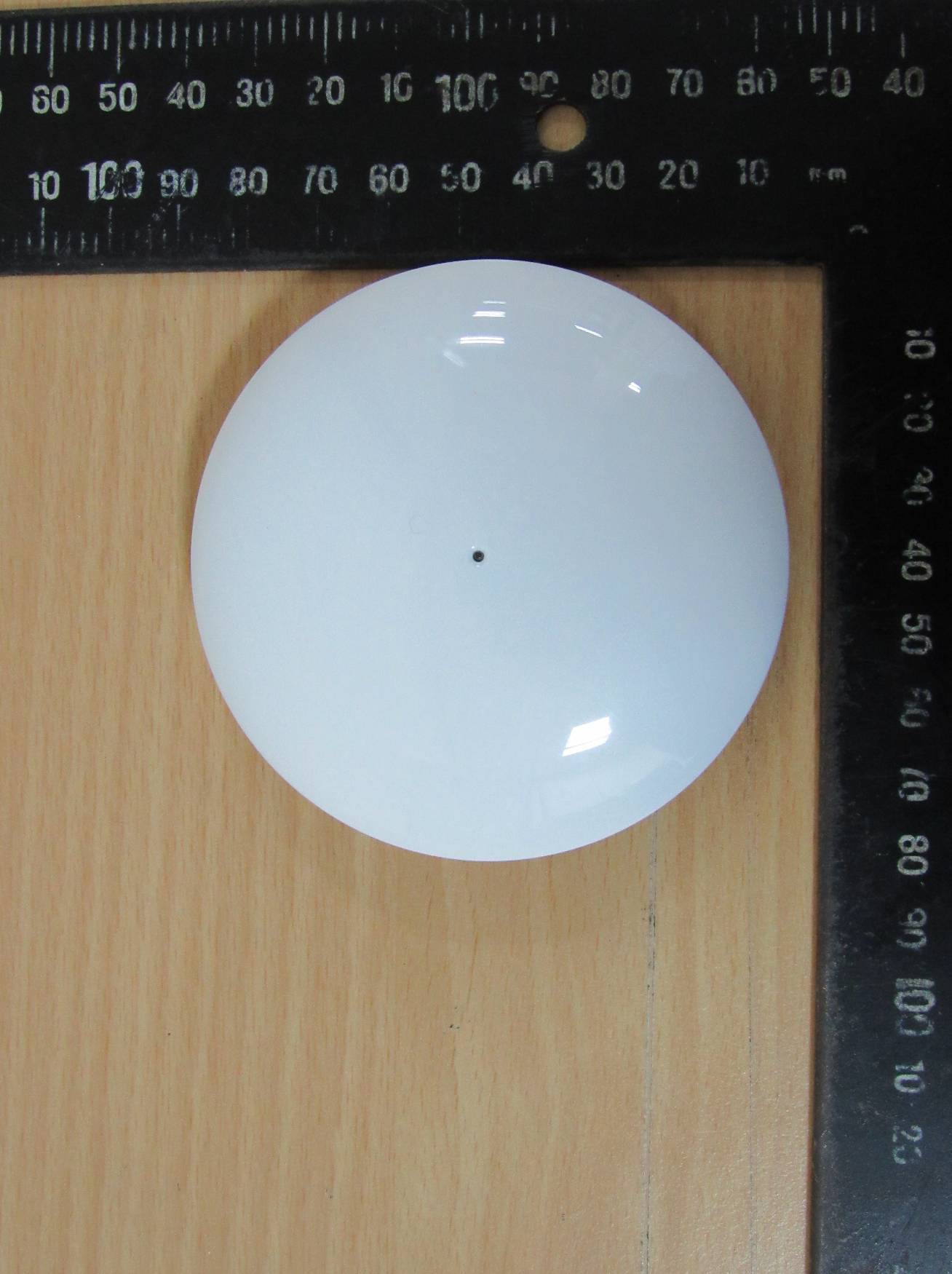

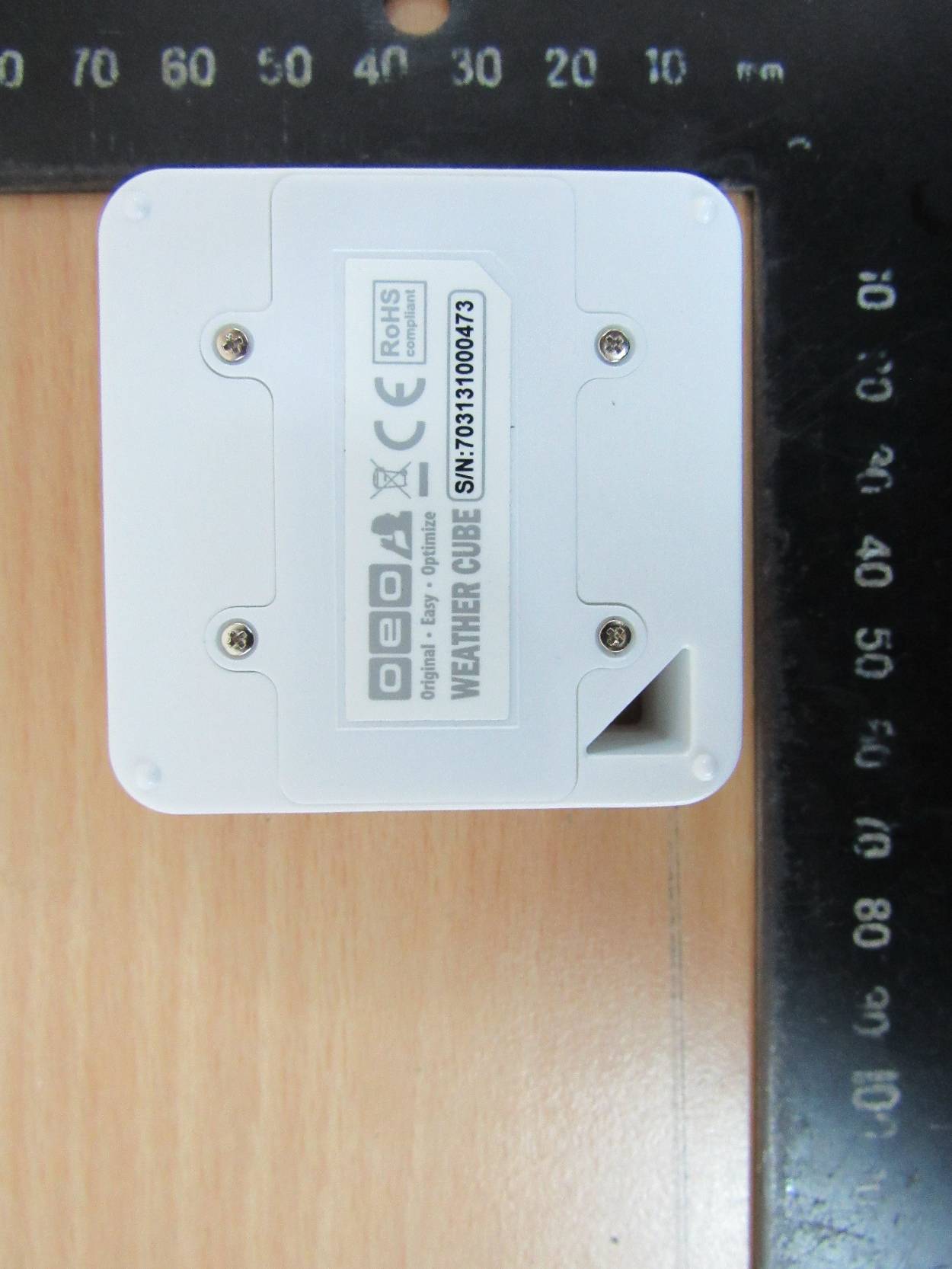

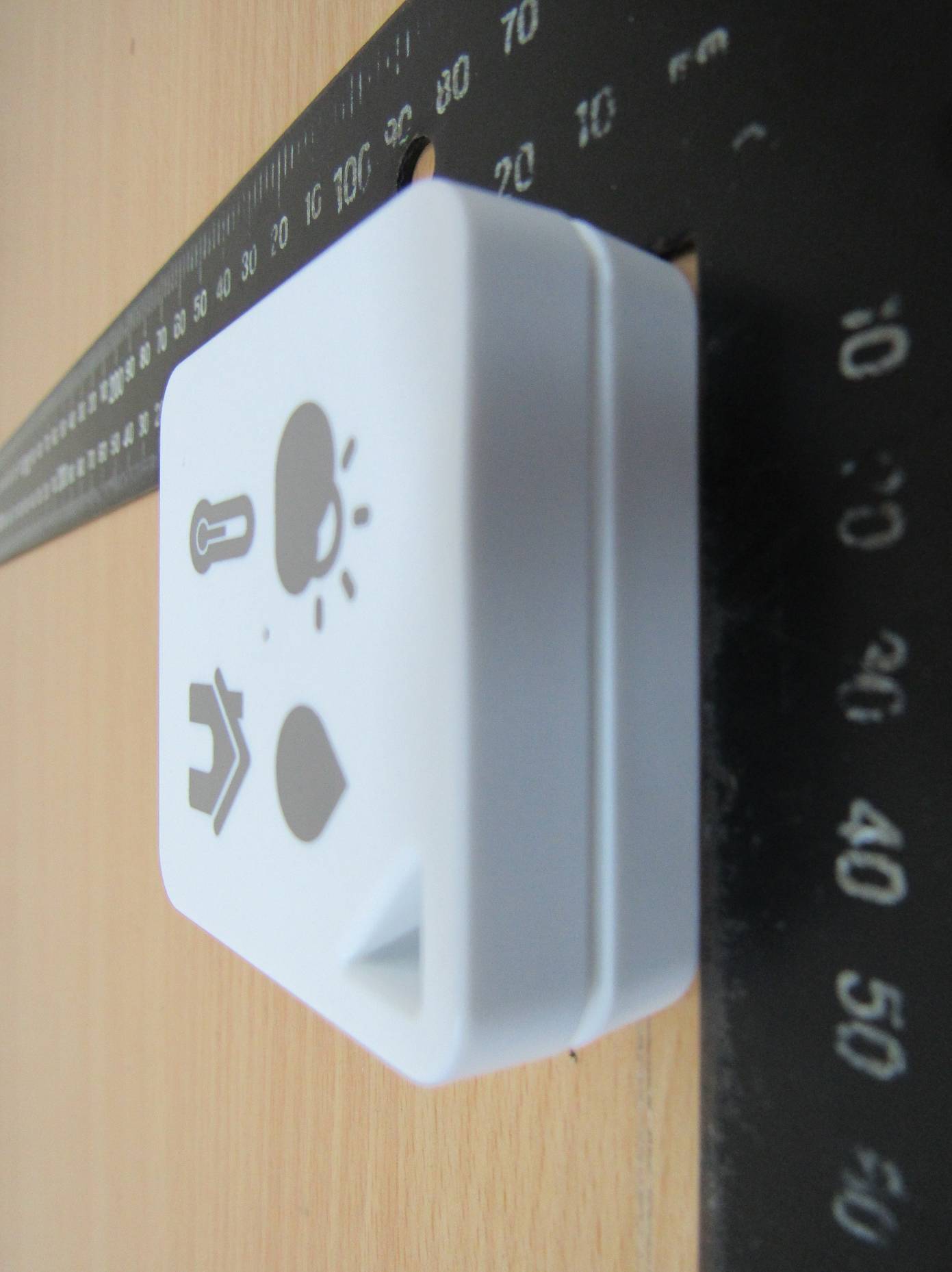

Registration number: W6M21502-14833-FCC FCC ID: SZY-SA7101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 17 External Photos Registration number: W6M21502-14833-FCC FCC ID: SZY-SA7101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 17 Registration number: W6M21502-14833-FCC FCC ID: SZY-SA7101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 17 Square type Registration number: W6M21502-14833-FCC FCC ID: SZY-SA7101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 17 Registration number: W6M21502-14833-FCC FCC ID: SZY-SA7101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 17 Registration number: W6M21502-14833-FCC FCC ID: SZY-SA7101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 17 Registration number: W6M21502-14833-FCC FCC ID: SZY-SA7101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 13 of 17 Registration number: W6M21502-14833-FCC FCC ID: SZY-SA7101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 14 of 17

Registration number: W6M21502-14833-FCC FCC ID: SZY-SA7101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 17 Internal Photos Registration number: W6M21502-14833-FCC FCC ID: SZY-SA7101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 17 Registration number: W6M21502-14833-FCC FCC ID: SZY-SA7101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 17 Registration number: W6M21502-14833-FCC FCC ID: SZY-SA7101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 17 Registration number: W6M21502-14833-FCC FCC ID: SZY-SA7101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 17

Registration number: W6M21502-14833-C-1 FCC ID: SZY-SA7101 Worldwide Testing Services(Taiwan) Co., Ltd. Page 15 of 29 3.2 Equivalent isotropic radiated power FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain EIRP = -3.71 dBm + 5.30 dBi = 1.59 dBm Limit: EIRP = +36 dBm for Antenna gain <6dBi Test equipment used: ETSTW-RE 055 3.3 RF Exposure Compliance Requirements RESULT: Test standard : FCC KDB Publication 447498 10 D01v05 According to KDB447498 10 D01v05: SAR evaluation, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. The enclosure of the device provides ≥ 0.5 cm separation from the antenna elements to significant metal parts of the enclosure to minimize potential perturbations. Frequency Band:2400-2483.5 MHz Maximum Power fed to Antenna (BT4.0): 1.442 mW Separation distances: Radiator to user: > 5 mm Distance prescribed in user manual: > 5 mm MHz 5 10 15 20 25 mm 2450 10 19 29 38 48 SAR Test Exclusion Threshold (mW) MHz 30 35 40 45 50 mm 2450 57 67 77 86 96 SAR Test Exclusion Threshold (mW) MHz 50 60 70 80 90 100 110120130140150160170 180 190 mm 2450 96 196 296 396496 596 696796896996109611961296 1396 1496 mW

of Applicant: Dexatek Technology Ltd. Address: 15F.,NO.81,Sec.1,Sintai 5th Rd., Sijhih Dist., New Taipei City 221, Taiwan (R.O.C.) Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1, IC 5107A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21502-14833-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Weather Sensor Model No.: SA-7101 FCC ID: SZY-SA7101 Registration number: W6M21502-14833-C-1 FCC ID: SZY-SA7101 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 29 TABLE OF CONTENTS 1 GENERAL INFORMATION ..........................................................................................................2 1.1 NOTES..........................................................................................................................................2 1.2 T ESTING LABORATORY................................................................................................................3 1.2.1 Location ..................................................................................................................................3 1.2.2 Details of accreditation status ................................................................................................3 1.3 D ETAILS OF APPROVAL HOLDER...................................................................................................3 1.4 A PPLICATION DETAILS.................................................................................................................4 1.5 G ENERAL INFORMATION OF TEST ITEM........................................................................................4 1.6 TEST STANDARDS.........................................................................................................................5 2 TECHNICAL TEST .........................................................................................................................6 2.1 S UMMARY OF TEST RESULTS........................................................................................................6 2.2 TEST ENVIRONMENT....................................................................................................................6 2.3 TEST EQUIPMENT LIST.................................................................................................................7 2.4 G ENERAL TEST PROCEDURE........................................................................................................9 3 TEST RESULTS (ENCLOSURE) ................................................................................................11 3.1 PEAK OUTPUT POWER (TRANSMITTER) ......................................................................................12 3.2 EQUIVALENT ISOTROPIC RADIATED POWER................................................................................15 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS............................................................................15 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS....................................................16 3.5 SPURIOUS EMISSIONS (TX) .........................................................................................................17 3.6 RADIATED EMISSION ON THE BAND EDGE..................................................................................20 3.7 MINIMUM 6 DB BANDWIDTH.....................................................................................................22 3.8 P EAK POWER SPECTRAL DENSITY.............................................................................................25 3.9 P OWER LINE CONDUCTED EMISSION.........................................................................................28 APPENDIX.............................................................................................................32 Registration number: W6M21502-14833-C-1 FCC ID: SZY-SA7101 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 29 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. Tester: March 17, 2015 Robert Ren Date WTS-Lab. Name Signature Technical responsibility for area of testing: March 17, 2015 Kevin Wang Date WTS Name Signature Registration number: W6M21502-14833-C-1 FCC ID: SZY-SA7101 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 29 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter semi-anechoic …
