SZY-SA7118Smart Motion Sensor

Dexatek ∑Casa/SmartCasa Quick Installation Guide ∑CASA 1. ∑Central/Smart Gateway 3 1.1. First time to use ∑Central/Smart Gateway 3 2. The steps before you add any peripheral 5 3. ∑MotionSense/Smart Motion Sensor 6 2 1. ∑Central/Smart Gateway 1.1. First time to use ∑Central/Smart Gateway 3 2 3 4 Power ON the ∑Central and place it at the centre of your house to have good communication with other devices 請確認ΣCentral放置適當位置並與其 它裝置能保持良好通訊距離 Download ∑Casa or Smart Casa App from Apple store or Google Play 下載ΣCasa應⽤用程式，掃描左⽅方QR Code 或在App Store/Google Play 搜尋 “Sigma Casa” Register an account for your ∑Casa or SmartCasa 下載完成後，在App中註冊⼀一 個ΣCASA帳號 Make sure the bluetooth on your smart phone is ON 請確認手機上的Bluetooth為開啟狀 態 4 Follow the instruction on App to set up your ∑Central 根據APP上的指示進行安裝 56 78 ! Push the RESET button and hold for 3 seconds until the Orange LED flash quickly 請按住ΣCentral中間鈕3秒直 到顯⽰示燈快速閃爍。 Select the WiFi router to be connected 選擇欲連接的WiFi router Switch to [Device] tab, You will see the information of location and weather forecast. Now you can start to add other devices切換⾄至「Devices」⾴頁⾯面，你將看到 位置等資訊 2. The steps before you add any peripheral 5 Login ∑Casa or Smart Casa App 12 34 If you forget your password, you can click the button [Forgot your password?] to reset the password Please make sure the distance between ∑Central and other devices is less than 10m 請確認ΣCentral與其他裝置保持10 公尺以內良好通訊距離 Follow the instruction on App to add and pair device 根據APP上的指⽰示進⾏行安裝 Within 10 Meters 3. ∑MotionSense/Smart Motion Sensor 6 12 34 After completing the setup, switch back to [Device] tab, then you will see the status of ∑MotionSense. 安裝完成，可⽴立即開始使⽤用裝置 Open the battery cover and put one ER14250 1/2AA battery 打開電池蓋並裝⼊入電池 Pairing with ∑Central Use a pin to press the reset button on BACK and hold for 3 seconds until the Green LED flashes 使⽤用PIN針按住電池匣內的reset鍵，直 到LED燈閃爍為⽌止 You will need to enter PIN code that combines digits and letters. 1)You can find the PIN code stick on the device 2)OR use default for samples Default PIN code: 888888 請按照APP指示輸入PIN code 7 5 You can place ∑Motion in detectable place or stick it on the wall by using holder and adhesive tape 你可使⽤用⽀支架配件安裝⾄至牆⾯面上 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 0.5 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 0.5 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 8

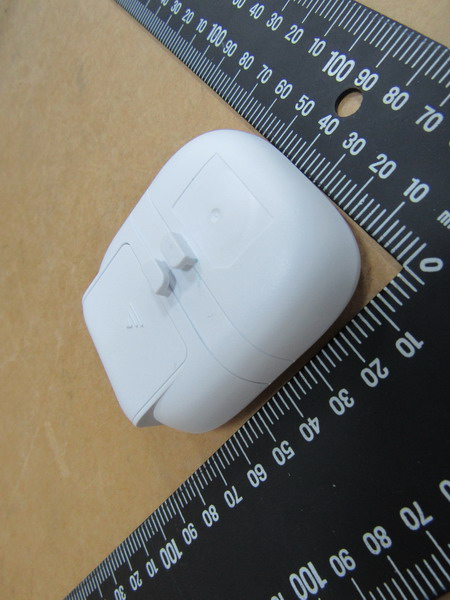

Registration number: W6M21511-15426-FCC FCC ID: SZY-SA7118 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 12 External Photos Registration number: W6M21511-15426-FCC FCC ID: SZY-SA7118 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 12

SmartHome ΣMotion 24.6mm 16.8mm Smart Motion Sensor SA-7118 Battery 1/2AA Blu etooth 4.0 Made in Taiwan FCC ID: SZY-SA7118 XXXXXXXXXXXXXX Smart Motion Sensor SA-7118 Battery 1/2AA Blu etooth 4.0 Made in Taiwan FCC ID: SZY-SA7118 XXXXXXXXXXXXXX

Registration number: W6M21511-15426-FCC FCC ID: SZY-SA7118 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 4 of 12 Internal Photos Registration number: W6M21511-15426-FCC FCC ID: SZY-SA7118 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 5 of 12 Registration number: W6M21511-15426-FCC FCC ID: SZY-SA7118 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 6 of 12 Registration number: W6M21511-15426-FCC FCC ID: SZY-SA7118 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 7 of 12 Registration number: W6M21511-15426-FCC FCC ID: SZY-SA7118 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 8 of 12 Registration number: W6M21511-15426-FCC FCC ID: SZY-SA7118 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 9 of 12

Registration number: W6M21511-15426-C-1 FCC ID: SYZ-SA7118 Worldwide Testing Services(Taiwan) Co., Ltd. Page 15 of 29 3.2 RF Exposure Compliance Requirements FCC Rule: 15.247(b)(3) Test exclusion = max. conducted output power + adjusted for tune-up tolerance Test exclusion = -3.43 dBm RESULT: Test standard : FCC KDB Publication 447498 D01 General RF Exposure Guidance v05r02 According to 447498 D01 General RF Exposure Guidance v05r02: SAR evaluation, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. The enclosure of the device provides ≥ 0.5 cm separation from the antenna elements to significant metal parts of the enclosure to minimize potential perturbations. Frequency Band:2402-2480 MHz Maximum Power fed to Antenna: 0.4539 mW Separation distances: Radiator to user: > 5 mm Distance prescribed in user manual: > 5 mm MHz 5 10 15 20 25 mm 2450 10 19 29 38 48 SAR Test Exclusion Threshold (mW) MHz 30 35 40 45 50 mm 2450 57 67 77 86 96 SAR Test Exclusion Threshold (mW) MHz 50 60 70 80 90 100 110120130140150160170 180 190 mm 2450 96 196 296 396496 596 696796896996109611961296 1396 1496 mW

of Applicant: Dexatek Technology Ltd. Address: 15F., No.81, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221, Taiwan (R.O.C.) Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1, IC 5107A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21511-15426-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Smart Motion Sensor Model No.: SA-7118 FCC ID: SZY-SA7118 Registration number: W6M21511-15426-C-1 FCC ID: SYZ-SA7118 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 29 TABLE OF CONTENTS 1 GENERAL INFORMATION.........................................................................................................................................2 1.1 NOTES......................................................................................................................................................................2 1.2 TESTING LABORATORY.............................................................................................................................................3 1.2.1 Location ..............................................................................................................................................................3 1.2.2 Details of accreditation status ............................................................................................................................3 1.3 DETAILS OF APPROVAL HOLDER...............................................................................................................................3 1.4 APPLICATION DETAILS..............................................................................................................................................4 1.5 GENERAL INFORMATION OF TEST ITEM.....................................................................................................................4 1.6 TEST STANDARDS.....................................................................................................................................................5 2 TECHNICAL TEST........................................................................................................................................................6 2.1 SUMMARY OF TEST RESULTS.....................................................................................................................................6 2.2 TEST ENVIRONMENT.................................................................................................................................................6 2.3 TEST EQUIPMENT LIST..............................................................................................................................................7 2.4 GENERAL TEST PROCEDURE.....................................................................................................................................9 3 TEST RESULTS (ENCLOSURE) ...............................................................................................................................11 3.1 PEAK OUTPUT POWER (TRANSMITTER)...................................................................................................................12 3.2 RF EXPOSURE COMPLIANCE REQUIREMENTS.........................................................................................................15 3.3 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS................................................................................16 3.4 SPURIOUS EMISSIONS (TX)......................................................................................................................................17 3.5 RADIATED EMISSION ON THE BAND EDGE...............................................................................................................19 3.6 MINIMUM 6 DB BANDWIDTH..................................................................................................................................21 3.7 PEAK POWER SPECTRAL DENSITY..........................................................................................................................24 3.8 RADIATED EMISSION FROM DIGITAL PART.............................................................................................................27 3.9 POWER LINE CONDUCTED EMISSION......................................................................................................................28 APPENDIX.............................................................................................................32 Registration number: W6M21511-15426-C-1 FCC ID: SYZ-SA7118 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 29 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Tester: January 11, 2016 Spencer Yang Date WTS-Lab. Name Signature Technical responsibility for area of…
