T2C-A30Video Conferencing Endpoint

All-in-one Video Collaboration Bar MeetingBar A30 English | 侄⍖∮㦋
| Deutsch | Français | Español Quick Start Guide (V1.0) Microsoft Teams Certified for Table of Contents English..............................................................1 皍⡤⚥俒 .......................................................... 6 Deutsch...........................................................11 Français...........................................................16 Español...........................................................21 1 Note: • We recommend that you use the accessories provided or approved by Yealink. The unapproved third-party accessories may result in reduced performance. • Use the Yealink original adapter (48V/0.7A) to charge the endpoint only. The use of the third-party adapter may cause the damage to the endpoint. • Put the magnet rings on the HDMI cable to prevent electromagnetic interference. • The device supports Yealink product CPW90(Bluetooth wireless microphones) or some third-party Bluetooth microphones/headsets. Package Contents MeetingBar A30 VCR20-Teams AAA Battery×2 3m Ethernet Cable 1.8m HDMI Cable×2 (for the display device) Cable Tie×5 Power Adapter ×4 ×2 ×2 Mounting Bracket and Accessories Silicone Pad×2 Quick Start Guide CTP18 VCH51 Remote Control Package (Only Teams edition) Touch Panel Package VCH51 Sharing Kit • Standard accessories • Optional accessories WPP20 Wireless Presentation Pod E N G L I S H 2 Endpoint Installation Use the bracket to mount your endpoint on a wall. The mounting height affects your camera view. The recommended height is 1.1m above the ground. Wall Mounting Step1: Assemble the mounting bracket • Mount on a Wall A30 position TV TV H>120cm H<120cm 10cm Remove the Protective Shell E N G L I S H 3 4 5 NN 3 • Using Yealink TV Mount Bracket Note: The TV stand should be purchased separately. Step2: Mount the A30 to the wall T4×30 screws Hole depth: 30mm Hole diameter: 6mm E N G L I S H 4 Adjusting the Camera Tilt 15° 15° 1 2 • Put on a desk TV • Put on a TV stand cart platform TVTV Silicone Pad E N G L I S H 5 CTP18 Connection Rese t M AC SN 3m Ethernet Cable 7.5m Ethernet Cable Pair the CTP18 with A30-Teams: Sign into the same Microsoft account on both CTP18 and the endpoint, then enter the PIN code according to the on-screen prompts, after that the system will be auto- matically paired with the CTP18. Pair the CTP18 with A30-Zoom: Enter the IP Address, then the system will be automatically paired with the CTP18. Endpoint Connections Note: • If you connect a touch display device, you can operate the A30 either by remote control or touch control. • If you connect a non-touch display device, you can use the remote control, mouse or CTP18. Po E Display Power Adapter 3m Ethernet Cable7.5m Ethernet Cable Display 1.8m HDMI Cable VCH51 E N G L I S H PoE 6 忼㨒盚 ǖ
㽧∻ " 劫⊪⣅ѭ⬫䤣䄿䞳Ⲇ∮琳忭⊪⣅⟳唂⌝搪㘔㧤勃䤹㉵㙴ѭ⬫揣䷑㓉▹∌琳⟳唂權嶈䤬㘻⿼㉵㙴旑⟚☋辵⟳ 屑䪈㞮㧁ѭ ǖ
㘕⋯㞬坕⎂䤬䤵⋂呙㟔⎞㘚勓⋂呙徬⟳䪈敗⋹⢐勃匊琳⎂䤬㬭勓徬⟳䪈估∊㦽敗⋹⢐勃匊⟳唂⌝⿿嗹㐫唂䪈∌橗ѭ ǖ
⎂䤬 )%.* 勃♑琳忿ⵚ∋䳅䞳䤬⊑㚛䤹䳅㉵㙴ѭ ǖ
忆ⴊ㤳㜅⋂呙⊪⣅ $18 壢䙝㧤勃㙭じ犰琰㘚擲☊估∊㦽壢䙝犰  吸㬽ѭ ⺫鄳幡支 ×4 ×2 ×2 .FFUJOH#BS
" ⟻䤹䁤–  偷单勃
偷
)%.* 勃 Y 琯䤬⊑㞩㩂䴾忆ⴊ琰 㭢勃(十) –
䤹䊔搌敗⩬ 㤳㮹敗⋹ 琯䤬⊑虍峊∼㬽琰 䱉哻⮮ Y16日搩╩槲㜋❛ VCR20-Teams 黔䱽㐼 CTP18 VCH51 黔䱽㐼 〫鷓ꂁ 5FBNT 鍘䱽䎂匣 剣絁䫏㾓㤛⟝ ̇
叻ⲥꂁ⟝ ̇
〳鷥ꂁ⟝ WPP20 偽絁⠛㾓㐼 皍 ⡤ ⚥ 俒 7 㟖鄳 ⎂䤬㤳㮹〉勌仳虍峊⬫Ⲝ∋ѭ
虍峊滢㊩⌝㍵⣑㡈ⓒ㬽䪈巍旘琳㋽徶勌仳虍峊䪈 滢㊩∻䶿⬳歬 Nѭ 㽨溭 盚虍峊㤳㮹 㸝鄳絊畮 ̇
㟖鄳 " ⡙縨 TV TV H>120cm H<120cm 10cm 䬒ꤑꞤ㣢⥂䫡㡲 皍 ⡤ ⚥ 俒 8 ̇

⢪欽➉翫⚁欽歏錠䭱卹 霹僈歏錠卹꨽支杝餝✈կ 4 5 N N 3 㙗父䫸㎈盚NN 㙗父䇵㊩盚NN 宿∞巋㰿盚5– 㽨溭 盚Ⲝ峊 皍 ⡤ ⚥ 俒 9
靈侮⧫俷錭䏞 15° 15° 1 2 ̇
縨✵呱꬗ TV ̇
縨✵歏錠䲀鲨 TVTV 炊脸㙈 皍 ⡤ ⚥ 俒 10 鵶䱹絊畮 忼㨒盚
ǖ
ⶅ㮟⍣揨㞩䪈㨳差㞫㌒㩂䴾忆ⴊ琳⍣⟳⋨⎂䤬摯㞫⩬㘚吊差㡼げ㣑⍟勌仳ѭ ǖ
ⶅ㮟⍣揨㞩䪈㨳歨差㞫㌒㩂䴾忆ⴊ琳⍣⟳⋨⎂䤬摯㞫⩬琳猪㰊㘚 $51 㣑⍟勌仳ѭ Po E 㩂䴾忆ⴊ 䤹䊔搌敗⩬ 偷
)%.*
勃  偷单勃 鵶䱹 CTP18 Rese t M AC SN  碛緸絁  碛緸絁 偷单勃 VCH51 $51 ♸ "5FBNT ꂁ㼆 絊畮ㄤ $51 涬䔶湱ず涸䗎鲱餖〿呏䰘絊畮儑爙㐼涸歲꬗䲿爙ⰻ㺂㖈 $51 ♳鳕 Ⰶ湱䎾ꂁ㼆瀦た禹絡㼜荈⸓♸絊畮鵳遤ꂁ㼆կ $51 ♸ ";PPN ꂁ㼆 㖈 $51 涸涬䔶歲꬗鳕Ⰶ絊畮涸 *1 㖑㖧禹絡㼜荈⸓♸絊畮鵳遤ꂁ㼆կ 㩂䴾忆ⴊ 皍 ⡤ ⚥ 俒 PoE 11 Hinweis: • Wir empfehlen die Verwendung von Zubehör, das von Yealink entweder geliefert oder empfohlen wird. Der Geb- rauch von Drittanbietern bereitgestellten Zubehörs, das von Yealink nicht freigegeben wurde, kann zu einer ver- minderten Leistungsfähigkeit führen. • Verwenden Sie ausschließlich das Originalnetzteil von Yealink (48 V/0,7 A) zum Laden des Endpunkts. Die Ver- wendung eines Netzteils von einem Drittanbieter kann zur Beschädigung des Endpunkts führen. • Setzen Sie die Magnetringe auf das HDMI-Kabel, um elektromagnetische Störungen zu vermeiden • Das Gerät unterstützt das Yealink-Produkt CPW90 (drahtlose Bluetooth-Mikrofone) oder einige Bluetooth-Mikro- fone/-Headsets von Drittanbietern. Verpackungsinhalt MeetingBar A30 VCR20-Teams AAA-Batterie × 2 3M Ethernet-Kabel 1,8m HDMI-Kabel×2 (für das Anzeigegerät) Kabelbinder × 5 Netzgerät ×4 ×2 ×2 Wandhalterung und ZubehörSilikonpad×2 Kurzanleitung CTP18 VCH51 Fernbedienungspaket (Nur Teams-Edition) Touchpanel-Paket VCH51 Freigabe-Set • Standardzubehör • Optionales Zubehör WPP20 Adapter für drahtlose Präsentationen D E U T S C H 12 Endpunkt-Installation Verwenden Sie die Halterung, um Ihren Endpunkt an einer Wand zu montieren. $IE
-ONTAGEHÎHE
BEEINÛUSST
DIE
!NSICHT
)HRER
+AMERA
%S
WIRD
EINE
(ÎHE
VON
1,1 m über dem Boden empfohlen. Wandmontage Schritt 1: Setzen Sie die Montagehalterung zusammen • Wandmontage A30-Position TV TV H>120cm H<120cm 10cm Entfernen der Schutzhülle D E U T S C H 13 4 5 NN 3 • mit der Yealink TV-Montagehalterung Hinweis: Der TV-Ständer sollte separat erworben werden. Schritt 2: Montieren Sie das A30 an der Wand T4x30-Schrauben Lochtiefe: 30mm Lochdurchmesser: 6mm D E U T S C H 14 Einstellen der Kameraneigung 15° 15° 1 2 • Auf einen Schreibtisch stellen TV • Auf eine Wagenplattform für einen TV-Ständer stellen TVTV Silikonpad D E U T S C H

15 Verbinden des CTP18 Rese t M AC SN 3m Ethernet-Kabel 7,5m Ethernet-Kabel Das CTP18 mit A30-Teams koppeln: Melden Sie sich sowohl auf dem CTP18 als auch auf dem Endpunkt bei demselben Microsoft-Konto an und geben dann den PIN-Code laut den Bildschirmanweisungen ein. Danach wird das System automatisch mit dem CTP18 gekoppelt. Das CTP18 mit A30-Zoom koppeln: Geben Sie die IP-Adresse ein, dann wird das System automatisch mit dem CTP18 gekoppelt. Endpunktverbindungen Hinweis: • Wenn Sie ein Touch-Display-Gerät anschließen, können Sie das A30 entweder per Fernbedienung oder per Touch-Control bedienen. • Wenn Sie ein Display-Gerät ohne Touch-Funktion anschließen, können Sie die Fernbedienung, Maus oder CTP18 verwenden. Po E Display Netzgerät 1,8m HDMI-Kabel 3m Ethernet-Kabel 7,5m Ethernet-Kabel VCH51 Display D E U T S C H PoE 16 Remarque : • Nous vous recommandons d’utiliser les accessoires fournis et approuvés par Yealink. L’utilisation d’accessoires tiers non approuvés peut engendrer une perte de capacité des produits. • Utilisez seulement l'adaptateur secteur Yealink d'origine (48 V/0,7 A) pour charger le point de terminaison. L'utili- sation d'un adaptateur tiers peut provoquer des dommages au point de terminaison. • Mettez les anneaux magnétiques sur le câble HDMI pour éviter les interférences électromagnétiques. • ,APPAREIL
PREND
EN
CHARGE
LE
PRODUIT
9EALINK
#07
MICRO
SANS
ÚL
"LUETOOTH
OU
DES
MICROSCASQUES
"LUETOOTH
tiers. Contenu de la boîte MeetingBar A30 VCR20-Teams Pile AAA ×2 Câble Ethernet 3 m Câble HDMI 1,8 m×2
POUR
LE
PÁRIPHÁRIQUE
DAFÚCHAGE Serre-câbles ×5 Adaptateur d'alimentation ×4 ×2 ×2 Support muralet accessoires Support en silicone×2 Guide de démarrage rapide CTP18 VCH51 Pack de contrôle à distance (édition Teams uniquement) Pack écran tactile Kit de partage VCH51 • Accessoires standard • Accessoires en option WPP20 0OD
DE
PRÁSENTATION
SANS
ÚL F R A N Ç A I S 17 Installation du point de terminaison Utilisez le support pour fixer votre point de terminaison sur un mur. La hauteur DE
MONTAGE
MODIÚE
LA
VUE
DE
LA
CAMÁRA

,A
HAUTEUR
RECOMMANDÁE
EST
DE

M
au-dessus du sol. Support mural Étape 1 : Assembler le support de montage • Montage mural Position A30 TV TV H>120cm H<120cm 10cm Retirez la coque de protection F R A N Ç A I S 18 4 5 N N 3 • Utiliser le support de montage Yealink TV Remarque : Le support TV doit être acheté séparément. Étape 2 : Fixer l'A30 sur le mur Vis T4 × 30 Profondeur du trou : 30mm Diamètre du trou : 6mm F R A N Ç A I S 19 Réglage de l'inclinaison de la caméra 15° 15° 1 2 • Installation sur un bureau TV • Installation sur une plate-forme de support TV TVTV Support en silicone F R A N Ç A I S 20 Connexion CTP18 Rese t M AC SN Câble Ethernet 3m Câble Ethernet 7,5m Appairer le CTP18 avec Teams A30 : Connectez-vous avec le même compte Microsoft sur le point de terminaison et le CTP18, puis entrez le code PIN en suivant les invites à l'écran. Le système exécutera alors automatiquement l'appariement avec le CTP18. Appairer le CTP18 avec Zoom A30 : Entrez l'adresse IP, le système exécutera alors automatiquement l'appariement avec le CTP18. Connexions de point de terminaison Remarque : • 3I
VOUS
CONNECTEZ
UN
PÁRIPHÁRIQUE
DAFÚCHAGE
TACTILE
VOUS
POUVEZ
UTILISER
LE
!
SOIT
PAR
TÁLÁCOMMANDE
SOIT
par commande tactile. • 3I
VOUS
CONNECTEZ
UN
PÁRIPHÁRIQUE
DAFÚCHAGE
NON
TACTILE, vous pouvez utiliser la télécommande, la souris ou le CTP18. Po E !FÚCHAGE Adaptateur d'alimentation Câble HDMI 1,8m Câble Ethernet de 3m Câble Ethernet de 7,5m VCH51 !FÚCHAGE F R A N Ç A I S PoE 21 Nota: • Utilice siempre accesorios proporcionados o aprobados por Yealink. El uso de accesorios no homologados puede causar un mal funcionamiento del equipo. • Use unicamente el adaptador de corriente original Yealink (48V / 0.7A) para cargar el equipo. El uso de alimenta- dores de terceros puede causar daños irreparables en el equipo. • Coloque los anillos magnéticos en el cable HDMI para evitar las interferencias electromagnéticas. • El dispositivo es compatible con el producto CPW90 de Yealink (micrófonos inalámbricos Bluetooth) o algunos micrófonos / auriculares Bluetooth de terceros. Contenido de la caja MeetingBar A30 VCR20-Teams Batería AAA × 2 3m Cable Ethernet Cable HDMI de 1,8 m × 2 (para el dispositivo de visualización) Sujetacables × 5 Adaptador eléctrico ×4 ×2 ×2 Soporte de pared y accesorios Almohadilla de silicona × 2 Guía de inicio rápido CTP18 VCH51 Paquete de control remoto(Solo edición Teams)Paquete de panel táctil Kit para compartir VCH51 • Accesorios estandar • Accesorios Opcionales WPP20 Pod de presentación inalámbrica E S P A Ñ O L 22 Instalación del Endpoint Utilice el soporte para montar su terminal en una pared. La altura de montaje afec- ta la vista de la cámara. La altura recomendada es de 1,1 m sobre el suelo. Montaje en pared Paso 1: ensamble el soporte de montaje • Montaje en pared Posición A30 TV TV H>120cm H<120cm 10cm Retire la carcasa protectora E S P A Ñ O L 23 4 5 NN 3 • Uso del soporte de montaje para TV Yealink Nota: El soporte del televisor debe comprarse por separado. Paso 2: monte el A30 en la pared Tornillos T4×30 Profundidad del agujero: 30mm Diámetro del agujero: 6mm E S P A Ñ O L 24 Ajuste de la inclinación de la cámara 15° 15° 1 2 • Coloquelo sobre escritorio TV • Coloque la plataforma en el soporte de TV TVTV Almohadilla de silicona E S P A Ñ O L 25 Conexión CTP18 Rese t M AC SN 3m Cable Ethernet 7.5m Cable Ethernet Empareje el CTP18 con A30-Teams: Inicie sesión con la misma cuenta de Microsoft tanto en CTP18 como en el endpoint, introduzca el código PIN de acuerdo con las indicaciones en pantalla y el sistema se emparejará automáticamente con el CTP18 . Empareje el CTP18 con A30-Zoom: Introduzca la dirección IP y el sistema se emparejará automáticamente con el CTP18. Conexiones del Endpoint Nota: • Si conecta una pantalla táctil, puede operar el A30 mediante control remoto o control táctil. • Si conecta un dispositivo de pant…

Text truncated - open the document above for the full version.

SCS-F019: Confidentiality Request Letter Page 1 of 2 Rev 7.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] W ebsite: https://www.cps.bureauveritas.com/ Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (obsolete) 4.0 5.0 Nov-19-2015 Updated company logo (current) 5.0 6.0 Jun-26-2019 Updated References and Contact Info 6.0 7.0 Aug-30-2020 SCS-F019: Confidentiality Request Letter Page 2 of 2 Rev 7.0 YEALINK (XIAMEN) NETWORK TECHNOLOGY CO., LTD. (2021/02/06) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046-1609 Cc: Bureau Veritas Consumer Products Services Inc. 775 Montague Expressway Milpitas, CA 95035 Subject: Confidentiality Request for FCC ID: T2C-A30 Pursuant to CFR 47 sections 0.457 and 0.459, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application be held confidential: Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagram Short Term External Photos Short Term Permanent i Internal Photos Short Term Permanent Operational Description/ Theory of Operation Short Term Permanent Parts List Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent i User’s Manual Short Term Permanent i FCC software security declaration The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: To avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days; or for a specified date of not to exceed 180 days from the Grant Date The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name & title: Stone Lu Vice General Manager Contact information / address: [email protected] 4th-5th Floor, South Building,NO.63 WangHai Road, 2nd Software Park, Xiamen, China i Permanent confidentiality may be requested in accordance with FCC KDB 726920

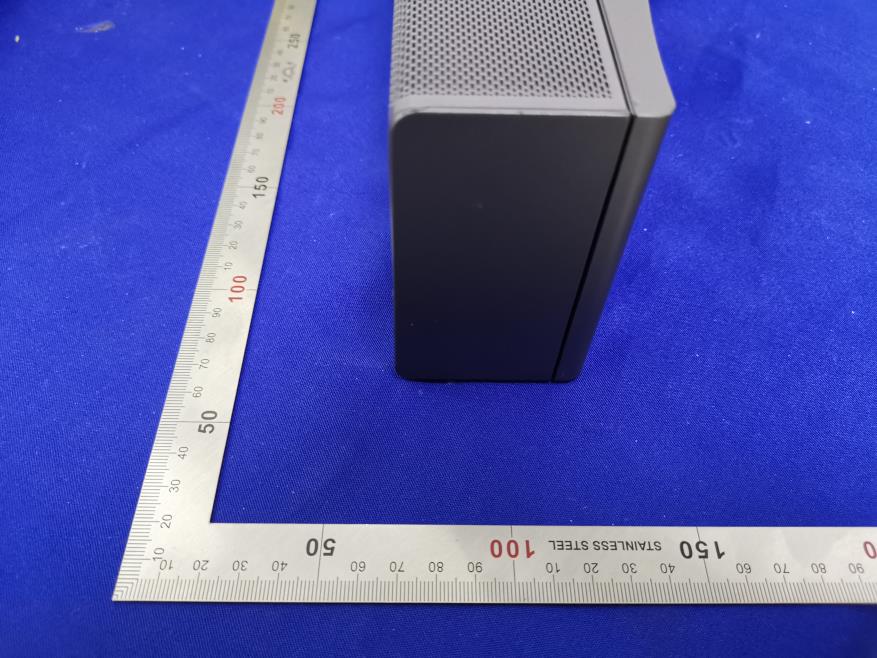

Page 1 of 5 External Photo Page 2 of 5 Page 3 of 5 Page 4 of 5 Page 5 of 5
