T2C-BHD702Bluetooth Headset

BH70 Mono & BH70 Dual Bluetooth Headset Quick Start Guide V1.0 Please update the headset to the latest version via Yealink USB Connect (PC) or Yea- link Connect (APP) before using. ！ 2 1. Please use the power adapter provided by Yealink to get a more efficient charging experience. 2. Please do not place any metal and magnetic cards on the charging board to avoid abnormalities and damage to the charger. 3. Please do not charge too far away from the charging sign to get a more efficient charging experience. 4. During use, if you find the charging board or the charged device is overheated and the charging stops (the indicator light keeps flashing), you need to remove the charged device until it cools down, and then try charging again. 5. The indicator light of the charging stand keeps flashing, and it may be the following three situations: • The location of the charged device is not placed correctly. You need to replace the it. After calibrating the charging position, you can charge the device normally until the indicator light is always on. • The charging stand has an overheating alarm. After the mobile phone or the charging stand cools down, it will stop flashing automatically and enter the normal charging state. • Metal or magnetic cards may be placed on the charging board, and please remove them. Notes Safety Guide 1. Do not disassemble the product by yourself or bring it near fire and water to avoid short circuit leakage or damage to the product. 2. Do not use the product in high temperature, humidity, and corrosive environment to avoid damaging the circuit and causing failure to charge or other failures. 3. Do not expose the product to corrosive liquids. Otherwise, it will cause severe damage. 4. Do not disassemble or re-equip the product for any reason to avoid secondary failure and burnout. 5. Do not place the product below -10°C or above 60°C. 6. Do not knock, throw or shake the product because rough methods will damage the internal circuit board structure. If your headset needs warranty service, the process is quick and easy. Please go to https://ticket.yealink.com/page/headset/warranty-service.html and submit RMA Claim to Yealink. 3 Package List Note: We recommend that you use the included accessories, and other accessories may have compatibility issues that prevent them from working properly. 1 BHD702 HeadsetBHM701 Headset or • Standard • Optional USB 2.0 Cable (USB-A to USB-C) Carrying Case Quick Start GuideBT51-A Dongle BHC70 Charging StandReplacement Ear Cushions 4 Overview 2 Microphone USB-C charging Call control Volume up Volume down Power on/off Bluetooth pairing Skip track Mute Previous track Play/pause Teams Button Voice Assistant Button 5 Charging USB Charging Charging stand (optional) LED Indicator Status Note: It takes 1.5 hours for charging. Note: We recommend to fully charge the headset when using it for the first time. Breathing green LED indicator Charging Fully Charged Green LED indicator 3 6 4 Power on/off "power on, battery XX , XX connected" "power off"Red GreenPower on Power off 5 Pairing and Connecting Device • No Built-in Bluetooth Device Power On State Already pre-paired when leaving the factory , automatically connected LED Indicator Power on 7 Yealink BH70 Note: If your desk phone/PC does not have built-in Bluetooth, you need to use the BT51 dongle to pair the headset. When the BT51 dongle is plugged into the desk phone/PC and the headset is power on, the desk phone/PC and BT51 dongle will automatically connect. Step1: Enter Pairing Mode "pairing mode" Step2: Select the Headset from Your Bluetooth Device Hold 3s ON "mobile one connected" Flashing red and green alternately • Built-in Bluetooth Device 8 Call & Music Control 6 Press once Double-press Hold for 2 sec Hold for 1.5 sec Press once Press once • End call • Reject the incoming call and continue the active call • Put the current call on hold and answer an incoming call • Skip track (volume +) Previous track (volume -) • Play/pause music • Volume up (+)/volume down (-) • Redial • Switch between held call and active call • Accept the incoming call and end the active call • Answer call Press once• Mute/unmute the microphone • Alternatively, move up/down the microphone boom-arm 9 Customers Button Siri, Google assistant..., depending on mobile phone. 7 Press once Hold for 2 sec • Put the current call on hold and answer an incoming call • Activate Voice Assistant • Skip track (volume +) Previous track (volume -) • Play/pause music • Volume up (+)/volume down (-) • Open Teams Notification Teams Edition Teams/UC Edition 10 • Yealink USB Connect (PC) • Yealink Connect App (Mobile) Download it from the Yealink website https://www.yealink.com/product/yuc. 9 BH70 Apple and the Apple logo are trademarks of Apple Inc. Download the Yealink Connect App from IOS App Store or Android App Store. 8 Replace Ear Cushions Software Management Note: It needs to be used with Yealink USB Connect of version 0.34.x.x or later. 11 Regulatory Notices Operating Ambient Temperatures • Operating temperature: +14 to 113°F (-10 to 45°C) • Relative humidity: 5% to 90%, noncondensing • Storage temperature: -22 to +160°F (-30 to +70°C) Warranty Our product warranty is limited only to the unit itself, when used normally in accordance with the operating instructions and the system environment. We are not liable for damage or loss resulting from the use of this product, or for any claim from a third party. We are not liable for problems with Yealink device arising from the use of this product; we are not liable for financial damages, lost profits, claims from third parties, etc., arising from the use of this product. Explanation of the symbols • DC symbol is the DC voltage symbol. • WEEE Warning symbol To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of t…

Text truncated - open the document above for the full version.

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. No.666 Hu'an Rd. Huli District Xiamen City, Fujian, P.R. China Tel: 86-592-5702000 Fax: 86-592-5702455 Email: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2024-01-15 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: T2C-BHD702 YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. certifies that the equipment for which authorization is sought, is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Stone Lu Vice General Manager

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. No.666 Hu'an Rd. Huli District Xiamen City, Fujian, P.R. China Tel: 86-592-5702000 Fax: 86-592-5702455 Email: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter Date: 2024-01-15 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: T2C-BHD702 YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Stone Lu Vice General Manager

U.S. AGENT LETTER OF ATTESTATION Date: 2024-01-15 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: T2C-BHD702 YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission- related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. Address: No.666 Hu'an Rd. Huli District Xiamen City, Fujian, P.R. China FRN: 0014702682 Tel: 86-592-5702000 Email: [email protected] Signed by (printed name): Stone Lu Signature:

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. No.666 Hu'an Rd. Huli District Xiamen City, Fujian, P.R. China Tel: 86-592-5702000 Fax: 86-592-5702455 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2024-01-15 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD., the undersigned, hereby authorizes World Alliance Testing and Certification (Shenzhen) Co., Ltd to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by World Alliance Testing and Certification (Shenzhen) Co., Ltd on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature Contact Person: Stone Lu Title: Vice General Manager

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. No.666 Hu'an Rd. Huli District Xiamen City, Fujian, P.R. China Tel: 86-592-5702000 Fax: 86-592-5702455 Email: [email protected] FCC Confidential Authorization Date: 2024-01-15 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: T2C-BHD702 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description As well as short-term confidential treatment of information accompanying this application for a period of 180 days after grant is issued as outlined below:  Internal Photos  User’s Manual  External Photos  Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature Stone Lu Vice General Manager

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. No.666 Hu'an Rd. Huli District Xiamen City, Fujian, P.R. China Tel: 86-592-5702000 Fax: 86-592-5702455 Email: [email protected] Product Similarity Declaration Date: 2024-01-15 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD., hereby declare that we have a product named as Bluetooth Headset, model: BHD702, BHM701, FCC ID: T2C-BHD702. The difference see below： 1. The product has two speakers or one speak configuration，one speaker: BHM701, two speaker： BHD702； 2. The battery is different. Note: All of the models are electrically identical. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: Stone Lu Vice General Manager

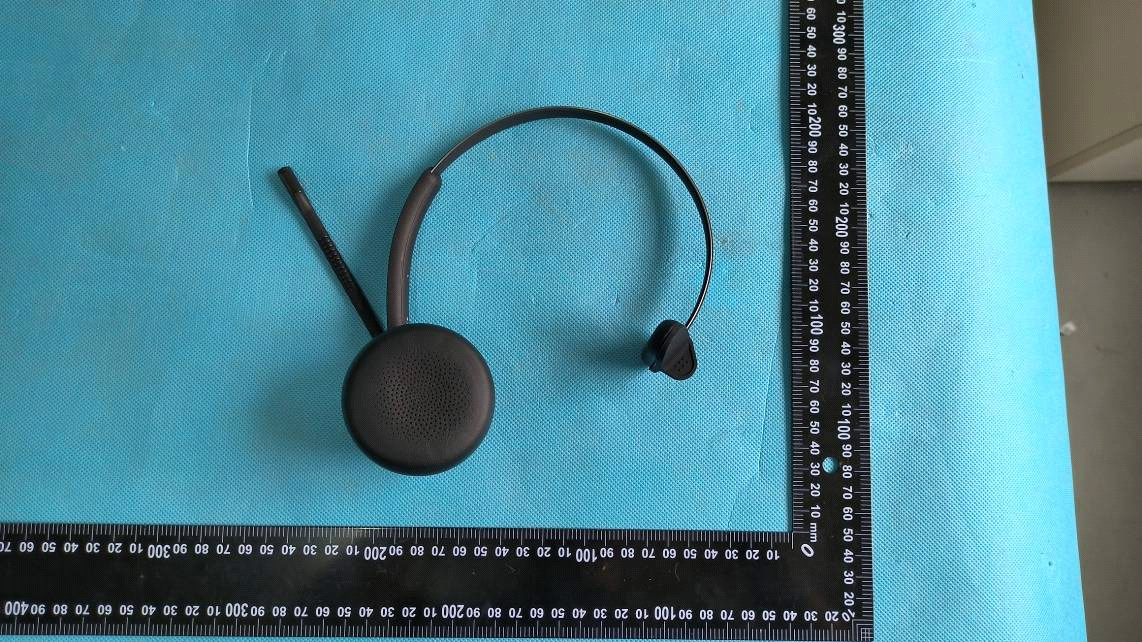

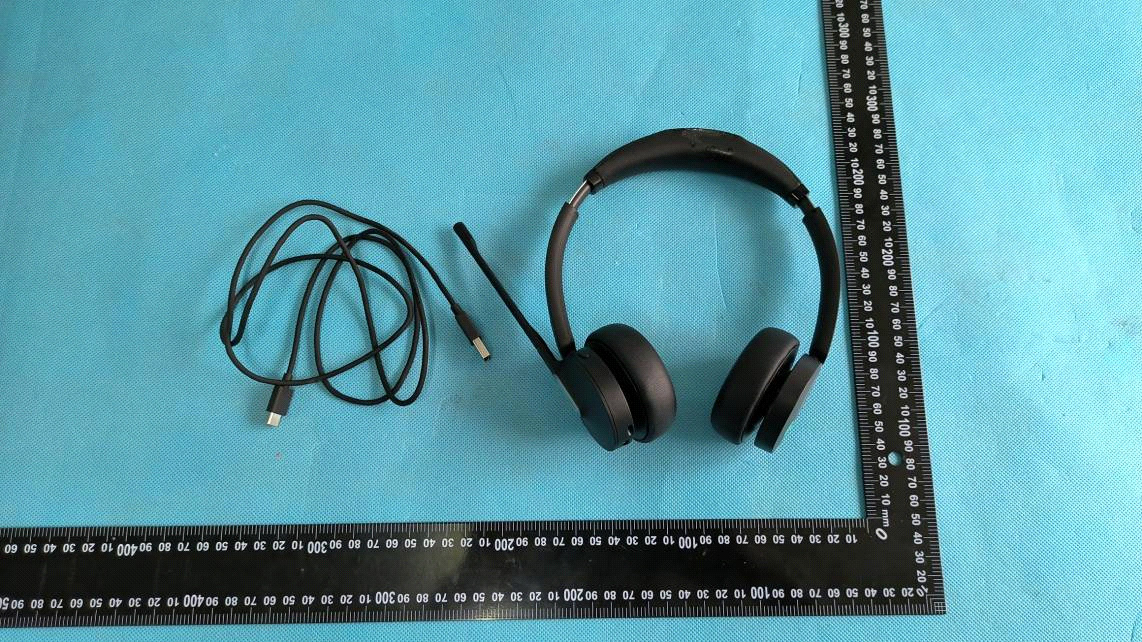

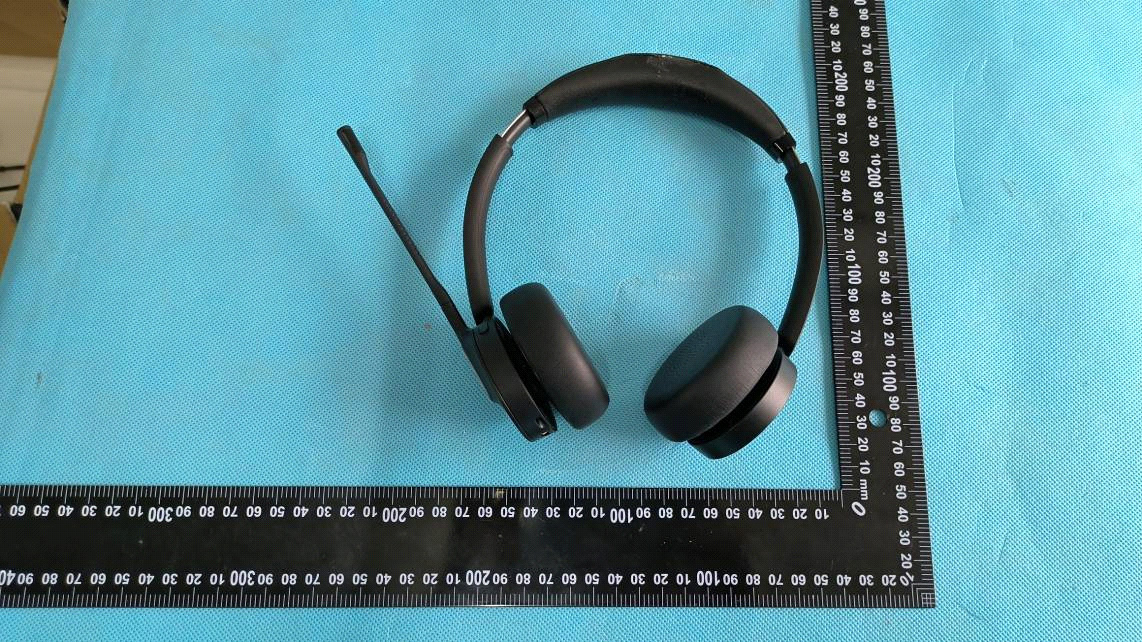

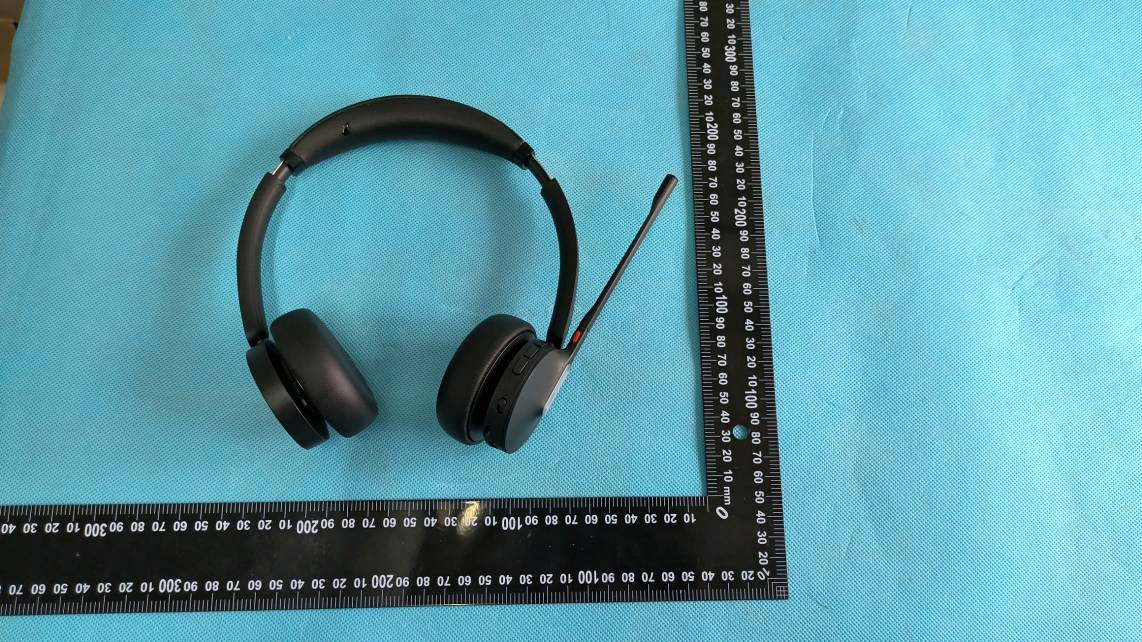

Report No.: RWAZ202300068 Page 1 of 7 EUT EXTERNAL PHOTOGRAPHS Model BHM701 Report No.: RWAZ202300068 Page 2 of 7 Report No.: RWAZ202300068 Page 3 of 7 Report No.: RWAZ202300068 Page 4 of 7 Model BHD702 Report No.: RWAZ202300068 Page 5 of 7 Report No.: RWAZ202300068 Page 6 of 7 Report No.: RWAZ202300068 Page 7 of 7

Label and label location

Label and label location

Report No.: RWAZ202300068 Page 1 of 11 EUT INTERNAL PHOTOGRAPHS Model BHM701 Report No.: RWAZ202300068 Page 2 of 11 Report No.: RWAZ202300068 Page 3 of 11 Report No.: RWAZ202300068 Page 4 of 11 ANT Report No.: RWAZ202300068 Page 5 of 11 Model BHD702 Report No.: RWAZ202300068 Page 6 of 11 Report No.: RWAZ202300068 Page 7 of 11 Report No.: RWAZ202300068 Page 8 of 11 Report No.: RWAZ202300068 Page 9 of 11 Report No.: RWAZ202300068 Page 10 of 11 Report No.: RWAZ202300068 Page 11 of 11 ANT

Report No.: RWAZ202300068E Report Template: TR-4-E-011/V1 Page 1 of 7 RF Exposure Evaluation Report Report No.: RWAZ202300068E Applicant: YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. Address: No.666 Hu'an Rd. Huli District Xiamen City, Fujian, P.R. China Product Name: Bluetooth Headset Product Model: BHD702 Multiple Models: BHM701 Trade Mark: FCC ID: T2C-BHD702 Standards: 47 CFR §1.1307 KDB 447498 D04 Interim General RF Exposure Guidance v01 Test Date: 2023/12/12-2023/12/20 Test Result: Complied Report Date: 2024/01/25 Reviewed by: Approved by: Abel Chen Project Engineer Jacob Kong Manager Prepared by: World Alliance Testing and Certification (Shenzhen) Co., Ltd No. 1002, East Block, Laobing Building, Xingye Road 3012, Xixiang street, Bao'an District, Shenzhen, Guangdong, People’s Republic of China This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★” Report No.: RWAZ202300068E Report Template: TR-4-E-011/V1 Page 2 of 7 Announcement 1．This test report shall not be reproduced in full or partial, without the written approval of World Alliance Testing and Certification (Shenzhen) Co., Ltd 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. 5. The information marked “#” is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. Revision History Version No. Issued Date Description 00 25 Jan, 2024 Original Report No.: RWAZ202300068E Report Template: TR-4-E-011/V1 Page 3 of 7 Contents 1 General Information ............................................................................................................................ 4 1.1 Client Information ...................................................................................................................... 4 1.2 Product Description of EUT ....................................................................................................... 4 1.3 Laboratory Location ................................................................................................................... 4 2 RF Exposure Evaluation ..................................................................................................................... 5 2.1 Standard .................................................................................................................................... 5 2.2 Result ......................................................................................................................................... 7 Report No.: RWAZ202300068E Report Template: TR-4-E-011/V1 Page 4 of 7 1 General Information 1.1 Client Information Applicant: YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. Address: No.666 Hu'an Rd. Huli District Xiamen City, Fujian, P.R. China Manufacturer: YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. Address: No.666 Hu'an Rd. Huli District Xiamen City, Fujian, P.R. China 1.2 Product Description of EUT The EUT is 4.0MP Wireless IP Camera that contains 2.4G and 5G WLAN radios. Sample Serial Number 32-1,32-2 for CE&RE test; 32-3 for RF test conducted test (assigned by WATC) Sample Received Date 2023-12-08 Sample Status Good Condition Frequency Range Bluetooth/ BLE: 2402MHz - 2480MHz Maximum Conducted Output Power Bluetooth: -0.26dBm BLE: -0.27dBm Modulation Technology GFSK, π/4 DQPSK, 8DPSK Antenna Gain # 0.01dBi Spatial Streams SISO (1TX, 1RX) Power Supply DC 5V from tepy-c port or DC3.8v from battery Operating temperature # -10 deg.C to +45 deg.C Adapter Information N/A Modification Sample No Modification by the test lab 1.3 Laboratory Location World Alliance Testing and Certification (Shenzhen) Co., Ltd No. 1002, East Block, Laobing Building, Xingye Road 3012, Xixiang street, Bao'an District, Shenzhen, Guangdong, People’s Republic of China Tel: +86-755-29691511, Email: [email protected] The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 463912, the FCC Designation No. : CN5040. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0160. Report No.: RWAZ202300068E Report Template: TR-4-E-011/V1 Page 5 of 7 2 RF Exposure Evaluation 2.1 Standard According to §1.1307(b)(3)(i), For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of this section. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: (C) Or using Table 1 and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, th…

Text truncated - open the document above for the full version.

Antenna Specification SpecificationsSummary Antenna Photo & Length 天线类型 / ANT Type: FPC Antenna 天线型号 / ANT Model: BT ANT 2402MHz 天线尺寸 /ANT Size MAX. GAIN 0.01 dBi 制造商 / Manufactory: 3D Antenna Pattern YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD.No.666 Hu'an Rd. Huli District Xiamen City, Fujian, P.R. China 2D Antenna Pattern （ X->Y;X->Z;Y->Z) XOY XOZ YOZ ITEM SPEC. Model Name 2.4GHz Center Frequency 2402 MHz 0.01 dBi2442 MHz -1.27 dBi2484 MHz -2.96 dBi Antenna Location 2442MHz2484MH XOZ YOZ XOY XOZ YOZ 2D Antenna Pattern （ X->Y;X->Z;Y->Z) 3D A t P tt3D Antenna Pattern XOY 2D A t P tt （ X>YX>ZY>Z) 2484MHz Point Values Minimum Gain (dBi) Maximum Gain (dBi) Average Gain (dBi) Frequency (MHz) 2402 -13.65181076 0.011549152 -4.94415 2442 -13.79591634 -1.272346783 -6.05309 2484 -14.39208651 -2.964995486 -7.34794 3D A n t enna P a tt er n 2D A n t enna P a tt er n （ X - >Y ; X - >Z ; Y - >Z)

Report Te R A Prod Prod u Multipl Tra S Te Re Rev No. 1 0 This repo asterisk emplate: TR-4 Report No. Applicant Address uct Name uct Model le Models ade Mark FCC ID Standards Test Date est Result eport Date viewed by 002, East Blo ort may cont “★” 4-E-008/V1 F : RWAZ2 : YEALIN : No.666 : Blueto o : BHD702 : BHM70 : : T2C-B H : FCC CF : 2023/12 : Complie : 2024/01 : Ab Projec World Allia ock, Laobing tain data that FCC T 202300068 NK(XIAMEN Hu'an Rd. oth Headse 2 1 HD702 FR Title 47 2/12-2023/ ed 1/25 bel Chen ct Enginee P nce Testing Building, Xin Guangdong t are not cove Page Test 8B N) NETWO . Huli Distr et 7 Part 15C /12/20 A er Prepared b and Certific ngye Road 3 , People’s Re ered by the N 1 of 34 Repo ORK TECH rict Xiamen (§15.247) Approved by: cation (Shen 3012, Xixiang epublic of Ch NVLAP accre Repo ort HNOLOGY n City, Fujia by: J nzhen) Co., L g street, Bao hina editation and rt No.: RWAZ2 Y CO.,LTD. an, P.R. Ch Jacob Kong Manager Ltd 'an District, S d shall be ma 202300068B . hina g Shenzhen, arked with an n Report Te 1．This t Testing a 2. The r e 3. This sa 4. This r NVLAP, N 5. The i authenti address e Vers emplate: TR-4 test report sh nd Certificati esults in this r ample tested eport must n NIST, or any ag nformation city and this es, names, tra sion No. 00 4-E-008/V1 hall not be re ion (Shenzhe report apply o is in complia not be used gency of the marked “#” information c ademarks etc A eproduced in n) Co., Ltd only to the sa ance with the by the clien U.S. Govern m is provided can affect the c. are included Rev Issued D 25 Jan, 2 Page nnounc n full or parti ample tested limits of the t to claim p r ment. by the ap p e validity of t d. vision H Date 2024 2 of 34 cement al, without t . above regul a roduct certif plicant, the l the result in t History Repo he written ap ation. ication, app r laboratory is the test repor Desc Or rt No.: RWAZ2 pproval of W roval, or end s not respon rt. Customer cription riginal 202300068B World Alliance orsement by nsible for its model name e y s e, Report Te 1 Gen 1.1 1.2 1.3 1.4 1.5 1.6 1.7 2 Des 2.1 2.2 2.3 2.4 2.5 2.6 3 Tes 3.1 3.2 3.3 3.4 3.5 4 Tes 5 E.U emplate: TR-4 neral Inform Client Inf Product Antenna Related S Measure Laborato Test Met scription of Test Co n Test Aux Test Set u Test Proc Measure Measure st Results .... Test Sum Limit ...... AC Line Radiate d RF Cond 3.5.1 6 3.5.2 M 3.5.3 P 3.5.4 10 3.5.5 D st Setup Pho .T Photo ..... 4-E-008/V1 mation .......... formation .... Description o information Submittal(s)/ ement Uncert ory Location . hodology .... Measurem e nfiguration .... iliary Equip m up ................ cedure ........ ement Metho ement Equipm .................... mmary .......... .................... Conducted E d emission Te ducted Test D dB Emission Maximum Con ower Spectr 00 kHz Band Duty Cycle .... oto ............... .................... .................... .................... of EUT ......... .................... /Grant(s) ...... tainty ........... .................... .................... ent ................ .................... ment ............. .................... .................... d .................. ment ............ .................... .................... .................... Emissions Te est Data ....... Data ............. n Bandwidth nducted Pea ral Density .... dwidth of Fre .................... .................... .................... Page Conten .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... est Data ....... .................... .................... and 99% Oc ak Output Po .................... equency Ban .................... .................... .................... 3 of 34 nts .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... ccupied Ban wer ............. . .................... d Edge ........ .................... .................... .................... Repo .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... .................... dwidth ......... .................... .................... .................... .................... .................... .................... rt No.: RWAZ2 .................... ................... ................... ................... ................... ................... ................... ................... ................... . ................... ................... ................... ................... ................... ................... ................... . ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... . .................... 202300068B ................. 4 ................. 4 ................. 4 ................. 4 ................. 5 ................. 5 ................. 5 ................. 5 ................. 6 ................. 6 ................. 6 ................. 7 ................. 9 .....…

Text truncated - open the document above for the full version.

Report No.: RWAZ202300068 Page 1 of 5 TEST SETUP PHOTOGRAPHS AC Line Conducted Emission for Model BHM701 Report No.: RWAZ202300068 Page 2 of 5 AC Line Conducted Emission for Model BHD702 Report No.: RWAZ202300068 Page 3 of 5 Radiated Emission Below 1GHz for Model BHM701 Report No.: RWAZ202300068 Page 4 of 5 R adiated Emission Below 1GHzforModel BHD702 Report No.: RWAZ202300068 Page 5 of 5 A bove 1 GHz
