Yealink Bluetooth® USB Dongle BT40 User’s manual Content „ Brief introduction.......................................................1 1. About BT40.....................................................1 2. System requirements.................................................1 „ Getting started..........................................................2 1. Installation............................................................2 2. System setting........................................................2 3. Pairing Dongle with Bluetooth receiver.............................3 4. Music mode and remote control....................................7 5. Make VOIP call......................................................8 6. LED indicator........................................................................10 „ Care and maintenance...............................................10 „ FAQS...................................................................11 „ Specification..........................................................12 Welcome to use this Plug & Play Bluetooth USB Dongle BT40. Please read this user manual carefully before use. „ Brief introduction 1. About BT40 BT40 is a Plug & Play Bluetooth USB Dongle, it supports HSP, HFP, A2DP and AVRCP profiles. It has the following features: 1) You can use VoIP software like Skype comfortably after pairing with a Bluetooth headset (or Bluetooth hands-free device) supporting HSP profile. 2) Pairing with a Bluetooth stereo headset (or Bluetooth speaker) supporting A2DP profile enables you to listen to your music wirelessly. If your Bluetooth stereo headset supports AVCRP profiles you can remote control your PC’s media player. 3) Switch easily between music and VoIP calls. Note: Even though the paired Bluetooth device and the Dongle support the same Bluetooth profiles, the functions may be different due to specification differences. 2. System requirements ‹ Operating system: Compliant with Windows 2000 /2003 /XP /Vista/7 ‹ Compliant with USB 2.0 ‹ Software demand: you should install the Bluetooth software “BlueSoleil” on your PC Remarks: ‹ To complete the above functions, the paired devices should support the same Bluetooth profile with this product. ‹ Even though the paired Bluetooth device and the Dongle support the same Bluetooth profiles, the functions may be different due to specification differences. 1 „ Getting started 1. Installation 1) Before use this product, you should install a software “BlueSoleil” on PC. Put the CD which provided by this product into the driver of PC, the PC will install the procedures automatically, also you can install manually. After installing successfully, there will be a Bluetooth Logo on PC taskbar. 2) When you first use BT40, please turn off or forbid the antivirus software. After plugging the Dongle into PC, the operating system will show “Find New Hardware” and install the devices automatically. The whole process will need a few second and if you plugging the Dongle into PC next time, it needn’t install again. 2.System setting Before using Dongle, you should set it as default device in Windows Audio Device System.(Control desk→Sound and Audio Devices Properties) Note: Depending on the actual operating system, the device name maybe is named as“K-mate Dongle”、“USB Audio Device” or “USB Composite Device”. 2 Following is Windows XP set up method: 3. Pairing Dongle with Bluetooth receiver Before using Dongle to listen wireless music or make VOLP call, you should paring Dongle with Bluetooth headset (or other Bluetooth receiver). Hereby take a Bluetongue headset BTH002 (not included in accessory)for example: 3 1) Inserting BT40 into PC, then operating system will show “ Find New Hardware” and install the devices automatically. 2) Open BlueSoleil and make BTH002 into pairing mode. 3) Right-button click the central of spherical symbol to search equipment, the device will be searched and displayed in around. 4 4）Choosing BTH002 in search device list, you can see all the Bluetooth services that BTH002 support. 5) Right-button click BTH002 to pairing, enter“0000” when the software indicate enter PIN number and click confirm. 5 6) After confirm, paired with BTH002 successfully. 7) Right-button clicks BTH002 and chooses Bluetooth service which you want to connect. 6 Note: ‹ Dongle can pairing with Bluetooth Audio receiver which PIN number is “0000”, “1234”, “8888” or “1111”. ‹ Dongle can connect max four devices at the same time. 4. Music mode and remote control 1) Listening to stereo music ‹ If you want to listen to stereo music, the pairing device must be support A2DP agreement. ‹ Before playing music, besides the above system setting, you may also set Dongle as audio output devices of player. Please check the specific setting method with the use’s help of player. ‹ Take Windows Media Player as example, click “tool→option→device→ speaker”, and set Dongle as voice playback device in attribute. 7 2) Headsets remote control Using Dongle, you can remote control the media player so that you can choose previous song, next song, pause or play. Remote control needed to achieve the following conditions: ‹ Pairing headsets should support A2DP or AVRCP agreement. ‹ Depending on your media player, Dongle support remote control media player included Windows Media player, Real player, iTunes and so on, but it can not support Winamp media player remote control. Besides, when some media player (Real player, iTunes and so on) is playing in background, you can not remote control it. 3) Pairing with HFP device You can listen to music through the receiver in following two conditions, but the tone quality is bad and you can not remote control the media player. ‹ Pairing device only support HFP agreement ‹ Although pairing device support HFP and A2DP etc. agreement, but it enter the conversation mode in currently so that it activate the HFP service. 5. Make VOIP call Dongle support VOIP service following common internet communication software: …

Text truncated - open the document above for the full version.

26MHz： crystal LED EEPROM USB JACK Bluetooth master control chip 3V3 1V8 Block Diagram antenna： 2.402-2480MHz

YEALINK (XIAMEN ) NETWORK TECHNOLOGY CO., LTD. Add: 4th-5th Floor, South Building, No.63 Wanghai Road,2nd Software Park, XiaMen, China Tel: 0592-5702000-2808 Fax: 0592-5702455 FCC Authorization Date: 2013-4-28 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, YEALINK (XIAMEN ) NETWORK TECHNOLOGY CO., LTD., the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Stone Lu / Vice President

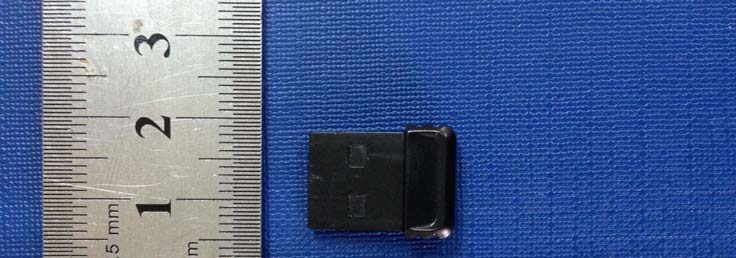

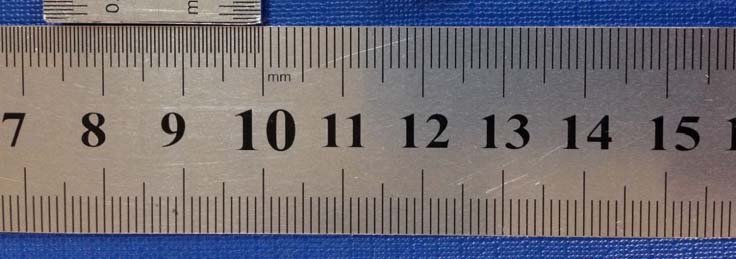

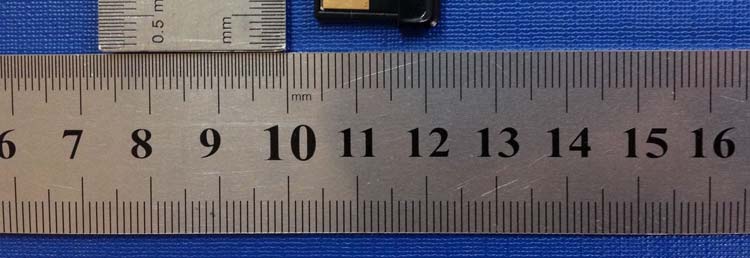

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT– Top View EUT– Bottom View

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Uncover View EUT – Main Board Top View Antenna Antenna

Circuit Description Model No.:BT40 Basic Description: Bluetooth requires each of the Bluetooth communication betwee n devices when a main role to be, and the other from the role in order to comm unicate, communication, it must be carried out to find the host to initiate pa iring, after the success of the construction chain the two sides can send and receive data. A Bluetooth communication device that can switch between the two roles, usually working in slave mode, wait for the other master device to con nect, if necessary, change the main mode, a call to the other devices. The mai n mode of a Bluetooth device to initiate the call, you need to know each other 's Bluetooth address, password and other information matching, matching is com pleted, initiate the call directly. The Main chip for U1 CSR8510 it compatible with Windows Vista, Windows XP, Windows 7 platform, its working frequency is 2402 m ~ 2480 a total of 79 channels. Its main control crystal frequency is 26.000 MHz. The chip built-in charging management, can through the USB power supply and data transmission. EPPROM state, some IO, LED is used to store software, audio and other information stored on the chip. U2 chip as the EPPROM, is used to store software, some IO, LED status, audio and other information stored on the chip

1234 B C D 4 321 D C B A BT_RF B1 VSS_AUX A1 VSS_ R ADIO C1 VSS_DIG C4 VDD_ R ADIO B2 VDD_AUX C2 VDD_DIG D6 V R E G_OU T _HV A4 V R E G_IN_HV B4 V R E G_IN_USB A6 VDD_HOST C6 USB_DN B5 USB_DP B6 PIO[5] C5 PIO[4] E5 PIO[3] E3 PIO[2] D5 PIO[1] E4 PIO[0] E1 VDD_PADS C3 PCM_CLK/SPI_CLK/PIO[24] D3 PCM_SYNC/SPI_CS#/PIO[23] D2 PCM_OUT/SPI_MISO/PIO[22] E2 PCM_IN/SPI_MOSI/PIO[21] D4 SPI_PCM#_SEL E6 V R E G_ E N_ R S T# A5 XTAL_IN A3 XTAL_OUT A2 U1 CSR8510A10 O 2 I 4 1 GND 3 U3 BPF1608060A8T X1 26.00MHz C7 15pF C8 6.8pF C5 15pF E5 2.2uF C4 470nF E4 2.2uF 1 2 3 45 6 7 8 U2 24AA32 R6 10K R5 10K 3V3 LED1 R2 20R R3 20R 1 2 3 4 J1 CON4 V_BUS C9 2.4pF C10 CAP L1 6.2nH ANT1 E2 2u2F E3 2u2F C2 100nF C3 100nF 3V31V83V33V3 R1 4R7 E1 4.7uF C1 100nF +5V E6 2u2F LED1 LED 3V3 R4 330 LED1 MOSI MISO CSB CLK BH-PD-126 WI-6456 3V3

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★” (Rev.2), This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For YEALINK (XIAMEN ) NETWORK TECHNOLOGY CO., LTD. 4th-5th Floor, South Building, No.63 Wanghai Road,2nd Software Park, XiaMen, China FCC ID: T2C-BT40 Report Type: Original Report Product Type: Yealink Bluetooth® USB Dongle BT40 Test En gineer: Ares Liu Re port Number: R2DG130410002-00B Re port Date: 2013-05-03 Reviewed By: Ivan Cao RF Leader Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: R2DG130410002-00B FCC Part 15.247 Page 2 of 32 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS ........................................................................................................ 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 FCC §15.247 (i) & §2.1093 - RF EXPOSURE ................................................................................................................ 9 APPLICABLE STANDARD .............................................................................................................................................. 9 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 10 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 MEASUREMENT UNCERTAINTY .................................................................................................................................. 11 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 13 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 13 TEST RESULTS SUMMARY .......................................................................................................................................... 13 TEST RESULTS SUMMARY .......................................................................................................................................... 13 TEST DATA .....................................…

Text truncated - open the document above for the full version.

ٛ EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emission--Front View Conducted Emission – Side View Radiated Emission Below1GHz-Front View Radiated Emission Below1GHz-Rear View Radiated Emission Above1GHz-Front View Radiated Emission Above1GHz-Rear View
