T2C-OPSA001Android OPS Module

OP S-A001 Display 5GHz band(W52, W53): Indoor use only Bande 5 GHz (w52, w53): utilisation intérieure uniquement Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with Innovation, Science, and Economic Development Canad licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This equipment complies with FCC/ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. L'appareil est conforme aux limites d'exposition aux rayonnements spécifiées par la FCC/ISED pour les environnements non contrôlés. La distance entre le radiateur et le corps doit être d'au moins 20 cm lors de l'installation et du fonctionnement de l'appareil. Cet émetteur ne doit pas coexister ou fonctionner conjointement avec toute autre antenne ou émetteur.

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. No.666 Hu'an Rd. Huli District Xiamen City, Fujian, P.R. China Tel: 86-592-5702000 Fax: 86-592-5702455 Email: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2023/07/31 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: T2C-OPSA001 YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature Contact Person: Stone Lu Title: Vice General Manager Company Name & Address: YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. & No.666 Hu'an Rd. Huli District Xiamen City, Fujian, P.R. China

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. No.666 Hu'an Rd. Huli District Xiamen City, Fujian, P.R. China Tel: 86-592-5702000 Fax: 86-592-5702455 Email: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter Date: 2023/07/31 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: T2C-OPSA001 YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Contact Person: Stone Lu Title: Vice General Manager Company Name & Address: YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. & No.666 Hu'an Rd. Huli District Xiamen City, Fujian, P.R. China

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. No.666 Hu'an Rd. Huli District Xiamen City, Fujian, P.R. China Tel: 86-592-5702000 Fax: 86-592-5702455 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2023-07-31 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD., the undersigned, hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Stone Lu Vice General Manager

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. No.666 Hu'an Rd. Huli District Xiamen City, Fujian, P.R. China Tel: 86-592-5702000 Fax: 86-592-5702455 Email: [email protected] FCC Confidential Authorization Date: 2023-07-31 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: T2C-OPSA001 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  Software Security Description As well as short-term confidential treatment of information accompanying this application for a period of 180 days after grant is issued as outlined below:  Internal Photos  User’s Manual  External Photos  Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature Stone Lu Vice General Manager

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. No.666 Hu'an Rd. Huli District Xiamen City, Fujian, P.R. China Tel: 86-592-5702000 Fax: 86-592-5702455 Email: [email protected] Date: 2023-07-31 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attestation letter Dear Sir or Madam, Our product Android OPS Module, model: OPS-A001, FCC ID: T2C-OPSA001, for marketing purpose, this product only supports BT(GFSK, π/4-DQPSK, 8DPSK), BLE 1M, 2.4G Wi-Fi(2412-2462MHz, 802.11b/g/n20/n40 modes), 5G Wi-Fi(5150-5250MHz; 5250-5350MHz; 5470-5725MHz; 5725-5850MHz, 802.11 a/n20/n40 modes).The other functions, bands and modes was disabled to use by manufacturer in the software, the end user has no capability to activate it. Sincerely, Signature: Stone Lu Vice General Manager

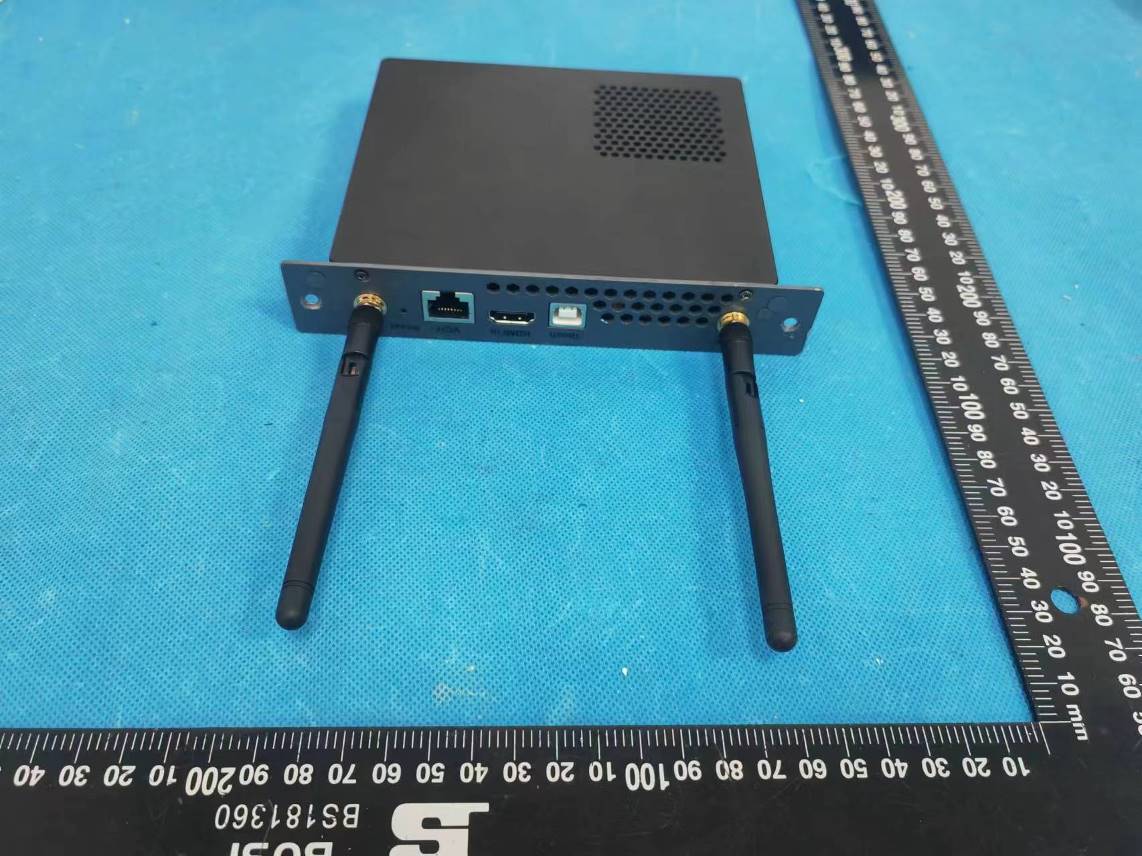

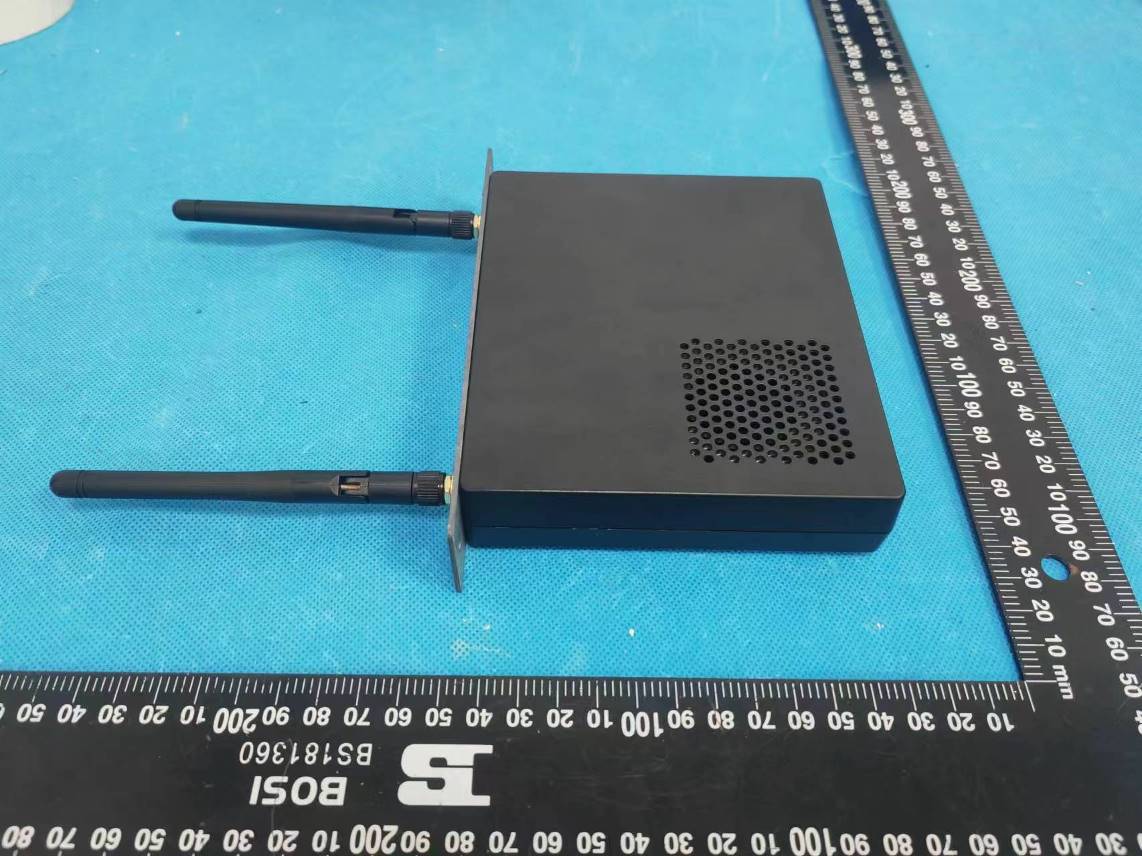

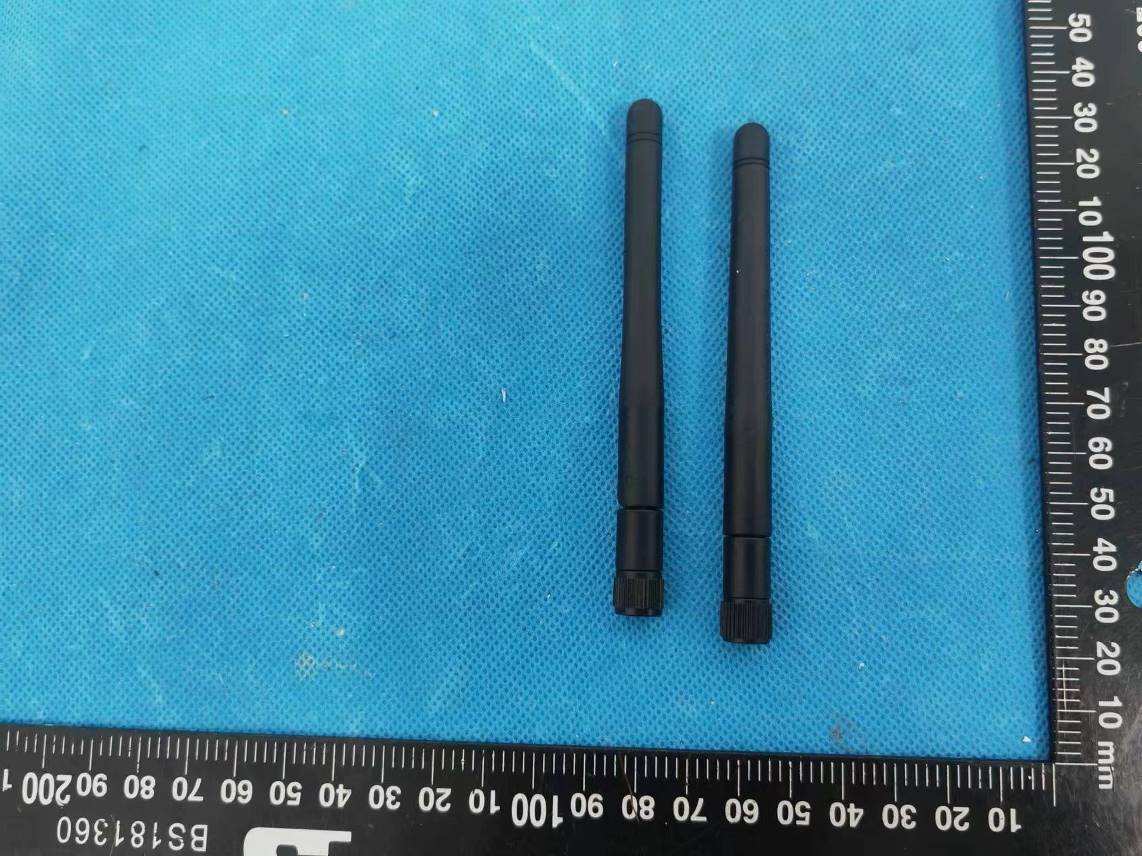

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS WiFi Chain 1 Antenna BT /WiFi Chain 0 Antenna Antenna

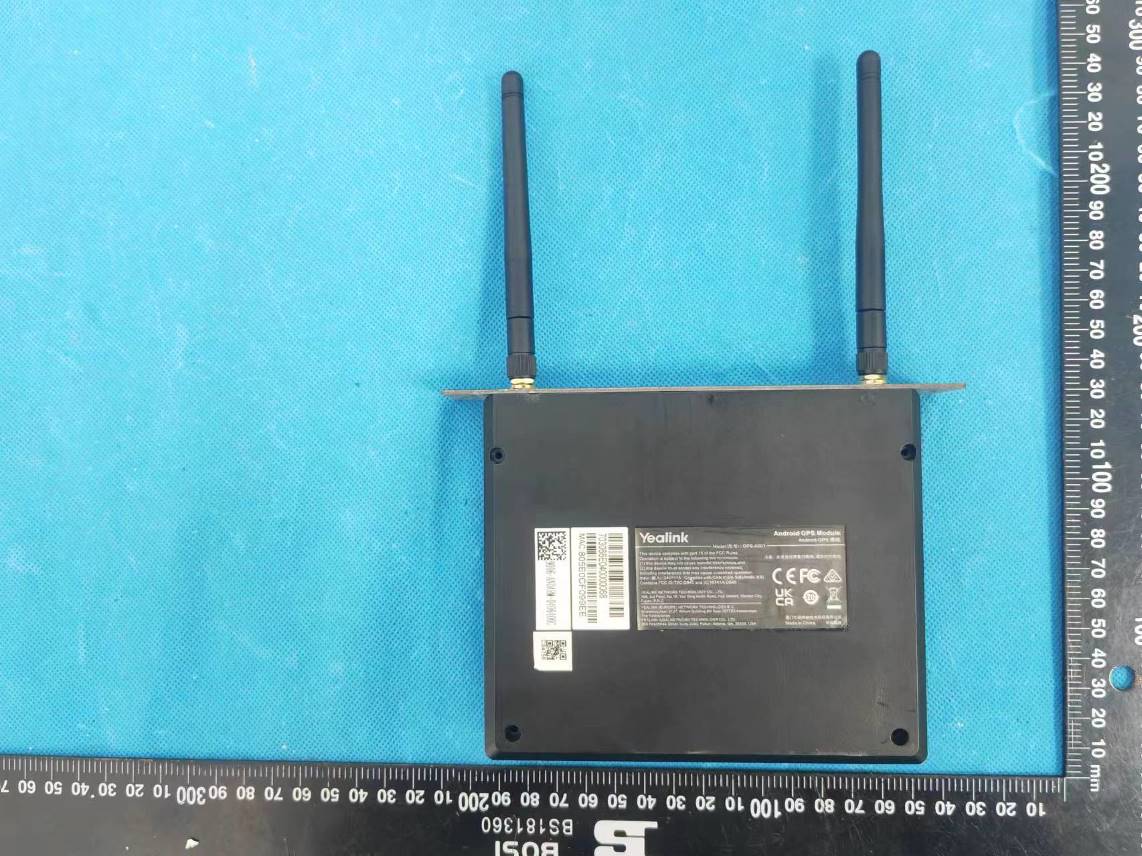

PRODUCT LABELING Label . Proposed Location of Label on EUT

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS

The circuit description of OPS‐A001 OPS-A001 is a video conferencing system.The CPU of the OPS-A001 is TurboxTM D845.Among them, THE GPU USES The Spectra 280 ISP using Adreno 630, X20 LTE modem, WiFi and imaging aspects.Is a high performance application processor. It is built in and powered by the Collaboration Board MeetingBoard Series ,with the external antenna. For 2.4G WIFI 11 channels are provided for 802.11b, 802.11g and 802.11n(HT20): CHANNEL FREQUENCY CHANNEL FREQUENCY 1 2412 MHz 7 2442 MHz 2 2417 MHz 8 2447 MHz 3 2422 MHz 9 2452 MHz 4 2427 MHz 10 2457 MHz 5 2432 MHz 11 2462 MHz 6 2437 MHz 7 channels are provided for 802.11n (HT40): CHANNEL FREQUENCY CHANNEL FREQUENCY 3 2422MHz 7 2442MHz 4 2427MHz 8 2447MHz 5 2432MHz 9 2452MHz 6 2437MHz ANTENNA TYPE: PCB Antenna, with 3dBi gain MODULATION TYPE: CCK, DQPSK, DBPSK for DSSS 64QAM, 16QAM, QPSK, BPSK for OFDM FOR 5150 ~ 5250MHz 4 channels are provided for 802.11a, 802.11n (HT20): CHANNEL FREQUENCY CHANNEL FREQUENCY 36 5180 MHz 40 5200 MHz 44 5220 MHz 48 5240 MHz 2 channels are provided for 802.11n (HT40): CHANNEL FREQUENCY CHANNEL FREQUENCY 38 5190 MHz 46 5230 MHz FOR 5250 ~ 5350MHz 4 channels are provided for 802.11a, 802.11n (HT20): CHANNEL FREQUENCY CHANNEL FREQUENCY 52 5260 MHz 56 5280 MHz 60 5300 MHz 64 5320 MHz 2 channels are provided for 802.11n (HT40): CHANNEL FREQUENCY CHANNEL FREQUENCY 54 5270 MHz 62 5310 MHz 11 channels are provided for 802.11a, 802.11n (HT20): CHANNEL FREQUENCY CHANNEL FREQUENCY 100 5500 MHz 104 5520 MHz 108 5540 MHz 112 5560 MHz 116 5580 MHz 120 5600 MHz 124 5620 MHz 128 5640 MHz 132 5660 MHz 136 5680 MHz 140 5700 MHz -- -- 5 channels are provided for 802.11n (HT40): CHANNEL FREQUENCY CHANNEL FREQUENCY 102 5510 MHz 110 5550 MHz 118 5590 MHz 126 5630 MHz 134 5670 MHz FOR 5725 ~ 5850MHz 5 channels are provided for 802.11a, 802.11n (HT20): CHANNEL FREQUENCY CHANNEL FREQUENCY 149 5745MHz 153 5765MHz 157 5785MHz 161 5805MHz 165 5825MHz -- -- 2 channels are provided for 802.11n (HT40): CHANNEL FREQUENCY CHANNEL FREQUENCY 151 5755MHz 159 5795MHz ANTENNA TYPE: 5180 ~ 5240MHz: PCB antenna with 3dBi gain 5260 ~ 5320MHz: PCB antenna with 3dBi gain 5500 ~ 5700MHz: PCB antenna with 3dBi gain 5745 ~ 5825MHz: PCB antenna with 3dBi gain MODULATION TYPE: 64QAM, 16QAM, QPSK, BPSK for OFDM For 2.4G BT+EDR 79 channels are provided to this EUT: CHANNEL FREQ. (MHz) CHANNEL FREQ. (MHz) CHANNEL FREQ. (MHz) CHANNEL FREQ. (MHz) 0 2402 20 2422 40 2442 60 2462 1 2403 21 2423 41 2443 61 2463 2 2404 22 2424 42 2444 62 2464 3 2405 23 2425 43 2445 63 2465 4 2406 24 2426 44 2446 64 2466 5 2407 25 2427 45 2447 65 2467 6 2408 26 2428 46 2448 66 2468 7 2409 27 2429 47 2449 67 2469 8 2410 28 2430 48 2450 68 2470 9 2411 29 2431 49 2451 69 2471 10 2412 30 2432 50 2452 70 2472 11 2413 31 2433 51 2453 71 2473 12 2414 32 2434 52 2454 72 2474 13 2415 33 2435 53 2455 73 2475 14 2416 34 2436 54 2456 74 2476 15 2417 35 2437 55 2457 75 2477 16 2418 36 2438 56 2458 76 2478 17 2419 37 2439 57 2459 77 2479 18 2420 38 2440 58 2460 78 2480 19 2421 39 2441 59 2461 ANTENNA TYPE: PCB Antenna, with 3dBi gain MODULATION TYPE: GFSK, π/4 DQPSK, 8DPSK For 2.4G BTLE 40 channels are provided for BT-LE(GFSK): CHANNEL FREQ. (MHZ) CHANNEL FREQ. (MHZ) CHANNEL FREQ. (MHZ) CHANNEL FREQ. (MHZ) 0 2402 10 2422 20 2442 30 2462 1 2404 11 2424 21 2444 31 2464 2 2406 12 2426 22 2446 32 2466 3 2408 13 2428 23 2448 33 2468 4 2410 14 2430 24 2450 34 2470 5 2412 15 2432 25 2452 35 2472 6 2414 16 2434 26 2454 36 2474 7 2416 17 2436 27 2456 37 2476 8 2418 18 2438 28 2458 38 2478 9 2420 19 2440 29 2460 39 2480 ANTENNA TYPE: PCB Antenna, with 3dBi gain MODULATION TYPE: BT-LE(GFSK)

China Certification ICT Co., Ltd (Dongguan) Report No.: CR221259082-00A Page 75 of 75 5.2 Exemption Limits for Routine Evaluation – RF Exposure Evaluation 5.2.1 Applicable Standard According to RSS-102 Clause 2.5.2 RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: • below 20 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1 W (adjusted for tune-up tolerance); • at or above 20 MHz and below 48 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 4.49/ƒ 0.5 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 48 MHz and below 300 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 0.6 W (adjusted for tune-up tolerance); • at or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 5 W (adjusted for tune-up tolerance). In these cases, the information contained in the RF exposure technical brief may be limited to information that demonstrates how the e.i.r.p. was derived. Calculated Data: Mode Frequency (MHz) Antenna Gain Conducted output power including Tune-up Tolerance EIRP Exemption limits (mW) (dBi)(dBm)(dBm)(mW) Wi-Fi 2412-2462 2.91820.9123.03 2684 BLE 2402-2480 2.95.58.46.92 2676 BDR/EDR 2402-2480 2.968.97.76 2676 WLAN 5.2G 5180-5240 0.7 17 17.7 58.88 4525 WLAN 5.3G 5260-5320 1.9 18 19.9 97.72 4573 WLAN 5.6G 5500-5580 5660-5720 3 19 22 158.49 4714 WLAN 5.8G 5745-5825 2.8 19 21.8 151.36 4909 Note: The Maximum Conducted Power including Tune-up Tolerance was declared by manufacturer. The Bluetooth, WLAN 2.4G, 5G can`t transmission simutenuously. So the device is compliance exemption from Routine Evaluation Limits –RF exposure Evaluation. Result: Compliance ===== END OF REPORT =====

Antenna Specification SpecificationsSummary Antenna Photo & Length MAX. GAIN 2.9dBi ITEM SPEC. Model Name 2.4GHz Center Frequency 2402 MHz 2.7dBi 2442 MHz 2.9 dBi2484 MHz 2.9dBi YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD.No.666 Hu'an Rd. Huli District Xiamen City, Fujian, P.R. China 2402MHz2442MHz 3D 2D（X->Y;X->Z;Y->Z) 3D 2D（X->Y;X->Z;Y->Z) 2484MHz 3D 2D（X->Y;X->Z;Y->Z)

TEST REPORT Applicant: YEALINK (XIAMEN) NETWORK TECHNOLOGY CO.,LTD. Address: No.666 Hu’an Rd. Huli District Xiamen City, Fujian, P.R. China FCC ID: T2C-OPSA001 IC: 10741A-OPSA001 HVIN: OPSA001 Product Name: Android OPS Module Model Number: OPS-A001 Standard(s): 47 CFR Part 15, Subpart C(15.247) RSS-247 Issue 2, February 2017 RSS-Gen, Issue 5, February 2021 Amendment 2 ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR221259082-00A Date Of Issue: 2023/7/21 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR221259082-00A Page 2 of 75 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR221259082-00A Page 3 of 75 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 8 1.2.2 Support Equipment List and Details .............................................................................................................. 8 1.2.3 Support Cable List and Details ...................................................................................................................... 8 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 9 1.3 MEASUREMENT UNCERTAINTY ........................................................................................................ 10 2. SUMMARY OF TEST RESULTS .......................................................................................... 11 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 12 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 12 3.1.1 Applicable Standard ..................................................................................................................................... 12 3.1.2 EUT Setup.................................................................................................................................................... 14 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 14 3.1.4 Test Procedure ............................................................................................................................................. 15 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 15 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 16 3.2.1 Applicable Standard ..................................................................................................................................... 16 3.2.2 EUT Setup.................................................................................................................................................... 16 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 17 3.2.4 Test Procedure ............................................................................................................................................. 17 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 18 3.3 6 DB EMISSION BANDWIDTH: ............................................................................................................ 19 3.3.1 Applicable Standard ........…

Text truncated - open the document above for the full version.

TEST REPORT Applicant: YEALINK (XIAMEN) NETWORK TECHNOLOGY CO.,LTD. Address: No.666 Hu’an Rd. Huli District Xiamen City, Fujian, P.R. China FCC ID: T2C-OPSA001 IC: 10741A-OPSA001 HVIN: OPSA001 Product Name: Android OPS Module Model Number: OPS-A001 Standard(s): 47 CFR Part 15, Subpart C(15.247) RSS-247 Issue 2, February 2017 RSS-Gen, Issue 5, February 2021 Amendment 2 ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR221259082-00D Date Of Issue: 2023/7/21 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR221259082-00D Page 2 of 48 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR221259082-00D Page 3 of 48 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 8 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup.................................................................................................................................................... 13 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 13 3.1.4 Test Procedure ............................................................................................................................................. 14 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 14 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 15 3.2.1 Applicable Standard ..................................................................................................................................... 15 3.2.2 EUT Setup.................................................................................................................................................... 15 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 16 3.2.4 Test Procedure ............................................................................................................................................. 16 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 17 3.3 6 DB EMISSION BANDWIDTH: ............................................................................................................ 18 3.3.1 Applicable Standard .......…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
