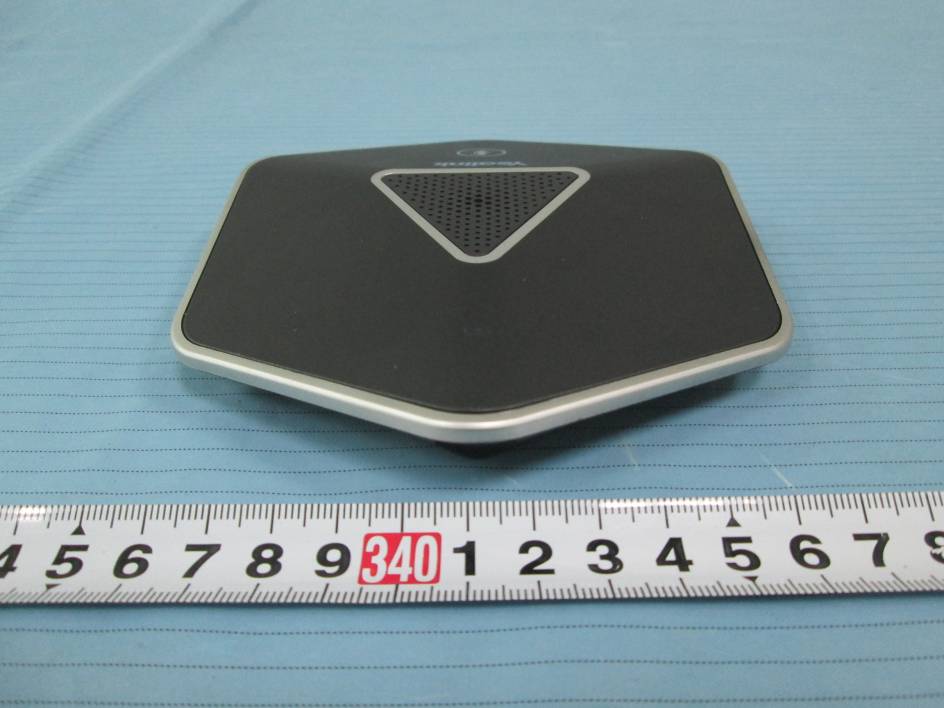

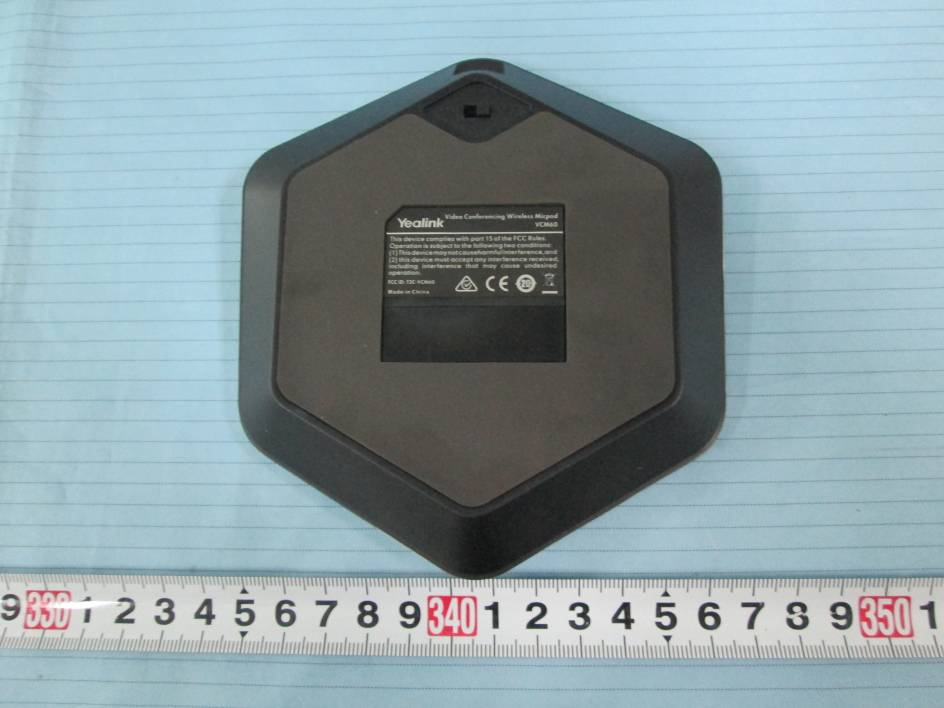

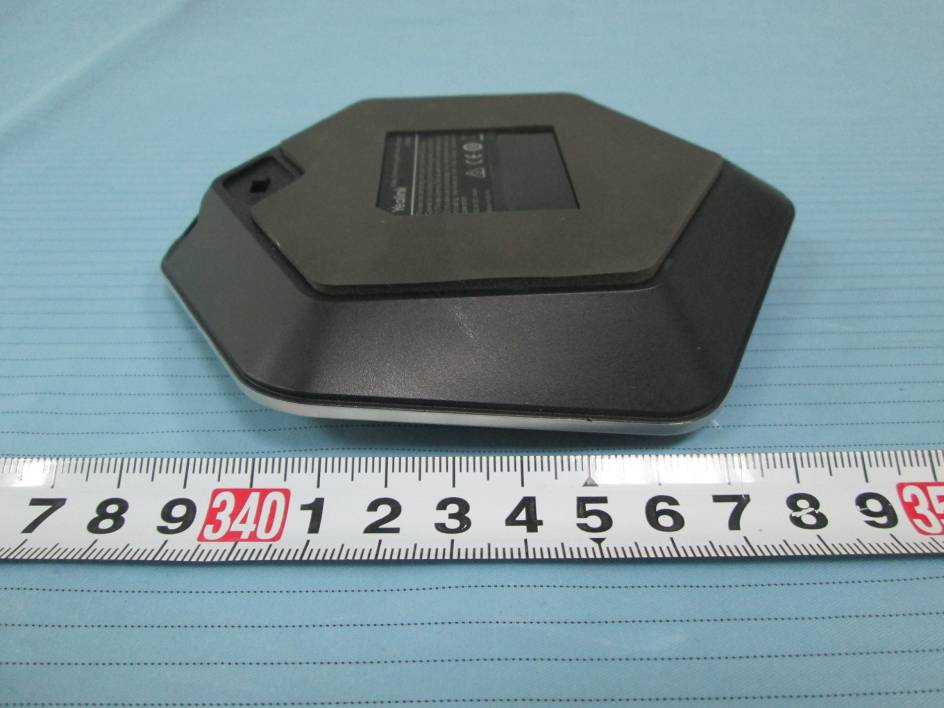

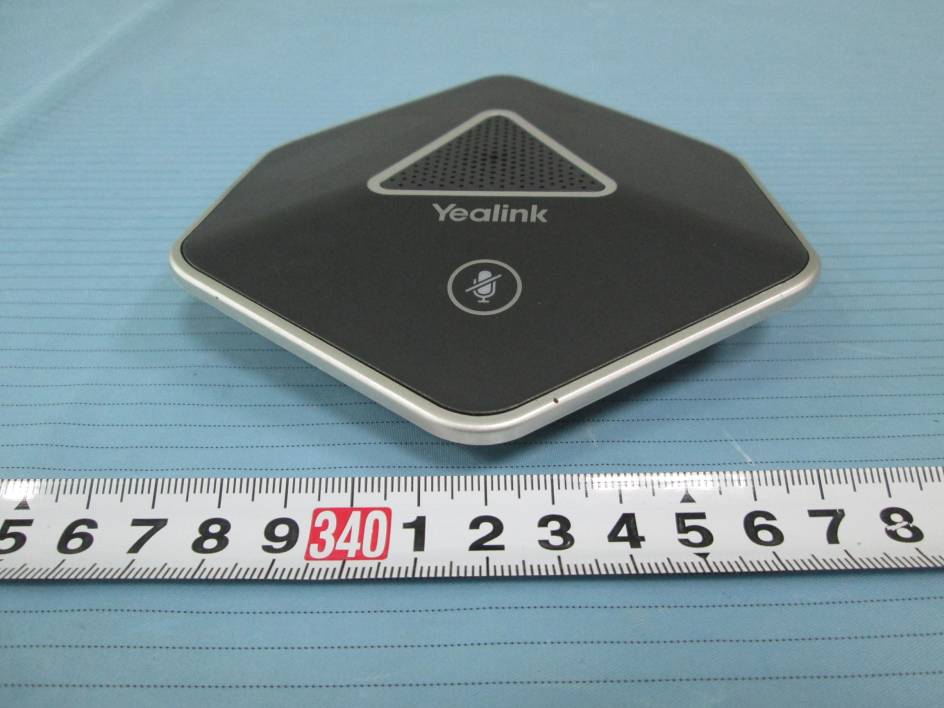

T2C-VCM60Video Conferencing Wireless Microphone

V ideo Conferencing Wireless Microphone Quick Start Guide(V1.2) www .yealink.com Battery Indicator Mute Button Switch Charging Interface Built-in Microphone To ensure good voice quality, the VCM60 can be connected to the VC110 video conferencing endpoint to work as the audio input device. 1 2 3 4 5 Packaging Contents Connecting the VCM60 to the Video Conferencing Endpoint Turning On or Off the VCM60 The following items are included in your package. If you find anything missing, contact your system administrator. 1 2 3 5 4 1 To start the VCM60, turn on the switch on the bottom of the VCM60. You can turn off the switch if the VCM60 is not in use for a long period of time. The VCM60 Component Introduction VCM60 Wireless Micpod Power Adapter USB Cable Dongle Quick Start Guide To connect the VCM60 to the VC110 video conferencing endpoint, do the following: 1. Connect the dongle to one of the USB ports on the VC110 on-in-one unit. The 2. Turn on the VCM60. The VCM60 registers with the dongle automatically. If successful, the (unregistered) icon on the status bar of display device will change to (registered). And the display device prompts the battery capacity. There are two indicators on the top of the VCM60. The indicators display the VCM60 work status. Battery indicator LED on the VCM60 Wirelss Micpod: LED Instruction 2 LED Status Description Solid green The VCM60 is turned on within the first 5 seconds. The battery capacity reaches 100% during charging. Flashing red The battery capacity can maintain less than 1 hour. Flashing green The VCM60 is charging. Off Other status. unregistered) icon appears on the status bar of the display device. Mute indicator LED on the VCM60 Wireless Micpod: The VCM60 is a video conferencing wireless micpod which can work as the audio input device for VC110 video conferencing endpoint. It supports 360-degree audio pickup at a radius of up to 3 meters. The VCM60 has a rubber pads on its base to prevent it from sliding. You can place the VCM60 on a conference table. Placing the VCM60 3 The VCM60 registers with the dongle, and then enters the LED Status Description Fast flashing green Green and in breathing state Red and in breathing state Solid green Solid red The VCM60 is searching the dongle. Off Fast flashing orange Slowly flashing orange the online standby status. The VCM60 is muted in the online standby status. The VC110 is placing a call. The VC110 is unmuted during a call. The VC110 is muted during a call. The VCM60 enters registration status. The VCM60 fails to search the dongle, and then enters the offline standby status. The VCM60 is turned off. The VCM60 runs out of battery. online standby status. The VCM60 is unmuted in Place the VCM60 on a stable surface and keep it away from obstacles so that it can effectively pick up sounds. Speak into the VCM60 to ensure that all participants can hear you during a conference. You can use the supplied USB cable to connect the VCM60 video conferencing wireless micpod to a power adapter or a computer’s USB port. When charging completes, the battery indicator LED illuminates solid green. Charging the VCM60 4 The VCM60 video conferencing wireless micpod should be less than 30 meters distant from the dongle, and isn’t disturbed by obstacles. Do the following to ensure optimal voice quality: r=3m To charge using a computer Note: The VCM60 can work normally during charging and needs about 2.5 hours to be full of electricity. To charge using a power adapter When VCM60 works as an audio input device of the VC110 video conferencing endpoint, you can tap the mute button on the top of the VCM60 to mute or unmute the VCM60. 1. What are offline standby and online standby? Offline standby: If VC110 video conferencing endpoint encounters poor signal, wireless interference or is powered off, the VCM60 may lose connection with the dongle. In this case, the VCM60 will search the dongle again, the mute indicator LED fast flashes green. If dongle cannot be searched in 2 mimutes, the VCM60 will enter offline standby status automatically and the mute indicator LED slowly flashes orange. Online standby: When registering with dongle successfully, the VCM60 enters online standby status and the mute indicator LED is green and in breathing state. Muting or Unmuting the VCM60 Frequently Asked Questions 5 2. How to activate the VCM60 from offline standby status? In offline standby status, you need to tap mute button on the VCM60 to activate the VCM60, and then the VCM60 will search the dongle again, the mute indicator LED fast flashes green. 6 How to register the VCM60? You can only register the VCM60 via the web user interface of VC110 . Do the following to register the VCM60: Tap and hold the mute button on the VCM60 for 5 seconds until the mute indicator LED fast flashes orange. The VCM60 and the dongle will be paired automatically. If this fails, the VCM60 will exit registration status in 2 minutes. 4. How to log into the web user interface of VC110? 1) Enter the IP address of the VC110 video conferencing endpoint (e.g., http://192. 168.0.10 or 192.168.0.10) in the address bar of a web browser on your PC, and then press the Enter key. Click Login. 5. The default user name is “admin” (case-sensitive), and the default password is “0000”. Enter the administrator user name and password. Log into the web user interface of VC110. Click Search Mic. The web user interface starts 120-second countdown for pairing with the dongle and micpod. Click on Setting->Micpod. 3) 1) 2) 3) 4) 3. How to mute the VCM60 when it is in online standby status or during a call? In online standby status, tap the mute button on the VCM60 to mute it, the mute indicator is red and is in breathing state. During a call, tap the mute button on the VCM60 to mute it, the mute indicator illuminates solid red and the mute icon appears on the local video image. 6. When do you need to register the VCM60 with a dongle? The device is broken, new VCM60 micpod or new dongle needs to be …
