T2C-W59RDECT IP Phone

W59R DECT IP Phone Quick Start Guide Visit http://support.yealink.com/ or scan the QR code to obtain the latest support information. For W59R firmware: 115.83.254.20 or later Copyright©2020 YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD.All rights reserved. 1 2 4 3 7 8 11 4 5 6 9 10 12 13 14 OK Key Navigation Keys Receiver Power LED Indicator Phone Screen Soft Keys Message Key Speakerphone Key Off-hook Key On-hook Key/Power Key Keypad Mute Key Microphone TRAN Key Soft Keys 16 15 Volume Key +/- Speaker W59R Handset Charging Cradle Quick Start Guide Power Adapter Battery Cover Rechargeable Battery We recommend that you use the accessories provided or approved by Yealink. The use of unapproved third-party accessories may result in reduced performance. Assembling W59R 1. Insert the battery into the handset. 2. (Optional) Mount the charging cradle to the wall. 50m m 50mm Package Contents Decorative Cover 3. Connect the charging cradle and charge the handset. • Use Yealink-supplied power adapter (5V/600mA). A third-party power adapter may damage the handset. • Check the charging status on the top-right corner of the LCD screen. For more information, see the specific user guide or contact your system administrator. Technical Specifications ItemSpecification Frequency band1880-1900 MHz (Europe), 1920-1930 MHz (Ameri- ca), 1910-1920 MHZ (Brazil) Battery type1460mAh Lithium-ion 3.7v 5.4WH Talk time28hours/24hours(with bluetooth) Standby time360 hours (15 days)/240 hours(with bluetooth) Charging timeLess than 4 hours ChargerDC 5V/600mA Input Power adapterInput:100-240V~50/60Hz 0.2A Output:5V 0.6A SecurityIEC 62133-2:2017 Regulatory Notices Operating Ambient Temperatures • Operating temperature: +32 to 104°F (0 to 40°C) • Relative humidity: 5% to 90%, noncondensing • Storage temperature: -22 to +160°F (-30 to +70°C) Warranty Our product warranty is limited only to the unit itself, when used normally in accor- dance with the operating instructions and the system environment. We are not liable for damage or loss resulting from the use of this product, or for any claim from a third party. We are not liable for problems with Yealink device arising from the use of this product; we are not liable for financial damages, lost profits, claims from third parties, etc., arising from the use of this product. Explanation of the symbols • DC symbol is the DC voltage symbol. • WEEE Warning symbol To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Restriction of Hazardous Substances Directive (RoHS) This device complies with the requirements of the EU RoHS Directive. Statements of compliance can be obtained by contacting [email protected]. Safety Instructions Save these instructions. Read these safety instructions before use! General Requirements •Before you install and use the device, read the safety instructions carefully and observe the situation during operation. •During the process of storage, transportation, and operation, please always keep the device dry and clean, avoid collision and crash. •Please attempt not to dismantle the device by yourself. In case of any dis- crepancy, please contact the appointed maintenance center for repair. •Please refer to the relevant laws and statutes while using the device. Legal rights of others should be respected as well. Environmental Requirements •Place the device at a well-ventilated place. Do not expose the device under direct sunlight. •Keep the device dry and free of dusts. •Do not place the device on or near any inflammable or fire-vulnerable object, such as rubber-made materials. •Keep the device away from any heat source or bare fire, such as a candle or an electric heater. Operating Requirements •Do not let a child operate the device without guidance. •Do not let a child play with the device or any accessory in case of accidental swallowing. •Please use the accessories provided or authorized by the manufacturer only. •The power supply of the device shall meet the requirements of the input voltage of the device. Please use the provided surge protection power socket only. •Before plugging or unplugging any cable, make sure that your hands are completely dry. • Do not spill liquid of any kind on the product or use the equipment near water, for example, near a bathtub, washbowl, kitchen sink, wet basement or near a swimming pool. •During a thunderstorm, stop using the device and disconnect it from the power supply. Unplug the power plug and the Asymmetric Digital Subscriber Line (ADSL) twisted pair (the radio frequency cable) to avoid lightning strike. •If the device is left unused for a rather long time, disconnect it from the power supply and unplug the power plug. •When there is smoke emitted from the device, or some abnormal noise or smell, disconnect the device from the power supply, and unplug the power plug immediately. •Contact the specified maintenance center for repair. •Do not insert any object into equipment slots that is not part of the product or auxiliary product. •Before connecting a cable, connect the grounding cable of the device first. Do not disconnect the grounding cable until you disconnect all other cables. •WARNGING: Do not place any small or light metallic object near the earcap region. Battery Requirements • Do not immerse the battery into water, which could short-circuit and damage the battery. • Do not expose the battery to an open flame or leave the battery where it could be subjected to extremely high temperatures, which could cause the battery to explode. • Do power the handset off before removing the battery. • Do not try to use the battery for the power supply of any device other than this handset. • Do not open or mutilat…

Text truncated - open the document above for the full version.

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. Authority to Act as Agent Date: June 18, 2020 Federal Communications Commission 445 12th Street SW Washington, DC 20554 Subject: Limited Agency Agreement (YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD.) To Whom It May Concern: Shenzhen UnionTrust Quality and Technology Co., Ltd. is authorized to act on our behalf, until otherwise notified, for applications to Intertek Testing Services. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 12 months By: __________________________ Stone Lu (Signature 1 ) (Print name) Title: Vice General Manager On behalf of: YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. Telephone: +86 592 5702000

1(1) [YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD.] [June 18, 2020] Attention: Application Examiner RE: Request for Confidentiality Applicant: [YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD.] FCC ID: [T2C-W59R] To Whom It May Concern: Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request is hereby submitted by [YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD.] to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block Diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: [YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD.] has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] [Short term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development.] If you have questions or need further information, please contact the undersigned. Sincerely, [Signature] [Stone Lu] [Vice General Manager] [YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD.]

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. Declaration Letter Hereby, we: Applicant: YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. Address: 309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R. China declare that this device identified by: FCC ID: T2C-W59R IC: 10741A-W59R The device does not use the provisions of FCC Part 15.323(c)(6) / RSS-213 Issue 3 Section 5.2(6), random waiting mechanism is not used in this system. The device does not use the provisions of FCC Part 15.323(c)(11) / RSS-213 Issue 3 Section 5.2(11) to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Sincerely, [Signature] [ Date: Jun. 29, 2020] [Stone Lu] [Vice General Manager] [YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD.]

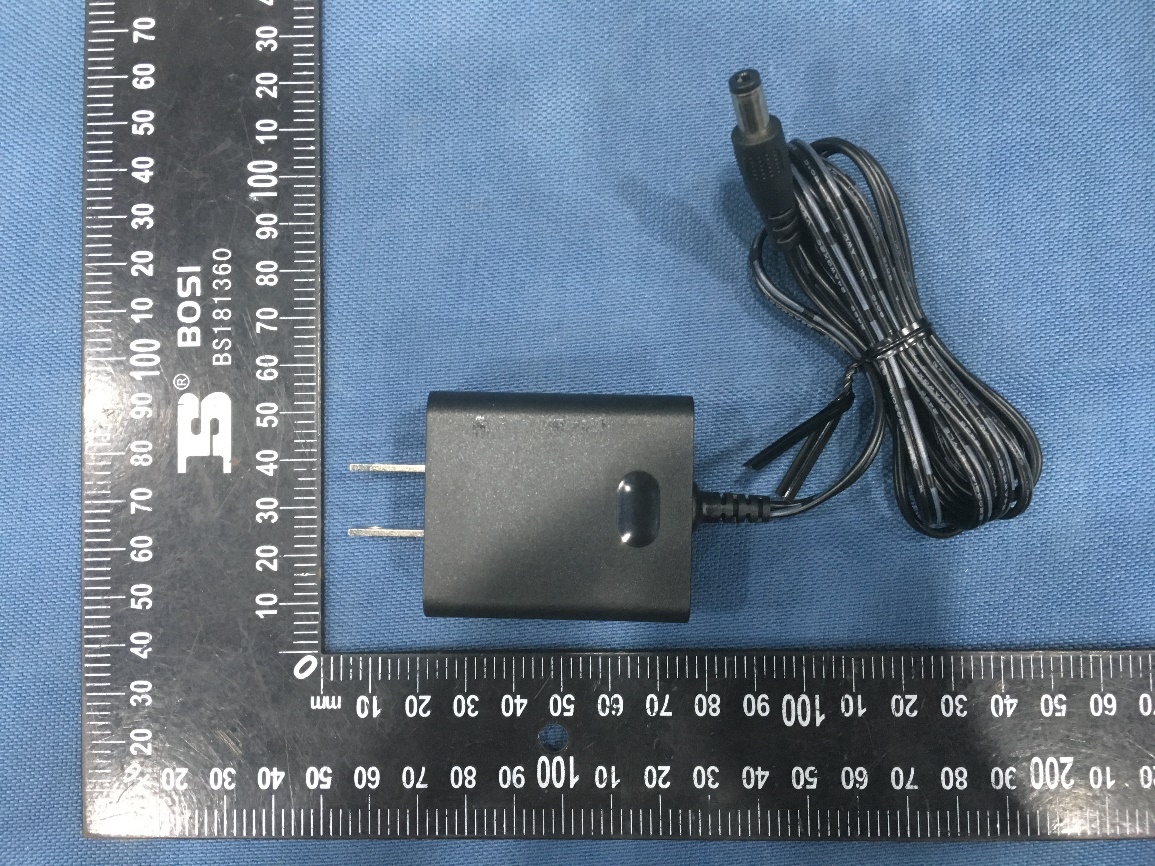

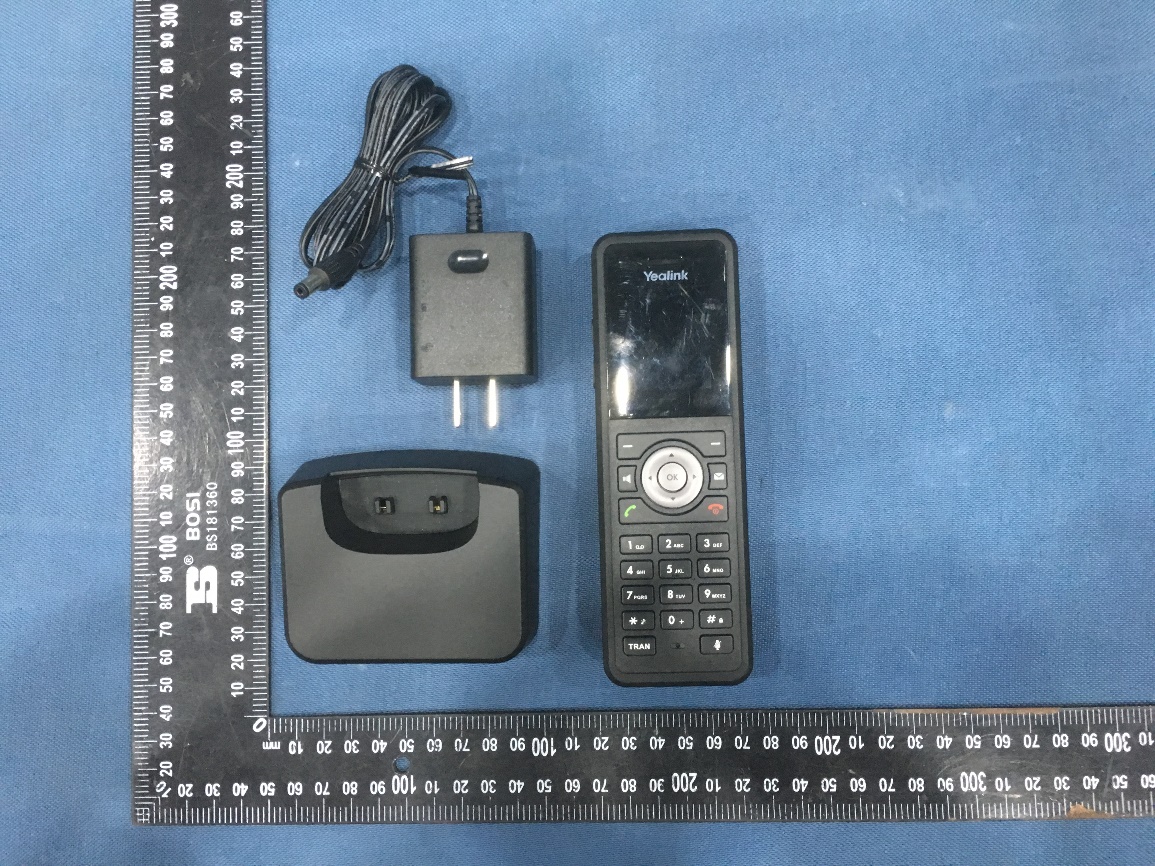

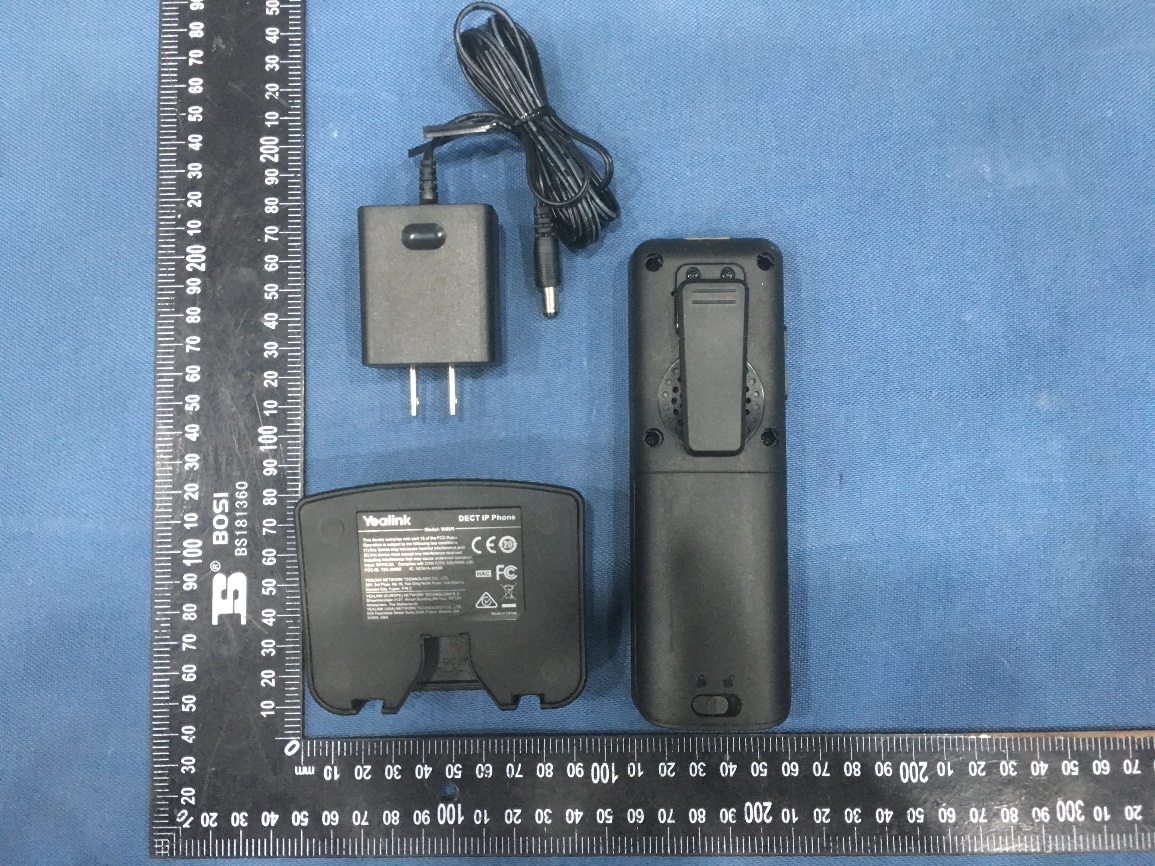

Page 1 of 8 FCC ID: T2C-W59R IC: 10741A-W59R Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 8 FCC ID: T2C-W59R IC: 10741A-W59R Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 8 FCC ID: T2C-W59R IC: 10741A-W59R Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 8 FCC ID: T2C-W59R IC: 10741A-W59R Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 5 of 8 FCC ID: T2C-W59R IC: 10741A-W59R Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 6 of 8 FCC ID: T2C-W59R IC: 10741A-W59R Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 7 of 8 FCC ID: T2C-W59R IC: 10741A-W59R Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 8 of 8 FCC ID: T2C-W59R IC: 10741A-W59R Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo

Label Size: 50*35mm Label Location

Page 1 of 7 FCC ID: T2C-W59R IC: 10741A-W59R Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 7 FCC ID: T2C-W59R IC: 10741A-W59R Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 7 FCC ID: T2C-W59R IC: 10741A-W59R Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 7 FCC ID: T2C-W59R IC: 10741A-W59R Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 5 of 7 FCC ID: T2C-W59R IC: 10741A-W59R Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo DECT Antenna BT Antenna BT Module Page 6 of 7 FCC ID: T2C-W59R IC: 10741A-W59R Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 7 of 7 FCC ID: T2C-W59R IC: 10741A-W59R Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo

Page 2 of 10 Report No.: 200518021RFC-4 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 Version Version No. Date Description V1.0 June 18, 2020 Original Page 3 of 10 Report No.: 200518021RFC-4 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 4 1.4 OTHER INFORMATION ......................................................................................................................................... 5 1.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................................................... 5 1.6 DEVIATION FROM STANDARDS ............................................................................................................................ 6 1.7 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 6 1.8 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 6 2. EQUIPMENT LIST .................................................................................................................................................... 6 3. SAR TEST EXCLUSION EVALUATION ................................................................................................................... 7 3.1 REFERENCE DOCUMENTS FOR EVAL U AT I O N ........................................................................................................ 7 3.2 EXEMPTION LIMITS FOR ROUTINE EVAL U AT I O N – SAR EVAL U AT I O N .................................................................... 7 3.2.1 SAR TEST EXCLUSION THRESHOLD ........................................................................................................ 7 3.2.2 TEST PROCEDURE ................................................................................................................................. 8 3.3 MPE CALCULATION RESULTS ............................................................................................................................ 8 3.3.1 ANTENNA TYPE: ..................................................................................................................................... 8 3.3.2 ANTENNA GAIN: ..................................................................................................................................... 8 3.3.3 STANDALONE SAR TEST EXCLUSION CONSIDERATIONS ........................................................................... 8 3.3.4 ESTIMATED SAR CALCULATION .............................................................................................................. 9 3.3.5 SIMULTANEOUS MULTI-BAND TRANSMISSION EVA LUAT I ON ........................................................................ 9 APPENDIX 1 PHOTOS OF TEST SETUP ..................................................................................................................... 10 APPENDIX 1 PHOTOS OF EUT CONSTRUCTIONAL DETAILS ................................................................................. 10 Page 4 of 10 Report No.: 200518021RFC-4 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 1. GENERAL INFORMATION 1.1 CLIENT INFORMATION Applicant: YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. Address of Applicant: 309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R. China Manufacturer: YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. Address of Manufacturer: 309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R. China 1.2 EUT INFORMATION Product Name: DECT IP Phone Model No. / HVIN: W59R Add. Model No. / HVIN: N/A Trade Mark: YEALINK DUT Stage: Production Unit EUT Supports Function: 2.4 GHz ISM Band: Bluetooth V5.0 (Not support 2LE and LE Code mode) DECT 6.0: 1 920 MHz to 1 930 MHz Sample Received Date: May 25, 2020 Sample Tested Date: May 28, 2020 to June 17, 2020 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD For BT_LE Frequency Band: 2400 MHz to 2483.5 MHz Frequency Range: 2402 MHz to 2480 MHz Bluetooth Version: Bluetooth LE Type of Modulation: GFSK Number of Channels: 40 Channel Separation: 2 MHz Antenna Type: Integral Antenna Antenna Gain: 3.0 dBi Maximum Peak Power: 6.46 dBm For BT_EDR Frequency Band: 2400 MHz to 2483.5 MHz Frequency Range: 2402 MHz to 2480 MHz Bluetooth Version: Bluetooth BR + EDR Modulation Technique: Frequency Hopping Spread Spectrum(FHSS) Type of Modulation: GFSK, π/4DQPSK, 8DPSK Number of Channels: 79 Channel Separation: 1 MHz Antenna Type: Integral Antenna Antenna Gain: 3.0 dBi Maximum Peak Power: 5.58 dBm Page 5 of 10 Report No.: 200518021RFC-4 Shenzhen Union…

Text truncated - open the document above for the full version.

Page 2 of 43 Report No.: 200518021RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS213-V1.0 Version Version No. Date Description V1.0 June 18, 2020 Original Page 3 of 43 Report No.: 200518021RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS213-V1.0 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.2.1 GENERAL DESCRIPTION OF EUT ............................................................................................................ 4 1.2.2 DESCRIPTION OF ACCESSORIES .............................................................................................................. 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 5 1.4 DESCRIPTION OF SUPPORT UNITS ...................................................................................................................... 5 1.5 TEST LOCATION ................................................................................................................................................. 5 1.6 TEST FACILITY ................................................................................................................................................... 6 1.7 DEVIATION FROM STANDARDS ............................................................................................................................ 6 1.8 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 6 1.9 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 6 1.10 MEASUREMENT UNCERTAINTY ........................................................................................................................... 6 2. TEST SUMMARY ...................................................................................................................................................... 7 3. EQUIPMENT LIST .................................................................................................................................................... 8 4. TEST CONFIGURATION .......................................................................................................................................... 9 4.1 ENVIRONMENTAL CONDITIONS FOR TESTING ........................................................................................................ 9 4.1.1 NORMAL OR EXTREME TEST CONDITIONS ............................................................................................... 9 4.1.2 RECORD OF NORMAL ENVIRONMENT....................................................................................................... 9 4.2 TEST CHANNELS ............................................................................................................................................... 9 4.3 EUT TEST STAT U S .......................................................................................................................................... 10 4.4 TEST SETUP .................................................................................................................................................... 10 4.4.1 FOR RADIATED EMISSIONS TEST SETUP ................................................................................................ 10 4.4.2 FOR CONDUCTED EMISSIONS TEST SETUP ............................................................................................ 11 4.4.3 FOR CONDUCTED RF TEST SETUP ........................................................................................................ 12 4.5 SYSTEM TEST CONFIGURATION ........................................................................................................................ 13 5. RADIO TECHNICAL REQUIREMENTS SPECIFICATION .................................................................................... 14 5.1 REFERENCE DOCUMENTS FOR TESTING ............................................................................................................ 14 5.2 ANTENNA REQUIREMENT ................................................................................................................................. 14 5.3 DIGITAL MODULATION TECHNIQUES .................................................................................................................. 14 5.4 AUTOMATIC DISCONTINUATION OF TRANSMISSION ............................................................................................. 15 5.5 EMISSION BANDWIDTH & OCCUPIED BANDWIDTH ............................................................................................. 16 5.6 IN-BAND EMISSIONS ......................................................................................................................................... 18 5.7 OUT-OF-BAND EMISSIONS ................................................................................................................................ 21 5.8 RADIATED EMISSIONS ..............................................…

Text truncated - open the document above for the full version.

Page 21 of 43 Report No.: 200518021RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS213-V1.0 5.7 OUT-OF-BAND EMISSIONS Test Requirement: FCC 47 CFR Part 15.323(d) RSS-213 Issue 3, Section 5.8.1 Reference Method: ANSI C63.17-2013 Clause 6.1.6.2 Limit: For digitally modulated systems, the power spectral density conducted from the intentional radiator to the antenna shall not be greater than 8dBm in any 3kHz band during any time interval of continuous transmission. FCC 47 CFR Part 15.323(d) Emissions outside the band shall be attenuated below a reference power of 112 milliwatts as follows: 30 dB between the band and 1.25 MHz above or below the band; 50 dB between 1.25 and 2.5 MHz above or below the band; and 60 dB at 2.5 MHz or greater above or below the band. RSS-213 Issue 3, Section 5.8.1 Emissions outside the band 1920-1930 MHz shall be attenuated below a reference power of 112 mW (-9.5 dBW) by at least: • 30 dB between the band edges and 1.25 MHz above and below the band edges; • 50 dB between 1.25 MHz and 2.5 MHz above or below the band edges; and • 60 dB at 2.5 MHz or greater above or below the band edges. Test Procedure: ANSI C63.17-2013 Clause 6.1.6.2 Test Setup: Refer to section 4.4.3 for details. Equipment Used: Refer to section 3 for details Test Results: Pass Page 22 of 43 Report No.: 200518021RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS213-V1.0 The test plots as follows: Out-of-band emissions_ Channel 4 30 MHz - 1.915 GHz 1.915 GHz - 1.92 GHz 1.93 GHz - 1.935 GHz 1.935 GHz – 7 GHz 7 GHz – 20 GHz Page 23 of 43 Report No.: 200518021RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS213-V1.0 Out-of-band emissions_ Channel 2 30 MHz - 1.915 GHz 1.915 GHz - 1.92 GHz 1.93 GHz - 1.935 GHz 1.935 GHz – 7 GHz 7 GHz – 20 GHz Page 24 of 43 Report No.: 200518021RFC-3 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS213-V1.0 Out-of-band emissions_ Channel 0 30 MHz - 1.915 GHz 1.915 GHz - 1.92 GHz 1.93 GHz - 1.935 GHz 1.935 GHz – 7 GHz 7 GHz – 20 GHz Note 1: The BS spurious out-of-band transmission level is below the indicated limit. Note 2: During the test RTX’s modulation type was PSBR. Page 25 of 43 Report …

Text truncated - open the document above for the full version.
