T2C-YL43456Wi-Fi&Bluetooth Module

Wi-Fi&Bluetooth Module YL43456 Parameters: Model name YL43456 Product type Wi-Fi&Bluetooth Module WiFi standards IEEE 802.11 a/b/g/n/ac BT standards Bluetooth 2.1+ Bluetooth 3.0+Enhanced Data Rate (EDR)+ Bluetooth 5.0 Chip BCM43456 Host interface Wi-Fi : SDIO, BT :UART Size 12mm * 12mm * 2.0mm Wi-Fi VID/PID TBD BT VID/PID TBD Weight TBD Environment Voltage 3.6V Temperature -40°C~85°C Storage temperature -45°C~135°C RF character Frequency WLAN: 2.4 GHz ： 2412-2462 MHz 5 GHz: 5150-5350 MHz, 5470-5725 MHz, 5725-5850 MHz BT & BLE: 2402-2480 MHz Modulation WLAN: DSSS, OFDM, BT：GFSK, Π/4 DQPSK,8DPSK BLE: GFSK Max Output power WLAN: 802.11g: 20.71 dBm 802.11a @5GHz: 16.28 dBm 802.11n @5GHz: 15.84 dBm (N20) 802.11n @5GHz: 15.48dBm (N40 ) 802.11ac @5GHz: 15.91 dBm (VHT20) 802.11ac @5GHz: 15.52 dBm (VHT40) 802.11ac @5GHz: 14.73 dBm (VHT80 ) BT: BDR: 7.95 dBm BLE: 3.53 dBm Security WAPI WEP 64-bit and 128-bit encryption with H/W TKIP processing WPA/WPA2 Personal (Wi-Fi Protected Access) WMM/WMM-SA/WMM-PS (U-APSD) AES-CCMP hardware implementation as part of 802.11i security standard Pin Definition Pin Description Pin No. Definition Basic Description Type Type 1 GND GROUND GND 2 WL_BT_ANT Wi-Fi/BT RF signal I/O 3 GND GROUND GND 4 NC Floating Pin, No connect to anything. Floating 5 NC Floating Pin, No connect to anything. Floating 6 Host_Wakeup_BT/GPIO34 Host wakeup BT device IN 7 BT_wakeup_Host BT Device wakeup Host I/O 8 TMS Reserve for EJTAG I/O 9 VDD DC power supply +3.3V input VCC 10 NC Floating Pin, No connect to anything. Floating 11 NC Floating Pin, No connect to anything. Floating 12 WL_EN GPIO pin to on/off the Wi-Fi function by software. Active high. Reserve pull high 100K resistor and shunt 100pF capacitor to GND on platform. IN 13 WL_wakeup_Host/GPIO35 WLAN device wakeup host OUT 14 SDIO_DATA2 SDIO Data Line 2 I/O 15 SDIO_DATA3 SDIO Data Line 3 I/O 16 SDIO_CMD SDIO Command Input I/O 17 SDIO_CLK SDIO Clock Input IN 18 SDIO_DATA0 SDIO Data Line 0 I/O 19 SDIO_DATA1 SDIO Data Line 1 I/O 20 GND GROUND GND 21 CLK_REQ/GPIO11 Clock request output DO 22 VDDIO 1.8V-3.3V VDDIO supply for WLAN and BT VCC 23 NC Floating Pin, No connect to anything. Floating 24 LPO External low-power 32.768KHz clock input. IN 25 PCM_OUT PCM synchronous data output, connected to PCM_IN on the host. OUT 26 PCM_CLK PCM Clock I/O 27 PCM_IN PCM synchronous data input, connected to PCM_OUT on the host. IN 28 PCM_SYNC PCM synchronous data SYNC I/O 29 TDI Reserve for EJTAG IN 30 TDO Reserve for EJTAG OUT 31 GND GROUND GND 32 TCK Reserve for EJTAG GND 33 GND GROUND GND 34 BT_EN GPIO pin to on/off the BT function by software. Active high. Reserve pull high 100K resistor and shunt 100pF capacitor to GND on host. IN 35 NC Floating Pin, No connect to anything. Floating 36 GND GROUND GND 37 NC Floating Pin, No connect to anything. Floating 38 NC Floating Pin, No connect to anything. Floating 39 Debug_UART_TXD TXD for Wi-Fi Uart_debug only, connected to RXD of the host. OUT 40 Debug_UART_RXD RXD for Wi-Fi Uart_debug only, connected to TXD of the host. IN 41 UART_RTS UART Ready To Send, connected to CTS on the host. OUT 42 UART_TXD UART Transmit Data, connected to RXD on the host. OUT 43 UART_RXD UART Receive Data, connected to TXD on the host. IN 44 UART_CTS UART Clear To Send, connected to RTS on the host. IN Enclosure information Module installation: The Wi-Fi&Bluetooth wireless module is installed in the lower left corner of the Whole mainboard by the factory operator during the production process. After assembly, the Wi-Fi&Bluetooth wireless module is built-in by welding in the whole mac hine, which is not removable and will not be used alone, and does not require additional ope ration by users and other personnel. The procedure and installation position of Wi-Fi&Bluetooth wireless module production and assembly are shown as below: Wi-Fi&Bluetooth Module 1 Fig 1 is the Wi-Fi&Bluetooth Module Assembly the Wi-Fi&Bluetooth Module in the lower left corner of the whole mainboard, as Fig 2 Main board 1 Host installation: The host will be assembled by the factory operator during the production process, and the consumer can mount the host either on the conference table, or mount it on the top of TV, on the wall, on the ceiling, onto a TV stand or a tripod with great flexibility according to your needs. FCC regulatory compliance statement §15.19 Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. §15.21 Information to user Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. ⚫ Limited module procedures This module is a limited module. ⚫ RF exposure considerations This Module complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ⚫ Label and compliance information Please notice that if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC ID: T2C- YL43456” any similar wording that expresses the same meaning may be used. § 15.19 Labelling requirements shall be complied on end user device. Labelling rules for special device, please refer to §2.925, § 15.19 (a)(5) and relevant KDB publications. For E-label, please refer to §2.935.  NII: According to FCC Part 15.407 (g), Yealink is responsible for U-NII device to ensure…

Text truncated - open the document above for the full version.

YEALINK (XIAMEN ) NETWORK TECHNOLOGY CO., LTD. Declaration of Authorization We Name: YEALINK (XIAMEN ) NETWORK TECHNOLOGY CO., LTD. Address: No.666 Hu'an Rd. Huli District Xiamen City, Fujian Huli District, City: Xiamen City, Fujian Country: China Declare that: Name Representative of agent: Ms. Rose Ll Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification of the following product(s): Product description: Wi-Fi&Bluetooth Module Type designation: YL43456 Trademark: Yealink Validity/ expiry date 2024.04.18 on our behalf. Date: 2023.4.18 City: Xiamen City, Fujian Name: Stone Lu Function: Vice General Manager Signature: .

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. Date: 2023.04.18 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: T2C-YL43456 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description 4. Schematics 5. Block Diagram 6. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Signature Stone Lu

Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: T2C-YL43456 Items to be covered by Limited single-modular transmitter. Answer from applicant 1.The modular transmitter must have its own RF shielding. YES, Please refer to External Photos. 2.The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. YES, U1 SYN43456PXKUBG is used for the function. 3.The modular transmitter must have its own power supply regulation. YES, the modular has its own power supply regulation. 4.The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(b)(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). No, The module itself does not have an antenna, which is built on the host. 5.The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. No，The EUT was tested with a test board, Please see test report and setup photo 6.The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number in accordance with 15.212 (a)(1)(vi)(A) / (B). YES, please refer to the exhibition label sample for this module. 7.The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. YES, please refer to the user manual. 8.The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 1.1310, 2.1091, 2.1093, and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance. Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. YES, RF exposure statement is attached in the user manual. Note: A limited modular approval (LMA) may be granted for single or split modular transmitters that comply partially with the requirements above. Name and surname of applicant (or authorized representative): Stone Lu Date: 2023-4-18 Signature: ___________________________

YEALINK (XIAMEN ) NETWORK TECHNOLOGY CO., LTD. Ad Hoc Mode Declaration Date: 2023.04.18 We, the undersigned company Company Name: YEALINK (XIAMEN ) NETWORK TECHNOLOGY CO., LTD. Address: No.666 Hu'an Rd. Huli District Xiamen City, Fujian China Declare that: Product description: Wi-Fi&Bluetooth Module Type designation: YL43456 Brand: Yealink FCC ID: T2C-YL43456 1. The EUT doesn’t have Ad Hoc Mode function on “non-US frequencies”. 802.11a/n Ad Hoc mode should not be supported even on US DFS frequencies (5.25 ~5.35GHz/5.47 ~5.725GHz). 2. In addition, the frequency selection feature is disabled by firmware for devices marketed to the US. The product meets all other requirements specified in Part 15E Section 15.407 and no configuration controls are provided to change the frequency of operations outside the grant of certification for US operation. 3. Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: ________________________ Name: Stone Lu Tel: 86-592-5702000 Email: [email protected]

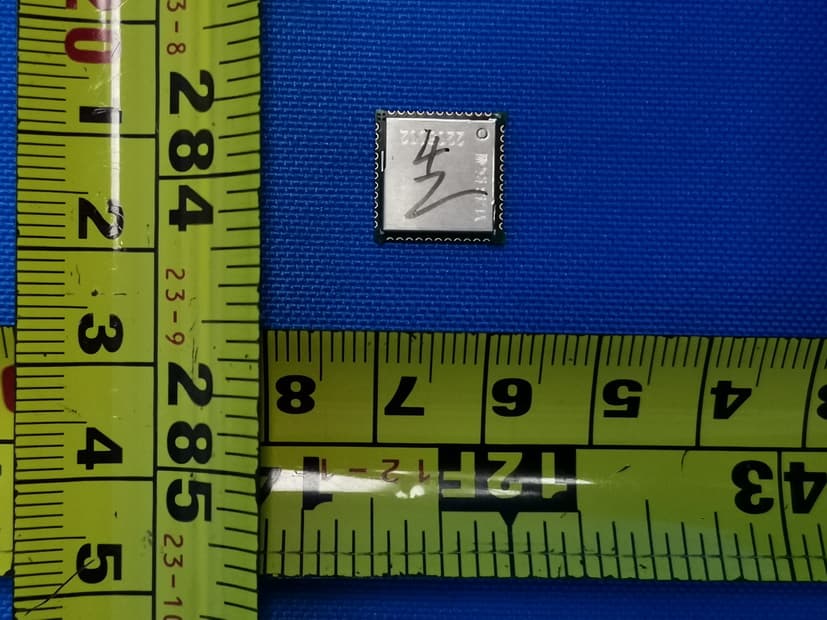

Page 1 of 1 FCC ID: T2C-YL43456 PHOTOS OF EUT EXTERNAL PHOTOS EUT Photo EUT Photo

Page 1 of 2 FCC ID: T2C-YL43456 PHOTOS OF EUT INTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 2 FCC ID: T2C-YL43456 EUT Photo BT&WIFI Ant

Report No.: FCC022022-06244RF14 Page 1 of 6 Product Name: Wi-Fi&Bluetooth Module Report No: FCC022022-06244RF14 Product Model: YL43456 Security Classification: Open Version: V1.0 Total Page: 6 TIRT Testing Report Prepared By: Checked By: Approved By: Stone Tang Randy Lv Daniel Chen Report No.: FCC022022-06244RF14 Page 2 of 6 FCC RF EXPOSURE REPORT FCC ID: T2C-YL43456 Equipment : Wi-Fi&Bluetooth Module Brand Name : Yealink Test Model : YL43456 Series Model : N/A Applicant : YEALINK(XIAMEN) NETWORK TECHNOLOGY CO., LTD. Address : No. 666 Hu’an Rd, Huli District Xiamen City, Fujian, P.R. China Manufacturer : YEALINK(XIAMEN) NETWORK TECHNOLOGY CO., LTD. Address : No. 666 Hu’an Rd, Huli District Xiamen City, Fujian, P.R. China Issued Date : Jan. 28, 2023 Report Version : V1.0 Test Sample : Engineering Sample No.: 20221206021239 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091 KDB 447498 D01 General RF Exposure Guidance v06 •T he test result referred exclusively to the presented test model /sample. •Without written approval of TIRT Inc. the test report shall not reproduced except in full. Lab: Beijing TIRT Technology Service Co.,Ltd Shenzhen Add: 101, 3 # Factory Building, Gongjin Electronics Shatin Community, Kengzi Street, Pingshan District, Shenzhen, China TEL: +86-0755-27087573 Report No.: FCC022022-06244RF14 Page 3 of 6 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note FCC022022-06244RF14 V1.0 Original Report 2023.01.28 Val id Report No.: FCC022022-06244RF14 Page 4 of 6 1. TEST FACILITY Company: Beijing TIRT Technology Service Co.,Ltd Shenzhen Address: 101, 3 # Factory Building, Gongjin Electronics Shatin Community, Kengzi Street, Pingshan District, Shenzhen, China CNAS Registration Number: CNAS L14158 A2LA Registration Number: 6049.01 FCC Accredited Lab. Designation Number: CN1309 FCC Test Firm Registration Number: 825524 Telephone: +86-0755-27087573 Report No.: FCC022022-06244RF14 Page 5 of 6 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna For BT: Antenna Specification: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A FPC N/A 3.0 For 2.4GHz: Antenna Specification: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A FPC N/A 3.0 For 5GHz: Antenna Specification: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A FPC N/A 3.0 Note: 1) The antenna gain is provided by the manufacturer. 2) The antenna is for testing purposes only. Report No.: FCC022022-06244RF14 Page 6 of 6 3. TEST RESULTS For BDR+EDR: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3.0 2.0 7.95 6.24 0.0025 1 Complies For BLE: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3.0 2.0 3.53 2.25 0.0009 1 Complies For 2.4GHz: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3.0 2.0 20.71 117.76 0.0467 1 Complies For 5GHz: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3.0 2.0 16.28 46.46 0.0169 1 Complies Note: 1. The calculated distance is 20 cm. 2. The BT function can’t transmit at the same time with the Wifi function End of Test Report

Report No.: FCC022022-06244RF6 Page 1 of 108 Product Name: Wi-Fi&Bluetooth Module Report No: FCC022022-06244RF6 Product Model: YL43456 Security Classification: Open Version: V1.0 Total Page: 1 08 TIRT Testing Report Prepared By: Checked By: Approved By: Stone Tang Randy Lv Daniel Chen Report No.: FCC022022-06244RF6 Page 2 of 108 FCC Radio Test Report FCC ID: T2C-YL43456 This report concerns: Original Grant Equipment : Wi-Fi&Bluetooth Module Brand Name : Yealink Test Model : YL43456 Series Model : N/A Applicant : YEALINK(XIAMEN) NETWORK TECHNOLOGY CO., LTD. Address : No. 666 Hu’an Rd, Huli District Xiamen City, Fujian, P.R. China Manufacturer : YEALINK(XIAMEN) NETWORK TECHNOLOGY CO., LTD. Address : No. 666 Hu’an Rd, Huli District Xiamen City, Fujian, P.R. China Date of Receipt : Dec. 06, 2022 Date of Test : Dec. 06, 2022~ Jan. 03, 2023 Issued Date : Jan. 28, 2023 Report Version : V1.0 Test Sample : Engineering Sample No.: 20221206021239 Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10-2013 •T he test result referred exclusively to the presented test model /sample. •Without written approval of TIRT Inc. the test report shall not reproduced except in full. Lab: Beijing TIRT Technology Service Co.,Ltd Shenzhen Add: 101, 3 # Factory Building, Gongjin Electronics Shatin Community, Kengzi Street, Pingshan District, Shenzhen, China TEL: +86-0755-27087573 Report No.: FCC022022-06244RF6 Page 3 of 108 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 8 2 . GENERAL INFORMATION 9 2.1 GENERAL DESCRIPTION OF EUT 9 2.2 DESCRIPTION OF TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 12 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 2.5 SUPPORT UNITS 12 3 . AC POWER LINE CONDUCTED EMISSIONS 13 3.1 LIMIT 13 3.2 TEST PROCEDURE 13 3.3 DEVIATION FROM TEST STANDARD 13 3.4 TEST SETUP 14 3.5 EUT OPERATING CONDITIONS 14 3.6 TEST RESULTS 14 4 . RADIATED EMISSIONS 15 4.1 LIMIT 15 4.2 TEST PROCEDURE 16 4.3 DEVIATION FROM TEST STANDARD 17 4.4 TEST SETUP 17 4.5 EUT OPERATING CONDITIONS 18 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 18 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 18 4.8 TEST RESULTS - ABOVE 1000 MHZ 18 5 . NUMBER OF HOPPING FREQUENCY 19 5.1 LIMIT 19 5.2 TEST PROCEDURE 19 5.3 DEVIATION FROM STANDARD 19 5.4 TEST SETUP 19 5.5 EUT OPERATION CONDITIONS 19 Report No.: FCC022022-06244RF6 Page 4 of 108 Table of Contents Page 5.6 TEST RESULTS 19 6 . AVERAGE TIME OF OCCUPANCY 20 6.1 LIMIT 20 6.2 TEST PROCEDURE 20 6.3 DEVIATION FROM STANDARD 20 6.4 TEST SETUP 20 6.5 EUT OPERATION CONDITIONS 20 6.6 TEST RESULTS 20 7 . HOPPING CHANNEL SEPARATION 21 7.1 LIMIT 21 7.2 TEST PROCEDURE 21 7.3 DEVIATION FROM STANDARD 21 7.4 TEST SETUP 21 7.5 EUT OPERATION CONDITIONS 21 7.6 TEST RESULTS 21 8 . BANDWIDTH 22 8.1 LIMIT 22 8.2 TEST PROCEDURE 22 8.3 DEVIATION FROM STANDARD 22 8.4 TEST SETUP 22 8.5 EUT OPERATION CONDITIONS 22 8.6 TEST RESULTS 22 9 . MAXIMUM OUTPUT POWER 23 9.1 LIMIT 23 9.2 TEST PROCEDURE 23 9.3 DEVIATION FROM STANDARD 23 9.4 TEST SETUP 23 9.5 EUT OPERATION CONDITIONS 23 9.6 TEST RESULTS 23 10 . CONDUCTED SPURIOUS EMISSION 24 10.1 LIMIT 24 10.2 TEST PROCEDURE 24 10.3 DEVIATION FROM STANDARD 24 10.4 TEST SETUP 24 Report No.: FCC022022-06244RF6 Page 5 of 108 Table of Contents Page 10.5 EUT OPERATION CONDITIONS 24 10.6 TEST RESULTS 24 11 . MEASUREMENT INSTRUMENTS LIST 25 12 . EUT TEST PHOTO 26 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 29 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 32 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 33 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 36 APPENDIX E - NUMBER OF HOPPING FREQUENCY 57 APPENDIX F - AVERAGE TIME OF OCCUPANCY 60 APPENDIX G - HOPPING CHANNEL SEPARATION 71 APPENDIX H - BANDWIDTH 74 APPENDIX I - MAXIMUM OUTPUT POWER 85 APPENDIX J - CONDUCTED SPURIOUS EMISSION 91 APPENDIX K - DECLARATION FOR BLUETOOTH DEVICE 106 Report No.: FCC022022-06244RF6 Page 6 of 108 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note FCC022022-06244RF6 V1.0 Original Report. 2023.01.28 Val id Report No.: FCC022022-06244RF6 Page 7 of 108 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PA SS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emission APPENDIX B APPENDIX C APPENDIX D PA SS ------ 15.247 (a)(1)(iii) Number of Hopping Frequency APPENDIX E PA SS ------ 15.247 (a)(1)(iii) Average Time of Occupancy APPENDIX F PA SS ------ 15.247(a)(1) Hopping Channel Separation APPENDIX G PA SS ------ 15.247(a)(1) Bandwidth APPENDIX H PA SS ------ 15.247(a) (1) Maximum Output Power APPENDIX I PA SS ------ 15.247(d) Conducted Spurious Emission APPENDIX J PA SS ------ 15.203 Antenna Requirement ------ PA SS Note(2) Note: (1) “N/A” denotes test is not applicable in this test report (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203. Report No.: FCC022022-06244RF6 Page 8 of 108 1.1 TEST FACILITY Company: Beijing TIRT Technology Service Co.,Ltd Shenzhen Address: 101, 3 # Factory Building, Gongjin Electronics Shatin Community, Kengzi Street, Pingshan District, Shenzhen, China CNAS Registration Number: CNAS L14158 A2LA Registration Number: 6049.01 FCC Accredited Lab. Designation Number: CN1309 FCC Test Firm Registration Number: 825524 Telephone: +86-0755-27087573 1.2 MEASUREMENT UNCERTAINTY ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)) The BTL measurement uncertainty as below table: Uncertainty Parameter Uncertainty Occupied Channel Bandwidth ±142.12 KHz RF pow…

Text truncated - open the document above for the full version.

2.400G 2.405G 2.410G 2.415G 2.420G 2.425G 2.430G 2.435G 2.440G 2.445G 2.450G 2.455G 2.460G 2.465G 2.470G 2.475G 2.480G Ave Efficiency 44.60 44.76 44.95 44.92 45.69 45.61 45.44 45.50 44.97 45.12 44.05 43.33 42.98 42.98 43.24 48.89 49.65 45.10 Maximum gain 1.82 1.89 1.92 1.93 2.16 2.18 2.24 2.25 2.13 2.35 2.27 2.22 2.36 2.27 2.43 2.90 3.00 2.25 5.150G 5.200G 5.250G 5.300G 5.350G 5.400G 5.450G 5.500G 5.550G 5.600G 5.650G 5.700G 5.750G 5.800G 5.850G Ave Efficiency 62.87 64.26 61.88 58.62 56.57 53.71 51.85 49.23 48.32 49.73 53.01 58.39 61.54 61.80 60.49 56.81815 Maximum gain 2.20 2.46 2.33 2.23 2.08 2.70 2.46 2.02 2.69 2.28 2.17 3.00 2.782.212.632.42 Company name: Zhejiang Haitong communications electronic Limited by Share Ltd. Address: NO. 1607, BINHAI 1ST ROAD, BINHAI DISTRI, WENZHOU CN-33 Zhejiang 325025 CN model : Antenna-0201 Real picture
