T2J90490TX27RF Remote Control Transmitter

Marvel Enterprises, Inc.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Apr 27, 2006
Application Purpose: Original Equipment
Date of Application: Apr 27, 2006
Equipment Note: RF Remote Control Transmitter
Frequency Range: 27.14500000 - 27.14500000
Company: Marvel Enterprises, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

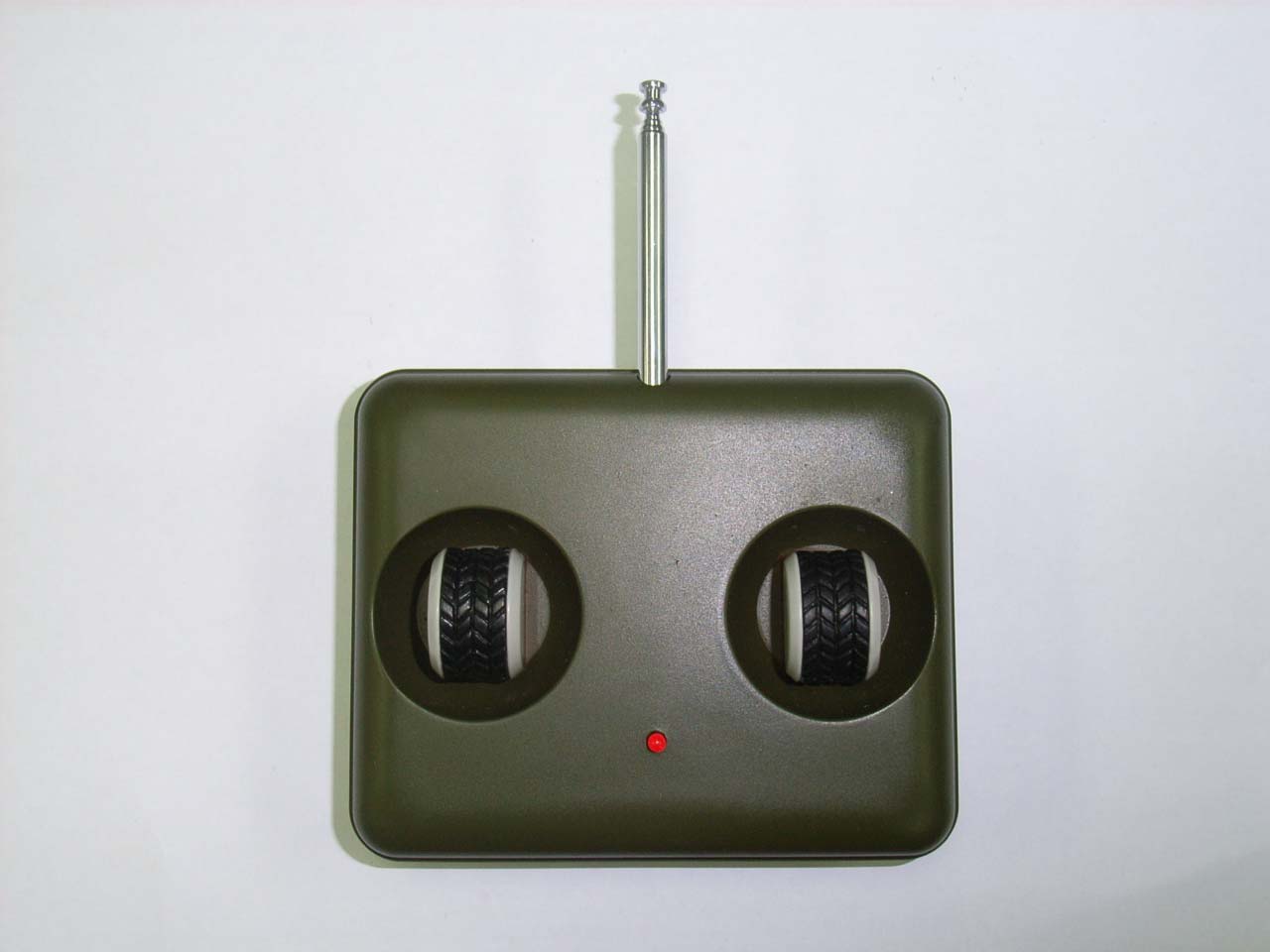

Technical Report: (5206) 089-0682 Date: 24 March 2006 Page 1 of 2 Photographs: EUT Exterior Sample Description: Virtual Rider-ULRICH ON OVERBIKER Radio Remote Control Transmitter (27.145 MHz) FCC ID (if applicable): T2J90490TX27 Photo No. 1 : The Front View Technical Report: (5206) 089-0682 Date: 24 March 2006 Page 2 of 2 Photographs: EUT Exterior Sample Description: Virtual Rider-ULRICH ON OVERBIKER Radio Remote Control Transmitter (27.145 MHz) FCC ID (if applicable): T2J90490TX27 Photo No. 2 : The Back View

ID Label/Location Info

Technical Report: (5206) 089-0682 Date: 24 March 2006 Page 1 of 2 Photographs: Label and Its Location Sample Description: Virtual Rider-ULRICH ON OVERBIKER Radio Remote Control Transmitter (27.145 MHz) FCC ID (if applicable): T2J90490TX27 Drawing No. 1 : The Label FCC ID T2J90490TX27 Made In China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Technical Report: (5206) 089-0682 Date: 24 March 2006 Page 2 of 2 Photographs: Label and its Location Sample Description: Virtual Rider-ULRICH ON OVERBIKER Radio Remote Control Transmitter (27.145 MHz) FCC ID (if applicable): T2J90490TX27 Photo No. 2 : The Location of the Label Battery Box

Internal Photos

Technical Report: (5206) 089-0682 Date: 24 March 2006 Page 1 of 3 Photographs: EUT Interior Sample Description: Virtual Rider-ULRICH ON OVERBIKER Radio Remote Control Transmitter (27.145 MHz) FCC ID (if applicable): T2J90490TX27 Photo No. 1 : PCB Solder Side Technical Report: (5206) 089-0682 Date: 24 March 2006 Page 2 of 3 Photographs: EUT Interior Sample Description: Virtual Rider-ULRICH ON OVERBIKER Radio Remote Control Transmitter (27.145 MHz) FCC ID (if applicable): T2J90490TX27 Photo No. 2 : PCB Component Side Technical Report: (5206) 089-0682 Date: 24 March 2006 Page 3 of 3 Photographs: EUT Interior Sample Description: Virtual Rider-ULRICH ON OVERBIKER Radio Remote Control Transmitter (27.145 MHz) FCC ID (if applicable): T2J90490TX27 Photo No. 3 : The component placement and the assembly

Test Setup Photos

Technical Report: (5206) 089-0682 Date: 24 March 2006 Page 1 of 3 Photographs: Test Setup Sample Description: Virtual Rider-ULRICH ON OVERBIKER Radio Remote Control Transmitter (27.145 MHz) FCC ID (if applicable): T2J90490TX27 Photo No. 1 : Test Setup – Vertically Erected (z – direction) Technical Report: (5206) 089-0682 Date: 24 March 2006 Page 2 of 3 Sample Description: Virtual Rider-ULRICH ON OVERBIKER Radio Remote Control Transmitter (27.145 MHz) FCC ID (if applicable): T2J90490TX27 Photo No. 2 : Test Setup – Horizontal (y – direction) Technical Report: (5206) 089-0682 Date: 24 March 2006 Page 3 of 3 Sample Description: Virtual Rider-ULRICH ON OVERBIKER Radio Remote Control Transmitter (27.145 MHz) FCC ID (if applicable): T2J90490TX27 Photo No. 3 : Test Setup – Horizontal (x-direction)
