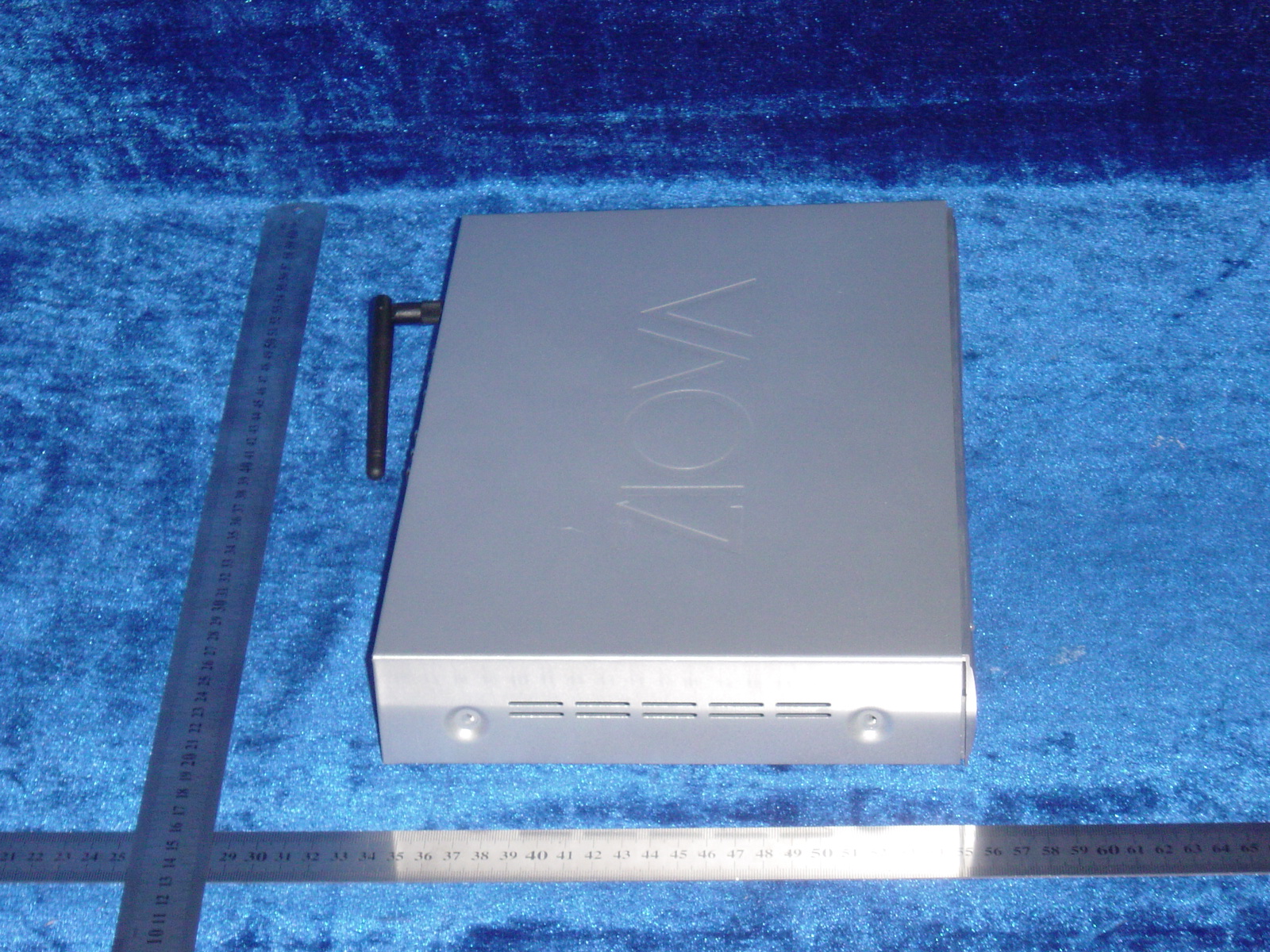

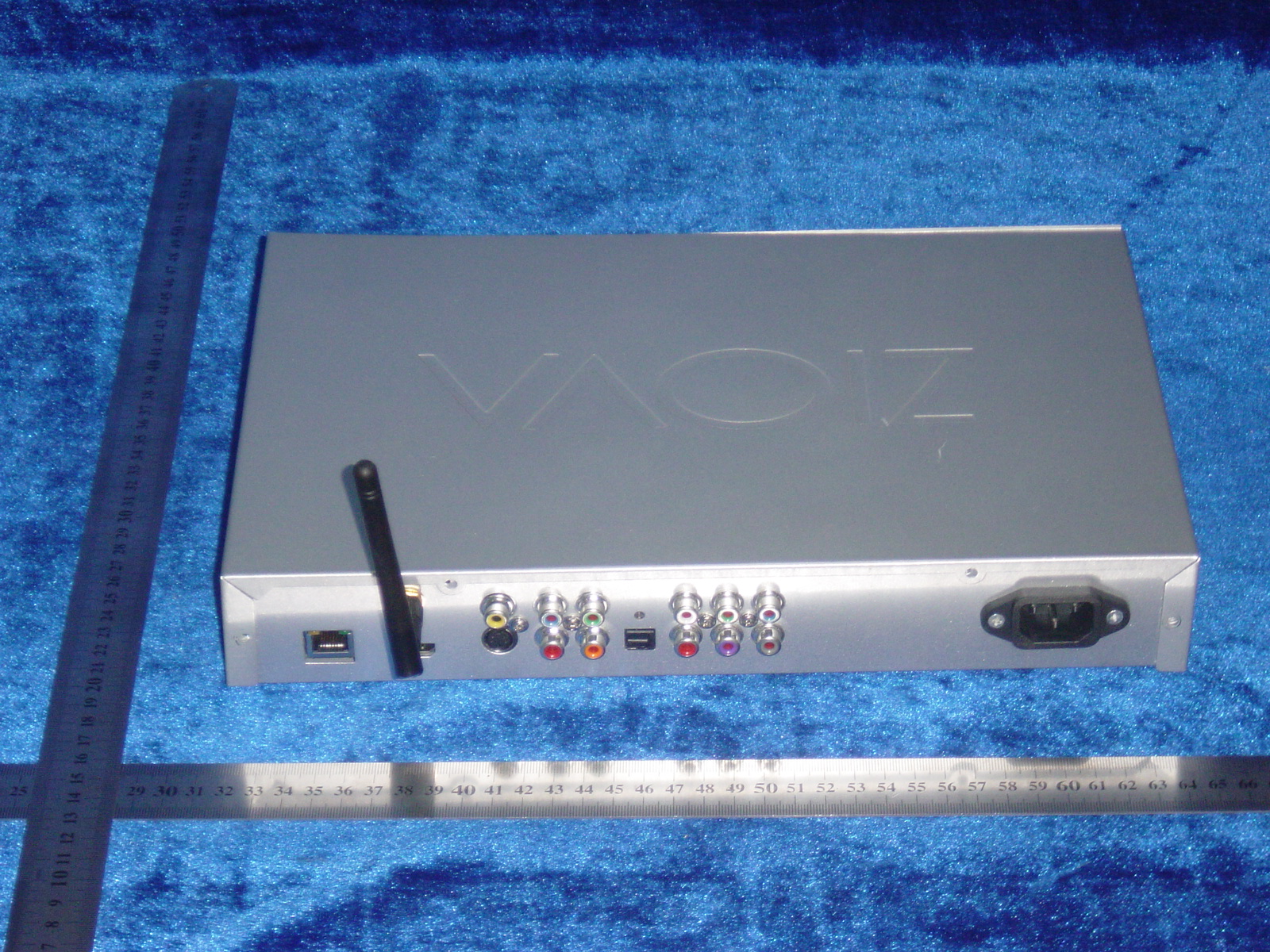

T3ACS510High Definition Network Media Player

ClearStream User Manual - Copyright © 2007, 2006 Ziova Corporation 1 Contents Package Contents ...............................................................................3 Safety Precautions ..............................................................................4 Introduction ........................................................................................5 Important Notes ................................................................................. 6 Specifications .....................................................................................7 Front and Rear Panel Layout (CS505) ...............................................9 Front and Rear Panel Layout (CS510) ...............................................10 Front Panel Display (VFD) ................................................................11 Remote Control – Layout .................................................................12 Remote Control – Option Button .......................................................13 Remote Control – Zooming, Panning, Navigation ............................ 14 Remote Control – Text Entry, INFO button ...................................... 15 Connection Guide – Video – HDMI ................................................ 16 Connection Guide – Video – Component ..........................................17 Connection Guide – Video – S-Video and Composite ...................... 18 Connection Guide – Audio – Digital Audio ...................................... 19 Connection Guide – Audio – Analog Audio ...................................... 20 Connection Guide – Network ............................................................ 21 Setting Up ......................................................................................... 22 Language Setting ............................................................................... 23 Audio Settings ....................................................................................24 Video Settings and Supported Modes ................................................25 Network Setup ................................................................................... 28 Active Network Selection ..................................................................29 Wired (Ethernet) Network Setup ....................................................... 30 Wireless (802.11g) Network Setup ....................................................31 Windows Network (SMB) Settings ................................................... 33 DVD Setup Options ........................................................................... 35 General Settings .................................................................................37 Additional Setup Options ...................................................................38 Firmware Updates ..............................................................................39 2 ClearStream User Manual - Copyright © 2007, 2006 Ziova Corporation Using Your ClearStream .................................................................40 Options - Music ............................................................................................ 41 Music (SHOUTcast) ..................................................................... 43 Videos ........................................................................................... 46 Videos (Seek and Search Functions) ............................................ 47 Pictures ......................................................................................... 48 Extras ............................................................................................ 49 UPnP Media Servers ..........................................................................50 UPnP Media Server Browsing ...........................................................51 Browsing SMB Network Shares ........................................................52 USB Port ............................................................................................ 53 Appendix A: Firmware Upgrades ......................................................54 Appendix B: Emergency Firmware Recovery ...................................59 Appendix C: Trouble Shooting (Help) .............................................. 60 Appendix D: Glossary ........................................................................ 62 Appendix E: Technical Specifications ...............................................63 Appendix F: Product Support, My Ziova .......................................... 64 FCC Regulations ................................................................................65 Warranty, Limitation of Liability ...................................................... 66 Version 1.0 ClearStream User Manual - Copyright © 2007, 2006 Ziova Corporation 3 Package Contents 1 23 4 5 6 7 8 CS 505 CS 510 Inside the package that your ClearStream came in, you will find the following items. 1. CS505 or CS510 High Definition Network Media Player 2. Power Cord 3. Standard Composite A/V 3-in-1 cable (RCA connectors) 4. Cat.5-UTP Ethernet Network Cable (Straight Through) 5. Wireless Antenna 6. Remote Control with Batteries 7. This User Manual 8. CD containing Media Server Software and Manual in PDF 4 ClearStream User Manual - Copyright © 2007, 2006 Ziova Corporation Safety Precautions Please note the following safety precautions. • To avoid risk of electric shock, do not use or expose this player to wet or moist environments • Do not place objects containing fluids above or on top of the player • It is recommended to disconnect this device during electrical storms • There are no user serviceable parts inside the player, all internal maintenance or servicing should be carried out by qualified service personnel authorized by Ziova • Do not insert objects into the ventilation slots on the player • This player has a laser device inside, looking at a laser can seriously damage your eyes • Place the unit…

Text truncated - open the document above for the full version.

Block Diagram with Theory of operation TX signal path in Red Arrows Transmitter Path Data bits coming from the minPCI Host interface (5) are processed by the Base Band Processor MAC (BBP/MAC) ISL3880I (4) on IEEE 802.11g turbo protocol level, IQ modulated and then converted to 2.4 GHz RF signal by Direct up/down converter ISL3686 A/B (3), The ISL3686A/B (3) operating frequency is generated by the ISL3084 VCO (6) divided by two. The 2.4GHz RF signal is then amplified by RF Power Amplifier ISL3980 (2) and then final emitted via the antenna (1). RX signal path in Blue Arrows Receiver path The 2.4Ghz RF signal comes in via antenna (1) and low noise amplifier (part of ISL3686A/B) (3) to the direct up/down converter ISL3686A/B (3) where it is converted to RX IQ signals. The ISL3686A/B (3) operating frequency is generated by the ISL3084 VCO (6) divided by two. These IQ signals are converted into data bits by the Base Band Processor MAC (BBP/MAC) ISL3880I (4). The data bits are processed by the Base Band Processor MAC (BBP/MAC) ISL3880I (4) on IEEE802.11g Turbo protocol level. This MAC controller also provides the miniPCI interface to the HOST (5) Antenna 2412-2462MHz (1) ISL3980 RF Power Amplifier 2412-2462MHz (2) ISL3686A/B Up/down converter 2412-2462MHz Zero IF (3) ISL3880I Base Band Processor/MAC (4) Host Interface MinPCI (5) ISL3084 VCO 4824-4924MHz (6) Divide by 2 (Part of ISL3686A/B) 2412-2462MHz (3) Low Noise Amplifier (Part of ISL3686A/B) 2412-2462MHz (3) Antenna 2412-2462MHz (1) ISL3686A/B Up/down converter 2412-2462MHz Zero IF (3) ISL3880I Base Band Processor/MAC (4) Host Interface MiniPCI (5) ISL3084 VCO 4824-4924 MHz (6) Divide by (Part of ISL3686A/B) 2412-2462MHz (3)

FCC ID: T3ACS510 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Proposed Label Location on EUT FCC ID Label Location

Block Diagram with Theory of operation TX signal path in Red Arrows Transmitter Path Data bits coming from the minPCI Host interface (5) are processed by the Base Band Processor MAC (BBP/MAC) ISL3880I (4) on IEEE 802.11g turbo protocol level, IQ modulated and then converted to 2.4 GHz RF signal by Direct up/down converter ISL3686 A/B (3), The ISL3686A/B (3) operating frequency is generated by the ISL3084 VCO (6) divided by two. The 2.4GHz RF signal is then amplified by RF Power Amplifier ISL3980 (2) and then final emitted via the antenna (1). RX signal path in Blue Arrows Receiver path The 2.4Ghz RF signal comes in via antenna (1) and low noise amplifier (part of ISL3686A/B) (3) to the direct up/down converter ISL3686A/B (3) where it is converted to RX IQ signals. The ISL3686A/B (3) operating frequency is generated by the ISL3084 VCO (6) divided by two. These IQ signals are converted into data bits by the Base Band Processor MAC (BBP/MAC) ISL3880I (4). The data bits are processed by the Base Band Processor MAC (BBP/MAC) ISL3880I (4) on IEEE802.11g Turbo protocol level. This MAC controller also provides the miniPCI interface to the HOST (5) Antenna 2412-2462MHz (1) ISL3980 RF Power Amplifier 2412-2462MHz (2) ISL3686A/B Up/down converter 2412-2462MHz Zero IF (3) ISL3880I Base Band Processor/MAC (4) Host Interface MinPCI (5) ISL3084 VCO 4824-4924MHz (6) Divide by 2 (Part of ISL3686A/B) 2412-2462MHz (3) Low Noise Amplifier (Part of ISL3686A/B) 2412-2462MHz (3) Antenna 2412-2462MHz (1) ISL3686A/B Up/down converter 2412-2462MHz Zero IF (3) ISL3880I Base Band Processor/MAC (4) Host Interface MiniPCI (5) ISL3084 VCO 4824-4924 MHz (6) Divide by (Part of ISL3686A/B) 2412-2462MHz (3)

123456 A B C D 654321 D C B A 标题 图号修订尺寸 B 日期:17-Nov-2006第 张 共 张 文件:C:\Documents and Settings\All Users\Documents\My Videos\CS510_vfd原理图.DDB制图人: OUT 1 G 2 VCC 3 U5 1 2 4 3 K3 SW1 1 SW2 2 SW3 3 SW4 4 Dout 5 Din 6 IC 7 CLK 8 STB 9 KEY1 10 KEY2 11 KEY3 12 KEY4 13 VCC 14 Seg/KS1 15 Seg/KS2 16 Seg/KS3 17 Seg/KS4 18 Seg/KS5 19 Seg/KS6 20 Seg/KS7 21 Seg/KS8 22 Seg/KS9 23 Seg/KS10 24 Seg/KS11 25 Seg/KS12 26 Seg13/Grid16 27 Seg14/Grid15 28 Seg15/Grid14 29 Seg16/Grid13 30 Seg17/Grid12 31 Seg18/Grid11 32 VDD 33 VEE 34 Seg19/Grid10 35 Seg20/Grid9 36 Grid8 37 Grid7 38 Grid6 39 Grid5 40 Grid4 41 Grid3 42 Grid2 43 Grid1 44 VDD 45 LED5 46 LED4 47 LED3 48 LED2 49 LED1 50 VSS 51 OSC 52 U6 PT6311 RET 1 RXD 2 TXD 3 X2 4 X1 5 INT0 6 INT1 7 T0 8 T1 9 GND 10 P3.7 11 P10 12 P11 13 P12 14 P13 15 P14 16 P15 17 P16 18 P17 19 VCC 20 U7 STC2052 X1 24MHz D1D2D3D4D5D6D7D8D9D10D11D12 D13 D14 D15 G1 G2 G3 G4 G5 G6 G7 G8 G9G10G11G12G13 D1D2D3D4D5D6D7D8D9D10D11D12D13D14D15 A1 1 A2 2 D1 3 D2 4 D3 5 D4 6 D5 7 D6 8 D7 9 D8 10 D9 11 D10 12 D11 13 D12 14 D13 15 D14 16 D15 17 E1 18 E2 19 E3 20 E4 21 E5 22 E6 23 E7 24 E8 25 E9 26 E10 27 E11 28 E12 29 B1 31 B2 32 VFD E13 30 VFD G1G2G3G4G5G6G7G8G9G10G11G12G13 12345 SK7 1 2 3 4 SK6 C20 C21 D10 + C18 + C19 + C27 + C23 R22 R25 C22 R29 R30 C25 C24 N2 N1 P2 P1 R28 R27 VCC VCC R23 C28 R37 R36 R35 R34 VCC C26 R39 D11 D5 1 2 3 SK5 R23 R24 GRANGE CS510_vfd原理图 R31 VCC VCC PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

12345678 A B C D 87654321 D C B A 标题 图号修订尺寸 A3 日期:12-Dec-2006第 张 共 张 文件:E:\zongyao\cs_pcb\cs510.DDB制图人: 7912 U4 1 2 3 4 5 6 7 8 SK3 1234 SK4 -24G5VI/O NOP G 3.3V 5V G +12V G -12V CY1 222/AC400V C5 473 C4 473 CX2 0.1uf/AC280V D2 FR107 C1 47uf/400V R6 150K R11 5.1K R8 68Ω R15 5.1K R3 150K R10 2K L1 10.5mH U2PC817 AC 1 AC 2 V+ 3 V- 4 D1RS208 1 2 3 4 5L0380R U1 C3 100u/50V U3 TL431 1 2 SK1 1 2 SK2 D6 FR107 C14 2200UF/10V C9 22uF/50V CS510_PSU L3 KK1 CY2 222/AC400V UDR1 10d471k D3 FR207 F1 2A/280V R9 1K C17 1000UF/6.3V C13 1000UF/6.3V C16 2200UF/10VC15 2200UF/10V C7 100u/10V CY3 222/AC400V 1 2 3 5 6 7 8 9 10 11 12 T1 L2 10.5mH CX1 0.33uf/AC280V R1 510k R2 510k R4 68k C2 103 LL1 R7 10 OHM D4 SR560 D5 SR560 D7 FR107 L4 R16 10K C12 473R14 1K R18 4R7 R19 4R7 C10 22uF/50V N3 8050 D8 1N4148 R17 1K L5 200uH C10 1000u/25VC11 473 R13 5.1K R12 4R7 R38 300 OHM C8 22UF/50V C29 473 邓国华 1 CX3 0.22uf/AC280V PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

ISO/IEC17025Accredited Lab. Report No: FCC 0611130 File reference No: 2006-12-11 Applicant: ZIOVA Corporation Pty Ltd Product: High Definition Network Media Player Model No: CS510 Trademark: ZIOVA Test Standards: FCC Part 15 Subpart C, Paragraph 15.247& Subpart B Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 Subpart C, Paragraph 15.247 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: Dec 11,2006 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD 5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao,FuTian District, Shenzhen,CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 0611130 Page 2 of 56 Date: 2006-12-11 TEST REPORT The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAL. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAL-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAL/AC01:2002 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 899988. IC- Registration No.: IC5205 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration IC No.: 5205. Report No: 0611130 Page 3 of 56 Date: 2006-12-11 TEST REPORT The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 3 1.1 Test Lab Details................................................................................................ 3 1.2 Applicant Details.............................................................................................. 3 1.3 Description of EUT .......................................................................................... 3 1.4 Submitted Sample............................................................................................. 3 1.5 Test Duration.................................................................................................... 4 1.6 Test Uncertainty.................................................................................................4 1.7 Test By.......................................................................................................... 4 2.0 List of Measurement Equipment......................................................................... 4 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition.........................…

Text truncated - open the document above for the full version.
