T3NBC-008FM Transmitter

92.6MHz T1

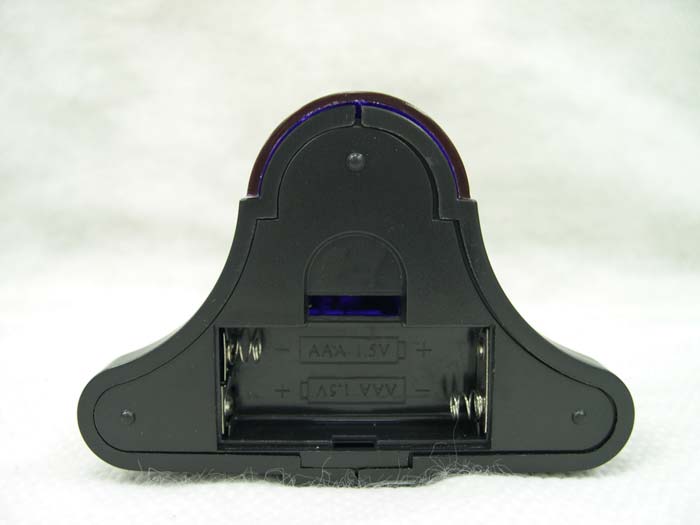

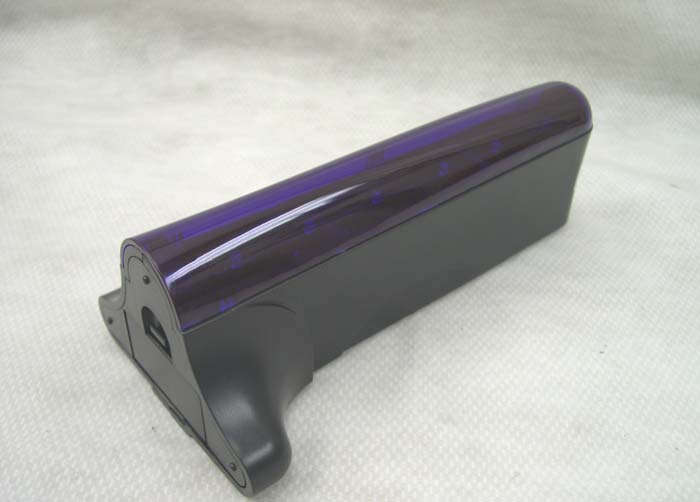

INTERTEK TESTING SERVICE Report No.: 07245641 Equipment Photographs Model : BC-008 (External) FCC ID: T3NBC-008 INTERTEK TESTING SERVICE Report No.: 07245641 Equipment Photographs Model : BC-008 (External) FCC ID: T3NBC-008

INTERTEK TESTING SERVICE Report No.: 07245641 Equipment Photographs Model : BC-008 (Internal) FCC ID: T3NBC-008 INTERTEK TESTING SERVICE Report No.: 07245641 Equipment Photographs Model : BC-008 (Internal) FCC ID: T3NBC-008 INTERTEK TESTING SERVICE Report No.: 07245641 Equipment Photographs Model : BC-008 (Internal) FCC ID: T3NBC-008 INTERTEK TESTING SERVICE Report No.: 07245641 Equipment Photographs Model : BC-008 (Internal) FCC ID: T3NBC-008

Technical Description The description of the circuit of transmitter This circuit is a typical low-power FM transmitter circuits. The audio signals input from R1 and R2 separately, after a series of Resistance and Capacitance Coupled Circuit, which formed, by C1, C2, R4 and R3 then go to the mixing modulation circuit, flap Q1, R6, R7, C3, C4, C5, C6 and T1. (This transmitter flaps a frequency: 92.50+/_0.5MHZ) Through mixing modulation, it occurs a frequency signal, coupled to T1 secondary. Via C7, it enter FREQUENCY-SELECTIVE amplifier of Q2, C8, R9 and L1, select the frequency 92.50MHZ approximately to amplify the power. The RF amplifier signal output from C8, take into the Bandpass Filters C9, L2 (with impedance matching), to filtering the remnant harmonic, then the RF signal will be transmitted via the antenna wire, please see the circuit diagram for reference. FCC ID: T3NBC-008

− The evaluation data of the report will be kept for 3 years from the date of issuance. − This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Winsonic Technology (Holdings) Limited Application For Certification (FCC ID: T3NBC-008) Transmitter 07245641 TC/el December 18, 2007 INTERTEK TESTING SERVICES FCC ID: T3NBC-008 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: T3NBC-008 ii MEASUREMENT / TECHNICAL REPORT Winsonic Technology (Holdings) Limited − MODEL: Winsonic BC-008 0005082 FCC ID: T3NBC-008 December 18, 2007 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [05-04-07 Edition] provision. Report prepared by: Ho Wai Kin, Ben Intertek Testing Services Hong Kong Ltd. 2/F., Garment Center, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8505 Fax: 852-2371-0914 INTERTEK TESTING SERVICES FCC ID: T3NBC-008 iii Table of Contents 1.0 General Description......................................................................................... 2 1.1 Product Description................................................................................... 2 1.2 Related Submittal(s) Grants ...................................................................... 2 1.3 Test Methodology...................................................................................... 3 1.4 Test Facility ............................................................................................... 3 2.0 System Test Configuration ............................................................................. 5 2.1 Justification ............................................................................................... 5 2.2 EUT Exercising Software .......................................................................... 5 2.3 Special Accessories .................................................................................. 5 2.4 Equipment Modification............................................................................. 6 2.5 Measurement Uncertainty ......................................................................... 6 2.6 Support Equipment List and Description ................................................... 6 3.0 Emission Results ............................................................................................. 8 3.1 Field Strength Calculation ......................................................................... 9 3.2 Radiated Emission Configuration Photograph ........................................ 11 3.3 Radiated Emission Data.......................................................................... 12 4.0 Equipment Photographs ............................................................................... 16 5.0 Product Labelling.......................................................................................... 18 6.0 Technical Specifications ............................................................................... 20 7.0 Instruction Manual ......................................................................................... 22 8.0 Miscellaneous Information ........................................................................... 24 8.1 Measured Bandwidth.............................................................................. 25 8.2 Discussion of Pulse Desensitization........................................................ 26 8.3 Calculation of Average Factor ................................................................. 27 8.4 Emissions Test Procedures .................................................................... 28 INTERTEK TESTING SERVICES FCC ID: T3NBC-008 iv List of attached file Exhibit Type File Description Filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.pdf Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.pdf Internal Photo Internal Photo internal photos.pdf Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label / Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: T3NBC-008 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: T3NBC-008 2 1.0 Gen…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 07245641 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : BC-008 Fig.1 FCC ID: T3NBC-008 INTERTEK TESTING SERVICE Report No: 07245641 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : BC-008 Fig.2 FCC ID: T3NBC-008
