T3TH6500WIRELESS LOADER CONTROLLER

H6500 Wireless Loader Controller User Manual Rev 1.0 Catalog A. Brief Introduction....................................................................1 B. Caution & Warning .................................................................1 C. Content of Packaging................................................................2 D. Function...............................................................................2 E. Learning Setting....................................... ...............................3 F. Method of Operation.................................................................4 Appendix 1 Product Specs............................................................................4 Appendix 2 Obstacle Avoidance......................................................................5 A. Brief Introduction H6500 Wireless Loader Controller is provided with not only a built-in antenna but functions of learning and encoding. For users, it is very easy to set and use, and even equipments and devices nearby can be controlled with free and easy with the help of a receiver. Purpose: Wireless transmission is adopted to control the performance of a pellet device. Note: Any errors or omissions to be occurred in the future can not be guaranteed and warranted in this manual. HONJET Technology Co., Ltd. is under no obligation for any errors or omissions to be arisen, and reserve the right to make changes or modification without notice. B. Caution & Warning Caution: the following H6500 and receiver will be referred to “machine” together for short. ◎ If the battery connector is dirty before using, please use a clean and dry clothing to wipe it out. ◎ The machine shall be stored in a dry place with good ventilation. ◎ If the machine will not be used for quite some time, please take out the battery to avoid leakage of electricity, and store it in a cool, dry place. ◎ If the machine is dipped in water or exposed to a place with high humidity, it will be possibly led to obstacles or broken. ◎ If the machine is hit or vibrated with violence, it will be possibly led to obstacles or broken. ◎ If the machine has any something wrong or not in harmony, users should stop using without delay. Warning: ◎ Don’t cause the battery to be in a short circuit, dismantle or mistakenly assembly the negative or positive poles of the same. ◎ Don’t let the battery contact water or wet. ◎ If smelling strange smoke or the machine is smoking, users should take out the battery without delay. 1 ◎ If the battery has any something wrong or not in harmony, users should stop using without delay. ◎ Don’t use in a location or place with flammable gas, or it is very easy to cause severe dangers, such as explosions or fire. ◎ If the machine is broken or separated due to obstacles or other accidents, the battery should be drawn out immediately. ◎ Don’t store or ship the battery together with objects of metal. ◎ Prevent children from placing the battery or other small things into their mounts. ◎ Both H6500 and the antenna on the receiving end thereof are built-in type, so do not turn the adjustable screws thereof with angle and random or touch any metal objects. ◎ Don’t dismantle, reinstall or adjust any components. ◎ Don’t use power sources other than DC9V batteries. C. Content of Packaging Please check the content of packaging and confirm the following items: • H6500 • Receiver • Operation Instruction If lack or breakage of any of the above-mentioned items occurs, please contact the agent distributor from whom you purchase the product without delay. D. Function 2 FUN SEL H6500 LED MICRO PWR LED RECEIVER PELLET DEVICE OUTPUT • FUN: POWER ON/OFF •PWR: a. POWERON/OFF b. LEARN •SEL: LEARN MODE •LED: INDICATING LAMP •LED: INDICATING LAMP •MICRO: SENT OUT SIGNALS •OUTPUT : EXTERNAL CONNECTION TO THE PELLET DEVICE E. Learning Setting Goal: learn to operate the H6500 and set the receiver Method: Setting of H6500 1. Pressing “FUN” bottom for 5 seconds and then release, the H6500 is powered on and the green indicating lamp thereof is lighted permanently. 2. Further press “SEL” bottom and then release, the green indicating lamp of the H6500 will turn into red with permanence; at this time, it enters into the preparative state of sending out signals. Setting of Receiver 3. Press “PWR” bottom for 5 seconds and then release, the receiver is powered on as concurrently as the green indicating lamp thereof will flash. It is time to enter into the standby state of learning. Completion of Learning Setting 4. Take up the H6500 to approach the receiver, and the distance between the H6500 and receiver should be 30 centimeters below; press the “MICRO” bottom and then release, at this time the green indicating lamp of the receiver become fast flashing, which means the learning setting has been completed. 5. Release the “PWR” bottom, the green indicating lamp will power off the receiver. Note: a. If press “FUN” bottom for 5 seconds and then release one more time, the red indicating lamp will power off the H6500 automatically. b. If the learning setting is incorrect and incomplete, it will lead the controller to be out of control. Please confirm the actions of setting have been completed. c. The learning setting must be done before entering into the operation method for the first time; subsequently, it will not be done after the first learning setting, and can access to the operation method directly. 3 d. If exchange the H6500, the learning setting has to be redone, such that the control actions can show proper functions. F. Method of Operation 1. Pressing “FUN” bottom for 5 seconds and then release, the H6500 is powered on and the green indicating lamp thereof is lighted permanently. 2. Further press “SEL” bottom and then release, the green indicating lamp of the H6500 will turn into red with permanence. 3. Pressing “PWR” bottom for 3 seconds and then release, the RECEIVER will be powered on and the green indicating lamp thereof will be lighted permanentl…

Text truncated - open the document above for the full version.

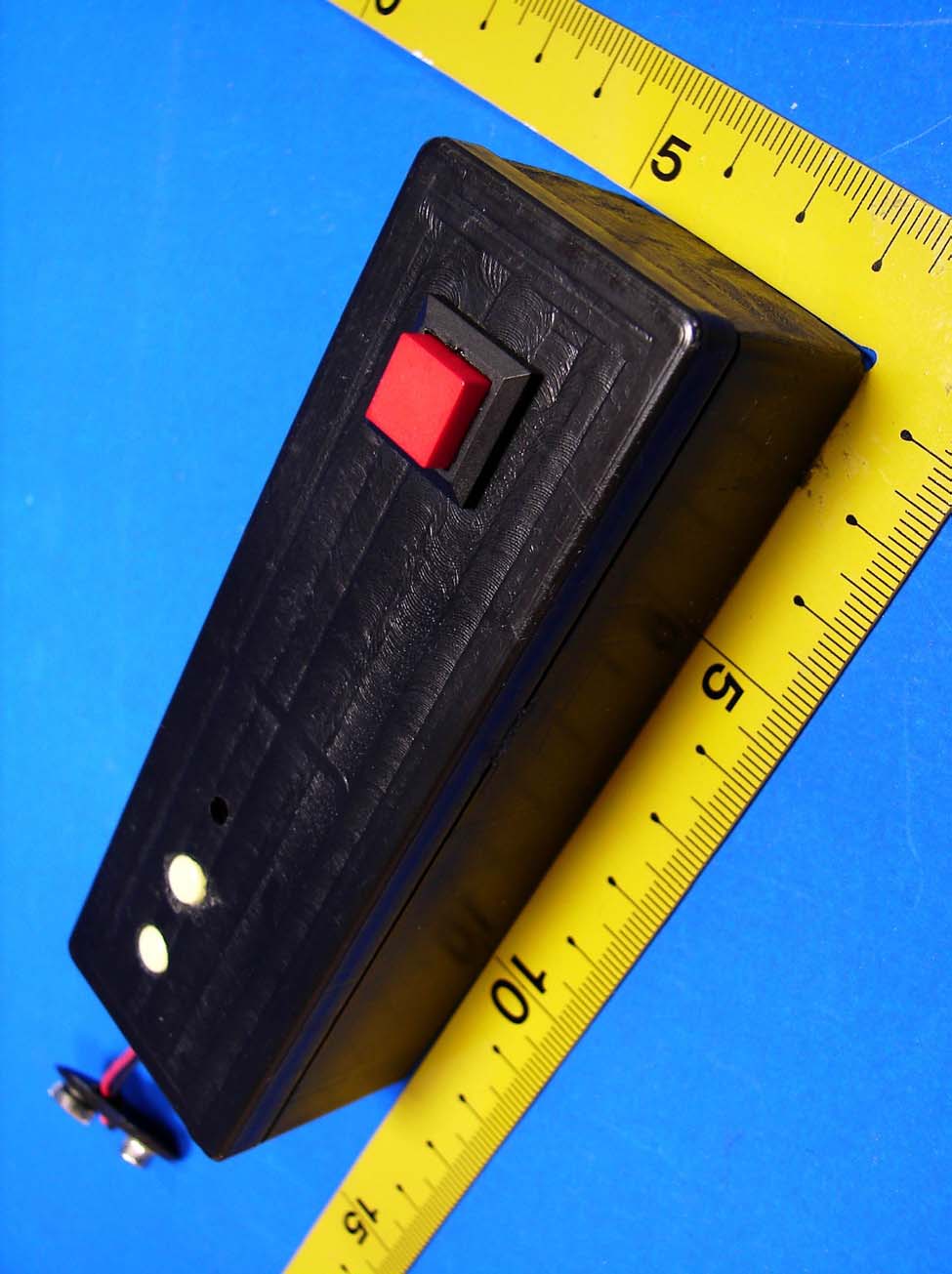

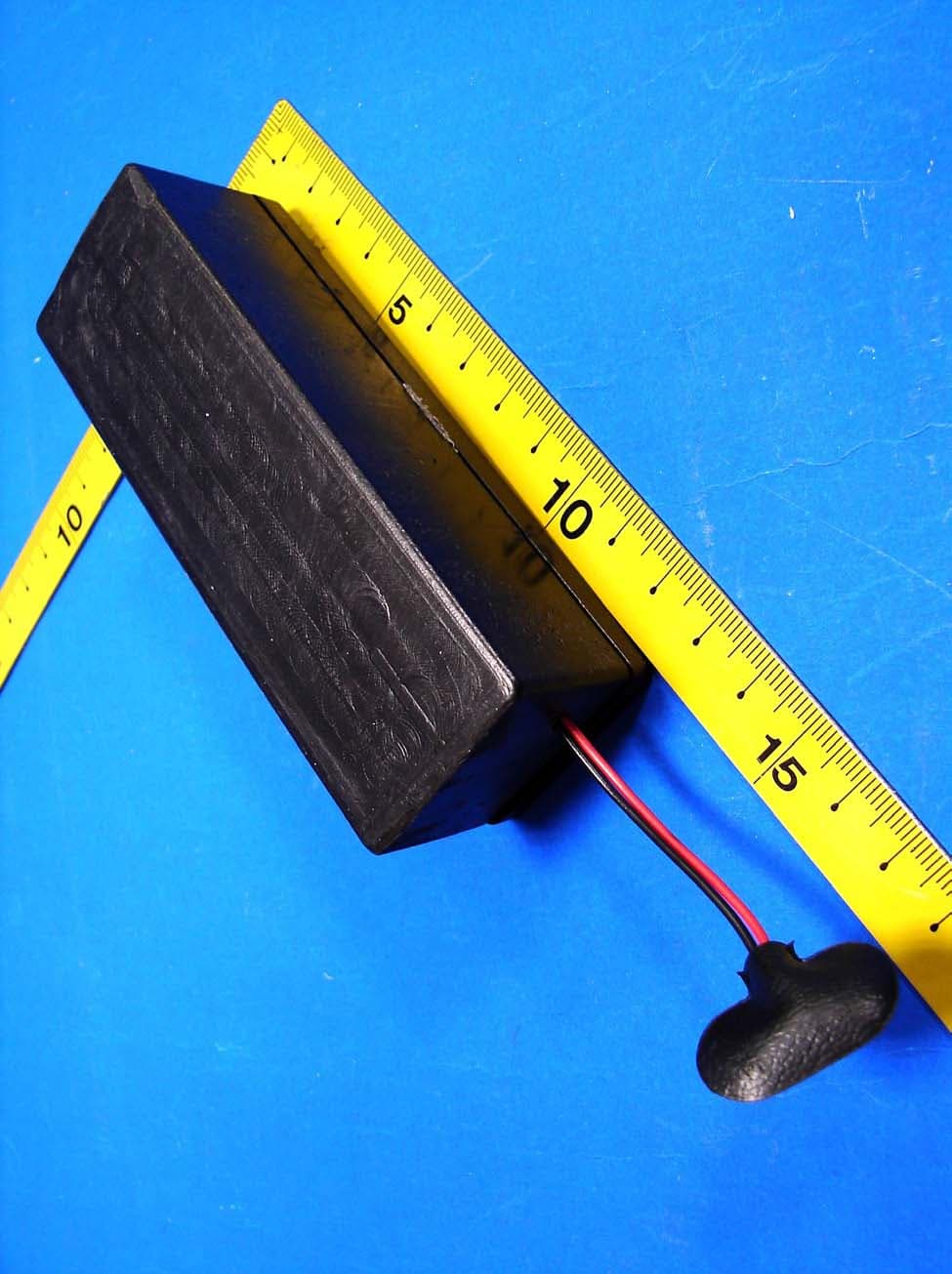

External Photos of Wireless Loader Controller ----------------------------------- 1/5 Applicant: Honjet Technology Co., Ltd. FCC ID: T3TH6500 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Wireless Loader Controller ----------------------------------- 2/5 Applicant: Honjet Technology Co., Ltd. FCC ID: T3TH6500 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Sample and Location information ------------------------------------------------- 1/1 Applicant: Honjet Technology Co., Ltd. FCC ID: T3TH6500 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Position :

Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID : T3TH6500 Trade Name : Honjet Model No : H6500

Internal Photos of Wireless Loader Controller ---------------------------------- 3/5 Applicant: Honjet Technology Co., Ltd. FCC ID: T3TH6500 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 RF Modular Internal Photos of Wireless Loader Controller ---------------------------------- 4/5 Applicant: Honjet Technology Co., Ltd. FCC ID: T3TH6500 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless Loader Controller ---------------------------------- 5/5 Applicant: Honjet Technology Co., Ltd. FCC ID: T3TH6500 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Test Report ------------------------------------------------------------------------------- 1/16 Report No.: H3615051038, FCC Part15.231 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Report No. H3615051038 Specifications FCC Part 15.231, Certification Test Method ANSI C63.4 2003 Applicant Honjet Technology Co., Ltd. Applicant No. 97, Binnan St., Taliao Hsiang, Kaohsiung Hsien, address Taiwan 831 Items tested Transmitter Model No. H6500 EUT Condition Engineering sample; Pre-production; Final production (Sample # H361038) Results Compliance (As detailed within this report) Date 01/20/2006 (month / day / year) (Sample received) 03/20/2006 (month / day / year) (Test) Prepared by Project Engineer (Jack Tsai) Authorized by General Manager (Frank Tsai) Issue date March 20, 2006 (month / day / year) Modifications None Tested by Training Research Co., Ltd. Office at No. 255, Nan Yang Street, Shijr, Taipei Hsien 221, Taiwan Chamber at 1F, No. 255, Nan Yang Street, Shijr, Taipei Hsien 221, Taiwan Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. (3) This test report, measurements made by TRC are traceable to the NIST only Conducted and Radiated Method. Test Report ------------------------------------------------------------------------------- 2/16 Report No.: H3615051038, FCC Part15.231 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Table of Contents CHAPTER 1 GENERAL................................................................................. 3 1.1 INTRODUCTION........................................................................... 3 1.2 DESCRIPTION OF EUT ................................................................ 3 1.3 DESCRIPTION OF SUPPORT EQUIPMENT..................................... 3 1.4 TEST PROCEDURE....................................................................... 4 1.5 LOCATION OF THE TEST SITE..................................................... 4 1.6 GENERAL TEST CONDITION....................................................... 4 CHAPTER 2 TRANSMITTER DUTY CYCLE MEASUREMENTS ........ 5 2.1 TEST CONDITION AND SETUP..................................................... 5 2.2 LIST OF TEST INSTRUMENTS...................................................... 5 2.3 TEST INSTRUMENTS CONFIGURATION........................................ 6 2.4 TEST RESULT.............................................................................. 6 CHAPTER 3 TRANSMITTER BANDWIDTH MEASUREMENTS, FCC PART 15.231(C) ............................................................. 8 3.1 TEST CONDITION & SETUP......................................................... 8 3.2 TEST RESULT.............................................................................. 8 CHAPTER 4 CONDUCTED EMISSIONS MEASUREMENTS .............. 10 4.1 TEST CONDITION...................................................................... 10 4.2 TEST RESULT............................................................................ 10 CHAPTER 5 RADIATED EMISSIONS MEASUREMENTS .................. 11 5.1 GENERAL CONFIGURATION...................................................... 11 5.2 TEST CONDITION AND SETUP................................................... 11 5.3 LIST OF TEST INSTRUMENTS.................................................... 14 5.4 TEST INSTRUMENTS CONFIGURATION...................................... 15 5.5 TEST RESULT OF RADIATED EMISSIONS.................................. 16 Table 1 Radiated Emissions of Horizontal for 30MHz to 4.5GHz [Z-plane].............. 16 Table 2 Radiated Emissions of Vertical for 30MHz to 4.5GHz [Y-plane] .................. 16 Test Report ------------------------------------------------------------------------------- 3/16 Report No.: H3615051038, FCC Part15.231 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Chapter 1 GENERAL 1.1 Introduction The following measurement report is submitted on behalf of applicant in support of an remote pointer certification with Part 2 Subpart J and Part 15 Subpart A and C of the Commission's Rules and Regulations. 1.2 Description of EUT Product Name : Wireless Loader Controller Model No. : H6500 FCC ID : T3TH6500 Frequency Range : 433.92MHz ± 100KHz Operating Frequency : 433.92MHz Modulation Skill : FSK Power Type : Powered by 3V (CR2032 DC 3V Lithium battery) The fundamental frequency of transmitter emitted is due to a press on button of the EUT. The emitting time of fundamental frequency is less than 5 seconds pursuant to FCC Part 15.231(a). There are security codes for avoiding the possibility of duplicating codes in adjacent systems. The coding must be matching with the companion receiver. While testing the EUT was adjusted at a position, which transmits the maximum emission. 1.3 Description of Support Equipment No support equipment: The EUT itself forms a system. No support equipment is requited for its normal operation Test Report ------------------------------------------------------------------------------- 4/16 Report No.: H3615051038, FCC Part15.231 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 1.4 Test Procedure All measurements contained in this report were performed according to the techniques described in measurement procedure of ANSI C63.4 2003 section 13 1.5 Location of the Test Site The radiated emissions measurements required by the rules were performed on the three-meter, Anechoic Chamber (FCC Registration Number: 93906) maintained by Training Research Co., Ltd. 1F, No. 255, Nan Yang Street, Hsi-chih, Taipei Hsien 221, Taiwan, R.O.C. Complete description and measurement data have been placed on file with the commission. The conducted power line emissions tests and other test…

Text truncated - open the document above for the full version.

Test Setup Photos ------------------------------------------------------------------------- 1/2 Applicant: Honjet Technology Co., Ltd. FCC ID: T3TH6500 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: The Test Configuration of X-plane The Test Configuration of Y-plane Test Setup Photos ------------------------------------------------------------------------- 2/2 Applicant: Honjet Technology Co., Ltd. FCC ID: T3TH6500 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 The Test Configuration of Z- plane
