T3URUNT-C310TSUN LOOP REMOTE CONTROLLER

Sunroof Remote Control Service Manual -Contents - 1. Outline and configuration of the equipment 2. Specifications 3. Operation 4. Circuit 5. User’s Manual’s contents FCC NOTE :This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. 1. Outline and configuration of the equipment 1) Outline RUNT-C310T uses wireless channel of low power of 315MHz frequency range, and are used for transmission of programmed data and address. This portable transmitter can be used for the operation of the sunroof of a car. 2) Configuration The electric configuration of the RUNT-310T consists of RF module, encoder, and antennae. ABS material is used for the casing for better endurance to the external shock. 2. Specifications 1) Specifications A. Dimensions : 38(W) x 74(D) x 15(H) m/m B. Weight : 85g 2) Electrical specifications A. Frequency: 315MHz B. Output: 5mW max. C. Voltage rating: 12V DC D. Oscillation: X-TAL E. Modulation: AM F. Electric wave form: A2D G. Communication: One-way H. Operation temperature: -20°C~ +70°C I. Antennae details Amplifier/ Active circuit n.a. Directional characteristics Non-directional Antenna Helical antenna Polarization characteristics Vertical Antenna length 20 ±2 m/m Connection Fixing on PCB Antenna gain 0dBi Manufacture/Model Keumyoung ENC / TX-311 3. Operation 1) Button and lamp A. Two Buttons -OPEN: is used for opening the sunroof. -CLOSE: is used for closing the sunroof. B. Lamp: shows the status of the power and operation. 2) Operation Push the button, then the lamp is lit and the operation is displayed. According to the function of the button, the coded data address is transmitted through the antenna. 4. Circuit 1) General description of the equipment CSR-1000T working at 311,125 MHz is a transmitter of 13 bit data consisting of 6 addresses and 6 data bit, 1 synchronization bit. Its electrical configuration consists of the Helical antenna, power control, amplifier, oscillator, and logic system. Signals transmitted from the logic system go through the oscillator, and are amplified at the amplifier and radiated from the Helical antenna. 2) Detail description A, Antenna The Helical antenna, which is generally used for the low power radio equipments, is designed after consideration of the effects on the human body, and for the maximum gain. B. Encoder system When the SW1, and SW2 buttons are pushed, address data which are programmed from the U1 are generated from the pin 6. The generated data are transported through the modulation system of R6, R7, Q9, R2. - the definition of 1 bit (Tolerance ±15) “0” bit “1” bit “SYNC” bit C. Oscillator circuit The oscillator system consists of the IC U2, X1, C7, VC1, and the oscillation frequency of the X1 is the 32 multiple channel 9.720625 MHz. D. AF Amplifier The signals tuned from the oscillator system are amplified by the amplifier in the IC U2, go through the impedance matching, transported to the antenna and transmitted. 5. User’s Manual’s contents - Name (Model no.): AUNT-C310T - Certification no.: - Applicant’s name: Runt Co., Ltd. - Manufacture date: March 2, 2006-03-2 - Manufacturer/Country: Runt Co., Ltd./Korea 1.4ms 1.4ms 500us 500us 500us 500us 1.4ms 1.4ms 500us 15ms

Block diagram Amplifier(U2) Impedance matching Antenna matching Frequency Oscillation(U2) AM Modulation Button S/W (2) Encoder Data(U1) 12V Battery 315 MHz

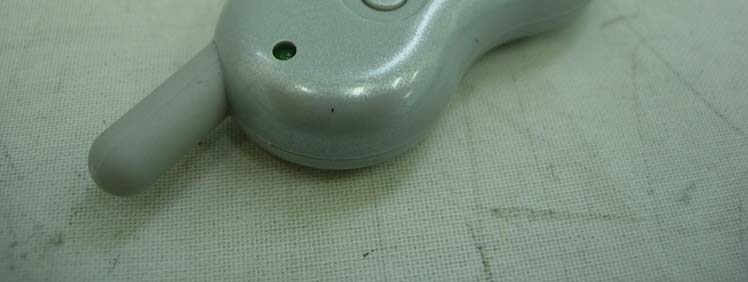

E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0609 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 15of 18 March 11, 2006 EUT Front Rear

E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0609 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 18of 18 March 11, 2006 Appendix – Sample Label & Location

E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0609 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 16of 18 March 11, 2006 Inside Top button view E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0609 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 17of 18 March 11, 2006 Main Controller ( Front ) Main Controller ( Rear )

E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0609 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 7of 18 March 11, 2006 5. Description of E.U.T. Product Description Manufactured By: RUN-T Address: #B-202, 73-4, Wonhoro-2ga, YongSan-gu, Seoul, Korea Model: RUNT-C310T Serial Number: None Configuration of EUT Description Manufacturer Model / Part # Serial Number Main Controller RUN-T None None Alkaline battery TOSHIBA BATTERY CO., LTD. 23A None EUT Used cables ( N / A ) Cable Type Shield Length (m) FerriteConnector Connection Point 1 Connection Point 2 Operating conditions The operating mode/system were as follows in details: Operating: Insert DC 12 V battery and switch on(modulator) the Pulse code signal with manually. (tested with a new battery) - EUT manually operated. – ( yes ) - EUT employ a switch that would automatically deactivate the transmitter within not more than 5 seconds of being released. – ( yes ) E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0609 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 8of 18 March 11, 2006 Peripherals No Description Manufacturer Model / Part # Serial Number 1 Sun Loop Remote controller(EUT) RUN-T RUNT-C310T None E.U.T Test Configuration (example) 6. Summary of test results Modification to the E.U.T. - None Result : - PASS 1

1. S.C.U TX REV 1.0 No. ITME DESCRIPTION SPECIFICATION LOCATION NO Q'TY VENDOR SPL $/U ￥/U ₩/ U (₩)/U Total(₩) 1 CHIP I.C PIC12F508 U1 1 - - 2 CHIP I.C XC6202P502 U2 1 - - 3 CHIP DIODE KDS-184 D2,3 2 - - 4 LED RED LED1 1 - - 5 TACT SWITCH SW1,2 2 - - 6 X-TAL SAW RESONATOR 315MHz Q3 1 - - 7 TRANSISTOR SOT23 TYPE KTC-3882 Q1 1 - - 8 TRANSISTOR SOT23 TYPE KTA-2907 Q2 1 - - 9 CHIP RESISTOR 1Kohm, 1/16W,J R1 1 - - 10 CHIP RESISTOR 47ohm, 1/16W,J R2 1 - - 11 CHIP RESISTOR 10Kohm, 1/16W,J R3,4,10,11 4 - - 12 CHIP RESISTOR 51Kohm, 1/16W,J R9 1 13 CHIP RESISTOR 6.8Kohm, 1/16W,J R6,7 2 - - 14 CHIP RESISTOR 100ohm, 1W, J R12 1 - - 15 CHIP CAPACITOR 10nF,25V,Z C1,2 2 - - 16 CHIP CAPACITOR 5pF,25V,Z C3 1 - - 17 CHIP CAPACITOR 3pF,25V,Z C4 1 - - 18 CHIP CAPACITOR 9pF,25V,Z C8 1 - - 19 CHIP CAPACITOR 100nF,25V,Z C5,6,7 3 - - 20 CHIP INDUCTOR 27nH L1 1 - - 21 CHIP INDUCTOR 56nH L2 1 22 BATTERY 1 23 BATTERY TERMINAL 2 Total 33 0 0 DOCUMENT NO.

55 44 33 22 11 D D C C B B A A ⎮ᵎ⎭#=#◝⡚ᴽ CSR-1100T / RUNT-C310T 1.4 RF S.C.U A4 04 Monday, March 06, 2006 TitleSize Document Number Rev Date: Sheet of VCC R1 1K C7 100nF R9 51K C5 100nF U1 PIC12F508 1234 5678 VDDGP5GP4GP3 GP2 GP1GP0 Vss C2 10nF Q22907 R12100 SW2 STOP SW1 OPEN ANT1 ANTENNA BT112V 12 R310K R1010K R1110k C6 100nF D3 D3 KDS184 D2 KDS184 R410KR76.8K R2 47 LED1 D2 C89P Q3 315M 1 2 3 Q13882 R66.8K C3 5P L2 56nH L127nH C43P U2 XC6202P502 2 1 3 VIN VOUT G C1 10nF

E E M M I I T T E E S S T T R R E E P P O O R R T T FCC EVALUATION REPORT FOR CERTIFICATION KOREA Standard Technology Test report No.: KST-FCC0609 Applicant’s Name : RUN-T Applicant’s Address : #B-202, 73-4, Wonhoro-2ga, YongSan-gu, Seoul, Korea Manufacturer’s Name : RUN-T Manufacturer’s Address : #B-202, 73-4, Wonhoro-2ga, YongSan-gu, Seoul, Korea EUT’s: FCC ID : T3URUNT-C310T Product Name : Sun Loop Remote controller Model Number(s) : RUNT-C310T Product Options : N/A Category : FCC Part15, Subpart C – Intentional Radiator Supplementary Information The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with measurement procedures specified in ANSI C63.4-2003 . I attest to the accuracy of data and all measurements reported herein were performed by or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test Date : March 10, 2006 Issued Date : March 11, 2006 Te s t e d b y : Approved by: Choi, Jae-RockLee, Weon-Woo E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0609 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 2of 18 March 11, 2006 Contents 1. Description of Device 2. Test Facility 3. MAP 4. Test system configuration 5. Description of E.U.T. 6. Summary of test results. 7. Test results. 8. Photographs. Appendix. Schematics Specifications. E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0609 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 3of 18 March 11, 2006 1. Description of Device 1) Kind of equipment: Sun Loop Remote controller 2) FCC ID: T3URUNT-C310T 3) Model Name: RUNT-C310T 4) Serial No.: None 5) Type of Sample Tested: Pre-production 6) Communication; AM One-Way 7) Operating Frequency; AM 315.000 MHz 8) Power Rating: DC 12 V Battery 9) Electric wave form; A2D 10) Tested Power supply; DC 12 V Battery 11) Dimension; 38(W) x 15(H) x 74(T) mm 12) Weight; 85g 13) Operation temperature; -20°C~ +70°C 14) Date of Manufacture: February, 2006 15) Manufacture: RUN-T 16) Description of Operating: Pulse code signal with manually 17) Dates of Test: March 10, 2006 18) Place of Tests: KOSTEC CO., LTD. EMC site 19) Test Report No: KST-FCC0609 E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0609 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 4of 18 March 11, 2006 2. Test Facility The open field test site and conducted measurement facility are used for these testing, where are located following address and drawing. This site was fully described in a report dated November 14, 2002, that was submitted to the FCC. Korea Standard Technology ( KOSTEC Co., Ltd) Head office & Test Lab ; :180-254, Annyung-Ri, Taean-Yup, Hwasung-shi, Gyunggi-do, Korea Telephone Number : 82-31-222-4251 Facsimile Number: 82-31-222-4252 MIC(Ministry of Information and Communication) Number: KR0041 FCC Filing Number. : 525762 VCCI Membership Number : 2005 VCCI Registration Number : R-1657 / C-1763 E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0609 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 5of 18 March 11, 2006 3. Route Map of Measurement Facility Korea Hwasung-shi (open area test site) KOSTEC Co., Ltd E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0609 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 6of 18 March 11, 2006 4. Test System Configuration Operation Environment Ambient Temperature ( °C ) Humidity ( % ) Pressure ( hPa ) 10 m Open Area site 8 39 1017 Shielded room: - - - Test site These testing were performed following locations ; Shielded room : Conducted Emission, 10 m Open Area Site: Radiated Emission Measurement Uncertainty All measurements involve certain levels of uncertainties, especially in field of EMC. The factors contributing to uncertainties are test receiver, Cable loss, antenna factor calibration, Antenna directivity, antenna factor variation with height, antenna phase center variation, antenna frequency interpolation, measurement distance variation, site imperfection, mismatch, and system repeatability. Based on NIS 80,81, The measurement uncertainty level with a 95 % confidence level were applied. sample calculation Conducted emission The field strength is calculated by adding the LISN factor, cable loss from the measured reading. The sample calculation is as follows: FS = MR + LF + CL MR = Meter Reading LF = LISN Factor CL = Cable Loss If MR is 30 dB, LISN Factor 1 dB, CL 1 dB The result (MR) is 30 + 1 + 1 = 32 dBuV E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0609 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 9of 18 March 11, 2006 7. TEST RESULTS 7.1 Conducted emission Measurement procedure Mains The measurements were performed in a shielded room. EUT was placed on a non-metallic table height of 0.4 m above the reference ground plane. They were folded back and forth forming a bundle 30 cm to 40 cm long and were hanged at a 40 cm height to the ground plane. Each EUT power lead, except ground (safety) lead, were individually connected through a LISN to input power source. Both line…

Text truncated - open the document above for the full version.

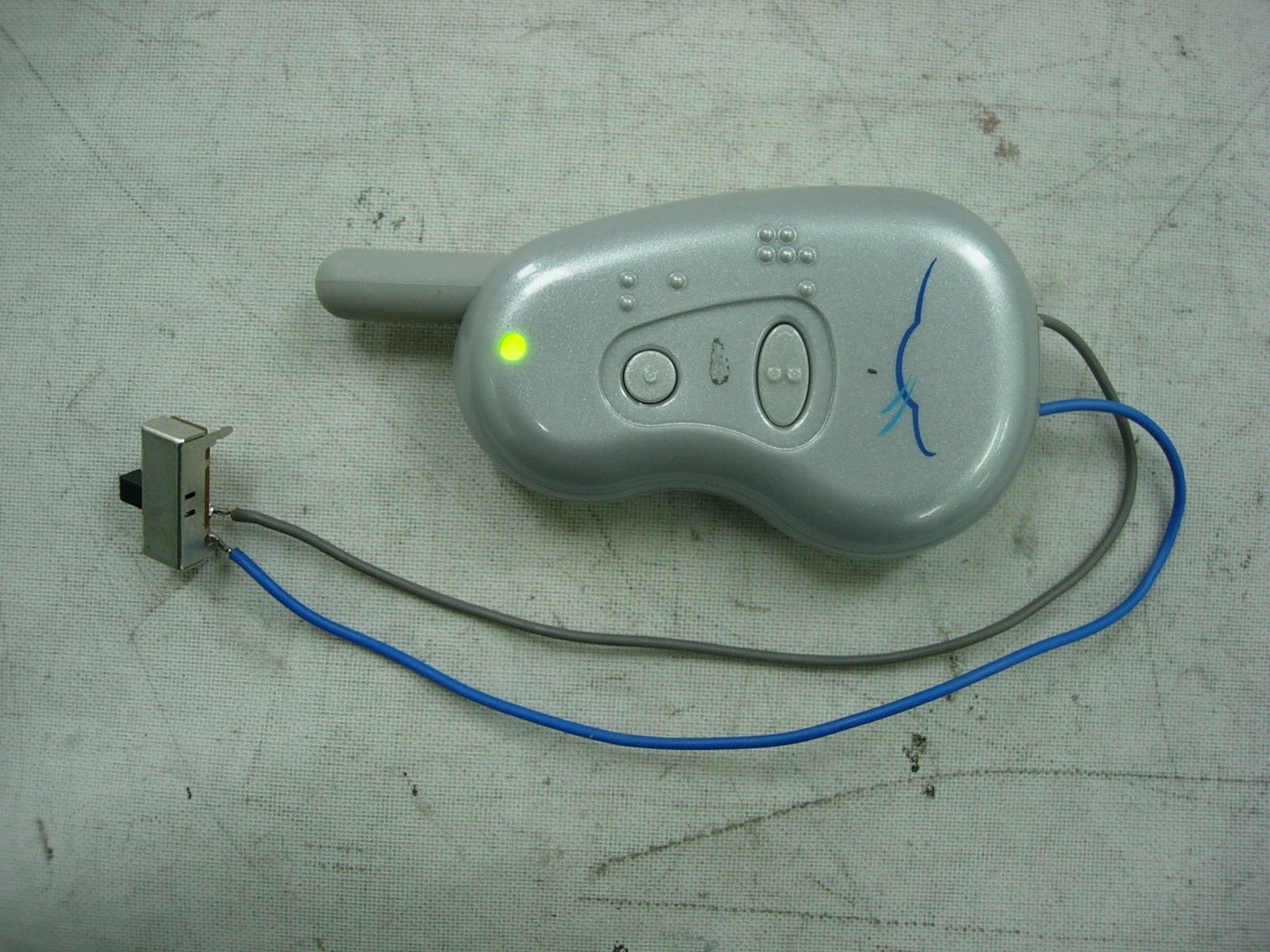

E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0609 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 14of 18 March 11, 2006 8.PHOTOGRAPHS Radiated Emission ( 15.231 ) TX Mode
