T42ICU-E640CDMA USB MODEM

ICU-E640 - １- INNOMTEK Co.,Ltd. INNOMTEK USB Modem (ICU-E640) User Guide (Draft Version 0.6) ICU-E640 - ２- INNOMTEK Co.,Ltd. Safety Precautions Do not use the INNOMTEK usb modem in areas where blasting is in progress, where explosive atmospheres may be present and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Do not use the INNOMTEK usb modem in any aircraft. When operating, the INNOMTEK usb modem can cause interference with various onboard systems. Using it in aircraft is both illegal and dangerous. Do not use the INNOMTEK usb modem in hospitals. In such areas it must be powered off. Follow any regulations or rules in force. Do not use the INNOMTEK usb modem while driving; park the vehicle first. Meet any special regulations in force in any area and always switch off your wireless modem whenever it is forbidden to use it. Exposure to Radio Frequency (RF) Signals The ICU-E640 is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government. ICU-E640 - ３- INNOMTEK Co.,Ltd. Table of Contents 1. Introduction ...............................................................................................................４ Package Contents .................................................................................................................４ Feature Summary .................................................................................................................４ System Requirements ...........................................................................................................４ How to Insert A Modem .......................................................................................................４ 2. Installation Procedures .............................................................................................４ To install the INNOMTEK USB modem software; .............................................................４ To install the device driver; ..................................................................................................６ 3. Launching and exiting the INNOMTEK USB Modem..........................................８ Launching.............................................................................................................................８ Main Screen .........................................................................................................................８ Components of Main Screen ................................................................................................９ Exiting ..................................................................................................................................９ 4. Setup .......................................................................................................................１０ General .............................................................................................................................１０ Data ..................................................................................................................................１０ NAM Setup ......................................................................................................................１１ 5. Connect and Disconnect........................................................................................１２ Connect ............................................................................................................................１２ Disconnect ........................................................................................................................１３ 6. SMS.........................................................................................................................１３ In-Box ..............................................................................................................................１３ Out-Box............................................................................................................................１４ Receive a new message ....................................................................................................１５ Write a new message ........................................................................................................１６ 7. Phonebook ..............................................................................................................１７ ADD Window...................................................................................................................１８ 8. Specifications .........................................................................................................１９ LED Operation .................................................................................................................１９ ICU-E640 - ４- INNOMTEK Co.,Ltd. 1. Introduction INNOMTEK USB modem (ICU-E640) is a wireless modem that connects to high- speed third generation (3G) CDMA wireless networks. It can support 2Mbps speed at most under 1xEVDO networks, and 144Kbps speed at most under CDMA2000 1X networks. However, the actual speed could vary depending on the network condition. Package Contents INNOMTEK USB modem, install CD Feature Summary High-speed wireless connectivity (1xEVDO, CDMA2000 1X) Compatible with IS-95A/B Capability of receiving/sending text messages (2-way SMS) Phonebook USB Interface System Requirements USB port , CD-ROM driver , Pentium 150MHz or higher Windows 2000 and XP More than 10MB hard disk space Dial-up networking bound to TCP/IP How to Insert A Modem Put the INNOMTEK USB modem into USB port smoothly, otherwise it may be broke down. This device is only approved for use in Notebook PC's with horizontal USB ports, and the antenna must be positioned in the vertical position. 2. Installation Procedures To install the INNOMTEK …

Text truncated - open the document above for the full version.

SAN 136-1,AMI-RI,BUBAL-EUP, ICHEON-SI, KYOUNKI-DO, 467-701, KOREA SUBJECT: INNOMTEK Co.,Ltd. FCC ID: T42ICU-E640 MODEL: ICU-E640 Part 22 / 2 / Certification Gentlemen: Submitted herewith, on behalf of INNOMTEK CO., LTD. is an application for Part 22 Certification of the following CDMA USB MODEM: Trade Name/Model(s): INNOMTEK / ICU-E640 EUT Type: CDMA USB MODEM Tx Frequency: 824.70 — 848.31 MHz (CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) Max. RF Output Power: 0.237 W ERP CDMA (23.8 dBm) Maximum SAR: 1.18 W/kg CDMA Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. Report prepared by: Ki-Soo Kim Manager of Product Compliance Team cc: Mr. Max Ko – INNOMTEK Co.,Ltd. April 3, 2006 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005866421 TEL : +82 31 639 8518 FAX : +82 31 639 8525 http://www.hct.co.kr

Chris Harvey From: SUN-HEE KIM (HCT) [[email protected]] Sent: Wednesday, April 19, 2006 9:08 PM To: Chris Harvey; 'Chris Harvey (CCS)'; 'MIKE KUO (CCSEMC)'; 'Scott Wang' Cc: 신국선 \(HCT\); 김영관 (HCT); 임지영 (HCT); 박근호 (HCT); 정문진 (HCT); SCOTT WANG (CCS); MIKE KUO (CCSEMC) Subject: Re: FCC Part 22, 2 Application.(FCC ID: T42ICU-E640: Assessment Number : AN06T5627): INNOMTEK Co.,Ltd. -1 of 2- Attachments: ATT. M (User Manual)-new.pdf; ATT. N (SAR REPORT)_ ICU-E640-new.pdf Page 1 of 6 4/20/2006 Hello Chris, I sent the email last friday. Please find the following. Your prompt response would be much appreciated. Thank you. Best Regards, Sun- Hee KIM ----- Original Message ----- From: Chris Harvey To: 'Chris Harvey' ; ' 박근호 ' ; 'Chris Harvey (CCS)' ; 'MIKE KUO (CCSEMC)' ; 'Scott Wang' Cc: ' 신국선 (HCT)' ; ' 김기수 차장 ( 미국지사 )' ; ' 임지영 \(HCT\)' ; ' 정문진 과장 (HCT)' ; ' 김영관 (HCT)' ; ' 김기수 (HCT)' ; 'SUN-HEE KIM (HCT)' Sent: Thursday, April 20, 2006 6:31 AM Subject: RE: FCC Part 22, 2 Application.(FCC ID: T42ICU-E640: Assessment Number : AN06T5627): INNOMTEK Co.,Ltd. Dear KH Park, I have not heard back from you. Did you receive the –mail request attached? Best regards, Chris Harvey Charvey [email protected] ----- Original Message ----- From: SUN -HEE KIM (HCT) To: Chris Harvey (CCS) Cc: 신국선 \(HCT\) ; 김영관 (HCT) ; 임지영 (HCT) ; 박근호 (HCT) ; 정문진 (HCT) ; SCOTT WANG(CCS) ; MIKE KUO (CCSEMC) Sent: Friday, April 14, 2006 6:22 PM Subject: Re: FCC Part 22, 2 Application.(FCC ID: T42ICU-E640: Assessment Number : AN06T5627): INNOMTEK Co.,Ltd. -1 of 2- Hello Chris, Thank you for your email. Please refer to my below comment and attachment files. Your prompt response would be much appreciated. Thank you. Best Regards, Sun- Hee KIM -----Original Message----- From: charvey [email protected] [mailto:[email protected]] Sent: Friday, April 07, 2006 11:35 PM To: [email protected] Cc: charvey [email protected] Subject: INNOMTEK Co.,Ltd., FCC ID: T42T42ICU-E640, Assessment NO.: AN06T5627, Notice#1 Dear KiSoo, I have reviewed the above referenced TCB application and find that the following items need to be addressed before the review can be completed: 1. The SAR compliance testing was performed in 3 different Notebook PC hosts, all with horizontal USB ports. The USB Dongle EUT was tested only in the right angle, vertical position. If this is the only intended position/use, then the Users Manual must clearly document that this device is only approved for use in Notebook PC's with horizontal USB ports, and the antenna must be positioned in the vertical position. ==> Please find the attachment file. <file name : ATT. M (User Manual)-new> Page 4 of 22 2. If the above use/position is not the only one intended: a. Since it is possible that the user could position the EUT in the flat, horizontal position, straight away from the USB port, if operation in the horizontal is an intended position, then SAR testing must also be performed in the horizontal position. If it is not an intended position the users' manual must state this. b. If operation is also intended in notebook PC's that have vertical USB ports, then testing must also be performed in those positions (each side of the USB Dongle facing the bottom of the PC. If this is not an intended position the users' manual must state this. ==> Please find the attachment file. <file name : ATT. M (User Manual)-new> 3. Additionally SAR testing in each of the 3 hosts must be performed using the bottom USB port, closest to the body of the user (it appears as though testing may have been performed in the top USB port). Please verify which USB ports were used for testing with better photographs and re-test where necessary. ==> Please find the attachment file. <file name : ATT. N (SAR REPORT)_ ICU-E640-new> SAR testing have been performed using the bottom USB port. (the worst case) 4. You have provided side/bystander SAR measurements performed at 1.5cm separation from the EUT. This position is not required by the FCC, but if this data is provided it must be reviewed. Additionally the separation distance used must be justified as a normal-use position. Either remove this testing position from the exhibits (SAR report, SAR Plots, SAR setup photos, manual, etc.) or provide a justification of this position and how the 1.5cm Page 2 of 6 4/20/2006 separation is maintained. ==> Please find the attachment file. <file name : ATT. N (SAR REPORT)_ ICU-E640-new, ATT. P (SAR TEST SET-UP PHOTO)-new> 5. The FCC Pt. 15 Subpart B test report submitted indicates compliance with the 2001 version of the FCC Rules. Please verify that this device complies with the most recent FCC Rules (published yearly). ==> Please find the attachment file. <file name : ATT. T (EMI REPORT)-new> 6. The SAR test plot exhibit seems to only include the 15mm spacing to the side testing plots and not the bottom of PC plots. This exhibit is titled '1 of 2', but '2 of 2' was not submitted. Pleased submit the additional SAR test plots. ==> Please find the attachment file. <file name : ATT. O (SAR TEST DATA)-new> 7. The manual has a Body-worn statement that could be confusing to users. This device is a USB dongle, so it does not get worn on the body, and does not have clips or accessories for wearing on the body. It can potentially get used against the body, and gets installed in host Notebook computers. Please revise the Body-worn statements in the manual to reflect that this device is used near the body, remove the reference to accessories (not applicable to this device) and approved only for notebook PC configurations similar to the ones tested. The following note that is likely to be listed on the Grant should be included in the manual: SAR compliance has been established in the notebook computer configurations with horizontal USB slot configurations as tested in this filing, and can be used in notebook computers with substantially similar physical dimensions, construction, and electrical and RF characteristics. This transmitter must not be co-lo…

Text truncated - open the document above for the full version.

Chris Harvey From: SUN-HEE KIM (HCT) [[email protected]] Sent: Monday, April 24, 2006 8:46 AM To: 'Scott Wang'; 'MIKE KUO (CCSEMC)'; Chris Harvey Cc: 김기수 CJ; 'MIKE KUO (CCSEMC)'; 'SCOTT WANG(CCS)'; ' 정문진 (HCT)'; ' 박근호 (HCT)'; ' 임 지영 (HCT)'; ' 김영관 (HCT)'; ' 신국선 \(HCT\)' Subject: Re: FCC Part 22, 2 Application.(FCC ID: T42ICU-E640: Assessment Number : AN06T5627): INNOMTEK Co.,Ltd. -1 of 2- Attachments: ATT. Q (DIPOLE VALIDATION PLOTS)-new.pdf; ATT. O (SAR TEST DATA)-new2.pdf Page 1 of 7 4/24/2006 Hello Chris, Please check the attachment files. <file name : ATT. O (SAR TEST DATA)-new2> Page 9,11 of 16 <file name : ATT. P (SAR TEST SET-UP PHOTO)-new2> Page 5 of 6 <file name : ATT. Q (DIPOLE VALIDATION PLOTS)-new> Page 5-7 of 7 <file name : ATT. N (SAR REPORT)_ ICU-E640-new2> Page 12,13,17 of 21 <file name : ATT. R (PROBE CAL. DATA)-new> <file name : ATT. S (DIPOLE CAL. DATA)-new> HCT upgraded the DASY3 to DASY4 system last week. So we perform the testing with DASY4 system. !! The deadline date is already passed. Please inform me ASAP !! Your prompt response would be much appreciated. Best Regards, Sun- Hee KIM ----- Original Message ----- From: charvey [email protected] To: [email protected] Cc: charvey [email protected] ; [email protected] Sent: Friday, April 21, 2006 7:22 PM Subject: INNOMTEK Co.,Ltd., FCC ID: T42T42ICU-E640, Assessment NO.: AN06T5627, Notice#2 Dear KiSoo Kim: I have reviewed the response to Notice#1 and have the following issues that need to be addressed: 1. Please provide a photograph of the USB Port side of Notebook #3 (LG/IBM 99CDTB8) showing the ports and the measurement of the distance to the bottom of the notebook. The photo submitted does not show the ports and no information can be found (on the internet) for the model listed. ==> Please find the attachment file. 2. It appears as though you have selected to test the EVDO in the channel from the CDMA modulation that generated the highest SAR values. For Notebook #1 the highest SAR was the high channel, so the tested EVDO only in that channel (it was below 0.8W/kg threshold). The same was done for Notebook #3. For Notebook #2, the highest SAR was in the middle channel for CDMA, so the tested EVDO only in that channel, but the measurement was >0.8W/kg. The requirement for testing is to measured the middle channel for each modulation and then tested low and high if that middle channel measured >0.8W/kg. Please provide test data for EVDO in the middle channel for each host configuration, and then the high and low channels if the measurements of the middle channel are above 0.8W/kg (like it is with Notebook #2). Also, per above, please be sure this test is performed using the bottom USB port (closest to the user). ==> Please find the attachment file. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Chris Harvey [email protected] ----- Original Message ----- From: Chris Harvey To: 'SUN -HEE KIM (HCT)' ; 'MIKE KUO (CCSEMC)' ; 'Scott Wang' Cc: ' 신국선 \(HCT\)' ; ' 김영관 (HCT)' ; ' 임지영 (HCT)' ; ' 박근호 (HCT)' ; ' 정문진 (HCT)' ; 'SCOTT WANG(CCS)' ; 'MIKE KUO (CCSEMC)' Sent: Friday, April 21, 2006 7:25 PM Subject: RE: FCC Part 22, 2 Application.(FCC ID: T42ICU-E640: Assessment Number : AN06T5627): INNOMTEK Co.,Ltd. Sun-Hee Kim, I have just sent the attached notice to KiSoo Kim and wanted to be sure you got a copy of this notice. Please contact me if you have any questions. Best regards, Chris Harvey [email protected] From: SUN-HEE KIM (HCT) [mailto:[email protected]] Sent: Wednesday, April 19, 2006 9:09 PM To: Chris Harvey; 'Chris Harvey (CCS)'; 'MIKE KUO (CCSEMC)'; 'Scott Wang' Cc: 신국선\(HCT\); 김영관 (HCT); 임지영 (HCT); 박근호 (HCT); 정문진 (HCT); SCOTT WANG(CCS); MIKE KUO (CCSEMC) Subject: Re: FCC Part 22, 2 Application.(FCC ID: T42ICU-E640: Assessment Number : AN06T5627): INNOMTEK Co.,Ltd. -2 of 2- Hello Chris, I sent the email last friday. Please find the following. Your prompt response would be much appreciated. Page 2 of 7 4/24/2006 Thank you. Best Regards, Sun- Hee KIM ----- Original Message ----- From: Chris Harvey To: 'Chris Harvey' ; ' 박근호 ' ; 'Chris Harvey (CCS)' ; 'MIKE KUO (CCSEMC)' ; 'Scott Wang' Cc: ' 신국선 (HCT)' ; ' 김기수 차장 ( 미국지사 )' ; ' 임지영 \(HCT\)' ; ' 정문진 과장 (HCT)' ; ' 김영관 (HCT)' ; ' 김기수 (HCT)' ; 'SUN-HEE KIM (HCT)' Sent: Thursday, April 20, 2006 6:31 AM Subject: RE: FCC Part 22, 2 Application.(FCC ID: T42ICU-E640: Assessment Number : AN06T5627): INNOMTEK Co.,Ltd. Dear KH Park, I have not heard back from you. Did you receive the –mail request attached? Best regards, Chris Harvey [email protected] ----- Original Message ----- From: SUN -HEE KIM (HCT) To: Chris Harvey (CCS) Cc: 신국선 \(HCT\) ; 김영관 (HCT) ; 임지영 (HCT) ; 박근호 (HCT) ; 정문진 (HCT) ; SCOTT WANG(CCS) ; MIKE KUO (CCSEMC) Sent: Friday, April 14, 2006 6:22 PM Subject: Re: FCC Part 22, 2 Application.(FCC ID: T42ICU-E640: Assessment Number : AN06T5627): INNOMTEK Co.,Ltd. -1 of 2- Hello Chris, Thank you for your email. Please refer to my below comment and attachment files. Your prompt response would be much appreciated. Thank you. Best Regards, Sun- Hee KIM -----Original Message----- From: charvey [email protected] [mailto:[email protected]] Sent: Friday, April 07, 2006 11:35 PM To: [email protected] Cc: charvey [email protected] Subject: INNOMTEK Co.,Ltd., FCC ID: T42T42ICU-E640, Assessment NO.: AN06T5627, Notice#1 Dear KiSoo, Page 3 of 7 4/24/2006 I have reviewed the above referenced TCB application and find that the following items need to be addressed before the review can be completed: 1. The SAR complia…

Text truncated - open the document above for the full version.

INNOMTEK Co., Ltd. 3 rd Fl.Jin-Heung Bldg., 9-21 Samsung Dong, Gangnam Gu, Seoul, Korea Date: March 15, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize Hyundai Calibration & Certification Technologies Co.,Ltd. , to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Hyundai Calibration & Certification Technologies Co.,Ltd. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Hyundai Calibration & Certification Technologies Co.,Ltd as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. R & D Center REMARK : 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. Sincerely Yours, ---------------------------------------------- Max Ko – Manager

Chris Harvey From: Generic Office of Engineering Technology [[email protected]] Sent: Tuesday, April 11, 2006 11:18 AM To: [email protected] Subject: Response to Inquiry to FCC (Tracking Number 446569) Page 1 of 1 4/12/2006 Inquiry: I am in the process of reviewing a USB Dongle for Notebook Computer use that uses Pt. 22H CDMA2000 Modulation. What are the current review parameters I should be aware of and what parameters of operation are considered non-TCB reviewable? Response: To fully answer your questions more specific details are required e.g. power, photos, and similar. However the following general guidance applies. Per our understanding of your question. TCBs should handle the CDMA-2000 in accordance with our 3 G policy previously provided to the TCB. Regarding USB dongle configuration procedures for RF exposure the following information is provided. ---------------------------------------------------------------------------------------------- - "Direct-connected" USB (without integral cable) differs from most PCMCIA in that port alignment may be horizontal (H), vertical (V), and 180 degrees H or V, with respect to a notebook computer host - Grantee is responsible for SAR compliance in all such intended use positions - 1-host per host type SAR testing is accepted for many Part 15 and some licensed-service USB-dongle transmitters - - 3-host per host type SAR test results have been filed for some licensed-service USB dongles - - KDB Mar04 webpost RFx Procedures 7)b), 7)c) are applicable ---------------------------------------------------------------------------------------------- 7) SAR test procedures and positions for portable transmitters – notebook (laptop) computers, PDAs, smart- phones, etc. ... b) SAR data voluntarily submitted for additional positions which are applicable for a product is considered and reviewed during equipment certification c) Additional tests may be requested by the FCC for other applicable device usage positions that have potential to exceed SAR limits ... ---------------------------------------------------------------------------------------------- Please note that for higher powered devices additional caution may be justified depending on the specifics. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry S ystem to add any additional information pertaining to this inquiry.

INNOMTEK Co.,Ltd. 3rd Fl.Jin-Heung Bldg., 9-21 Samsung Dong, Gangnam Gu, Seoul, Korea 135-864 Date: March 15 , 2006 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Authorization Letter FCC ID: T42ICU-E640 (CDMA USB MODEM) Part 22 Certification To whom it may concern: We, the undersigned. hereby authorized HYUNDAI Calibration & Certification Technologies Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these manners. Any and all acts carried out by HYUNDAI Calibration & Certification Technologies Co., Ltd. on our behalf shall have the same effect as acts of our own. This authorization is valid until Dec. 31, 2006. Sincerely Yours, ---------------------------------------------- Max Ko – Manager R & D Center INNOMTEK Co.,Ltd. 3rd Fl.Jin-Heung Bldg., 9-21 Samsung Dong, Gangnam Gu, Seoul, Korea 135-864 Date: January 02, 2006 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Request for Confidentiality FCC ID: T42ICU-E640 (CDMA USB MODEM) Part 22 Certification Gentlemen: In accordance with 0.459 of CFR 47, INNOMTEK Co.,Ltd. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams attachment, Operational Description attachment, and Part List/Tune-Up Procedure attachment for the above-referenced Certification application. These documents contain detailed system and equipment description and related information about the product which INNOMTEK Co.,Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, INNOMTEK Co.,Ltd. feels this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely Yours, ---------------------------------------------- Max Ko – Manager R & D Center INNOMTEK Co.,Ltd. 3rd Fl.Jin-Heung Bldg., 9-21 Samsung Dong, Gangnam Gu, Seoul, Korea 135-864 Date: January 02, 2006 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046, U.S.A. Subject: User's Manual RF Exposure Warning Statement FCC ID: T42ICU-E640 (CDMA USB MODEM) Part 22 Certification Gentlemen: INNOMTEK Co.,Ltd. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the user's manual. Should you have any questions or comments concerning the above, please do not hesitate contact me. Sincerely Yours, ---------------------------------------------- Max Ko – Manager R & D Center INNOMTEK Co.,Ltd. 3rd Fl.Jin-Heung Bldg., 9-21 Samsung Dong, Gangnam Gu, Seoul, Korea 135-864 Date: January 02, 2006 AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the CDMA USB MODEM (FCC ID: T42ICU-E640) is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely Yours, ---------------------------------------------- Max Ko – Manager R & D Center

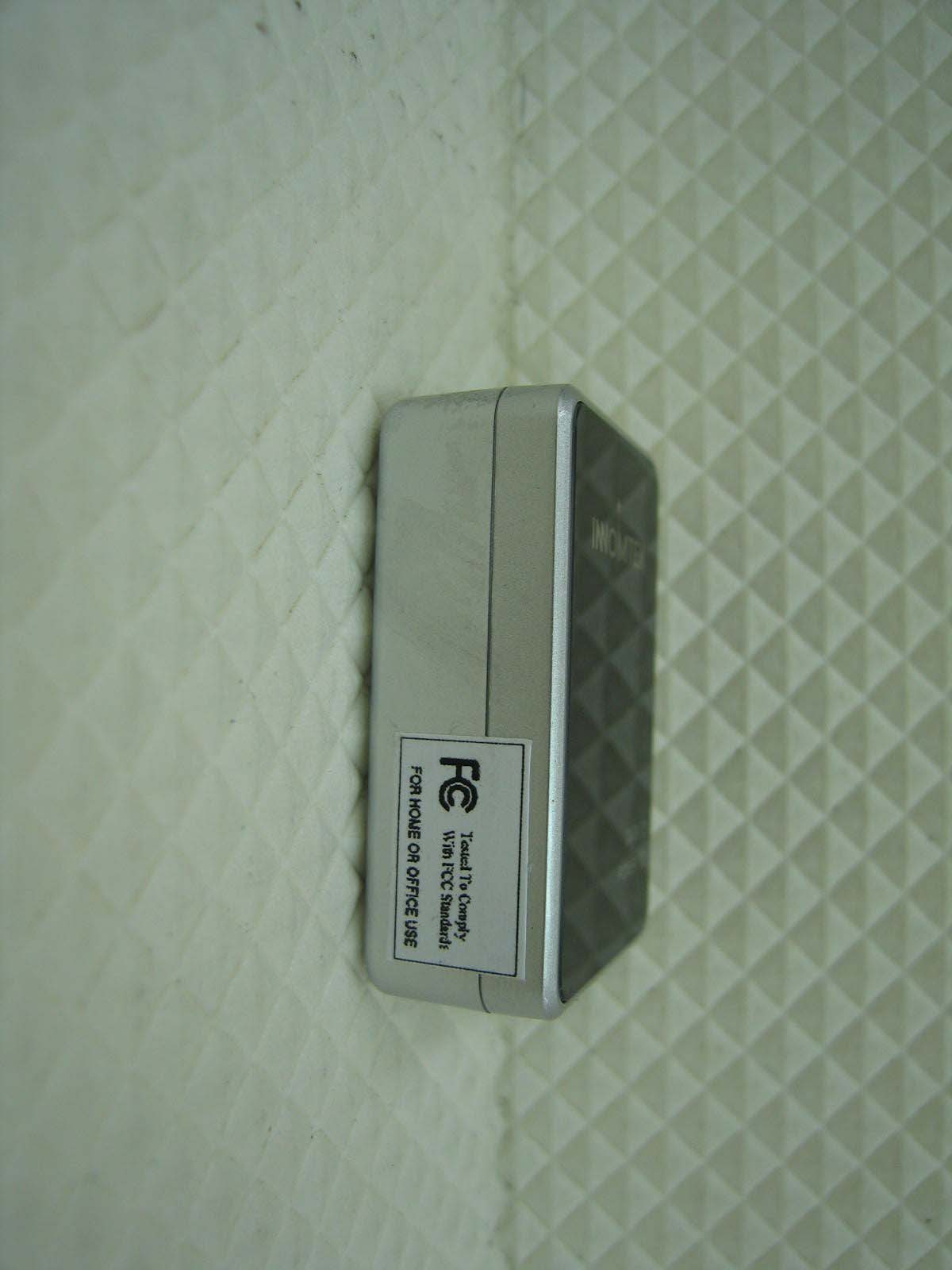

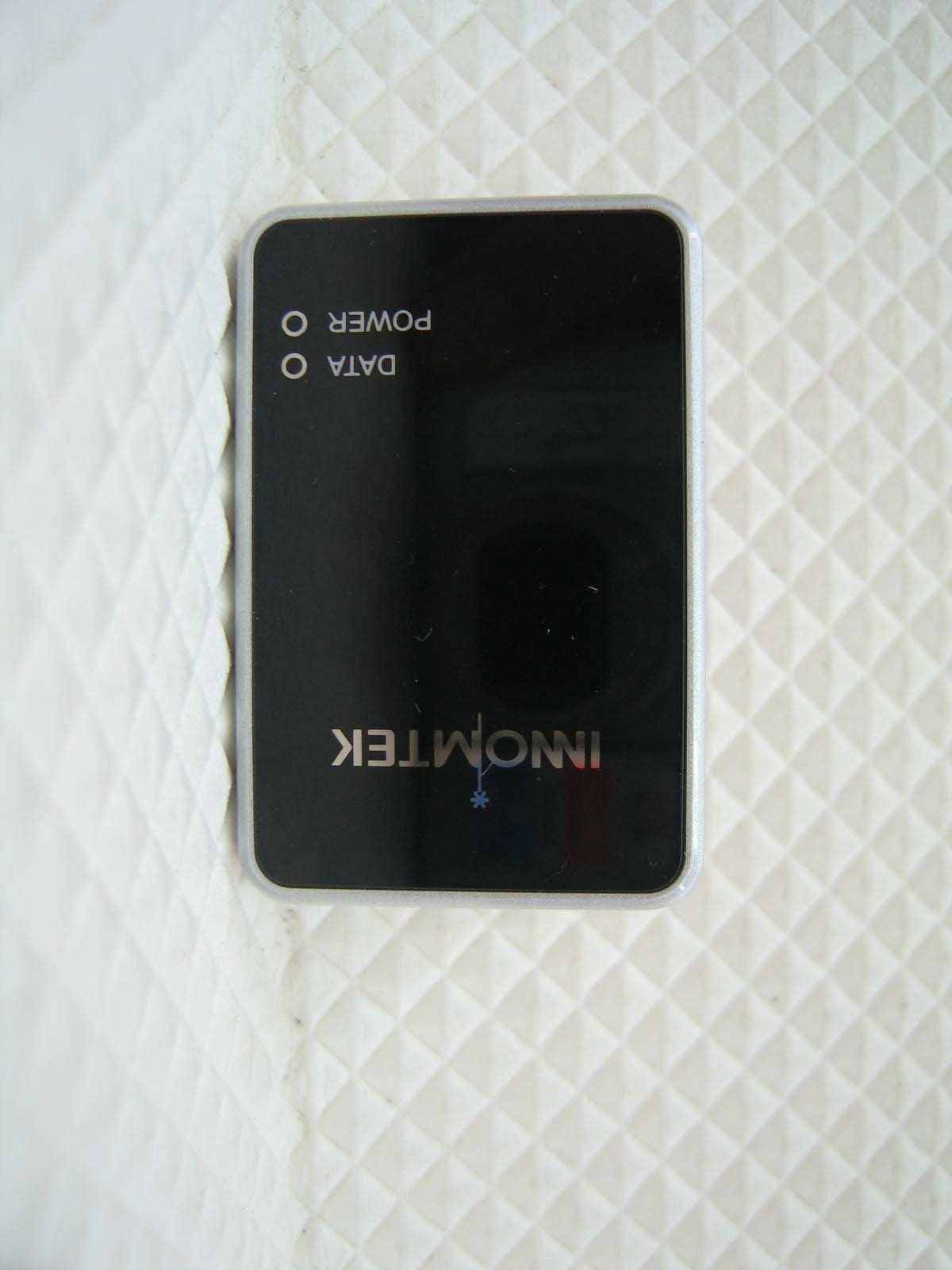

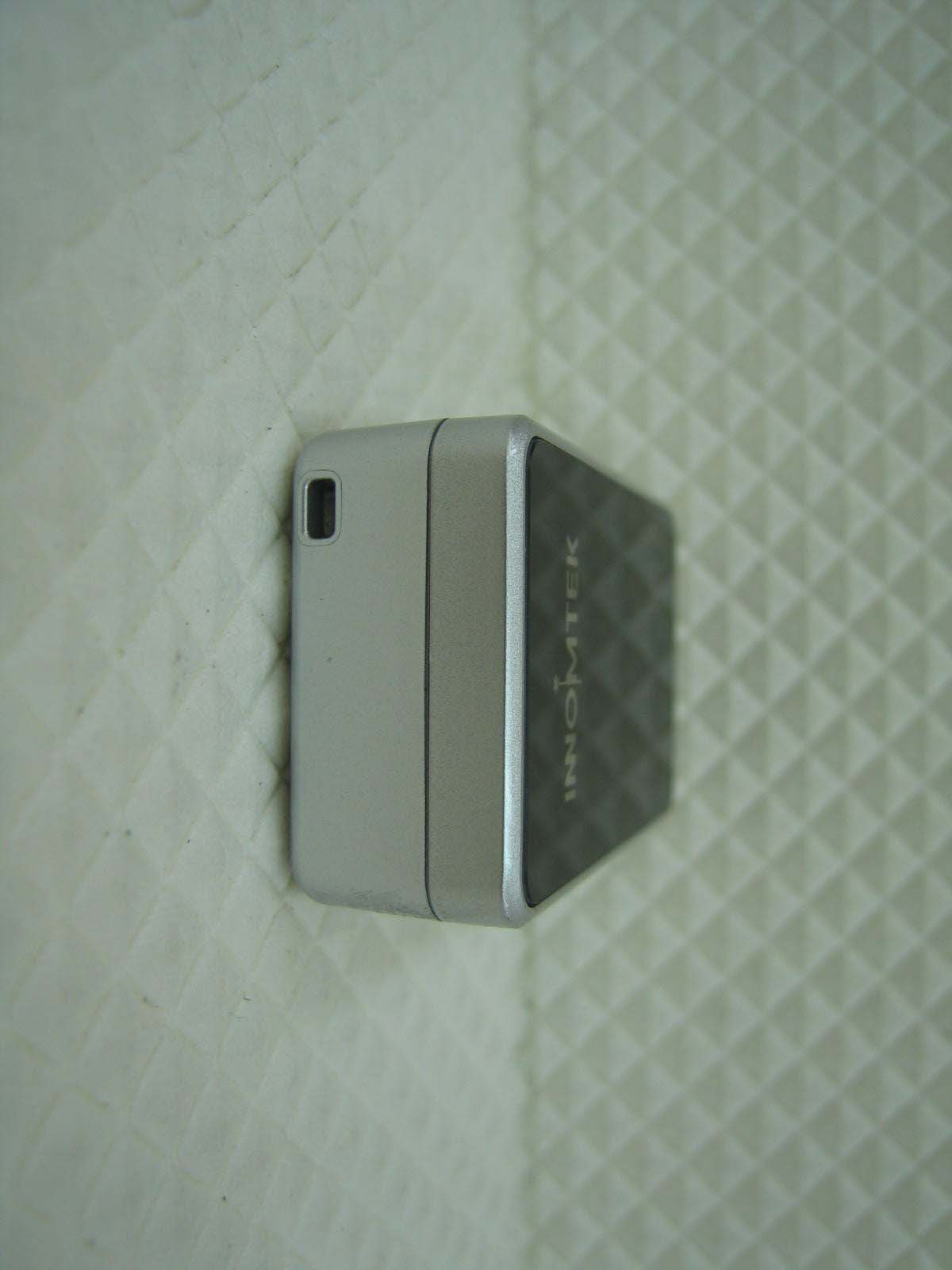

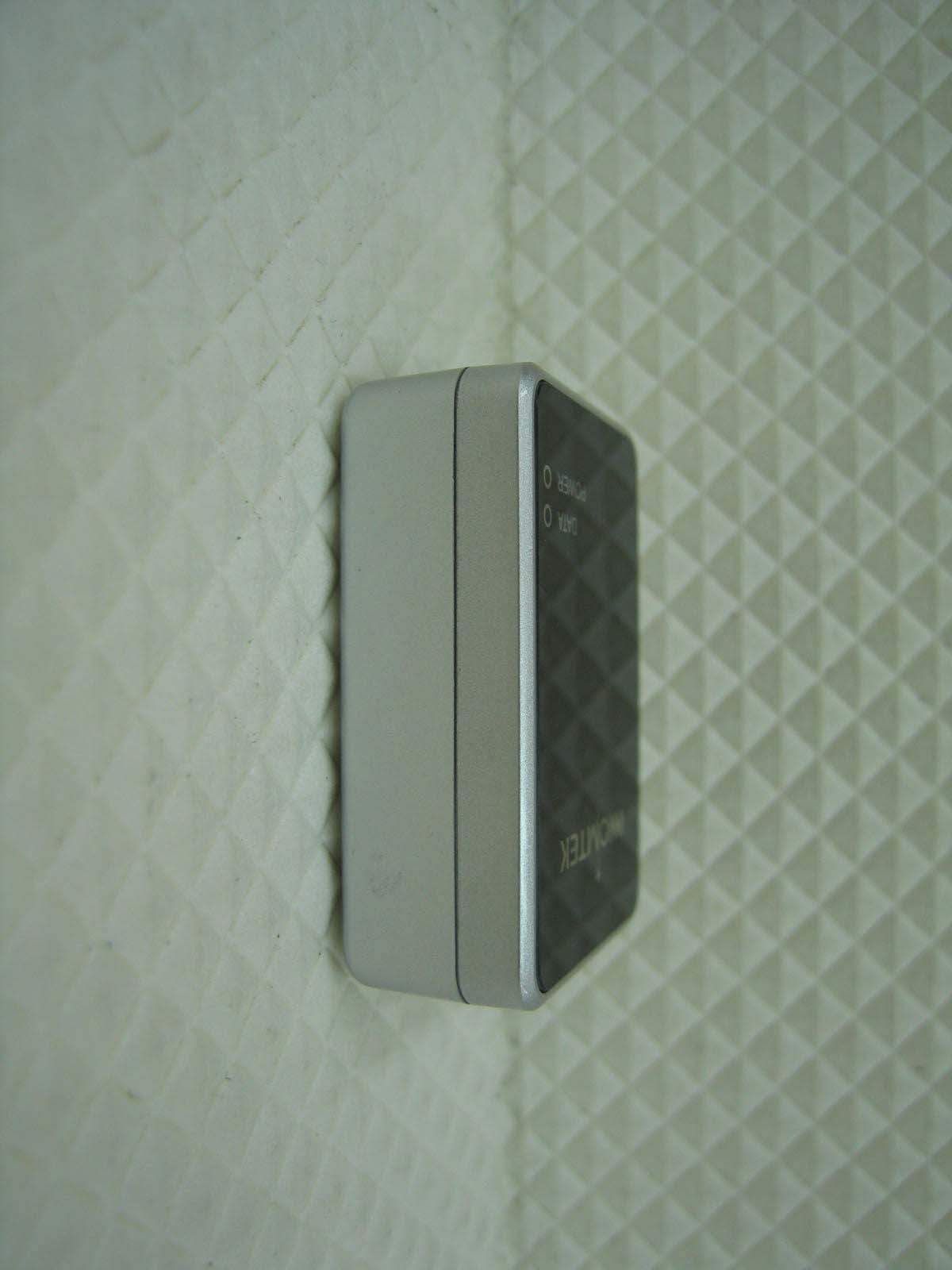

Report No.: HCT-SAR06-0313 FCC ID: T42ICU-E640 DATE: March 25, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT G – EXTERNAL PHOTOGRAPHS Report No.: HCT-SAR06-0313 FCC ID: T42ICU-E640 DATE: March 25, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR06-0313 FCC ID: T42ICU-E640 DATE: March 25, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR06-0313 FCC ID: T42ICU-E640 DATE: March 25, 2006 HYUNDAI C…
