T4AHN-1303FM Wireless Transmitter with 3 Channels

NEW PRODUCT INSTRUCTION Title：FM Wireless Transmitter with 3 channels Item No.：HN-1303 Function： Be able to transfer sound sources, e.g. CD, MD, and MP3, to FM receiver of the motor vehicle through the transmitter. Instruction： 1、 DEPOSE 1 PCS OF AAA BATTERY, IT’LL BE CONNECTED WITH THE TRANSMITTER WHEN THE LED IS INDICATED. 2、 Pull out the adjustable plug to fit into the voice output of MP3 (CD, MD and IPOD). 3、 Choose one of the frequency from channel 88.1, 88.5, 88.9 of the transmitter, and tune the FM receiver to the same frequency, then you’ll enjoy the music from the MP3 (CD, MD, and IPOD). Product Argument: 〈1〉Power Voltage：DC 9 - 12V 〈2〉Frequency Channel：88.1、88.5、88.9 MHZ 〈3〉Transmit Power：8mW 〈4〉Stereo Crosstalk：≧-60dB 〈5〉Signal to Noise Ratio：≧72dB 〈6〉Frequency Drift：0.≦1MHZ 〈7〉Working Current：25mA±2mA

Halloa Enterprise Co., Ltd. Fl. 9, No. 111-33, San Ho Road, Sec. 4, San Chung City, Taipei Hsien, 241 Taiwan, R. O. C. Tel. 886 2 2286 5678 Fax: 886 2 2286 9889 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Tony Huang President Halloa Enterprise Co., Ltd. http://www.halloa.com.tw

Halloa Enterprise Co., Ltd. Fl. 9, No. 111-33, Sec. 4, San Ho Road, San Chung City, Taipei Hsien, 241 Taiwan, R. O. C. Tel. 886 2 2286 5678 Fax: 886 2 2286 9889 http://www.halloa.com.tw Federal Communications Commission FCC ID: T4AHN-1303 Product Name: FM Wireless Transmitter with 3 channels Model Name: HN-1303 Trade Name: HALLOA Dear Sir: In accordance with 47 C.F.R. Section 0.459, we would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics. By: By: Tony Huang (Signature) (Printed) Title : President Applicant : Halloa Enterprise Co., Ltd. Address : Fl. 9, No. 111-33, Sec. 4, San Ho Road, San Chung City, Taipei Hsien, 241 Taiwan, R. O. C. Tel : (02) 2286 5678 Fax: (02) 2286 9889 Date : July 17, 2006

1 Helen Zhao Subject: FW: Halloa Enterprise Co., Ltd., FCC ID: T4AHN-1303, Assessment NO.: AN06T6028, Notice#1 Exhibit-D-ID_Label_ rev.pdf From: iris Sent: Tuesday, August 08, 2006 2:58 AM To: Helen Zhao Subject: Re: Halloa Enterprise Co., Ltd., FCC ID: T4AHN-1303, Assessment NO.: AN06T6028, Notice#1 Dear Helen, Pls find the revised label for your reference and thank you for you advice. Best Regards, Iris Lin -----Original Message----- Sent: Monday, August 07, 2006 10:39 PM Subject: Halloa Enterprise Co., Ltd., FCC ID: T4AHN-1303, Assessment NO.: AN06T6028, Notice#1 Question #1: The EUT photos show a FCC DoC logo. Please note this device is neither a PC peripheral, nor a digital device that is subject to FCC DoC. Please remove FCC DoC logo. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

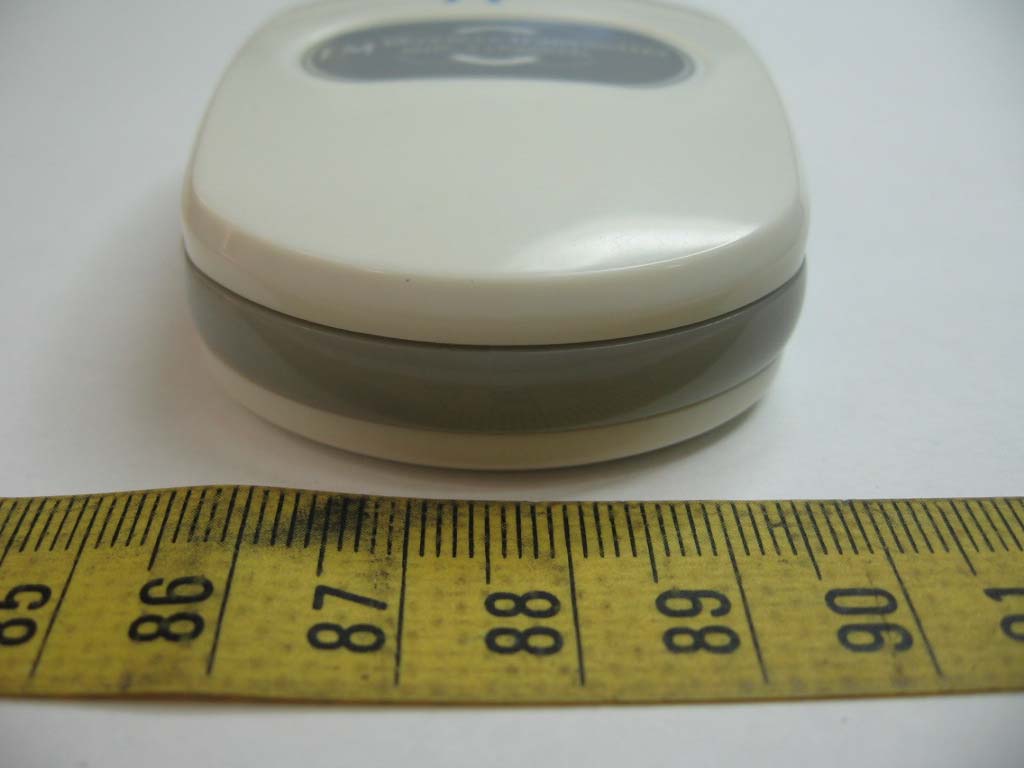

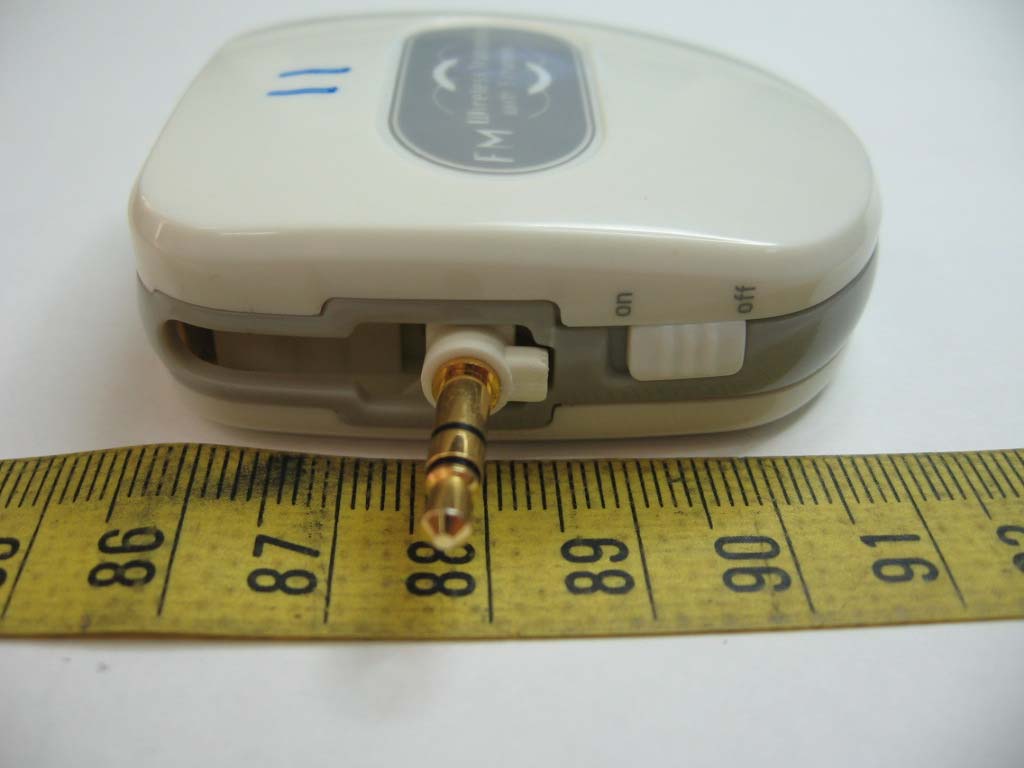

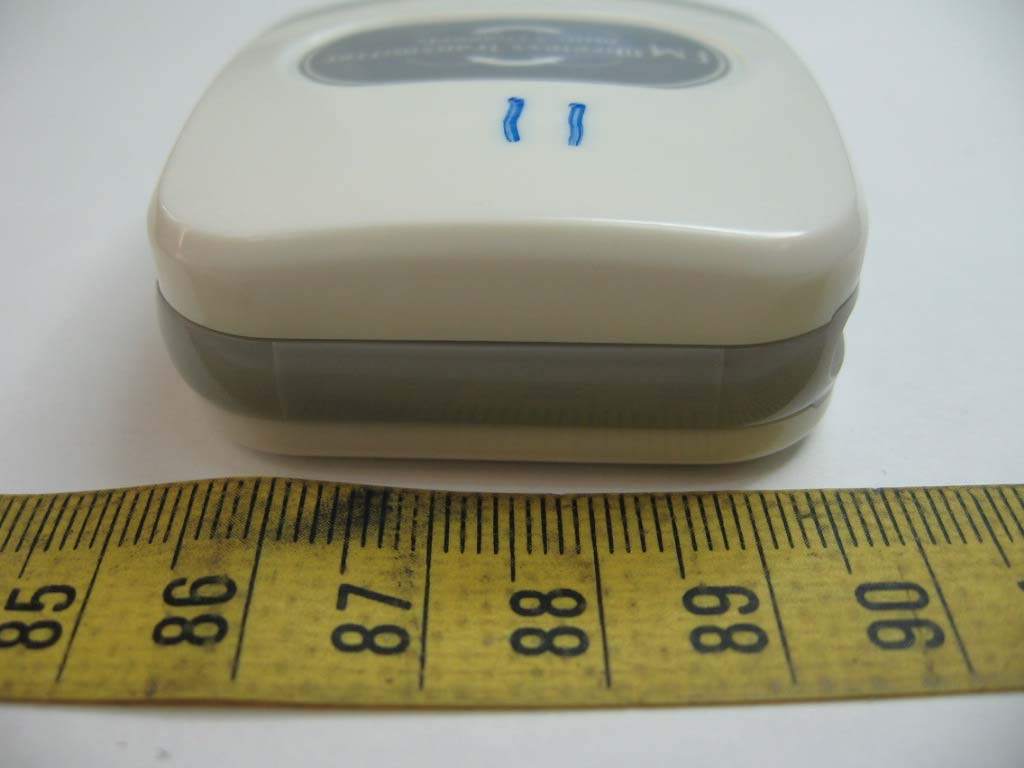

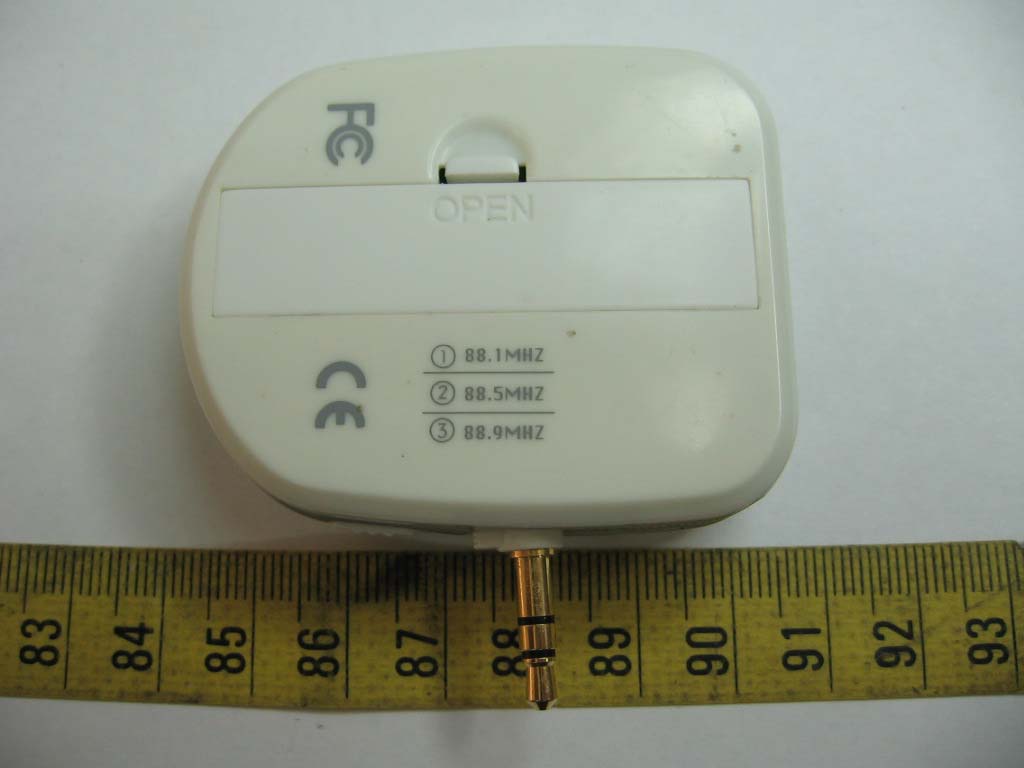

ETC Report No.:ET94R-12-114-03 FCC ID.: T4AHN-1303 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Top View of EUT Front View of EUT ETC Report No.:ET94R-12-114-03 FCC ID.: T4AHN-1303 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Side View of EUT ETC Report No.:ET94R-12-114-03 FCC ID.: T4AHN-1303 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Rear View of EUT Bottom View of EUT

FCC ID: T4AHN-1303 32mm 12mm

ETC Report No.:ET94R-12-114-03 FCC ID.: T4AHN-1303 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT ETC Report No.:ET94R-12-114-03 FCC ID.: T4AHN-1303 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB

1 Power Voltage DC 9 - 12V 2Frequency Channel88.188.588.9 MHZ 3Transmit Power8mW 4Stereo Crosstalk-60dB 5Signal to Noise Ratio72dB 6 Frequency Drift 0. 1MHZ 7Working Current25mA±2mA

Rev. No 2.0 FCC Part 15 Subpart C TEST REPORT of E.U.T. : FM Wireless Transmitter with 3 channels FCC ID. : T4AHN-1303 MODEL : HN-1303 Working Frequency : 88.1 、 88.5 、 88.9MHz for APPLICANT : Halloa Enterprise Co., Ltd. ADDRESS : Fl. 9, No. 111-33, Sec. 4, San Ho Road, San Chung City, Taipei Hsien, 241 Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. http://www.etc.org.tw ; e-mail : [email protected] Tel:(02)26023052 Fax:(02)26010910 Report Number: ET94R-12-114-03 ETC Report No.:ET94R-12-114-03 FCC ID.: T4AHN-1303 Rev. No 2.0 TEST REPORT CERTIFICATION Applicant : Halloa Enterprise Co., Ltd. Fl. 9, No. 111-33, Sec. 4, San Ho Road, San Chung City, Taipei Hsien, 241 Taiwan, R.O.C. Manufacture : Halloa Enterprise Co., Ltd. Fl. 9, No. 111-33, Sec. 4, San Ho Road, San Chung City, Taipei Hsien, 241 Taiwan, R.O.C. Description of EUT : a) Type of EUT : FM Wireless Transmitter with 3 channels b) Trade Name : HALLOA c) Model No : HN-1303 d) Working Frequency : 88.1 、 88.5 、 88.9MHz e ) Power Supply : DC 1.5V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2005) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Issued Date : Jul. 24, 2006 Test Engineer : ( Vincent Chang ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET94R-12-114-03 FCC ID.: T4AHN-1303 Rev. No 2.0 Table of Contents Page 1. GENERAL INFORMATION .................................................................................................. 1 1.1 Product Description........................................................................................................... 1 1.2 Characteristics of Device:................................................................................................ 1 1.3 Test Methodology.............................................................................................................. 1 1.4 Test Facility......................................................................................................................... 1 2. DEFINITION AND LIMITS.................................................................................................... 2 2.1 Definition.............................................................................................................................. 2 2.2 Restricted Bands of Operation........................................................................................ 2 2.3 Limitation............................................................................................................................. 2 2.4 Labeling Requirement....................................................................................................... 3 2.5 User Information................................................................................................................ 3 3. SYSTEM TEST CONFIGURATION ..................................................................................... 4 3.1 Justification.......................................................................................................................... 4 3.2 Devices for Tested System............................................................................................... 4 4 RADIATED EMISSION MEASUREMENT.......................................................................... 5 4.1 Applicable Standard.......................................................................................................... 5 4.2 Measurement Procedure................................................................................................... 5 4.3 Measuring Instrument....................................................................................................... 7 4.4 Test Data...............................................................................................................................8 4.5 Field Strength Calculation............................................................................................. 10 4.6 Radiated Measurement Photos...................................................................................... 11 5 CONDUCTED EMISSION MEASUREMENT ................................................................... 12 5.1 Standard Applicable........................................................................................................ 12 6 ANTENNA REQUIREMENT................................................................................................ 13 6.1 Standard Applicable........................................................................................................ 13 6.2 Antenna Construction...................................................................................................... 13 7 EMISSION BAND MEASUREMENT.................................................................................. 14 7.1 Standard Applicable........................................................................................................ 14 7.2 Measurement Procedure................................................................................................. 14 7.3 Measurement Equipment................................................................................................ 14 7.4 Measurement Data........................................................................................................... 14 ETC Report No.:ET94R-12-114-03 Sheet 1 of 18 Sheets FCC ID.: T4AHN-1303 Rev. No 2.0 1. GENERAL INFORMATION 1.1 Product Description a) Type of EUT : FM Wireless Transmitter with 3 channels b) Trade Name : HALLOA c) Model No : HN-1303 d) Frequency Modulation : 88.1 、 88.5 、 88.9MHz e) Power Supply : DC 1.5V 1.2 Charac…
