T4T4892-49MHZTTOY GO CAR

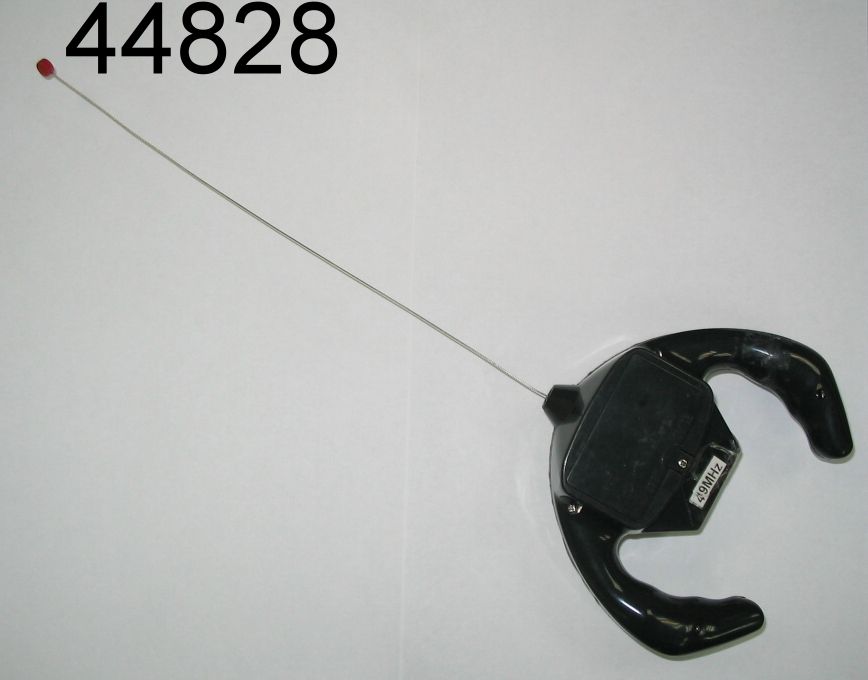

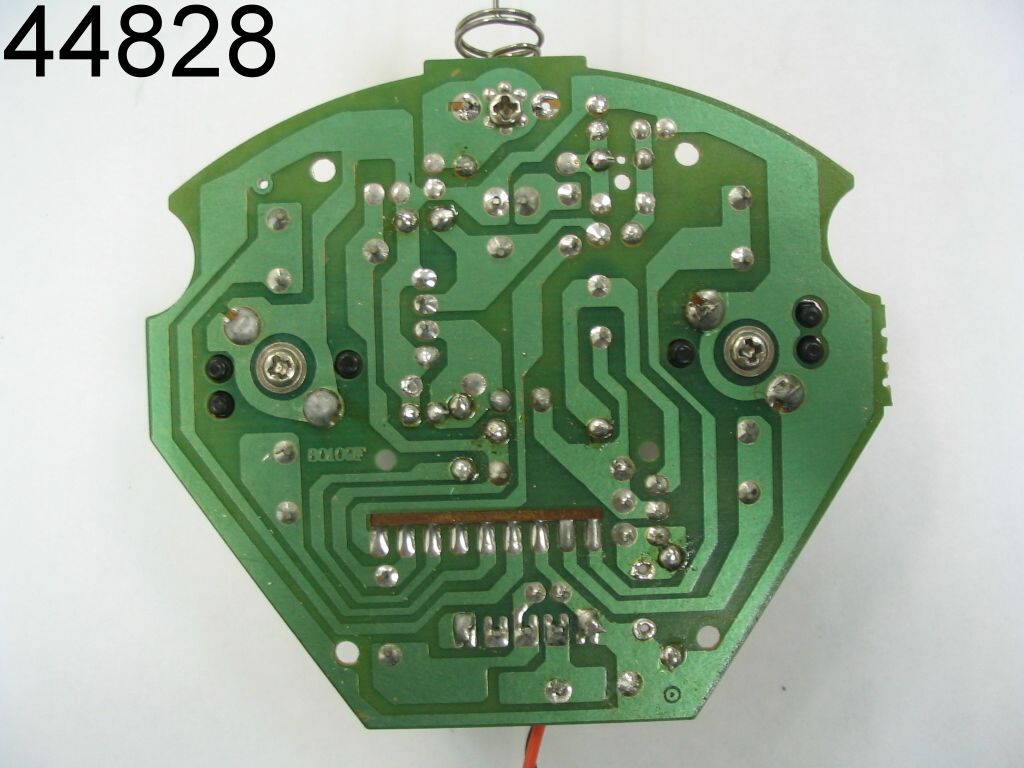

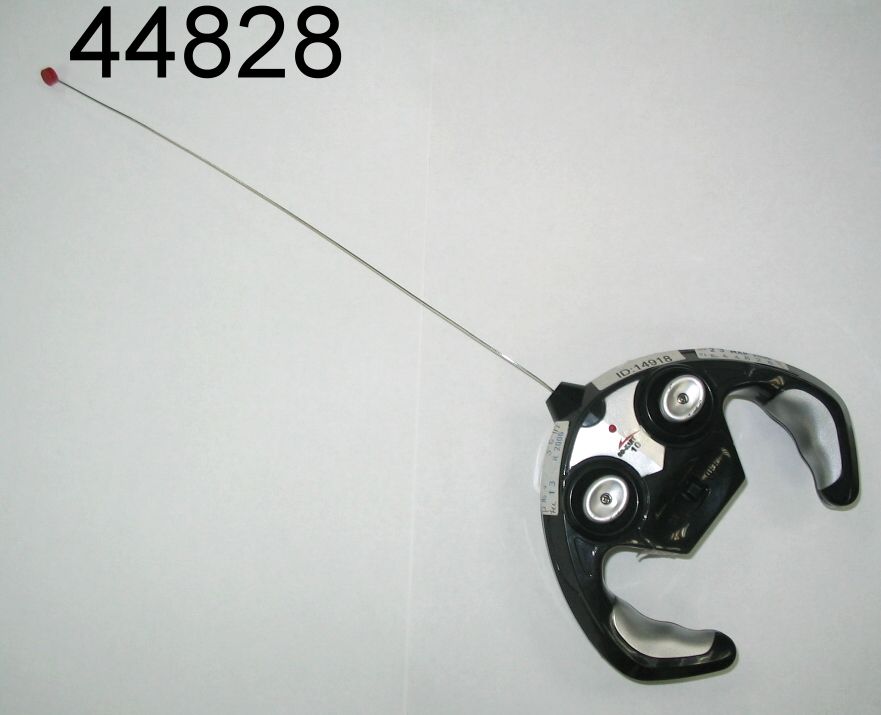

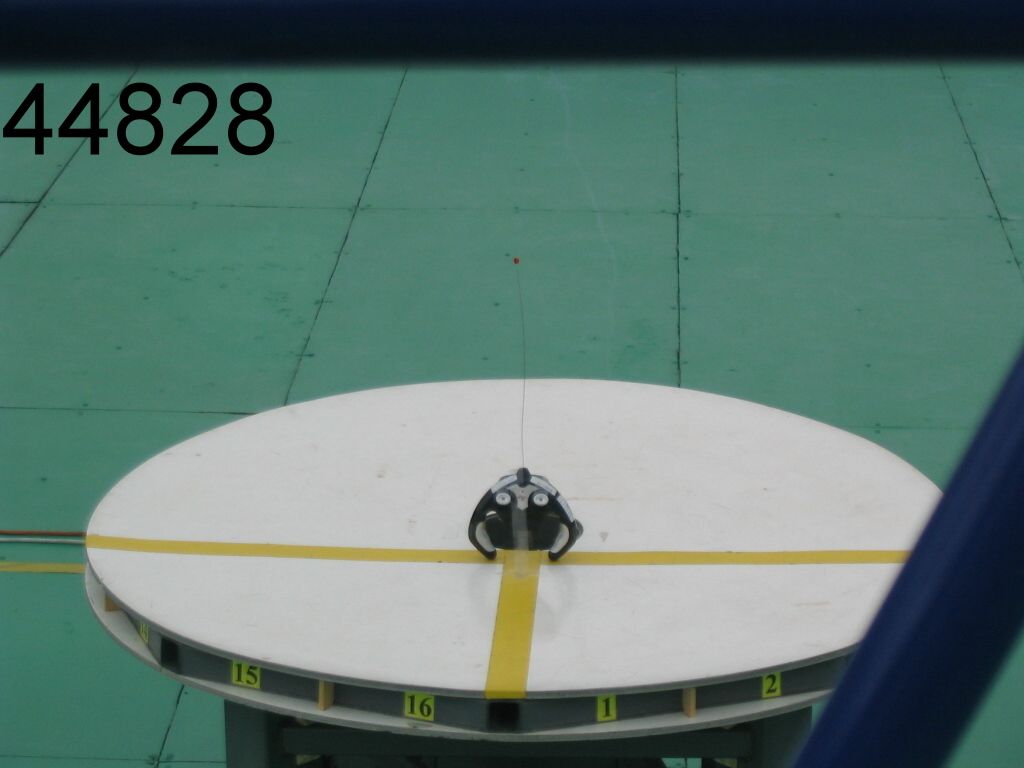

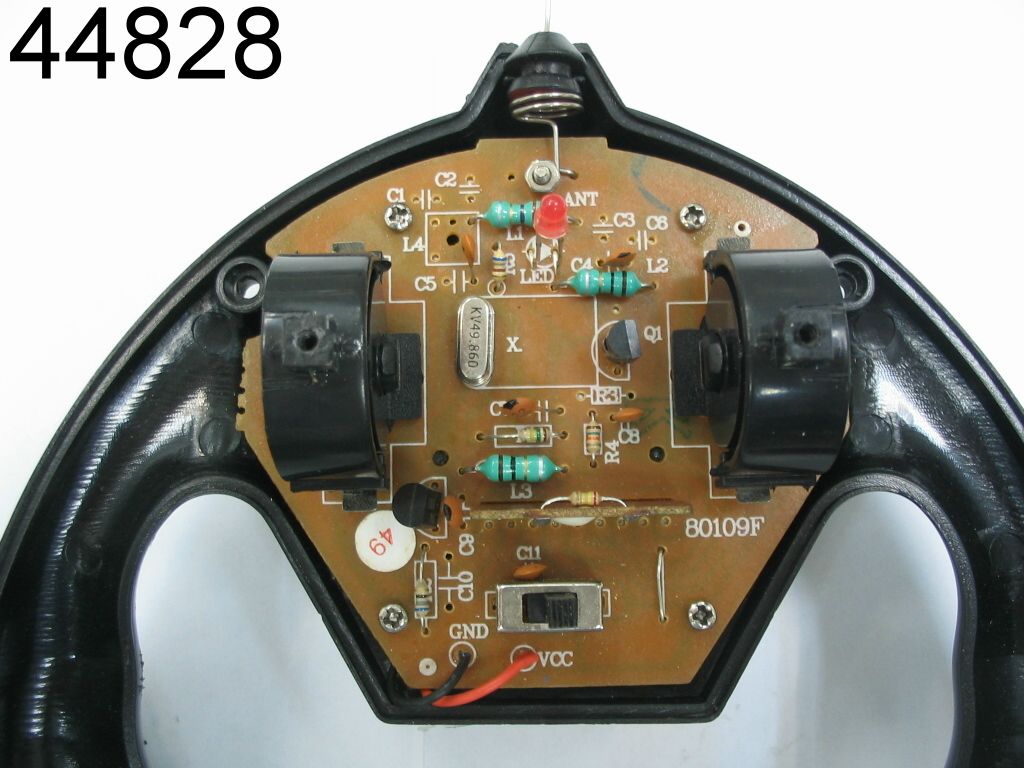

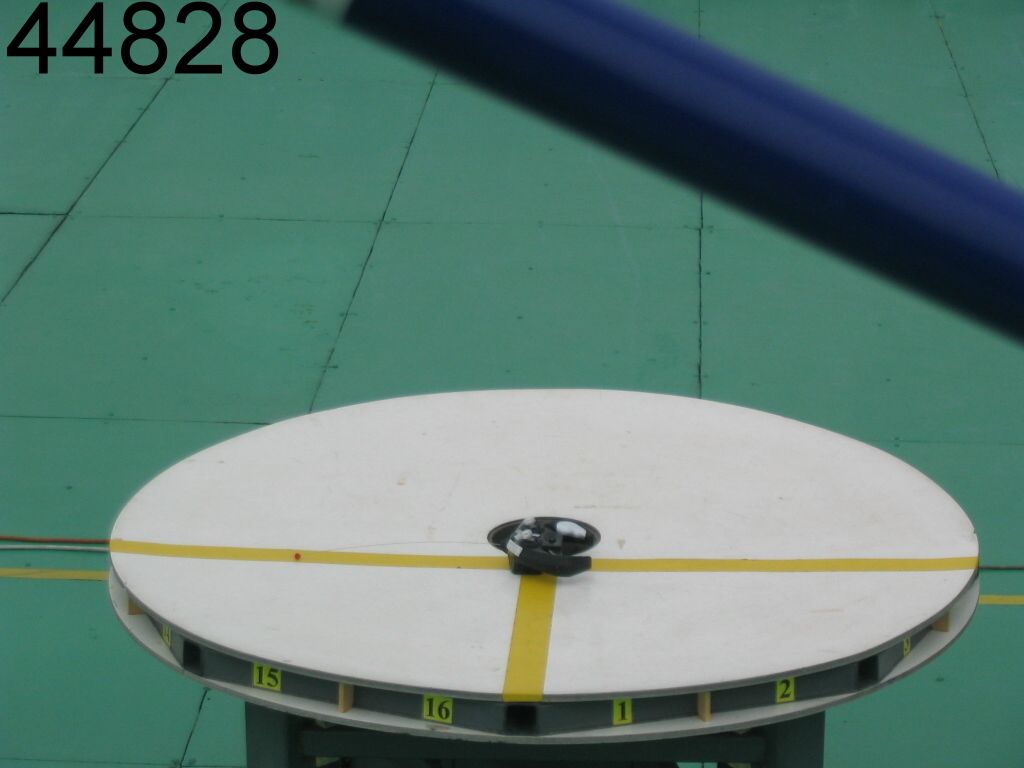

F F C C C C - - T T E E S S T T R R E E P P O O R R T T REPORT NO.: 44828A FCC – Test Report No. 44828A Date: 2006-03-29 Page 2 of 17 2 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 2003 Product : Toy Go Car Product Class : Low Power Communication Device Transmitter Brand Name : - Model : #4892-49MHzT Applicant : WELBIG COMPANY FCC – Test Report No. 44828A Date: 2006-03-29 Page 3 of 17 3 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Test Location and Summary of Test Results 6. Test Equipment List and Test Support Units 7. Radiated Emission Test Procedure (> 30MHz) 8. Radiated Emission Test Procedure (9kHz – 30MHz) 9. Measurement Data 10-11. Time Domain Plot 12. Notes for Radiated Emission Measurement (acc. to ANSI C63.4 – 2003) 13. Measurement of Emissions within Band Edges (Band Edges Plot) 14. Notes for Measurement of Emissions within Band Edges 15-17. Photographs FCC – Test Report No. 44828A Date: 2006-03-29 Page 5 of 17 5 Test Location International Electrical Certification Centre Ltd. Unit 602-605, 31 Lok Yip Road, On Lok Tsuen, Fanling, N.T., Hong Kong Summary of Test Results Radiated Emission: Test result: O.K. Test data: See attached data sheet Conducted Emission: Test result: N.A. Test data: N.A. Measurement of Emissions within Band Edges Test result: O.K. Test data: See attached data sheet FCC – Test Report No. 44828A Date: 2006-03-29 Page 6 of 17 6 TEST EQUIPMENT LIST Equipment Manufacturer Model Serial No. Remark Test Receiver Rohde & Schwarz ESVP 860688/022 20MHz – 1,300 MHz Test Receiver Rohde & Schwarz ESH 3 892580/006 9KHz – 30MHz Antenna Schaffner CBL6111C 2791 30MHz – 1000MHz Antenna Schwarzbeck BBA 9106 / UHALP 9107 -- 30MHz – 1000MHz Antenna Mast System Schwarzbeck AM9104 -- Max. 4 meters height Loop Antenna Rohde & Schwarz HFH2-Z2 871336/48 9KHz-30MHz Turntable with Controller Drehtisch DT312 -- φ120 cm Spectrum Analyzer with Q. Peak Advantest R3132 140101852 9KHz – 3GHz FCC – Test Report No. 44828A Date: 2006-03-29 Page 7 of 17 7 Radiated Emission Test Procedure (> 30MHz) Equipment under test (on turntable) Test receiver ESVP Rohde & Schwarz Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 FCC – Test Report No. 44828A Date: 2006-03-29 Page 8 of 17 8 Radiated Emission Test Procedure ( 9kHz – 30MHz) Test distance : 3 m Loop antenna HFH2-Z2 Rohde & Schwarz Equipment under test (on turntable) Test Receiver ESH3 Rohde & Schwarz 91Date: 2006-03-29 Page 9 of 17 Measurement of Radiated Emission s FCC Part 15 Subpart C (15.209) IECC Ref:44828A Test Equipment Model:#4892-49MHzTReceiver: ESVP Rohde & Schwarz Applicant:WELBIG COMPANYAntenna: Schaffner CBL6111C Sample No.:1 Set under test:Toy Go Car Connected sets: - Operating mode:Operate Frequency (MHz) Horz. Reading dB(μV) Vert. Reading dB(μV) Antenna Factor (dB) Horiz. Test Result dB(μV/m) Vert. Test Result dB(μ V/m) Limit dB(μV/m) Peak49.8666708.2 74.278.2100.0 Av. **49.8661658.2 69.273.280.0 Harm. 299.72263110.1 36.141.143.5 Harm. 3149.58<16<1611.2< 27.2 < 27.243.5 Harm. 4199.4417<169.1 26.1 < 25.143.5 Harm. 5249.317<1612.5 29.5 < 28.546.0 Harm. 6299.16<16<1613.6< 29.6 < 29.646.0 Harm. 7349.02<16<1614.9< 30.9 < 30.946.0 Harm. 8398.88<16<1616.3< 32.3 < 32.346.0 Harm. 9448.74<16<1617.1< 33.1 < 33.146.0 Harm. 10498.6<16<1617.8< 33.8 < 33.846.0 Harm. 11548.46<16<1619.2< 35.2 < 35.246.0 Harm. 12598.32<16<1620.0< 36.0 < 36.046.0 Harm. 13648.18<16<1620.2< 36.2 < 36.246.0 Harm. 14698.04<16<1620.8< 36.8 < 36.846.0 Harm. 15747.9<16<1621.4< 37.4 < 37.446.0 Harm. 16797.76<16<1622.1< 38.1 < 38.146.0 Harm. 17847.62<16<1622.9< 38.9 < 38.946.0 Harm. 18897.48<16<1622.6< 38.6 < 38.646.0 Harm. 19947.34<16<1623.8< 39.8 < 39.846.0 Remark:All frequencies in the required range have been scanned and only those significant and representative readings are reported above. All emissions not reported above are all well below the limit. Note:1. Unless otherwise indicated, the recorded readings are in quasi-peak values. 2. ** Calculation of radiation (average) : Formula : Duty cycle = (N1L1 + N2L2 + ... + Nn-1Ln-1 + NnLn) / 100 or T where N1 is number of type 1 pluse, L1 is length of type 1 pulse, etc. T is the period of the pulse train (if less than 100 ms) According to the time domain plots shown in page 10 & 11 : Duty cycle of the EUT = (4x1.52 + 40x0.52) / 47.4 = 0.567 Av correction factor = 20 x log(0.567) dB = - 4.92 dB Radiation (average) = Radiation (peak) + Av correction factor Radiation (average) of the EUT (Horizontal) = 66 - 4.92 dB(μV/m) = 61 dB(μV/m) Radiation (average) of the EUT (Vertical) = 70 - 4.92 dB(μV/m) = 65 dB(μV/m) 3. The measurement is conducted with the sample placed on the turnable in 3 orthogonal planes. Radiated Emission FCC – Test Report No. 44828A Date: 2006-03-29 Page 10 of 17 10 Interference Radiation Transmitter Emission – Time Domain Plot Pulse cycle period = 47.4 ms FCC – Test Report No. 44828A Date: 2006-03-29 Page 11 of 17 11 Transmitter Emission – Time Domain Plot Pulse width = 1.52 ms (total number of pulse : 4) Pulse width = 0.52 ms (total number of pulse : 40) FCC – Test Report No. 44828A Date: 2006-03-29 Page 12 of 17 12 Notes for Radiated Emission Measurement 1. Measurement facility: Measurement facility located at Fanling (Hong Kong), placed on file with the FCC Pursuant to Section 2.948 of the FCC Rules (FCC Registration No. : 97774). 2. Distance between the EUT and measuring antenna: 3 meters. 3. Measuring instrumentations: Rohde & Schwarz ESH3 Test Receiver (9kHz – 30MHz), ESVP Test Receiver ( 20 - 1300 MHz ) with a CISPR weighting QP detector, 6 dB bandwidth set at 120 KHz. 4. Measuring antenna: Broad-band antenna for the frequency range 30 - 1000 MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable included in the Antenna Factor for measurement data. The antenna is capable of measuring both horizontal and vertical polarizations. The antenna w…
