T5DCFL1Compact Fluorescent Lamp

Raywa Lighting & Electrical Corporation
Compact Fluorescent Lamp - FCC ID T5DCFL1 - Raywa Lighting & Electrical Corporation
Click to zoom

Application Details

Equipment Class
8CC - Part 18 Consumer Device
Date of Grant
Apr 13, 2006
Application Purpose
Original Equipment
Date of Application
Apr 13, 2006
Equipment Note
Compact Fluorescent Lamp
Frequency Range
0.04000000 - 0.07000000
Company
Raywa Lighting & Electrical Corporation
Country
China

Documents & Files

Select a file to view

Users Manual

β†—

Block Diagram

β†—

External Photos

β†—

ID Label/Location Info

β†—
β†—

Internal Photos

β†—

Schematics

β†—

Test Report

β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User’s Manual This light device has been tested and found to comply with the limits for Consumer RF Lighting Device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. 1 Use only on 120V/60Hz. 2 Never disassemble or modify-any changes could void the user’ authority to operate this device. 3 Risk of electric shock-do not use with where directly exposed to water. 4 This device is not intended for use with emergency exit fixtures or emergency exit lights. 5 This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz. 6 Not for use with dimmers, electronic timer or photocell devices or occupancy sensor.

Block Diagram

Block Diagram FOR MODEL: CF 15W/PAR30L; CF 15W/BR30; CF 20W/PAR38; CF 23W/PAR38; CF 23W/BR40; AC Rectifier & EMC filter Starting Circuit Half Bridge Inverter Tube Lighting INPUT: 120V/60Hz FUNDAMENTAL OPERATION FREQUENCY IS 0.45~30MHz

External Photos

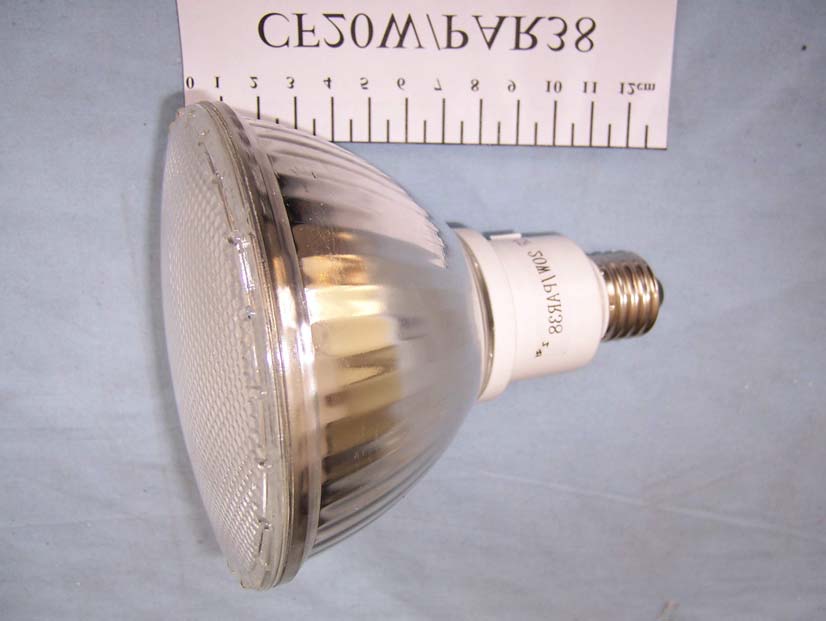

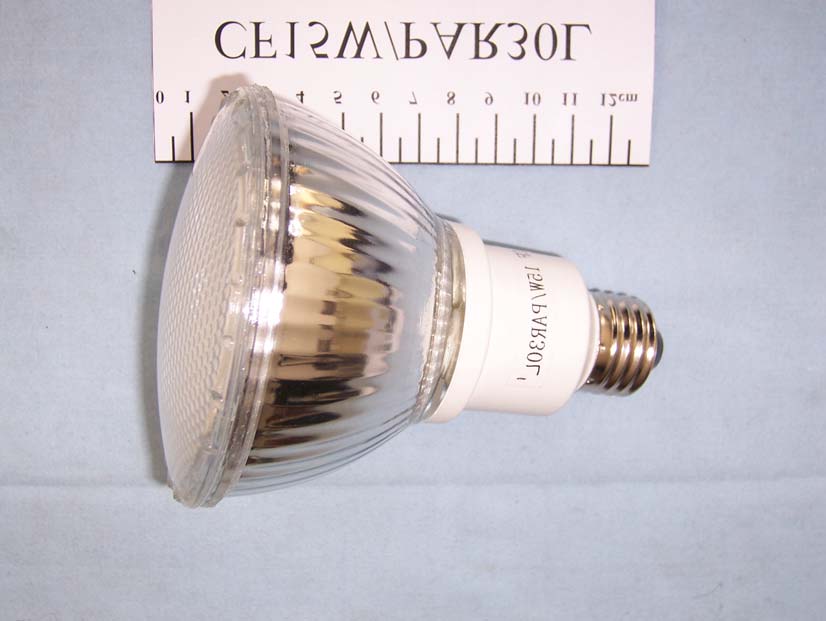

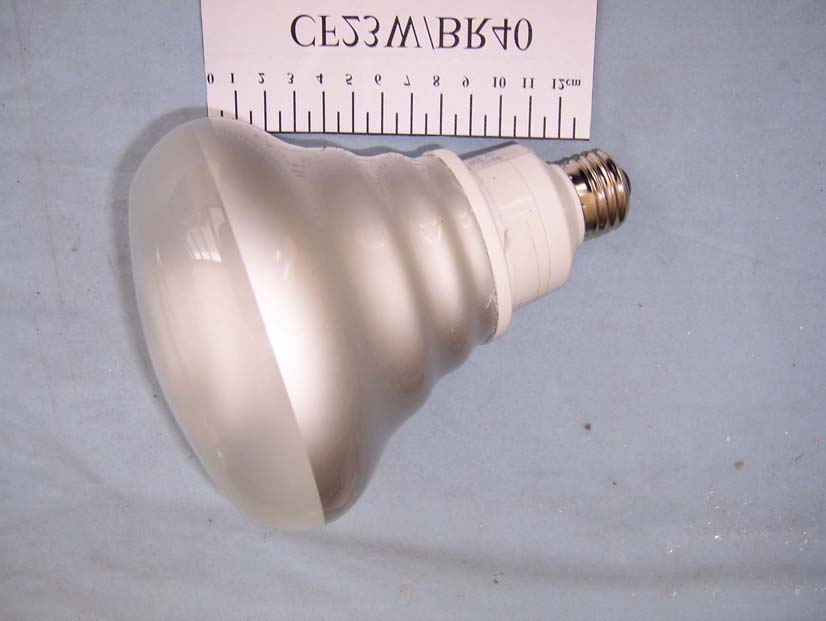

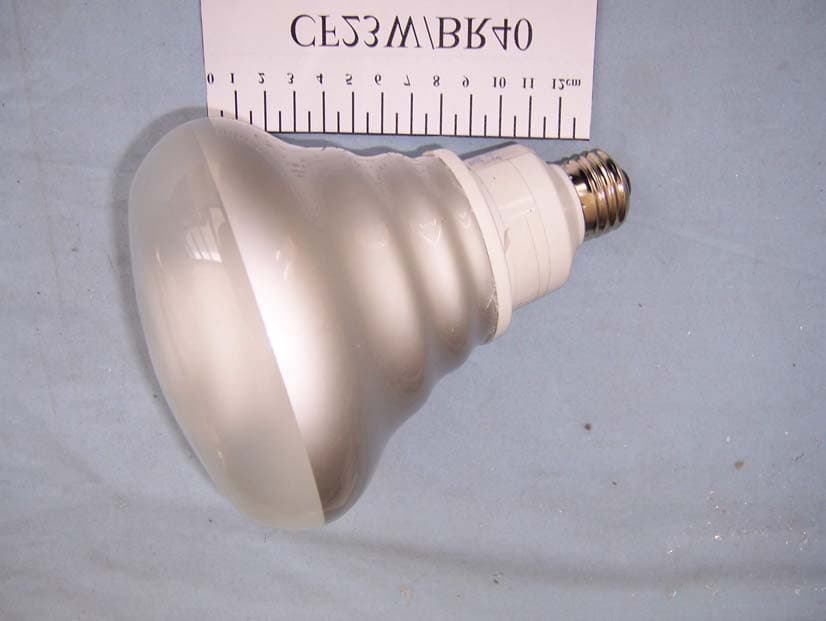

F IGURE 1 C OMPACT F LUORESCENT L AMP (M/N: CF 15W/PAR30L) G ENERAL A PPEARANCE F IGURE 2 C OMPACT F LUORESCENT L AMP (M/N: CF 15W/BR30) G ENERAL A PPEARANCE F IGURE 3 C OMPACT F LUORESCENT L AMP (M/N: CF 20W/PAR38) G ENERAL A PPEARANCE F IGURE 4 C OMPACT F LUORESCENT L AMP (M/N: CF 23W/PAR38) G ENERAL A PPEARANCE F IGURE 5 C OMPACT F LUORESCENT L AMP (M/N: CF 23W/BR40) G ENERAL A PPEARANCE

ID Label/Location Info

Label Location Information Refer to the below red arrow: (For example)

ID Label/Location Info

CF23W BR40 120V AC 60Hz 370mA Not Dimmable CAUTION: RISK OF ELECTRIC SHOCK. DO NOT USE WHERE DIRECTLY EXPOSED TO WATER. NOT FOR USE IN TOTALLY ENCLOSED RECESSED FIXTURES. FCC ID:T5DCFL1

Internal Photos

F IGURE 1 C OMPACT F LUORESCENT L AMP (M/N: CF 15W/PAR30L) L AMP S HADE R EMOVED F IGURE 2 C OMPACT F LUORESCENT L AMP (M/N: CF 15W/PAR30L) C OVER R EMOVED F IGURE 3 C OMPACT F LUORESCENT L AMP (M/N: CF 15W/PAR30L) M AIN B OARD (C OMPONENT S IDE ) F IGURE 4 C OMPACT F LUORESCENT L AMP (M/N: CF 15W/PAR30L) M AIN B OARD (S OLDERED S IDE ) F IGURE 5 C OMPACT F LUORESCENT L AMP (M/N: CF 15W/BR30) L AMP S HADE R EMOVED F IGURE 6 C OMPACT F LUORESCENT L AMP (M/N: CF 15W/BR30) C OVER R EMOVED F IGURE 7 C OMPACT F LUORESCENT L AMP (M/N: CF 15W/BR30) M AIN B OARD (C OMPONENT S IDE ) F IGURE 8 C OMPACT F LUORESCENT L AMP (M/N: CF 15W/BR30) M AIN B OARD (S OLDERED S IDE ) F IGURE 9 C OMPACT F LUORESCENT L AMP (M/N: CF 20W/PAR38) L AMP S HADE R EMOVED F IGURE 10 C OMPACT F LUORESCENT L AMP (M/N: CF 20W/PAR38) C OVER R EMOVED F IGURE 11 C OMPACT F LUORESCENT L AMP (M/N: CF 20W/PAR38) M AIN B OARD (C OMPONENT S IDE ) F IGURE 12 C OMPACT F LUORESCENT L AMP (M/N: CF 20W/PAR38) M AIN B OARD (S OLDERED S IDE ) F IGURE 13 C OMPACT F LUORESCENT L AMP (M/N: CF 23W/PAR38) L AMP S HADE R EMOVED F IGURE 14 C OMPACT F LUORESCENT L AMP (M/N: CF 23W/PAR38) C OVER R EMOVED F IGURE 15 C OMPACT F LUORESCENT L AMP (M/N: CF 23W/PAR38) M AIN B OARD (C OMPONENT S IDE ) F IGURE 16 C OMPACT F LUORESCENT L AMP (M/N: CF 23W/PAR38) M AIN B OARD (S OLDERED S IDE ) F IGURE 17 C OMPACT F LUORESCENT L AMP (M/N: CF 23W/BR40) L AMP S HADE R EMOVED F IGURE 18 C OMPACT F LUORESCENT L AMP (M/N: CF 23W/BR40) C OVER R EMOVED F IGURE 19 C OMPACT F LUORESCENT L AMP (M/N: CF 23W/BR40) M AIN B OARD (C OMPONENT S IDE ) F IGURE 20 C OMPACT F LUORESCENT L AMP (M/N: CF 23W/BR40) M AIN B OARD (S OLDERED S IDE )

Schematics

Component List Model No. Component CF 15W/PAR30L CF 15W/BR30 CF 20W/PAR38 CF 23W/PAR38 CF 23W/BR40 R1, R2 470K ohm 470K ohm 470K ohm 470K ohm 470K ohm R3, R9 0 ohm 2 ohm 1 ohm 1 ohm 1 ohm R5, R6 4 . 7 ohm 30 ohm 30 ohm 30 ohm 24 ohm C2 100 nF, 250 V 100 nF, 250 V 100 nF, 250 V 100 nF, 250 V 100 nF, 250 V C3 15 uF, 200 V 22 uF, 200 V 22 uF, 200 V 22 uF, 200 V 22 uF, 200 V C4 - 22 uF, 200 V 22 uF, 200 V 22 uF, 200 V 22 uF, 200 V C5 0.033 uF, 50 V 0.033 uF, 50 V 0.033 uF, 50 V 0.033 uF, 50 V 0.033 uF, 50 V C6 1 nF, 1200 V 1 nF, 1200 V 1 nF, 1200 V 1 nF, 1200 V 1 nF, 1200 V C7 100 nF, 400 V 100 nF, 400 V 100 nF, 400 V 100 nF, 400 V 100 nF, 400 V C9 3.3 nF, 1200 V 1.5 nF, 1000 V 1.0 nF, 1200 V 1.5 nF, 1200 V 2.2 nF, 1000 V C9’ 6.8 nF, 1200 V 4.7 nF, 1200 V 4.7 nF, 1000 V 4.7 nF, 1000 V 4.7 nF, 1000 V C10 3.3 nF, 1200 V 1.5 nF, 1000 V 1.5 nF, 1200 V 1.5 nF, 1200 V 1.5 nF, 1200 V D1 thru D5, D8, D9 1N4007, 1 A, 1000 V 1N4007, 1 A, 1000 V 1N4007, 1 A, 1000 V 1N4007, 1 A, 1000 V 1N4007, 1 A, 1000 V D6, D7 FR107 FR107 FR107 FR107 FR107 DB DB3 DB3 DB3 DB3 DB3 Q1, Q2 13003 13003 BUL128 BUL128 BUL128 PTC SP MZ4 SP MZ4 SP MZ4 SP MZ4 SP MZ4 Core Dimension (mm) Model No. Line Filter (L1) (OD x H) Choke (L2) (L x W x H) Ring Coil (B) (OD x ID x H) 15WPAR30 6 x 8 19 x 5 x 17 10 Γ— 6 Γ— 3 15WBR30 6 x 8 16 x 5 x 15 10 Γ— 6 Γ— 5 20WPAR38 6 x 8 19 x 5 x 17 10 Γ— 6 Γ— 5 23WPAR38 6 x 8 19 x 5 x 17 10 Γ— 6 Γ— 5 23WBR40 6 x 8 19 x 5 x 17 10 Γ— 6 Γ— 5 Coil: Turns x Diameter (mm) x Conductor Mode No. Line Filter (L1) Choke (L2) Ring Coil (B) 15WPAR30120 x 0.23 x 1 170 x 0.16 x 4 3:3:3 Γ— 30 AWG x 1 15WBR30 116 x 0.23 x 1 210x 0.29 x 1 2:6:2 Γ— 30 AWG x 1 20WPAR38 116 x 0.23 x 1 170 x 0.16 x 4 2:6:2 x 0.45 x 1 23WPAR38 116 x 0.23 x 1 170 x 0.16 x 4 2:6:2 x 0.45 x 1 23WBR40 116 x 0.23 x 1 170 x 0.16 x 4 2:8:2 x 0.45 x 1

Test Report

Raywa Lighting & Electrical Corporation FCC ID: T5DCFL1 Page 1 of 23 Audix Technology (Shanghai) Co., Ltd. Report No: F06012 Application for FCC Certificate On Behalf of Raywa Lighting & Electrical Corporation Compact Fluorescent Lamp Model No.: CF 15W/PAR30L CF 15W/BR30 CF 20W/PAR38 CF 23W/PAR38 CF 23W/BR40 Serial No.: E06032401 E06032402 E06032403 E06032002 E06032001 FCC ID: T5DCFL1 Prepared For :Raywa Lighting & Electrical Corporation No.70 Changgu Road, Songjiang District, Shanghai P.R.China Prepared By :Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233. Tel : +86-21-64955500 Fax : +86-21-64955491 Report No. : ACI-F06012 Date of Test : Mar 28, 2006 Date of Report : Apr 03, 2006 Raywa Lighting & Electrical Corporation FCC ID: T5DCFL1 Page 2 of 23 Audix Technology (Shanghai) Co., Ltd. Report No: F06012 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 4 1.1 Description of Standards and Results......................................................................................... 4 2 GENERAL INFORMATION.......................................................................................................... 5 2.1 Description of Equipment Under Test........................................................................................5 2.2 Description of Test Facility ........................................................................................................ 5 2.3 Measurement Uncertainty .......................................................................................................... 6 3 AC POWERLINE CONDUCTED EMISSION TEST ................................................................. 7 3.1 Test Equipment........................................................................................................................... 7 3.2 Block Diagram of Test Setup ..................................................................................................... 7 3.3 Conducted Emission Limits (FCC Part 18 Consumer) .............................................................. 8 3.4 Test Configuration...................................................................................................................... 8 3.5 Operating Condition of EUT ...................................................................................................... 8 3.6 Test Procedures .......................................................................................................................... 8 3.7 Test Results ................................................................................................................................ 9 4 MAGNETIC FIELD EMISSION TEST ...................................................................................... 15 4.1 Test Equipment......................................................................................................................... 15 4.2 Block Diagram of Test Setup ................................................................................................... 15 4.3 Magnetic Field Emission Limit (FCC Part 18 305(b))............................................................. 16 4.4 EUT Configuration on Test ...................................................................................................... 16 4.5 Operating Condition of EUT .................................................................................................... 16 4.6 Test Procedures ........................................................................................................................ 16 4.7 Test Results .............................................................................................................................. 17 5 DEVIATION TO TEST SPECIFICATIONS .............................................................................. 23 Raywa Lighting & Electrical Corporation FCC ID: T5DCFL1 Page 3 of 23 Audix Technology (Shanghai) Co., Ltd. Report No: F06012 TEST REPORT FOR FCC CERTIFICATE Applicant : Raywa Lighting & Electrical Corporation Manufacturer : Raywa Lighting & Electrical Corporation EUT Description : Energy Saving Lamp (A) Model No.: CF 15W/PAR30L CF 15W/BR30 CF 20W/PAR38 CF 23W/PAR38 CF 23W/BR40 (B) Serial No.: E06032401 E06032402 E06032403 E06032002 E06032001 (C) Power Supply: 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 CONSUMER DEVICES (2005.10) AND MP-5/1986 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 RF Lighting Device limits both conducted emissions and field strength. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Please see the EUT Description above), which was tested in 3m anechoic chamber on Mar 28, 2006, to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report contains data that are not covered by the NVLAP accreditation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Date of Test : Mar 28, 2006 Prepared By: KATHY WANG / Assistant Reviewer: SAMMY CHEN / Supervisor Approved Signatory: BYRON KWO / Manager Raywa Lighting & Electrical Corporation FCC ID: T5DCFL1 Page 4 of 23 Audix Technology (Shanghai) Co., Ltd. Report No: F06012 1 SUMMARY OF STANDARDS AND RESULTS 1.1 Description of Standards and Results The EUT have been tested according to the applicable standards as referenced below: Description …

Text truncated - open the document above for the full version.

Test Setup Photos

Test Set-Up Photos 1. Conducted Emission Test 2. Field strength Test
