CTW CTWCTW CTW Paging Paging Paging Paging Transmitter VHF/UHF Transmitter VHF/UHFTransmitter VHF/UHF Transmitter VHF/UHF User's Manual Copyright Notice Commtech Wireless Pty Ltd reserves the right to make improvements to the product in this manual at any time without notice. No part of this manual may be produced, copied, translated or transmitted in any form or by any means without the written permission of Commtech Wireless Pty Ltd. Information provided in this manual is intended to be accurate and reliable. However, Commtech Wireless Pty Ltd assumes no responsibility for its use, nor infringements upon the rights of third parties, which may result from its use. VHF/UHF Paging Transmitter User's Manual Reference No. VHF/UHF Transmitter User's Manual Revision 1.0 November 2005 1 Introduction ........................................................................................................................ 3 1.1 Purpose of Manual ......................................................................................................................3 1.2 Document Overview....................................................................................................................3 1.3 Warnings .........................................................................................................................3 2 Overview .......................................................................................................................... 2-2 2.1 Basic System Overview ...........................................................................................................2-2 2.2 Display Modes..........................................................................................................................2-3 3 Quick Install Guide .......................................................................................................... 3-2 3.1 VHF/UHF Transmitter Unit .......................................................................................................3-2 3.2 Step by Step Testing................................................................................................................3-2 4 Menu System ................................................................................................................... 4-2 4.1 Menu Navigation ......................................................................................................................4-3 4.2 Main Menu ...............................................................................................................................4-4 4.3 [R] Radio Configuration Menu..................................................................................................4-4 4.3.1 [C] Radio Characteristics Menu ...........................................................................................4-5 4.4 [S] Serial Port Configuration ....................................................................................................4-6 4.4.1 [B] Baud Rate Menu ............................................................................................................4-7 4.5 [P] Radio Personality Menu .....................................................................................................4-8 4.5.1 [T] Set Current Time ............................................................................................................4-8 4.6 [D] Diagnostics Menu ...............................................................................................................4-9 5 Diagrams.......................................................................................................................... 5-2 5.1 Block Diagram VHF/UHF Transmitter......................................................................................5-2 5.2 Hardware Installation VHF/UHF...............................................................................................5-3 5.3 Electrical Connections VHF/UHF .............................................................................................5-4 6 Technical Specifications................................................................................................. 6-2 6.1 VHF/UHF Transmitter General ................................................................................................6-2 6.2 VHF/UHF Transmitter ..............................................................................................................6-2 6.3 ANCILLARIES and FEATURES ..............................................................................................6-3 7 Trouble Shooting............................................................................................................. 7-2 8 Glossary........................................................................................................................... 8-2 Table of Contents INTRODUCTION 1 1 Introduction 1.1 Purpose of Manual This manual is supplied with the purchase of a VHF/UHF Transmitter product. It provides an overview, installation and operation instructions as well as technical specifications. The manual is the first port of call for all information for operation and installation. Additional information or technical resources may be obtained from: CommtechWireless Australia (Head Office) ACN 064 705 924 Box 1037, OPDC, WA 6916 30 Hector Street Osborne Park, Perth. Western Australia 6017 Tel: +61 8 6240 0000 Fax: +61 8 6240 0001 Email Or visit our web site at, www.commtechwireless.com 1.2 Document Overview This document is structured along the following guidelines: ! Chapter One describes the purpose of the document and the layout. ! Chapter Two provides an overview of the VHF/UHF Transmitter, its components and operation. ! Chapter Three provides quick Install instructions on the VHF/UHF Transmitter system. ! Chapter Four provides a detailed overview on the Menu System and navigation. ! Chapter Five gives block diagrams, mechanical references and cable inst…

Text truncated - open the document above for the full version.

ACN. 064 705 924 30 Hector Street OSBORNE PARK WA 6017 Australia Phone +61 8 6240 0000 Fax +61 8 6240 0001 ABN 24 064 705 924 Email [email protected] Web http://www.commtech.com.au TO: Federal Communications Commission, Authorization and Evaluation Division RE: Confidentiality Request regarding application for certification of FCC ID: T5GPT5 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics and Block Diagrams. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, NATHAN BUZZA CEO Date: Wednesday, June 29, 2005

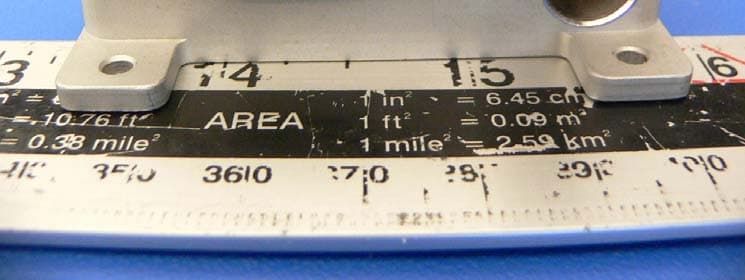

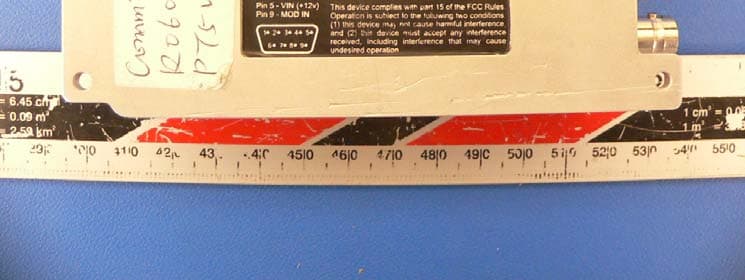

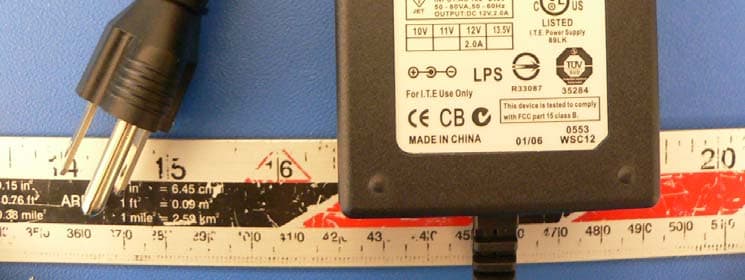

Commtech Wireless Pty Ltd FCC ID: T5GPT5 EXHIBIT C - EUT PHOTOGRAPHS PT5-UHF: EUT-Bottom View PT5-UHF: EUT-Top View Commtech Wireless Pty Ltd FCC ID: T5GPT5 PT5-UHF: EUT-Side View PT5-UHF: EUT-Port View Commtech Wireless Pty Ltd FCC ID: T5GPT5 PT5-VHF: EUT-Bottom View PT5-VHF: EUT-Top View Commtech Wireless Pty Ltd FCC ID: T5GPT5 PT5-VHF: EUT-Side View PT5-VHF: EUT-Port View Commtech Wireless Pty Ltd FCC ID: T5GPT5 Power Supply View

EXHIBIT A - FCC ID LABELING AND LOCATION Proposed FCC ID Labeling Proposed FCC ID Location Label Location PT5-UHF PT5-VHF Industry Canada Industrie Canada IC: 4767A-PT5 FCC ID: T5GPT5 This device complies with Part 15 o the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Commtech Wireless Pty Ltd FCC ID: T5GPT5 PT5-UHF: EUT-Component View PT5-UHF: EUT-Solder View Commtech Wireless Pty Ltd FCC ID: T5GPT5 PT5-VHF: EUT-Component View PT5-VHF: EUT-Solder View

© Commtech Wireless 2006 PT5 OEM Users Manual 2. Description of Operation The design of the PT5 Voice and Data Transmitter has been achieved on one PCB that incorporates all circuitry consisting of the following sections. The Processor U1 controls all RF circuitry features and provides a means to configure the transmitter and controls the functions of the external interface, PLL, Power Amplifier gain and DAC U5. The Transmitter unit maybe connected a PC, laptop or any RS-232 terminal, to display the menus and control operation, the Processor U1 contains a UART which provides this capability. Dip switches connected to U1 enable selection of channel without reprogramming. RF signal generation is provided by a VCO controlled by PLL U8 in conjunction with a VCTCXO that is trimmed by Processor control and modulated by analog means via DAC U5 and amplifier U2A. The modulated signal is amplified by gain blocks under control of the Processor via the DAC and is passed thru harmonic filters to the Antenna connection. Additional function of the Processor U1 provides monitoring of internal functions including PLL lock and the externally provided power supply voltage, ensuring correct device operation within the limits of the intended operating conditions. An externally visible led provides indication to end users of the functional status of the transmitter.

To: John Chan [email protected] From: Tim Harrington [email protected] FCC Equipment Authorization Branch Re: FCC ID: T5GPT5 Applicant: Commtech Wireless Pty Ltd Correspondence Number: 35386 731 Confirmation Number: TC602359 Date of Original E-Mail: 01/25/2007 Subject: audit Please insert remarks on grant certificate where appropriate The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal pursuant to Section 2.917(c). Response: We have revised the Grant with adding grant note. Here is the grant note we added: Power Listed is conducted. This device must be restricted to work related operations in an Occupational/Controlled RF exposure environment, not exceeding a maximum transmitting duty of 50%. To comply with the MPE limit and requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 65 cm from all persons.

ACN. 064 705 924 30 Hector Street OSBORNE PARK WA 6017 Australia Phone +61 8 6240 0000 Fax +61 8 6240 0001 ABN 24 064 705 924 Email [email protected] Web http://www.commtech.com.au Parts List for PT5-UHF Transmitter Date: Wednesday, June 29, 2005 Designator Description CON1 Connector DB9 right angle CV1, CV2, CV3 Variable Capacitor D2 Diode D5, D6, D7, D8, D9 Diode D10, D11, D12,D13, D14, D15 Diode D17 DIODE LED1 DUAL LED Q1, Q3, Q4, Q5, Q6, Q7 Transistor Q2 Transistor Q8 Transistor Q10 RF power transistor Q11 RF Transistor U1 CPU U2, U3, U4 Op-Amp U5 M62363 U6, U7 RF low level AMP U8 Single Fractional N Synth U9 OP7765 U10 Voltage regulator U11 4 way switch U12 Hex Inverter SCH VL1 Variable Inductor XTAL1 Low profile HC49 Micro Crystal XTAL2 VTCXO

ACN. 064 705 924 30 Hector Street OSBORNE PARK WA 6017 Australia Phone +61 8 6240 0000 Fax +61 8 6240 0001 ABN 24 064 705 924 Email [email protected] Web http://www.commtech.com.au Parts List for PT5-VHF Transmitter Date: Wednesday, June 29, 2005 Designator Description CON1 Connector DB9 right angle CV1, CV2, CV3 Variable Capacitor D1 RF detector Diode D10, D11, D12, D13, D14, D15 Diode D16 Diode D17 Diode D5, D6, D7, D8, D9 Diode LED1 dual color LED through hole 3 or 5mm Q1 Transistor Q10 RF power transistor Q11 RF Transistor Q2 Transistor Q3, Q4, Q5, Q6, Q7 Transistor Q8 FET U1 CPU U10 voltage regulator U11 4 way switch U12 Hex Inverter U2, U3, U4 Op-Amp U5 M62363 U6, U7 RF low level amp U8 Single Fractional N Synth U9 Op-Amp VL1 Variable Inductor XTAL1 Low profile HC49 Micro Crystal XTAL2 TCXO 12.8MHz 1.5ppm

© Commtech Wireless 2006 PT5 OEM Users Manual 1. ALIGNMENT The alignment features of the PT5 are all accessible through the configuration menu. The following procedures assume the transmitter is a working module connected with an appropriate power supply and modulation source, with the RF output connected to suitable test equipment capable of accurately measuring conducted RF power, deviation and frequency. To enter the alignment programming menu: 1. Connect the transmitter via an RS232 cable to a PC running a terminal program with the PC serial port set to 19200,8,n,1 2. In the PC terminal program type “factory” and press enter, then enter password the password protected factory menu should appear. 3. Type “D” to enter the diagnostics menu, then type “+” to enter the factory menu. 1.1. Power adjustment When in the factory main menu 1. select option 1,2 or 3 in the menu, this activates the transmitter so the output power can be measured. 2. Use the “+” and “-“ keys to adjust deviation value for the chosen parameter 3. Use the “Esc” key to return to the factory menu. The power level used during transmission is selected in the Radio Characteristics menu. 1.2. Deviation adjustment When in the factory main menu and with a modulation source applied. 1. select option A to enter the Audio/Data Control Menu. 2. Select the menu item appropriate to the mode of operation. 3. Select the menu item appropriate to the deviation parameter to be adjusted 4. Use the “+” and “-“ keys to adjust deviation value for the chosen parameter 5. Use the “Esc” key to return to the factory menu. 1.3. Frequency offset Adjustment When in the factory main menu and with NO modulation source applied. 6. Select option A to enter the Audio/Data Control Menu. 7. Select option X to enter VCTCXO center frequency adjustment, this activates the transmitter so the frequency offset can be measured 8. Use the “+” and “-“ keys to adjust the offset value 9. Use the “Esc” key to return to the factory menu.

§1.1310 and §2.1091 - RF EXPOSURE According to §1.1307, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for Occupational Population/Controlled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f\2\) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna UHF: Maximum peak output power at antenna input terminal: 36.83 (dBm ) Maximum peak output power at antenna input terminal: 4820 (mW) Prediction distance: 65 (cm) Predication frequency: 455 (MHz) Antenna Gain (typical): 4 (dBi) antenna gain: 2.51 (numeric) Power density at predication frequency at 65 cm: 0.228 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 0.30 (mW/cm 2 ) VHF: Maximum peak output power at antenna input terminal: 37 (dBm ) Maximum peak output power at antenna input terminal: 5012 (mW) Prediction distance: 65 (cm) Predication frequency: 162 (MHz) Antenna Gain (typical): 3 (dBi) antenna gain: 2.0 (numeric) Power density at predication frequency at 65 cm: 0.189 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 0.2 (mW/cm 2 ) Test Result The EUT is a mobile device. For UHF, the worst power density level at 65 cm for the maximum output power is 0.228 mW/cm 2 , which is below the uncontrolled limit of 0.3mW/cm 2 . For UHF, the worst power density level at 65 cm for the maximum output power is 0.189 mW/cm 2 , which is below the uncontrolled limit of 0.2mW/cm 2 .

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 90 TYPE APPROVAL EMI MEASUREMENT AND TEST REPORT For Commtech Wireless Pty Ltd 30 Hector Street Osborne Park, Perth. Western Australia 6017 FCC ID: T5GPT5 This Report Concerns: Original Report Product name: PT5 UHF Transmitter, PT5 VHF Transmitter Test Engineer: Taylor Tsai Report No.: R0603082 Report Date: 2006-04-04 Reviewed By: Snell Leong Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Commtech Wireless Pty Ltd FCC ID: T5GPT5 Report # R0603082Rpt.DOC Page 2 of 35 FCC PART 90 TYPE APPROVAL Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 EUT PHOTO.................................................................................................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 POWER SUPPLY AND LINE FILTERS..............................................................................................................................6 LOCAL SUPPORT EQUIPMENT.......................................................................................................................................6 INTERFACE PORTS AND CABLING.................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 §2.1046, and §90.205 - CONDUCTED OUTPUT POWER .......................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 TEST PROCEDURE........................................................................................................................................................8 ENVIRONMENTAL CONDITIONS....................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 TEST RESULT...............................................................................................................................................................8 §2.1047, and §90.207 - MODULATION CHARACTERISTIC ...............................................................................11 APPLICABLE STANDARD............................................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 ENVIRONMENTAL CONDITIONS..................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 TEST RESULT.............................................................................................................................................................11 §2.1049, and § 90.209/210– OCCUPIED BANDWIDTH & EMISSION LIMITATION ......................................15 APPLICABLE STANDARD............................................................................................................................................15 TEST PROCEDURE......................................................................................................................................................15 ENVIRONMENTAL CONDITIONS..................................................................................................................................16 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................16 TEST RESULT.....................................................................................................................................…

Text truncated - open the document above for the full version.

Commtech Wireless Pty Ltd FCC ID: T5GPT5 EXHIBIT B – TEST SET UP PHOTO PT5-VHF: Radiated Emission - Front View PT5-VHF: Radiated Emission - Rear View Commtech Wireless Pty Ltd FCC ID: T5GPT5 PT5-UHF: Radiated Emission - Front View PT5-UHF: Radiated Emission - Rear View
