T5V-01-FUSION4

Revolabs Inc.

Wireless Microphone Base Station (4 Channel)

Click to zoom

Application Details

Equipment Class: PUB - Part 15 Unlicensed PCS Base Station
Date of Grant: Apr 17, 2008
Application Purpose: Original Equipment
Date of Application: Apr 17, 2008
Equipment Note: Wireless Microphone Base Station (4 Channel)
Frequency Range: 1921.56000000 - 1928.52000000
Company: Revolabs Inc.
Country: United States

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

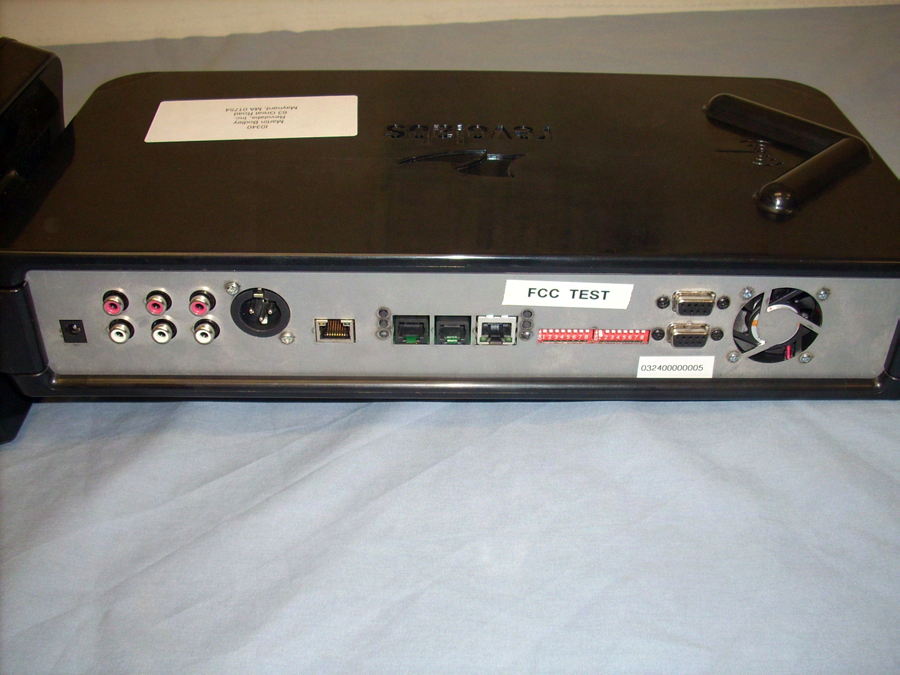

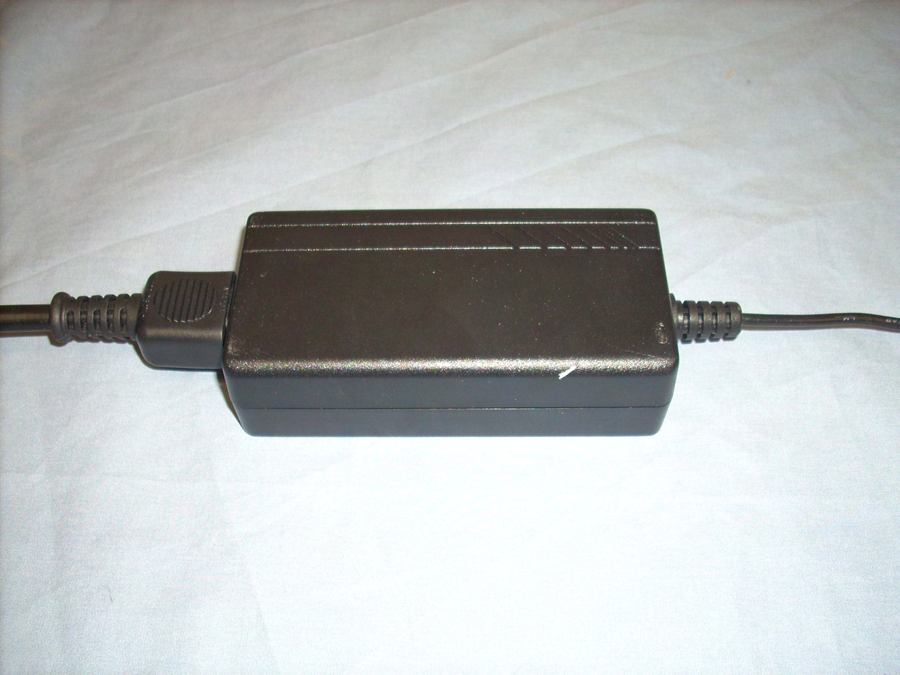

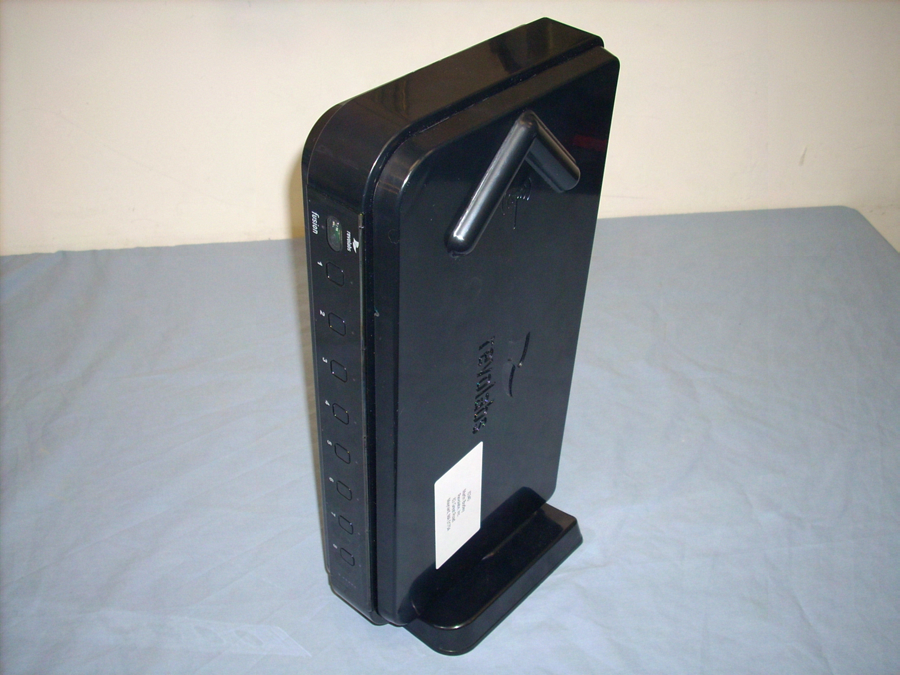

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	15D	1.92 GHz - 1.93 GHz	17.00 mW	1M45G7D	10.0000000000 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
