T5V01EXEMICMicrophone

SOLO – EXECUTIVE Wireless Microphone System Installation and Operation Manual i ii i © 2006 REVOLABS, INC. All rights reserved. No part of this document may be reproduced in any form or by any means without express written permission from Revolabs, Inc. Product specifications are subject to change without notice. Solo – Executive Installation and Operation Manual Part Number 295001 July 2006 (Rev 2.0) Table of Contents Safety and General Information................................................ 2 FCC User Information ..................................................................... 2 System Components................................................................ 4 Solo Executive Charger Base...................................................5 Power Module ................................................................................. 5 System Mute Switch........................................................................ 5 Solo Personal Microphone Modules......................................... 5 Charging the Batteries .................................................................... 6 Using the Microphone ..................................................................... 6 Solo Executive Base Station.................................................... 7 Installation....................................................................................... 8 Connections .................................................................................... 8 Set-up ............................................................................................. 8 Pairing Wireless Microphones to Base Station ............................... 8 Pairing Charger Base to Base Station............................................. 9 Using Multiple Systems................................................................. 10 System Mute Function Switch ....................................................... 10 DB25 Control Port ......................................................................... 10 System Functions ......................................................................... 11 System Specifications............................................................ 12 Indicator LEDs .............................................................................. 13 Warranty................................................................................ 14 2 22 2 Safety and General Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR DEVICE. FCC User Information FCC Registration Number: 0014898290 FCC ID Number: T5V01EXESYS Solo Executive Base Station FCC ID Number: T5V01EXEMIC Solo Executive Microphone FCC Notice to Users Users are not permitted to make changes or modify the equipment in any way. Changes or modifications not expressly approved by Revolabs, Inc. could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Federal Communications Commission (FCC) Radiation Exposure Statement – This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. Professional Installation This product must be professionally installed. Industry Canada Notice to Users Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device Ref IC: RSS 210 Sec. 5.11. The term “IC:” before the certification/registration number only signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment. See Ref IC Self-Marking 6(f) and RSP-100 Sec. 4. IC ID Number: 6455A-01EXESYS Solo Executive Base Station IC ID Number: 6455A-01EXEMIC Solo Executive Microphone Restricted use with certain medical devices Hearing Aids Some devices may interfere with some hearing aids. In the event of such interference, you may want to consult with your hearing aid manufacturer to discuss alternatives. Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. 3 33 3 Export Law Assurances This product is controlled under the export regulations of the United States of America and Canada. The Governments of the United States of America and Canada may restrict the exportation or re-exportation of this product to certain destinations. For further information contact the U.S. Department of Commerce or the Canadian Department of Foreign Affairs and International Trade. The use of wireless devices and their accessories may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these products. North America UPCS Usage Restriction Due to the UPCS frequencies used, this product is licensed for operation only in the United States of America and Canada. 4 44 4 Introduction Congratulations on the purchase of a Revolabs digital wireless communication system! We are pleased that you have chosen the Solo Executive Wireless Microphone System with 1.9 GHz DECT technology. The Solo Executive provides high band-width audio from multiple wireless microphones enabling reliable, un-tethered communications in audio and video conferences. The Solo Executive Wireless Microphone System is a unique marriage of innovative technology and ergonomic stylish design. This product enhances audio communication in many enterprise and professional applications. The system uses Time Di…

Text truncated - open the document above for the full version.

Charger Microphone Base

TÜV America Inc. Phone: (651) 638-0297 19333 Wild Mountain Road Fax: (651) 638-0298 Taylor Falls, MN 55084 E-mail: [email protected] www.TUVamerica.com Management Service • Product Service • Industry Service • Automotive • BABT TÜV America Inc. is a subsidiary of TÜV SÜD Group. TÜV AMERICA INC 19333 WILD MOUNTAIN ROAD TAYLORS FALLS, MINNESOTA 55084-1786 ENGINEERING STATEMENT For Certification of Revolabs Solo Executive Microphone Model No: 01-EXEMIC-BLK-11 FCC ID: TV501EXMIC FRN: 0014898290 IC: 6455A-01EXEMIC I am an Electromagnetic Compatibility Engineer with TÜV AMERICA INC, in Taylors Falls, Minnesota. My education and experience are a matter of record with the Federal Communications Commission. Martin Bodley, President/CEO of Revolabs, has authorized TÜV AMERICA INC to make Certification measurements of the above-mentioned equipment. I attest that all testing done under my supervision was done in accordance with, and that the EUT fulfills the requirements of, the Federal Communications Commission's CFR 47 Part 15, Subpart D, and Industry Canada's RSS213 Issue 2. Joel T. Schneider Senior Engineer Minnesota Wild River Lab TÜV America Product Service Tel: 651 604 4582 Fax: 651 638 0298 [email protected] Dated: 22 June 2006

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 11, 2006 RE: FCC ID: T5V01EXEMIC_ATCB003647 Attention: Joel T Schneider I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the FCC requires that when EIRP is reported that the EIRP between the SAR report and the EMC report must be within 3dB. Please note that the EMC report stipulates ERP and the SAR stipulates EIRP. The EMC report also does not give a good reference as to how ERP was determined. Please make documentation consistent. Please correct the EMC report to show EIRP so that both the SAR and EMC report has the same reference and please provide the formulas used to do so along with gain of the antenna used to determine the power level. This can be in a separate document as long as it is explained and the differences are addressed. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 June 26, 2006 RE: FCC ID: T5V01EXEMIC_ATCB003647 Attention: Joel T Schneider I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that this device appears to be able to be used anywhere and would therefore appear to be noncoordinatable. Please provide evidence as to how this device meets 15.307(a) through (h). 2. Please explain how this device meets the definition of an Unlicensed PCS device per 15.301, 15.303 and 15.307 of 47CFR. 3. Please provide the required UTAM letter per (15.307b). 4. Please note that 2.1093 states, “Portable devices that operate in the Cellular Radiotelephone Service, the Personal Communications Service (PCS), the Satellite Communications Services, the General Wireless Communications Service, the Wireless Communications Service, the Maritime Services, the Specialized Mobile Radio Service, the 4.9 GHz Band Service, the Wireless Medical Telemetry Service (WMTS) and the Medical Implant Communications Service (MICS), authorized under subpart H of part 22 of this chapter, parts 24, 25, 26, 27, 80 and 90 of this chapter, subparts H and I of part 95 of this chapter, and unlicensed personal communication service, unlicensed NII devices and millimeter wave devices authorized under subparts D and E, §§15.253, 15.255 and 15.257 of this chapter are subject to routine environmental evaluation for RF exposure prior to equipment authorization or use. This means that regardless of the power level, SAR must be measured for portable Unlicensed PCS devices. Please provide the necessary SAR report. 5. Please provide the manual for this device. Please include the highest measured SAR values and all appropriate part 15 statements. 6. Please explain how the device meets the requirements of 15.323(c). 7. Please provide the required test report. Please ensure that all aspects of 15 subpart D are fully addressed. 8. Please note that a more complete review cannot be performed until all missing information is provided. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

TÜV America Inc. Phone: (651) 631-2487 1775 Old Highway 8 NW Fax: (651) 638-0285 Suite 104 E-mail: [email protected] New Brighton, MN 55112 www.TUVamerica.com Management Service • Product Service • Industry Service • Automotive • BABT TÜV America Inc. is a subsidiary of TÜV SÜD Group. 27 June 2006 American TCB 6731 Whittier Avenue McLean VA 22101 RE: Revolabs Response to 26 June 2006 Comments FCC ID: FCC ID T5V01EXEMIC / IC:6455A-01EVEMIC Your comments 1. – 4 & 6 & 8 will need to be addressed by Joel and he is out of the office today. Please look for response from him on these comments tomorrow. 5. ATCB Comments: Please provide the manual for this device. Please include the highest SAR values and all appropriate Part 15 statements. RESPONSE: I’m sorry, when I uploaded the exhibits I somehow missed several. The manual has now been uploaded. 7. ATCB Comments: Please provide the required test report. Please ensure that all aspects of 15 subpart D are fully addressed. RESPONSE: Again I apologize, I have now uploaded the test reports and the test set-up photos for this product. Please let us know if anything further is required and please copy me in addition to Joel and Jolene on all comments and responses regarding this submittal. Susan L Rupp, Technical Writer TÜV America Inc Tel: 651 638 4585 / Fax: 651 638 0298 [email protected]

TÜV America Inc. Phone: (651) 631-2487 1775 Old Highway 8 NW Fax: (651) 638-0285 Suite 104 E-mail: [email protected] New Brighton, MN 55112 www.TUVamerica.com Management Service • Product Service • Industry Service • Automotive • BABT TÜV America Inc. is a subsidiary of TÜV SÜD Group. 28 June 2006 American TCB 6731 Whittier Avenue McLean VA 22101 RE: Revolabs Joel Schneider Response to 26 June 2006 Comments FCC ID: FCC ID T5V01EXEMIC / IC:6455A-01EVEMIC 1. ATCB Comments: Please note that this device appears to be able to be used anywhere and would therefore appear to be noncoordinatable. Please provide evidence as to how this device meets 15.307 (a) through (h). RESPONSE: Public Notice DA 05-1005 April 4, 2005 - need for coordination no longer exists, eliminates 15.307. 2. ATCB Comments: Please explain how this device meets the definition of an Unlicensed PCS device per 15.301, 15.303 and 15.307 of 47CFR. RESPONSE: 15.303(g) - Personal Communications Service (PCS) Devices [Unlicensed] - Intentional radiators operating in the frequency band 1920-1930 MHz that provide a wide array of mobile and ancillary fixed communication services to the individuals and businesses. 3. ATCB Comments: Please provide the required UTAM letter per (15.307b). RESPONSE: Revolab’s UTAM letter have been uploaded.. 4. ATCB Comments: Please note that 2.1093 states, “Portable devises that operate in the Cellular Radiotelephone Service, the Personal Communications Service.... RESPONSE: 2.1093(c) also states that application must contain a statement confirming compliance with the limits specified in paragraph (d) of this section, technical information showing the basis for this statement must be submitted. PBWDJG08053T, for example, is similar device already granted, did not require SAR testing. I agree, the device is not exempt from rf evaluation, but do not believe SAR testing is required – a revised RF Exposure letter has been uploaded. 5. ATCB Comments: Please provide the manual for this device. RESPONSE: This comment was address previously and the manual has been uploaded. 6 ATCB Comments: Please explain how the devise meets the requirements of 15.323 (c) RESPONSE: The 15.323 (c) test report has been uploaded. 7 ATCB Comments: Please provide the required test report. Please ensure that all aspects of 15 subpart D are fully addressed. RESPONSE: This comment was address previously and the test report has been uploaded. 7 ATCB Comments: Please note that a more complete review cannot be performed until all missing information is provided. TÜV America Inc. Phone: (651) 631-2487 1775 Old Highway 8 NW Fax: (651) 638-0285 Suite 104 E-mail: [email protected] New Brighton, MN 55112 www.TUVamerica.com Management Service • Product Service • Industry Service • Automotive • BABT TÜV America Inc. is a subsidiary of TÜV SÜD Group. RESPONSE: Please let us know if anything else is needed to continue with your review. The above referenced documents have been uploaded to the website at the same time as this response. Susan L Rupp, Technical Writer TÜV America Inc Tel: 651 638 4585 / Fax: 651 638 0298 [email protected]

From: Schneider, Joel [mailto:[email protected]] Sent: 07/12/2006 10:51 AM To: Dward ATCB; Murphy, Jolene Cc: Rupp, Susan Subject: RE: T5V01EXEMIC_ATCB003647 The formula used to calculate the ERP was E(dBuV/m) = 106.92 + ERP (dBk) - 20 log D (km). 109 dBuV/m = 106.92 + ERP (dBk) - 20 log .003 m ERP = 14.5 mW, or 11.6 dBm EIRP = 11.6 + 2.15, or 13.75 dBm, this would be within 1 dB of SAR report Substitution method, done as documented in Appendix C of test report, verified ERP/EIRP calculation, but only ERP reported as that is what is requested by Part 15 Subpart D. -----Original Message----- From: Dward ATCB [mailto:[email protected]] Sent: Tuesday, July 11, 2006 3:31 PM To: Murphy, Jolene Cc: Schneider, Joel; Rupp, Susan Subject: RE: T5V01EXEMIC_ATCB003647 Please see comment Thanks Dennis Ward Evaluation Engineer American TCB Certification Resource for the Wireless Industry www.atcb.com 703‐847‐4700 fax 703‐847‐6888 direct ‐ 703‐880‐4841 cell ‐ 209‐769‐8316 NOTICE: This E‐Mail message and any attachment may contain privileged or company proprietary information. If you received this message in error, please return to the sender.

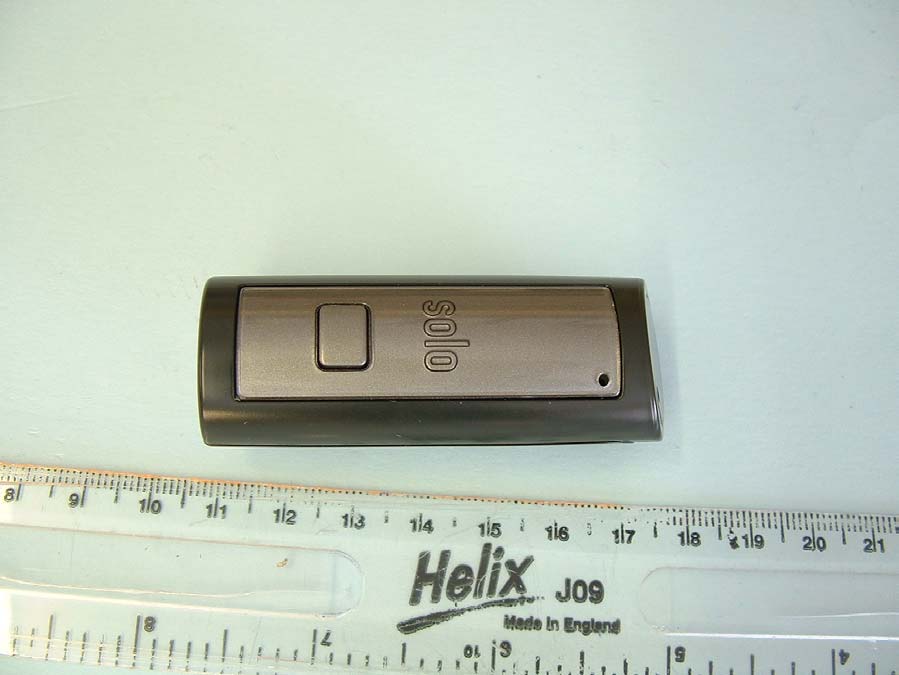

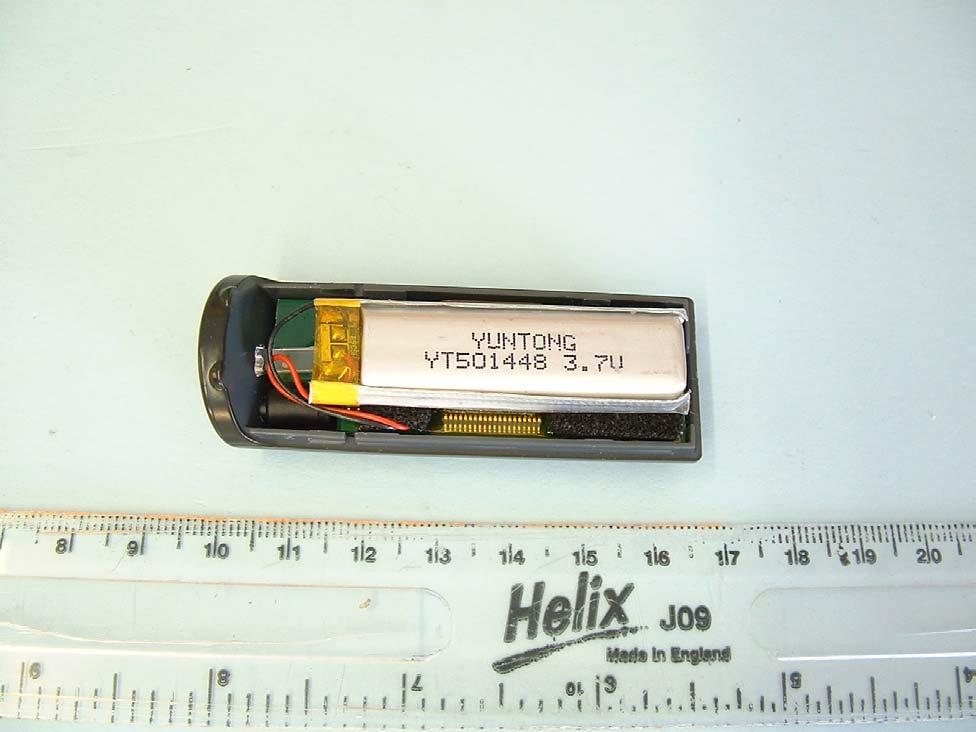

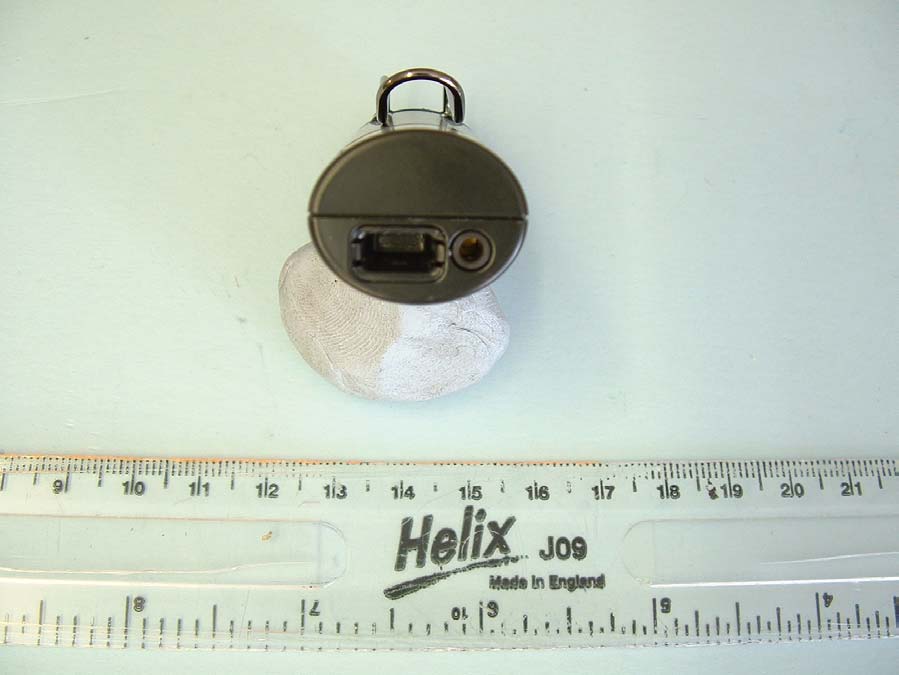

Solo Executive Microphone Mute Switch Mic Port and Status LED Charger Port and 2.5mm Audio Jack Solo Executive Microphone Solo Executive Microphone Transmitter Overview Bottom Solo Executive Microphone Solo Executive Microphone Transmitter Overview Back Removed Top

Solo Executive Microphone Label and Label Location

Solo Executive Charger Base Board Layout Top Bottom Solo Executive Microphone Board Layout Top Bottom Solo Executive Microphone Solo Executive Microphone Main PCB Control Side Can Lids Removed Main PCB Control Side Solo Executive Microphone Solo Executive Microphone Solo Executive Microphone Main PCB RF Side Main PCB RF Side Can Lids Removed

REPORT ON Specific Absorption Rate Testing of the Revolabs, Inc. C7490 Solo Microphone FCC ID: T5V01EXEMIC Report No WS200425/01 Issue 1 July 2006 Competence. Certainty. Quality. TUV Product Service Ltd, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuvps.co.uk ; www.babt.com Report Number WS200425/01 Issue 1 Page 1 of 30 REPORT ON: Specific Absorption Rate Testing of the Revolabs, Inc. C7490 Solo Microphone FCC ID: T5V01EXEMIC Report No: WS200425/01 Issue 2 PREPARED FOR: Revolabs, Inc. 63 Great Rd. Maynard, MA 01754 USA ATTESTATION: The wireless portable device described within this report has been shown to be capable of compliance for localised specific absorption rate (SAR) for OET Bulletin 65 (Edition 97-01) of 1.6 W/kg. The measurements shown in this report were made in accordance with the procedures specified in OET Bulletin 65 (Edition 97-01) for SAR assessment. All reported testing was carried out on a sample of equipment to demonstrate compliance with the above standards. The sample tested was found to comply with the requirements in the applied rules. A. Miller SAR Test Engineer APPROVED BY: M J. Hardy Authorised Signatory DATED: 10 th July 2006 Note: The test results reported herein relate only to the item tested as identified above and on the Status Page. FCC ID: T5V01EXEMIC Report Number WS200425/01 Issue 1 Page 2 of 30 CONTENTS Section Page No 1 REPORT SUMMARY 1.1 Status .............................................................................................................................. 4 1.2 Summary .......................................................................................................................... 5 1.3 Test Results Summary ..................................................................................................... 6 1.4 EIRP Results .................................................................................................................... 7 2 TEST DETAILS 2.1 SAR Measurement System .............................................................................................. 9 2.1.1 Robot System Specification 2.1.2 Probe and Amplifier Specification 2.1.3 SAR Measurement Procedure 2.2 SAR Distributions (Area Scans – 2D)............................................................................. 14 3 TEST EQUIPMENT USED 3.1 Table of Test Equipment Used ...................................................................................... 20 3.2 Test Software ................................................................................................................. 20 3.3 Dielectric Properties of Simulant Liquids........................................................................ 21 3.4 Test Conditions............................................................................................................... 22 3.5 Measurement Uncertainty .............................................................................................. 23 4 PHOTOGRAPHS 4.1 Test Positional Photographs .......................................................................................... 25 4.2 Photographs of Test Samples... ..................................................................................... 27 5 ACCREDITATION, DISCLAIMERS AND COPYRIGHT 5.1 Accreditation, Disclaimers and Copyright....................................................................... 30 ANNEX A Probe Calibration Information........................................................................................ A.2 FCC ID: T5V01EXEMIC Report Number WS200425/01 Issue 1 Page 3 of 30 SECTION 1 REPORT SUMMARY Specific Absorption Rate Testing of the Revolabs, Inc. C7490 Solo Microphone Max 1g SAR (W/kg) 0.057 The maximum 1g volume averaged SAR level measured for all the tests performed did not exceed the limits for General Population/Uncontrolled Exposure (W/kg) Partial Body of 1.6 W/kg. Level defined in Supplement C (Edition 01-01) to OET Bulletin 65 (97-01). FCC ID: T5V01EXEMIC Report Number WS200425/01 Issue 1 Page 4 of 30 1.1 STATUS MANUFACTURING DESCRIPTION Digital Wireless Communication System STATUS OF TEST Specific Absorption Rate Testing APPLICANT Revolabs, Inc. MANUFACTURER Revolabs, Inc. TYPE OR MODEL NUMBER Revolabs, Inc. C7490 HARDWARE VERSION C7490_r3, Built 17:40 09-Jun-2006 SOFTWARE VERSION SC14428 ROM D revision F mode 0 SERIAL NUMBER 501050000170 TEST SPECIFICATIONS: 1. FCC Publication Supplement C (Edition 01-01) to OET Bulletin 65 (Edition 97-01): Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields – Additional Information for evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions REFERENCES: 2. IEEE 1528 – 2003: Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques BABT REGISTRATION NUMBER: WS200425 RECEIPT OF TEST SAMPLES: 5 th July 2006 START OF TEST: 7 th July 2006 FINISH OF TEST: 7 th July 2006 FCC ID: T5V01EXEMIC Report Number WS200425/01 Issue 1 Page 5 of 30 1.2 SUMMARY The Revolabs, Inc. digital wireless communication system supplied for Specific Absorption Rate (SAR) testing is a Revolabs, Inc. C7490 Solo Microphone, part of the Solo Executive Wireless Microphone System with 1.9 GHz DECT Technology. The system uses Time Division Multiple Access (TDMA) spread spectrum technology allowing digital encryption technology to ensure secure communications. The testing was performed with the C7490 Solo Microphone fully charged before each measurement and there were no external connections. The wireless personal microphone modules are synchronised to the rack mounted Base Station and can be worn on the user’s pocket, lapel or on a lanyard. For body SAR assessment, testing was performed at maximum power. SAR assessment was…

Text truncated - open the document above for the full version.

TRL COMPLIANCE LTD M OSS VIEW NIPE LANE UP HOLLAND WEST LANCASHIRE WN8 9PY UNITED KINGDOM T ELEPHONE +44 (0)1695 556666 FAX +44 (0)1695 557077 E-MAIL [email protected] www.trlcompliance.com TEST REPORT NO: RU1250/7053 COPY NO: 2 ISSUE NO: 1 FCC ID: T5V01EXEMIC REPORT ON THE CERTIFICATION TESTING OF A REVOLABS INC. SOLO MICROPHONE UNIT WITH RESPECT TO THE FCC RULES CFR 47, PART 15.323(c) & 15.323(e) February 2006 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 12 th – 19 th June 2006 TESTED BY: D WINSTANLEY APPROVED BY: P GREEN EMC PRODUCT MANAGER DATE: 19 th June 2006 Distribution: Copy Nos: 1. REVOLABS INC. 2. FCC EVALUATION LABORATORIES 3. TRL COMPLIANCE Ltd THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1250/7053 Page 2 of 30 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 TESTS REQUIRED 5 EQUIPMENT TEST CONDITIONS 6 SYSTEM DESCRIPTION 6 TEST RESULTS 7-13 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test Setup PHOTOGRAPH No. 2: Transmitter Overview PHOTOGRAPH No. 3: Transmitter Overview Back Removed PHOTOGRAPH No. 4: Main PCB RF Side PHOTOGRAPH No. 5: Main PCB RF Side Can Lids Removed PHOTOGRAPH No. 6: Main PCB Control Side TRANSMISSION ON COMMUNICATIONS CHANNEL, NO ACKNOWLEDGEMENTS RECEIVED B COMMUNICATIONS CHANNEL TERMINATION, ACKNOWLEDGEMENTS BLOCKED C FRAME PERIOD D TEST EQUIPMENT CALIBRATION E MEASUREMENT UNCERTAINTY F Notes: 1. Component failure during test YES [ ] NO [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RU1250/7053 Page 3 of 30 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: T5V01EXEMIC PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 15.323(c) & 15.323(e) February 2006 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: Solo Microphone Unit EQUIPMENT SERIAL No: 279 EQUIPMENT TYPE: UPCS Transceiver PRODUCT USE: Personal communications CARRIER POWER: 14.5mW (see TUV Test report DI602355 for measurement) ANTENNA TYPE: Integral ALTERNATIVE ANTENNA: Not Applicable BAND OF OPERATION: 1920 MHz – 1930 MHz CHANNEL SPACING: Not Applicable NUMBER OF CHANNELS: 5 frequencies, 6 double time slots per frequency giving 30 channels FREQUENCY GENERATION: SAW Resonator [ ] Crystal [ ] Synthesiser [X] MODULATION METHOD: Amplitude [ ] Digital [X] Angle [ ] POWER SOURCE(s): +110Vac TEST DATE(s): 12 th – 19 th June 2006 ORDER No(s): Pro Forma Invoice APPLICANT: REVOLABS INC. ADDRESS: 63 Great Rd Maynard MA 01754 United States TESTED BY: D WINSTANLEY APPROVED BY: P GREEN EMC PRODUCT MANAGER RU1250/7053 Page 4 of 30 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): Solo Microphone Unit EQUIPMENT TYPE: UPCS Transceiver SERIAL NUMBER OF EUT: 279 PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 15.323(c) & 15.323(e) February 2006 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): Pro Forma Invoice APPLICANT’S CONTACT PERSON(s): Mr M Bodley E-mail address: [email protected] APPLICANT: REVOLABS INC. ADDRESS: 63 Great Rd Maynard MA 01754 United States TEL: +1 (0) 978 897 5655 FAX: +1 (0) 978 897 5616 TEST LABORATORY: TRL Compliance Ltd UKAS ACCREDITATION No: 0728 TEST DATE(s): 12 th – 19 th June 2006 TEST REPORT No: RU1250/7053 RU1250/7053 Page 5 of 30 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY Monitoring Thresholds 15.323 (c)(2) 15.323 (c)(9) Yes Monitoring of Intended Transmit Window and Maximum Reaction Time 15.323 (c)(1) Yes Monitoring Bandwidth 15.323 (c)(7) Yes Access Criteria Test Interval 15.323 (c)(6) No note 1 Duration of Transmission 15.323 (c)(3) Yes Connection Acknowledgement 15.323 (c)(4) Yes Lower threshold Selected Channel, Power Accuracy, Segment Occupancy 15.323 (c)(5) Yes Monitoring Antenna 15.323 (c)(8) Yes Duplex Connections 15.323 (c)(10) Yes Alternative Monitoring Interval for Co-located Devices 15.323 (c)(11) No note 2 Fair Access to Spectrum Related to (c)(10) & (c)(11) 15.323 (c)(12) Yes Frame Period 15.323 (e) Yes Note: 1. The solo microphone unit does not transmit control and signalling information. 2. The manufacturer declares that the provisions ofCFR47 part15.323(c)(11) are not used. This test report only covers CFR47 part 15.323(c) and CFR47 part 15.323(e). Please refer to TUV test report DI602355 for all other measurement information. RU1250/7053 Page 6 of 30 2. Product Use: Personal Communications 3. Duty Cycle: 8.33% 4. Transmitter bit or pulse rate and level: 2Mbps 5. Temperatures: Ambient (Tnom) 22 o C 6. Supply Voltages: Vnom +110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 7. Equipment Category: Multi-channel [X] Narrowband [ ] Wideband [X] 8. Channel spacing: 9. System Description: The system is made up of two parts, a fixed part and a portable part. The portable part is a tie mounted microphone about the body. The portable part is powered by an internal rechargeable 3.7Vdc battery. The system is supplied with a charging station for the microphones. The microphones have a jack socket to enable connection of an ear piece. The fixed part constitutes two pairs Radio Fixed Parts (RFPs) and each pair of RFPs having a pair of diversity antennae. The base unit is rack mounted and is powered from 110Vac. The base unit has audio inputs and outputs on the rear and The system operates in the 1920MHz -1930MHz band. The system use 5 different frequency channels 1.728MHz apart u…
