T6H-NWF610Momentarily Operated Transmitter

Meiji Electric Industries Inc. 1/12 ＣＯＮＮＥＣＴＯＲ ＣＨＥＣＫ ＧＡＵＧＥ 【ＮＷＦ－６１０】 Ｕｓｅｒｓ Ｍａｎｕａｌ Ｖ１．０３ MEIJI ELECTRIC INDUSTRIES CO.,LTD. 13-8,Kamejima 2-Chome, Nakamuraku,Nagoyashi 453-8580 Japan Phone :+081-42-743-0511 Fax: +81-42-743-4653 Meiji Electric Industries Inc. 2/12 Ｃｏｎｔｅｎｔｓ 1. Information about the FCC Standards.................................................................................................... 3 2. Precautions for Use................................................................................................................................... 3 3. Overview.................................................................................................................................................... 4 4. Specifications of Radio Transmitter......................................................................................................... 5 5. Outside and Dimensional Drawings of Radio Transmitter..................................................................... 6 6. How to Use Radio Transmitter................................................................................................................. 8 6-1. Checking the Battery ......................................................................................................................... 8 6-2. Operation Timing ............................................................................................................................... 8 6-3. Replacing the Battery ........................................................................................................................ 9 7. How to Set Transmitter in Fitting Frame............................................................................................. 10 8. Registering ID..........................................................................................................................................11 8-1. How to register the ID.......................................................................................................................11 8-2. How to delete the ID..........................................................................................................................11 9. Troubleshooting....................................................................................................................................... 12 10. Contact................................................................................................................................................... 12 Meiji Electric Industries Inc. 3/12 1. Information about the FCC Standards FCC WARNING ！ Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Standards. Operation is subjected to the following two requirements: (1) This device may not cause any harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Precautions for Use ・ Do not use this device for any purpose other than inspection for connector fitting. ・ Do not disassemble or remodel this device, since it is a precision instrument. ・ Do not operate the device or replace its battery with wet hands. ・ Do not make an excessive impact on the radio transmitter, since it is a precision apparatus and housed in a plastic enclosure. ・ To replace the battery, slide the battery in the arrowed direction and then pull it out. ・ In assembling work, including battery replacement, be careful not to pinch the cables. Meiji Electric Industries Inc. 4/12 3. Overview This manual includes the requirements of using the “Connector Fitting Inspection Jig NWF-610 Series” (hereinafter referred to as “NWF-610”). Read this manual carefully before using the device to ensure proper use. The NWF-610 is a “connector fitting inspection jig” composed of a fitting frame equipped with touch sensor and a radio transmitter. This device can wirelessly send the fitting completion signal to Herz Electronics’ receiver TWF-610R. For radio transmission, a high-efficiency weak radio wave transmitter of 426.1MHz range is used. ３－１． Features ● The transmitter is compact with power supplied from a coin-type battery. ● No radio license or qualification is required for operation. ● The radio wave used is of less-noise 426MHz band ● The built-in antenna makes it easy to handle (operate). ● The ABS resin case used ensures high resistance to dust and oil mist. Meiji Electric Industries Inc. 5/12 4. Specifications of Radio Transmitter Item Specifications Remarks 【 Radio frequency unit 】 1 Frequency 426.1MHz Compliant with Part 15-231 (b) of the FCC Standards 2 Radio wave intensity Field intensity at 3m distance: 5700 μV/m or less 3 Transmission method Unidirectional transmission method 4 Modulation method Binary FSK modulation method 5 Radio wave type F1D 6 Modulation speed 1000bps 7 Max. frequency shift ±2kHz 8 Oscillation method Crystal oscillation multiplying method (fixed channel) 9 Source transmission frequency 71.0166MHz 10 Antenna Built-in type 【 Data communication unit 】 11 Encoding system MFM encoding 12 Transfer speed 1000bps 13 No. of frames sent 2 14 Comm. distance Approx. 30m radial ※1 15 Frame composition 2 frames sent, each frame having a fixed length equivalent to 66 bits. 16 ID 65526 (16 bits) exclusive, unique ID Assigned before shipment. 17 Error detection system CRRC-CCITT (CCITT V.41) 【Main unit specifications】 18 Indicator Power voltage reduction alert LED 19 Power source Coin-type lithium battery CR2032 (3V 220mAh) 20 Battery life Approx. 150,000 times or more As measured at one second interval 21 Power consumption 12mA or less Ta25°C 22 Operating voltage 2.1 to 3.2VDC System start voltage: 2.25VDC or more Voltage reduction detecting voltage: 2.3VDC System stop voltage: 2.1VDC 23 Transmission interval 0.5 sec or more 24 Operating ambient temperature 0 to 50°C 25 Operating ambie…

Text truncated - open the document above for the full version.

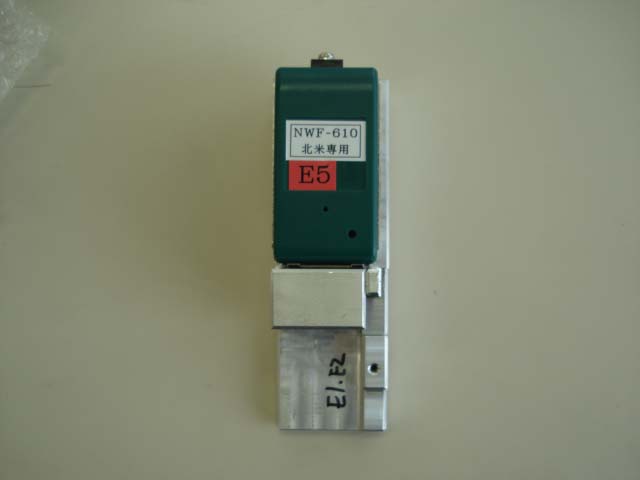

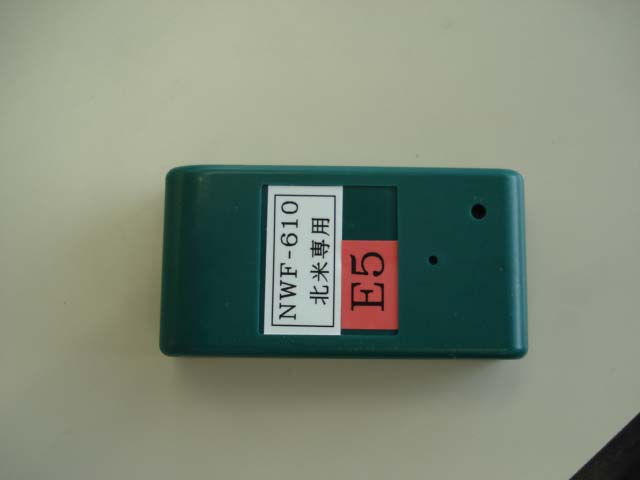

MEIJI ELECTRIC INDUSTRIES CO., LTD. Inspection gauge of a connector Model No.:NWF-610 FCC ID: T6H-NWF610 External Photo Front Back MEIJI ELECTRIC INDUSTRIES CO., LTD. Inspection gauge of a connector Model No.:NWF-610 FCC ID: T6H-NWF610 Top Bottom MEIJI ELECTRIC INDUSTRIES CO., LTD. Inspection gauge of a connector Model No.:NWF-610 FCC ID: T6H-NWF610 Left Right MEIJI ELECTRIC INDUSTRIES CO., LTD. Inspection gauge of a connector Model No.:NWF-610 FCC ID: T6H-NWF610 With gauge E1-2

MEIJI ELECTRIC INDUSTRIES CO., LTD. Inspection gauge of a connector Model No.:NWF-610 FCC ID: T6H-NWF610 Internal Photo Component side Solder side MEIJI ELECTRIC INDUSTRIES CO., LTD. Inspection gauge of a connector Model No.:NWF-610 FCC ID: T6H-NWF610 Component side with Antenna specified

FCC ID : T6H-NWF610 Test report No. : 26IE0025-YK Page : 1 of 20 Issued date : June 1, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (24.05.06) EMI TEST REPORT Test Report No. : 26IE0025-YK Applicant : MEIJI ELECTRIC INDUSTRIES CO., LTD. Type of Equipment : Connector Check Gauge Model No. : NWF-610 FCC ID : T6H-NWF610 Test Standard : FCC Part15 Subpart C Section 15.209, Section 15.231: 2006 Test Result : Complied 1. This test report shall not be reproduced except in full, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with the above regulation. 4. The test results in this test report are traceable to the national or international standards. Date of test: April 20 and 28, 2006 Tested by: Toyokazu Imamura Approved by: Osamu Watatani Site Manager of Yamakita EMC Lab. FCC ID : T6H-NWF610 Test report No. : 26IE0025-YK Page : 2 of 20 Issued date : June 1, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (24.05.06) Table of Contents Page 1 Applicant Information 3 2 Product Description 4 3 Test Specification, Procedures and Results 5 4 System Test Configuration 7 5 Automatically deactivate 8 6 Radiated Emissions 9 7 20dB Bandwidth 10 Contents of Appendixes 11 APPENDIX 1: Photographs of test setup 12 APPENDIX 2: Test Data 14 APPENDIX 3: Test instruments 20 FCC ID : T6H-NWF610 Test report No. : 26IE0025-YK Page : 3 of 20 Issued date : June 1, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (24.05.06) 1 Applicant Information Company Name : MEIJI ELECTRIC INDUSTRIES CO., LTD. Address : 13-8 Kamejima 2-chome, Nakamura-ku, Nagoya-shi, Aichi-ken, 453-8580 JAPAN Telephone Number : +81-52-451-7661 Facsimile Number : +81-52-451-7659 Contact Person : Kaoru Okada FCC ID : T6H-NWF610 Test report No. : 26IE0025-YK Page : 4 of 20 Issued date : June 1, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (24.05.06) 2 Product Description Type of Equipment : Connector Check Gauge Model No. : NWF-610 Serial No. : Sample 1 Rating : DC 3.0V Country of Manufacture : Japan Receipt Date of Sample : April 19, 2006 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Model: NWF-610 (referred to as the EUT in this report) is a Connector Check Gauge which is composed of a fitting frame equipped with touch sensor and a radio transmitter. Equipment type : Transmitter Operation temperature range : 0 ~ 50 deg. C. Other clock frequency : 71.0166MHz, 213.05MHz Emission designation : 40K5F1D Frequency of operation : 426.1MHz (Single) Modulation : FSK Antenna type : Built-in FCC Part15.31 (e) The EUT provides stable voltage, DC2.2V constantly to RF module regardless of input voltage, and the test was performed with the new battery. Therefore, the EUT complies with the power supply regulation. FCC Part15.203 Antenna requirement It is impossible for users to replace the antenna because the antenna is mounted inside the EUT. Therefore, the EUT complies with the antenna requirement. FCC ID : T6H-NWF610 Test report No. : 26IE0025-YK Page : 5 of 20 Issued date : June 1, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (24.05.06) 3 Test Specification, Procedures and Results 3.1 Test specification Test specification : FCC Part15 Subpart C: 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.209 Radiated emission limits, general requirements Section 15.231 Periodic operation in the band 40.66 - 40.70 MHz and above 70 MHz 3.2 Procedures & Results Item Test Procedure Specification Remarks DeviationWorst Margin Results Conducted Emission ANSI C63.4: 2003 7. AC powerline conducted emission measurements Section 15.207(a) AC Mains N/A *1 - N/A Automatically Deactivate ANSI C63.4: 2003 Section 15.231(a)(1) Radiated N/A - Complied Electric Field Strength of Fundamental Emission ANSI C63.4: 2003 13. Measurement of intentional radiators Section 15.231(b) Radiated N/A 7.1dB (QP, Horizontal) Complied Electric Field Strength of Spurious Emission ANSI C63.4: 2003 13. Measurement of intentional radiators Section 15.209 Radiated N/A 4.8dB (852.20MHz, QP, Horizontal) Complied -20dB Bandwidth ANSI C63.4: 2003 Annex H.6 Occupied bandwidth measurements Section 15.231(c) Radiated N/A - Complied *1) The test is not applicable since the EUT has no AC mains. Note: UL Apex’s EMI Work Procedures No.QPM05. 3.3 Addition to standard No addition, deviation or exclusion has been made from the standard. 3.4 Uncertainty Radiated emission The measurement uncertainty (with 95% confidence level) for this test using Biconical antenna is ±4.5dB. The measurement uncertainty (with 95% confidence level) for this test using Logperiodic antenna is ±4.3dB. The measurement uncertainty (with 95% confidence level) for this test using Horn antenna is ±5.2dB. The data listed in this test report has enough margin, more than site margin. FCC ID : T6H-NWF610 Test report No. : 26IE0025-YK Page : 6 of 20 Issued date : June 1, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (24.05.06) 3.5 Test Location UL Apex Co., Ltd. Yamakita EMC Lab. 907, Kawanishi, Yamakita-machi, Ashi…

Text truncated - open the document above for the full version.

FCC ID : T6H-NWF610 Test report No. : 26IE0025-YK Page : 12 of 20 Issued date : June 1, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (24.05.06) Radiated emission FCC ID : T6H-NWF610 Test report No. : 26IE0025-YK Page : 13 of 20 Issued date : June 1, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (24.05.06) Pre-check of worst position EUT: Y-axis EUT: X-axis EUT: Z-axis
