T6P93079SELF-BALLASTED LAMP

User’s Manual This light device has been tested and found to comply with the limits for Consumer RF Lighting Device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. 1 Use only on 120V/60Hz. 2 Never disassemble or modify-any changes could void the user’ authority to operate this device. 3 Risk of electric shock-do not use with where directly exposed to water. 4 This device is not intended for use with emergency exit fixtures or emergency exit lights. 5 This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30 MHz. 6 Not for use with dimmers, electronic timer or photocell devices or occupancy sensor.

Block Diagram FOR MODEL: BR40B23W, BR40BP23W INPUT: 120V/60Hz FUNDAMENTAL OPERATION FREQUENCY IS 0.45~30 MHz AC Rectifier & EMC filter Starting Circuit Half Bridge Inverter Tube Lighting

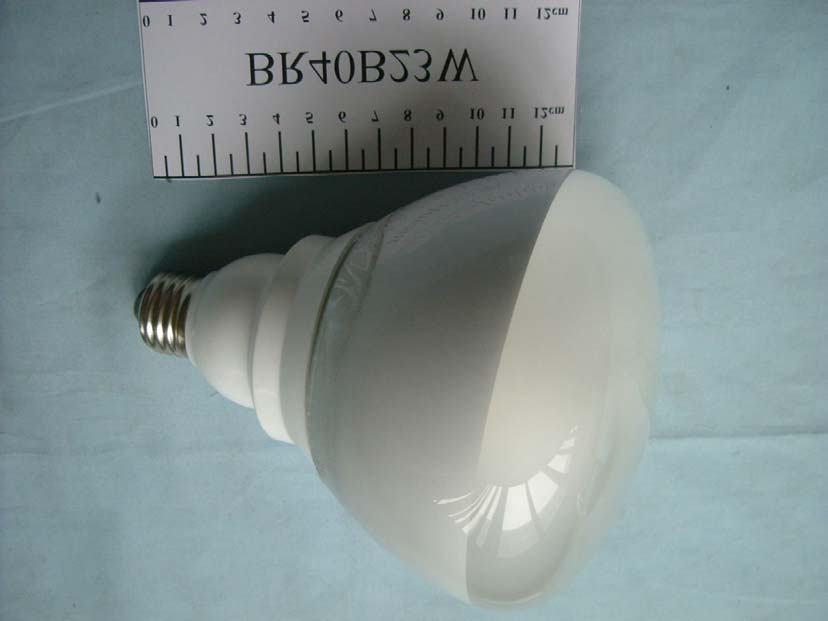

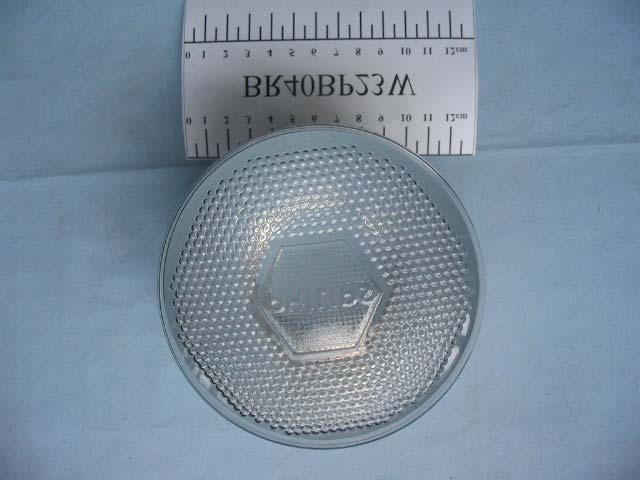

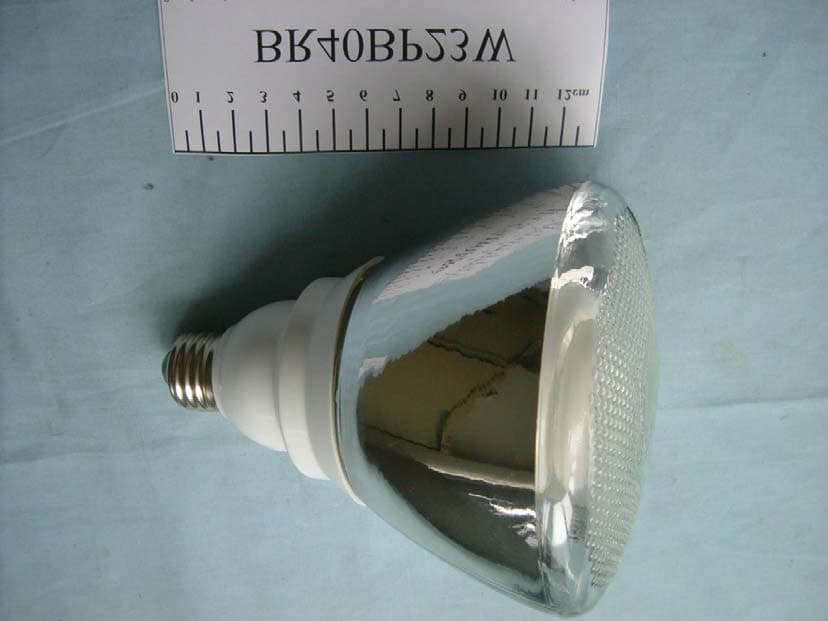

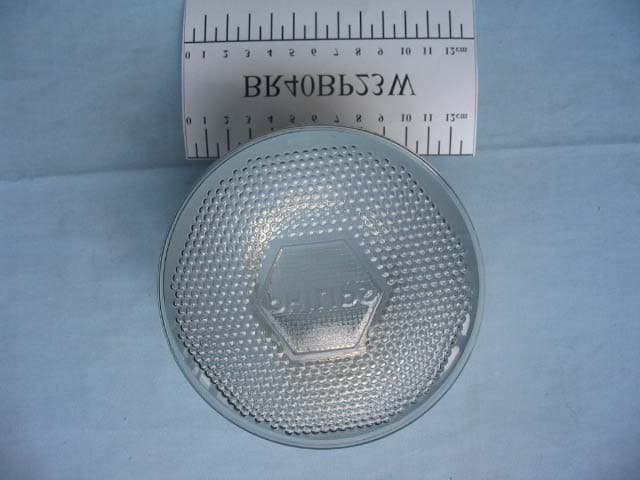

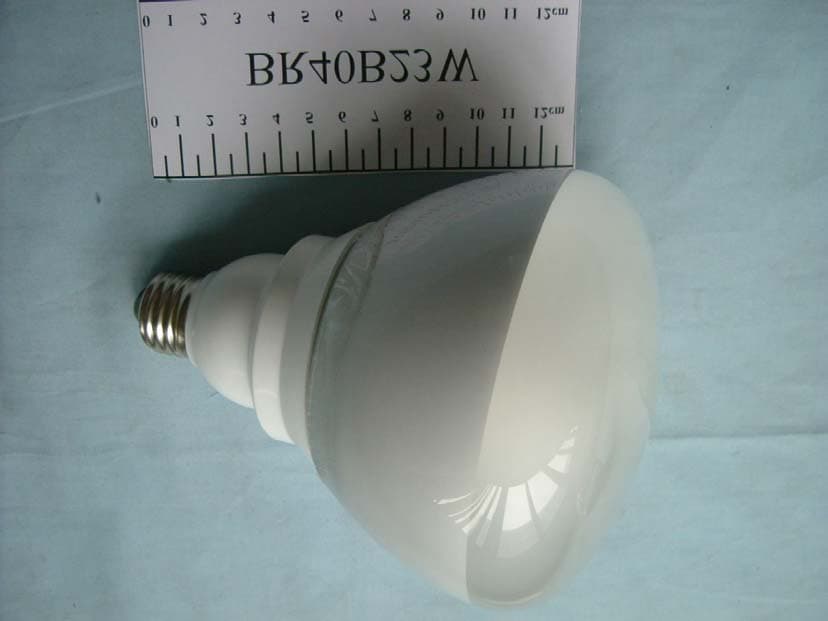

F IGURE 1 S ELF -B ALLASTED L AMP (M/N: BR40B23W) G ENERAL A PPEARANCE F IGURE 2 S ELF -B ALLASTED L AMP (M/N: BR40BP23W) G ENERAL A PPEARANCE F IGURE 3 S ELF -B ALLASTED L AMP (M/N: BR40BP23W) G ENERAL A PPEARANCE (B OTTOM V IEW )

Label Location Information Refer to the below red arrow: (For example)

Label Drawing CHUANSHI FCC ID: T6P93079

F IGURE 1 S ELF -B ALLASTED L AMP (M/N: BR40B23W) L AMP S HADE R EMOVED F IGURE 2 S ELF -B ALLASTED L AMP (M/N: BR40B23W) T UBE R EMOVED F IGURE 3 S ELF -B ALLASTED L AMP (M/N: BR40B23W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 4 S ELF -B ALLASTED L AMP (M/N: BR40B23W) M AIN B OARD (S OLDERED S IDE )

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 17-Apr-2006 Sheet of File: D:\inbox\111.Ddb Drawn By: D1 1N4007 D2 1N4007 D7 1N4007 D5FR105 D4 1N4007 D8DB3 C2 22uF/200V C1 22uF/200V C0 100n/250V C61n0/1600V C322n/100V R1390KR2 390K R51.5Ω R330ΩR430Ω Q1BUL128Q2BUL128 F1 0.47-1/2W 2T2T 5T L13.2mH R61.5Ω C4 1n0/1000V L0-6*8 100μH D3 1N4007 D6 FR105 1 2 0 V / 6 0 H z C5100n/400V BR40B23W 060412 C7 2n2/1600V Code Description Materia Rating Manufatures Q1 、 Q2 Transistor BUL128 1AV CEO 400V YOSUN SHANGHAI CORP. LTD. D1-D4 D7 1N4007 1A1000V SHANGHAI XING PU ELECTRONICS CO.,LTD D5-D6 FR105 1A600V SHANGHAI HAIWANG ELECTRONICS CO.,LTD D8 DB3 28-35V SHANGHAI HAIWANG ELECTRONICS CO.,LTD R1 、 R2 RD-25 390K SHANGHAI WUXIANDIAN FACTORY R3 、 R4 RS1/2FS 30 Ω R5 、 R6 RS1/2FS 1.5Ω RF10-0.5W 0.47Ω SHANGHAI SHUANGYI ELECTRONIC CO.,LTD. 102 φ 3.5 PLASTIC PRODUCTS CO.,LTD AC wire 1015-24 105 °C SHANGHAI YINGQIAN WIRE & CABLE CO.,LTD. C1 、 C2 Electronic Capacitor 10*20 105 °C 22uF/200V SAMWHA ELECTRIC CO., LTD. C3 22n/100V C4 1n0 /1200V C0 100n/250V SHANGHAI XIANGRIYA ELECTRONIC CO.,LTD. C5 100n/400V ZHEJIANG CHHANGXING QIXING ELECTRONIC CO.,LTD. C6 1n0/1600V SHANGHAI XIANGRIYA ELECTRONIC CO.,LTD. C7 2n2/1600V ZHEJIANG CHHANGXING QIXING ELECTRONIC CO.,LTD. Inductor φ 6*8 100uH KUNSHAN HENGYI ELECTRONIC CO.,LTD. Heat-Shrinkable Tubing φ 6 SHENZHEN WORE HEAT-SHRINKABLE MATERIAL CO.,LTD Magnet Wire 130 °C MW75 φ 0.27 WUXI JUFENG COMPOUND LINE CO.,LTD Framework EE19 SHANGHAI TWIN-TREE PLASTICS FACTORY PBT 94V-0 130 °C 4308G30 JIANG YIN YONGTONG CHEMICAL CO., LTD. Core EE19 NIPP0N CERAMIC CO.,LTD. Magnet Wire 130 °C MW75 φ 0.13*5 WUXI JUFENG COMPOUND LINE CO.,LTD adhesiveb tape JINGJIANG INSULATING TAPE FTY Coupling coil 9*5*4 SHANGHAI NICERA MAGNETIC COMPONENTS CO.,LTD. Magnet Wire 130 °C MW75 φ 0.5 WUXI JUFENG COMPOUND LINE CO.,LTD Pin 0.8*0.8*10 YUYAO HONSHAN YUAN MA FACTORY self-extinguishing bushing SSG-1 φ 1 SHANGHAI JIACHANG ELECTRIC INSULATION INDUSTRIAL CO.,LTD. PCB 94V0-HS-1 130 °C SM120V-43-2 ZHEJIANG PANAN XIANGLUBAN FACTORY Plastic GE Valox 420SE0U-1641 White V-0 KUNSHAN JIXIANG PLASTIC CO.,LTD Base E26/24 SHANGHAI XING HONG LAMP CAPS CO.,LTD. LAMP TURB T3 SHANGHAI CHUAN-SHI TECHNICAL CO.,LTD. Cement gum D05 200 °C SHANGHAI LATEX GRADUATE SCHOOL silica gel KE-45 SHIN-ETSU SILICONES OF AMERICA INC Counter-optical glass SHANGHAI PEI XIANG WUJIN Glass globe BR40 HANGZHOU QIANLIZHAOMINGZHUANGSHIDENGZHAO CO.,LTD F Fusible Resistor BR40B23W Diode CH11 105 °C Resistor SHANGHAI SHUANGYI ELECTRONIC CO.,LTD. CL11 105 °C ZHEJIANG CHHANGXING QIXING ELECTRONIC CO.,LTD. CL21 105 °C L0L1 T Capacitor
