M e s s t e c h n i k Document No. : D1F604 001 Version : April 2006  Copyright : IBR Messtechnik GmbH & Co. KG INSTRUCTION MANUAL IBRit - rf1 - usb PC - Station for wireless Data transmission 2 Manual IBRit - rf1 - usb Contents 1. Introduction 1.1 General information ................................................................................................................ : 3 1.2 Features .................................................................................................................................. : 4 1.3 Technical data ......................................................................................................................... : 4 2. Setting up the system 2.1 Delivered items ....................................................................................................................... : 5 2.2 System Conditions .................................................................................................................. : 5 2.3 Installation of the USB – driver for the IBRit - rf1 - usb module................................................. : 5 2.4 Function test of the IBRit - rf1 radio module with the programme IBR_SimKey ..................... : 6 3. Programming of gauge radio modules with the programme IBR_SimKey ............................ : 9 4. Confirmation signals of the IBRit - rf1 gauge radio modules ................................................... : 10 5. Safety Instructions ........................................................................................................................ : 11 6. Declaration of conformity ............................................................................................................ : 12 7. Guarantee ..................................................................................................................................... : 13 We reserve the right to change the design and technical data contained in our documentation without notifying our customers. IBR is not obliged to notify changes of the products to previous buyers. IBRit is a registered trademark of IBR. EXCEL and WORD are registered trademarks of Microsoft Corporation. All parts of this document must not be reproduced without written permission from IBR. 3 Manual IBRit - rf1 - usb 1. Introduction 1.1 General Information The IBRit - rf1 radio module series allows the wireless transmission of measured values from gauges to a PC with USB - connector. On the PC side the wireless communication with the gauges occurs via the radio module IBRit - rf1 - usb. The module is connected via a USB-Slot to the PC and allows the communication with 1 ... 120 gauge ra- dio modules. The assignment of the data from the different gauges occurs by address numbers. The address number and other individual radio module settings for the particular gauge type can be transmitted from the PC to the gauge radio modules and are stored there. The corresponding PC-Software IBR_SimKey is included in the delivery of the IBRit - rf1 - usb. The transmission of a measured value is triggered by pressing the data key on the gauge or radio module. The gauge radio module completes the measuring value by the address number ( sender ), one communication control word and a double checksum. The special data coding and the direct communication between PC and the radio modules on the gauges guarantee absolute data security. A transmission error, i.e. caused by a radio interference, is detected by the communication protocol between PC and gauge radio module. The data transmission is automatically repeated within 0,01 ... 0,08 seconds up to 3 times. A successful data transmission is automatically confirmed to the user by a green flashing light and short beep tone on the gauge radio module. If the measuring value could not be received by the PC, then a red LED is flashing and two longer beep tones are informing the user about the error. More information over the different error codes you will find on the page 10. The maximum transmission distance depends strongly on the environment and can be several meters up to 200 meters. The output of the received measurement values can be taken place in nearly every software, because the programme IBR_SimKey outputs the measurement values over the keyboard buffer. 4 Manual IBRit - rf1 - usb 1.2 Features ‹ PC radio station IBRit - rf1 - usb with USB interface for communication with at maximum 120 gauge radio modules ‹ Gauge radio modules IBRit - rf1 - opto for gauges with Opto RS232 interface IBRit - rf1 - digi for gauges with Mitutoyo interface IBRit - rf1 - mahr for gauges with Mahr interface IBRit - rf1 - 232 for gauges with RS232 interface ‹ High data security by double and independent check sum ‹ Optical and acoustical transmission confirmation of the gauge radio modules ‹ Distance up to 200 m 1.3 Technical Data Mechanical Characteristics Case Plastic Wall holder Wall holder for plugging in the IBRit - rf1 - usb. The wall holder contains two holes for the mounting with screws Dimensions with antenna W x H x D / Weight 47 x 275 x 30 mm / ca. 175 g Electrical Characteristics Power supply By USB port Current consumption max. 40 mA Measurement data Transmission frequency 433,926 MHz Frequency range ± 15 KHz Modulation type FSK Output power @400 Ω +10 dBm Sensitivity @400 Ω -105 dBm Transmission speed 9600 baud Environment conditions Working temperature range 0 ... 50°C Storage temperature range -30 ... +60°C Protection class IP50 ( CEI / IEC 529 ) Specific standards CE conformity Harmonised standards EN 300 220 FCC FCC ID : T6T-604001 5 Manual IBRit - rf1 - usb 2. Setting up the system 2.1 Delivered items PC radio station IBRit - rf1 - usb with USB – connection cable, antenna, wall holder, manual and CD-ROM with USB - driver. Please check the delivery on completeness and store the packet. 2.2 System condition PC with USB - port and operating system Windows 98 / ME / 2000 / XP. 2.3 Installation of the USB driver for th…

Text truncated - open the document above for the full version.

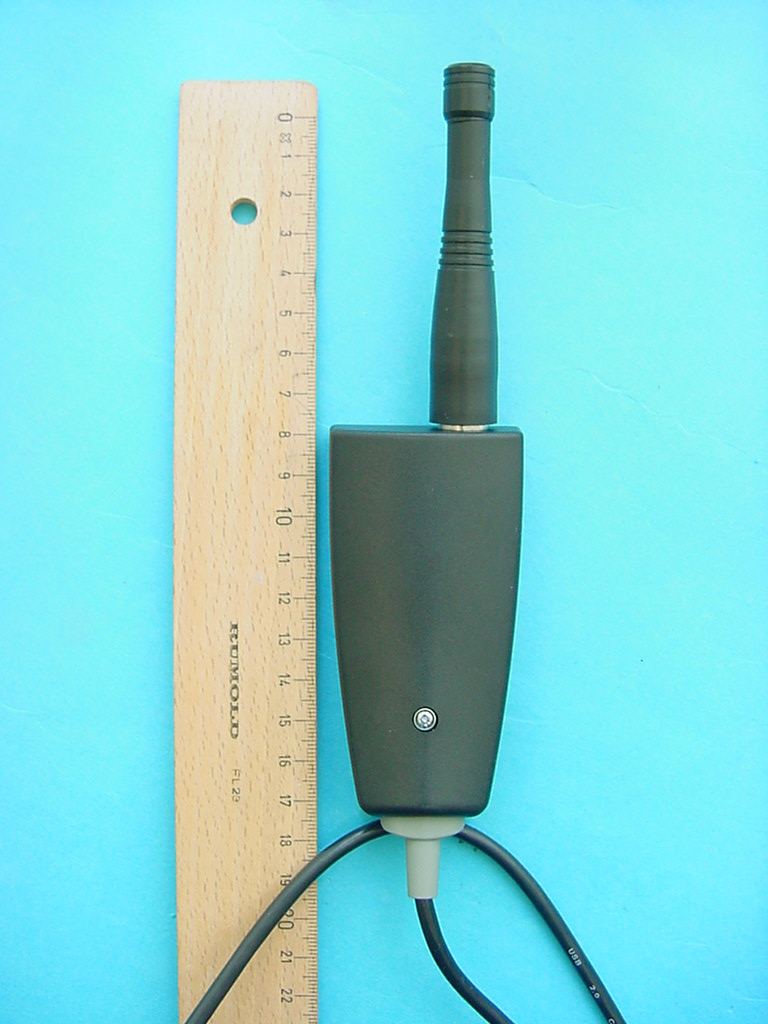

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4142-01-02/05 Date: 2006-04-25 Page 28 of 31 7 Annex C: External Photographs of the Equipment Photo 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4142-01-02/05 Date: 2006-04-25 Page 29 of 31 Photo 2:
