T73-FTA725IDigital Satellite Receiver

User’s Guide FTA-Model 725i Advanced Digital Satellite Receiver 1 2 This device complies with part 15 of the FCC Rules, Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ೫Reorient or relocate the receiving antenna. ೫Increase the separation between the equipment and receiver. ೫Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ೫Consult the dealer or an experienced radio/TV technician for help. Modifications not expressly approved by the manufacturer could void the user's authority to operated the equipment under FCC rules. Product name : RHINOSAT Product use : For Reception of Free-To-Air satellite television broadcast DIGITAL SATELLITE RECIEVER Production Year 2006 MODEL NO : 725i POWER : Input Voltage 90 - 250V AC @ 50Hz/60Hz·5% The socket-outlet shall be installed near the equipment and shall be easily accessible. 2 3 "IMPORTANT SAFETY INSTRUCTIONS", or the equivalent. The safety instructions shall include, as applicable to the particular apparatus, the information and warnings listed below: 1)Read these instructions. 2)Keep these instructions. 3)Heed all warnings. 4)Follow all instructions. 5)Do not use this apparatus near water. 6)Clean only with a dry cloth. 7)Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions. 8)Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9)Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10)Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11)Only use the attachments/accessories specified by the manufacturer. 12)Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13)Unplug this apparatus during lightning storms or when unused for long periods of time. 14)Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 3 4 4 5 Quick Start Guide •Setup: This quick start guide will assist you to setup your receiver within minutes. You must read the entire user’s guide to learn how to use all the unique features of the Rhinosat FTA digital satellite receiver. Unpack your receiver box and plug into wall socket. Turn on the receiver and wait for opening screen to show on your TV screen. Select Installation. Then Ant. Setup. Selecting the Ant. Setup will take you directly to the antenna setup screen where you will select the appropriate satellite for your region. Select your antenna number Select your Satellite Select your LNB frequency Select your 2 nd LNB Freq. if you have one Select no to 12 volt Select no to 22khz tone Select your DiseqC A for 1, B for 2 etc Or Auto if you prefer No for C/Ku Band Then press the blue button (CH Search) On your remote control NEXT 5 6 Once you select your satellite you might Notice that the strength & quality bars are gray. This means your system is looking at a non active TP. You can not begin downloading channels If your bars are gray. You may get a Message after channel scan saying (No channels Found). Move your yellow bar by using down arrow key to Transponder until it is highlighted with yellow. Move the right arrow to switch TP from your first TP to the second or third or fourth TP which ever comes first with yellow bars on the strength bar and the quality bar. Meaning as you move the arrow to the right and once the S & Q bar becomes Yellow this means you have locked on the first active TP, so leave it there and do not switch any further and now you are ready to begin scanning For all free to air channels. Then move the arrow to bottom of screen and Highlight the (Search Sat). This has three selec tions init. Search Sat or Search TP or Network Search. Push the right Arrow and select search TP. NEXT 6 7 Once You moved selection to (Search TP) now Press the dark blue button on your remote Control and which appears on your screen as (Advanced Search). Note : Advanced Search is similar to features of Smart Search or Blind Scan. You will now get a smaller screen with a Menu called Search options. Highlight the Fourth option on Search Type (Satellite) and Push the right arrow and change option to TP. Once on TP , you are now rea…

Text truncated - open the document above for the full version.

Appendix E. Block Diagram Report no.ETLE060428.194, Page 1 of 1 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 FTA-Model 725i Block Diagram

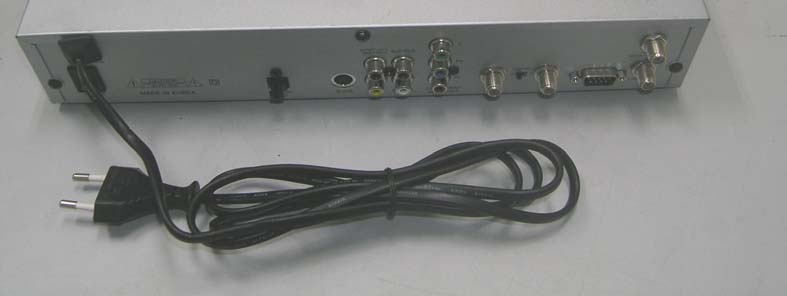

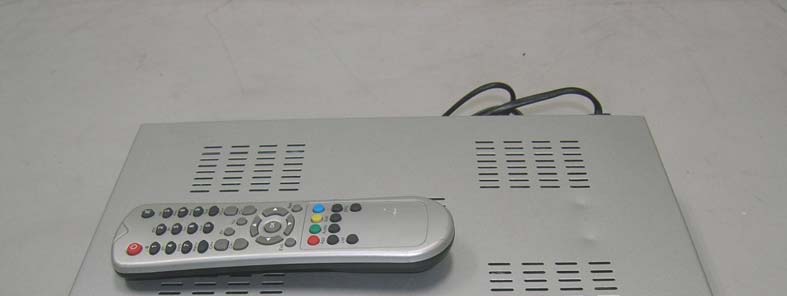

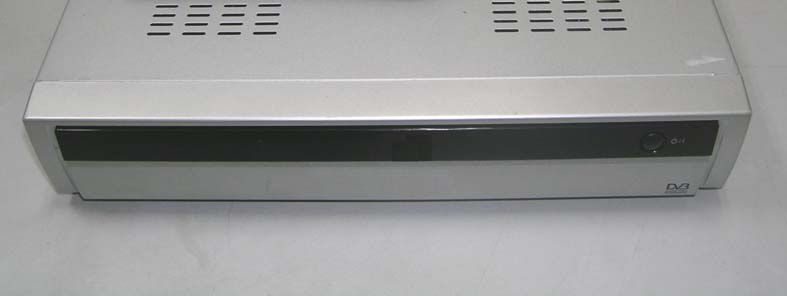

Appendix C. External Photographs Report no. ETLE060428.194, Page 1 of 1 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Front side View of The EUT Rear side View of The EUT

Appendix A. FCC ID Label and Location Report no. ETLE060428.194, Page 1 of 1 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. Sadiq Ali Electronics Establishment Digital Satellite Receiver FCC ID : T73-FTA725I Model No : FTA-Model 725i POWER : AC 90 – 250 V 50/60 Hz, Max. 35 W Serial No : N/A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE060428.194, Page 1 of 10 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Inside View of The EUT Appendix D. Internal Photographs Report no. ETLE060428.194, Page 2 of 10 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Component side view of Main board Appendix D. Internal Photographs Report no. ETLE060428.194, Page 3 of 10 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Solder side view of Main board Appendix D. Internal Photographs Report no. ETLE060428.194, Page 4 of 10 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Inside View of The LNB TUNER Appendix D. Internal Photographs Report no. ETLE060428.194, Page 5 of 10 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Component side view of Power board Appendix D. Internal Photographs Report no. ETLE060428.194, Page 6 of 10 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Solder side view of Power board Appendix D. Internal Photographs Report no. ETLE060428.194, Page 7 of 10 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Component side view of Front Board Solder side view of Front Board Appendix D. Internal Photographs Report no. ETLE060428.194, Page 8 of 10 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Inside View of The EUT of RF Modulator Appendix D. Internal Photographs Report no. ETLE060428.194, Page 9 of 10 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 View of Bottom cover View of Top cover Appendix D. Internal Photographs Report no. ETLE060428.194, Page 10 of 10 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 View of Front Cover

Engineering Specifications for FTA-Model 725i Confidential (as of MAR 29, 2005) A. General features • Fully MPEG2, DVB compliant • Digital Audio with AC-3 support by SPDIF • PIG (Picture In Graphic) support • Provide friendly and easy-to-use menu system • Various channel editing function (favorite, moving, locking, renaming, deleting and sorting) • Stores up to 5000 channels • Easy and speedy software upgrade through RS-232 port • Plug-and-play data transfer system (DSR to DSR) • Timer function, automatically turns On/Off by setting function (daily, weekly, monthly and one time) • Automatic reserved channel moving system • Provide Electronic Program Guide (EPG) • More than 800 pages OSD Teletext (DVB ETS 300 706) and Subtitle function support • Support for various video output : CVBS, S-VHS, YUV • 256 colors On-Screen-Display • PAL/NTSC automatically conversion • Last channel automatically saving B. Engineering Specifications 1. Front-End FTA-Model 725i Engineering Specifications 1-1. LNB & Tuner Input Input frequency : 950 to 2150 Mhz Digital signal input level : -65 to -25 dBm LNB supply : 13.5±0.5V / 18.5±0.7V, max.500mA Band switch control : 22KHz (Microprocessor control) Connector : 2 x F-Type, 3/8-32UNEF-2A (1 Input / 1 Loop through) 1-2. Demodulator Demodulation type : QPSK demodulation and FEC decoding in accordance with DVB prETS 300 421 Symbol rate (Rs) : 2 < Rs < 45 Mbaud SCPC and MCPC capable 2. Demultiplexing In accordance with ISO 13818-1. Simultaneous access will occur for the following : - 1 video stream of data rate up to 15 Mbits/s - 1 audio stereo/mono stream of data rate up to 448 kbits/s 32 PIDs Supported 3. Video Processing Decompression : MPEG-2 Main Profile @ Main Level With Letter Box filter Video buffer : 64 Mbits of SDRAM is provided Data rate : up to 15Mbits/s (Max. burst rate : 228 Mbits/s) Video output : PAL-25 frame @720 x 576 NTSC-30 frame @720 x 480 Video format : 4:3, 16:9 4. Audio Processing Decompression : MPEG-1 layer I and II, Musicam Outputs : Stereo Channel Dual MonoJoint Stereo ChannelMonoSpdif with AC-3 5. Baseband Inputs / Outputs 5-1. Baseband Video Video format : CVBS Output impedance : 75 Ω unbalanced Bandwidth : 5MHz Connector type : 1 x RCA 5-2. Baseband Audio Outputs Connector type : 2 x RCA (Left and Right) Output impedance : 600 Ω unbalanced Level : 0.6V rms±2dB into 10k Ω 5-3. Digital Audio Output Connector type : 1 x Optic Output type : Spdif encoded signals with ac-3 Sampling frequency rate : 32 , 44.1 or 48khz 5-4. S-VHS Output Video format : Y,C Output impedance : 75W unbalanced Bandwidth : 5MHz Connector type : 1 x 4pin DIN 5-5. Component Outputs (YUV) Connector type : 3 x RCA (Y Pb Pr) Output impedance : 75 Ω unbalanced 6. Supply voltage to LNB Voltage supply path : DC supplied from DSR on LNB coax cable LNB type supported : LNB with integrated polarizer switch LNB supply voltage : (software selectable) . Vertical polarization : 13.5±0.5V DC . Horizontal polarization : 18.5±0.7V DC FSS/BSS Switching : A 22kHz±4kHz microprocessor controlled switching signal is provided Short circuit limit : 500mA 7. External Switched 12V Software switchable : 12V or 0V Current limit : 100mA Connector type : 1 x RCA 8. Data Service Port Connector : 9-pin D-sub male Data protocol : RS232C interface The DVB-DSR is seen as the DataCommunication Equipment (DCE)and the PC (or other terminal) is seenas the Data Terminal Equipment (DTE). Data rate : Maximum of 625K bits/s Pin Name Source 2 RXD PC 3 TXD Transmit data DSR 5 GND Signal ground 9. Microprocessor Microprocessor : STM Sti5518 Receive data Function Clock frequency : 81MHz SDRAM Memory : 8Mbyte Flash memory : 2Mbyte 10. RF Modulator RF Output Signal : NTSC M Video Carrier Frequency : 61.25 ± 90 ㎑ US 3 CH 67.25 ± 90 ㎑ US 4 CH 11. Remote Control unit Number of keys : 41 Keys Operating distance : up to 10m Batterys : 2 x 1.5V (AAA type) 12. Power Supply Type : Switching mode Main input voltage : 90 - 250V AC @ 50Hz/60Hz±5% Normal power consumption : 30W Typical supply currents - +3.3V : 0.9A - +5.0V : 0.4A - +7.0V : 0.3A - +12V : 0.03A - +22V : 0.4A - +30V : 0.03A 13. Physical Characteristics 13-1. Front Panel Keys : 8 Keys Indicators : Power on/off Remote control input : Infra-red receiver Display : 4Digit (7Segment) 13-2. Rear Panel Connectors : 1 LNB Input / 1 Loop through output (2F-type : IEC169-24) 1 x 0/12 Volt (RCA)2 x Audio L/R (RCA)1 x CVBS (RCA)3 x YUV (RCA)1 x RS-232 (9-pin D-sub male)1 x RF Modulator (2F-type : IEC169-24)1 x S-VHS (4-pin Mini-Din)1 x Digital Audio Output (optic) Switch : 1 x AC Power Switch NOTE) The above specification is subject to be changed without notice in advance.

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. www.etl.re.kr E-RAE Testing Laboratory Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement T his Digital Satellite Receiver, FTA-Model 725i has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the ETL/EMC Test Laboratory and has been shown to complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B: TV interface device. I attest to the accuracy of data. All measurement here in was performed by me or was made under my supervision and is correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system, which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Chon Sik, Kim / Chief Engineer ETL Inc. #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 PRODUCT : Digital Satellite Receiver MODEL/TYPE NO : FTA-Model 725i FCC ID : T73-FTA725I APPLICANT : Sadiq Ali Electronics Establishment ADDRESS : Shop No 2 , Plot No 118-663, Po. Box 39830 Satellite Market, Naif road , Dubai U.A.E Attn.:SADIQ ALI / DIRECTOR MANUFACTURER : 1. DPC CO., LTD. 2. Hyundai Digital Technology (Shenzhen)Co., Ltd. ADDRESS : 1. #23, 17BK, BANWOL IND.COMP 491-1, MOKNAE-DONG, DANWON-GU, ANSAN-SHI, KYUNGKI-DO, KOREA. 2. HDTCN. Lnd.Park, Potouxia Village. Kukeng. Guanian Town, Bao’an District, Shenzhen City, China, PRC. FCC CLASSIFICATION : HID : TV interface device FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : Rhinosat TEST REPORT No. : ETLE060428.194 DATES OF TEST : April 28 - May 04, 2006 REPORT ISSUE DATE : May 08, 2006 TEST LABORATORY : ETL Inc. (FCC Registration Number: 95422) Report no. ETLE060428.194, Page 2 of 22 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 FCC TEST REPORT Table of Contents ATTACHMENT A: COVER LETTER(S) FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emission Test 5.3 Radiated Emission Test 5.4 Antenna Power Conduction Meaurement 5.5 Output Signal Level Measurement 5.6 Output Terminal Conducted Spurious Emission Measurement 5.7 Transfer Switch Measurement 6. Sample Calculation 7. List of test Equipments Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Operating Manual Report no. ETLE060428.194, Page 3 of 22 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 FCC TEST REPORT FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information z EUT Type : Digital Satellite Receiver z Model Number : FTA-Model 725i z FCC Identifier : T73-FTA725I z S/N : N/A z Freq. Range : 61.25 MHz – 71.75 MHz z FCC Rule Part(s) : Part 15 Subpart B z Test Procedure : ANSI C63.4-2003 z FCC Classification : TV Interface Device z RF Channels : Ch. 3 / Ch. 4 z Dates of Tests : April 28 - May 04, 2006 z Place of Tests : ETL Inc. 584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 z Test Report No. : ETLE060428.194 Applicant Name : Sadiq Ali Electronics Establishment Address : Shop No 2 , Plot No 118-663, Po. Box 39830 Satellite Market, Naif road , Dubai U.A.E Attention : SADIQ ALI / DIRECTOR Report no. ETLE060428.194, Page 4 of 22 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 FCC TEST REPORT 1. INTRODUCTION The measurement test for radiated and conducted emission test were conducted at the shielded anechoic chamber room and open area test site of ETL Inc. facility located at 584, Sangwhal-ri, Ganam-myeon, Youju- gun, Gyounggi-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4- 2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 m site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (Registration Number : 95422). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the Sadiq Ali Electronics Establishment / Digital Satellite Receiver / Model : FTA-Model 725i Report no. ETLE060428.194, Page 5 of 22 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE060428.194, Page 1 of 4 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Radiated Emission Test Setup Appendix B. Test Setup Photographs Report no. ETLE060428.194, Page 2 of 4 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Conducted Emission Test Setup Appendix B. Test Setup Photographs Report no. ETLE060428.194, Page 3 of 4 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Antenna Power Conduction Measurement Test Setup Output Signal Level Measurement Test Setup Appendix B. Test Setup Photographs Report no. ETLE060428.194, Page 4 of 4 Head Office : # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Output Terminal Conducted Spurious Emission Measurement Test Setup Antenna Transfer Switch Measurement
