T76N700DMULTIMEDIA NAVIGATION

User’s Manual odd-i N700D Introductions 2 odd-i N700D User Guide Thank you for purchasing an odd-i N700D. Odd-i is a brand for people who believe in realizing their dreams and who have a different way of looking at things. Our starting point is the belief that your way of seeing is special - “You see the world differently.” This manual is written to help you to use the various convenient features of the product. We recommand that you read this manual before using the product. odd-i N700D User Guide 3 Contents Contents Introduction Safety Precautions Before Using the Product Features 6 Accessories 8 Description of Components 10 Using the Product Installing the Product 13 Connecting the Product 15 Turning On/Off the Product 18 Using Navigation 19 Using the Overlay Function 20 Firmware Update 22 Using the Menu Functions Movie Player 23 Music Player 30 Photo Album 40 File Management 43 Environment Settings 47 External Inputs 55 Rear Monitoring Camera 59 Vehicle Management 62 Appendix Specifications 70 FAQ 75 Warranty Card Safety Precautions 4 odd-i N700D User Guide ➲ To use the product safely, follow these instructions. Install the product so that it does not obstruct your field of vision. You may have a problem receiving GPS signals when you are driving between high rise buildings. Do not remove the SD card or hard disk drive when the product is turned on. It is recommended to exit all programs before shutting the product down. Operating or looking at the product while driving is extremely dangerous. Be sure to operate or look at the product only after stopping the vehicle. Be sure to start the vehicle before turning the product on, and turn it off before switching the car ignition off, in order to avoid a potentially damaging voltage surge. odd-i N700D User Guide 5 Safety Precautions ➲ To use the product safely, follow these instructions. Do not attempt to repair or disassemble the product yourself. It may damage the product or cause a malfunction. After-sales service may not be provided when damage has been caused by unauthorized tampering with the product. Avoid excessive impact to the product. Do not leave the product in a vehicle. There is a risk of theft, and the product may malfunction due to a sudden change in temperature. A sudden increase in the internal temperature of the vehicle in cold weather may cause moisture formation. If this happens, wait for a while before using the product. Keep the product away from moisture, and do not touch the product with wet hands. If the volume is too loud you may not be able to hear other vehicles, which is potentially dangerous. Maintain the volume at a moderate level. 6 odd-i N700D User Guide Features ①7 Inch Wide LCD Adopted The 7 inch (480X234) 16:9 wide LCD screen of the odd-i N700D enables you to enjoy perfect and realistic picture quality. In addition, it enables you to play various content formats by providing a variety of video codec (MPEG1, MPEG4 SP, XVID, MP43, DivX 3.x/4.x/5.x, WMV 7/8/9). ②Ergonomic UI Design Emphasizing Luxury and Convenience The odd-i N700D employs an easy-to-use UI design with intuitive and fun graphics for easier access to all menus. ③The Best GPS Navigation Software in Korea, Mappy Adopted The odd-i N700D has adopted the Mappy for searching and providing Korean nationwide road information. It receives information about your current location from GPS satellites in real-time, and provides audio and graphics information on routes t o your destination. ④Multitasking Support The odd-i N700D supports the overlay of one video source on top of a second vide o source, so that you can view them simultaneously. For example, Navigation+DMB, Navigation+Movie Player and Movie Player+DMB are supported. ⑤ Vehicle Management The odd-i N700D provides a Car Maintenance Account Book function for easier cos t management for vehicle maintenance, which includes oil consumption, servicing, and other expenditure. Features in odd-i N700D odd-i N700D User Guide 7 Features ⑦Rear Monitoring Camera Input Support The odd-i N700D supports a Rear Monitoring Camera Input Port so that you can view the rear of your vehicle using the camera installed in the vehicle. ⑧ External Video In/Out Support The odd-i N700D has a built-in TV output system so that you can view photos or video on a TV monitor. You can also save video images from the CVBS Video IN port of the odd-i N700D in MPEG4 format and watch it later. ⑨ MP3 Player and Easy-to-Use FM Radio Support The odd-i N700D supports the MP3, WAV OGG and WMA formats. In addition, it allows you to listen to FM radio through the FM tuner speakers in your vehicle. ⑩ File Navigation Support The odd-i N700D provides functions that enable you to navigate folders and files exactly as in Windows Explorer. ⑪ USB Host Function The odd-i N700D has adopted the USB 1.1 Host function so that you can exchange data with a USB device such as a digital camera or MP3 player. ⑫ Removable Disk Support The odd-i N700D also supports the USB 2.0 Device function that enables quick file downloads. Features in odd-i N700D 8 odd-i N700D User Guide Accessories ➲ The following parts are included in the product packaging. (Parts included may be changed without any advance notice to improve the performance or quality of the product.) Basic Package Contents for the odd-i N700D Main body Vehicle Cradle Cigar Jack Adapter SD Card (2GB) SD Card Reader User Manual Mando Mappy User Manual odd-i N700D User Guide 9 Accessories ➲ The following parts are included in the product packaging. (Parts included may be changed without any advance notice to improve the performance or quality of the product.) Cable for AV, USB Devices Wireless Remote Control Case Description of Components 10 odd-i N700D User Guide Rear Top / Bottom 24-Pin Connector GPS Antenna S peaker Support HDD Operation LED HDD COVER Power Jack: odd-i N700D User Guide 11 Description of Components Front Sides Power On / Off Key Volume Key LED ILLUMINATION Main LCD Earphone Jack SD Ca…

Text truncated - open the document above for the full version.

March 17, 2007 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Cover letter In re : FUSIONSOFT Co.,Ltd. FCC ID : T76N700D Gentlemen: Q) Please explain the new test report. Why does one test report show non-compliance? Was the device modified? If so, how? A) The device is not modified. I confirmed what were the problem. I found the problem. It was the reason that the junction of an audio filtering part fell off. This device is opened for the internal photo in the laboratory. I think that The problem seems to come into being in the course. Sincerely, Seung-Hwan Kim Associate Research Engineer FUSIONSOFT Co.,Ltd. 969-7, Dongcheon-Dong, Buk-Gu, Daegu, 702-250, KOREA Tel. +82-2-571-8283 Fax +82-2-573-7710

November 23, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : FUSIONSOFT Co.,Ltd. FCC ID : T76N700D Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (File name: [T76N700D] SCH.pdf), Parts list(File name: [T76N700D] PL.pdf), Block diagram (File name: [T76N700D] BLK.pdf) and Operational description (File name: [T76N700D] Op Description.pdf). The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Seung-Hwan Kim Associate Research Engineer FUSIONSOFT Co.,Ltd. 969-7, Dongcheon-Dong, Buk-Gu, Daegu, 702-250, KOREA Tel. +82-2-571-8283 Fax +82-2-573-7710

KDB Inquiry Tracking Number - 550579

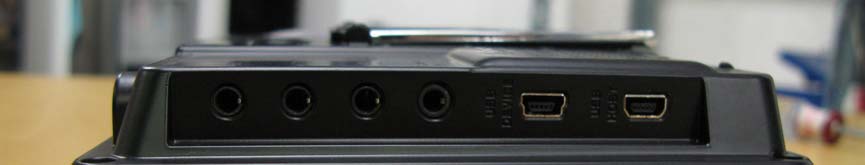

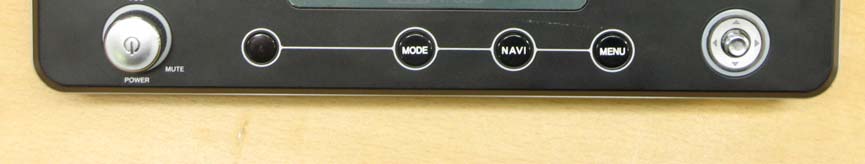

Model No.: odd-i N700D FCC ID: T76N700D Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 3 Model No.: odd-i N700D FCC ID: T76N700D Copyright ○ c 2006, LTA Co., Ltd. Page 2 of 3 Model No.: odd-i N700D FCC ID: T76N700D Copyright ○ c 2006, LTA Co., Ltd. Page 3 of 3

Model No.: odd-i N700D FCC ID: T76N700D Copyright Ⓒ 2006, LTA Co., Ltd. SAMPLE LABEL & LOCATION - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included in the user's manual. Label FUSIONSOFT Co.,Ltd. FCC ID:T76N700D M/N: odd-i N700D This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in Korea

Model No.: odd-i N700D FCC ID: T76N700D Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 9 Model No.: odd-i N700D FCC ID: T76N700D Copyright ○ c 2006, LTA Co., Ltd. Page 2 of 9 Model No.: odd-i N700D FCC ID: T76N700D Copyright ○ c 2006, LTA Co., Ltd. Page 3 of 9 Model No.: odd-i N700D FCC ID: T76N700D Copyright ○ c 2006, LTA Co., Ltd. Page 4 of 9 Model No.: odd-i N700D FCC ID: T76N700D Copyright ○ c 2006, LTA Co., Ltd. Page 5 of 9 Model No.: odd-i N700D FCC ID: T76N700D Copyright ○ c 2006, LTA Co., Ltd. Page 6 of 9 Model No.: odd-i N700D FCC ID: T76N700D Copyright ○ c 2006, LTA Co., Ltd. Page 7 of 9 Model No.: odd-i N700D FCC ID: T76N700D Copyright ○ c 2006, LTA Co., Ltd. Page 8 of 9 Model No.: odd-i N700D FCC ID: T76N700D Copyright ○ c 2006, LTA Co., Ltd. Page 9 of 9

Ref. No.: LR500110611A Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 16 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: NOV 22 ~ 24, 2006 Dates of Retest: Mar 02, 2007 Test Report S/N: LR500110611A Test Site : LTA CO., LTD. CERTIFICATIO OF COMPLIANCE FCC ID. APPLICANT FCC Classification : Low Power Communication Device Transmitter Manufacturing Description : Multimedia Navigation Manufacturer : FUSIONSOFT Co.,Ltd. Model name : odd-i N700D Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.239 Subpart C; ANSI C-63.4-2003 Frequency Range : 88.1 MHz ~ 107.9MHz Data of issue : November 27, 2006 Data of reissue : March 2, 2007 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 T76N700D FUSIONSOFT Co.,Ltd. Ref. No.: LR500110611A Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 16 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 Field Strength of Fundamental and Emissions within Permitted Band ------------------- 3.2.2 Radiated Emissions ------------------------------------------------------------------------------- 3.2.3 AC Conducted Emissions ------------------------------------------------------------------------ 3.2.4 20dB Bandwidth & Occupied Bandwidth ----------------------------------------------------- 3.2.5 Antenna Requirement ---------------------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 7 11 12 14 15 Ref. No.: LR500110611A Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 16 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competent of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2007-09-30 ECT accredited Lab. RRL KOREA KR0049 2007-07-13 EMC accredited Lab. FCC U.S.A 610755 2008-03-28 FCC filing VCCI JAPAN R2133, C2307 2008-06-22 VCCI registration IC CANADA IC5799 2008-04-23 IC filing Ref. No.: LR500110611A Copyright ○ c 2007, LTA Co., Ltd. Page 4 of 16 2. Information’s about test item 2-1 Client & Manufacturer Company name : FUSIONSOFT Co., Ltd Address : Fusion Building 969-7,Dongcheon-Dong,Buk-Gu,Daegu,Korea TEL / FAX : +82-53-609-7243/ +82-53-326-8049 2-2 Equipment Under Test (EUT) Trade name : Multimedia Navigation FCC ID : T76N700D Model name : odd-i N700D Serial number : Identical prototype Date of receipt : November 16, 2006 EUT condition : Pre-production, not damaged Antenna type : Wire Antenna, Length = 7cm Frequency Range : 88.1 ~ 107.9 MHz in 0.1MHz increments Operator Selection of Operating Frequency: Manual Switch Power Source : 12VDC 2-3 Tested frequency & signal LOW MID HIGH 1 Frequency (MHz) 88.1 98.0 107.9 2 Audio signal: This device has three input source model: SD memory card, Hard disk drive and Audio input. We tested only under the module of audio input and hard disk drive. The device audio input source from maximum audio input for the tested. Test report is recorded the worst mode data (Hard disk drive mode) 2-5 Ancillary Equipment Equipment Model No. Serial No. Manufacturer iPod A1199 6U642NYSVQ5 Apple Resister Jig LTA001 - LTA Ref. No.: LR500110611A Copyright ○ c 2007, LTA Co., Ltd. Page 5 of 16 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Status (note 1) 15.239 Field Strength of Fundamental and Emissions within permitted band. < 250 uV @ 3m C 15.239 Occupied channel bandwidth < 200kHz C 15.209 Radiated Emission < FCC 15.209 limits C 15.207 AC Conducted Emissions < FCC 15.207 limits NA / Note2 15.203 Antenna Requirement - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: It is not need to test this requirement, because the EUT shall be operated by car battery Note 3: The data in this test report are traceable to the national or international standards. The sample was tested according to the following specification: FCC Parts 15.239; ANSI C-63.4-2003 Ref. No.: LR500110611A Copyright ○ c 2007, LTA Co., Ltd. Page 6 of 16 3.2 Transmitter requirements 3.2.1 Field Strength of Fundamental and Emissions within permitted band. Procedure: The field strength of emissions from intentional radiators operated within the bands 88 ~108MHz was measured in accordance with FCC Part §15.239. The test set-up was made according to ANSI C 63.4:2003. The EUT was placed on a 0.8m high wooden table inside a shielded enclosure. An antenna was placed near the EUT and measurements of frequencies and amplitudes of field strengths were recorded for reference during final measurements. For final radiated testing, measurements were performed in an OATS. Measurements were performed with the EUT oriented in 3 orthogonal …
