T7HCT8111DECT telephone handset and charger

Additional handset information RTX8111 Important safety information Charge the battery or handset only in combination with RTX8111 DECT Handset Desktop Charger and the SALOM SSW-2374 or Friwo FW7712-1 or FW7713/XX or Ten Pao S005SV0500100 or S005SB0500100 adapter that comes with the product. Plug the SALOM SSW-2374 or Friwo FW7712-1 or FW7713/XX or Ten Pao S005SV0500100 or S005SB0500100 AC/DC adaptor in a wall outlet socket near the equipment for easy access/removal of the AC/DC adaptor. Important battery information This product uses rechargeable Lithium-Ion batteries 3.7V, 1100mAh. Only use batteries that come with the handset or dedicated spare batteries marked with “Battery Pack, CE-MB206-5C-XX or RTR001FXX”. Do not use any other type, since this may present a risk of leakage, fire, explosion or other hazardous situation. For battery replacement or removal please remove the battery cover of the handset. Never disassemble, customize or short- circuit batteries. Do not place battery in fire or heat the battery. Charge battery only with RTX8111 Charger and the SALOM SSW-2374 or Friwo FW7712-1 or FW7713/XX or Ten Pao S005SV0500100 or S005SB0500100 adapter or adaptor itself that comes with the product. Sensitive Electronic Environment Any radio-based equipment can potentially cause interference with other equipment and can be interfered from other equipment. This also applies for DECT equipment. However due to the very low transmission power level the chances for interference are very small. Research proves that operational DECT phones normally don’t influence electronic equipment however some precautions must be taken into account for sensitive electronic equipment e.g. sensitive laboratory equipment. When DECT phones operate in straight nearness of sensitive electronic equipment incidental influence can appear. You are advised not to place the DECT phone on or close (less than 10cm) to this kind of equipment, even in standby mode. Please also use the other documentation supplied with the various parts of your telephone system. Product disposal information For countries in the European Union The symbol depicted here has been affixed to your product in order to inform you that electrical and electronic products should not be disposed of as municipal waste. Electrical and electronic products including the cables, plugs and accessories should be disposed of separately in order to allow proper treatment, recovery and recycling. These products should be taken to a designated facility where the best available treatment, recovery and recycling techniques are available. Separate disposal has significant advantages: valuable materials can be re-used and it prevents the dispersion of unwanted substances into the municipal waste stream. This contributes to the protection of human health and the environment. Please be informed that a fine may be imposed for illegal disposal of electrical and electronic products via the general municipal waste stream. In order to facilitate separate disposal and environmentally sound recycling, arrangements have been made for local collection and recycling. In case your electrical and electronic products need to be disposed of please refer to your supplier or the contractual agreements that your company has made upon acquisition of these products. For countries outside the European Union Disposal of electrical and electronic products in countries outside the European Union should be done in line with the local regulations. If no arrangement has been made with your supplier, please contact the local authorities for further information. Battery disposal information Defect or exhausted batteries should never be disposed of as municipal waste. Return old batteries to the battery supplier, a licensed battery dealer or a designated collection facility. Do not incinerate batteries. Regulatory information Europe Declaration of conformity Česky “RTX Telecom” tímto prohlašuje, že tento “RTX8111” je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk Undertegnede “RTX Telecom” erklærer herved, at følgende udstyr “RTX8111” overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch Hiermit erklärt “RTX Telecom”, dass sich das Gerät “RTX8111” in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti Käesolevaga kinnitab “RTX Telecom” seadme “RTX8111” vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, “RTX Telecom”, declares that this “RTX8111” is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español Por medio de la presente “RTX Telecom” declara que el “RTX8111” cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Η “RTX Telecom” ΔΗΛΩΝΕΙ ΟΤΙ “RTX8111” ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ. Français Par la présente “RTX Telecom” déclare que l’appareil “RTX8111” est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Íslenska Hér með lýsir “RTX Telecom” yfir því að “RTX8111” er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC. Italiano Con la presente “RTX Telecom” dichiara che questo “RTX8111” è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski Ar šo “RTX Telecom” deklarē, ka “RTX8111” atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. Lietuvių Šiuo “RTX Telecom” deklaruoja, kad šis “RTX8111” atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. Malti Hawnhekk, “RTX Telecom”, jiddikjara li dan “RTX8111” jik konforma mal-ħtiġijiet essenzjali u ma pro…

Text truncated - open the document above for the full version.

RTX Products Hong Kong Ltd. 11/F., CAC Tower, 165 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Tel : +852 2487 3718 Fax : +852 2480 6121 Web : www.rtx.hk E-mail : [email protected] RTX Telecom A/S: Stroemmen 6, DK-9400 Nørresundby Tel : +45 9632 2300 Fax : +45 9632 2310 Press Release For immediate release Announcement of Corporate Name Change Hong Kong, September 09, 2008 - We are delighted to announce that RTX Consumer Products Hong Kong Limited which is headed by Mr. Peter Christensen, the Vice President of RTX Telecom A/S, has changed its corporate name to RTX Products Hong Kong Limited effective September 09, 2008. The change of the English name does not affect the Chinese name of the Company, which will remain unchanged as “愛創域香港有限公司”. The Board considers the new name of the Company provides a better identification of the Company’s development, which signifies towards the ever-present goal of delivering innovative quality products for the professional business market. The change of the company name will not affect any of the business with our existing customers and the board believes it is in the interest of the Company and its Shareholders as a whole. For accounting purpose, please take note that all payments should be made according to our invoice instructions and all transactions in regarding to RTX Consumer Products Hong Kong Limited will change to RTX Products Hong Kong Limited. About RTX Telecom A/S RTX Telecom is an internationally operating group which develops, produces and sells products, equipment and technological solutions within wireless communication and other telecom products. With headquarters located in Noerresundby, Denmark, RTX Telecom A/S is a listed company in the Copenhagen stock exchange since year 2000. About RTX Products Hong Kong Limited With base of operations in Hong Kong, RTX Products comprises development, production and sale of wireless products to OEMs and professional business market. The product range covers corded telephones, cordless telephones, and other wireless communication products. The RTX Products business unit is headed by Vice President Peter Christensen. RTX Products Hong Kong Limited Peter Christensen Vice President RTX Products Hong Kong Ltd. 11/F., CAC Tower, 165 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Tel : +852 2487 3718 Fax : +852 2480 6121 Web : www.rtx.hk E-mail : [email protected] RTX Telecom A/S: Stroemmen 6, DK-9400 Nørresundby Tel : +45 9632 2300 Fax : +45 9632 2310 Press Contact: Fanny Wai, Marketing Manager Phone: +852 2487 3718 E-mail: [email protected] http://www.rtx.dk

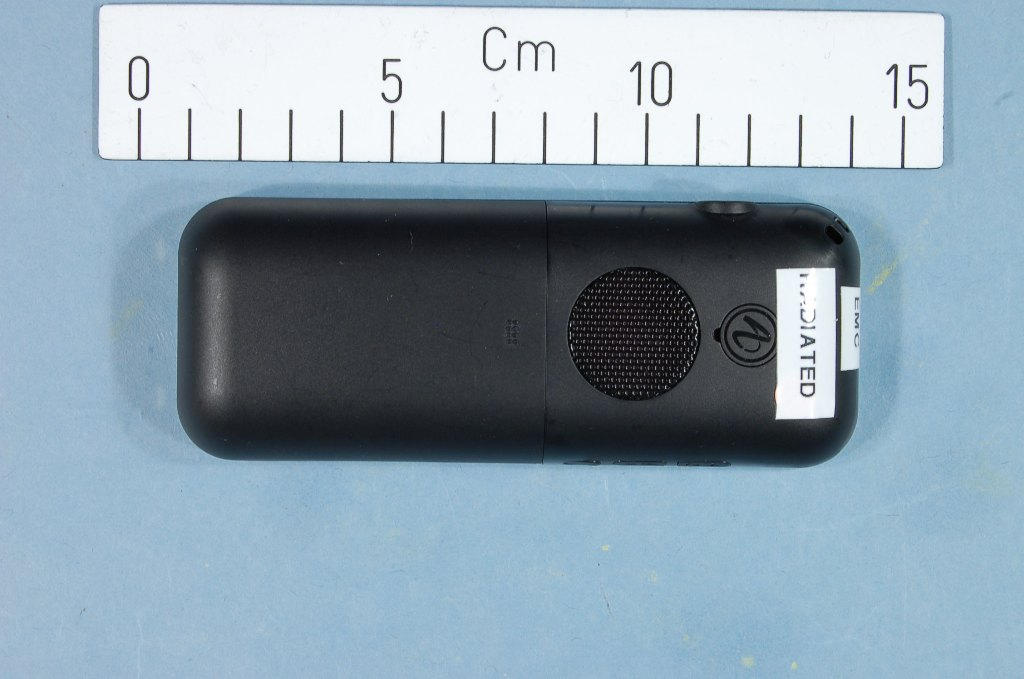

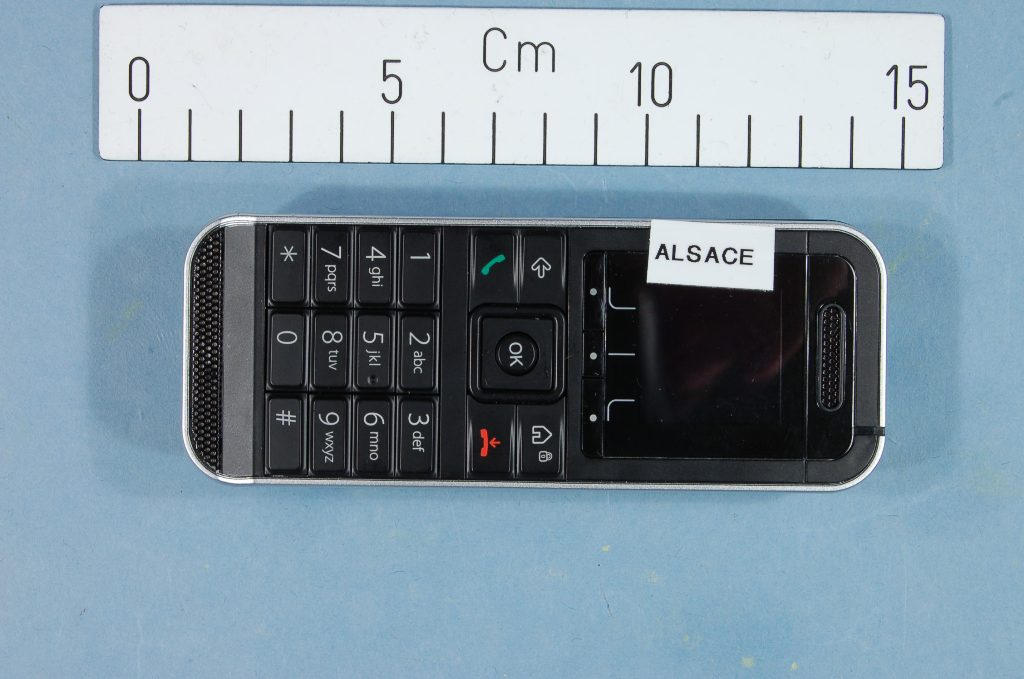

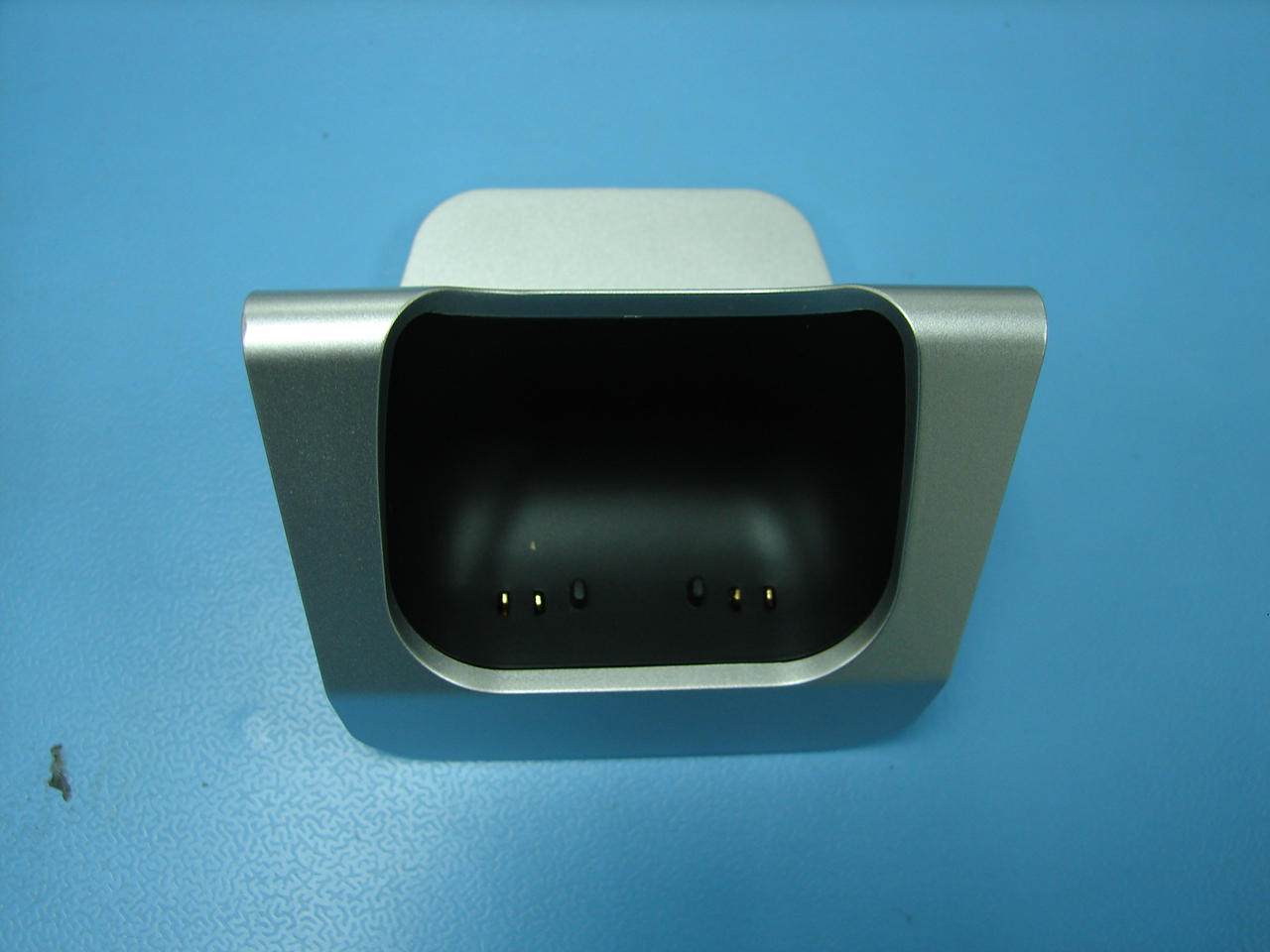

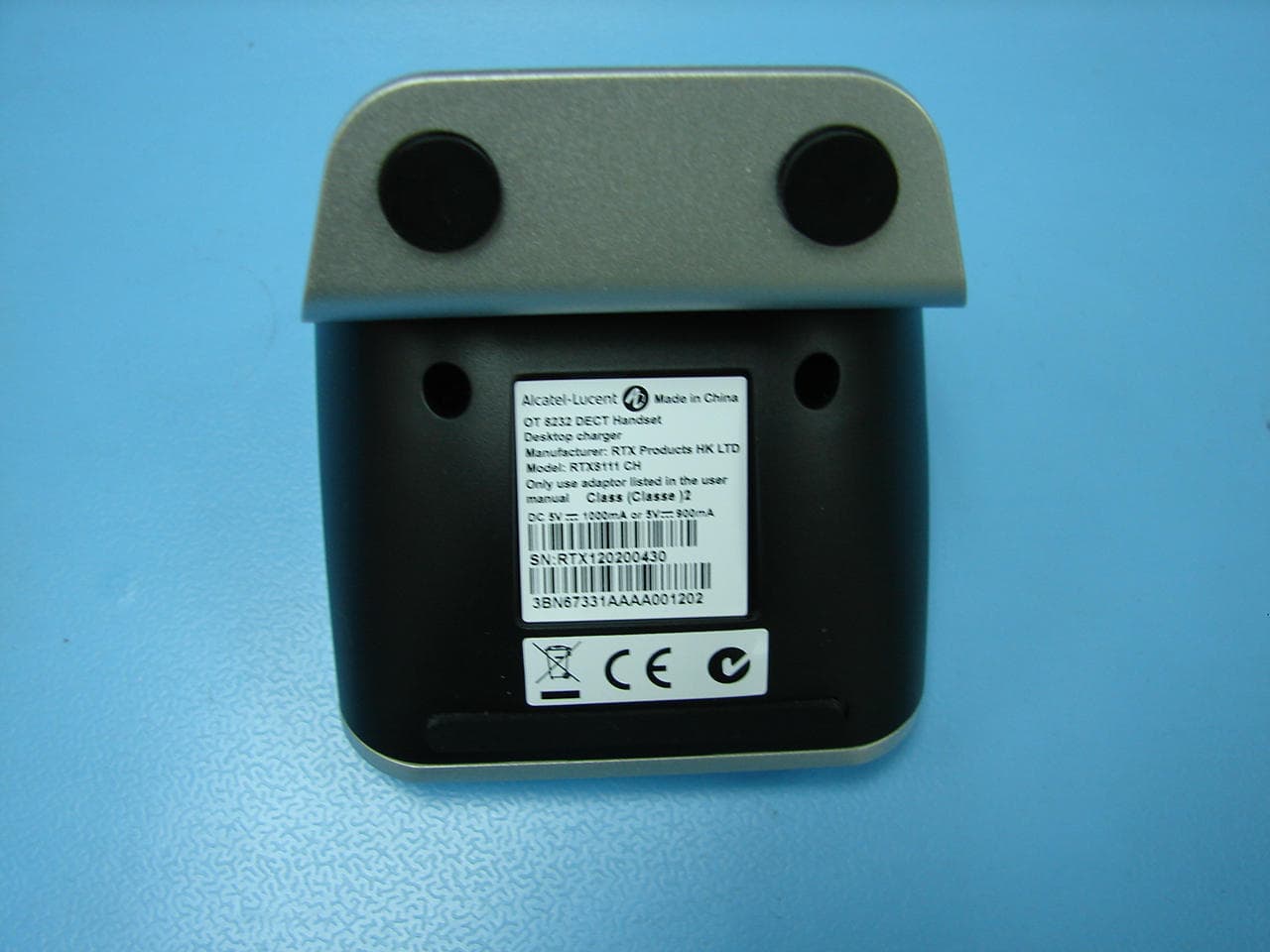

FCC ID: T7HCT8111 Project no.: 192331-11 Page 1 of 2 EXTERNAL PHOTOS – RTX8111 External Photos FCC ID: T7HCT8111 Project no.: 192331-11 Page 2 of 2 PHOTOS OF ACCESSORIES Charger

RTX8111 HS label 01-03-2012 3.7V 1100mAh HAC FCC ID: T7HCT8111 IC: 4979B-CT8111 SN: RTXYYWWXXXXX Size: 34 (W) x 49 (H) mm Material : PET Positioning: Inside the handset battery compartment Barcode format: code 128 Color: Black text on white background Serial number barcode: RTXYYWWXXXXX RTX(Supplier ID): fixed information YY: Manufacturing year (e.g. 2011=11, 2012=12) WW: Manufacturing week of the year XXXXX: Progressive and unique serial number range in decimal. (Note that the serial number must be unique even between different Alcatel items produce in the same week) IPEI barcode in hex format: 10 digits totally 1st digit: 0 (Fixed information) Complies with Part 68, Part 15 of FCC Rules and RSS-213 of Industry Canada. IPEI: 0XXXXXXXXX Model: RTX8111 Manufacturer: RTX Products HK Ltd. Made in China Barcode information: 0XXXXXXXXX (code 128) Barcode information: RTXYYWWXXXXX (code 128) Only use battery and adaptor listed in the user manual US: T7HW4NANCT8111 3.7V 1100mAh HAC FCC ID: T7HCT8111 IC: 4979B-CT8111 SN: RTXYYWWXXXXX Complies with Part 68, Part 15 of FCC Rules and RSS-213 of Industry Canada. IPEI: 0XXXXXXXXX Model: RTX8111 Manufacturer: RTX Products HK Ltd. Made in China Only use battery and adaptor listed in the user manual US: T7HW4NANCT8111 8232 DECT HS label Alcatel 50001138 Rev. D 29-02-2012 3.7V 1100mAh HAC Complies with Part 68, Part 15 of FCC Rules and RSS-213 of Industry Canada. Use only battery, charger power supply and USB port as described in the safety instruction sheet. Utiliser uniquement la batterie, le chargeur, l’alimentation et le port USB tels que décrits dans le manuel utilisateur et la fiche sé cu rité. SN: RTXYYWWXXXXX 3BN67330AAAA00YYWW Size: 34 (W) x 49 (H) mm Material : PET Positioning: Inside the handset battery compartment Barcode format: code 128 Color: Black text on white background Serial number barcode: RTXYYWWXXXXX RTX(Supplier ID): fixed information YY: Manufacturing year (e.g. 2011=11, 2012=12) WW: Manufacturing week of the year XXXXX: Progressive and unique serial number range in decimal. (Note that the serial number must be unique even between different Alcatel items produce in the same week) (The serial no. on handset label and giftbox label must be matched) ANV number: 3BN67330AAAA00YYWW 3BN67330AAAA: fixed information 00: RTX revision number (will advise once it needs to update) YY: Manufacturing year (e.g. 2011=11, 2012=12) WW: Manufacturing week of the year (The YYWW of serial number and ANV number must be matched) (The ANV number on handset label and giftbox label must be matched) ANV barcode: 3BN67330AA (fixed information, 10 digits only) IPEI barcode in hex format: 10 digits totally 1st digit: 0 (Fixed information) IPEI: 0XXXXXXXXX Model: 8232 DECT Handset Manufactured by: RTX Products HK LTD Made in China Barcode information: 0XXXXXXXXX (code 128) Barcode information: RTXYYWWXXXXX (code 128) Barcode information: 3BN67330AA (10 digits only, in code 128) under RTX8111 HS Battery ratings: FCC ID: T7HCT8111 IC: 4979B-CT8111 US: T7HW4NANCT8111 3.7V 1100mAh HAC Complies with Part 68, Part 15 of FCC Rules and RSS-213 of Industry Canada. Use only battery, charger power supply and USB port as described in the safety instruction sheet. Utiliser uniquement la batterie, le chargeur, l’alimentation et le port USB tels que décrits dans le manuel utilisateur et la fiche sécurité. SN: RTXYYWWXXXXX 3BN67330AAAA00YYWW IPEI: 0XXXXXXXXX Model: 8232 DECT Handset Manufactured by: RTX Products HK LTD Made in China under RTX8111 HS Battery ratings: FCC ID: T7HCT8111 IC: 4979B-CT8111 US: T7HW4NANCT8111

FCC ID: T7HCT8111 Project no.: 192331 Page 1 of 2 INTERNAL PHOTOS – RTX8111 Internal Photos FCC ID: T7HCT8111 Project no.: 192331 Page 2 of 2 Without Shielding

Product:96101211RTX8111 VLE DECT HSFALSE 3BN67330AA (OT 8232 DECT HS) Version:I LevelRTX PartnumberVersionDescriptionManufacturer 196201181IRTX8111 HS Elec. Assembly 2 70100050V7RBPCBA f. RTX8111 HS 3 02509999Capacitor N.M. 3 02501100Capacitor 10p NP0 50VMurata 3 02515100Capacitor 100nF X7R 10VMurata 3 02500100Capacitor 1p0 NP0 50VMurata 3 02487220Capacitor 22uF X5R 6.3vMurata 3 02500110Capacitor 1p1 NP0 50VMurata 3 02500270Capacitor 2p7 NP0 50VMurata 3 02556100Capacitor 1 uF 6.3V X5R HiCapMurata 3 02514100Capacitor 10nF X7R 25VMurata 3 02487100Capacitor 10uF X5R 6.3vMurata 3 02500301Capacitor 3p0 NP0 50VMurata 3 02500121Capacitor 1p2 NP0 50V ±0.1Murata 3 02418100Capacitor 100uF 6.3V Tantal LoAVX 3 02500181Capacitor 1P8 NP0 50V ±0.1Murata 3 02502100Capacitor 100p NP0 50VMurata 3 02502120Capacitor 120p NP0 50VMurata 3 02513100Capacitor 1n X7R 50VMurata 3 02555100Capacitor 100nF X5R 10VMurata 3 02486221Capacitor 2.2uF X5R 25VMurata 3 02487470Capacitor 47uF X5R 6.3VTDK 3 02512390Capacitor 390p X7R 50VMurata 3 02596220Capacitor 2.2uF X5R 10VMurata 3 02502470Capacitor 470pF NP0 50VMurata 3 07240120Coil, chip 1n2 LQG15HSMurata 3 02554220Capacitor 22nF X7R 16VMurata 3 02597101Capacitor 10uF X5R 6.3VMurata 3 04000016Diode High Speed BAS16NXP Semiconductor 3 04020037Diode Schottky barrier B130LAWDiodes Inc. 3 04020054Diode Schottky BAT54Philips 3 04230192LED Blue Top view Surface MounLighthouse Technology Co. 3 04230202LED Red/Green SMDKingbright 3 04320082Diode Ceramic ESD suppressor -Murata 3 04306405Diode PIN Bar 64-05WInfineon 3 04160010Diode Zener CZRQR5V6B-HFCOMCHIP 3 06000051LCD Display 1.44" TFT PH128128PowerTip Tech. Corp. 3 05353116IC SC14441 DECT BB/RF with QSPDialog semiconductor 3 05260165IC W25Q32BV QSPI Flash 32MbitWinbond 3 05160390IC CM7R151 2.7V low noise LDOCanaan Microelectronics 3 05160379IC XC6210A302PR 3.0V LDO RegulTorex 3 24080188Connector B-micro-usbAmphenol 3 24080184Connector Audio Jack w/4 ConduSee-Plus Industrial 3 24080169Battery Con pitch 3.1mm HeighAmphenol 3 07244181Coil, chip 18nH WirewoundMurata 3 01250000Resistor 0R0Rohm 3 07244221Coil, chip 22nHMurata 3 01300000Resistor 0R0Rohm 3 07091183Coil 1800R Chip Ferrite Bead BMurata 3 07240330Coil, chip 3n3 LQG15HSMurata 3 07243821Coil, chip 8n2Murata 3 07240470Coil, chip 4n7 LQG15HSMurata 3 07240680Coil, chip 6n8 LQG15HSMurata 3 07241270Coil, chip 27n LQG15HSMurata 3 07237221Coil, chip 22uH, 250mA, h=1.55Murata 3 12010042Microphone -42dB Omni DirectioDongson Technology 3 81902307PCB for Alsace VLE HS V7ASIA-TAC/Apex Circuit 3 01253470Resistor 4K7Rohm 3 01253220Resistor 2K2Rohm 3 01252270Resistor 270RRohm 3 01253100Resistor 1K0Rohm 3 01251100Resistor 10RRohm 3 01265220Resistor 220KRohm 3 01255120Resistor 120KRohm 3 01254150Resistor 15KRohm 3 01252180Resistor 180RRohm 3 01259999Resistor N.M. 3 01231390Resistor 39RRohm 3 01254470Resistor 47KRohm 3 01254120Resistor 12KRohm 3 01264560Resistor 56KRohm 3 01252100Resistor 100RRohm 3 01020010Resistor 0R1Rohm 3 01252560Resistor 560RRohm 3 01252470Resistor 470RRohm 3 01253560Resistor 5K6Rohm 3 01254100Resistor 10KRohm 3 25020152Shield Cover, RTX8111Cheer Fame 3 19000154Tact Switch MPTCFG-Q-T/RDiptronics 3 03040806Transistor Gen. Purpose PNP BCNXP Semiconductor 3 03120009Transistor NPN BC817-40Philips 3 03320008Transistor PBSS306PX low CE saNXP Semiconductor 3 03120016Transistor Gen. Purpose NPN MMON Semiconductor 3 03060001Transistor 2SK3018 Small SwitcRohm 3 03080857Transistor AF Dual PNP BC857SInfineon 3 13000049Crystal 10.368Mhz 3 terminal 3Commutek Electronics Co. 2 110000398ohm speaker, 28mm, WB, springDongson Technology 2 1202001332ohm Receiver,13mm,spring typDongson Technology 2 22000123Vertical antenna f.HS, RTX8111In-Tech 2 11030011Spring type Vibrator 2.7V 5.5Shicoh Motor (ShangHai) C 196201182CRTX8111 HS Mech. Assembly 2 25100907Front Housing, HS RTX8111Wellmei 2 25100908Rear Housing, HS RTX8111Wellmei 2 25100909Battery Door, HS RTX8111Wellmei 2 25100910Display lens, HS RTX8111Wellmei 2 25100911LCD bracket, HS RTX8111Wellmei 2 25100912Belt-clip, RTX8111Wellmei 2 25100913Belt-clip Bracket, RTX8111Wellmei 2 25100914Cover, Belt-clip, RTX8111Wellmei 2 25100915Cover, headset, HS RTX8111Wellmei 2 25100916Side Key, Vol, HS RTX8111Wellmei 2 25100917Side Key, Mute, HS RTX8111Wellmei 2 25100918LCD frame, HS, RTX8111Wellmei 2 25100919Deco bar, HS, RTX8111Wellmei 2 25100920Deco ring, receiverm HS RTX811Wellmei 2 25100921Light guide, LED, HS RTX8111Wellmei 2 25100922Bracket, charge, HS RTX8111Wellmei 2 25200042Rubber Seal, spk, HS, RTX8111YOU EAL (H:K:) LTD 2 25500037Keyset, HS RTX8111YOU EAL (H:K:) LTD 2 25050196Key metal dome sheet, HS RTX81YOU EAL (H:K:) LTD 2 25990383Cushion, Poron, RTX8111EMS 2 25050206Metal Contact Pin A, HS RTX811Cheer Fame 2 25050207Metal Contact Pin B, HS RTX811Cheer Fame 2 25050200Metal Mesh, speaker HS RTX8111EMS 2 25050201Metal Mesh, receiver HS RTX811Dongson Technology 2 25050202Metal Mesh, mic HS RTX8111Dongson Technology 2 25050208Belt-clip shaft, RTX8111In-Tech 2 25050209Belt-clip Spring, RTX8111In-Tech 2 25990369Felt, speaker, RTX8111Brady 2 25990370Felt, receiver, RTX8111Brady 2 25990371Felt, Mic RTX8111In-Tech 2 25990373Cushion, mic, RTX8111In-Tech 2 25990374Adhesive, HS frame, RTX8111In-Tech 2 25990375Adhesive, HS deco, RTX8111In-Tech 2 25990376Adhesive, HS Lens, RTX8111In-Tech 2 25032010Screw st ph phil D2.0 x 7l btEMS 2 25990317Cushion for speaker, RTX8620EMS 2 25990392Cushion poron, 40x2xt0.5EMS 2 25990393HS tape cover, RTX8111EMS 196201183BRTX8111 HS Packing Assembly 2 10000058Batt 1100mAH Li 10K NTCDRN 2 50001138RTX8111 HS label ALUEMS 2 60080348Giftbox HS Panthom 2 50001140RTX8111 HS Insert Card-1EMS 2 50001176RTX8111 HS Insert Card-2EMS 2 50001141RTX8111 HS GB label ALUEMS 2 60080858Polybag for Handset RTX8050EMS 2 60080860Polybag for Belt Clip cover 2EMS 2 60080028Outerbox for Phantom 2 50001139RTX8111 Outerbox label ALUEMS 2 50001143RTX8111 Regul sheet ALUEMS 2 50001142RTX8111 SN carton label ALUEMS 2 50001150RTX8111 HS static filmEMS…

Text truncated - open the document above for the full version.

The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-01. SAR_Report_Nemko_60320_6120010_FCC_DECT_Plots_RTX8111 Page 1 of 16 Appendix for the Report Dosimetric Assessment of the Portable Device RTX8111 (FCC ID: T7HCT8111) (IC: 4979B-CT8111) According to the FCC Requirements SAR Distribution Plots January 26, 2012 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer RTX Products Hong Kong Ltd. 11/F, CAC Tower, 165 Hoi Bun Road Kwun Tong, Kowloon Hong Kong The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. SAR_Report_Nemko_60320_6120010_FCC_DECT_Plots_RTX8111 Page 2 of 16 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Table of Contents 1 SAR DISTRIBUTION PLOTS, HEAD MEASUREMENTS, ANTENNA 1 ................................................ 3 2 SAR DISTRIBUTION PLOTS, HEAD MEASUREMENTS, ANTENNA 2 ................................................ 7 3 SAR DISTRIBUTION PLOTS, BODY MEASUREMENTS, ANTENNA 1 ............................................. 11 4 SAR DISTRIBUTION PLOTS, BODY MEASUREMENTS, ANTENNA 2 ............................................. 13 5 SAR Z-AXIS SCANS (VALIDATION) ......................................................................................................... 15 6 SAR Z-AXIS SCANS (MEASUREMENTS) ................................................................................................ 16 SAR_Report_Nemko_60320_6120010_FCC_DECT_Plots_RTX8111 Page 3 of 16 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo 1 SAR Distribution Plots, Head Measurements, Antenna 1 Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: RTX8111_yplm_1_ant1.da4 DUT: RTX; Type: 8111; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.45 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.07, 8.07, 8.07); Calibrated: 26.09.2011 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 21.09.2011 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Left/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.078 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.99 V/m; Power Drift = 0.032 dB Peak SAR (extrapolated) = 0.122 W/kg SAR(1 g) = 0.073 mW/g; SAR(10 g) = 0.041 mW/g Maximum value of SAR (measured) = 0.079 mW/g Fig. 1: SAR distribution for DECT US, antenna 1, channel 2, cheek position, left side of head (January 19, 2012; Ambient Temperature: 21.5°C; Liquid Temperature: 21.3°C). SAR_Report_Nemko_60320_6120010_FCC_DECT_Plots_RTX8111 Page 4 of 16 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: RTX8111_yplm_2_ant1.da4 DUT: RTX; Type: 8111; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.45 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.07, 8.07, 8.07); Calibrated: 26.09.2011 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 21.09.2011 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tilted Left/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.040 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.94 V/m; Power Drift = 0.037 dB Peak SAR (extrapolated) = 0.064 W/kg SAR(1 g) = 0.038 mW/g; SAR(10 g) = 0.021 mW/g Maximum value of SAR (measured) = 0.042 mW/g Fig. 2: SAR distribution for DECT US, antenna 1, channel 2, tilted position, left side of head (January 19, 2012; Ambient Temperature: 21.5°C; Liquid Temperature: 21.3°C). SAR_Report_Nemko_60320_6120010_FCC_DECT_Plots_RTX8111 Page 5 of 16 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: RTX8111_yprm_1_ant1.da4 DUT: RTX; Type: 8111; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.45 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.07, 8.07, 8.07); Calibrated: 26.09.2011 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 21.09.2011 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Right/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.056 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.51 V/m; Power Drift = 0.007 dB Peak SAR (extrapolated) = 0.088 W/kg SAR(1 g) = 0.055 mW/g; SAR(10 g) = 0.033 mW/g Maximum value of SAR (measured) = 0.060 mW/g Fig. 3: SAR distribution for DECT US, antenna 1, channel 2, cheek position, right side of head (January 19, 2012; Ambient Temperature: 21.5°C; Liquid Temperature: 21.3°C). SAR_Report_Nemko_60320_6120010_FCC_DECT_Plots_RTX8111 Page 6 of 16 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: RTX8111_yprm_2_ant1.da4 DUT: RTX; Type: 8111; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f…

Text truncated - open the document above for the full version.

The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-01. Cal_D1900V2_SN5d051_Sep2011 Page 1 of 8 Calibration Certificate Certificate No: Cal_D1900V2_SN5d051_Sep2011 Object: D1900V2 SN: 5d051 Date of Calibration: September 30, 2011 Next Calibration: September 2013 Object Condition: In Tolerance Calibration Equipment used: Test Equipment Serial Number Last calibration Calibrated by Next calibration Powermeter E4416A GB41050414 Dec 10 Agilent Techn. (ISO/IEC 17025, 1-1784162174-1) Dec 12 Power Sensor E9301H US40010212 Dec 10 Agilent Techn. (ISO/IEC 17025, 1-1784041195-1) Dec 12 Powermeter E4417A GB41050441 Dec 10 Agilent Techn. (ISO/IEC 17025, 1-1674038198-1) Dec 12 Power Sensor E9301A MY41495584 Dec 10 Agilent Techn. (ISO/IEC 17025, 1-1784041307-1) Dec 12 Network Analyzer E5071C MY46103220 Aug 11 Rohde& Schwarz (14967-DKD-00201- 2009-08) Aug 12 Reference Probe ET3DV6 SN 1669 Feb 11 SPEAG, No ET3- 1669_Feb09 Feb 12 DAE3 SN 335 Feb 11 SPEAG, No DAE3- 335_Feb09 Feb 12 Cal_D1900V2_SN5d051_Sep2011 Page 2 of 8 Calibration is performed according the following standards: IEEE 1528-2003 "IEEE Recommended Practice for Determining the Peak Spatial - Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communication Devices: Measurement Technique", December 2003 EN 62209-1 "Procedure to measure the Specific Absorption Rate (SAR) for hand - held devices used in close proximity to the ear (frequency range of 300 MHz to 3GHz)", March 2007 Federal Communications Commission Office of Engineering & Technologies (FCCOET) "Evaluating Compliance wit FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields; Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions", Supplement C (Edition 01-01) to Bulletin 65 Additional Documentation: DASY 4 System Handbook prepared by: reviewed by: Alexander Rahn André van den Bosch test engineer quality assurance engineer 08/ABo Cal_D1900V2_SN5d051_Sep2011 Page 3 of 8 Measurement Conditions DASY Version: Dasy 4; V4.7 Phantom: SAM Phantom 1340 Distance Dipole Center – TSL: 10mm With spacer Zoom Scan res. dx, dy, dz = 5mm Frequency: 1900 MHz ± 1MHz Head TSL Parameters Temperature Permittivity Conductivity Nominal Head TSL Parameters 22.0 40.0 1.40 Measured Head TSL Parameters 22.8 39.4 ± 6% 1.43 S/m ± 6% SAR Result with Head TSL Averaged over 1g SAR measured 250mW input power9.53 mW/g SAR normalized normalized to 1W 38.12 mW/g SAR for nominal Head TSL parameters normalized to 1W 37.51 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250mW input power4.93 mW/g SAR normalized normalized to 1W 19.72 mW/g SAR for nominal Head TSL parameters normalized to 1W 19.52 mW/g ± 16.5 % (k=2) Cal_D1900V2_SN5d051_Sep2011 Page 4 of 8 Body TSL Parameters Temperature Permittivity Conductivity Nominal Body TSL Parameters 22.0 53.30 1.52 Measured Body TSL Parameters 23.3 52.10 ± 6% 1.54 S/m ± 6% SAR Result with Body TSL Averaged over 1g SAR measured 250mW input power 9.66 mW/g SAR normalized normalized to 1W 38.64 mW/g SAR for nominal Body TSL parameters normalized to 1W 38.14 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250mW input power 5.10 mW/ g SAR normalized normalized to 1W 20.40 mW/g SAR for nominal Body TSL parameters normalized to 1W 20.23 mW/g ± 16.5 % (k=2) General Antenna Parmeters Antenna Parameters with Head TSL Impedance, transformed to feed point 48.4 jΩ - 0.7 jΩ Return Loss -35.2 dB Antenna Parameter with Body TSL Impedance, transformed to feed point 52.8 jΩ - 1.8 jΩ Return Loss -29.9 dB After long term use with 100W radiated power, only a slight warming of the dipole near the feedpoint can be measured. The dipole is made of standard semigrid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC signals. Additional EUT Data Manufactured by: SPEAG Manufactured on: January 15, 1998 Cal_D1900V2_SN5d051_Sep2011 Page 5 of 8 SAR Result with Head TSL Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: 300911_y_1669.da4 DUT: Dipole 1900 MHz SN: 5d051; Type: D1900V2; Serial: D1900V2 - SN5d051 Program Name: System Performance Check at 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.12, 5.12, 5.12); Calibrated: 21.02.2011 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 22.02.2011 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.4 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.3 V/m; Power Drift = -0.025 dB Peak SAR (extrapolated) = 17.0 W/kg SAR(1 g) = 9.53 mW/g; SAR(10 g) = 4.93 mW/g Maximum value of SAR (measured) = 10.7 mW/g Cal_D1900V2_SN5d051_Sep2011 Page 6 of 8 SAR Result with Body TSL Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: 300911_y_166…
