T7HCT8171DECT-HiBAN Cordless Phone

User Guide Cordless phone Phonak DECT 2 This user guide is valid for Phonak DECT CP1 Phonak DECT II Hearing aid compatibility This product uses a dedicated wireless link to Phonak hearing aids. Please ask your hearing care professional about your hearing aids compatibility. The compatibility can easily be checked using the demo mode ( Chapter 3.8). 3 1. Welcome 7 2. Getting to know the phone 8 2.1 Packaging content 8 2.2 How the phone works 9 2.3 Descriptions of the device 10 3. Getting started 15 3.1 Setting up the power supply 15 3.2 Connecting the base 16 3.3 Inserting the battery 17 3.4 Charging the handset 18 3.5 Changing the display language 19 3.6 Setting date and time 20 3.7 Setting the location 21 3.8 Testing the connection to your hearing aids 22 3.9 Transferring existing contacts 24 Contents 4 4. Everyday use 26 4.1 Making and ending a call 26 4.2 Muting the handset microphone 28 4.3 Making a call with Phonak hearing aids 28 4.4 Setting the volume 31 4.5 Setting ringtones 32 4.6 Switching the handset on and o‡ 34 4.7 Entering a contact 35 4.8 Looking up contacts 38 4.9 Finding a lost handset 39 4.10 Using the caller list 41 4.11 Using the Inbox menu 42 4.12 Using the answerphone “Voice box” 42 4.13 Additional features when using the phone 44 5. Handset settings 45 5.1 Locking the keypad 46 5.2 Switching ring tones on / o‡ 47 5.3 Other contact list functions 48 Contents 5 5.4 Other handset settings 50 5.5 Alarm clock function 53 5.6 Attaching the belt clip 56 5.7 Signal strength indicator 57 5.8 Eco-mode 58 5.9 Battery status display 59 5.10 Multiple handsets for one base 60 5.11 Using an existing base 63 5.12 Changing the battery 64 6. PIN-codes and resetting your settings 65 6.1 Changing PIN codes 65 6.2 Resetting your settings 65 6.3 Resetting the system PIN 66 7. Troubleshooting 67 8. Information on product safety 70 6 9. Service warranty 72 9.1 Local warranty 72 9.2 International warranty 72 9.3 Warranty limitation 73 10. Compliance information 74 11. Information and explanation of symbols 84 12. Important safety information 87 Contents 7 The Phonak DECT cordless phone is a quality product developed by Phonak, one of the world’s leading companies in the ž eld of hearing technology. Please read this user guide thoroughly in order to be able to benež t from all the possibilities this product can o‡ er. If you have any questions, please consult your hearing care professional or go to www.phonak.com/dect Phonak – life is on www.phonak.com 1. Welcome 8 2.1 Packaging content 2. Getting to know the phone Removable belt clip Battery cover Rechargeable battery Handset Power supply with adapters Phone cable RJ11 with adapters DECT base and charger (“Base“) CH D EU US / CAN 9 2.2 How the phone works This telephone is used like any other cordless phone. In addition, the integrated wireless Phonak transmission technology makes telephoning with Phonak hearing aids much easier. The phone signal is sent wirelessly to both hearing aids in digital quality. If you hold the handset close to your head, the hearing aids will automatically switch to the phone program. Of course, you can also use the phone without hearing aids. 10 2.3 Descriptions of the devices The base The base is connected to the telephone line and also serves as the charger for the handset. The default PIN code for the base is “0000”. The base and the handset are pre-paired.    Charging contacts  Power supply input  Paging and pairing button  Analog phone line input 2. Getting to know the phone 11 The handset To change the display language, follow the instructions in Chapter 3.5.                  12  Receiver  Volume up / down  Volume boost Press 2 sec. = Hearing aid connectivity test (demo mode)  Hands-free on / o‡  Talk / repeat call  Press and hold 2 sec. = Dial voicemail number Press and hold 2 sec. = All ring tones o‡ / on Microphone openings Press and hold 2 sec. = Dial international prežx “+”  Press and hold 2 sec. = Keypad lock on / o‡ Number keypad  Navigation keys  End call / back (one menu level up) Press and hold 2 sec. in standby mode = handset on / o‡  Function key  Display keys  Context menu (use the display keys to select functions depending on the display)  Display  3.5 mm headset socket Indicator light 2. Getting to know the phone 13 Display symbols in standby mode Display symbols if call is in progress The content of the display varies depending on the settings.    Time  Date  Alarm clock on  Battery and charging state  Ringtone o‡  Keypad locked Handset name (visible if more than one handset is used with the same base) Signal strength from base     Context dependent functions  Elapsed time of call  Phone number or name  Active call indicator  Boost mode on  Handset microphone muted Hands free on 14 Menu Press to enter the menu and use the arrow keys to navigate. Press to go back. Contact Chapter 4.7 Chapter 5.4 Chapter 3.8 Chapter 4.5 Chapter 5.5 Chapter 4.1 Chapter 4.12 CallsVoiceboxAlarm clock Audio- settings Hearing aid Settings 2. Getting to know the phone 2. a. b. 3. USEUUK 15 3. Getting started 3.1 Setting up the power supply 1. Select your power adapter. 2. Insert the top round end of the adapter in to the round corner of the power supply. 3. Click the bottom end of the adapter in to lock it into place. Make sure the adapter is securely locked. To remove the power adapter: a. Pull back the tab on the power supply. b. Pull the adapter upwards to remove it. D 2. 1. CH 110 / 220 V Phone line 16 3.2 Connecting the base Put the base on a non-slip, ¤at surface. 1. Plug the mini-USB plug into the base and the power supply into a power outlet. 2. Connect the phone line input of the base with the analog phone socket using the phone cable. Use the appropriate phone line adapter if required. The phone only works when the power supply is plugged into the base and a power socket. 3. Getting started ”click“ ”click“ 1. 2. 17 3.3 Inserting the batte…

Text truncated - open the document above for the full version.

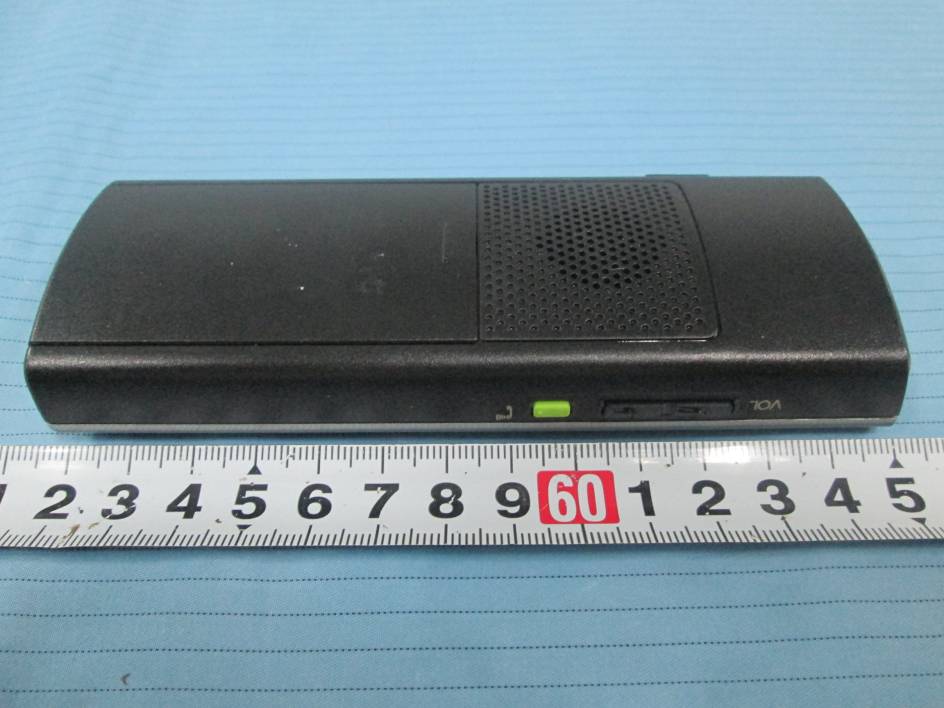

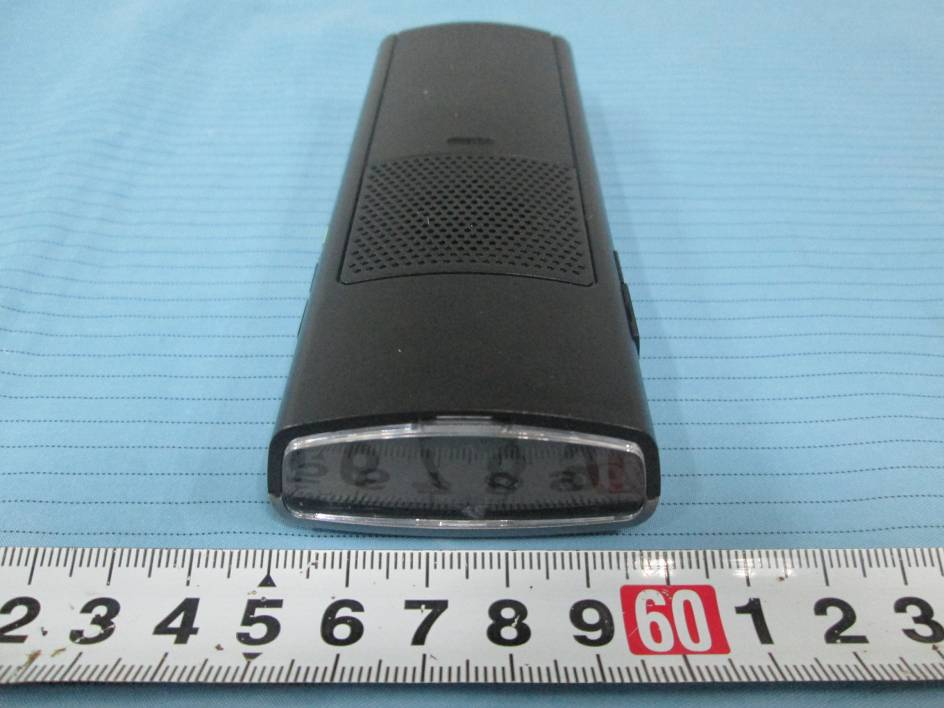

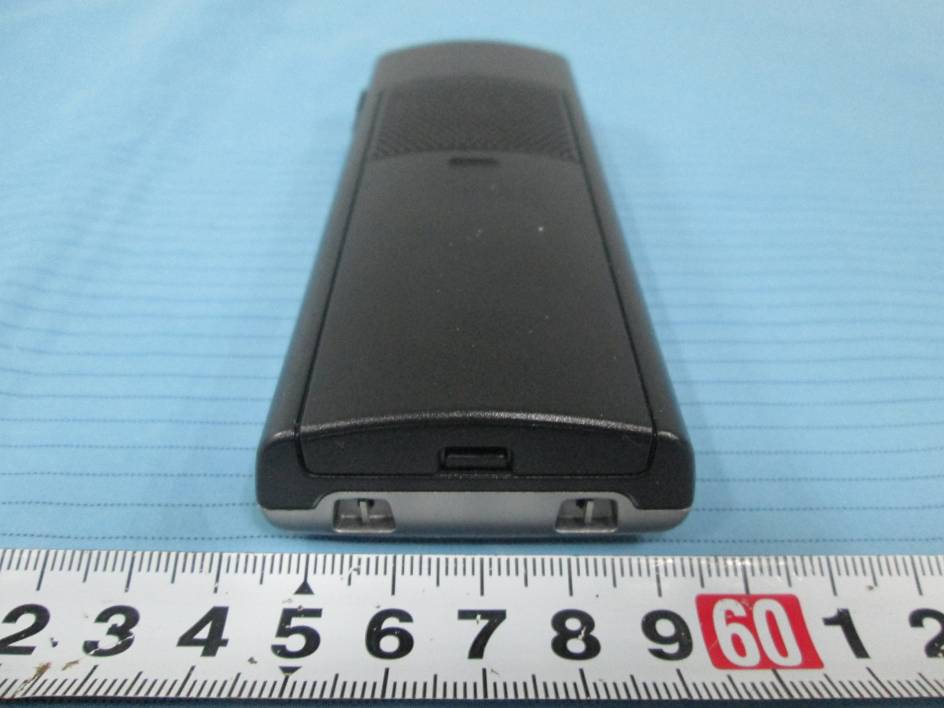

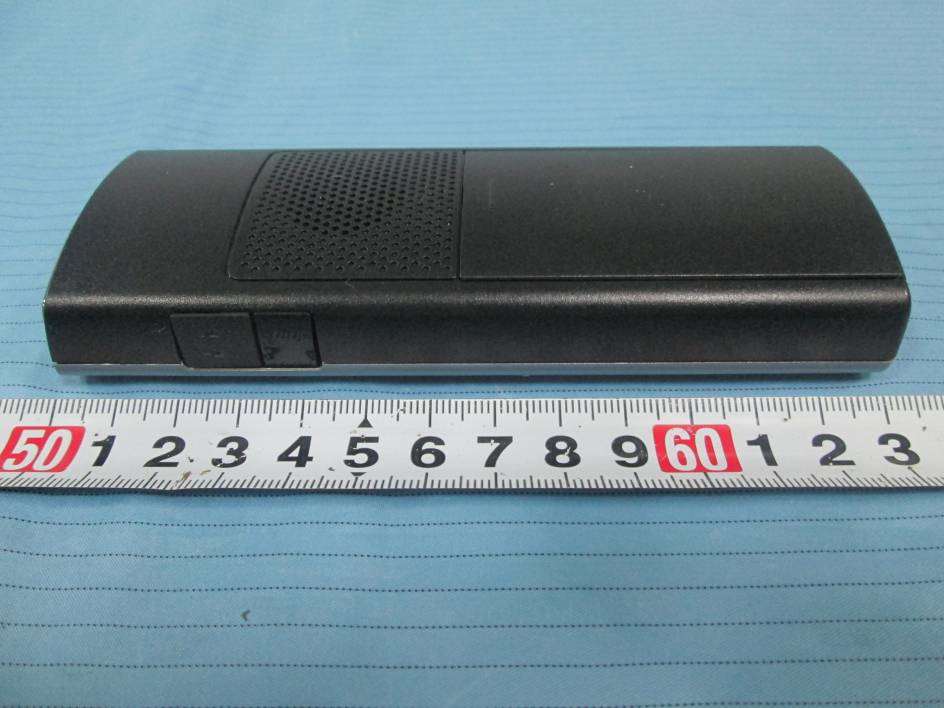

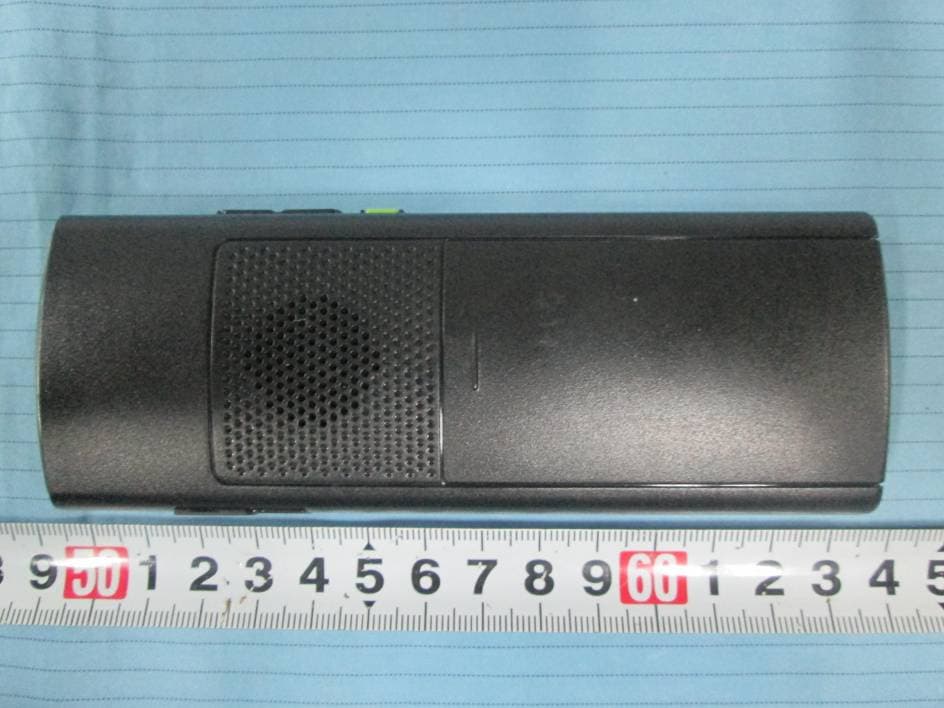

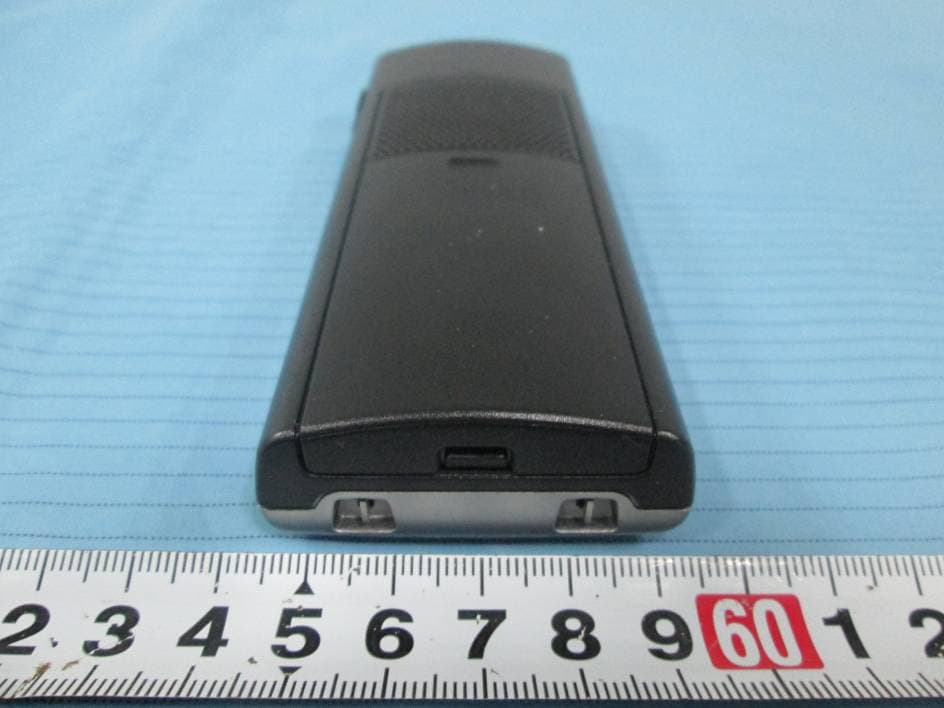

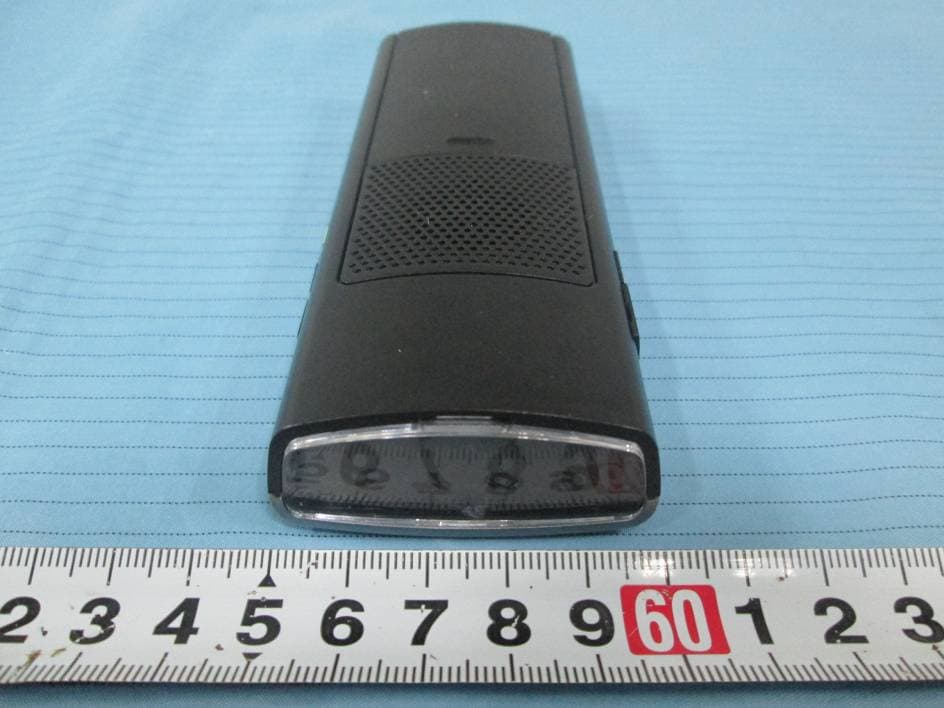

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left View EUT – Right View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT –Battery off View EUT – Cover off View EUT – Main Board Top View EUT – Main Board Top Shielding off View Antenna EUT – Main Board Bottom View 1 EUT – Main Board Bottom View 2 EUT –Antenna View EUT – Battery View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15C TEST REPORT For RTX Hong Kong Ltd. 8/F Corporation Square, 8 Lam Lok Street, Kowloon Bay, Hong Kong FCC ID: T7HCT8171 Report Type: Original Report Product Type: DECT-HiBAN Cordless Phone (Handset Unit) Test En gineer: Gardon Zhang Re port Number: RSZ140826003-00PPBA1 Re port Date: 2014-09-17 Reviewed B y: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ140826003-00PPBA1 FCC Part 15C Page 2 of 10 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 3 SYSTEM TEST CONFIGURATION .......................................................................................................................... 4 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 4 EUT EXERCISE SOFTWARE .......................................................................................................................................... 4 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 4 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 4 SUMMARY OF TEST RESULTS ............................................................................................................................... 5 FCC §15.203 - ANTENNA REQUIREMENT ............................................................................................................. 6 APPLICABLE STANDARD .............................................................................................................................................. 6 FCC §15.209 - SPURIOUS EMISSIONS .................................................................................................................... 7 APPLICABLE STANDARD .............................................................................................................................................. 7 MEASUREMENT UNCERTAINTY .................................................................................................................................... 7 EUT SETUP .................................................................................................................................................................. 7 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP ................................................................................................ 8 TEST PROCEDURE ........................................................................................................................................................ 8 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 8 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................... 8 TEST DATA .................................................................................................................................................................. 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ140826003-00PPBA1 FCC Part 15C Page 3 of 10 GENERAL INFORMATION Product Description for Equipment under Test (EUT) The RTX Hong Kong Ltd.’s product, model number: Phonak DECT II Cordless phone US/CAN (FCC ID: T7HCT8171) or the "EUT" in this report was a handset unit of DECT-HiBAN Cordless Phone, which was measured approximately: 13.5 cm (L) x 5.1 cm (W) x 2.1 cm (H), rated with input voltage: DC 3.7V battery. * All measurement and test data in this report was gathered from production sample serial number: 1408195 (Assigned by BACL, Shenzhen). The EUT supplied by the applicant was received on 2014-08-26. Objective This report is prepared on behalf of RTX Hong Kong Ltd. in accordance with Part 2-Subpart J, Part 15- Subparts A, B and C of the Federal Communication Commissions rules. The tests were performed in order to determine the compliance of EUT with FCC Part 15, Subpart C, and section 15.203 and 15.209 rules. Related Submittal(s)/Grant(s) FCC part 15D base unit with FCC ID: T7HX8170 has been granted on 2013-07-12. FCC part 15D handset unit with FCC ID: T7HCT8171. Test Methodology All measurements contained in this report were conducted with ANSI C63.4-2009, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. …

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission View (9 kHz to 30 MHz) Radiated Emission View (30 MHz to 1 GHz)
