T7HCT8234Cordless DECT Handset

8254 DECT Handset OpenTouch™ Suite for MLE User Manual 8AL90387ENAAed0a – 1952 Error! Use the Home tab to apply Titre 1 to the text that you want to appear here. 8AL90387ENAAed0a 2 /60 This document describes the services offered by the 8254 DECT Handset connected to an OmniPCX Enterprise system. Your phone can be connected to an IBS or an IP-Dect radio base station depending on the company telephone system. Some features depend on the type of radio base station you are connected to. The main document describes features when connected to an IBS radio base station. A specific chapter is used to describe features when connected to an IP-Dect radio base station. Operating conditions This approved DECT telephone is intended to be used with an Alcatel-Lucent cordless PABX. The following conditions must be respected, notably concerning the use of radioelectric frequencies: • Changes or modifications to the equipment not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. • To limit the risk of interference, people with pacemakers must keep the wireless telephone away from their equipment (minimum distance of 15 cm/6 inches). • It is recommended to follow the standard acceptance procedures before using this equipment in human safety critical areas (hospitals...). • DECT equipment can only be used to establish links between fixed points if these links are temporary. • The conditions of access to a DECT equipment telepoint network shall be stipulated by contract with the operator of the authorized telepoint network concerned. • Do not expose your telephone to severe conditions (rain, sea air, dust, etc.). • Switch off the telephone before changing the battery. • You must not switch on or use your telephone near gas or inflammable liquids. • The headset includes magnetic elements that may attract sharp metallic objects. • There is a danger of explosion if the battery is replaced incorrectly. Use only recommended battery: Alcatel-Lucent 3BN67332AA (Dongguan DRN New Energy Co. Ltd. RTR001FXX - Li-ion 3.7V 1100mAh 4.1Wh). • The mains power socket used must be close to the charger/holder and easily accessible, so that it can be used as an 'on/off' facility. • Charge the battery for about 6 hours before initial use. • You can charge the device by connecting it to a USB 2.0 port (type A). • To prevent possible hearing damage, do not listen at high volume levels for long periods... The labels and icons presented in this document are not contractually binding and may be modified without prior warning. The labels and icons displayed on your phone depend on the system to which you are connected and may differ from those specified in this document. Error! Use the Home tab to apply Titre 1 to the text that you want to appear here. 8AL90387ENAAed0a 3 /60 1 Getting to know your telephone 6 1.1 Phone components 6 1.2 Technical details of the phone 6 1.3 Technical details of the charger 7 1.4 Phone description 8 1.5 Status icons 10 1.6 MENU icons 11 1.7 Call icons 12 1.8 Accessing the MENU and navigating 13 2 Getting started 14 2.1 First start 14 2.2 Installing the battery in the telephone 15 2.2.1 Place or remove the battery in the telephone 15 2.3 Charging your telephone battery 16 2.3.1 Charging the battery on a single charger 16 2.3.2 Charging the battery on a dual charger 16 2.3.3 LED 17 2.3.4 Autonomy of your telephone 17 2.4 Switching on your telephone 17 2.5 Switching off your telephone 17 3 Using your telephone 18 3.1 Identify the terminal you are on 18 3.2 Messaging portal 18 3.3 Call log 19 3.4 Making a call 20 3.5 Calling from your personal directory 20 3.6 Calling your caller by name (company directory) 21 3.7 Receiving a call 21 3.8 Redialing 22 3.9 Requesting automatic callback if internal number is busy 22 3.10 Sending text message if internal number is busy 22 3.11 Speaking on the loudspeaker of a busy internal contact 23 4 During a conversation 24 4.1 Make a second call 24 4.2 Receiving a second call 25 4.3 Switching between two calls (Broker call) 25 4.4 Transferring a call 25 4.5 Three-way conference with internal and/or external contacts (conference) 26 4.6 Placing an outside call on hold (parking) 26 4.7 Activate/deactivate voice frequency 27 5 Sharing 28 5.1 Answering the general bell 28 5.2 Call pick-up 28 5.3 Hunting groups 29 5.3.1 Hunting group call 29 5.3.2 Temporary exit from your hunting group / Return into your group 29 5.4 Sending a text message to an internal contact 30 5.5 Send a voice message copy 30 5.6 Sending a recorded message to a number or a distribution list 31 6 Keep in touch 32 6.1 Forwarding calls to another number (immediate forward) 32 6.2 Different types of diversions / Example of diversion on busy 32 6.2.1 Different types of diversions 32 6.2.2 Example of diversion on busy 33 Error! Use the Home tab to apply Titre 1 to the text that you want to appear here. 8AL90387ENAAed0a 4 /60 6.3 Diverting calls to your voice mailbox 33 6.4 Consulting your voice mailbox 33 6.5 Display an absence message 34 6.6 Program your associate number 34 6.7 Define an overflow number 35 6.8 Cancelling all forwards 36 6.9 Consulting text messages 36 7 Programming your telephone 37 7.1 Identify the terminal you are on 37 7.2 Initializing your voice mailbox 37 7.3 Change your voice mailbox password 38 7.4 Adjusting the audio functions 38 7.4.1 Choose the tune 38 7.4.2 Adjusting the ringer volume 38 7.4.3 You can adjust the buzzer/ringer mode according to your needs 39 7.5 Activating headset mode 39 7.6 Adjusting your telephone functions 39 7.7 Selecting language 40 7.8 Programming your personal directory 41 7.9 Modifying a record in the personal directory 41 7.10 Erase a record from the personal directory 42 7.11 Programming an appointment reminder 42 7.12 Locking your telephone 43 7.13 Modifying your personal code 44 8 Registering the telephone 45 8.1 Registering the telephone on a system for the first time 45 8.2 Registering t…

Text truncated - open the document above for the full version.

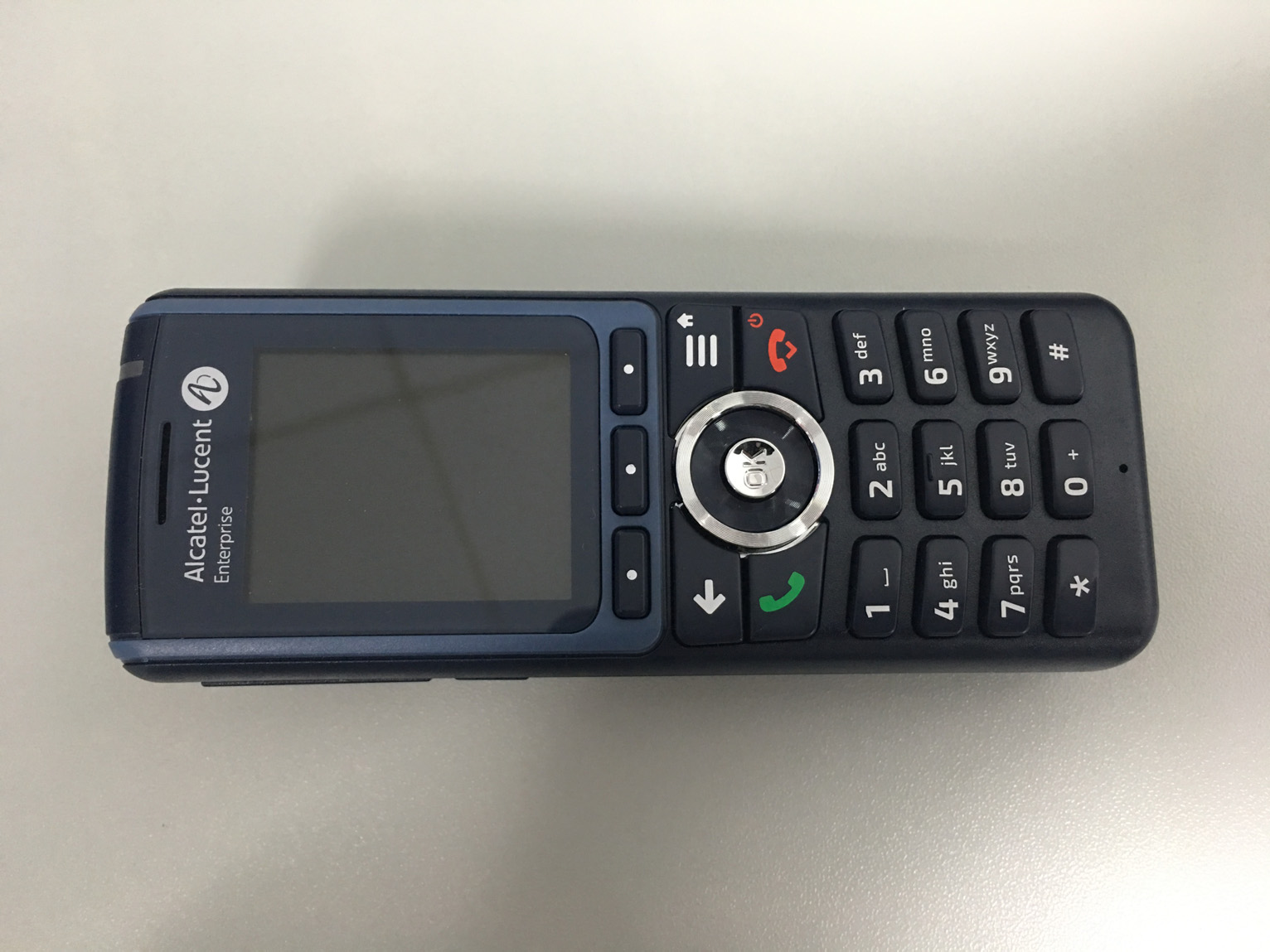

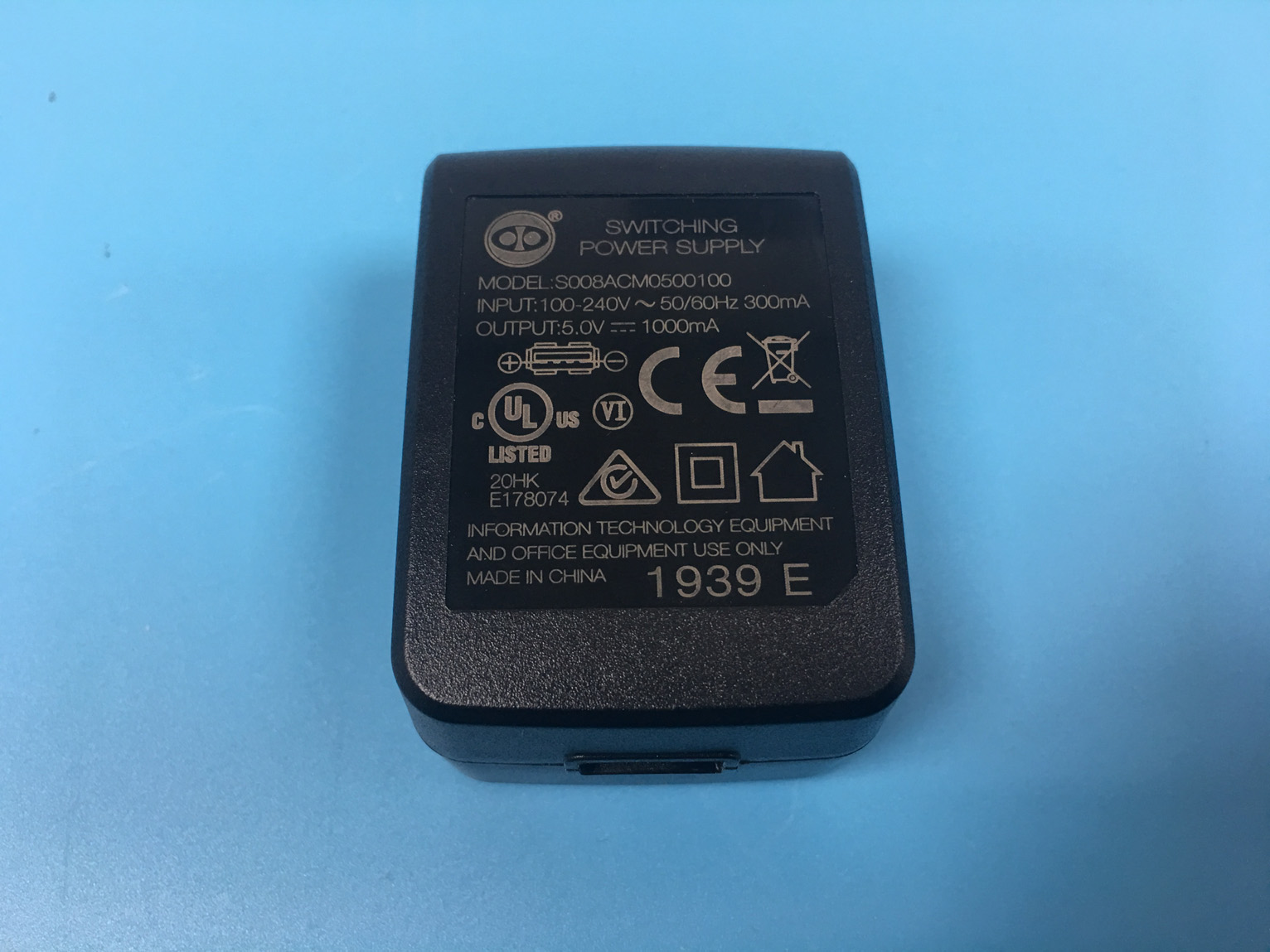

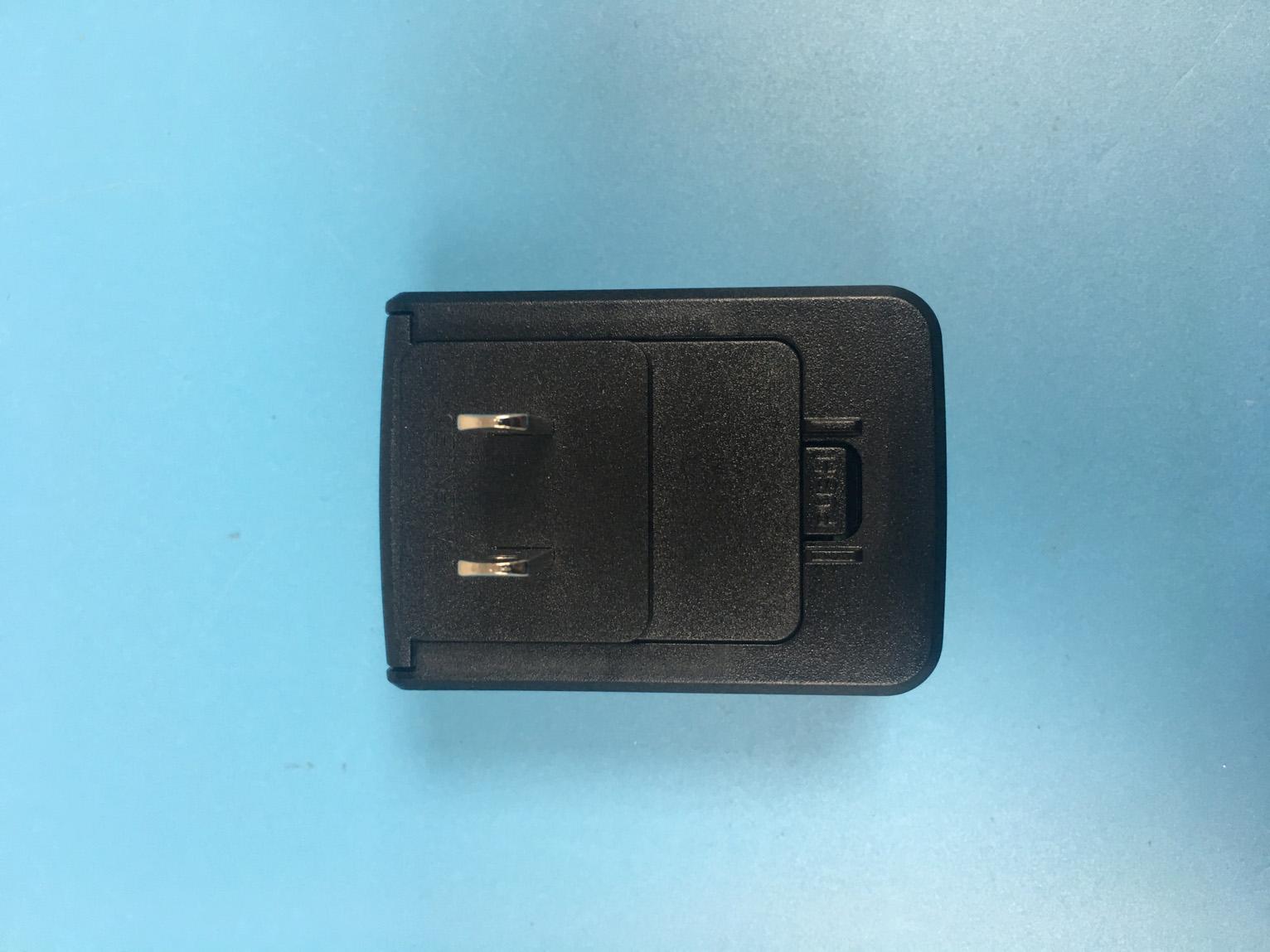

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Handset(Model: 8254 DECT Handset) Handset (Model: 8234 DECT Handset) Charger 1 (Model: 82x4 DECT HANDSET DESKTOP DUAL CHARGER) Charger 2 (Model: 82X4 DECT HANDSET DESKTOP CHARGER) Adapter

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Handset(Model: 8254 DECT Handset) Handset(Model: 8234 DECT Handset) Antenna Charger 1 (Model: 82x4 DECT HANDSET DESKTOP DUAL CHARGER) Charger 2 (Model: 82X4 DECT HANDSET DESKTOP CHARGER)

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. SAR EVALUATION REPORT For RTX Hong Kong Ltd. 8/F Corporation Square,8 Lam Lok Street, Kowloon Bay, Hong Kong FCC ID: T7HCT8234 Report Type: Original Report Product Type: Cordless DECT Handset Report Number: RSZ200113002-SAB Report Date: 2020-02-25 Reviewed By: Alvin Huang Lab Mana ger Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200113002-SAB SAR Evaluation Report 2 of 32 Attestation of Test Results EUT Information EUT Description Cordless DECT Handset Tested Model 8254 DECT Handset Multiple Model 8234 DECT Handset FCC ID T7HCT8234 Serial Number RSZ200113002-SA-S1 Multiple Model Serial Number RSZ200113002-SA-S2 Test Date 2020/01/15 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) DECT 8254 DECT Handset 1g Head SAR 0.05 1. 6 1g Body SAR 0.05 8234 DECT Handset 1g Head SAR 0.03 1g Body SAR 0.02 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-2:2010 Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices-Human models, instrumentation, and procedures-Part 2: Procedure to determine the specific absorption rate (SAR) for wireless communication devices used in close proximity to the human body (frequency range of 30 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06. KDB 648474 D04 Handset SAR v01r03. KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200113002-SAB SAR Evaluation Report 3 of 32 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION ................................................................................................................................................... 5 TECHNICAL SPECIFICATION ......................................................................................................................................... 5 REFERENCE, STANDARDS, AND GUIDELINES ................................................................................................. 6 SAR LIMITS ................................................................................................................................................................ 7 FACILITIES ................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 15 EQUIPMENTS LIST & CALIBRATION INFORMATION ................................................................................................... 15 SAR MEASUREMENT SYSTEM VERIFICATION ............................................................................................. 16 LIQUID VERIFICATION ............................................................................................................................................... 16 SYSTEM ACCURACY VERIFICATION .......................................................................................................................... 17 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 19 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR ....................................................................... 19 CHEEK/TOUCH POSITION .......................................................................................................................................... 20 EAR/TILT POSITION ................................................................................................................................................... 20 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ............................................................................. 21 TEST DISTANCE FOR SAR EVALUATION ...........................…

Text truncated - open the document above for the full version.

APPENDIX B PROBE CALIBRATION CERTIFICATES APPENDIX C DIPOLE CALIBRATION CERTIFICATES

Page 1 of 6 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm • Phantom: SAM-Twin V8.0 P1aP2a; Type: QD 000 P41 AA ; Serial: 1962 Body Back Setup Photo (0mm) (Model: 8254 DECT Handset) Page 2 of 6 Head Left Cheek Setup Photo Head Left Tilt Setup Photo Page 3 of 6 Head Right Cheek Setup Photo Head Right Tilt Setup Photo Page 4 of 6 Body Back Setup Photo (0mm) (Model: 8234 DECT Handset) Head Left Cheek Setup Photo Page 5 of 6 Head Left Tilt Setup Photo Head Right Cheek Setup Photo Page 6 of 6 Head Right Tilt Setup Photo

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200113002-SAB Page 1 of 36 SAT Test Plots: Plot 1#:DECT_Head Left Cheek_Low DUT: Cordless DECT Handset; Type: 8254 DECT Handset; Serial: RSZ200113002-SA-S1 Communication System: UID 0, DECT (0); Frequency: 1921.536 MHz;Duty Cycle: 1:24 Medium parameters used (interpolated): f = 1921.536 MHz; σ = 1.4 S/m; εr = 40.085; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe:EX3DV4 - SN7520; ConvF(8.17, 8.17, 8.17) @ 1921.536 MHz;  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1561; Calibrated:13/9/2019  Phantom: SAM-Twin V8.0 P1aP2a; Type: QD 000 P41 AA ; Serial: 1962  Measurement SW: DASY52, Version 52.10 (2); Area Scan (61x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0407 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.221 V/m; Power Drift = -0.018 dB Peak SAR (extrapolated) = 0.0470 W/kg SAR(1 g) = 0.033 W/kg; SAR(10 g) = 0.024 W/kg Maximum value of SAR (measured) = 0.0359 W/kg 0 dB = 0.0359 W/kg = -14.45 dBW/kg Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200113002-SAB Page 2 of 36 SAT Test Plots: Plot 2#:DECT_Head Left Cheek_Middle DUT: Cordless DECT Handset; Type: 8254 DECT Handset; Serial: RSZ200113002-SA-S1 Communication System: UID 0, DECT (0); Frequency: 1924.992 MHz;Duty Cycle: 1:24 Medium parameters used (interpolated): f = 1924.992 MHz; σ = 1.397 S/m; εr = 39.852; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7520; ConvF(8.17, 8.17, 8.17) @ 1924.992 MHz;  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1561; Calibrated:13/9/2019  Phantom: SAM-Twin V8.0 P1aP2a; Type: QD 000 P41 AA ; Serial: 1962  Measurement SW: DASY52, Version 52.10 (2); Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0397 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.442 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.0550 W/kg SAR(1 g) = 0.034 W/kg; SAR(10 g) = 0.022 W/kg Maximum value of SAR (measured) = 0.0358 W/kg 0 dB = 0.0358 W/kg = -14.46 dBW/kg Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200113002-SAB Page 3 of 36 Plot 3#:DECT_Head Left Cheek_High DUT: Cordless DECT Handset; Type: 8254 DECT Handset; Serial: RSZ200113002-SA-S1 Communication System: UID 0, DECT (0); Frequency: 1928.448 MHz;Duty Cycle: 1:24 Medium parameters used (interpolated): f = 1928.448 MHz; σ = 1.384 S/m; εr = 39.569; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe:EX3DV4 - SN7520; ConvF(8.17, 8.17, 8.17) @ 1928.448 MHz;  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1561; Calibrated:13/9/2019  Phantom: SAM-Twin V8.0 P1aP2a; Type: QD 000 P41 AA ; Serial: 1962  Measurement SW: DASY52, Version 52.10 (2); Area Scan (61x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0357 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.841 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.0490 W/kg SAR(1 g) = 0.031 W/kg; SAR(10 g) = 0.023 W/kg Maximum value of SAR (measured) = 0.0333 W/kg 0 dB = 0.0333 W/kg = -14.78 dBW/kg Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200113002-SAB Page 4 of 36 Plot 4#:DECT_Head Left Tilt_Middle DUT: Cordless DECT Handset; Type: 8254 DECT Handset; Serial: RSZ200113002-SA-S1 Communication System: UID 0, DECT (0); Frequency: 1924.992 MHz;Duty Cycle: 1:24 Medium parameters used (interpolated): f = 1924.992 MHz; σ = 1.397 S/m; εr = 39.852; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7520; ConvF(8.17, 8.17, 8.17) @ 1924.992 MHz;  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1561; Calibrated:13/9/2019  Phantom: SAM-Twin V8.0 P1aP2a; Type: QD 000 P41 AA ; Serial: 1962  Measurement SW: DASY52, Version 52.10 (2); Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0252 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.308 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.0360 W/kg SAR(1 g) = 0.024 W/kg; SAR(10 g) = 0.017 W/kg Maximum value of SAR (measured) = 0.0247 W/kg 0 dB = 0.0247 W/kg = -16.07 dBW/kg Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200113002-SAB Page 5 of 36 Plot 5#:DECT_Head Right Cheek_Middle DUT: Cordless DECT Handset; Type: 8254 DECT Handset; Serial: RSZ200113002-SA-S1 Communication System: UID 0, DECT (0); Frequency: 1924.992 MHz;Duty Cycle: 1:24 Medium parameters used (interpolated): f = 1924.992 MHz; σ = 1.397 S/m; εr = 39.852; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7520; ConvF(8.17, 8.17, 8.17) @ 1924.992 MHz;  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1561; Calibrated:13/9/2019  Phantom: SAM-Twin V8.0 P1aP2a; Type: QD 000 P41 AA ; Serial: 1962  Measurement SW: DASY52, Version 52.10 (2); Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0320 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.650 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.0470 W/kg SAR(1 g) = 0.029 W/kg; SAR(10 g) = 0.020 W/kg Maximum value of SAR (measured) = 0.0304 W/kg 0 dB = 0.0304 W/kg = -15.17 dBW/kg Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200113002-SAB Page 6 of 36 Plot 6#:DECT_Head Right Tilt_Middle DUT: Cordless DECT Handset; Type: 8254 DECT Handset; Serial: RSZ200113002-SA-S1 Communication System: UID 0, DECT (0); Frequency: 1924.992 MHz;Duty Cycle: 1:24 Medium parameters used (interpolated): f = 1924.992 MHz; σ = 1.397 S/m; εr = 39.852; ρ = 10…

Text truncated - open the document above for the full version.

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15D MEASUREMENT AND TEST REPORT For RTX Hong Kong Ltd. 8/F Corporation Square,8 Lam Lok Street, Kowloon Bay, Hong Kong FCC ID: T7HCT8234 Report Type: Original Report Product Type: Cordless DECT Handset Re port Number: RSZ200113002-00 Re port Date: 2020-03-10 Reviewed B y: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200113002-00 FCC Part 15D Page 2 of 51 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS ........................................................................................................ 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC §1.1307(B) & §2.1093 - RF EXPOSURE INFORMATION ............................................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST RESULT ............................................................................................................................................................. 10 FCC§15.317 & §15.203 - ANTENNA REQUIREMENT ......................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC§15.315 & §15.207 - CONDUCTED EMISSIONS ............................................................................................ 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 13 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 13 TEST RESULTS SUMMARY .......................................................................................................................................... 13 TEST DATA ............…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS For Charger 1 (Model: 82x4 DECT HANDSET DESKTOP DUAL CHARGER) Conducted Emissions - Front View Conducted Emissions - Side View For Charger 2 (Model: 82X4 DECT HANDSET DESKTOP CHARGER) Conducted Emissions - Front View Conducted Emissions - Side View
