T7HCT8652Wireless Handset with DECT & Bluetooth function

SME VoIP Handset Guide 5.1 Proprietary and Confidential Page | 1 Handset Operations Manual Rove 40 Technical Reference Document Version 1 © June-2020 RTX A/S, Denmark SME VoIP Handset Guide 5.1 Proprietary and Confidential Page | 2 Table of Contents 1 About This Document ........................................................................................................................................ 5 1.1 Audience .......................................................................................................................................................... 5 1.2 Abbreviations ................................................................................................................................................... 5 1.3 References/Related Documentations .............................................................................................................. 5 1.4 Document History ............................................................................................................................................ 5 1.5 What is new ..................................................................................................................................................... 5 2 Making Handset Ready ...................................................................................................................................... 5 2.1 Package - Contents/Damage Inspection .......................................................................................................... 6 2.1.1 Before Package Is Opened ........................................................................................................................ 6 2.1.2 Contents of Package ................................................................................................................................. 6 2.1.3 Damage Inspection ................................................................................................................................... 7 2.2 Before Using the Phone ................................................................................................................................... 7 2.2.1 Installing the Battery ................................................................................................................................ 7 2.2.2 Using the Charger ..................................................................................................................................... 7 2.2.3 Handset in the Charger ............................................................................................................................. 7 2.2.4 How to Open Back Cover .......................................................................................................................... 8 2.2.5 How to Replace Battery ............................................................................................................................ 8 2.2.6 Handset Serial and IPEI/IPUI Number....................................................................................................... 8 3 Phone Overview ................................................................................................................................................ 9 3.1 Handset – Front View....................................................................................................................................... 9 3.2 Rear View - Handset ....................................................................................................................................... 10 4 Display ............................................................................................................................................................. 11 4.1 Icons and Text in the Display ......................................................................................................................... 11 4.2 Menu icons..................................................................................................................................................... 12 4.3 Keys and Buttons ........................................................................................................................................... 13 4.3.1 Navigation Keys/Selection Key ............................................................................................................... 13 4.3.2 Softkeys .................................................................................................................................................. 13 4.3.3 Speaker Key ............................................................................................................................................ 13 4.3.4 Activity Menu Key ................................................................................................................................... 13 4.3.5 Off-hook Key ........................................................................................................................................... 13 4.3.6 On-hook, and On/Off Key ....................................................................................................................... 13 4.3.7 Speed Dial Keys ....................................................................................................................................... 14 4.3.8 Volume Button ....................................................................................................................................... 14 4.3.9 Mute Button ........................................................................................................................................... 14 4.4 The Keypad .................................................................................................................................................... 15 4.4.1 Idle Mode, and Number Input Mode ..................................................................................................... 15…

Text truncated - open the document above for the full version.

RTX HONG KONG LTD TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.10.04 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, RTX HONG KONG LTD hereby authorize (Shenzhen STS Test Services Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Ted Chong Signature:

Rove 40 Label location

RTX8651 HS Label, BK NA, POLY (Rove 30) 50004901 REV. D 22-OCT-2020 RTX Hong Kong Ltd. REMARK: SIZE : 33.5mm(W) x 50mm(H) MATERIAL : PET (Avery Dennison MZ0374(ni), thickness: 0.05mm) COLOR : Black text on white background POSITIONING : Stick inside the handset battery compartment Factory SN format (BHYYWWSSSSSS): YY: Year of manufacturing (e.g. 10=2010) WW: Week of manufacturing SSSSSS : Unique progressive serial number which must not duplicate with any other models. IPEI format: 0EEEEZZZZZ IPEI code in text (HEX format) 0: this is a fixed digit EEEE: EMC code ZZZZZ: start from 00001, these five digits cannot be All zero, that's mean 00000 is not allowed 1:1 2:1 Barcode format : Code 128 (The SN and IPEI code on the hanset must be matched with the packing box) P/N: 50004901 33.5mm 50mm Fonts: Arial Model: Rove 30 (Fixed digit) P/N: 2201-86930-001 N (Fixed digit) BH: Fixed digit Use only batteries listed in the documentation Complies with 47 CFR Part 68 and IC CS-03 rules Made in China FCC ID: T7HCT8652 IC: 4979B-CT8652 Model: Rove 30 S/N: BHYYWWSSSSSS [Factory S/N Barcode] IPEI: 0EEEEZZZZZ [IPEI Barcode] 3.7V 1100mAh P/N: 2201-86930-001 N EU: Plantronics BV, Scorpius 171, 2132 LR Hoofddorp, NL HAC Use only batteries listed in the documentation Complies with 47 CFR Part 68 and IC CS-03 rules Made in China FCC ID: T7HCT8652 IC: 4979B-CT8652 Model: Rove 30 S/N: BHYYWWSSSSSS [Factory S/N Barcode] IPEI: 0EEEEZZZZZ [IPEI Barcode] 3.7V 1100mAh P/N: 2201-86930-001 N EU: Plantronics BV, Scorpius 171, 2132 LR Hoofddorp, NL HAC Locaiton US: T7HIPNANCT8652 US: T7HIPNANCT8652

RTX8652 HS Label, WH NA, POLY (Rove 40) 50004839 REV. D 22-OCT-2020 RTX Hong Kong Ltd. REMARK: SIZE : 33.5mm(W) x 50mm(H) MATERIAL : PET (Avery Dennison MZ0374(ni), thickness: 0.05mm) COLOR : Black text on white background POSITIONING : Stick inside the handset battery compartment Factory SN format (BHYYWWSSSSSS): IPEI format: 0EEEEZZZZZ IPEI code in text (HEX format) 0: this is a fixed digit EEEE: EMC code ZZZZZ: start from 00001, these five digits cannot be All zero, that's mean 00000 is not allowed 1:1 2:1 Barcode format : Code 128 Use only batteries listed in the documentation Complies with 47 CFR Part 68 and IC CS-03 rules Made in China Model: Rove 40 S/N: BHYYWWSSSSSS [Factory S/N Barcode] IPEI: 0EEEEZZZZZ [IPEI Barcode] 3.7V 1100mAh MAC: XXXXXXXXXXXX [BT MAC address Barcode] P/N: 2201-86810-001 N Model: Rove 40 (Fixed digit) P/N: 2201-86810-001 N (Fixed digit) (The SN, MAC and IPEI code on the hanset must be matched with the packing box) P/N: 50004839 33.5mm 50mm Fonts: Arial BT MAC: XXXXXXXXXXXX (12 digits totally) Use customer MAC address pool, starting from 64167FF4C000, RTX will be provided by each PO. EU: Plantronics BV, Scorpius 171, 2132 LR Hoofddorp, NL YY: Year of manufacturing (e.g. 10=2010) WW: Week of manufacturing SSSSSS : Unique progressive serial number which must not duplicate with any other models. BH: Fixed digit HAC Use only batteries listed in the documentation Complies with 47 CFR Part 68 and IC CS-03 rules Made in China Model: Rove 40 S/N: BHYYWWSSSSSS [Factory S/N Barcode] IPEI: 0EEEEZZZZZ [IPEI Barcode] 3.7V 1100mAh MAC: XXXXXXXXXXXX [BT MAC address Barcode] P/N: 2201-86810-001 N EU: Plantronics BV, Scorpius 171, 2132 LR Hoofddorp, NL HAC Locaiton FCC ID: T7HCT8652 IC: 4979B-CT8652 US: T7HIPNANCT8652 FCC ID: T7HCT8652 IC: 4979B-CT8652 US: T7HIPNANCT8652

Rove 40 DECT Antenna 0 DECT Antenna 1 BT Antenna

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.: STS2008324W09 Issued for RTX HONG KONG LTD 8TH FL CORPORATION SQUARE, 8 LAM LOK ST., KOWLOON BAY, HK. Product Name: Wireless Handset Brand Name: Poly Model Name: Rove 40 Series Model: Rove 30 FCC ID: T7HCT8652 Test Standard: FCC Part 15.247 S T L A B S Page 2 of 73 Report No.: STS2008324W09 TEST RESULT CERTIFICATION Applicant’s Name ................... : RTX HONG KONG LTD Address .................................. : 8TH FL CORPORATION SQUARE, 8 LAM LOK ST., KOWLOON BAY, HK. Manufacturer's Name ............. : RTX HONG KONG LTD Address .................................. : 8TH FL CORPORATION SQUARE, 8 LAM LOK ST., KOWLOON BAY, HK. Product Description Product Name ........................ : Wireless Handset Brand Name ......................... : Poly Model Name ........................... : Rove 40 Series Model .......................... : Rove 30 Test Standards ....................... : FCC Part15.247 Test Procedure ....................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ................................ : Date of receipt of test item .......... : 27 Aug. 2020 Date (s) of performance of tests . : 27 Aug. 2020 ~ 17 Sept. 2020 Date of Issue .............................. : 27 Sept. 2020 Test Result .................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory: (Vita Li) Page 3 of 73 Report No.: STS2008324W09 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6
1.1 TEST FACTORY 7
1.2 MEASUREMENT UNCERTAINTY 7
2. GENERAL INFORMATION 8
2.1 GENERAL DESCRIPTION OF THE EUT 8
2.2 DESCRIPTION OF THE TEST MODES 10
2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10
2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12
2.5 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12

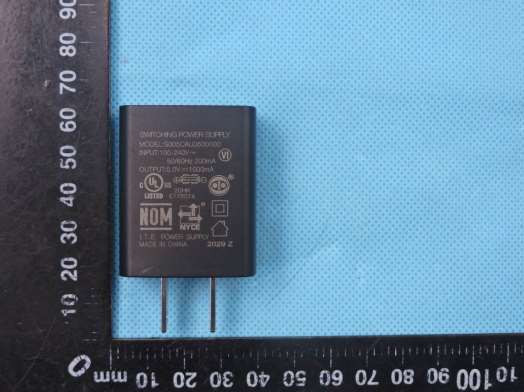

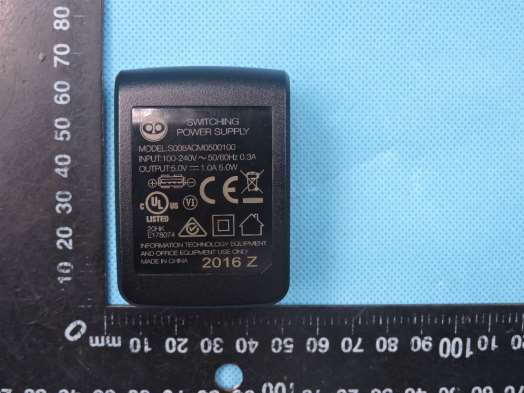

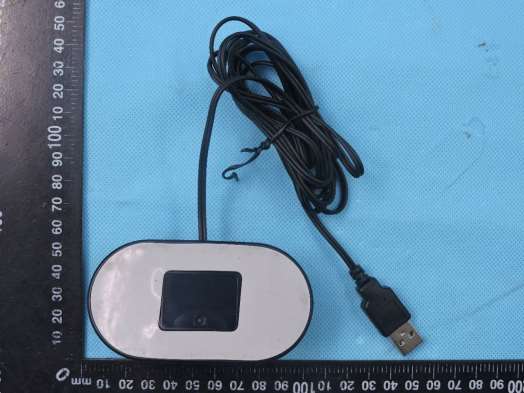

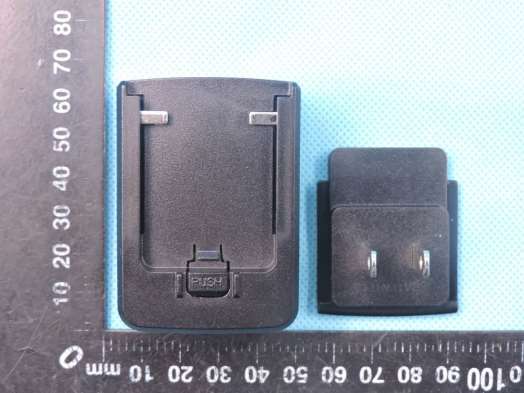

2.6 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 13
2.7 EQUIPMENTS LIST 14
3. EMC EMISSION TEST 15
3.1 CONDUCTED EMISSION MEASUREMENT 15
3.2 RADIATED EMISSION MEASUREMENT 19
4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 31
4.1 LIMIT 31
4.2 TEST PROCEDURE 31
4.3 TEST SETUP 31
4.4 EUT OPERATION CONDITIONS 31
4.5 TEST RESULTS 32
5. NUMBER OF HOPPING CHANNEL 47
5.1 LIMIT 47
5.2 TEST PROCEDURE 47
5.3 TEST SETUP 47
5.4 EUT OPERATION CONDITIONS 47
5.5 TEST RESULTS 48
6. AVERAGE TIME OF OCCUPANCY 49
6.1 LIMIT 49
6.2 TEST PROCEDURE 49
6.3 TEST SETUP 49
6.4 EUT OPERATION CONDITIONS 49
6.5 TEST RESULTS 50
7. HOPPING CHANNEL SEPARATION MEASUREMEN 56
Page 4 of 73 Report No.: STS2008324W09 Table of Contents Page 7.1 LIMIT 56
7.2 TEST PROCEDURE 56
7.3 TEST SETUP 56
7.4 EUT OPERATION CONDITIONS 56
7.5 TEST RESULTS 57
8. BANDWIDTH TEST 63
8.1 LIMIT 63
8.2 TEST PROCEDURE 63
8.3 TEST SETUP 63
8.4 EUT OPERATION CONDITIONS 63
8.5 TEST RESULTS 64
9. OUTPUT POWER TEST 70
9.1 LIMIT 70
9.2 TEST PROCEDURE 70
9.3 TEST SETUP 70
9.4 EUT OPERATION CONDITIONS 70
9.5 TEST RESULTS 71
10. ANTENNA REQUIREMENT 72
10.1 STANDARD REQUIREMENT 72
10.2 EUT ANTENNA 72
Page 5 of 73 Report No.: STS2008324W09 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 27 Sept. 2020 STS2008324W09 ALL Initial Issue Page 6 of 73 Report No.: STS2008324W09 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(iii) Number of Hopping Frequency PASS -- 15.247(a)(iii) Dwell Time PASS -- 15.247(a)(1) 20dB Bandwidth 99% Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 73 Report No.: STS2008324W09 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 30-1GHz ±6.7dB 4 All emissions, radiated 1G-6GHz ±5.5dB 5 All emissions, radiated>6G ±5.8dB 6 Conducted Emission (9KHz-150KHz) ±4.43dB 7 Conducted Emission (150KHz-30MHz) ±5dB Page 8 of 73 Report No.: STS2008324W09 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Wireless Handset Trade Name Poly Model Name Rove 40 Series Model Rove 30 Channel List Please refer to the Note 2. Bluetoot…

Text truncated - open the document above for the full version.

Page 1 of 2 Report NO.: STS2008324 PUE&DSS&DTS Setup Photo Model: Rove 40 Conducted Emission Radiated Spurious Emission（Below 1GHz） Page 2 of 2 Report NO.: STS2008324 Radiated Spurious Emission （Above 1GHz ）
