T7HX8170DECT-HiBAN Cordless Phone

1 Introduction Final format will be • 1 language per booklet • Each product delivery will be done with the correc t user guides (e.g. GB and FR for Canada). • All standard languages to be supported US EN, DE, FR, IT, ES, PT, NL, DN, FIN, SW, NW • Special languages, which are supported by the phon e: o Turkish o Polish NOTE: The following status is still containing many Germa n parts, which are now in translation process. The German part however only affects the end-user c ontent. All regulatory aspects are in English already. See Chapter 3: Important safety information Chapter 9: Information on product safety Chapter 10: Service Warranty Chapter 11: Compliance information Chapter 12: Information and explanation of symbols 2 [[ArtNr. number to be updated]] Phonak DECT CP1 Cordless phone User Guide p. 3 guide page Nr. 2 guide page 3 [indicative] Of course the content will be formatted later. Content 1. Welcome 4 2. Getting to know the Phone 4 2.1. Check the package content 4 2.2. How the phone works 5 2.3. Gerätebeschreibungen 5 2.4. Hearing aid compatibility 7 3. Important safety information 8 4. Getting started 10 4.1. Setting up the power supply 10 4.2. Connecting the base 10 4.3. Inserting the battery 11 4.4. Laden des Mobilteils 11 4.5. Setting the language 12 4.6. Setting date and time 12 4.7. Setting the location 13 4.8. Verbindung zum Hörgerät testen 13 4.9. Bestehende Kontakte übernehmen 14 5. Täglicher Gebrauch 16 5.1. Einen Anruf tätigen und beenden 16 5.2. Telefon-Mikrofon stumm schalten 17 5.3. Telefonieren mit Phonak Hörgeräten 17 5.4. Lautstärke des Gesprächs einstellen 18 5.5. Klingeltöne einstellen 19 5.6. Mobilteil aus-/einschalten 20 5.7. Kontakteintrag erstellen 21 5.8. Kontakt suchen 22 5.9. Mobilteil suchen 22 5.10. Anruferliste benützen 23 5.11. Das Menü „Ereignisse“ 23 5.12. Die Sprachbox 24 5.13. Weitere Funktionen beim Telefonieren 25 6. Einstellungen am Mobilteil 26 6.1. Tastensperre ein-/ausschalten 26 6.2. Klingeltöne ein-/ausschalten 26 6.3. Weitere Funktionen des Telefonbuches 27 6.4. Weitere Einstellungen am Mobilteil 28 6.5. Mobilteil als Wecker verwenden 29 6.6. Gürtel-Klipp montieren 31 6.7. Anzeige der Empfangsstärke 31 6.8. Eco-Modus 32 6.9. Anzeige des Akkustatus’ 32 6.10. Mehrere Mobilteile an einer Basis 33 6.11. Bestehende Basis nutzen 34 6.12. Akku wechseln 34 7. PIN-Codes und Rücksetzen 35 7.1. Pin Codes ändern 35 7.2. Rücksetzen der Geräte 35 7.3. System-PIN zurücksetzen 35 8. Troubleshooting the phone 36 9. Information on product safety 37 10. Service warranty 38 10.1. Local warranty 38 10.2. International warranty 38 10.3. Warranty limitation 38 11. Compliance information 39 12. Information and explanation of symbols 44 3 p. 4 guide page Nr. 4 guide page 5 [indicative] 1. Welcome The cordless phone DECT CP1 is a quality product developed by Phonak, one of the world‘s leading companies in the field of hearing technology. Please read the user guide thoroughly in order to b e able to benefit from all the possibilities this pro duct can offer. If you have any questions, please consult your hear ing care professional or go to www.phonak.com/dect Phonak – life is on www.phonak.com 4 2. Getting to know the Phone 2.1. Check the package content 5 Rechargeable battery Removable belt clip Battery cover Handset DECT Base and desktop charger („Base“) Power supply Phone cable RJ11 Cable adapters p. 5 guide page Nr. 6 guide page 7 [indicative] 2.2. How the phone works Durch die Integration der drahtlosen Phonak Funktechnologie wird das Telefonieren mit Phonak Hörgeräten wesentlich erleichtert. Denn das Telefonsignal wird zusätzlich drahtlos und in digitaler Qualität an beide Hörgeräte gesendet. Wird das Mobilteil an die Hörgeräte gehalten, so schalten diese automatisch in das Telefonprogramm. Die Nutzung ohne Hörgeräte ist natürlich auch mögli ch. Das Telefon unterstützt den weltweiten Standard DEC T (Digital Enhanced Cordless Telephone). Es empfängt die Signale von der mitgelieferten Basis in einem Umkreis von bis zu 300 m. Mit dem Phonak DECT CP1 halten Sie ein vielseitiges Gerät in den Händen. Lesen Sie daher diese Gebrauchsanleitung aufmerksam durch. 6 2.3. Gerätebeschreibungen Basis Die Basis wird an die Telefonleitung angeschlossen und ist zugleich die Ladestation Ihres Telefons. 1. Ladeschale. 2. Ladekontakte für Mobilteil. 3. Power supply input (miniUSB, 5VDC, 1000mAh) 4. Page Handset: short press will force handsets to ring. Press 2 sec.= Manual pairing of the handset to the base. 5. Analog phone line connector. Der Standard PIN-Code der Basis ist “0000”. Das Telefon (bestehend aus Basis und Mobilteil) is t werkseitig bereits gekoppelt. Sie müssen also keine Anmeldung mehr durchführen. 7 3 4 5 1 2 2 p. 6 guide page Nr. 8 guide page 9 [indicative] Mobilteil 8 1. Volume +/- and volume boost (
p.xx) Press 2 sec.= Hearing aid test (
p.xx). 2. Hands-free (phone speaker) on/off (
p.xx). 3. Talk/repeat call (
p.xx). 4. Press 2 sec.= Call voicemail number (
p.xx). 5. Press 2 sec.= All ring tones off/on (
p.xx). In writing mode: switch upper and lower case. 6. Press 2 sec.= Dial international prefix “+”. 7. Press 2 sec.= Keypad lock on/off (
p.xx). 8. Number keypad. In writing mode: alphabetic character entry. 9. Navigation keys (
p.xx). 10. End call / Back (one menu level up) (
p.xx). Press 2 sec. = back to home screen. Press 2 sec. in home screen = Phone on/off (
p.xx). 11. Function key[Funktionstaste] (internal call, di rect call, etc.) (
p.xx). 12. Display keys[Bildschirmtasten] (
p.xx) 13. Context menu (use the display keys to select functions depending on the display) 14. Display[Bildschirm] 15. 3.5mm headset plug (
p.xx). 16. Indicator light (
p.xx). Um die Anzeigesprache zu ändern gehen Sie vor wie in 4.5 beschrieben. 9 1 234 5 16 15 14 13 12 11 10 9 8 7 6 p. 7 guide page Nr. 10 guide page 11 [indicative] Display symbols and navigation Idle mode display and fixed first level menu items: 1. Time 2. Date 3. Alarm clock on 4. …

Text truncated - open the document above for the full version.

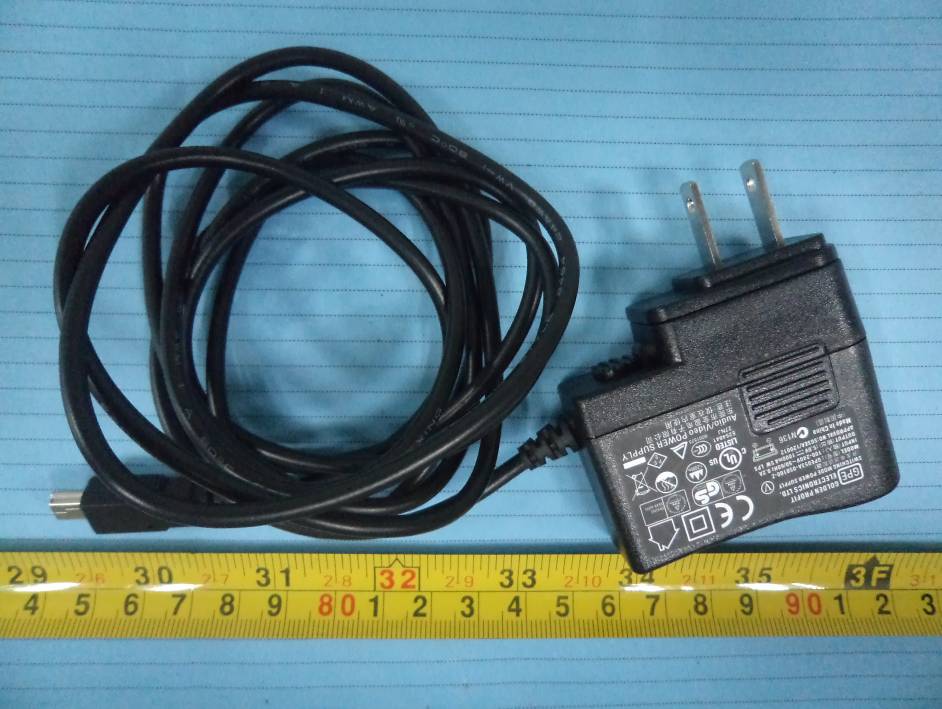

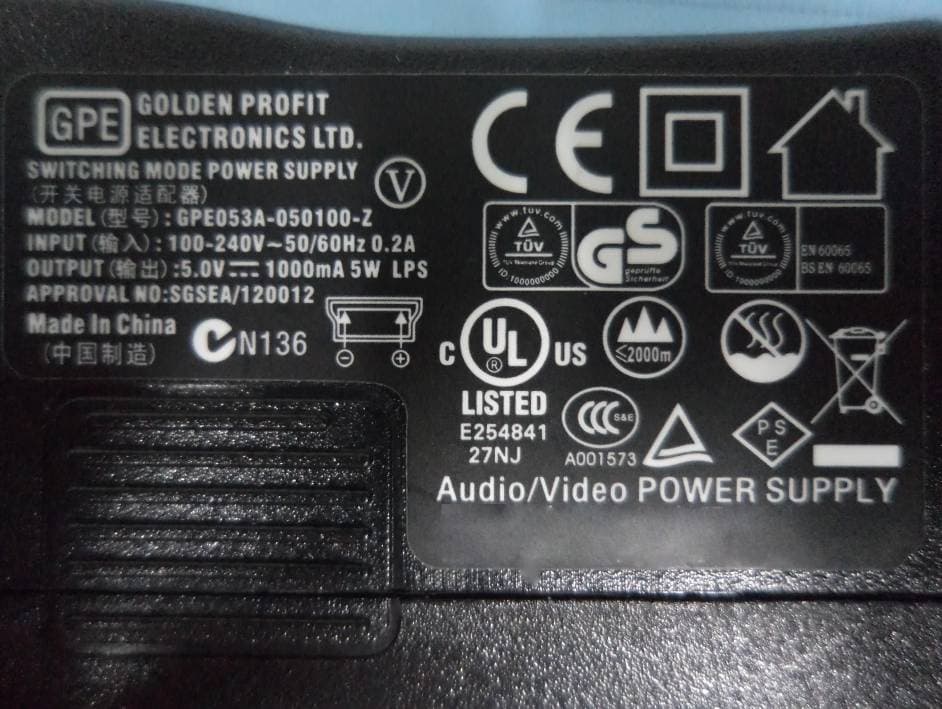

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left View EUT – Right View EUT – Adapter View EUT – Adapter Label View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View EUT – Main Board Top Shielding off View EUT – Main Board Bottom View DECT Antenna EUT – Control Board Top View EUT – Control Board Bottom View

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ130321006-00FP FCC Part 15D Page 8 of 48 FCC §15.319(i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to FCC §15.319(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 842/f 2.19/f *(180/f\2\) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Calculation Predication of MPE limit at a given distance S = 2 4R PG  Where: S = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Frequency (MHz) Antenna Gain Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) 1924.992 1 1.26 19.89 97.50 20 0.02445 1.0 Result: The device meets MPE limit at 20 cm distance.

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15D MEASUREMENT AND TEST REPORT For RTX Hong Kong Ltd. 8/F Corporation Square, 8 Lam Lok Street, Kowloon Bay, Hong Kong FCC ID: T7HX8170 Report Type: Original Report Product Type: DECT-HiBAN Cordless Phone (Base Unit) Test En gineer: Gardon Zhang Re port Number: RSZ130321006-00FP Re port Date: 2013-07-04 Reviewed B y: Alvin Huang RF Leade r Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ130321006-00FP FCC Part 15D Page 2 of 48 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC §15.319(I) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) .......................................................... 8 APPLICABLE STANDARD .............................................................................................................................................. 8 MPE CALCULATION..................................................................................................................................................... 8 FCC §15.317 & §15.203 - ANTENNA REQUIREMENT .......................................................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 9 FCC §15.315 & §15.207 - CONDUCTED EMISSIONS ........................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 MEASUREMENT UNCERTAINTY .................................................................................................................................. 10 EUT SETUP ................................................................................................................................................................ 10 EMI TEST RECEIVER SETUP ....................................................................................................................................... 11 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 11 TEST PROCEDURE ...................................................................................................................................................... 11 TEST RESULTS SUMMARY .......................................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 12 FCC §15.323 (A) - EMISSION BANDWIDTH ......................................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 TEST PROCEDURE ...................................................................................................................................................... 15 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz) Frequency Stability
