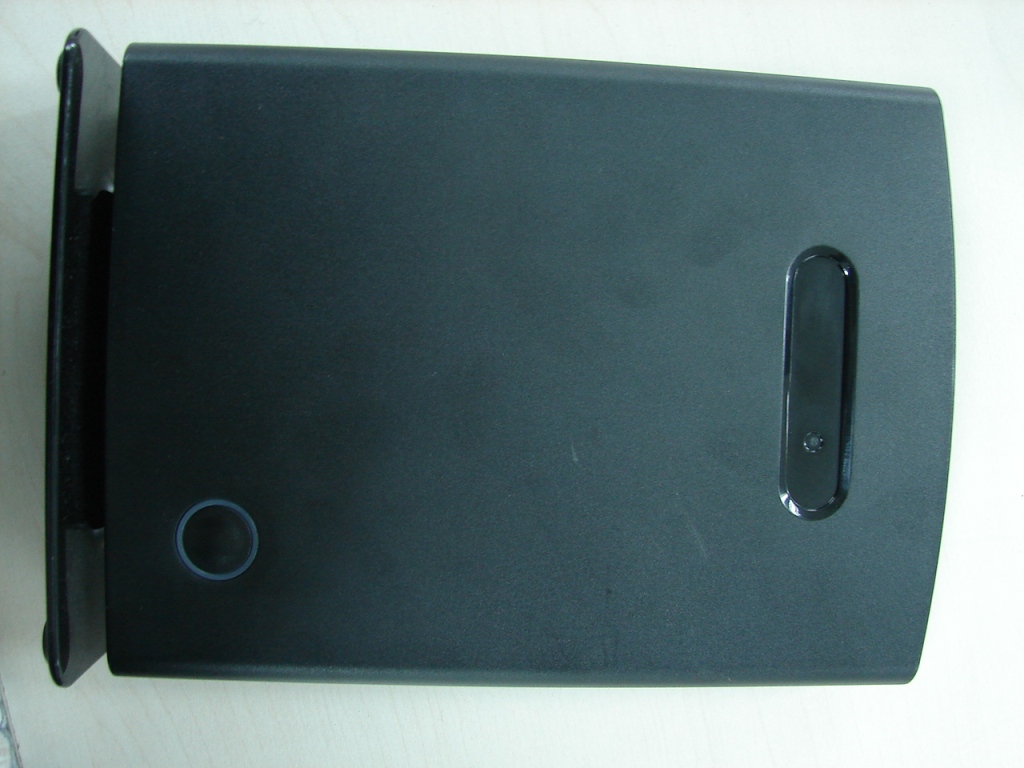

T7HX8660DECT 6.0 Base Station

SME VoIP System Guide, Version 1.5 Proprietary and Confidential Chapter: About This Document 1 SME VoIP System Guide Installation & Configuration Network Deployment Operation & Management Technical Reference Document Version 1.5 © Dec-2010 RTX Telecom A/S, Denmark SME VoIP System Guide, Version 1.5 Proprietary and Confidential Chapter: About This Docum ent 2 Trademarks RTX and the combinations of its logo thereof are trademarks of RTX Telecom A/S, Denmark. Other product names used in this publication are for identification purposes and maybe the trademarks of their respective companies. Disclaimer The contents of this document are provided in connection with RTX products. RTX makes no representations with respect to completeness or accuracy of the contents of this publication and reserves the right to make changes to product descriptions, usage, etc., at any time without notice. No license, whether express, implied, to any intellectual property rights are granted by this publication Confidentiality This document should be regarded as confidential, unauthorized copying is not allowed © Dec-2010 RTX Telecom A/S, Denmark, All rights reserved http://www.rtx.dk SME VoIP System Guide, Version 1.5 Proprietary and Confidential Chapter: About This Document 3 Contents SME VoIP System Guide .................................................................................................................................... 1 Contents ............................................................................................................................................................ 3 1 About This Document ................................................................................................................................ 8 1.1 Audience .................................................................................................................................................. 8 1.2 When Should I Read This Guide .............................................................................................................. 8 1.3 Important Assumptions ........................................................................................................................... 8 1.4 What’s Inside This Guide ......................................................................................................................... 8 1.5 What’s Not in This guide.......................................................................................................................... 9 1.6 Abbreviations ......................................................................................................................................... 10 1.7 References/Related Documentation ..................................................................................................... 10 1.8 Document History .................................................................................................................................. 10 1.9 Documentation Feedback ..................................................................................................................... 10 2 Introduction – System Overview ............................................................................................................. 11 2.1 Hardware Setup ..................................................................................................................................... 11 2.2 Components of SME VoIP System ......................................................................................................... 12 2.2.1 RTX Base Stations ........................................................................................................................ 12 2.2.2 SME VoIP Administration Server/Software ................................................................................. 12 2.2.3 RTX Wireless Handset .................................................................................................................. 13 2.3 Wireless Bands ...................................................................................................................................... 13 2.4 System Capacity (in Summary) .............................................................................................................. 13 2.5 Advantages of SME VoIP System ........................................................................................................... 14 3 SME System Deployment Scenarios ........................................................................................................ 15 3.1 Multi-cell System ................................................................................................................................... 15 3.2 Multi-cell Setup ..................................................................................................................................... 15 3.3 Case Studies ........................................................................................................................................... 16 3.3.1 Case ##1: Isolated Buildings ........................................................................................................ 16 3.3.2 Case ##2: Location with co-located partners .............................................................................. 17 3.3.3 Case ##3: Large to Medium Sized Enterprises ............................................................................ 18 3.3.4 Case ##4: Large Enterprises at Different Locations ..................................................................... 18 4 SME VoIP Network Planning/Optimization ............................................................................................. 20 4.1 Network Requirements ......................................................................................................................... 20 4.2 Deployment Considerations ....................................................................................…

Text truncated - open the document above for the full version.

Important Safety Information Follow all warnings and instructions marked on the product or contained in the owner’s manual. When usingthis product,always followbasic safety precautions to reduce the risk of fire, electric shock and injury to persons, including the following: This unit is NOT waterproof. DO NOT expose this unit to rain or moisture. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. Do not usethe telephone to report a gas leak in the vicinity of the leak. Use only thepoweradapters,power cordsand batteries indicated in the manual. If more than one type ofpoweradapter is included in the product, the manualspecifieswhich adapter should be usedfor each component. Be sure to use the proper adapter foreach product component. Do not place the power cord where it creates a trip hazard or where it could become chafed and create a fire or electrical hazard. Do notsubject the productto high temperaturesor leave it in direct sunlight for an extended period of time. Neverdispose ofanybatteries in a fire: batteries can explodeif subjected to extreme heat. SAVE THESE INSTRUCTIONS! RechargeableBatteryInformation CAUTION! Risk of explosionif battery is replaced by an incorrect type! Dispose of used batteries according to the instructions. Do not open or mutilate the battery. Disconnect the battery before shipping this product. This equipment contains a rechargeableLithium-Ion (Li- Ion)battery. The battery is not user-serviceable. Do not attempt to open the battery cell. In case of exposure to the cell contents, wash the affected area thoroughly and seek medical attention. Do not expose the battery to temperatures in excess of 140º F (60ºC). Do not short-circuit the battery. Exercise care when handling the batteryaround conducting materials such as rings, bracelets, and buttons:conducting materials canshort the battery, and the battery or conductor can overheat and cause burns. When charging this equipment, only use the charger designed to charge thebattery pack as specified in the owner's manual:using any othercharger may damage the productor cause the battery pack to explode. Before placing thehandset inthecharger, make sure the batteryisinstalled and the battery coverissecurely in place. Do not place the batteries in your regular trash.All batteriesmust be recycledor disposed of in an environmentally sound manner. Contact your localwaste management officials forinformationand regulations on thepropercollection, recycling,and disposal ofbatteries. Rechargeablebatteries must be recycled or disposed of properly.

Important Safety Information CAUTION! Follow all warnings and instructions marked on the product or contained in the owner’s manual. When using this product, always follow basic safety precautions to reduce the risk of fire, electric shock and injury to persons, including the following: •This unit is NOT waterproof. DO NOT expose this unit to rain or moisture. •Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. •Do not use the telephone to report a gas leak in the vicinity of the leak. •Use only the power adapters, power cords and batteries indicated in the manual. If more than one type of power adapter is included in the product, the manual specifies which adapter should be used for each component. Be sure to use the proper adapter for each product component. •Do not place the power cord where it creates a trip hazard or where it could become chafed and create a fire or electrical hazard. •Do not subject the unit to high temperatures or leave it in direct sunlight for an extended period of time. •Never dispose of any batteries in a fire: batteries can explode if subjected to extreme heat. SAVE THESE INSTRUCTIONS! Rechargeable Battery Information CAUTION! Risk of explosion if battery is replaced by an incorrect type! Dispose of used batteries according to the instructions. Do not open or mutilate the battery. Disconnect the battery before shipping this product. •This equipment contains a rechargeable Lithium-Ion (Li-Ion) battery. This battery is not user-serviceable. Do not attempt to open the battery cell. In case of exposure to the cell contents, wash the affected area thoroughly and seek medical attention. •Do not expose the battery to temperatures in excess of 140º F (60º C). •Do not short-circuit the battery. •Exercise care when handling a battery near conductive materials such as jewelry or buttons: conductive materials can short the battery, and the battery or conductor can overheat and cause burns. •When charging this equipment, only use the charger designed to charge the battery as specified in the owner’s manual: using any other charger may damage the product or cause the battery to explode. •Before placing the handset in the charger, make sure the battery is installed and the battery cover is securely in place. •The manufacturer of the batteries used in this product participates in an RBRC® industry program to collect and recycle used batteries within the US. Please call 1-800-8-BATTERY for information on battery recycling in your area. (RBRC® is a registered trademark of the Rechargeable Battery Recycling Corporation.) Do not place batteries in your regular trash. All batteries must be recycled or disposed of properly. ComplianceInsert_source.indd 12/10/2011 12:05:47 PM Regulatory Information FCC Part 15 Information This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. FCC PART 15.105(b): Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Industry Canada (I.C.) Notice The term IC before the radio certification number only signifies that Industry Canada specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. “Privacy of communications may not be ensured when using this telephone”. •This Class B digital apparatus complies with Canadian ICES-003. •This product meets the applicable Industry Canada technical specifications. RF Exposure Information This product complies with FCC and IC radio frequency exposure limits under the following conditions: •The base must be placed to allow at least 20 cm (8 inches) between the antenna and all persons during normal operation. •The base must not be collocated or operated in conjunction with any other antenna or transmitter. •The handset is designed for body-worn operation and meets FCC RF exposure guidelines when used with any belt clip, carrying case, or other accessory supplied with this product. (All necessary accessories are included in the package; any additional or optional accessories are not required for compliance with the guidelines.) Use of other accessories might not comply with FCC or IC RF exposure guidelines. Hearing Aid Compatibility (HAC/VC) This unit’s handset meets both FCC and IC CS-03 issue 9 Part V standards for Hearing Aid Compatibility. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. ComplianceInsert_source.indd 22/10/2011 12:05:48 PM Mesures de sécurité imp…

Text truncated - open the document above for the full version.

RTX Products Hong Kong Ltd. 11/F., CAC Tower, 165 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Tel : +852 2487 3718 Fax : +852 2480 6121 Web : www.rtx.hk E-mail : [email protected] RTX Telecom A/S: Stroemmen 6, DK-9400 Nørresundby Tel : +45 9632 2300 Fax : +45 9632 2310 Press Release For immediate release Announcement of Corporate Name Change Hong Kong, September 09, 2008 - We are delighted to announce that RTX Consumer Products Hong Kong Limited which is headed by Mr. Peter Christensen, the Vice President of RTX Telecom A/S, has changed its corporate name to RTX Products Hong Kong Limited effective September 09, 2008. The change of the English name does not affect the Chinese name of the Company, which will remain unchanged as “愛創域香港有限公司”. The Board considers the new name of the Company provides a better identification of the Company’s development, which signifies towards the ever-present goal of delivering innovative quality products for the professional business market. The change of the company name will not affect any of the business with our existing customers and the board believes it is in the interest of the Company and its Shareholders as a whole. For accounting purpose, please take note that all payments should be made according to our invoice instructions and all transactions in regarding to RTX Consumer Products Hong Kong Limited will change to RTX Products Hong Kong Limited. About RTX Telecom A/S RTX Telecom is an internationally operating group which develops, produces and sells products, equipment and technological solutions within wireless communication and other telecom products. With headquarters located in Noerresundby, Denmark, RTX Telecom A/S is a listed company in the Copenhagen stock exchange since year 2000. About RTX Products Hong Kong Limited With base of operations in Hong Kong, RTX Products comprises development, production and sale of wireless products to OEMs and professional business market. The product range covers corded telephones, cordless telephones, and other wireless communication products. The RTX Products business unit is headed by Vice President Peter Christensen. RTX Products Hong Kong Limited Peter Christensen Vice President RTX Products Hong Kong Ltd. 11/F., CAC Tower, 165 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Tel : +852 2487 3718 Fax : +852 2480 6121 Web : www.rtx.hk E-mail : [email protected] RTX Telecom A/S: Stroemmen 6, DK-9400 Nørresundby Tel : +45 9632 2300 Fax : +45 9632 2310 Press Contact: Fanny Wai, Marketing Manager Phone: +852 2487 3718 E-mail: [email protected] http://www.rtx.dk

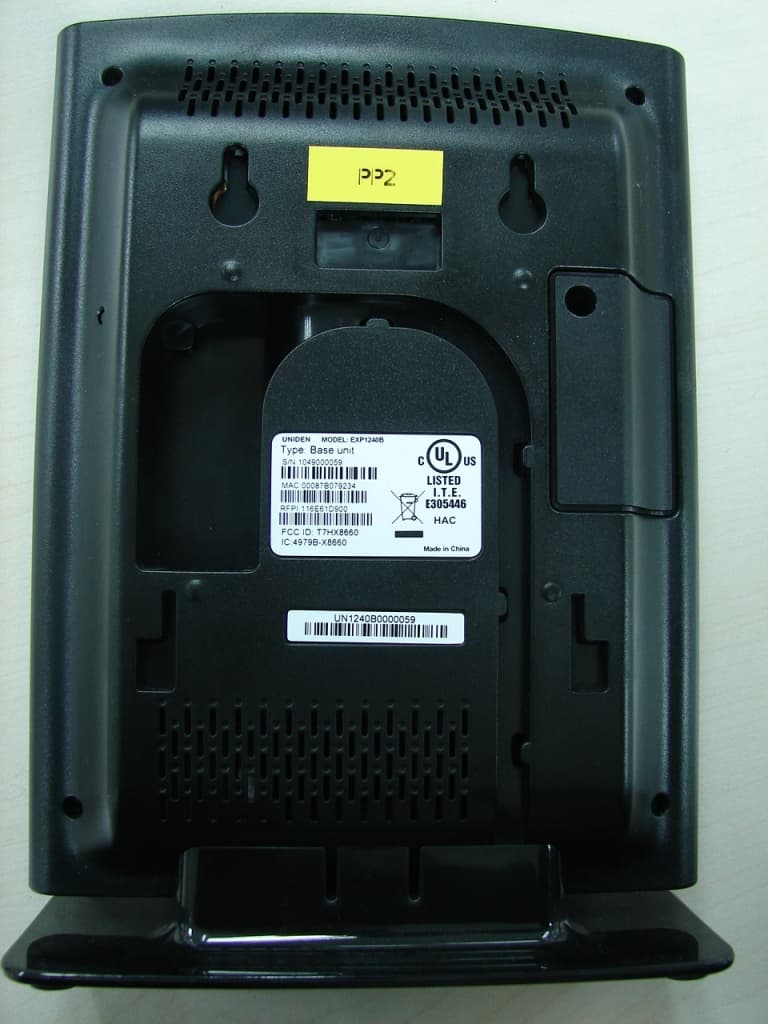

Base station: Product Label 12-8 -2010 REV. 6 P/N: 50000444Size: 42mm(W) x 24.5mm(H) - (radii: 3.5mm @ 4 corners)Material: PETColor: Black text on white backgroundBarcode format: Code 128Positioning: Affix on the bottom side of the base unit Remark: MAC format: MMMMMMMMMMMM: MAC address in text RFPI format:1EEEEXXY00: RFPI code in text (HEX format)1: this is a fixed digitEEEE: EMC codeXX: start from 01. These two digits cannot be All zero, 00 is not allowed. Y: start from 1. This digit cannot be zero, 0 is not allowed00: they are fixed digits.(The serial number, MAC address and RFPI code on the base unit must be matched with the packing box) 50000444 2:1 FCC ID: T7HX8660IC: 4979B-X8660 E305446 MAC: MMMMMMMMMMMMRFPI: 1EEEEXXY00 MODEL: EXP1240B UNIDEN IEEE 802.3af compliant Class 2 Type: Base unit S/N: YYWWSSSSSS [Factory S/N Barcode] [ MAC Address Barcode ] [RFPI Barcode ] HAC Factory SN format:YY: Year of manufacturing (e.g. 10=2010)WW: Week of manufacturing SSSSSS: progressive serial number. Serial starting number is 000001, the serial number will only reset to 000001 if under the fo llowing condition: a) the start of new PO production lot, plus the production w eek "WW" increment to a new week.Otherwise the serial number will continuous the previous lot o f production. FCC ID: T7HX8660IC: 4979B-X8660 E305446 MAC: MMMMMMMMMMMMRFPI: 1EEEEXXY00 MODEL: EXP1240B UNIDEN IEEE 802.3af compliant Class 2 Type: Base unit S/N: YYWWSSSSSS [Factory S/N Barcode] [ MAC Address Barcode ][RFPI Barcode ] HAC Made in China Made in China IEEE 802.3af compliant Class 2

P/N: 50000694 Size: 42mm(W) X 24.5mm(H) Material: PET Color: Black text on white background Barcode format: Code 128 Positioning: Affix on the bottom side of the base unit REV.2 50000694 Base product label 01-24-2011 Factory SN format: YY: Year of manufacturing (e.g. 10=2010) WW: Week of manufacturing SSSSSS: progressive serial number. Serial starting number is 000001, the serial number will only reset to 000001 if under the following condition: a) the start of new PO production lot, plus the production week "WW" increment to a new week. Otherwise the serial number will continuous the previous lot of production. MAC format: MMMMMMMMMMMM: MAC address in text RFPI format: 1EEEEXXY00: RFPI code in text (HEX format) 1: this is a fixed digit EEEE: EMC code XX: start from 01. These two digits cannot be All zero, 00 is not allowed. Y: start from 1. This digit cannot be zero, 0 is not allowed 00: they are fixed digits. (The serial number, MAC address and RFPI code on the base unit must be matched with the packing box) Type: Base unit MODEL: RTX8660 S/N: YYWWSSSSSS [Factory S/N Barcode] RFPI: 1EEEEXXY00 [IPUI Barcode] HAC XXXXX FCC ID: T7HX8660 IC: 4979B-X8660 MAC: MMMMMMMMMMMM [IPUI Barcode] Made in China IEEE 802.3af compliant Class 2

50000 776 Re v . 1 01-21-11 P/N: 50000 776 SIZE: 4 5 mm (W) x 14 mm (H) MATERIAL: PET COLOR: Black text on white background POSITIONING: Stick on the back side of base unit FCC statement label 1:1 2:1 FCC STATEMENT : per 15.19 (a) (3) This device complies with part 15 of the FCC rules. Operation is subject to the follo wing 2 conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. . Privacy of communications may not be ensured when using this phone FCC STATEMENT : per 15.19 (a) (3) This device complies with part 15 of the FCC rules. Operation is subject to the follo wing 2 conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. . Privacy of communications may not be ensured when using this phone

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to isotropicR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 19.70 (dBm) Maximum peak output power at antenna input terminal: 93.33 (mW) Antenna gain(typical): 2.5 (dBi) Maximum antenna gain: 1.778 (numeric) Prediction distance: 20 (cm) Sourse Based Time Average Duty Cycle: 100 (%) Prediction frequency: 1925 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.000 (mW/cm^2) Power density at prediction frequency: 0.033016 (mW/cm^2) Power density at prediction frequency: 0.3302 (W/m^2) Margin of Compliance: 14.8 (dB) 2 4 R PG S π =

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Kjeller, Instituttveien 6, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 147295-3 Item tested : RTX8660 Type of equipment : UPCS Base FCC ID : T7HX8660 Client : RTX Products Hong Kong Ltd. FCC Part 15, subpart D Isochronous UPCS Device 1920 - 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communications Service Devices (LE-PCS) 18 February 2011 Authorized by : .............................................. G. Suhantakumar Technical Verificator TEST REPORT FCC part 15D Report no.: 147295-3 FCC ID: T7HX8660 Nemko AS, N-2007 Kjeller Page 2 (53) CONTENTS 1 GENERAL INFORMATION ............................................................................................................... 3 1.1 Testhouse Info ................................................................................................................................... 3 1.2 Client Information .............................................................................................................................. 3 1.3 Responsible Manufacturer (if other than client) ................................................................................. 3 2 TEST INFORMATION ....................................................................................................................... 4 2.1 Tested Item........................................................................................................................................ 4 2.2 Description of Tested Device ............................................................................................................. 4 2.3 Exposure Evaluation .......................................................................................................................... 5 2.4 Test Environment .............................................................................................................................. 5 2.5 Test Period ........................................................................................................................................ 5 2.6 Test Engineer(s) ................................................................................................................................ 5 2.7 Test Equipment ................................................................................................................................. 5 2.8 Other Comments ............................................................................................................................... 6 3 TEST REPORT SUMMARY .............................................................................................................. 7 3.1 General .............................................................................................................................................. 7 3.2 Test Summary ................................................................................................................................... 8 4 TEST RESULTS ................................................................................................................................ 9 4.1 Power Line Conducted Emissions ..................................................................................................... 9 4.2 Coordination with fixed microwave .................................................................................................. 12 4.3 Digital Modulation Techniques ........................................................................................................ 12 4.4 Labeling Requirements ................................................................................................................... 12 4.5 Antenna Requirement...................................................................................................................... 13 4.6 Channel Frequencies ...................................................................................................................... 13 4.7 Automatic Discontinuation of Transmission .................................................................................... 14 4.8 Peak Power Output ......................................................................................................................... 15 4.9 Emission Bandwidth B ..................................................................................................................... 20 4.10 Power Spectral Density ................................................................................................................... 23 4.11 In-Band Unwanted Emissions, Conducted ...................................................................................... 26 4.12 Out-of-band Emissions, Conducted................................................................................................. 28 4.13 Carrier Frequency Stability .............................................................................................................. 33 4.14 Frame Repetition Stability ............................................................................................................... 34 4.15 Frame Period and Jitter ................................................................................................................... 34 4.16 Monitoring Threshold, Least Interfered Channel ............................................................................. 36 4.17 Threshold Monitoring Bandwidth ..................................................................................................... 38 4.18 Reaction Time and Monitoring Interval ............................................................................................ 39 4.19 Time and Spectrum Window Access Procedure ............................................................................. 41 4.20 Acknowledgemen…

Text truncated - open the document above for the full version.

FCC Part 15D – Compliance Information part 15d declarations_rtx_replied_update 8-Dec-2006 page 1 (4) rev.1.4 EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name RTX Prodcuts Hong Kong Ltd. Address 11/F., CAC Tower, 165 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Contact Alex Poon FP PP Repeater EUT Type/System FCC ID Model name EXP1240B RTX8660 EXP1240H HW Version V4 V3 SW Version V57 V57 Max antenna Gain Can the EUT be Initiating Device YES YES YES Does the EUT transmit signaling channels YES YES YES Max number of slots in use simultaneously 2 2 Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 645 us (long slot mode) Min. Burst Length 84 us # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex FCC Part 15D – Compliance Information part 15d declarations_rtx_replied_update 8-Dec-2006 page 2 (4) rev.1.4 ANTENNAS Base (FP) or Repeater Antenna Type Internal External 1 Monopol 2 Monopol 3 4 Does RX and TX use the same antenna(s)? Yes No Handset (PP) Antenna Type Internal External 1 F 2 F Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Antenna Diversity Supported TX RX Base (FP) or Repeater 1 2 3 4 Handset (PP) 1 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Repeater Nominal Voltage 48V 3.7V Cut-Off Voltage (if applicable) POWER SOURCE Type Manufacturer Base or Repeater PoE (Power Over Ethernet) Not included in prodcut Handset (PP) (charger) 3.7V/ 1100mAH Li-ion Battery Shenzhen BAK Tech. Co. Ltd. Data Connections PSTN Others (please specify) ....VoIP FCC Part 15D – Compliance Information part 15d declarations_rtx_replied_update 8-Dec-2006 page 3 (4) rev.1.4 ANCILLARY EQUIPMENT Description Type Manufacturer HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION

FCC ID: T7HX8660 Project no.: 147295 Page 1 of 1 PHOTOS OF TEST SET-UP – RTX8660 Power line Conducted Emissions Test Set-up
