T7HX9430VoIP DECT Cordless Phone - Base

© 2014 snom technology AG snom technology AG Wittestr. 30 G 13509 Berlin, Deutschland Tel. +49 30 39 83 3 0 Fax +49 30 39 83 31 11 [email protected], [email protected] snom technology, Inc. 18 Commerce Way, Suite 6000 Woburn, MA 01801, USA Tel. +1 925 415 0170 Fax +1 925 886 2474 [email protected] snom UK Ltd Amethyst House, Meadowcroft Way Leigh Business Park, Leigh Manchester WN7 3XZ, UK Tel. +44 161 348 7500 Fax +44 169 348 7509 [email protected] snom France SARL 6 Parc des fontenelles 78870 Bailly, France Tel. +33 1 80 87 62 87 Fax +33 1 80 87 62 88 [email protected] snom technology SRL Via A. Lusardi 10 20122 Milano, Italia Tel. +39 02 00611212 Fax +39 02 93661864 [email protected] snom technology Ltd. Rm. A2, 3F, No. 37, Ln. 258 Ruiguang Rd., Neihu Dist. Taipei City 114, Taiwan Tel. +886 2 8751 1120 Fax +886 2 8751 1130 [email protected] en de fr it es Your specialist retailer - Ihr Fachhändler - Votre distributeur - Su distribuidor - Il tuo rivenditore: v1.02 snom M325 Bundle Quick Start Guide M25 M300 2 v1.03 snom M325 Quick Start Guide Connecting - Anschließen - Connecter - Collegare - Conectar ENGLISH ................................................................................................4 Additional Important Information for USA/Canada .................. 7 DEUTSCH ...............................................................................................12 FRANÇAIS ..............................................................................................16 ITALIANO ................................................................................................20 ESPAÑOL ...................................................................................................24 snom addresses/Anschriften/adresses/indirizzi/direcciones ........28 Table of Contents - Inhaltsverzeichnis - Table des matières - Indice - Índice Delivery content - Lieferumfang - Contenu de la boîte - Contenuto della confezione - En la caja © 2014 snom technology AG snom technology AG Wittestr. 30 G 13509 Berlin, Deutschland Tel. +49 30 39 83 3 0 Fax +49 30 39 83 31 11 [email protected], [email protected] snom technology, Inc. 18 Commerce Way, Suite 6000 Woburn, MA 01801, USA Tel. +1 925 415 0170 Fax +1 925 886 2474 [email protected] snom UK Ltd Amethyst House, Meadowcroft Way Leigh Business Park, Leigh Manchester WN7 3XZ, UK Tel. +44 161 348 7500 Fax +44 169 348 7509 [email protected] snom France SARL 6 Parc des fontenelles 78870 Bailly, France Tel. +33 1 80 87 62 87 Fax +33 1 80 87 62 88 [email protected] snom technology SRL Via A. Lusardi 10 20122 Milano, Italia Tel. +39 02 00611212 Fax +39 02 93661864 [email protected] snom technology Ltd. Rm. A2, 3F, No. 37, Ln. 258 Ruiguang Rd., Neihu Dist. Taipei City 114, Taiwan Tel. +886 2 8751 1120 Fax +886 2 8751 1130 [email protected] en de fr it es Your specialist retailer - Ihr Fachhändler - Votre distributeur - Su distribuidor - Il tuo rivenditore: v1.03 snom M325 Bundle Quick Start Guide M25 M300 NiMH AAA 1.2 V NiMH AAA 1.2 V Reset Ethernet Reset key - Neustart Redémarrage - Ripristino - Reiniciar Inserting batteries - Akkus einsetzen - Inserer les accus - Inserire le batterie- Introducar las batterias + + - - - + M300 M25 qsg_M325.indd 229.10.2014 09:54:36 3 Navigation keys Navigationstasten Touches de navigation Tasti di navigazione Teclas de navigaciòn OK key (confirm input & settings). When idle: Settings menu. Bestätigen- Taste (Eingabe & Einstellungen). Im Ruhezustand: Menü Einstellungen. Confirmer/ sauvegarder des saisies. En état de repos: Menu Paramètres. Confermare/salvare i ingressi, In modo inattivo: Menu Impostazione. Confirmar/guardar las entradas. En modo latente: Menú Ajustes     Headset connector 3.5 mm Headsetanschluss 3,5 mm Prise casque Connettore cuffia Conector auriculares LED indicator (MWI, missed call, low battery) LED- Signal (wartende Nachricht, verpasster Anruf, niedriger Akkustand) Diod e d'indication (nouvel message, appel manqué, faible niveau de charge des accus) LED (nuovi messagi, chiamate perse, basso livello de carico delle batterie) LED indicador (mensaje nuovo, llamadas perdidas, bajo estado de carga de las baterías) External loudspeaker Externer Lautsprecher Haut-parleur externe Altoparlante esterno Altavoz externo Loudspeaker Lautsprecher Haut-parleur Altoparlante Altavoz Battery charging status Batterie-Ladezustand État de charge de la batterie Livello della batteria Estado de carga de bateria End calls Auflegen Raccrocher Riattaccare Colgar Microphone Mikrophon Microphone Microfono Micrófono Turn ringer off/on (long press) Klingel aus/an (lange drücken) Sonnerie muet/active (appuyer 3 sec.) Suoneria off/on (premere 3 sec.) Timbre desactivar/activar (pulse 3 sed.) Signal strength Signalstärke Force du signal Potenza segnale Potencia de señal Context-sensitive symbol line Kontextsensitive Symbolzeile Ligne des touches contextuelles Riga tasto funzione Línea de teclas de función 2 context-sensitive keys 2 Softkeys 2 touches contextuelles 2 tasti funzioni sensibili al contesto 2 teclas de funzión dependiente del contexto Accept calls Anrufe annehmen Accepter des appels Acettare le chiamate Aceptar los llamadas Keypad lock/unlock (press for 3 seconds) Tastatur sperren/entsperren (3 Sek. lang drücken) Verrouillier/déverrouillier le clavier Bloccare/sbloccare la tastiera Bloquea/debloqurr el teclaso qsg_M325.indd 329.10.2014 09:54:36 4 v1.03 snom M325 Quick Start Guide Important Information The M325 bundle contains one M300 base station with power adapter and Ethernet cable and one M25 handset, two rechargeable batterie, and one handset charger with nondetachable power adapter. Setting up, configuring, and using base station and handset For information on setting up, configuring, and using the base station and the handset, please refer to the user's manuals listed on the M-series product pages at www.snom.com. Intended Use The handset is designed for use with a snom M-series base. The base is designed for use with a snom …

Text truncated - open the document above for the full version.

T7HX9430

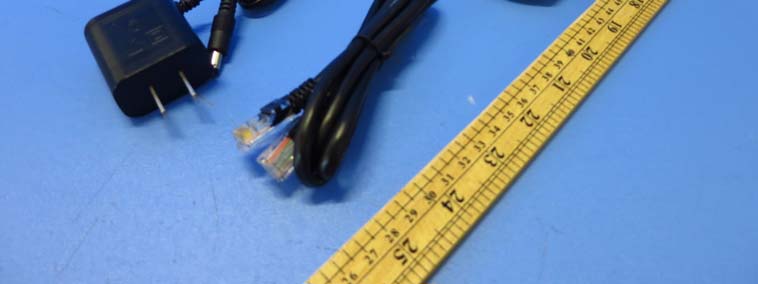

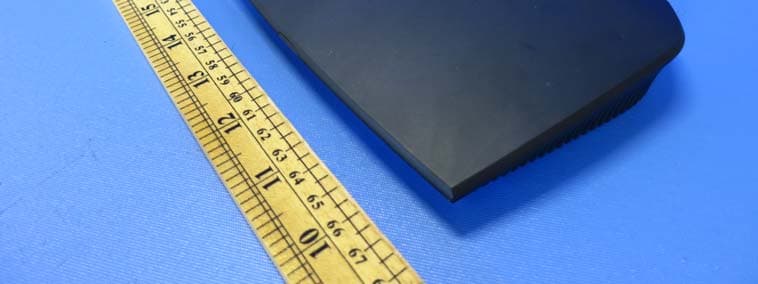

INTERTEK TESTING SERVICES External Photos FCC ID: T7HX9430 IC: 4979B-X9430 external photos - 1 of 2 Job Number HK14051790 Job Number HK14051790 INTERTEK TESTING SERVICES External Photos FCC ID: T7HX9430 IC: 4979B-X9430 external photos - 2 of 2

RTX9430 Base label,SNOM (US) 50002148 REV. A 18-SEP-2014 RTX Hong Kong Ltd. 1:1 Print content: A. Revision: RnX (provided by RTX), white background & pantone 8001C text R:= indicates revision number (fixed information) n:=1st revision index (major changes) (numeric) X:=2nd revision index (minor changes) (capital letter) e.g. R3A B. Serial No. barcode (Code 128): white background & black barcode XXX:= CHN (Country of Origin) YY:= HY 888888:= DDMMYY day, month, year (only last two digits) DDMMYY is the first day of the work order or the production batch. For example, with a production for 3 days, the date of the first day should be used and keep counting the serial till the third day 99999:= Serial Number (5 digits, numeric) Progress serial no. starting with 00001 and to be The SN barcode must be matched with handset inside the box F. Country of Origin (English name). Printing Color: Pantone 8001 C. The serial number, MAC address and RFPI code on the base unit must be matched with the packing box C. Bar code: MAC Address, white background & black barcode D. Bar code: 1EEEEXXY00: RFPI code in text (HEX format), white background & black barcode 1:= this is a fixed digit EEEE := EMC code XX := start from 01. These two digits cannot be All zero, 00 is not allowed. Y := start from 1. This digit cannot be zero, 0 is not allowed 00 := they are fixed digits E. Year of production. Printing Color: Pantone 8001 C. The content of pink colour areas must be print on the assembly line. Do not pre-print the pink areas data!: SIZE : 68.5mm(W) x 83.5mm(H) MATERIAL : PET Printing color: Black and Pantone 8001 C. POSITIONING : Stick inside the Base compartment Barcode format : Code 128 68.5mm C D E F 83.5mm B A RnX © 20XX by snom technology AG. All rights reserved. Made in XXXXX Only use adaptor listed in the user manual. 5V 600mA M300 / US FCC ID: T7HX9430 IC: 4979B-X9430 CSA C22.2 No.60950-1- Electrical Safety UL 60950-1 RTX9430 Base label,US 50002160 REV. A 04-SEP-2014 RTX Hong Kong Ltd. 1:1 Print content: SIZE : 68.5mm(W) x 83.5mm(H) MATERIAL : PET Printing color: Black text on white background POSITIONING : Stick inside the Base compartment Barcode format : Code 128 68.5mm 83.5mm Made in China Only use adaptor listed in the user manual. 5V 600mA FCC ID: T7HX9430 IC: 4979B-X9430 CSA C22.2 No.60950-1- Electrical Safety UL 60950-1 FCC Statement : per 15.19 (a) (3) This device complies with part 15 of the FCC rules. Operation is subject to the following 2 conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operations. Privacy of communications may not be ensured when using this phone. Factory SN format (YYWWSSSSSS): YY: Year of manufacturing (e.g. 10=2010) WW: Week of manufacturing SSSSSS: progressive serial number. Serial starting number is 000001, the serial number will only reset to 000001 if under the following condition: a) the start of new PO production lot, plus the production week "WW" increment to a new week. Otherwise the serial number will continuous the previous lot of production. MAC format: MMMMMMMMMMMM: MAC address in text RFPI format: 1EEEEXXY00: RFPI code in text (HEX format) 1: this is a fixed digit EEEE: EMC code XX: start from 01. These two digits cannot be All zero, 00 is not allowed. Y: start from 1. This digit cannot be zero, 0 is not allowed 00: they are fixed digits. (The serial number, MAC address and RFPI code on the base unit must be matched with the packing box) S/N: YYWWSSSSSS [Factory S/N Barcode] RFPI: 1EEEEXXY00 [RFPI Barcode] MAC: MMMMMMMMMMMM [MAC address Barcode] Type: Base MODEL: RTX9430 US Document #: 28900268 P P A A C C K K I I N N G G G G U U I I D D E E Revision #: C Revised Date: NIL 96101483 & 96101482 RTX9430 Base, EU & US Snom Page: 1 of 4 Page 1 of 4 All the label here is for position reference only, please refer the exact latest label version from EMR Step 1: Stick SN barcode label on PCB Step 2 : Stick product label

INTERTEK TESTING SERVICES Internal photos FCC ID: T7HX9430 IC: 4979B-X9430 internal photos - 1 of 3 B ase Unit assembly Base Unit Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: T7HX9430 IC: 4979B-X9430 internal photos - 2 of 3 Bas e Unit Main PCB comp side (View 2) Base Unit Main PCB comp side (View 3) INTERTEK TESTING SERVICES Internal photos FCC ID: T7HX9430 IC: 4979B-X9430 internal photos - 3 of 3 Bas e Unit Main PCB solder side Base Unit Oscillator comp side

INTERTEK TESTING SERVICES FCC ID: T7HX9430 RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. The setup and equipment setting were made in accordance with ANSI C63.17. The antenna of EUT transmitter was replaced by a coaxial cable. The impendence matching of connection, cable loss and external RF attenuator are taken into account. The EUT was arranged to communicate via a fixed carrier frequency between its transmitter and a companion device. The transmission was configured in burst mode with pseudo-random data as typical as normal operation. EUT Companion Device Spectrum Analyze r Directional Coupler For the 1.9GHz Base Unit of tested model: M300 / US, the measured powers among all the measured channels were within its production tolerance: +19 dBm (Minimum) and +21 dBm (Maximum).The antenna gain of M300 / US is 1 dBi = 1.26 (num gain) and its maximum source-base d time-averaging duty factor is 25.0% (6/24 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 21 dBm = 125.9 mW The Conducted Power source-based time-averaging output power = (125.9 * 0.250) mW = 31.47 mW The power density at 20cm = 31.47 *1.26/ 4R 2 = 0.0079 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or near by persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Test Report Number: 14051790HKG-001 Page 1 of 70 FCC ID: T7HX9430 IC: 4979B-X9430 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Applicant Name: RTX Hong Kong Limited Applicant Address: 8/F., Corporation Square, 8 Lam Lok Street, Kowloon Bay, Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2012 Edition FCC ID: T7HX9430 FCC Model(s): M300 / US, RTX9430 US IC Specification Standard: RSS-213 Issue 2, December 2005 RSS-Gen Issue 3, December 2010 IC: 4979B-X9430 IC Model(s): M300 / US, RTX9430 US Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: VoIP DECT - Base Unit Serial Number: N/A Sample Receipt Date: Jun 24, 2014 Date of Test: Jul 04, 2014 to Aug 09,2014 Report Date: October 17, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Test Report Number: 14051790HKG-001 Page 2 of 70 FCC ID: T7HX9430 IC: 4979B-X9430 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 Test Results Summary & Statement of Compliance.............................................. 5 1.1 Summary of Test Results ....................................................................................... 5 1.2 Statement of Compliance ....................................................................................... 7 2.0 General Description................................................................................................. 9 2.1 Product Description ................................................................................................. 9 2.2 Technical Description .............................................................................................. 9 2.3 Test Methodology.................................................................................................... 9 2.4 Test Facility............................................................................................................. 9 3.0 System Test Configuration.................................................................................... 12 3.1 Justification ........................................................................................................... 12 3.2 Conducted Emission Test Configuration ................................................................ 13 3.3 Conducted Monitoring and Operational Test Configuration .................................... 13 3.4 EUT Exercising Software....................................................................................... 13 3.5 Details of EUT and Description of Accessories...................................................... 14 3.6 Measurement Uncertainty ..................................................................................... 14 4.0 Measurement Results............................................................................................ 16 4.1 Antenna Requirement........................................................................................... 16 4.2 Digital Modulation Techniques............................................................................... 16 4.3 Emission Bandwidth.............................................................................................. 17 4.4 Directional Gain of the Antenna ............................................................................. 20 4.5 Peak Transmit Power ............................................................................................ 21 4.6 Power Spectral Density ......................................................................................... 24 4.7 Automatic Discontinuation of Transmission............................................................ 27 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 28 4.9 Emissions Outside the Sub-Band .......................................................................... 32 4.9.1 Radiated Emissions Configuration Photographs ................................................. 33 4.9.2 Radiated Emissions Data ................................................................................... 33 4.9.3 Field Strength Calculation................................................................................... 37 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 38 4.10 AC Power Line Conducted Emissions ................................................................. 39 4.10.1 AC Power Line Conducted Emissions Configuration Photographs .................... 40 4.10.2 AC Power Line Conducted Emissions Data ...................................................... 40 4.11 Frame Repetition Stability .................................................................................. 50 4.12 Frame Period and Jitter ...................................................................................... 51 4.13 Carrier Frequency Stability.................................................................................. 52 Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Test Report Number: 14051790HKG-001 Page 3 of 70 F…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: T7HX9430 IC: 4979B-X9430 config photos (radiated emission - base unit) - 1 of 1 Radiated Emission - Base Unit Radiated Emission M300 / US HK14051790 A B Front View Radiated Emission M300 / US HK14051790 A B Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Ring FCC ID: T7HX9430 IC: 4979B-X9430 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Ring FCC ID: T7HX9430 IC: 4979B-X9430 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
