T8860001RC Car

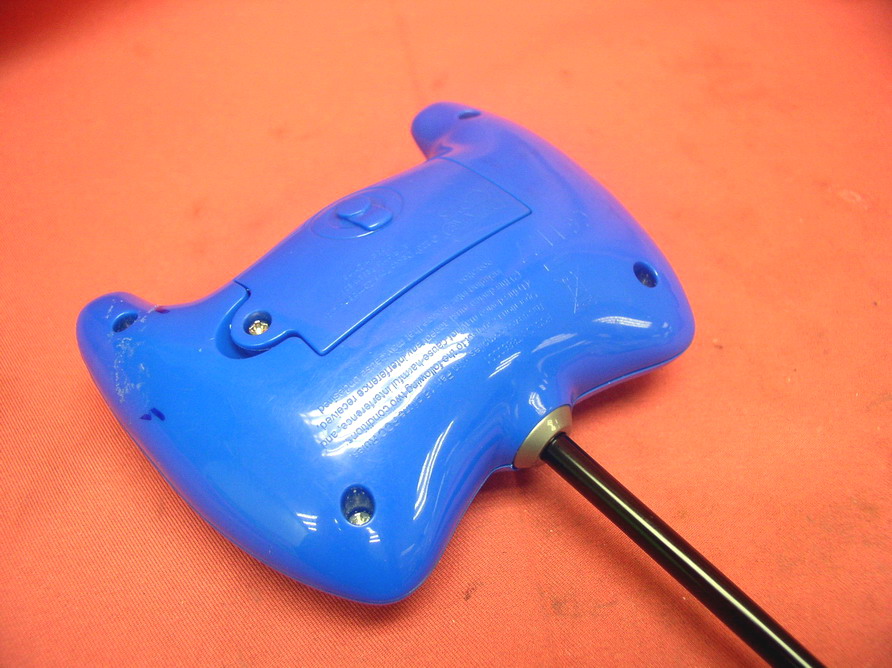

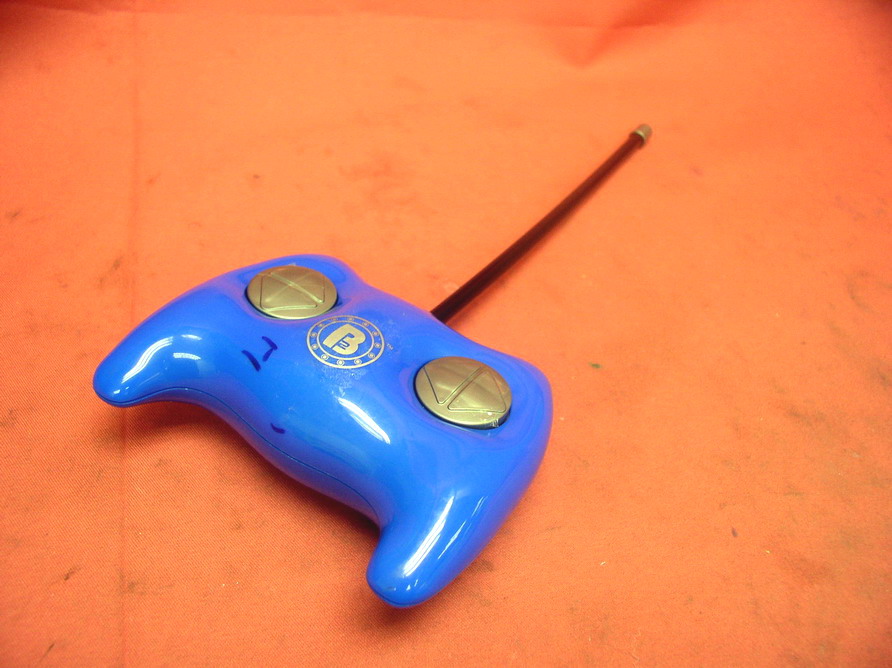

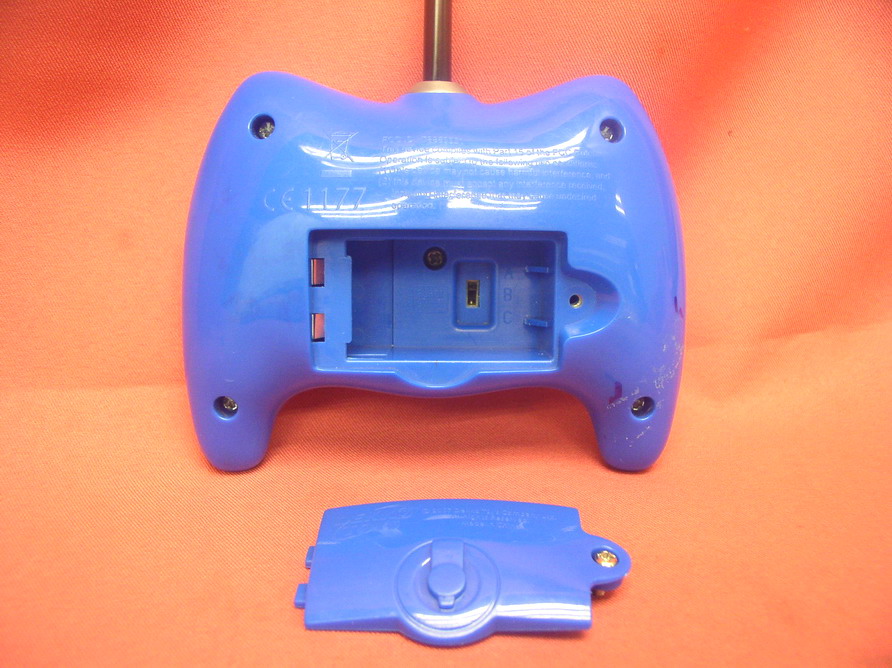

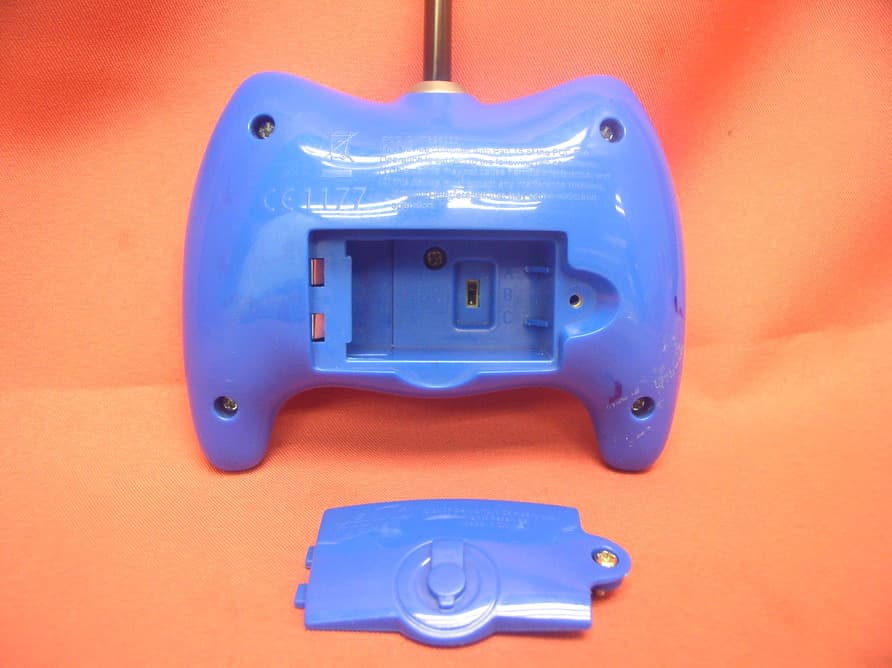

FCC ID: T8860001 Ophoto1 Ophoto2 FCC ID: T8860001 Ophoto3 Ophoto4

Label Artwork and Location Label Size: 50 mm (W) × 20 mm (H) label location

FCC ID: T8860001 Iphoto1 Iphoto2 FCC ID: T8860001 Iphoto3 Iphoto4 FCC ID: T8860001 Iphoto5 Iphoto6 FCC ID: T8860001 Iphoto7 Iphoto8

FCC ID: T8860001 Technical Description : The brief circuit description is listed as follows : - Q2, Q3 and associated circuit act as RF Amplifier and Modulator. - X1, Q1 and associated circuit act as 27.145 MHz Oscillator. - U1 EM78P153S acts as Encoder. - SW2 acts as Channel Switch. - F, B, L and R act as Control Keys. - D1 and associated circuit act as Voltage Regulator. Antenna Used : An integral antenna (non-extendable) has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : T8860001 Dekko Toys Co., Ltd. Application For Certification (FCC ID: T8860001) Transmitter Sample Description : R/C Boom Boom ™ Dump Truck Model : #60105 Additional Model : #60205, #60305 Asst. No. : #60005 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [4-5-2007] 0729386-1 BH/at January 31, 2008 INTERTEK TESTING SERVICES FCC ID: T8860001 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7 : Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: T8860001 ii MEASUREMENT/TECHNICAL REPORT Dekko Toys Co Ltd - MODEL: #60105 FCC ID: T8860001 January 31, 2008 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [4-5- 2007 Edition] provision. Report prepared by: Ho Wai Kin, Ben Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8517 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: T8860001 iii Table of Contents 1.0 General Description................................................................................................ 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants................................................................................. 2 1.3 Test Methodology ................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration..................................................................................... 5 2.1 Justification.......................................................................................................... 5 2.2 EUT Exercising Software ..................................................................................... 5 2.3 Special Accessories............................................................................................. 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Measurement Uncertainty.................................................................................... 6 2.6 Support Equipment List and Descripition ............................................................. 6 3.0 Emission Results .................................................................................................... 8 3.1 Field Strength Calculation .................................................................................... 9 3.1 Field Strength Calculation (cont’d) ..................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data .................................................................................... 12 4.0 Equipment Photographs ....................................................................................... 15 5.0 Product Labelling .................................................................................................. 17 6.0 Technical Specifications ....................................................................................... 19 7.0 Instruction Manual ................................................................................................ 21 8.0 Miscellaneous Information ................................................................................... 23 8.1 Measured Bandwidth ......................................................................................... 24 8.2 Discussion of Pulse Desensitization................................................................... 25 8.3 Calculation of Average Factor ............................................................................ 26 8.4 Emission Test Procedures ................................................................................ 27 INTERTEK TESTING SERVICES FCC ID: T8860001 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Average Factor af.pdf INTERTEK TESTING SERVICES FCC ID: T8860001 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: T8860001 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a transmitter for a RC Car operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by a 9V battery. …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Front View Back View
