T8NDIT0022.4 GHz Wireless Intercom Systems

APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002 Instruction Manual 2.4GHz Wireless Intercom System Model No.: SB-100BW4, SB-101BWL, SB-102BWC Description SB-100BW4: 6” B/W Wireless Monitor (Indoor) SB-101BWL: Wireless Door phone (Outdoor) SB-102BWC: B/W Wireless Camera with PIR CONTENT APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002 1.GENERAL 1.1 Safety Precaution Preventing fire or shock hazard: Please keep away from children, avoid moisture or any wet environment, such as rain or wet surfaces or bathtub or washbowl or sink or laundry tub. Avoid using this product close to a swimming pool or in basement. Caution: For proper warranty and compliance and ability to use the product properly, please make sure that no changes or modification are made to the product. Note: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one or more of the following measures: * Redirect or relocate the receiving antenna. * Increase the distance between the equipment and receiver. * Plug the equipment into an outlet on a different circuit from that to which the receiver is plugged into. * Consult with the seller or an experienced radio/TV technician for assistance. APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002 1.2 2.4GHz Wireless System Introduction: General Instruction; The product provides quality video and audio in B/W up to 300 feet utilizing the latest wireless communication technology. It avoids the crowed 40 MHz/49MHz width used by various Electronic Manufacturers in this wireless category. This FCC/CE approved your unit utilizes FM signal modulation to deliver high-quality video and audio. It enhances its quality by utilizing the state-of-the-art circular polarized high gain bi-directional receiving/transmitting antennas. This causes less interruption from unwanted signals and delivers high-quality video and audio. Maximum Performance: Flat and horizontal surface should be used for preventing this product to fall or tilt. For quality video/audio, the maximum transmission range is 300 feet. All obstacles from TV, other wireless products and steel structures should be avoided between camera and receiver. If interference occurs, please relocate or redirect the equipments till performance is improved. Avoid directing the camera at light fixtures or extreme sunlight as it will interfere with providing a quality image. Always keep lens clean to get quality video. The door phone and camera are weatherproof designed but not waterproof. They are not supposed to place in water or moist place for long time, otherwise it will shorten the product’s life. APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002 2. FEATURES AND SPECIFICATIONS: 2.1 FEATURES: 1) Wireless Monitor (Indoor) 6”B/W monitor Use 2.4GHz and 49.86MHz frequency band Build-in antenna Received up to 4 channel signals 1 channel wireless door phone 3 channel wireless cameras 4 channels auto switch function4 sec interval 3 channel cameras alarm function Intercom (door phone & monitor) Wireless unlock Switch on automatically when someone arrives Switch off automatically after 30 seconds delayed when nobody answers Automatic image storage32 frames picture 2) Wireless Door phone (Outdoor) 1/4” CMOS sensor Use 2.4GHz and 49.86MHz frequency band With calling function Intercom (door phone & monitor) Doorplatename-coverlighting With 6 pcs IR LEDs for night-vision Remote unlock 3) Wireless Camera (Outdoor) 1/4” CMOS sensor Weatherproof design Use 2.4GHz and 49.86MHz frequency band Build-in antenna Build-in microphone APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002 Motion detection function PIR With channel setup function With 8 pcs IR LEDs for night-vision With CDS to control LEDs 2.2 SPECIFIATIONS 1) Monitor (Indoor) Item Specification Display Tube 6′′15CMB/W CRT System CCIR or EIA Panel Control Mode/play/Intercom/Unlock/standby switch BrightnessContrastV-holdVolume Camera PIR switch, CODE reset (hidden Operation Indicator LED (mode/storage/standby) 2.4GH, transmission 2414/2432/2450/2468.4 MHz Audio Output(speaker) ≥0.3W Resolution ≥380TVL Image Storage EIA:256×240 CCIR:256×256 , 32 frames Crust Plastic Power Supply 13.5V 1.2A Consumption Standby ≤5WIn operation≤15W Operation Temperature -10 ~40 Storage Temperature -40 ~+85 Size 165(L)*190(W)*190(H)mm Weight 1500g APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002 2) Door phone (Outdoor ) Item Specification Sensor 1/4” CMOS Active Pixels CCIR:352 (H) X 288 (V), EIA:320 (H) X 240 (V) Resolution 380 TVL System CCIR or EIA Scanning Frequency CCIR H:15625 V:50EIA H:15734 V: 60(Hz) Control 49.86MHz Audio 49.86MHz Transmit/Receive Frequency Image 2468.4 MHz Transmitting Distance ≥80 m (open area) Min Illumination 0 LUX (With IR LED) S/N Ratio ≥48 dB Back Light Compensation Auto Electronic Shutter 1/50S~1/6000 Lens f=3.6 60 0 (approx) Crust Plastic Power Supply 9V 300mA Unlock AC/230/AC120/DC24V 1A Consumption ≤2.7W Operation Temperature -10~ +40 Storage Temperature -40~+85 Size 178(L)*110(W)*45(H)mm Weight 300g APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002 3) Camera (Outdoor) Item Specification Sensor 1/4” CMOS Active Pixels CCIR: 352 (H) X 288 (V), EIA: 320 (H) X 240 (V) Resolution 380 TVL System CCIR/EIA Scanning Frequency CCIR H:15625 V:50EIA H:15734 V: 60(Hz) Transmitting Frequency 2414/2432/2450 MHz 49.86MHz Transmitting…

Text truncated - open the document above for the full version.

APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002 ANT 49.86 MHz ANT 2468.4 MHz

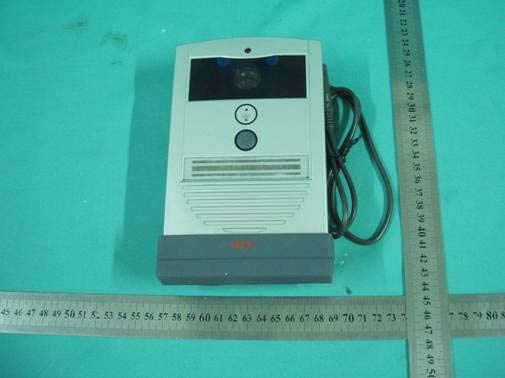

APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002

APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002 Label Location

APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002 Label Drawing FCC ID: T8NDIT002 Model Number: SB-101BWL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002 Circuit Description of transmitter SB-101BWL is the B/W camera of 2.4GHz/49.86MHz wireless doorbell, which consists of 4 parts: A. CMOS CAMERA PART: Single chip 1/4 inch format video image sensor, generates composite video signal, while additional audio-amplifying circuit diagram can amplify the weak signal from microphone. B. 2.4G MODULE PART: modulate Video and Audio signal to 2.4G Band and send out. C. MCU & 49.86MHz MODULE PART: sends out coded signal to monitor, receives 49.86M audio signal from monitor then sends to the audio amplifier, and receives the “released” signal then sends to the unlock unit. POWER SUPPLY PART: supplies power to camera, audio amplifier, 49.86MHz module and the unlock unit.

SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002 Cover Sheet Test Report Product Name: 2.4 GHZ WIRELESS INTERCOM SYSTEMS FCC ID: T8NDIT002 MODEL NO. : SB-101BWL Applicant: DIT DIGITAL CO., LTD. 2F, 12st, LONGBI INDUSTRIAL PARK, BANTIAN VILLAGE, BUJI TOWN, SHENZHEN, CHINA Date Received: 5/19/2006 Date Tested: 5/23/2006 SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002 TABLE OF CONTENTS TABLE OF CONTENTS APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002 TEST REPORT CONTAINING: PAGE 1...........TEST EQUIPMENT LIST PAGE 2...........TEST PROCEDURE PAGE 3-5.........POWER LINE CONDUCTED INTERFERENC AND PLOTS PAGE 6...........RADIATION INTERFERENCE TEST DATA PAGE 7-8.........OCCUPIED BANDWIDTH AND PLOTS EXHIBIT INCLUDED: PAGE 1...........BLOCK DIAGRAM PAGE 2...........SCHEMATIC PAGE 3...........USERS MANUAL PAGE 4...........LABEL SAMPLE PAGE 5...........LABEL LOCATION PAGE 6...........EXTERNAL PHOTOGRAPHS PAGE 7...........INTERNAL PHOTOGRAPHS PAGE 8...........OPERATIONAL DESCRIPTION PAGE 9...........TEST SET UP PHOTOGRAPHS SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002 Page 1 of 8 EMC Equipment List Equipment Manufacturer Model No.Serial No.Last Cal. Cal. Interval EMI Test Receiver ROHDE&SCHWARZ ESCS30 100307 Mar 20,2006 1 Year LISN ROHDE&SCHWARZ ESH3-Z5 100305 Mar 20,2006 1Year Pulse Limiter ROHDE&SCHWARZ ESH3-Z2 100305 Mar 20,2006 1Year 50 Coaxial Switch ANRITSU CORP MP59B 6200283933 Mar 20,2006 1 Year Spectrum Analyzer ANRITSU MS2651B 6200238856 Mar 20,2006 1 Year Bilog Antenna SCHWARZBECK VULB 9163 9163-194 Mar 20,2006 1 Year 50 Coaxial Switch ANRITSU CORP MP59B 620028393 3 Mar 20,2006 1 Year Cable Resenberger N/A NO.1 Mar 20,2006 1 Year Cable SCHWARZBECK N/A NO.2 Mar 20,2006 1 Year Cable SCHWARZBECK N/A NO.3 Mar 20,2006 1 Year DC Power Filter DuoJi DL2°30B N/A N/A N/A Single Phase Power Line Filter DuoJi FNF 202B30 N/A N/A N/A 3 Phase Power Line Filter DuoJi FNF 402B30 N/A N/A N/A AC Power Source California Instruments 5001iX-400 55689 Mar 20,2006 1Year Test analyzer California Instruments PACS-1 72254 Mar 20,2006 1Year ESD Tester HAEFELY PESD 1610 H4001552 Mar 20,2006 1 Year Signal Generator IFR 2032 203002/100 Mar 20,2006 1 Year Amplifier A&R 150W1000 301584 NCR NCR Dual Directional Coupler A&R DC6080 301508 Mar 20,2006 1 Year Power Head A&R PH2000 301193 Mar 20,2006 1 Year Power Meter A&R PM2002 302799 Mar 20,2006 1 Year Field Monitor A&R FM5004 300329 Mar 20,2006 1 Year Field Probe A&R FP5000 300221 Mar 20,2006 1 Year EMCPRO System Thermo RO-BASE 0403271 Mar 20,2006 1 Year Capacitive Clamp Thermo PRO-CCL 0403272 Mar 20,2006 1 Year EMCPRO System Thermo PRO-BASE 0403271 Mar 20,2006 1 Year Coupler decoupler for telecom lines Thermo CM-TEL-CD 0403273 Mar 20,2006 1 Year Signal Generator IFR 2032 203002/100 Mar 20,2006 1 Year Amplifier A&R 150W1000 301584 NCR NCR EMCPRO System Thermo PRO-BASE 0403271 Mar 20,2006 1 Year SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002 Page 2 of 8 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of SHENZHEN MOST ELECTRONICS CO., LTD. The EUT was transmitting a test signal during the testing. POWER LINE CONDUCTED INTERFERENCE: The test procedure used was ANSI Standard C63.4-2003 using a 50H LISN. Both Lines were observed. The bandwidth of the receiver was 10kHz with an appropriate sweep speed. The ambient temperature of the EUT was 25 with a humidity of 58%. RADIATION INTERFERENCE: The test procedure used was ANSI Standard C63.4-2003 using a ANRITSU spectrum analyzer with a pre-selector. The analyzer was calibrated in dB above a micro volt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz up to 1 GHz and 1 MHz with a video BW of 3 MHz above 1 GHz. The ambient temperature of the EUT was 25 with a humidity of 58%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Pre-selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The EUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The EUT was placed in the center of the table (1.5m side). The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSI Standard C63.4-2003 10.1.7 with the EUT 40 cm from the vertical ground wall. SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002 Page 3 of 8 APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002 NAME OF TEST: POWER LINE CONDUCTED INTERFERENCE RULES PART NUMBER: 15.107 MINIMUM REQUIREMENTS: FREQUENCY LEVEL MHz V 0.450-30 250 TEST PROCEDURE: ANSI STANDARD C63.4-2003 THE HIGHEST EMISSION READ FOR LINE 1 WAS 29.0V 490kHz. THE HIGHEST EMISSION RE…

Text truncated - open the document above for the full version.

APPLICANT: DIT DIGITAL CO., LTD. FCC ID: T8NDIT002 Radiated Emission Test
