T8S191WIRELESS R/C TOY-TX

THE ANTENNA PROVIDED IS A UNIQUE ANTENNA. BY INSTALLATION OF UNAUTHORIZED ANTENNA TO THIS EQUIPMENT. SUCH UNAUTHORIZED INSTALLATION COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. (9v BATTERY FOR CONTROLLER NOT INCLUDED) (INCLUDED) (NOT INCLUDED) 2 RADIO CONTROL FUNCTIONS: 1. POWER and 4 BAND SELECTOR SWITCHES. 2. LEFT BUTTON operates the SURROUND SOUND FUNCTION. 3. RIGHT BUTTON operates the BURNOUT FUNCTION. 4. LEFT JOYSTICK operates the FORWARD and REVERSE FUNCTION. 5. RIGHT JOYSTICK operates the LEFT and RIGHT turn FUNCTION. #3 DIAGRAM #3 SURROUND SOUND BURNOUT FORWARD/REVERSE LEFT/RIGHT TURN 4 BAND SELECTOR POWER

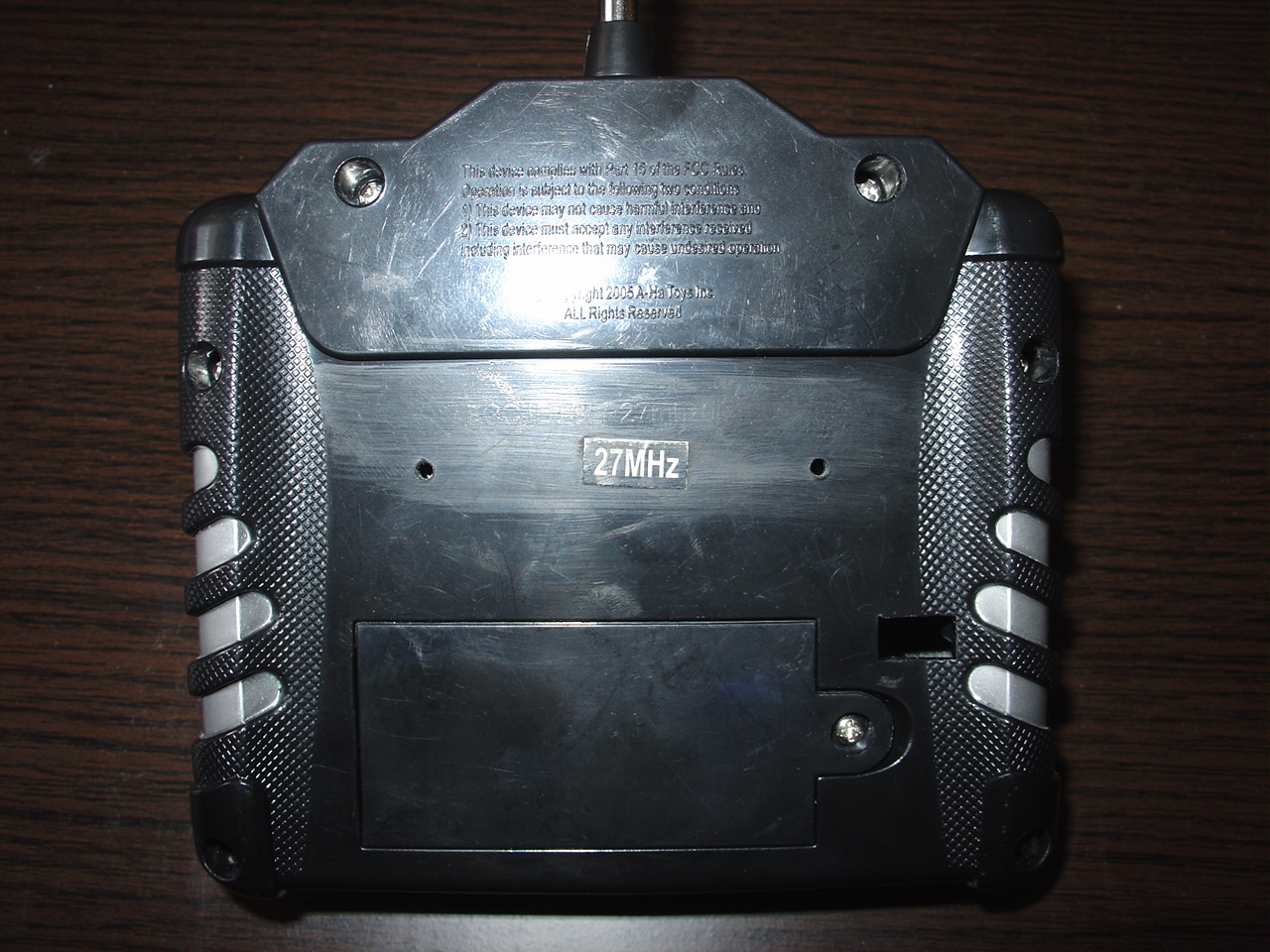

FCC ID Label Sample for FCCID: T8S191_ FCC ID: T8S191 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation.

Model: 191 18 MAY., 2006 CIRCUIT DESCRIPTION: In transmitter U1 TX6 to switch code modulation, key SW6 is forward,key SW3 is backward, key SW1 is right, key SW2 is left, key SW4 is CARSOUND, key SW5 is MUSIC, Q1 is 27MHz crystal oscillator. Q2 input mix modulation and 27Mhz crystal oscillator output to L1 and antenna. In receive Q1 & T1 to detector the modulation,U1 RX6B become amplifier of decode forward drive motor Q15,Q14 and Q12 to forward, backward drive motor Q10,Q11 and Q13 to backward, right drive motor Q4,Q5 and Q7 to right, left drive motor Q9,Q8 and Q6 to left. When receive IC U1 pin 8 “F2” trigger Sound IC U2 have music output , if U1 pin 6 “F1” trigger Sound IC U2 have car-sound output .In music and car-sound output the Q20 to drive 4 speaker “—“, Q16,Q17,Q18 and Q19 to drive 4 speaker “+”, but in car-sound output the IC U2 control Q21 to cut U1 receive “VI1” and drive motor Q15,Q14 and Q12 to forward . Q3 is regulator 4V voltage to IC U2.

191-TX.sch-1 - Fri May 19 22:29:58 2006

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: FAIRLANDTOY ELECTRONIC CO., LTD. FCC ID: T8S191 Test Report Product Name: WIRELESS R/C TOY-TX FCC ID: T8S191 Applicant: FAIRLANDTOY ELECTRONIC CO., LTD. FLAT B, 11/F, KAPOK IND. BLDG., 373 TOKWAWAN RD. KOWLOON, HONG KONG HONG KONG Date Receipt: 5/12/2006 Date Tested: 5/16/2006 REPORT #: F\FAIRLANDTOY_\1004HT6\1004HT6TestReport.doc COVER SHEET TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: FAIRLANDTOY ELECTRONIC CO., LTD. FCC ID: T8S191 TABLE OF CONTENTS LIST APPLICANT: FAIRLANDTOY ELECTRONIC CO., LTD. FCC ID: T8S191 TEST REPORT CONTAINING: PAGE 1...............TEST EQUIPMENT LIST PAGE 2...............TEST PROCEDURE PAGE 3...............RADIATION INTERFERENCE TEST DATA PAGE 4-5.............OCCUPIED BANDWIDTH EXHIBITS INCLUDING: BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPHS REPORT #: F\FAIRLANDTOY_\1004HT6\1004HT6TestReport.doc TABLE OF CONTENTS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: FAIRLANDTOY ELECTRONIC CO., LTD. EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Antenna: Biconnical Electro-Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303a01690 CAL 12/8/05 12/8/07 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 12/7/05 12/7/07 Analyzer Tan Tower Spectrum Analyzer HP 8566B OPT 462 3188A07786 3144A20661 CAL 12/7/05 12/7/07 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 12/8/05 12/8/07 LISN Electro-Metrics ANS-25/2 2604 CAL 8/27/04 8/27/06 LISN Electro-Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Antenna: Log- Periodic Eaton 96005 1243 CAL 12/14/05 12/14/07 Antenna: Passive Loop EMC Test Systems EMCO 6512 9706-1211 CAL 4/27/06 4/27/08 FCC ID: T8S191 REPORT #: 1004HT6 Page 1 of 5 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: FAIRLANDTOY ELECTRONIC CO., LTD. TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4- 2003 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a micro-volt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 80ºC with a humidity of 76%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Pre-selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. FCC ID: T8S191 REPORT #: 1004HT6 Page 2 of 5 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: FAIRLANDTOY ELECTRONIC CO., LTD. APPLICANT: FAIRLANDTOY ELECTRONIC CO., LTD. FCC ID: T8S191 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.227 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEEDS 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/m ABOVE 960 MHz 54.0 dBuV/m TEST DATA: Tuned Frequenc y MHz Emission Frequenc y MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correcti on Factor dB Field Strength dBuV/m Margin dB 27.2 27.15 29.1 H 0.80 34.16 64.06 15.94 27.2 27.15 33.8 V 0.80 34.16 68.76 11.24 27.2 54.29 13.6 H 1.01 10.06 24.67 15.33 27.2 54.29 17.6 V 1.01 9.84 28.45 11.55 27.2 81.44 18.1 V 1.24 8.46 27.80 12.20 27.2 81.44 19.5 H 1.24 8.60 29.34 10.66 27.2 108.52 13.1 H 1.46 10.59 25.15 18.35 27.2 108.58 11.8 V 1.46 10.81 24.07 19.43 27.2 135.73 7.2 V 1.65 14.92 23.77 19.73 27.2 135.73 10.0 H 1.65 14.06 25.71 17.79 27.2 162.87 8.2 H 1.84 16.59 26.63 16.87 27.2 162.87 8.3 V 1.84 17.53 27.67 15.83 27.2 190.02 7.3 V 2.03 14.61 23.94 19.56 27.2 190.02 8.3 H 2.03 14.01 24.34 19.16 27.2 217.16 4.6 H 2.19 11.59 18.38 27.62 27.2 217.16 5.8 V 2.19 11.46 19.45 26.55 27.2 244.31 4.9 V 2.32 12.16 19.38 26.62 27.2 244.31 5.2 H 2.32 12.17 19.69 26.31 27.2 271.45 3.3 H 2.46 13.24 19.00 27.00 27.2 271.45 5.0 V 2.46 13.27 20.73 25.27 SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. All measurements below 30 MHz were taken using an EMC Test Systems Passive Loop Antenna. PERFORMED BY: NAM NGUYEN DATE: 5/16/2006 FCC ID: T8S191 REPORT #: 1004HT6 Page 3 of 5 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.20…
