T9XET50BT STEREO EARPHONE

Zhuhai Sunda Technologhy Co.,Ltd Page 1 of 6 Joybee ET50 Product Specification and User Guide Specification Bluetooth specification: Bluetooth v1.2 compliant; Support Profile: All devices support the Bluetooth A2DP, AVRCP, HS, HF profile Power class: class II; Wireless application range: 10 meters; Frequency range: 2.402GHz-2.480GHz; Enjoy the wireless music and conversation simultaneously; Allows music streaming via the Audio Dongle that transmits stereo audio through any audio player; Alert any incoming call with internal buzzer sound that can be toggled on or off; Rechargeable lithium-ion battery; Charge-up time: 2~3 hours; Operation time: up to 7 hours; Standby time: up to 180 hours. Product Pictures Button Definition Joybee ET50 Bluetooth stereo earphone button definition and description Button Pair with the mobile phone Pair with Audio Dongle Multi Function Button “MFB” On/Off Paring Answer a call Ending a call Voice dialing Last number Re-dialing On/Off Paring Volume control button V+&V- Adjust volume Reject a call Interchanging Toggle the buzzer Adjust volume Paring password 0000 Pairing automatically Joybee ET50 Joybee ET50 Bluetooth stereo earphone Zhuhai Sunda Technologhy Co.,Ltd Page 2 of 6 Joybee ET50 Product Specification and User Guide Joybee ET50 Operation Guide Charging up By plugging the power adapter into the DC jack of the earphone, charge up your earphone approximately for 2~3 hours after you have made your purchase. During charging, the indicating LED lights up red in color and all earphone function will be turned off automatically. When the charging is completed, the earphone indicator (Red LED) turns off and the adapter can be removed from the earphone and AC socket. Low voltage indication During normal power consumption, the voltage may gradually drop to 3.3 V, the indicating light (Red LED) flashes once every 4 seconds. When the voltage drops to 3.0V, the indicating light (Red LED) flashes once every 4 seconds, and the earphone will power down automatically after 30 seconds. When the earphone detects a low voltage, please re-charging device immediately in order to maintain the proper battery quality. Turn on and Turn off Tu r n o n Press MFB button for 3 seconds, you will hear tone from the speaker and the LED light for 3 seconds. Earphone will go into stand-by mode. Turn off Press MFB button for 3 seconds you will hear tone from the speaker and the Led light for 6 Seconds. Earphone will be turned the power off. It also disconnect with paired device. Toggle the buzzer (at waiting mode) Turn off Press V+ or V- for 3 seconds, you will hear a “beeping” sound twice. Then, incoming call signaled by a buzzer sound is deactivated. Tu r n o n Press V+ or V- for 3 seconds, you will hear a “beeping” sound once. Then, incoming call signaled by a buzzer sound is activated . Pairing the Bluetooth earphone with Mobile Phone Pairing with the mobile phone Only connect the Mobile Phone supported with Bluetooth function. Put the Mobile Phone and the Bluetooth stereo earphone in an observable distance within 1 meter between them. Make sure the Bluetooth earphone is in “off” status. Press and hold the MFB for 6 seconds until the earphone LED flashes red and blue alternately. It’s now ready for paring. Activate the Bluetooth function built-in with your mobile phone (referring to your mobile phone user manual). The mobile phone will search for all accessible Bluetooth devices. Then select “Joybee ET50” from the Bluetooth device’s name list shown on mobile phone display, and confirm your selection accordingly. Enter the password “0000”to confirm it. Your Bluetooth earphone is now paired with your mobile phone. Zhuhai Sunda Technologhy Co.,Ltd Page 3 of 6 Joybee ET50 Product Specification and User Guide After pairing, you will hear a long tone from the earphone speaker, meanwhile, the indicator light of the phone (Blue LED) will flash thrice slowly and continue to flash once every 4 seconds. If pairing uncompleted after 2 minutes, the earphone will power off automatically. So you have to repeat the mentioned steps for pairing your earphone again. Return to the main menu or “home” of your mobile phone; make sure there is no obstacle between your earphone and mobile phone in an effective distance of 10 meters, now the earphone is paired successfully and ready for answering call or listening to playback music. Answering a call To answer a call, wait for the Bluetooth stereo earphone to ring, then short press the MFB. Ending a call During conversation, short press the MFB to end a call. Reject a call When you hear the beep from the speaker or the “beep” from the buzzer, press and hold either V+ or V- button for 3 seconds until a short beeping sound is heard from the earphone. Voice dialing If you mobile phone is voice dialing enabled, under the stand-by mode, press the MFB and when you hear a beeping sound, say your required name to response the voice tag. IMPORTANT: Please make sure to record voice tag into the mobile phone before you using the voice dialing function. This function is only applicable to mobile phone with Bluetooth hands-free profile. Please refer to your mobile phone user guide for detailed voice dialing operation. Last number Re-dialing Under stand-by mode, short press the MFB on your stereo earphone twice. Your mobile phone will redial the last number automatically. Interchanging You may toggle your conversation between your stereo earphone and your mobile phone very conveniently. During talk time, press and hold the V+ or V- button for 3 seconds, your conversation will be directed to mobile phone. By short pressing the MFB, your conversation will be taken place with stereo earphone again. Listening to music While enjoying the music, short press the MFB to pause the music and short press the MFB again to play the music again. (This function is only applicable to Bluetooth stereo mobile phone with the A/V profile. Please refer to your mobile phone user guide for detailed…

Text truncated - open the document above for the full version.

RAM external Base band DSP 2.4Ghz Radio MCU RF I/O Filter Speaker Kalimba DSP Power Module Microphone 2.7V 1.8V XTAL INPUT : DC 3.3V~4.2V Bluetooth Module INPUT :DC5.0V/180mA Zhuhai Sunda Technology CO.,Ltd Joybee ET50 Block diagra m Write:Li Yuni Number XDRDF000000ET50 SPI UART/USB PIO Audio In/Out PCM/I 2 S/SPDIF FLASH DC-DCcurcuit Charingcuircuit Microphone bias it User Button &LED IndicatorModule Filtercurcui t Antenna

EUT - Front View EUT - Back View Adapter - Front View Adapter - Back View

FCC ID Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/proposed FCC Mark Location FCC ID: T9XET50 This device complies with Part 15 of the FCC

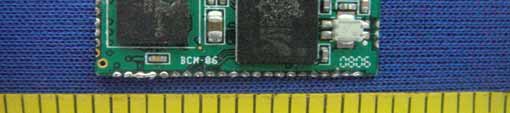

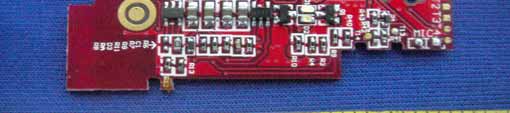

PCB-Solder View PCB1 - Front View PCB1 - Back View PCB2 - Front View PCB2 - Back View Battery - Front View Battery - Back View

Joybee ET50 Specification Product Description This scheme is a class II Bluetooth sub-system using Bluecore3-Multimedia external chipset from leading Bluetooth chipset supplier Cambridge Silicon Radio. This device and Bluetooth module firmware is fully compliant with the Bluetooth Specifiation V1.2. Bluetooth Module Brief Dimensions Pin Configurations Pin NO. NAME TYPE FUNCTION RE-MARK 1 EXT_CLK Analogue External Clock Input (For built in crystal) For external clock input 2 GND GND VDD POWER +1.8v Supply 3* N.C. 4 GND GND Ground 5 AUDIO_OUT_P_LT Analogue Audio Line Out Positive (Left Side) 6 AUDIO_OUT_N_LT Analogue Audio Line Out Negative(Left Side) 7 AUDIO_OUT_N_RT Analogue Audio Line Out Negative (Right Side) 8 AUDIO_OUT_P_RT Analogue Audio Line Out Positive (Right Side) VCC POWER +3.3V Supply 9* VDD POWER +1.8V Supply 10 GND GND Ground Joybee ET50 Specification 11 AUDIO_IN_P_LT Analogue Audio Line In Positive (Left Side) 12 AUDIO_IN_N_LT Analogue Audio Line In Negative (Left Side) 13 AUDIO_IN_N_RT Analogue Audio Line In Negative (Right Side) 14 AUDIO_IN_P_RT Analogue Audio Line In Positive (Right Side) 15 GND GND Ground 16 B_SW CMOS input Bank Switching Selection 17 AIO0 Bi-directional Programmable input/output line 18 AIO1 Bi-directional Programmable input/output line 19 AIO3 Bi-directional Programmable input/output line 20 GND GND Ground 21 USB_DP Bi-directional USB Data Plus 22 USB_DN Bi-directional USB Data Plus 23 UART_RTS CMOS output UART Request To Send (Active Low) 24 UART_CTS CMOS input UART Clear To Send (Active Low) 25 UART_RX CMOS input UART Data Input (Active Low) 26 UART_TX CMOS output UART Data Output (Active Low) 27 GND GND Ground 28 PCM_IN CMOS Input Synchronous Data Input 29 PCM_SYNC Bi-directional Synchronous Data Sync 30 PCM_CLK Bi-directional Synchronous Data Clock 31 PCM_OUT CMOS OutputSynchronous Data Output 32 PIO7 Bi-directional Programmable Input/Output Line 33 PIO6 Bi-directional Programmable Input/Output Line 34 PIO5 Bi-directional Programmable Input/Output Line 35 PIO4 Bi-directional Programmable Input/Output Line 36 GND GND Ground 37 SPI_CSB CMOS Input Chip Select For Synchronors Serial Interface(Active Low) 38 SPI_CLK CMOS Input Serial Peripheral Interface Clock 39 SPI_MOSI CMOS Input Serial Peripheral Interface Data Input 40 SPI_MISO CMOS OutputSerial Peripheral Interface Output 41 GND GND Ground 42 RESET_B CMOS Input Reset if Low 43 RESET CMOS Input Reset if High 44 GND GND Ground 45 PIO3 Bi-directional Programmable Input/Output Line 46 PIO2 Bi-directional Programmable Input/Output Line 47 PIO1 Bi-directional Programmable Input/Output Line 48 PIO0 Bi-directional Programmable Input/Output Line 49 GND GND Ground 50 PIO11 Bi-directional Programmable Input/Output Line Joybee ET50 Specification 51 PIO10 Bi-directional Programmable Input/Output Line 52 PIO9 Bi-directional Programmable Input/Output Line 53 PIO8 Bi-directional Programmable Input/Output Line 54 GND GND Ground 55 RF-IN RF RF Interface 56 GND GND Ground * This project supplies 1.8V voltage Joybee ET50 Circuit elements brief Microphone Input Stage A low noise variable gain amplifier amplifies the signal difference between inputs MIC-N-L, MIC-N-R and MIC-P-L, MIC-P-R. The input signal maybe from either a microphone or line. The amplified signal is then digitized by a ADC . This device transmits and receives signal with A2DP. Firstly the microphone sampling voice and transform thin electrical signal and coupling it to Bluetooth module amplifier circuit. C9C10C11 and C12 should be 0.1Uf. R17 sets the microphone load impedance is normally 2.2k.Vbias should be chosen to suit the microphone and have sufficient low noise. It may be filtering the output of a PIO line. The microphone should be biased as shown in figure1.1. Figure 1.1 Speak Output Stage The digital data is converted to an analogue value by a DAC, then it is filtered prior to amplification by the output amplifier and it is available as a differential signal between SPK_R and SPK_L. The out amplifier is capable of driving a speaker directly if its impedance is greater than or equal to 8w. Figure 1.2 Joybee ET50 Specification Charging Stage Figure 1.3

12345678 A B C D 87654321 D C B A 1 2 VBAT 3.7V/350MAH 5 4 2 1 3 U1A XC9216B182 3 2 1 4 5 U3 LTC4054L 1 2 USB1 R20 150K R21 1K R22 220K R23 100K C15 10UF C16 0.1UF C17 10UF VBAT RED CHARGE-IN A100 VBAT R12 47K R13 1M R6 47K P108 VBAT POWER-HOLD C5 0.1uf C6 10uf C1 0.1uf 1.8V RESET R3 47K R4 47K 1.8V P105P104 Q1 2N3904 B 1 C 3 E 2 Q3 2N3904 Q2 2N3904 R14 47K R15 47K R5 100K 1.8V CHARGE-IN R9 47K R10 47K R16 330 VBAT P101 P100 RED 5 4 2 1 3 U2A XC6204B272MR p1011 VBAT C7 10uf C8 0.1uf C9 104 C10 104 C11 104 C12 104 C13 15Pf C14 15pf L2 15uH MK? MICROPHONE2 R17 2.2K MIC-N-L MIC-N-R MIC-P-LMIC-P-R SW1 MFB D3 IN4148 R7 47K R8 47K R11 4.7K VBAT P103 GND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 2 3 2 4 2 5 2 6 2 7 2 8 2 9 3 0 3 1 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 5 4 5 5 5 6 U4 BCM-06 1.8V GND R18 22 R19 22 SPK-L 32R SPK-R 32R 1.8V GND MIC-P-L MIC-N-L MIC-N-R MIC-P-R GND A100 P106 GND GND P107 P105 P104 GND SPI-CSB SPI-CLK SPI-MOSI SPI-MISO GND RESET-B RESET GND P103 P101 P100 GND P1011 P108 GNDGND C3 OPEN C4 open RESET-B 1 1 2 2 D1 LED 1 1 2 2 D2 LED POWER-HOLD P102 Q4 2N3904 Q5 2N5401 R41 1K R42 470 D4 IN4148 LS3 BUZZ VBAT R40 47K P102 R43 3.3k RA 0R RB OPEN sw2 SW SPDT C2 1.8PF 珠海讯达科技有限公司 : 制图 : 审核 : 批准 文件编号 文件版本 JoybeeET50 原理图 XDRDEJoybeeET50 A 数量比例 11:1 日期06/05/25 李玉妮 朱如沐 谢志勇 PDF created with pdfFactory trial version www.pdffactory.com

FCC TEST REPORT Page 1 of 41 FCC ID : T9XET50 Applicant : Zhuhai Sunda Technology Co., Ltd No.1,The 5th pingxi Road Nanping Technology Zone Zhuhai Equipment Under Test (EUT) : Product description : Stereo bluetooth earphone/stereo audio adapter Model No. : Joybee ET50, ET50 Audio Dongle Standards : FCC 15 Paragraph 15.247 Date of Test : June 28, 2006 Test Engineer : Tiger Su Reviewed By : PERPARED BY: Waltek Services (Shenzhen) Co., Ltd. 8C,West Tower, Aidi Building, No.5003 Binhe Rd, Futian District, Shenzhen518045, Guangdong, China. Tel: 86-755-83551033 Fax: 86-755-83552400 Zhuhai Sunda Technology Co., Ltd FCC ID: T9XET50 Page 2 of 41 2 Contents Page 1 COVER PAGE..........................................................................................................................................................1 2 CONTENTS ..............................................................................................................................................................2 3 TEST SUMMARY....................................................................................................................................................5 4 GENERAL INFORMATION..................................................................................................................................6 4.1 CLIENT INFORMATION............................................................................................................................................6 4.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................6 4.3 DETAILS OF E.U.T. .................................................................................................................................................6 4.4 DESCRIPTION OF SUPPORT UNITS...........................................................................................................................6 4.5 STANDARDS APPLICABLE FOR TESTING..................................................................................................................6 4.6 TEST FACILITY........................................................................................................................................................7 4.7 TEST LOCATION......................................................................................................................................................7 5 EQUIPMENT USED DURING TEST ...................................................................................................................8 6 CONDUCTED EMISSION TEST ..........................................................................................................................9 6.1 TEST EQUIPMENT....................................................................................................................................................9 6.2 TEST PROCEDURE...................................................................................................................................................9 6.3 CONDUCTED TEST SETUP.....................................................................................................................................10 6.4 EUT OPERATING CONDITION...............................................................................................................................10 6.5 CONDUCTED EMISSION LIMITS.............................................................................................................................11 6.6 CONDUCTED EMISSION TEST RESULT...................................................................................................................12 6.7 CONDUCTIED EMISSIONS TEST DATA...................................................................................................................13 7 RADIATION EMISSION TEST...........................................................................................................................14 7.1 TEST EQUIPMENT..................................................................................................................................................14 7.2 MEASUREMENT UNCERTAINTY.............................................................................................................................14 7.3 TEST PROCEDURE.................................................................................................................................................14 7.4 RADIATED TEST SETUP.........................................................................................................................................15 7.5 SPECTRUM ANALYZER SETUP...............................................................................................................................15 7.6 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................16 7.7 SUMMARY OF TEST RESULTS................................................................................................................................16 7.8 EUT OPERATING CONDITION...............................................................................................................................17 7.9 RADIATED EMISSIONS LIMIT ON PARAGRAPH 15.209 ...........................................................................................17 7.10 RADIATED EMISSIONS TEST RESULT................................................................................................................18 7.11 RADIATED EMISSION DATA.............................................................................................................................18 8 MAXIMUM PEAK OUTPUT POWER...............................................................................................................21 9 HOPPING CHANNEL NUMBER.............................................................................................................…

Text truncated - open the document above for the full version.

1.Conduction Emission Test Setup View 2.Radiation Emission Test setup Photos
