TA9-0100R433-434 MHz WIRELESS DEVICE-RX

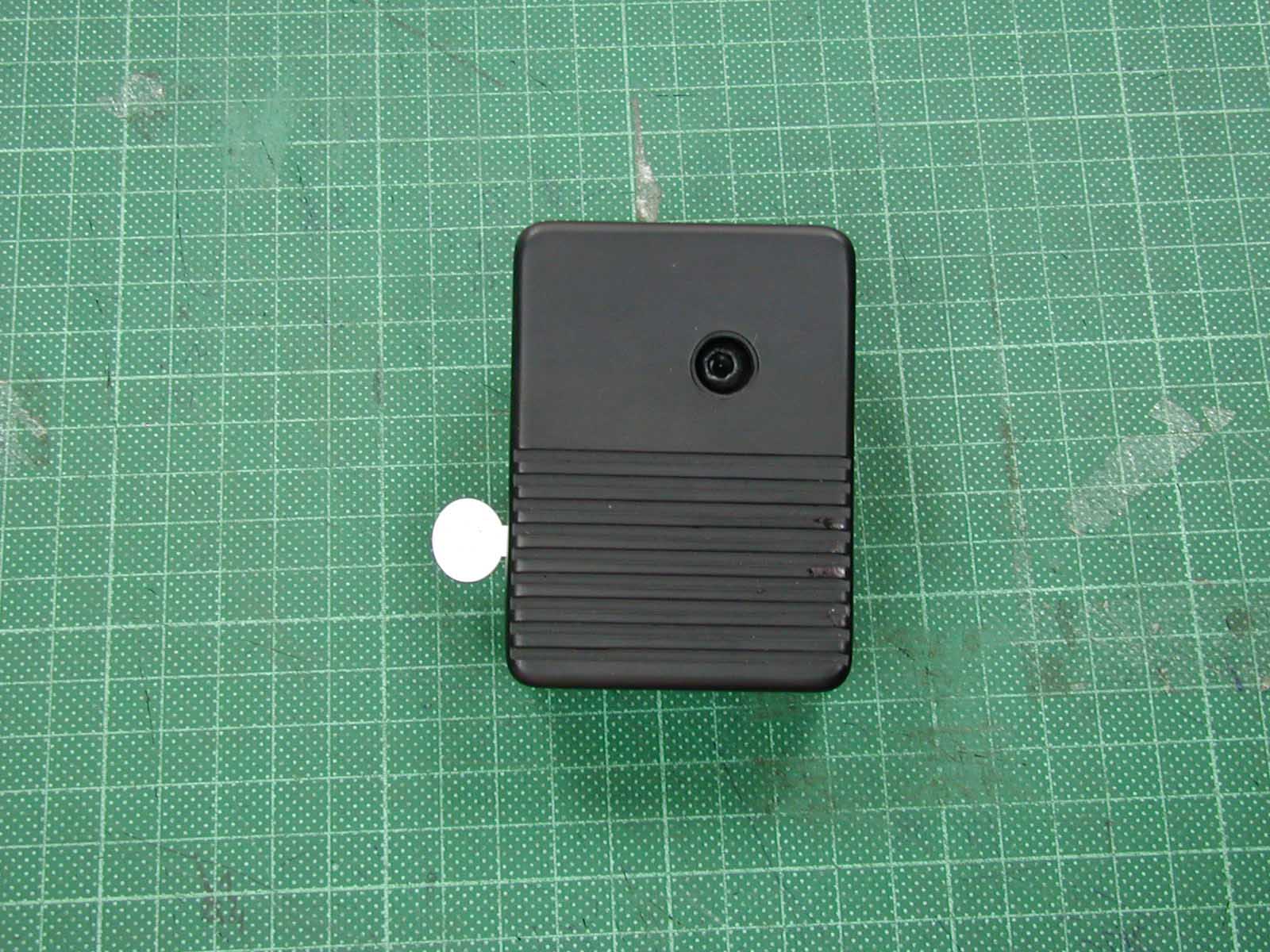

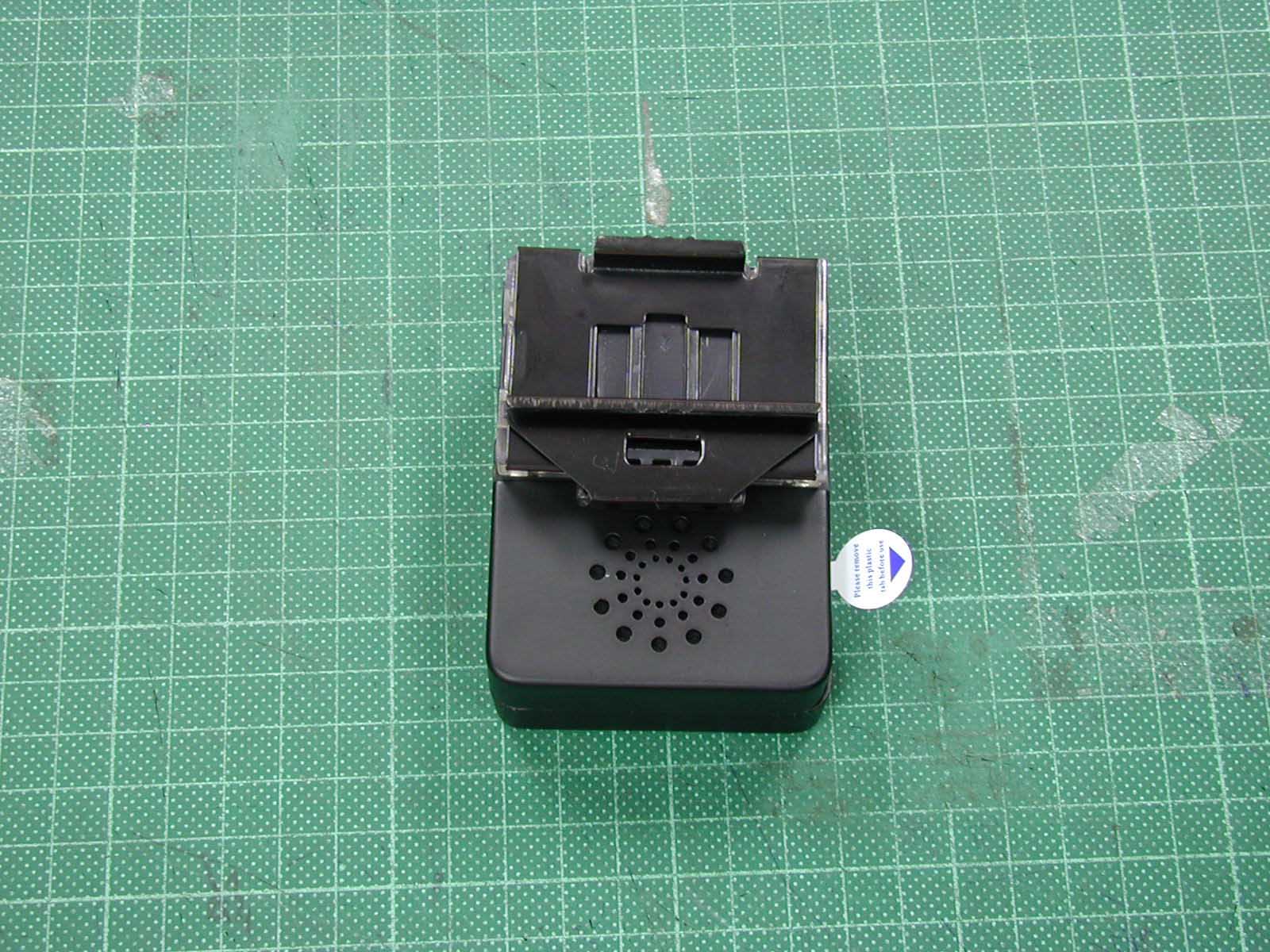

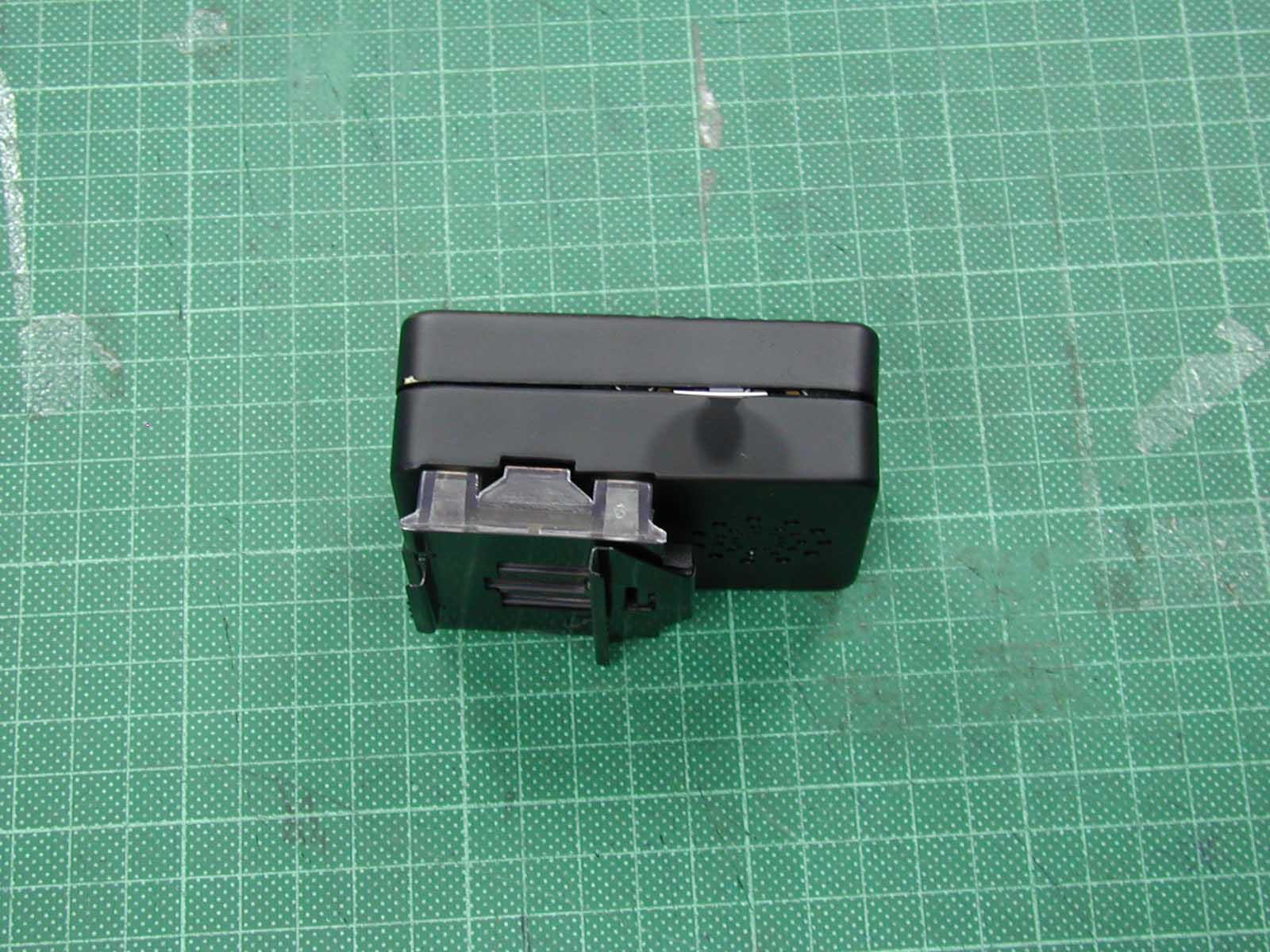

RECEIVER BACKRECEIVER FRONT TRANSMITTER DISC A) FUNCTION KEYS 1. BATTERY PULL TAG - RECEIVER 2. SPEAKER 3. SCREW HOLDER 4. BATTERY PULL TAG - TRANSMITTER B) OPERATION 1. TAKE OUT BOTH PULL TAGS AND PLACE THE RECEIVER AND TRANSMITTER WITHIN 6 FT. 2. WHEN YOU STEP ON THE MAT, RECEIVER HAS SOUND. 3. STEP ON THE DIFFERENT LOCATIONS AND HAVE DIFFERENT SOUND FROM RECEIVER (TOTAL 3 SOUNDS) (WHEN SOUND IS PLAYING AND STEP AGAIN, SOUND WILL PLAY AFTER 10 SECONDS) C) CAUTION 1. DIFFERENT TYPES OF BATTERIES CANNOT BE USED. 2. WHEN THE SOUND BECOME WEAK, IT IS THE TIME TO CHANGE THE FACTORY INSTRUCTION MANUAL FOR MODEL 0100 FCC NOTE THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. FCC Warning Statements for FCC ID Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

Block Diagram 433-434 MHz

LOYAL TECHNOLOGY CO.LTD Model No: CIRCUIT DESCRIPTION Receiver Circuit The built in antenna inductively coupled to Q1 9018S RF amplifier and mixer The U2 LMV358 is Data amplifier and data compartor. The data is then routed to data control circuitU3 HT-12D.The data control circuitU3, Control The sound IC U4,The output of the U4 coupled to speaker Transmitter Circuit Q6 is the crystal oscillator which is modulated by the output of the data control circuitU1 HT12E. The data input is form key. The output of the RF amplifier coupled to the transmitter antenna. Power and Ground Energy is supplied by 1.5V × 3PCS AAA batteries for RX and Button CELL CR2016×2PCS for TX . No external ground connection is provided and what ground that’s available is from the printed circuit board.

Schematic Diagram 433-434 MHz

THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: T-INK INC. FCC ID: TA9-0100R REPORT :THRU-505032 COVER SHEET Test Report Product Name: 433-434 MHz Wireless Device - RX FCC ID: TA9-0100R Applicant: T-ink Inc. 244 W 54 th ST 9 th FL, NEW YORK, NY 10019, U.S.A. Date Receipt: May/27/2005 Date Tested: May/31/2005 THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: T-INK INC. FCC ID: TA9-0100R REPORT :THRU-505032 TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: T-INK INC. FCC ID: TA9-0100R TEST REPORT CONTAINING: PAGE 1...............TEST EQUIPMENT LIST PAGE 2...............TEST PROCEDURES PAGE 3...............RADIATION INTERFERENCE TEST DATA EXHIBITS CONTAINING: EXHIBIT 1............BLOCK DIAGRAM EXHIBIT 2............SCHEMATIC EXHIBIT 3............INSTRUCTION MANUAL EXHIBIT 4............SAMPLE OF FCC ID LABEL EXHIBIT 5............LOCATION OF FCC ID LABEL EXHIBIT 6............EXTERNAL PHOTO - FRONT SIDE EXHIBIT 7............EXTERNAL PHOTO - BACK SIDE EXHIBIT 8............INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 9............INTERNAL PHOTO - COPPER SIDE EXHIBIT 10...........CIRCUIT DESCRIPTION EXHIBIT 11...........TEST SET UP PHOTO THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: T-INK INC. FCC ID: TA9-0100R REPORT :THRU-505032 Page 1 of 3 APPLICANT: T-INK INC. FCC ID: TA9-0100R TEST EQUIPMENT LIST DEVICE MODEL MFGR SERNO DUE.CAL EMI Test Receiver ESVS 10 Rohde & Schwarz 830489/001 2006.04.23. Spectrum Analyzer 8566B Hewlett Packard 2311A02394 2006.04.23 Spectrum Display 85662A Hewlett Packard 2542A12429 2006.04.23. Quasi-Peak Adapter 85650A Hewlett Packard 2521A00887 2006.04.23. RF Preselector 85685A Hewlett Packard 2648A00504 2006.04.23 Pre-Amplifier 8449B Hewlett Packard 3008A00375 2006.04.23. Pre-Amplifier 8447F Hewlett Packard 3113A05367 2006.04.23. Spectrum Monitor EZM Rohde & Schwarz 862304/007 2006.04.23. Bico-Antenna 94455-1 Eaton 977 2007.04.01. Log-Periodic Antenna 3146 EMCO 2051 2007.04.01. Dipole Antenna TDA25/1/2 Electro Metrics 176/200/200 2007.04.01. Horn Antenna SAS-571 A.H Systems 414 2007.04.01. Spectrum Analyzer R3261C Advantest 71720189 2006.04.23 LISN KNW-242 Kyoritsu 8-923-2 2007.04.25. LISN 8012-50-R- 24 Solar 8379121 2007.04.25.. Loop Ant 6507 EMCO 1435 2005.10.06. Signal Generator SMS Rohde & Schwarz 872165/100 2006.04.23. Modulation Analyzer 8901B Hewlett Packard 3438A05094 2006.04.23. Frequency Counter CMC251 Tektronic CMC-251TW52489 2006.04.23. THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: T-INK INC. FCC ID: TA9-0100R REPORT :THRU-505032 Page 2 of 3 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of ThruLab & Engineering. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHZ with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHZ and the video bandwidth was 300KHZ. The ambient temperature of the UUT was 23ºC with a humidity of 27% FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. ANSI STANDARD C63.4-1992 12.1.1.1 SUPERREGENERATIVE RECEIVER: A signal Generator was set to the unit under test operating frequency. An un- Modulated continuous wave (CW) signal was radiated at the super regenerative receiver operating frequency to cohere the characteristic broadband emissions from the receiver. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall:Not Applicable, battery operated. THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: T-INK INC. FCC ID: TA9-0100R REPORT :THRU-505032 Page 3 of 3 APPLICANT: T-INK INC. FCC ID: TA9-0100R NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.109 REQUIREMENTS: 30 to 88 MHz: 40.0 dBuV/M @ 3 METERS 88 to 216 MHz: 43.5 dBuV/M 216 to 960 MHz: 46.0 dBuV/M ABOVE 960 MHz: 54.0 dBuV/M TEST RESULTS: A search was made of the spectrum from 30 to 1000MHz and the measurements indicate that the unit DOES meet the FCC requirements. TEST DATA: No Emission Frequency (MHz) Meter Reading dBuV/m Ant. Polaritry Correction Factor dB Cable Loss dB Field Strength (dBuv/m) Margin (dBuv) Limit (dBuv/m) 1 31.12 15.7 V 13.1 0.7 29.4 -10.6 40.0 2 81.03 2.7 V 8.3 1.4 12.4 -27.6 40.0 3 96.29 2.4 V 10.9 1.6 14.9 -28.6 43.5 4 121.42 2.7 V 11.1 1.8 15.6 -27.9 43.5 5 134.82 2.1 H 13.8 2.0 17.9 -25.6 43.5 6 179.05 2.1 V 14.8 2.3 19.2 -24.3 43.5 7 187.71 1.6 H 13.8 2.4 17.8 -25.7 43.5 8 200.82 4.5 H 10.9 2.5 17.9 -25.6 43.5 9 301.01 5.8 H 16.1 3.…

Text truncated - open the document above for the full version.

THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT:T-INK INC. FCC ID: TA9-0100R REPORT :THRU-505032 THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT:T-INK INC. FCC ID: TA9-0100R REPORT :THRU-505032 THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT:T-INK INC. FCC ID: TA9-0100R REPORT :THRU-505032
