TARCCU-550CDMA WIRELESS USB MODEM

CCU-550 Modem User Guide FCC RF EXPOSURE COMPLIANCE In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this modem complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the modem, or result in violation of FCC regulations. This CDMA 1xEVDO USB data modem has been tested for FCC RF exposure hand and body SAR compliance with the CCU-550 USB dongle modem form factor. In order to comply with FCC RF exposure requirements, the CDMA 1xEVDO USB data modem must be operated with the CCU-550 USB dongle modem form factor. The use of this device in any other type of host configuration may not comply with FCC RF exposure requirements and should be avoided. During operation, a 1.5cm separation distance should be maintained between the antenna, whether extended or retracted, and the user’s/bystander’s body (excluding hands, wrists, feet, and ankles) to ensure FCC RF exposure compliance. CAUTION Change or modification to the modem without the express consent of CMOTech Co., Ltd. voids the user’s authority to use the equipment. This equipment has been tested and found to comply with the limits pursuant to Part 22 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in an appropriate installation. This equipment generates, uses, and can radiate radio frequency energy and, if not used in accordance with instructions, can cause harmful radiation to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference in radio and television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: ■ Reorient or relocate the receiving antenna ■ Increase the separation distance between the equipment and the receiver 페이지 1 / 22제목 없음 2005-06-13file://C:₩Documents%20and%20Settings₩Owner₩Local%20Settings... ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ■ Consult the dealer or an experienced Radio / TV technician for help. CAUTION This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful unacceptable interference to radio and television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: ■ Reorient or relocate the receiving antenna ■ Increase the separation distance between the equipment and the receiver ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ■ Consult the dealer or an experienced Radio/TV technician for help. CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions ; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. POTENTIALLY UNSAFE AREAS Posted facilities : Turn off this device in any facility or area when posted notices require you to do so. Blasting areas : Turn off your modem where blasting is in progress. Observe restrictions and follow any regulations or rules. Potentially explosive atmospheres : Turn off your modem when you are in any area with a potentially explosive atmosphere. Obey all signs and instructions. Sparks in such areas could cause an explosion or fire, resulting in bodily injury or death. Areas with a potentially explosive atmosphere are often but not always clearly marked. They include: zfuelling areas such as gas or petrol stations 페이지 2 / 22제목 없음 zbelow deck on boats ztransfer or storage facilities for fuel or chemicals zvehicles using liquefied petroleum gas, such as propane or butane zareas when the air contains chemicals or particles such as grain, dust or metal powders zany other area where you would normally be advised to turn off your engine It is recommended that this manual be read in conjunction with all other supporting documentation. CCU-550 Modem Install Setup Insert installation CD (supplied with CMOTech Data Modem) into the CD-ROM drive. This will automatically start the installation and install the required drivers plus CMOTech Data Modem Application software. Do not connect CMOTech Data Modem into your laptop/PC yet. The installation procedures are the Windows 2000 and Windows XP. Start setup If the auto run does not start after inserting the CD, please double-click on “Setup.exe” file on CD ROM to start the installation. If you have already inserted your Modem into your PC, remove the Modem and double-click “Setup.exe” 페이지 3 / 22제목 없음 2005-06-13file://C:₩Documents%20and%20Settings₩Owner₩Local%20Settings... Start Auto Run Install Shield Wizard... click 'nex…

Text truncated - open the document above for the full version.

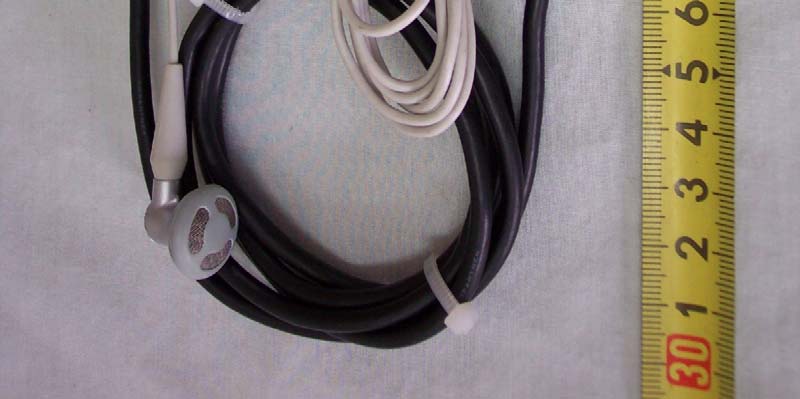

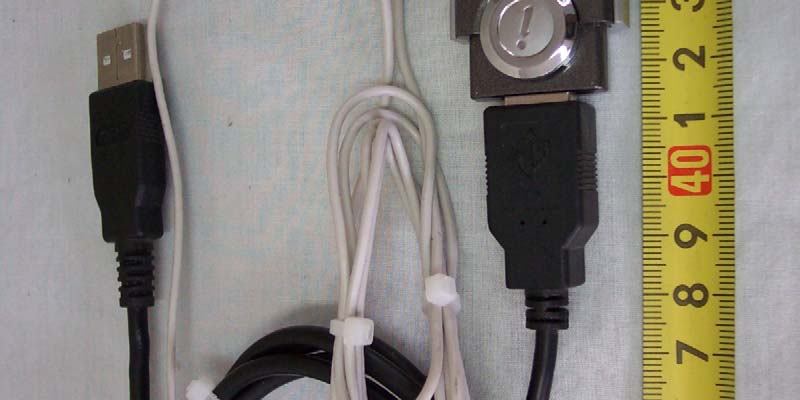

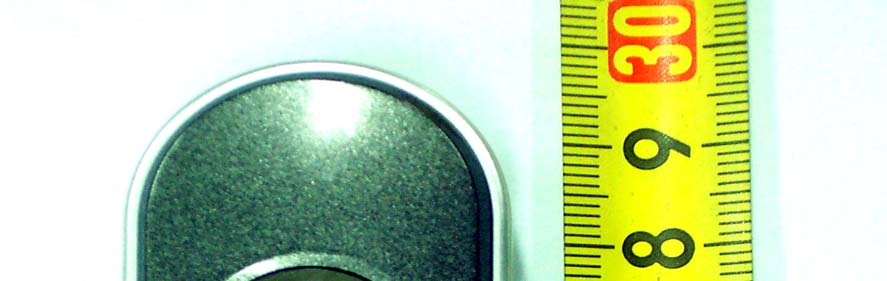

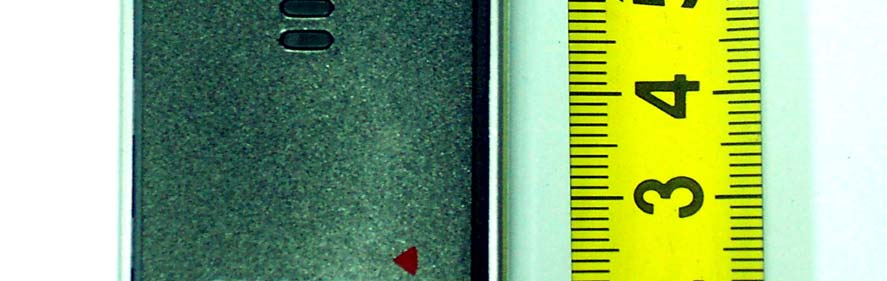

Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 49 of 66 APPENDIX C – EUT PHOTOGRAPHS z Enclosure View 1 of EUT Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 50 of 66 z Enclosure View 2 of EUT Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 51 of 66 z Front View of EUT Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 52 of 66 z Rear View of EUT (with UIM) Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 53 of 66 z Rear View of EUT (without UIM) Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 54 of 66 z Right Side View of EUT (with Ear-jack) Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 55 of 66 z Right Side View of EUT (without Ear-jack) Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 56 of 66 z Left Side View of EUT

Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 46 of 66 APPENDIX A - Labelling Requirement The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. *** The following paragraph specified in the user manual. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Labelling Requirements

Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 57 of 66 z Interface View of EUT Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 58 of 66 z Inside View of EUT (with UIM) Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 59 of 66 z Inside View of EUT (without UIM) Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 60 of 66 z Front View of Main Board Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 61 of 66 z Rear View of Main Board (with UIM) Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 62 of 66 z Rear View of Main Board (without UIM)

OPERATIONAL DESCRIPTION 1.CCU-550 CDMA 1xEVDO Data Modem circuit description The CCU-550 CDMA 1xEVDO Data Modem consists of the CDMA Engine, power generation part, digital part, RF part and connectors. The Fig 1 is block diagram of CCU-550 CDMA 1xEVDO Data Modem. Logic part Rx Tx Synthesizer RF part LNA Power Amp Memory -Flash(64Mb) -SRAM(16Mb) Power interface DC/DC Down converter RF Vcc Audio interface signal Ear-jack port USB connector Type-A CDMA Engine CCU-550 Block Diagram Fuse protection DUX USB Transceiver 5V Debug Port *only test CDMA Antenna LED D+ D- 3.45V R-UIM connector MSM-5500 Figure 1 CCU-550 CDMA 1xEVDO Data Modem block diagram 1.1 Power interface part DC Power is supplied from the HOST USB BUS power. - LDO(U410): This component is DC/DC down converter. Output voltage is about 3.45V DC. This output voltage is inputted to CDMA Engine power interface. Each block of CDMA Engine uses low-drop-output linear regulator. - U403 : voltage regulator for digital circuit ( 2.8V DC & 2.6V DC ) - U404 : voltage regulator for VC-TCXO and S1M8662 ( 3.0V DC ) - U405 : voltage regulator for RF Rx part ( 3.0V DC ) - U406 : voltage regulator for RF Tx part ( 3.0V DC ) - U407 : voltage regulator for R-UIM (3.0V DC ) - And power AMP(U201) is directly supplied. 1.2 Digital part - U400: MSM(Mobile Station Modem) ASIC is chip responsible for CDMA/FM mobile station’s base-band digital signal processing. For this chip to function, TCXO(19.2MHz) is required as basic clocks. And sleep crystal (32.768KHz) is used as clock source of MSM ASIC. MSM consists of CDMA core and DFM core. CDMA core is a part for processing CDMA signal consisting of modulator/demodulator, interleaver/deinterleaver and encoder/decoder in the CDMA mode. - U401: Memory part consists of Flash memory and SRAM. Flash memory: store to main program. SRAM: performs to read and write data - U302: USB transceiver is fully compliant with the USB specification Rev1.1. - XT301: USB transceiver 48MHz crystal. 1.3 RF part RF part consists of synthesizing part, transmission and reception part. Fig 5.2 RF part block diagram 1.3.1.1 Frequency synthesizing part Frequency synthesizing part called PLL Synthesizer consists of three synthesizer circuit which is first local synthesizer, Tx IF synthesizer and Rx IF synthesizer. The first local synthesizer generates the primary local system oscillation frequency, operating over 1372.08 ~ 1419.54 MHz frequency range. Tx IF and Rx IF synthesizer generate the second local oscillation frequency, 267.2 MHz and 367.2 MHz respectively. 1.3.1.2 Receiving part - Duplexer. The duplexer filters the RF signal transmitted through Antenna and sends the signals to LNA. - LNA. This part in front-end is used to amplify the received signal with low noise figure - Down converter. It acts as a mixer using first local frequency to produce the desired signal in the mid-range frequency of 183.6 MHz. - Rx AGC. This part is designed to control the gain of the dynamic range of midrange frequency produced in down converter according 80 dB dynamic range. Currently, previous BBA is divided into S1M8662(Rx IF-baseband converter) and RFT3100 (Tx baseband-IF converter). S1M8662 acts as the baseband analog processor which processing the signals between the S1M8662 and digital processing circuit. In the while, RFT3100 consists of Tx AGC and Tx part analog processor of previous BBA. 1.3.1.3 Transmission part - Tx AGC. It is designed to be gain-controlled from 84 dB dynamic range. The gain of this part is controlled by MSM using digital control signal. - Up converter. This part mixes the IF transmission frequency 138.6 MHz and the first local 1372.08 ~ 1419.54 MHz to generate transmission frequency of 824.64 ~ 848.37 MHz. - Power AMP module. This part is designed to work in 824 MHz ~ 849 MHz frequency range in the CDMA mode and can generate the proper output power. The DC voltage into the power amp module is typical 3.8V.

CCU-550_PARTLIST for FCC(REV2.1).xls MODEL NAME : CCU-550VERSION : 2.1 NO DESCRIPTION PART NO. Q'ty REFERENCE NO (TOP) REFERENCE NO (Bot.) MANUFACTURER Note 1 Build-up, 8L,B-type CCU-550U_Main PCB 1 SOMACIS KOREA 2 RF CONNECTOR GDRFC-2PF(ST) 1 RFCON100 GOLDEN CONNECTOR 3 Internal SPRING type Antenna15.2 ± 0.5 mm, 0.5, PWG HW-860-S 1 ANT1 HAN WOOL TECH 4 R-UIM CONNECTOR GDSC-06SCS-30SMT-W/C 1 CON401 GOLDEN CONNECTOR 5 EAR JACK EPJ1-5-A-TD 1 CON402 BMB Con. 6 4P_Socket (Female)Pitch:1.27mm,Height:2.2mm BMBS1.27-2.2H-4PIN 1 CON403 BMB Con. 7 USB CONNECTOR (A-TYPE PLUG) UAP-SSS1031-0 1 CON404 BMB Con. 8 MODEM PROCESSOR MSM5500 CP90_V1280 1 U400 QUALCOMM 9 MCP(64M+16M) SV5C6416UBR-70ISV6C6416xALRS1806F 1 U301 Silicon7Silicon7 SHARP 10 CELL DUPLEXER EFSD836MD2S7 1 DUX100 Panasonic 11 TX TRANSCEIVER RFT3100-2/1 1 U200 QUALCOMM 12 RX TRANSCEIVER S1M8662A01-F0T0IFR3500 1 U101 SEC QUALCOMM 13 POWER AMPLIFIER CX77105-16P 1 U201 SKYWORKS 14 DUAL BAND LNA+MIXER ITM2520 1 U100 INTEGRANT 15 PLL IC S1M8838X01-NOTO 1 U103 SEC 16 Single BAND VCO LSV1395BUS 1 U104 LISOTEK 17 LO BUFFER Amplifier MAAMSS0005TR 1 U202 M/A-COM 18 RX RF SAW FILTER SFH881NF001 1 FL100 SEC 19 TX RF SAW FILTER SFH836NF001 1 FL200 SEC 20 RX IF SAW FILTER FSMS0183C1 1 FL101 LG INOTEK 21 VC-TCXO RTVY-124DF327T-S-19.200RTVY-124DF327Q-S-19.200 1 U102 RALTRON 22 QUARTZ CRYSTAL(32.768KHz/12.5pF) Q-NCT3A0327620C5UJ 1 XT300 SEIKO 23 USB CRYSTAL,48MHz SMRS-48.000-B2 1 XT301 RALTRON DATE : 2005.04.20 1. Main PCB assembly PART LIST (Top&Bot.) 결 재 작 성 검 토 승 인 PART LIST (Top&Bot.) 결 재 작 성 검 토 승 인 CMOTech 1 / 5 2005-06-16 CCU-550_PARTLIST for FCC(REV2.1).xls 24 USB TRANSCEIVERS ISP1105WISP1102W 1 U302 PHILIP 25 TVS ARRAY COMBO PSR05 1 U401 PROTEK 26 TVS ARRAY PSMF05 2 U408, U409 PROTEK 27 VARISTOR AVLC 5S 02 100SIOV-CT0402L14G 2 VR400, VR401 AMOTECH EPCOS 28 NTC THERMISTOR(SMD) 2322_615_33683 ( 0603 68K+/-5%) 1 TH300 BC co mponent 29 VARACAP DIODE 1SV281 4 VD100, VD101, VD200, VD201 TOSHIBA 30 DC-DC, 1.5A, 1.3MHzPWM Buck Regulator FAN2011 1 U410 Fairchild 31 Dual LDO (2.8V, 2.7V)& RESET IC TC1301A-FGAVMFTR(2.7V )TC1301A-FHAVMFTR(2.6V) 1 U403 MICROCHIP 32 LDO, 3V, 100mA TC1015-3.0VCT 3 U404,U407,U406 MICROCHIP 33 LDO,150mA TPS76430TC1015-3.0VCT 1 U405 TI MICROCHIP 34 TR EMH3-T2R 1 Q404 ROHM 35 TR DTC-143TM 3 Q400, Q402, Q403 ROHM 36 BJT,NPN &PNP EMD9-T2R 1 Q200 ROHM 37 FUSE,0603 FCC16-202-AD 1 FU400 KAMAYA 38 LED ( Green,Red ) TCL-C71RXD 1 LED401 TCO 39 LED ( Blue ) TCL-P1BD 1 LED400 TCO 40 Power Inductor(5.6 X6.0 X1.3) LPO6013-222 1 L304 COILCRAFT 41 Inductor,Bead HB-1M1608-601JT 6 BD200,BD201,BD202 BD400,BD401,BD4 02 CERATECH 42 Inductor,Bead HH-1M2012-221JT 1 BD203 CERATECH 43 Inductor,Bead SBY100505T-121Y-S 1 BD1000 CHILSIN 44 CHIP TANTAL CAP10uF/6.3V/P-type TA-6R3TCML 100M-PR 18 TC100,TC101,TC102,TC103,TC104TC200,TC300 TC201,TC202,TC203,TC402,TC403TC404,TC405,TC406,TC407,TC408TC409 FUJITSU 45 CHIP TANTAL CAP22uF/4.0V/P-type F920G226MPA 4V 22uF 1 TC301 nichion 46 CHIP TANTAL CAP33uF/10V TE PSLB31A336M 8 RB3 case (3.5X2.8X1.1) 2 TC410, TC411 NEC/TOKIN 47 Ceramic MLCC, 2.0pF 0402 NPO 2P0 4 C104,C223,L208,C225 PHYCOMP 48 Ceramic MLCC, 2.2pF 0402 NPO 2P2 1 C100 PHYCOMP 49 Ceramic MLCC, 3pF 0402 NPO 3P0 1 C117 PHYCOMP 50 Ceramic MLCC, 3.3pF 0402 NPO 3P3 1 C127 PHYCOMP 51 Ceramic MLCC, 3.9pF 0402 NPO 3P9 1 C243 PHYCOMP 52 Ceramic MLCC, 4.0pF 0402 NPO 4P0 1 L100 PHYCOMP 53 Ceramic MLCC, 7pF 0402 NPO 7P0 1 C101 PHYCOMP 54 Ceramic MLCC, 10pF 0402 NPO 100 1 C4201 PHYCOMP CMOTech 2 / 5 2005-06-16 CCU-550_PARTLIST for FCC(REV2.1).xls 55 Ceramic MLCC, 12pF 0402 NPO 120 3 C103,C207,C227 PHYCOMP 56 Ceramic MLCC, 15pF 0402 NPO 150 2 C111,C140 PHYCOMP 57 Ceramic MLCC, 18pF 0402 NPO 180 2 C335,C336 PHYCOMP 58 Ceramic MLCC, 22pF 0402 NPO 220 3 C208,C209,C235 PHYCOMP 59 Ceramic MLCC, 24pF 0402 NPO 240 2 C114,C115 PHYCOMP 60 Ceramic MLCC, 33pF 0402 NPO 330 4 C125,C126 C418,C419 PHYCOMP 61 Ceramic MLCC, 47pF 0402 NPO 470 1 C218 PHYCOMP 62 Ceramic MLCC, 56pF 0402 NPO 560 1 C224 PHYCOMP 63 Ceramic MLCC, 68pF 0402 NPO 680 2 C226,C228 PHYCOMP 64 Ceramic MLCC, 100pF 0402 NPO 101 22 C108,C112,C133,C136,C141C200,C201,C202,C203,C219C221,C231 C106,C216,C234,C318,C322C323,C325,C326,C327,C413 PHYCOMP 65 Ceramic MLCC, 220pF 0402 NPO 221 2 C313,C314 PHYCOMP 66 Ceramic MLCC, 330pF 0402 X7R 331K 2 L115 C237 PHYCOMP 67 Ceramic MLCC, 1nF 0402 X7R 102K 19 C118,C119,C145,C146,C210C211,C215,C244 C110,C205,C212,C238,C312C403,C406,C407,C409,C411C121 PHYCOMP 68 Ceramic MLCC, 2.7nF 0402 X7R 272K 1 C130 PHYCOMP 69 Ceramic MLCC, 3.3nF 0402 X7R 332K 3 C128,C137,C220 PHYCOMP 70 Ceramic MLCC, 4.7nF 0402 X7R 472K 1 C120 PHYCOMP 71 Ceramic MLCC, 5.6nF 0402 X7R 562K 1 C213 PHYCOMP 72 Ceramic MLCC, 6.8nF 0402 X7R 682K 1 C230 PHYCOMP 73 Ceramic MLCC, 10nF 0402 X7R 103K 21 C113,C142,C143,C214,C317 C109,C122,C148,C232,C241C319,C320,C324,C402,C404C405,C408,C410,C414,C4150C4190 PHYCOMP 74 Ceramic MLCC, 33nF 0402 Y5V 333Z 1 C139 PHYCOMP 75 Ceramic MLCC, 47nF 0402 Y5V 473Z 1 C102 PHYCOMP 76 Ceramic MLCC, 100nF 0402 Y5V 104Z 45 C107,C124,C131,C132,C134C135,C204,C222,C229,C331C332 C105,C217,C233,C239,C240C300,C301,C302,C303,C304C305,C306,C307,C308,C309C310,C311,C315,C316,C321C328,C329,C330,C333,C334C342,C412,C417,C4170,C4200C1000,C123,C4202,C4203 PHYCOMP 77 Ceramic MLCC, 470nF 0402 Y5V 474Z 1 C129 PHYCOMP 78 Ceramic MLCC, 220nF 0603 Y5V 224Z 1 C138 PHYCOMP 79 Ceramic MLCC, 470nF 0603 Y5V 474Z 1 C147 PHYCOMP 80 Ceramic MLCC, 1uF 0603 Y5V 105Z 1 C206 PHYCOMP 81 Ceramic Inductor,4.7nH CI-B1005-47NJJT 1 L101 CERATECH 82 Ceramic Inductor,6.8nH CI-B1005-68NJJT 2 L102,L103 CERATECH 83 Ceramic Inductor,10nH CI-B1005-100JJT 2 C246,L303 CERATECH CMOTech 3 / 5 2005-06-16 CCU-550_PARTLIST for FCC(REV2.1).xls 84 Ceramic Inductor,15nH CI-B1005-150JJT 2 L105,L207 CERATECH 85 Ceramic Inductor,33nH CI-B1005-330JJT 1 L204 CERATECH 86 Ceramic Inductor,39nH CI-B1005-390JJT 1 L206 CERATECH 87 Ceramic Inductor,56nH CI-B1005-560JJT 1 L104 CERATECH 88 Wire type Inductor (J급,22N) 0603CS-22NXJBW 2 L106,L107 COILCRAFT 89 Wire type I…

Text truncated - open the document above for the full version.

Test Procedure 1) Getting Started i. Power-up the laptop. ii. Insert Freewing into the USB port. iii. Execute ‘Cm Test.exe’ file. iv. Select correct COM port. v. Confirm that correct COM port is selected. vi. Information will be displayed repeatedly. 2) How to Power On/Off the Transmit Power i. To turn on the transmit power, click the ‘start’ button. ii. To turn off the transmit power, chick the ‘stop’ button. 3) How to change Channels i. To change the Tx channels ( 1013, 363,777 ), Put Tx channel number into the blank beside of Tx channel. For changing channel, Modem status must be in ‘No service’ state. 4) How to change Transmit Power Level i. To change the Tx power level, Put Tx power number into the blank beside of Tx power. In the test procedure, Tx power level was set for 24dBm View of Cm Test Program View of ‘Cm Test.exe’ file Main view of Program Description of Program Start : Turn on transmit power by force. Stop : Turn off transmit power by force.

Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 1 of 66 Nemko Korea CO., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : CMOTech Co., Ltd. Dates of Issue : Jun, 15, 2005 5F BLD. Etronix 17-10, Yoido-dong, Youngdungpo-GuTest Report No. : NK2FR108 Seoul, Korea, (Post code : 150-874) Test Site : Nemko Korea Co., Ltd. FCC ID Brand Name CONTACT PERSON Applied Standard: FCC 47 CFR Part 15 & 2 FCC 47 CFR Part 22, Subpart H Classification: FCC Class B Device Equipment Class: Public Mobile Services EUT Type: CDMA 1x EVDO Wireless USB DATA Modem The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : S. Lee Reviewed By : H.H. Kim Engineer Manager & Chief Engineer TARCCU-550 CMOTECH CMOTech Co., Ltd. 5F BLD. Etronix 17-10, Yoido-dong, Youngdungpo-gu, Seoul Korea(150-874) Mr. Byung-Young Choi Telephone No. : +82 2 785-5540 Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 2 of 66 TABLE OF CONTENTS 1. SCOPE 2. INTRODUCTION (Site Description) 3. TEST CONDITIONS & EUT INFORMATION 4. MEASURING INSTRUMENT CALIBRATION 5. SUMMARY OF TEST RESULTS 6. RECOMMENDATION / CONCLUSION 7. SAMPLE CALCULATION 8. TEST EQUIPMENT 9. DESCRIPTION OF TEST 9.1 Conducted Emission 9.2 Radiated Emission 9.3 Effective Radiated Power/Equivalent Isotropic Radiated Power 9.4 Radiated Spurious & Harmonic Emission 9.5 Occupied Bandwidth / 26dB Emission Bandwidth 9.6 Spurious and Harmonic emissions at Antenna Terminal 9.7 Frequency Stability / Temperature Variation 10. TEST DATA 10.1 Conducted Emission 10.2 Radiated Emission 10.3 Effective Radiated Power 10.4 Conducted Output Power 10.5 Occupied Bandwidth / 26dB Emission Bandwidth 10.6 Radiated Spurious & Harmonic Emission 10.7 Frequency Stability / Temperature Variation 11. TEST PLOTS APPENDIX A - Labelling Requirement APPENDIX B - Photographs of Test Set-up APPENDIX C - EUT Photographs APPENDIX D - Schematic Diagram APPENDIX E - Block Diagram APPENDIX F - USER’S Manual APPENDIX G - Operational Description 3 4 5 7 8 8 9 9 11 11 12 13 14 15 16 18 19 19 21 23 24 25 26 27 28 46 47 49 63 64 65 66 Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 3 of 66 1. SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC Part 15 & Part 22. Responsible Party : Contact Person : Manufacturer : CMOTech Co., Ltd. Mr. Byung-Young Choi Tel No. : +82 2 785 5540 CMOTech Co., Ltd. 5F BLD. Etronix 17-10, Yoido-dog, Youngdungpo-gu, Seoul Korea(150-874) z FCC ID: TARCCU-550 z Model: CCU-550 z Brand Name: CMOTECH z EUT Type: CDMA 1x EVDO Wireless USB DATA Modem z Electric Rating: Input : +5V DC, 1A Output : +3.4V DC, 600mA z Port / Connector: USB, Earphone Jack z Equipment Class: z Classification: z Applied Standard: z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: Public Mobile Services FCC Class B FCC 47 CFR Part 15 & 2 FCC 47 CFR Part 22 , Subpart H ANSI C63.4 (2003), DA 02-2138(2002) JUN 01, 2005 to JUN 14, 2005 Nemko Korea Co., Ltd. NK2FR108 Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 4 of 66 2. INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions emanating from CMOTech Co., Ltd. FCC ID : TARCCU-550 These measurement tests were conducted at Nemko Korea Co., Ltd. The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, GyungGi-Do, KOREA The area of Nemko Korea Corporation Ltd. Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 2003. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. and Incheon Airport. Nemko Korea Co., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin- City GyungGi-Do,KOREA 449-852 Tel)+82-31-322-2333 Fax)+82-31-322-2332 Test Report No.: NK2FR108 CMOTech Co., Ltd. FCC ID :TARCCU-550 Page 5 of 66 3. TEST CONDITIONS & EUT INFORMATION Operating During Test The EUT was tested at the lowest channel, middle channel and the highest channel with the maximum RF power 24.5dBm and all data recorded in the report. Environmental Conditions Temperature 20°C ~ 25°C Relative Humidity 41% ~ 58% Description of EUT Clock XT300 (32.768kHz), XT301 (48MHz) U400(MSM5500), U100(ITM2520), Chipset(s) U101(S1M8662A), U200(RFT-3100) Port(s) USB, Earphone Jack Frequency Range Tx : 824.70MHz ~ 848.31MHz Rx : 869.70MHz ~ 893.31MHz Output Power 0.28W (24.5dBm/1.23MHz) Type of Oscillation PLL Synthesizer & VCTCXO(19.2MHz) Modulation Method OQPSK Emission Designator 1M25F9W Number of chann…
