TARCDU-550Dual Band CDMA 1xEVDO Wireless USB Data Modem

C-motech Co., Ltd.

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Mar 08, 2006
Application Purpose: Original Equipment
Date of Application: Mar 08, 2006
Equipment Note: Dual Band CDMA 1xEVDO Wireless USB Data Modem
Frequency Range: 824.70000000 - 848.31000000
Company: C-motech Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 76 of 78 Appendix F – USER’S Manual CDU-550 Modem User Guide FCC RF EXPOSURE COMPLIANCE In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this modem complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the modem, or result in violation of FCC regulations. This CDMA 1xEVDO USB data modem has been tested for FCC RF exposure hand and body SAR compliance with the CDU-550 USB dongle modem form factor. In order to comply with FCC RF exposure requirements, the CDMA 1xEVDO USB data modem must be operated with the CDU-550 USB dongle modem form factor. The use of this device in any other type of host configuration may not comply with FCC RF exposure requirements and should be avoided. During operation, a 1.5cm separation distance should be maintained between the antenna, whether extended or retracted, and the user’s/bystander’s body (excluding hands, wrists, feet, and ankles) to ensure FCC RF exposure compliance. CAUTION Change or modification to the modem without the express consent of Data Poz Co., Ltd. voids the user’s authority to use the equipment. This equipment has been tested and found to comply with the limits pursuant to Part 22 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in an appropriate installation. This equipment generates, uses, and can radiate radio frequency energy and, if not used in accordance with instructions, can cause harmful radiation to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference in radio and television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: ■ Reorient or relocate the receiving antenna ■ Increase the separation distance between the equipment and the receiver ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ■ Consult the dealer or an experienced Radio / TV technician for help. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful unacceptable interference to radio and television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: ■ Reorient or relocate the receiving antenna ■ Increase the separation distance between the equipment and the receiver ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ■ Consult the dealer or an experienced Radio/TV technician for help. Cautions for Users -Use of CDU-500 EV-DO Modem (hereinafter referred as modem ), while running a notebook PC with a battery, may cause earlier exhaustion of the battery than usual due to additional consumption of electric currents. -Be cautious when you touch a modem with a bare hand after long use, it may cause a burn due to its high temperature. Pick it out with the antenna after separation. -Do not allow children or pets to approach or touch the modem when separated from a notebook PC or PDA. -Do not give impact to the modem or throw it away. -Use the leather case provided along with the modem when you carry the modem. -When the modem is lost or stolen, immediately report it to the corresponding telecommunication operator. -Do not recklessly lend your own modem to anybody else. -Call to a service center designated by CMOTech for after-sales service. -Do not attach an additional device which may cause alteration in performance of the product registered for the type approval. -This modem sends and receives the radiofrequency (RF) energy in status of power-on. The radiofrequency (RF) energy may affect a human body. -Use an antenna only approved by CMOTech. Otherwise it may cause a damage on the modem and you will not get a free after-sales service. -Use the modem in the manner you use a notebook PC in general. -Make the antenna stand and do not touch it when being used. If the antenna is touched, the quality of transmission and reception may be lowered and it will cause excessive power consumption. -Be cautious as the radiofrequency (RF) energy may affect the electronic devices installed in a car. -Be noticed that most of electronic devices are designed to be free from the RF energy but there are some products that may be out of order due to the RF energy. -Medical Devices Industry Association recommends the patients using a pacemaker not to use RF using devices such as cell phones, wireless modems and so on because using those devices in the range of 15cm from the pacemaker may affect the pacemaker. In an inevitable situation, make it sure to keep the distance of more than 15cm between the modem and the pacemaker. To minimize the possible interference, use the modem on the opposite side of the pacema…

Text truncated - open the document above for the full version.

Block Diagram

Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 75 of 78 Appendix E – Block Diagram SLF-S080HLCell_IL: -0.34dBPCS_IL:-0.37dBCell_Iso:-21dBPCS_Iso:-20dB RF2489 SW 0 90 F/2 CDMA LPF CDMA LPF GPS/CDMA ADC GPS/CDMA ADC ChipX8 IFR3000 SBI &CTRL PLL_CLKPLL_DATAPLL_EN TCXO 19.2MHz 2105.28~2155.14MHz,Cell 2113.60~2173.55MHz PCS F/2 LNA Mixer HDET Dual band VCO LOOP Filter DUAL PLL CX77107 Pout=28dBm 183.6MHz 367.2MHz PLL USB 1.1 HK ADCs UART1UART2 Voltage Regulator gpsOne Processor ARM7 TDMI Blurtooth BasebandProcessor Vocoder EVRC 13k MP3 MIDI QDSP2000 MMC Controller VC-TCXO(19.2MHz) ANSI/IEEE 1149.1A-1993 JTAG Interface Temp. sensorVoltage sensorHDET CDMA Processor TX_Q,TX_Q/TX_I,TX_I/ SBDT SBCK SBST SBI Integrated CODEC Enhanced General Purpose Interface RF controls RF Interface TX DACs Sleep X-tal(32.768KHz) R-UIM Controller 2 2 DFM Processor 3 USB X-tal(48MHz) SBI & CTRL RFT3100 ∑ PLL 1052.64~1077.57MHz,Cell 2113.60~2173.60MHz PCS MODE Select Interface PC Connectivity Test/Debug System MCP Address/Bus External Mode Select RX_I DATA RX_Q DATA Received Data ChipX8 RX_AGC_ADJ I&Q offset TRK_LO_ADJ PA_R1 PA_R1 SFH836NF001 IL: PCS_BAND_SEL LNA_GAINMIX_GAIN Cellular US-PCS PA_ON_PCSPA_ON_CELL TANK Circuit LOOP Filter EFSD836MD1S2TX IL: RX IL:TX attn: RX atten: EFSF1880C1S1TX IL: RX IL:TX attn: RX atten: ESI-4AFL1.880G01-T ESI-4DCL0836M01-T SFDG80RF601 IL: LOOP Filter TANK Circuit Gain:15dBNF:1.1dB Gain:11dBNF:5.6dB SFH881NF001 IL: SFDG60RF101 IL: UPC2745TB FSMS0183C1 IL: <CDU-550 (USB Dongle)> LMV821M7 CX77105 Pout=29dBm Ant.

Cover Letter(s)

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: TARCDU-550 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematic(Circuit) Diagram Component Silk Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Name/ Title Yang Jae Ho/Senior Enginner CMOTech Co., LTD. 5 th FL., Etronix B/D 17-10, Yoido-Dong, Youngdungpo-Ku Seoul, Korea Zip: 150874 Tel: +82 2 7855540 / Fax: +82 2 7852369 URL: htt p//www.cmotech.com

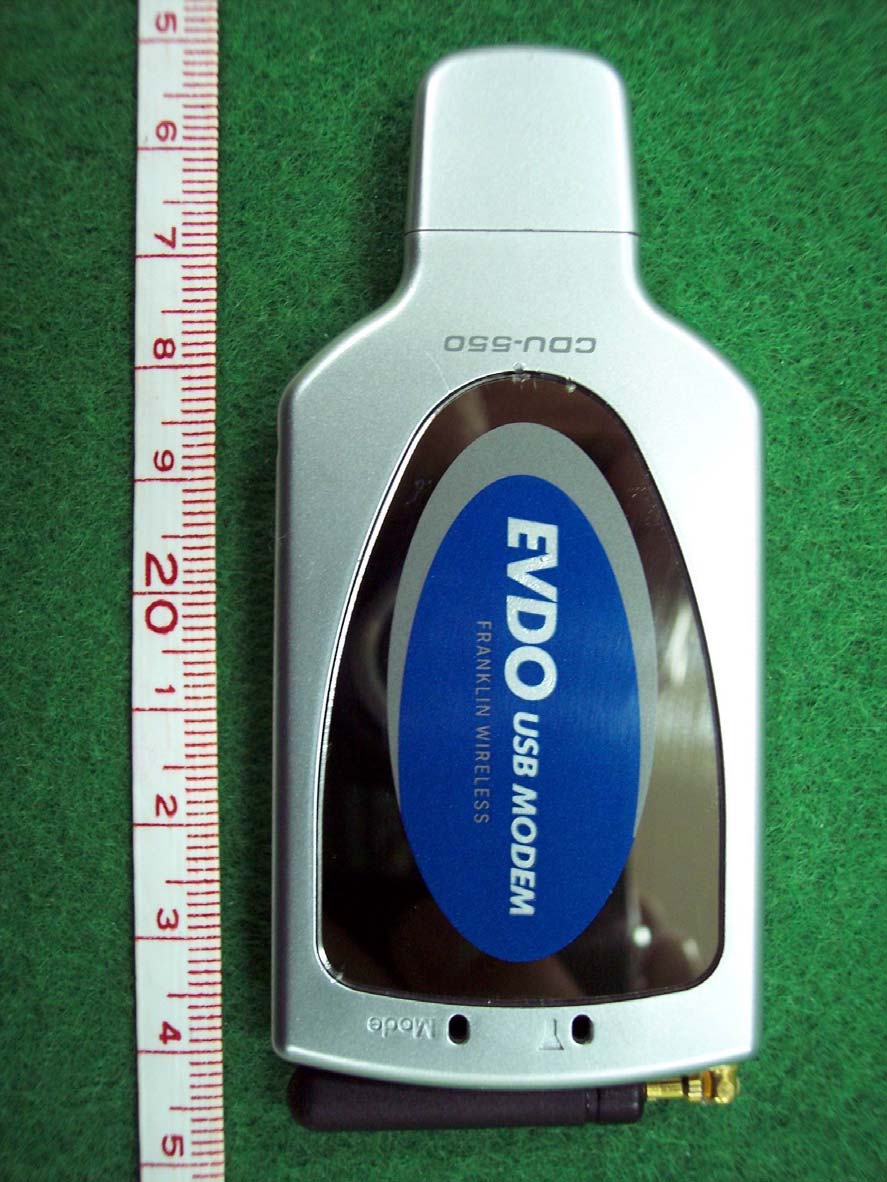

External Photos

Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 62 of 78 Appendix C – EUT Photographs ● Front Side View of EUT Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 63 of 78 ● Rear Side View of EUT Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 64 of 78 ● Front Side View of EUT (without cap) Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 65 of 78 ● Rear Side View of EUT (without cap) Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 66 of 78 ● Right Side View of EUT Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 67 of 78 ● Left Side View of EUT Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 68 of 78 ● Top Side View of EUT Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 69 of 78 ● Interface Side View of EUT Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 70 of 78 ● Inside View of EUT Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 71 of 78 ● Front View of Main Board Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 72 of 78 ● Rear View of Main Board Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 73 of 78 ● External USB Cable

ID Label/Location Info

Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 57 of 78 Appendix A - Labelling Requirement The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. *** The following paragraph specified in the user manual. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID : TARCDU-550 Model : CDU550 Dual-Band 1x-EVDO USB Modem ESN : 3Bxxxxxx[HEX] S/N : xxxxxxxxxxx Made in Korea FCC ID : TARCDU-550 Model No: CDU550 ESN : 3Bxxxxxx[HEX] S/N : xxxxxxxxxxx Labelling Requirements

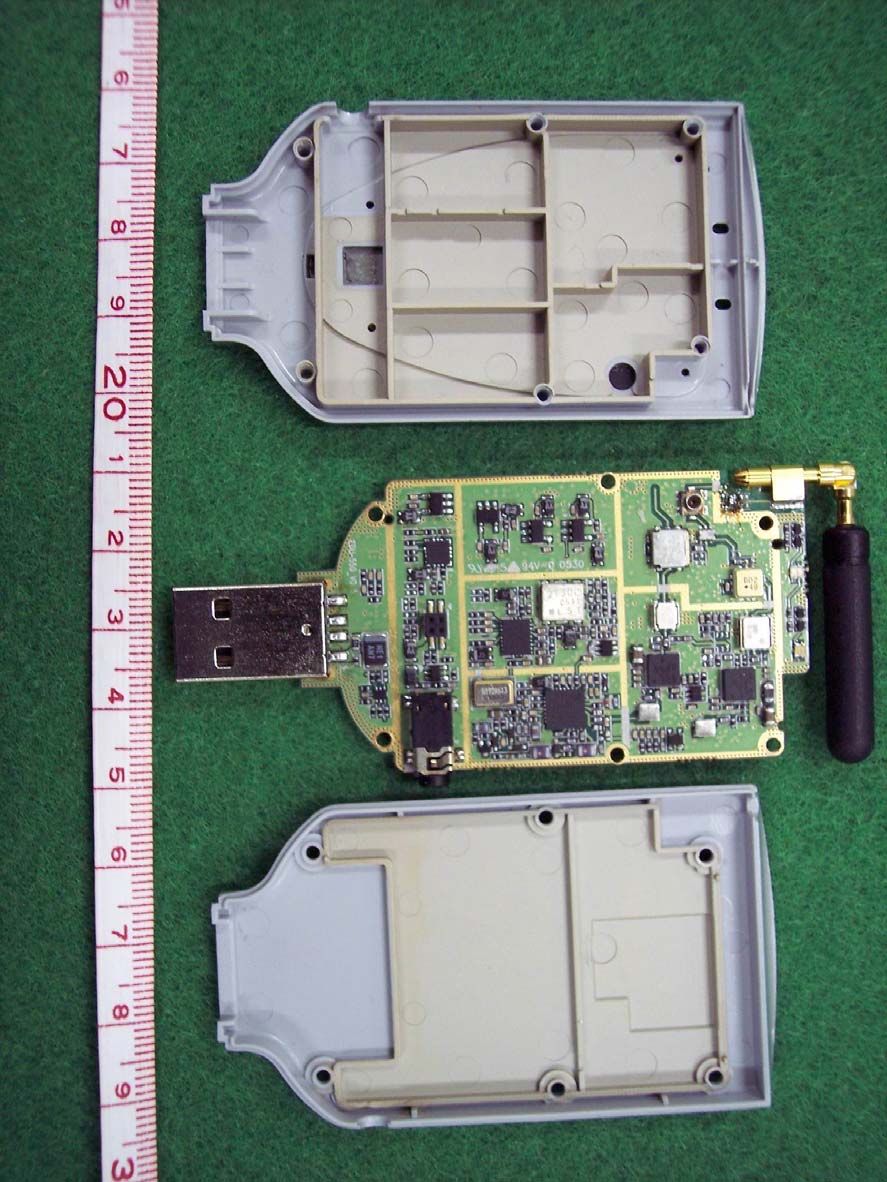

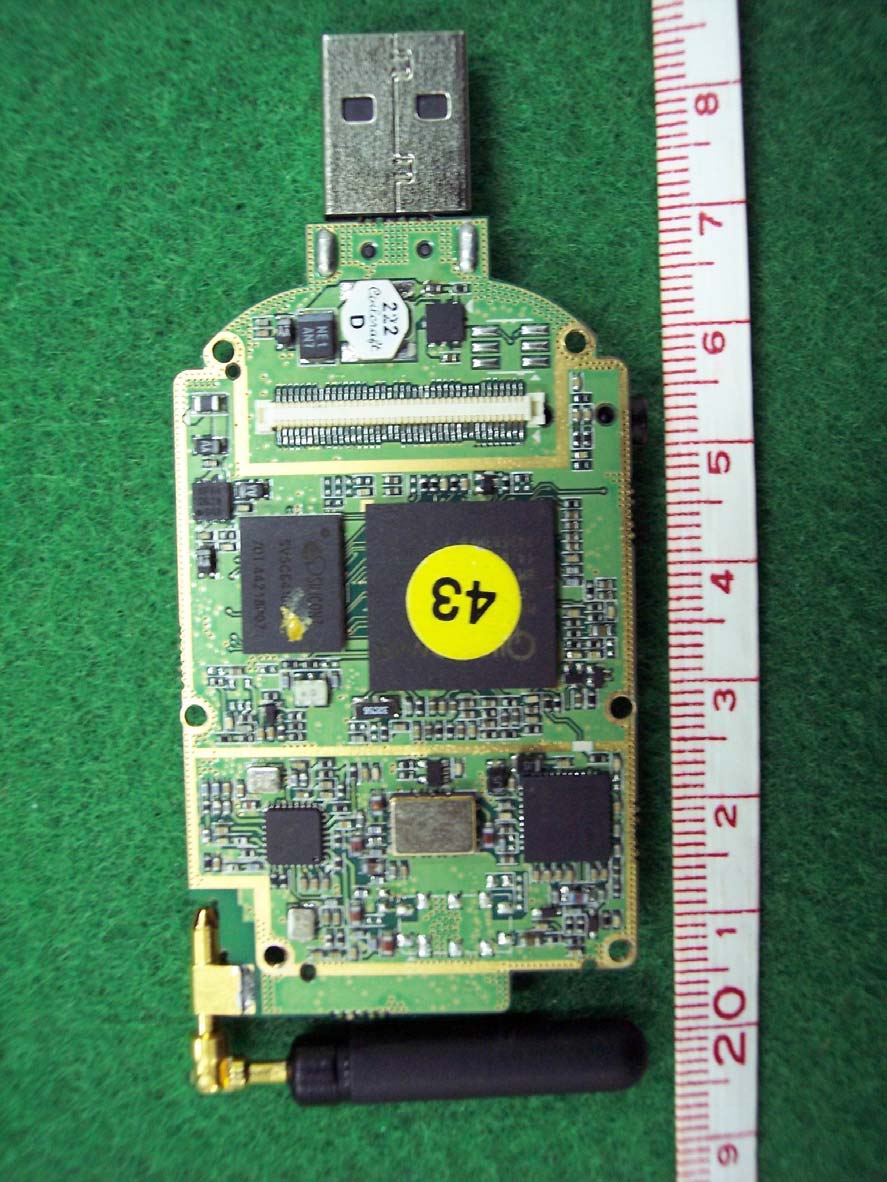

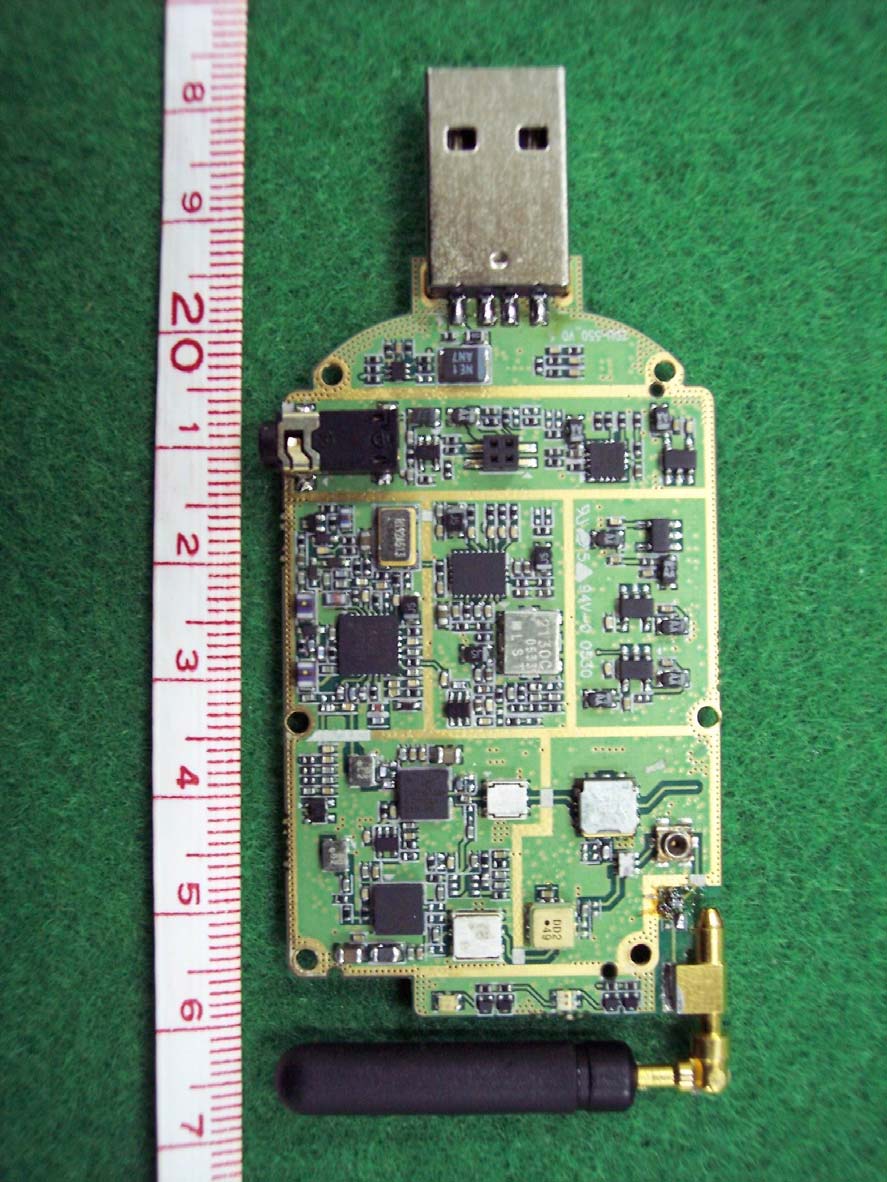

Internal Photos

Operational Description

Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 77 of 78 Appendix G – Operational Description FCC Documentation- CDU-550 1xEVDO USB data Modem 1/9 confidential and proprietary information This document is the sole and exclusive property of CMOTech. Not to be distributed or divulged without prior written agreement. 1. Circuit description 1.1 CDU-550 CDMA 1xEVDO Data Modem circuit description The CDU-550 CDMA 1xEVDO Data Modem consists of the CDMA Engine, power generation part, digital part, RF part and connectors. The Fig 5-1 is block diagram of CDU-550 CDMA 1xEVDO Data Modem. SLF-S080HL Cell_IL: -0.34dB PCS_IL:-0.37dB Cell_Iso:-21dB PCS_Iso:-20dB RF2489 S W 090 F/2 CDMA LPF CDMA LPF GPS/CDMA ADC GPS/CDMA ADC ChipX8 IFR3300 SBI &CTRL PLL_CLK PLL_DATA PLL_EN TCXO 19.2MHz 2105.28~2155.14MHz,Cell 2113.60~2173.55MHzPCS F/2 LNA Mixer VCO LOOP Filter DUAL PLL CX77107 Pout=28dB m 183.6MHz 367.2MHz PLL USB 1.1 HK ADCs UART1 UART2 Voltage Regulator gpsOne Processor ARM7 TDMI Blurtooth Baseband Processor Vocoder EVRC 13k MP3 MIDI QDSP2000 MMC Controller VC-TCXO (19.2MHz) ANSI/IEEE 1149.1A-1993 JTAG Interface MSM5500 (Mobile Station Modem) Temp. sensor Voltage sensor HDET CDMA Processor TX_Q,TX_Q/ TX_I,TX_I/ SBDT SBCK SBST SBI Integrate d CODEC Enhanced General Purpose Interface RF controls RF Interface TX DACs Sleep X-tal (32.768KHz) R-UIM Controller 2 2 DFM Processor 3 USB X-tal (48MHz) SBI & CTRL RFT3100 ∑ PLL 1052.64~1077.57MHz,Cell 2113.60~2173.55MHzPCS MODE Select Interface PC Connectivity Test/Debug System MCP Address/Bus External Mode Select RX_I DATA RX_Q DATA Received Data ChipX8 RX_AGC_ADJ I&Q offset TRK_LO_ADJ PA_R1 PA_R1 SFH836NF001 IL:2.3dB PCS_BAND_SEL LNA_GAIN MIX_GAIN Cellular US-PCS PA_ON_PCS PA_ON_CELL TANK Circuit LOOP Filter EFSD836MD1S2 TX IL: 1.6dB RX IL:2.0dB TX attn: 59dB RX atten:54dB EFSF1880C1S1 TX IL: RX IL: TX attn: RX atten: ESI-4AFL1.880G01-T IL:0.5dB Iso.:15dB ESI-4DCL0836M01-T IL:0.75 Iso.:12dB SFDG80RF601 IL:2.3dB LOOP Filter TANK Circuit Gain:15d B NF:1.1dB Gain:11d B NF:5.6dB SFH881NF001 IL:3.0dB SFDG60RF101 IL:2.1dB UPC2745TB FSMS0183C1 IL:7.5dB CX77105 Pout=29dB m Ant. Cellular Rx:869.04~893.97 Tx:824.04~848.97 US-PCS Rx:1930.0~1989.95 Tx:1850.0~1909.95 PCS:263.6MHz CELL:228.60MHz Gain:13.5dB NF:7.0dB VCO:LSV2130CAS PLL:S1M8838 FM DNI DUX : Duplexer BPF : Band Pass Filter SAW : Surface Acoustic Wave LNA : Low Noise Amplifier PAM : Power AmplifierModule PLL: Phase-Lock Loop VCO : Voltage ControlledOscillator ADC: Analog to DigitalConverter Figure 5.1 CDU-550 CDMA 1xEVDO Data Modem block diagram FCC Documentation- CDU-550 1xEVDO USB data Modem 2/9 Confidential and proprietary information This document is the sole and exclusive property of Maxon. Not to be distributed or divulged without prior written agreement. 1.2 Power interface part DC Power is supplied from the HOST USB BUS power. - LDO(U410): This component is DC/DC down converter. Output voltage is about 3.45V DC. This output voltage is inputted to CDMA Engine power interface. Each block of CDMA Engine uses low-drop-output linear regulator. - U403 : voltage regulator for digital circuit ( 2.8V DC & 2.6V DC ) - U404 : voltage regulator for VC-TCXO and S1M8662 ( 3.0V DC ) - U405 : voltage regulator for RF Rx part ( 3.0V DC ) - U406 : voltage regulator for RF Tx part ( 3.0V DC ) - And power AMP(U201) is directly supplied. 1.3 Digital part - U400: MSM(Mobile Station Modem) ASIC is chip responsible for CDMA/FM mobile station’s base-band digital signal processing. For this chip to function, TCXO(19.2MHz) is required as basic clocks. And sleep crystal (32.768KHz) is used as clock source of MSM ASIC. MSM consists of CDMA core and DFM core. CDMA core is a part for processing CDMA signal consisting of modulator/demodulator, interleaver/deinterleaver and encoder/decoder in the CDMA mode. - U401: Memory part consists of Flash memory and SRAM. Flash memory: store to main program. SRAM: performs to read and write data - U302: USB transceiver is fully compliant with the USB specification Rev1.1. - XT301: USB transceiver 48MHz crystal. FCC Documentation- CDU-550 1xEVDO USB data Modem 3/9 Confidential and proprietary information This document is the sole and exclusive property of Maxon. Not to be distributed or divulged without prior written agreement. 1.4 RF part RF part consists of synthesizing part, transmission and reception part. Fig 5.2 RF part block diagram SLF-S080HL Cell_IL: -0.34dB PCS_IL:-0.37dB Cell_Iso:-21dB PCS_Iso:-20dB RF2489 S W 090 F/2 CDMA LPF CDMA LPF GPS/CDMA ADC GPS/CDMA ADC ChipX8 IFR3300 SBI &CTRL PLL_CLK PLL_DATA PLL_EN TCXO 19.2MHz 2105.28~2155.14MHz,Cell 2113.60~2173.55MHzPCS F/2 LNA Mixer HDET VCO LOOP Filter DUAL PLL CX77107 Pout=28dB m 183.6MHz 367.2MHz SBI & CTRL RFT3100 ∑ PLL 1052.64~1077.57MHz,Cell 2113.60~2173.55MHzPCS ChipX8 RX_AGC_ADJ I&Q offset TRK_LO_ADJ PA_R1 PA_R1 SFH836NF001 IL:2.3dB LNA_GAIN MIX_GAIN Cellular US-PCS PA_ON_PCS PA_ON_CELL TANK Circuit LOOP Filter EFSD836MD1S2 TX IL: 1.6dB RX IL:2.0dB TX attn: 59dB RX atten:54dB EFSF1880C1S1 TX IL: RX IL: TX attn: RX atten: ESI-4AFL1.880G01-T IL:0.5dB Iso.:15dB ESI-4DCL0836M01-T IL:0.75 Iso.:12dB SFDG80RF601 IL:2.3dB LOOP Filter TANK Circuit Gain:15d B NF:1.1dB Gain:11d B NF:5.6dB SFH881NF001 IL:3.0dB SFDG60RF101 IL:2.1dB UPC2745TB FSMS0183C1 IL:7.5dB LMV821M7 CX77105 Pout=29dB m Ant. Cellular Rx:869.04~893.97 Tx:824.04~848.97 US-PCS Rx:1930.0~1989.95 Tx:1850.0~1909.95 PCS:263.6MHz CELL:228.60MHz Gain:13.5dB NF:7.0dB VCO:LSV2130CAS PLL:S1M8838 FM DNI FCC Documentation- CDU-550 1xEVDO USB data Modem 4/9 Confidential and proprietary information This document is the sole and exclusive property of Maxon. Not to be distributed or divulged without prior written agreement. 1.4.1.1 Frequency synthesizing part Frequency synthesizing part called PLL Synthesizer consists of three synthesizer circuit which is first local synthesizer, Tx IF synthesizer and Rx IF synthesizer. The first local synthesizer generates the primary loca…

Text truncated - open the document above for the full version.

Parts List/Tune Up Info

Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 78 of 78 Appendix H – Tune up Procedure Test Configuration of Equipment under Test The EUT has been tested under continuous transmitting mode. All tests are performed at Low channel , Middle channel, High channel. During all testings, EUT is in link mode with Base Station emulator (8960 Series 10) at Maximum power level. Frequency range has been investigated : Radiated emission has been measured from 30MHz to 12.75GHz. The field strength of spurious radiation emission for CDMA was measured at EUT stand-up position (H mode) and lie down position (E1 , E2 mode). TEST Set-up 1) Getting Started i. Power-up the laptop. ii. Connect USB port (on Module) to PC, And Confirm Power. iii. Install the Hard ware driver. iv. Execute Hyper Terminal v. Set Port (Data Modem @CDMA(5553)) and Baud rate(115200). vi. Use the AT Commander 1. at$$hdr_mode=1 : only 1X mode (cdma2000) 2. at$$hdr_mode=2 : HDR mode (1x EVDO) 2) Setting the Base station a) only 1X mode (cdma2000) i. System ID : 1234 ii. Network ID : 0 iii. Primary Call Channel : US CELLUER - 384 US PCS - 600 *Please see the Capture screen b) HDR mode (1x EVDO) i. Session Open Channel : US CELLUER – 589 US PCS – 250 *Please see the Capture screen 3) How to change Channels To change the Tx channels ( 1013, 363,777 ), Put In call Parameter channel 4) How to change Transmit Power Level To Change from the Active Bits to All up Bits (Maximum Out put Power) At Rvs Power Ctrl menu of Form the Active Bits of Base Station.

RF Exposure Info

CMOTech Co.,Ltd Page 1 of 90 FCC ID : TARCDU-550 SAR Report Reference No.: NK2GR004 SAR Evaluation Report FCC ID : TARCDU-550 Project Reference No. : NK2GR004 Product Type : Dual Band CDMA 1x- EVDO wireless USB Modem Brand Name : CMOTECH Model : CDU-550 Tested According to : IEEE Standard C95.1 / OET Bulletin 65 Supplement C Tested Period : February. 06. 2006 to February. 11. 2006 Tested by Seob Lee date : February. 14. 2006 Verified by Seonteag.Jin date : February. 14. 2006 This test results are only related to the item tested. This test report is only limited to the client company and the product. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. Lab Address : Nemko Korea Co., Ltd 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do, Korea Phone : 82-31-322-2333 Fax : 82-31-322-2332 CMOTech Co.,Ltd Page 2 of 90 FCC ID : TARCDU-550 SAR Report Reference No.: NK2GR004 Contents of This Report 1. General Information 3 1.1 Applicant 3 1.2 Manufacturer 3 1.3 Description of Device 3 2. General Test Condition 4 2.1 Location 4 2.2 Operating Environment 4 2.3 Support Equipment 4 2.4 Test Frequency 4 2.5 Position Information 4 3. Description of Test Equipment 5 4. Measurement Procedure 8 4.1Head/Muscle Simulating Mixture Characterization 10 4.2Tissue Dielectric Parameters for Head and Body Phantoms 11 4.3FCC Limits for Specific Absorption Rate (SAR) 12 5. Definition of Reference Points 13 6. Test Configuration Positions 15 7. Measurement Uncertainty 18 8. System Verification 19 8.1Tissue Verification 19 8.2Test System Validation 20 8.3Measurement Result of Test Data (CDMA835MHz Validation) 21 8.4Measurement Result of Test Data (PCS Validation) 22 9. SAR Measurement Results 23 9.1SAT Test Data Summary (CDMA835MHz) 24 9.2SAT Test Data Summary (PCS) 45 10. SAR Teat Equipment 66 11. References 67 Appendix A: SAR Definition 68 Appendix B: Probe Calibration 69 Appendix C: Photographs of DUT 78 Appendix D: Test Position of EUT 85 CMOTech Co.,Ltd Page 3 of 90 FCC ID : TARCDU-550 SAR Report Reference No.: NK2GR004 1.General Information 1.1 Applicant Company Name: CMOTech. Co.,Ltd Company Address: 5F BLD. Etronix 17-10 Yoido-dog, Youngdungpo-gu, Seoul Korea (150-874) Phone/Fax: Phone: +82-2-785-5540 / +82-2-785-2369 Contact Name: Jae Ho Yang 1.2 Manufacturer Company Name: CMOTech. Co.,Ltd Company Address: 5F BLD. Etronix 17-10 Yoido-dog, Youngdungpo-gu, Seoul Korea (150-874) Phone/Fax: Phone: +82-2-785-5540 / +82-2-785-2369 Contact Name: Jae Ho Yang 1.3 Description of Device Category: Dual Band CDMA 1x-EVDO wireless USB Modem Model Name: CDU-550 Brand Name: CMOTECH Serial Number: 0000001 Frequency of Operation CDMA835 : Tx : 824MHz ~ 849MHz, Rx : 869MHz ~ 894MHz PCS :Tx : 1850MHz ~ 1910MHz, Rx : 1930MHz ~ 1990MHz Power Output (Conducted) 0.25W (24.0dBm) Type of Oscillation PLL Synthesizer & VCTCXO(19.2MHz) Modulation Method OQPSK , QPSK Channel Spacing 1.23MHz Modulation Code Division Multiple Access (CDMA) Operating Condition -20 to +60°C 85%(at 50(C), relative humidity (non-condensing) Power Supply +5V DC from USB Host connector Antenna Type Monopole Antenna Dimensions 91mm X 41mm X 9.8mm Weight Approx. 30g Remarks: - CMOTech Co.,Ltd Page 4 of 90 FCC ID : TARCDU-550 SAR Report Reference No.: NK2GR004 2. General Test Condition 2.1 Location Nemko Korea 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do Phone : 82-31-322-2333 , Fax : 82-31-322-2332 2.2 Operating Environment Parameters Recording during test Accepted deviation Ambient temperature 21±2°C 15 ~ 30°C Relative humidity 42±15% 20 ~ 75% 2.3 Support Equipment Equipment Manufacturer Model Name Serial Number Laptop SONY PCG-6C7P J000RJJ8 Laptop SAMSUNG SENS X10 SE 184C93DY400118T Laptop DELL LATITUDE D400 7WV381S 2.4 Test Frequency CDMA PCS CDMA Test Channel Test Frequency (MHz)Test Channel Test Frequency (MHz) 1013 824.70 25 1851.25 363 835.89 600 1880.00 777 848.31 1175 1908.75 2.5 Position Information Top Position : Laptop - keyboard side facing phantom, EUT Bottom Position : Laptop - Rear side facing phantom, EUT Vertical Position : Laptop - top / bottom side edge facing phantom, EUT Max Position with Earphone : Laptop - keyboard or Rear side facing phantom, EUT CMOTech Co.,Ltd Page 5 of 90 FCC ID : TARCDU-550 SAR Report Reference No.: NK2GR004 3. Description of Test Equipment 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, H/P computer, nearfield probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the H/P computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A Data Acquisition Electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. This is connected to the Electro-Optical Coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the measurement server. CMOTech Co.,Ltd Page 6 of 90 FCC ID : TARCDU-550 SAR Report Reference No.: NK2GR004 System Electronics The DAE4 consists of a highly sensitive electrometer-grade preamplifier with autozeroing, a channel and gain-switching mult…

Text truncated - open the document above for the full version.

Test Report

Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 1 of 78 Nemko Korea CO., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : CMOTech Co., Ltd. Dates of Issue : February, 20, 2006 5F BLD. Etronix 17-10, Yoido-dong, Youngdungpo-GuTest Report No. : NK2GR003 Seoul, Korea, (Post code : 150-874) Test Site : Nemko Korea Co., Ltd. FCC ID Brand Name CONTACT PERSON Applied Standard: FCC 47 CFR Part 15 & 2 FCC 47 CFR Part 22H & Part 24E Classification: FCC Class B Device Equipment Class: Public Mobile Services EUT Type: Dual Band CDMA 1x EVDO Wireless USB Modem The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : S. Lee Reviewed By : H.H. Kim Engineer Manager & Chief Engineer TARCDU-550 CMOTECH CMOTech Co., Ltd. 5F BLD. Etronix 17-10, Yoido-dong, Youngdungpo-gu, Seoul Korea(150-874) Mr. Jae Ho Yang Telephone No. : +82 2 785-5540 Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 2 of 78 TABLE OF CONTENTS 1. Scope 4 2. Introduction (Site Description) 5 3. Test Conditions & EUT Information 6 4. Measuring Instrument Calibration 8 5. Summary of Test Results 9 6. Recommendation / Conclusion 9 7. Sample Calculation 10 8. Test Equipment 11 9. Description of Test 12 9.1 Conducted Emission 12 9.2 Radiated Emission 13 9.3 Effective Radiated Power / Equivalent Isotropic Radiated Power 14 9.4 Radiated Spurious & Harmonic Emission 15 9.5 Occupied Bandwidth / 26dB Emission Bandwidth 16 9.6 Spurious and Harmonic Emissions at Antenna Terminal 17 9.7 Frequency Stability / Temperature Variation 20 10. Test Data 21 10.1 AC Power Conducted Emission 21 10.2 Field Strength of Radiated Emission 26 10.3 Effective Radiated Power (ERP) 28 10.4 Equivalent Isotropic Radiated Power (EIRP) 28 10.5 Conducted Output Power 29 10.6 Occupied Bandwidth / 26dB Emission Bandwidth 30 10.7 Radiated Spurious & Harmonic Emission (CDMA) 31 10.8 Radiated Spurious & Harmonic Emission (US PCS) 33 10.9 Frequency Stability / Temperature Variation (CDMA) 35 10.10 Frequency Stability / Temperature Variation (US PCS) 37 Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 3 of 78 11. Test Plots (CDMA) 39 12. Test Plots (US PCS) 49 Appendix A: Labelling Requirement 57 Appendix B: Photographs of Test Set-up 58 Appendix C: EUT Photographs 62 Appendix D: Schematic Diagram 74 Appendix E: Block Diagram 75 Appendix F: USER’S Manual 76 Appendix G: Operational Description 77 Appendix H: Turn up Procedure 78 Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 4 of 78 1. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC Part 15 & Part 22&24. Responsible Party : Contact Person : Manufacturer : CMOTech Co., Ltd. Mr. Jae Ho Yang Tel No. : +82 2 785 5540 CMOTech Co., Ltd. 5F BLD. Etronix 17-10, Yoido-dog, Youngdungpo-gu, Seoul Korea(150-874) z FCC ID: TARCDU-550 z Model: CDU-550 z Brand Name: CMOTECH z EUT Type: Dual Band CDMA 1x EVDO Wireless USB Modem z Electric Rating: +5.0Vdc from USB Host connector z Port / Connector: USB, Earphone Jack z Equipment Class: z Classification: z Applied Standard: z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: Public Mobile Services FCC Class B FCC 47 CFR Part 15 & 2 FCC 47 CFR Part 22H &24E ANSI C63.4 (2003), DA 02-2138(2002) January 17, 2006 to February 17, 2006 Nemko Korea Co., Ltd. NK2GR003 Test Report No.: NK2GR003 CMOTech Co., Ltd. FCC ID :TARCDU-550 Page 5 of 78 2. Introduction (Site Description) The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-2003) was used in determin…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Brian Song(Project Manager)

[email protected]+82-2-368-9926Fax: +82-2-785-2369

Test Firm

Nemko Korea Co.,Ltd.Hyun-ho Kim

[email protected]82-31-322-2333Fax: 82-31-322-2332

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	22H	824.7 MHz - 848.31 MHz	327.00 mW	1M28F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Power listed is EIRP for Part 24 and ERP for Part 22. SAR compliance has been established in three laptop computer configurations with PCMCIA slots on the side or rear as tested in this filing; and can be used in laptop computer(s) with similar physical dimensions, construction, and electrical and RF characteristics. Compliance of this device in all final host configurations is the responsibility of the Grantee. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter and must provide at least 1.5 cm separation between the device, including its antenna, and the user's body. End-users must be provided with specific information required to satisfy RF exposure compliance for all final host devices. The highest reported SAR values are: Part 22 - Body: 1.19 and Part 24 - Body: 0.90 W/kg.
