TB7DXTOY3492949MTOY RC DINOSAUR

Made in China The artwork and design of this package are protected by US copyright law and may not be reproduced, distributed, displayed, published or used for any purpose without prior written permission. It is not permitted to alter, remove or reproduce any trademarks or copyright notice from this package. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio TV technician for help. AGES 6 + RADIO CONTROLLED ANIMATED ACTION DINOSAUR RADIO CONTROLLED ANIMATED ACTION DINOSAURRADIO CONTROLLED ANIMATED ACTION DINOSAUR RADIO CONTROLLED ANIMATED ACTION DINOSAURRADIO CONTROLLED ANIMATED ACTION DINOSAUR RADIO CONTROLLED ANIMATED ACTION DINOSAURRADIO CONTROLLED ANIMATED ACTION DINOSAUR A / Soft, flexible skin on uer body B / Built-in speaker with digital sound eects C / Articulated arms D / Fu-motion legs aow dinosaur to walk on a variety of surfaces E / Stands 16-inches long (aembled) F / Wirele controer A DINOSAUR YOU CONTROL! TYRANNOSAURUS REX FUN FACTSFUN FACTS Length: About 40 feet long Height: 15 - 20 feet tall Weight: Up to 6 tons Speed: Up to 15 mph Diet: Carnivorous (meat) Location: Most fossils found in regions of North America and Canada Dinosaur requires 3 “AA” 1.5V batteries (included). RC controller requires 2 “AAA” batteries (not included). See bottom panel for additional information. Colors and styles may vary. A B D E C F ©2015 Smithsonian. The name “Smithsonian” and the Smithsonian logo are registered trademarks owned by the Smithsonian. ©2015 MerchSource, LLC. All rights reserved. Distributed by MerchSource, LLC, Irvine, CA 92618. Patent Pending T R Y M E ! P R E S S B U T T O N T R Y M E ! P R E S S B U T T O N W A T C H M E M O V E A N D S H R I E K ! W A T C H M E M O V E A N D S H R I E K ! 37cm W x 30.5cm H x 13cm D Fig. 1 INSERT 2 “AAA” BATTERIES Fig. 2 INSERT 3 “AA” BATTERIES INSTALLING THE REMOTE’S BATTERIES Operation requires 3 “AA” 1.5V batteries (included) for the dinosaur, and 2 “AAA” batteries for the radio controller (not included). • Using a screwdriver, remove the screw from the battery compartment. • Open the battery compartment door and insert 2 “AAA” batteries (Fig. 1). • Using a screwdriver, attach the battery compartment door back onto the remote. • Locate the battery compartment located on the side of the tail. • Using a screwdriver, remove the screw from battery compartment. • Open the battery compartment door and insert 3 “AA” batteries (Fig. 2). • Using a screwdriver, attach the battery compartment door back onto the dinosaur’s tail. INSTALLING THE DINOSAUR’S BATTERIES NOTE: For best results, replace dinosaur batteries upon purchase.

Shantou Chenghai Dongxin plastic Toys Co., Ltd To whom it may concern, Letter of Agency I, an officer of Shantou Chenghai Dongxin plastic Toys Co., Ltd do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, [Signature] [Name] Xieli Cai [Title] manager Jun 1, 2015

Jun 1, 2015 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: TB7DXTOY3492949M Request is hereby submitted by SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD reserves the right to discern which parties can obtain access to these information: Schematics Detailed Block diagrams Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, [Signature] [Name] Xie Li Cai [Title] Manager

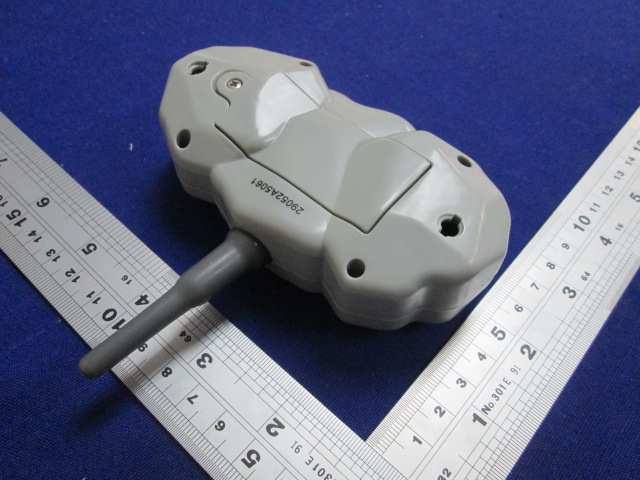

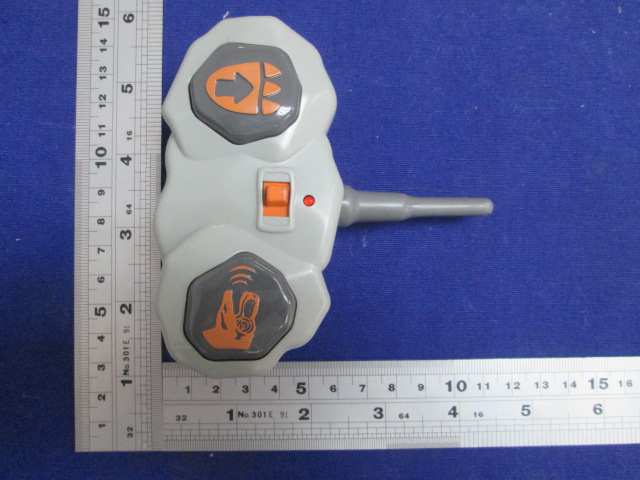

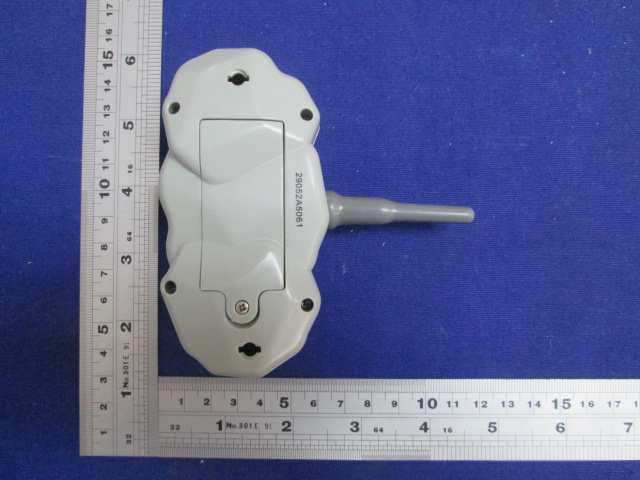

External Photos

Label Artwork and Location

Internal Photos

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a TOY RC DINOSAUR operating at 49.86 MHz which is controlled by a crystal. The EUT is powered by two 1.5V AAA size batteries. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal conducted output power specified: -22.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -24.15dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: Th e worst-case peak radiated emission for the EUT is 73.3dBμV/m at 3m in the frequency 49.86MHz The EIRP = [(FS*D) ^2 / 30] mW= -21.93dBm The ERP = EIRP – 2.15 = -24.08 dBm which is within the production variation. The maximun conducted output power specified is -19.0d Bm =0.013mW The source- based time-averaging conducted output power = 0.013* Duty Cycle mW < 0.1m W (Duty Cycle<100%) Th e SAR Exclusion Threshold Level for 49.860MHz when t he minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 308.6 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 18.0435ms Effective period of the cycle = 521.7μs x 10 + 1.4783 ms x 4 = 11.1302ms DC = 11.1302ms / 18.0435ms = 0.6169 or 61.69% FCC ID: TB7DXTOY3492949M

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD Application For Certification FCC ID: TB7DXTOY3492949M TOY RC DINOSAUR Model: DX2015M Transmitter Report No.: SZHH00958506-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-13] Prepared and Checked by: Approved by: Sign on file Terry Tang Engineer Andy Yan Senior Project Engineer Date: June 10, 2015 INTERTEK TESTING SERVICES Report No.: SZHH00958506-001 FCC ID: TB7DXTOY3492949M TRF No.: FCC 15C_TX_b i GENERAL INFORMATION SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD MODEL: DX2015M FCC ID: TB7DXTOY3492949M Grantee: SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD Grantee Address: Crossing, Fengxin san Rd. Laiwu Rd. Changhai District, Chenghai, Shantou, Guangdong Province China Contact Person: Xie Licai Tel: +8675486382683 Manufacturer: SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD Manufacturer Address: Crossing, Fengxin san Rd. Laiwu Rd. Changhai District, Chenghai, Shantou, Guangdong Province China Model: DX2015M Type of EUT: Transmitter Description of EUT: TOY RC DINOSAUR Serial Number: N/A FCC ID : TB7DXTOY3492949M Date of Sample Submitted: May 20, 2015 Date of Test: June 8, 2015 Report No.: SZHH00958506-001 Report Date: June 10, 2015 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: SZHH00958506-001 FCC ID: TB7DXTOY3492949M TRF No.: FCC 15C_TX_b ii SUMMARY OF TEST RESULT SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD MODEL: DX2015M FCC ID: TB7DXTOY3492949M TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 1 5.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 1 5.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 1 5.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 1 5.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses an integral antenna, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: SZHH00958506-001 FCC ID: TB7DXTOY3492949M TRF No.: FCC 15C_TX_b iii Table of Contents 1.0 General Description ....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology ............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software ...................................…

Text truncated - open the document above for the full version.

Radiated Photos
