TBF-SMLSmart RFID System

SMART RFID SYSTEM Manual for Smart Marker Locator Final modification date: June 2005 Smart RFID System – Manual for Smart Marker Locator Ing. Štefan Sivák-KOMPLEX, Tatranská 3, 010 08 Žilina, Slovak Republic tel: +421 41 5651 497, fax: +421 41 5652 302, [email protected] , www.komplex.sk 1 Thank you for buying our Smart Marker Locator! Policy of Ing. Štefan Sivák – KOMPLEX (further only “Komplex“) is continuous development, therefore it reserves right to change and improve product (Smart Marker Locator, further only “SML“) described in this document without former notice. Likewise, Komplex reserves right to modify or recall from circulation anytime without former notice. Komplex is not responsible in any circumstances for loss of data or for particular, accidental, consecutive or indirect damages caused anyhow. Before you start operate with SML, read carefully following cautions and safety precautions. CAUTIONS AND SAFETY PRECAUTIONS ! Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment! ! Before using SML, acquaint yourself properly with this Manual! ! Use SML only as determined in Manual! ! Use only primary batteries recommended by manufacturer in SML (p. 4, chapter “Technical specification“)! ! Used batteries can contain materials contaminating environment, so treat them according to sewage legislation! SML is sensitive electronic equipment, so it is needed to treat it as well as its parts carefully when using, handling, and transporting it. Following recommendations will help you keep all guarantee conditions and ensure long-term using of this product. • Keep SML in dryness and in temperature ranges recommended by manufacturer (p. 3, chapter “Technical specification“). • Extremely high or low temperatures can damage SML, so do not leave it behind windowpane or hot engine of car, etc. • SML or any of its part must not be dipped into water or other liquid, because it could be damaged. If such case happens, do not switch on the device and dry it for several days in standard temperature. If problems remain, contact your supplier or manufacturer. • Short-term impact of moderate rainfalls and moisture does not damage SML. • Do not try to open SML or any of its parts. Inexpert manipulation with SML can lead to its damage. • Rough treatment can damage SML. Big vibrations, hits, or bumps can damage it, so do not leave it e.g. on sleight of trucks during transportation. • To clean SML, use soft shred damp in water or industrial alcohol. • Manufacturer is not responsible for defects caused by incorrect using of SML. • In case of some problems, contact your supplier or manufacturer. Smart RFID System – Manual for Smart Marker Locator Ing. Štefan Sivák-KOMPLEX, Tatranská 3, 010 08 Žilina, Slovak Republic tel: +421 41 5651 497, fax: +421 41 5652 302, [email protected] , www.komplex.sk 2 CONTENTS Cautions and safety precautions 1 Contents 2 Introduction 3 Technical specification 3 Controls of device and their function 4 Front panel 4 Function of the front panel buttons: Menu, Enter, Up, Down 5 Function of Smart Marker Locator Menu 5 Rear Panel 7 Initial setup 8 Installing the Batteries 8 Antenna Probe Connection 8 Setting the Length of Antenna Telescope 8 Antenna Probe Positions 9 Using Ergonomic Crutch 9 Operation with device 10 Searching Markers 10 Locating Markers 10 Recording the Marker to Smart Marker Locator Memory 11 Determining the Marker Depth 13 Receiving Data from PC into Smart Marker Locator 14 Sending Data from Smart Marker Locator into PC 14 Erasing Data from Smart Marker Locator Memory 15 GPS Module Activating/Deactivating 15 Navigation to Selected Marker using Smart Marker Locator 16 Maintenance 18 Replacing the Batteries 18 Complete set-up delivery 18 Types of operating frequencies 19 Smart RFID System – Manual for Smart Marker Locator Ing. Štefan Sivák-KOMPLEX, Tatranská 3, 010 08 Žilina, Slovak Republic tel: +421 41 5651 497, fax: +421 41 5652 302, [email protected] , www.komplex.sk 3 INTRODUCTION Smart Marker Locator and Smart marker is a Radio Frequency Identification (RFID) System, which represents effective way of tracking underground utilities. Marker is a passive electrical mark intended for permanent marking of selected point under the earth. KOMPLEX offers 2 types of markers: 1 st type – analog marker – is a passive electrical circuit of a known frequency and 2 nd type – smart marker – complements existing analog (passive) marker by providing more information using its own unique 10 digits identification number. Smart Marker Locator is a portable device designed for localization and identification of both analog and smart markers. Smart Marker Locator is able to find a marker and define the place and depth of marker imposition and also enables to save marker to Smart Marker Locator memory (smart markers are saved also with their identification number ID). Moreover, there is GPS module inbuilt in Smart Marker Locator, which improves properties of Smart RFID System. It enables to assign GPS coordinates to each marker (selected point) and back navigation. An accessory included in Smart RFID System is the software for computer “LOCATOR” and a serial cable for data transfer to and from PC. Software LOCATOR is designed for creation and editing of marker database, such as editing name of marker and its record number, adding advanced text to marker record (some of which can be transferred back to locator to be used in terrain), sorting markers by different attributes, exporting database to Excel files, sending database to Smart Marker Locator and more. TECHNICAL SPECIFICATION Operating temperature - 20 ºC to + 60 ºC Storage temperature - 20 ºC to + 60 ºC Guaranteed depth of reading of marker ID 150 cm Marker depth measurement accuracy +/- 10 % up to marker specification GPS system error less than 15 m Operating frequency According to type of underground facilities (see table at the end…

Text truncated - open the document above for the full version.

Tel.: + 421 41 565 1497 Fax: + 421 41 565 2302 E-mail: [email protected] http://www.komplex.sk Ing. Štefan SIVÁK Tatranská 3, 010 08 Žilina Slovak Republic MARKER LOCATOR SML TYPE 1 4/4 Block diagram of locator Battery 10 x 1.5 V LR14 Filter Charge pump voltage inver ter cca 4.0 kHz Stabilizer ±5 V +15 V Power supply Keyboard LCD FLASH memory Front panel Oscillator 30 MHz Microprocessor PIC 18F452 Data bus Clock TTL/RS232 level converter cca 50 kHz RS232 connector GPS receiver GPS antenna +5 V digital ±5 V analog Control uni t Input EMC filter Ant e nna AM detector Low pass filter 3 kHz Amplifier Pulse shaper Amplifier Gain control Band pass filter PLL tone decoder Data Mode (localization or code reading) Recei ver P rogrammable frequency divider Power amplifier Output EMC filter Tr ans mi t t e r On/off modulation 200 Hz 30 MHz 83.0 kHz 101.4 kHz 121.6 kHz 134.0 kHz 145.7 kHz 83.0 kHz 101.4 kHz 121.6 kHz 134.0 kHz 145.7 kHz 164.0 and 168.0 kHz 200.8 and 204.8 kHz 247.2 and 251.2 kHz 266.0 and 270.0 kHz 289.4 and 293.4 kHz Data Modulation

Tel.: + 421 41 565 1497 Fax: + 421 41 565 2302 E-mail: [email protected] http://www.komplex.sk Ing. Štefan SIVÁK Tatranská 3, 010 08 Žilina Slovak Republic MARKER LOCATOR SML TYPE 1 5/5 Confidentiality Request Letter May 30, 2005 TCB TÜV America, Inc. 10040 Mesa Rim Road San Diego, CA 92121 Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics, Parts List, Operating Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Ing. Štefan Sivák Director of KOMPLEX Telephone Number: 00421 41 565 1497 Fax Number: 00421 41 565 2302

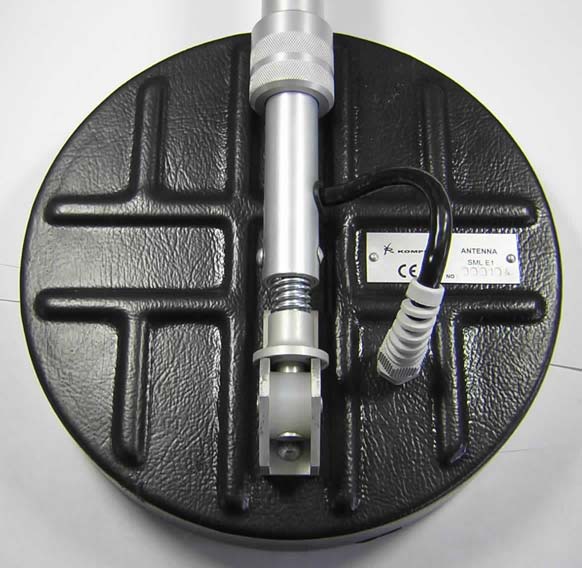

FCC ID: TBF-SML File No. T25797-00-02AA, page 5 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT FCC ID: TBF-SML File No. T25797-00-02AA, page 6 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 FCC ID: TBF-SML File No. T25797-00-02AA, page 13 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 FCC ID: TBF-SML File No. T25797-00-02AA, page 14 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4

5. A FCC ID label: 2/5 Producer’s label FCC ID label

FCC ID: TBF-SML File No. T25797-00-02AA, page 6 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 FCC ID: TBF-SML File No. T25797-00-02AA, page 7 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 FCC ID: TBF-SML File No. T25797-00-02AA, page 8 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 FCC ID: TBF-SML File No. T25797-00-02AA, page 9 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 FCC ID: TBF-SML File No. T25797-00-02AA, page 10 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 FCC ID: TBF-SML File No. T25797-00-02AA, page 11 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 FCC ID: TBF-SML File No. T25797-00-02AA, page 12 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 FCC ID: TBF-SML File No. T25797-00-02AA, page 14 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4

FCC ID: TBF-SML File No. T25797-00-02AA, page 1 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 TTI - P-G 089 / 94-11 DAT - P-011 / 91-02 EMI -- T E S T R E P O R T Test Report No. : T25797-00-02AA 02. June 2005 ______________________________________________________________________________________________ Date of issue Type / Model Name : SML G1, SML S1, SML E1, SML W1 Product Description : Marker Locator Applicant : TÜV Product Service Slovakia s.r.o. Address : 01331 DIVINA 595, Slowakei Manufacturer : Ing. Stefan SIVAK, KOMPLEX Address : Tatranska 3 01008 Zilina, Slovakia Licence holder : Ing. Stefan SIVAK, KOMPLEX Address : Tatranska 3 01008 Zilina, Slovakia Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: TBF-SML File No. T25797-00-02AA, page 2 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 PHOTO DOCUMENTATION OF THE EUT 5 3.2 POWER SUPPLY SYSTEM UTILISED 15 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 15 4 TEST ENVIRONMENT 16 4.1 ADDRESS OF THE TEST LABORATORY 16 4.2 ENVIRONMENTAL CONDITIONS 16 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 16 4.4 MEASUREMENT PROTOCOL FOR FCC, VCCI AND AUSTEL 16 5 TEST CONDITIONS AND RESULTS 18 5.1 CONDUCTED EMISSIONS 18 5.2 FIELD STRENGTH OF THE FUNDAMENTAL WAVE 19 5.3 SPURIOUS EMISSIONS (MAGNECTIC FIELD) 9 KHZ – 30 MHZ 22 5.4 RADIATED EMISSIONS (ELECTRIC FIELD) 30 MHZ – 1 GHZ 24 5.5 EMISSION BANDWIDTH 27 6 USED TEST EQUIPMENT AND ACCESSORIES 28 FCC ID: TBF-SML File No. T25797-00-02AA, page 3 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C- Intentional Radiators (October 01, 2003) Part 15, Subpart C, Section 15.209(a) Radiated emissions, general requirements FCC ID: TBF-SML File No. T25797-00-02AA, page 4 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 2 SUMMARY GENERAL REMARKS: The tests have been carried out in conjunction with 4 different antennas. The following antennas are spezified for different fundamental frequencies: • SML G1: 83.0 kHz • SML S1: 121.6 kHz • SML E1: 134.0 kHz • SML W1: 145.7 kHz FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records of MBPS Testing commenced on : 16. March 2005 Testing concluded on : 17. March 2005 Checked by: Tested by: _______________________________ _____________________________ Harald Buchwald Anton Altmann Dipl. Ing.(FH) Dipl. Ing.(FH) FCC ID: TBF-SML File No. T25797-00-02AA, page 5 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT FCC ID: TBF-SML File No. T25797-00-02AA, page 6 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 FCC ID: TBF-SML File No. T25797-00-02AA, page 7 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 FCC ID: TBF-SML File No. T25797-00-02AA, page 8 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 FCC ID: TBF-SML File No. T25797-00-02AA, page 9 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 FCC ID: TBF-SML File No. T25797-00-02AA, page 10 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 FCC ID: TBF-SML File No. T25797-00-02AA, page 11 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 FCC ID: TBF-SML File No. T25797-00-02AA, page 12 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 FCC ID: TBF-SML File No. T25797-00-02AA, page 13 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 FCC ID: TBF-SML File No. T25797-00-02AA, page 14 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 FCC ID: TBF-SML File No. T25797-00-02AA, page 15 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 3.2 Power supply system utilised Power supply voltage : 13 V / DC 3.3 Short description of the Equipment under Test (EuT) The EuT Smart Marker Locator (SML) can be used to marking and identification of underground devices (water and gas pipes, telecommunication and power cables etc.). It can be manufactured for several frequencies depending on required application. The EuT has built in a GPS receiver module and a GPS antenna. All data are stored into flash memory and can be uploaded to a PC via RS232 cable. Number of tested samples: 1 in conjunction with 4 different antennas Serial number: 00104 EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Marker detection mode EuT config…

Text truncated - open the document above for the full version.

FCC ID: TBF-SML File No. T25797-00-02AA, page 19 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 5.2 Field strength of the fundamental wave For test instruments and accessories used see section 6 Part CPR 1. 5.2.1 Description of the test location Test location: OATS1 Test distance: 30 metres 5.2.2 Photo documentation of the test set-up FCC ID: TBF-SML File No. T25797-00-02AA, page 22 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 5.3 Spurious emissions (Magnectic field) 9 kHz – 30 MHz For test instruments and accessories used see section 6 Part SER 1. 5.3.1 Description of the test location Test location: OATS1 Test distance: 30 metres 5.3.2 Photo documentation of the test set-up FCC ID: TBF-SML File No. T25797-00-02AA, page 24 of 28 MIKES BABT Product Service GmbH x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9407-0 x Fax:+49 9424-9407-60 Rev. No. 9.4 5.4 Radiated emissions (electric field) 30 MHz – 1 GHz For test instruments and accessories used see section 6 Part SER 2. 5.4.1 Description of the test location Test location: OATS1 Test distance: 10 metres 5.4.2 Photo documentation of the test set-up
