TD3-CQS2005001TPMS

Tai-Technologies TPMS user’s manual Tai-Safety can ensure your safety driving. The Tire Pressure Monitoring System applies to trucks, cars, and motorcycles. The truck sensor is fixed by stainless clamps. Car and motorcycle sensors are fixed on by air valves. Once you install the Tai-Safety TPMS in your vehicle, the system will automatically monitor your tires, in real-time, for pressure and temperature. The sensor located in the wheel uses wireless to transfer DATA to the transceiver in your car. When there is any abnormal pressure and/or temperature in the wheel, the system will transmit an alarm signal. In real time it will present a digital figure for warning a driver. This system ensures you are driving in safety. FCC Notice The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. THIS DEVICE COMPLIES WITH PART 15 OF THE FCCRULES. OPERATIONS IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: ( 1 ) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE ( 2 ) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFEERENCE THAT MAY UNDESIRED OPERATION. Caution: Any changes or modifications in construction of this device which are not expressly approved by The party responsible for compliance could void the user’s authority to operate the equipment. Content: Truck Package: 1 display. 6 or 8 or 10 sensors with clamps. 1 power cord cigarette lighter plug. Car Package: 1 display. 4 sensors with air valve. 1 power cord cigarette lighter plug. Motorcycle Package: 1 display. 2 sensors with clamp. 1 power cord System Installation and Usage The system installation There are two parts of system installation 1. Set up the display unit in the vehicle 2. Set up the transmitter unit sensor in tires We strongly suggest installing the display unit first, and then install the tire transmitters later. Sensor Installation: Tai-Technologies TPMS user’s manual The Sensor should be installed by a professional workshop. Remove the tires from vehicles. Deflate the tires and separate the wheel and tire. Place the new sensor. 1. Air Valve Type: On each sensor is a sticker showing where the sensor should be installed. Hold the sensor toward the wheel. Tighten the valve nut while you push the sensor against the wheel. The new valve nut torque is (30~50kgf-cm) 3~5Nm. 2. Clamps Type: You have to use clamp pierce through sensor and fix it at center of rim. After you have the clamp tightened by using screw driver, then cut off the remaining clamp
When you are assembling them you have to notice the disassembling tooling whether will run into the sensor or not. If it were done, please carefully bypass the sensor. Maybe you have to change rim or using clamp type TPMS
Set the wheel and tire together and inflate to its proper pressure. To soak the air valve into water, to ensure the wheel doesn’t leak. Balance the wheels. Place the wheel on correct locations. Tai-Technologies TPMS user’s manual Receiver Setup: Once the TPMS receiver power is on, it is at a waiting mode to wait for the sensor signal. It will show “Wait” till its signal arrives. In the order of the display, provide correct information and alarm. The unit should be setup with HIGH, LOW pressure and HIGH temperature thresholds. Push Function Mode button to enter function set up mode. The operation of this setup is listed in the below @ Truck : 6-18 Sensors display, Please execuse it at the first time Function Truck @ Car : 4 Sensors display, Please execuse it at the first time start up Function Car @ Adjusting the Low Pressure threshold:Default 25psi Function Mode Low Pressure + :Increase -:Decrease Save Alarm Acknowledge Information Display Mode Function Mode Function Shift Exit @ Adjusting the high temperature threshold: Default 85  Function Mode Temperature + :Increase -:Decrease Save @ Adjusting the High Pressure threshold: Default 40psi Function Mode High Pressure + :Increase -:Decrease Save Alarm Lighting Power Tai-Technologies TPMS user’s manual @ Adjusting display temperature unit degree Centigrade Function Mode Temperature  Exit @ Adjusting display temperature unit degree Fahrenheit Function Mode Temperature  @ ID Search: Search your sensor ID, its ID must same as each sensor sticker showing. This function is only used when you want to change sensor or repair. To use the leftest key to interrupt ID scan and to exit. Function Mode ID Search Show ID @ Adjusting display Pressure unit KPA Function Mode Pressure KPA @ Adjusting display Pressure unit PSI Function Mode Pressure PSI Stop Searching Tai-Technologies TPMS user’s manual As you change tires position, please use this function to reassign the original ID to changed tire position. Example: Original Tire ID: Changed Tire ID Step 1:Enter ID Assignment mode, Step 2:Using + :Increase -:Decrease , ID1 -> Tire 4; “Save” ID2 -> Tire 3; “Save” ID3 -> Tire 2; “Save” ID4 -> Tire 1; “Save” Step 3:”OK”,Exit Step 4:Power Off/On restart. Alarm Acknowledge: If the pressure or temperature from tires is over the alarm threshold, the buzzer will sound.The LCD will show the faulty tire and corresponding information. You can press the Alarm Acknowledge key to inhibit the buzzer sound for 10 minutes. If the fault is not relieved, the buzzer will continue to sound. Information: Press the Information Key to review the threshold of pressure, temperature, and the current running time of installed equipment. Change Display Mode Press the Display Mode key to change display.
A car receiver user has 4 sensors swap to each sensor display. @ Reassign ID Function Mode ID Assignment + :Increase -:Decrease Tire1,ID:1 Tire2,ID:2 Tire3,ID:3 Tire4,ID:4 Tire1,ID:4 Tire2,ID:3 Tire3,ID:2 Tire4,ID:1 Tai-Technologies TPMS user’s manual
A 6 wheel truck user is pressure swap to temperature display.
A 8 to 10 wheels truck receiver displays only each wheel turning. From front wheel Left 1,Right 1,Left2,Right 2....to rear wheel. Rea…

Text truncated - open the document above for the full version.

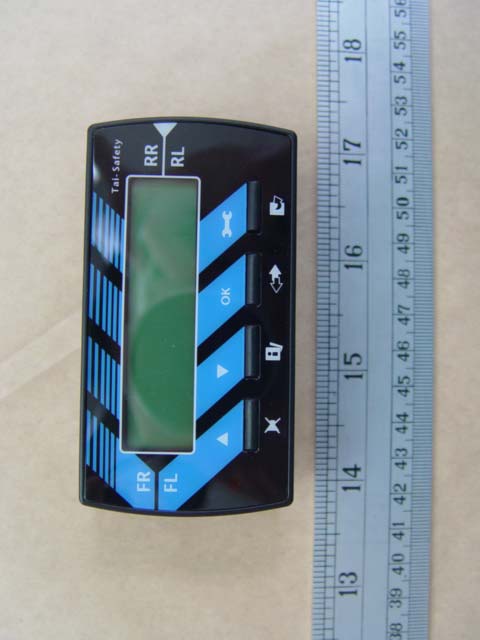

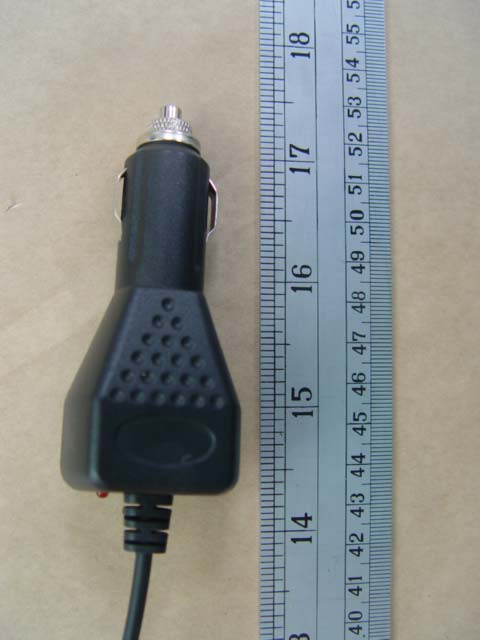

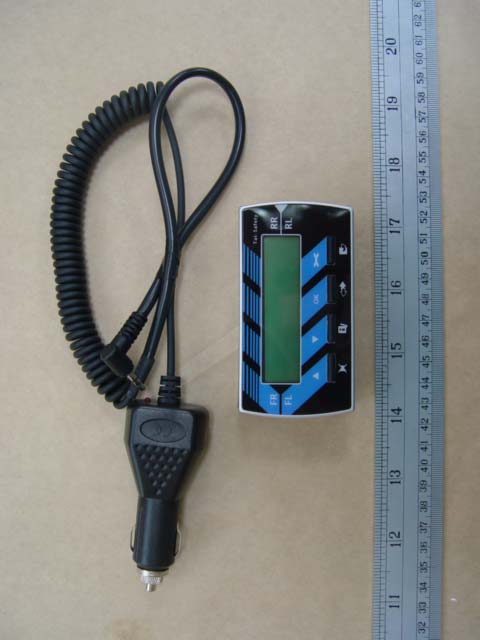

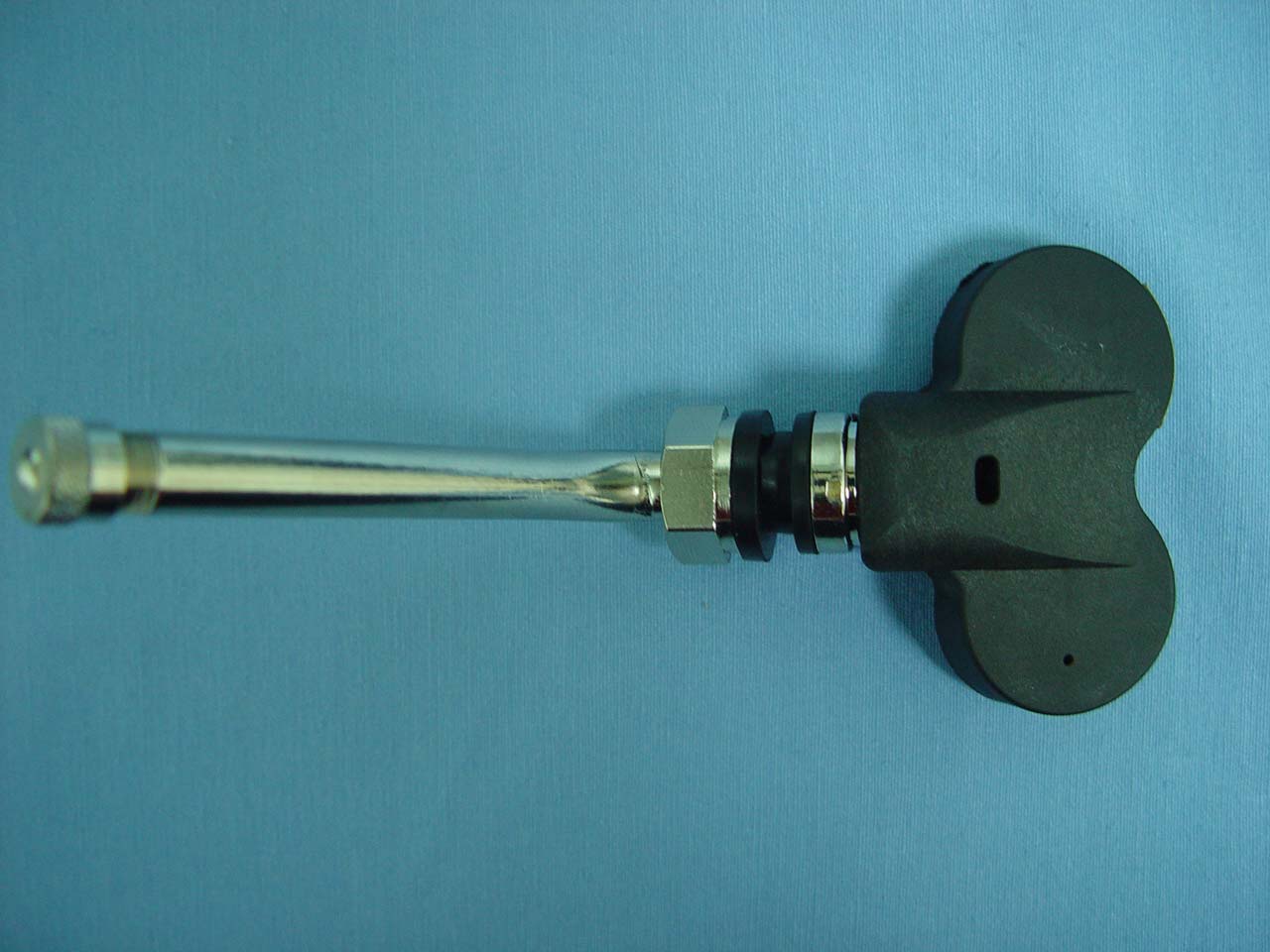

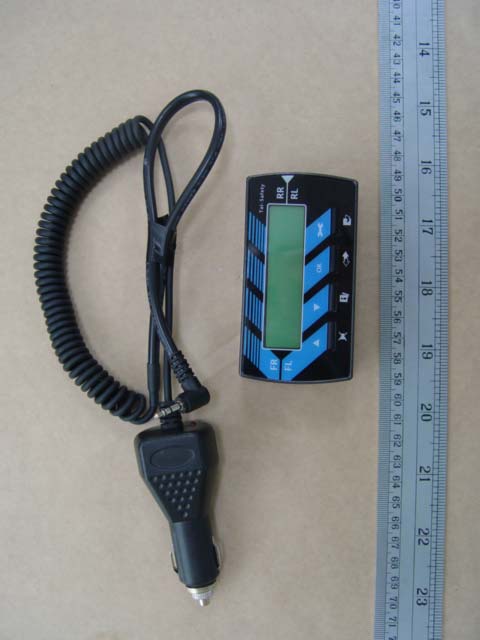

ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. External photo (TX) ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. External photo (RX) ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd.

ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. Internal photo (TX) ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. Internal photo (RX) ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd.

TPMS System Menu How to activity of Tire Pressure Monitoring System (TPMS) 1.We install a sensor into each wheel, the sensor contains pressure and temperature sensor and RF sender. Once the sensor detect the pressure or temperature is variable, the sender will send the Data to master Receiver. 2. The master receiver is installed in vehicle. it contains RF Receiver and MCU with LCD display. Once the RF receiver receive information from sensor, it will decode and send to MCU to process. The MCU use LCD to display all of Sensor pressure and Temperature. 3.A driver can check all of wheels' pressure and temperature from the Master Receiver in vehicle. 4.When there is any abnormal pressure and/or temperature in the wheel, the system will transmit an alarm signal In real time it will present a digital figure for warning a driver. This system ensures you are driving in safety.

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 Accredited Testing Laboratory A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House TEST-REPORT FCC RULES PART 15 / SUBPART C FCC ID : TD3-CQS2005001 Test report no.: W6M20507-5944-C-1 FCC ETS DR. GENZ TAIWAN PS CO., LTD 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. Page 1 of 19 TABLE OF CONTENTS 1 General information 2 1.1 Notes 2 1.2 Testing laboratory 3 1.3 Details of approval holder 3 1.4 Application details 4 1.5 Test item 4 1.6 Test standards 5 2 Technical test 5 2.1 Summary of test results 5 2.2 Test environment 5 2.3 Test equipment utilized 6 2.4 General Test Procedure 9 3Test Results 10 Appendix 19 ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. Page 2 of 19 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS DR. GENZ TAIWAN PS CO., LTD Tester: 19. 10.2005 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of testing: 19. 10.2005 Steven Chuang Date ETS Name Signature ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. Page 3 of 19 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, LiShuei Rd., Wanli Township, Taipei County 207, Taiwan (R.O.C.) Company ETS DR. GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD. NEIHU, TAIPEI 114, TAIWAN R.O.C. Tel : 886-2-66068877 Fax : 886-2-66068879 1.2.2 Details of accreditation status Accredited testing laboratory A2LA-registration number: 2300.01 FCC filed test laboratory Reg. No. 930600 Industry Canada filed test laboratory Reg. No. IC 5679 PTCRB Accredited Type Certification Test House Test location, where different from ETS: Name: ./. Street: ./. Town: ./. Country: ./. Telephone: ./. Fax: ./. 1.3 Details of approval holder Name : TAI Electrical Products Inc. Street : 2F, 27, Alley 49, Lane 118, Sec 2, Min Tsu Rd., Ping Chang City Town : Taoyuan Country : Taiwan, R.O.C. Telephone : +886-3-4203-622~3 Fax : +886-3-4200-486~7 Contact : Mr. George Chang Telephone : +886-3-4203-622~3 ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. Page 4 of 19 1.4 Application details Date of receipt of application : 01.06.2005 Date of receipt of test item : 03.08.2005 Date of test : 05.08.2005 – 17.10.2005 1.5 Test item Description of test item : TPMS Type identification : TAI-Safety-A Brand name : TAI-Electrical Serial number : Test sample without serial number Transmitting frequency : 315 MHz Operation mode : simplex Transmitting mode : K1D Voltage supply Transmitter : 4 V DC ( Battery ) Receiver : 12 VDC ( Battery ) (If the device is using battery, please check if the device is tested under fresh battery condition.) Highest clock frequency : 315 MHz Antenna type : Integral Antenna Photos : see Annex Manufacturer: (if applicable) Name : ./. Street : ./. Town : ./. Country : ./. Additional information : ./. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. Page 5 of 19 1.6 Test standards Technical standard : FCC RULES PART 15 / SUBPART B § 15.109/ SUBPART C § 15.203, § 15.209, § 15.231 (a) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 20°C ... 26°C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply: Transmitter : 4 V DC ( Battery ) Receiver : 12 V DC ( Battery ) ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. Page 6 of 19 2.3 Test equipment utilized No. Test equipment Type Serial No. Manufacturer Next Cal. Date ETSTW-CE 001 EMI TEST RECEIVER ESHS10 842121/013 R&S 2005/11/8 ETSTW-CE 002 PREREULATOR MODE DC POWER SUPPLY ʳʳʳʳ ETSTW-CE 003 AC POWER SOURCE APS-9102 D161137 GW ʳ ETSTW-CE 004 ZWEILEITER-V-NETZNACHBILDUNG TWO-LINE V-NETWORK ESH3-Z5 840731/011 R&S 2006/11/8 ETSTW-CE 005 Line-Impedance Stabilisation Network NNBM 8126D 137 Schwarzbeck 2006/11/3 ETSTW-CE 006 IMPULS-BEGRENZER PULSE LIMITERESH3-Z2 100226 R&S 2006/11/10 ETSTW-CE 007 SPECTRUM ANALYZER 5GHz FSB 849670/001 R&S ʳ ETSTW-CE 008 ABSORBING CLAMP MDS 21 3469 ABSORPTIONS- MESSWANDLER- ZANGE 2006/11/4 ETSTW-CE 009 TEMP.&HUMIDITY CHAMBER GTH-225-40-1P-U MAA0305-009 GIANT FORCE 2005/5/10 ETSTW-CE 010 Comb Generator-conducted ʳʳ ETS ʳ ETSTW-CE 011 Power Line Conducted Emission Only ʳʳ ETS ʳ ETSTW-CE 012 Dua…

Text truncated - open the document above for the full version.

ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. Set Up photo (RX) ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20507-5944-C-1 FCC ID: TD3-CQS2005001 ETS Dr. Genz Taiwan PS Co., Ltd.
