TFLVS207Humidifier

User Manual Ultrasonic Humidifier · Model No. VS 207 Important! Read and Save These Instructions. 2 Read all instructions: Important Safeguards When using electrical appliances, especially when children are present, basic safety precautions should always be for followed for, including the following: 1. Always have water in the water tank when operating unit. 2. Use only clean, cool tap water to fill tank. 3. Care should be taken when using the appliance due to the emission of hot water vapour 4. Use only 110V-120V AC outlet. As with any electrical device, plug and unplug unit with dry hands only. Turn unit off prior to unplugging it. Unplug unit when not in the use and before you clean or move the unit. 5. unplug the appliance during filling and cleaning. 6. This unit shuts off automatically when water tank is empty. 7. Never operate unit with a damaged cord or plug. Keep cord straight. 8. If supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard 9. Always place unit on a flat, level surface away from direct sunlight. Keep cord away from heated surfaces and areas where it could be walked on or tripped over. 10. Do not add medication, fragrance, or oils of any type into the nozzle, base or water tank. Do not cover the nozzle of the unit or insert objects into any openings. 11. The unit should not be left unattended in closed rooms as air could become saturated and leave condensation on walls or furniture. Always leave room door partially open. 12. Do not tilt or tip unit or attempt to empty or fill it while it is operating. 13. Replace demineralization cartridge every 2-3 months. Parts Descriptions Vapor nozzle Handle Control panel Interal ventilator Water level sensor Oscillator Tank Power cord Cleaning brush - Used for cleaning of Oscilator and internal parts. Body 3 Features • Ultra-quiet operation. • Optional cool or warm mist operation. • Built-in hygrostat for controlled humidification. How To Use Your Venta-Sonic™ Humidifier Important! Place unit on a surface away from direct sunlight. Keep cord away from heated surfaces and areas where it could be walked on or tripped over. Fill Water Tank. Turn off humidifier and unplug unit. Remove tank base. Turn upside down and unscrew filling cap. Fill tank with clean, cool, distilled, filtered or tap water. Water temperature should NEVER be too hot or too cold. Extreme temperatures can damage unit. Tighten filling cap firmly. Return tank to base and let sit for a few minites. Mist Selection You can select cool or warm mist. At low temperature, you had better select warm mist. Push WARM MIST BUTTON for selection. Press once for warm mist. Press two times for cool mist. For warm mist, you may wait for about 15min until cold mist turns into warm. Humidity Control Press HUMIDITY BUTTON for humidity control. Ranging from 60%~30%, humidity increases 5% with one press. (30% 35% 40% 45% 50% 55% 60% Co) "Co" means the unit runs until no water remains in a tank at any temperature. COOL HUMIDITY %ACTUAL VAPOR WARM MISTHUMIDTY VAPOR ON / OFF OPERATE ON / OFF WARM/COOL MIST SELECTOR BOTTON HUMIDITY RANGE SET BOTTON HUMIDITY CONTROL BUTTON COOLWARM HUMIDITY %ACTUAL %DESIRED VAPOR 4 Caring For Your Venta-Sonic Humidifier Important! Always unplug the unit before cleaning! When to Clean Your Humidifier Clean your humidifier every 1-2 days or more during heavy use and before and after storage. When cleaning inside of unit, keep water from the air outlet. Exterior may be wiped with a damp cloth when unit is off and unplugged. Cleaning the Oscillator and water Sensor. Turn off unit and unplug power cord. Remove tank base and empty reservoir. Use cleaning brush provided in base and clean off mineral deposits and debris from oscillator and water sensor. Do not scrape or clean with tools that have metal parts. Be careful to not damage the surface of the oscillator. Attention: Damage to the oscillator may cause the unit to not work properly. The oscillator (ultrasonic transducer) is highly sensitive. Keep this important part clean and treat gently. Do not touch the oscillator while the unit is operating. Do not use soap, cleaning agents, detergents, or other chemicals for cleaning the tank and humidifier. After cleaning fill water tank(see instructions above) and return tank to base. Demineralization Cartridge The Venta-Sonic™‚ humidifier is equipped with a new demineralization filter cartridge. This cartridge was especially developed for the Venta-Sonic humidifier and is the next generation technology. A new nano-silver technology provides microbial protection and renders ionic silver sticks unnecessary. The filter housing contains a protective nano-silver material that helps prevent bacterial growth, calcium, and lime build-up. Replace the demineralization filter cartridge every 2-3 months or earlier, depending on your water quality. For replacement cartridges simply call our customer service toll free at (888) 333 8218. Vapor Adjustment Press VAPOR BUTTON for Vapor Adjustment. You have 3 adjustments. When power is on, initial setting is at maximum. After adjustments, press ON/OFF. Press once for start, and press two times for stop. Aim nozzle away from furniture and walls. Mist may take up to 40 seconds to be visible. Turn Unit Off When Finished. Always turn humidifier off and unplug when not in use. 5 Product specification Venta-Sonic VS 207 Suitable for rooms up to600 sq. ft. Dimensions ( LxWxH ) 13 x 9.5 x 13.2 inches Length of Powercordapprox. 6 feet Weight ( empty ) 8.4 lbs. Power input110-120V AC - 60 hz Power consumption42W ( with heat 122W ) Humidification performanceup to 3.7 gal / 24hrs ( daily output ) This device complies with part 18 of the FCC rules. Please call our customer service department toll free at (888) 333 8218 to obtain an authorization number. Attach a tag to the product that includes your name, address, daytime phone number, and description of the pro…

Text truncated - open the document above for the full version.

Novita CO.,LTD Date : 9 th of March, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize KTL, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by KTL on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KTL as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Kyo-en Oh Assistant Manager Signature Novita CO.,LTD REMARK : 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

Novita CO.,LTD MT.22, Jaeungari, Gigsan-eup, Cheoan-shi, Chungnam, Korea 330-815. E-MAIL : [email protected] Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.459 and 0.457(d)(2)(i) pertaining to confidential material Novita CO.,LTD would like the following documents regarding this submission for FCC ID : TFLVS207 : to be kept confidential. 1. Block Diagram 2. Schematic Diagram The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Date 9th of March , 2006 By Kyoeon Oh Signature Printed Title : Assistant Manager ============================================================

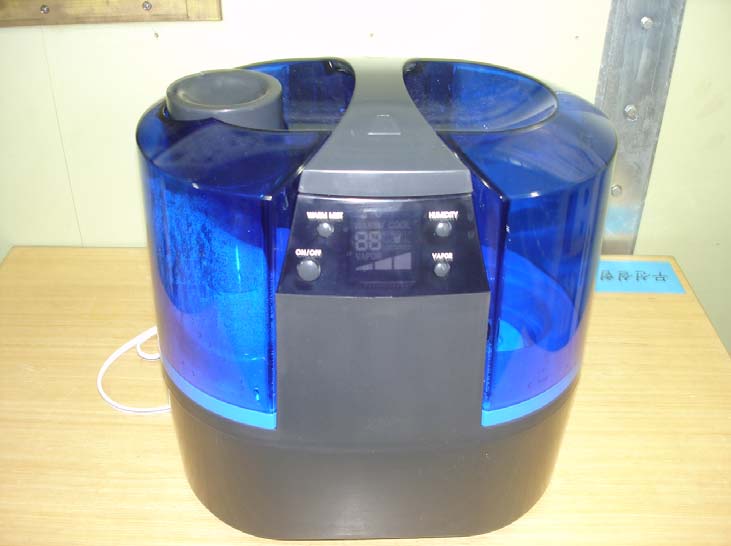

Photographs – out side front rear

- LABEL Location

Inside Photo Power Part Control Part

KTL Korea Testing Laboratory Page 1 of 11 TEST REPORT This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Bum-Jong Kim, Engineer Won-Seo Cho , Telecommunication Team Manager KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 06-341-007 Name and address of the applicant Novita CO., LTD. MT.22, Jaeungari, Gigsan-eup, Cheoan-shi, Chungnam, Korea 330-815. Standard / Test regulation FCC Part 18 Test result Pass Incoming date : Feb 7, 2006 Test item(s) ; Ultrasonic equipment (Humidifier) Model/type ref. ; VS207 Manufacturer ; Novita CO., LTD. . Additional information ; -Required Authorization : Certification -FCC ID : TFLVS207 Test date : March 9, 2006 ~ : March 13, 2006 Issue date : March 13, 2005 Ref. Report No. 06 - 341 – 007 Page 2 of 11 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 TABLE OF CONTENTS I. GENERAL INFORMATION 3 1. Applicant’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Place of Measurement 7. Date of Measurement II. CONDUCTED EMISSION MEASUREMENT (Section 18.307) 4 1. Test Procedure 2. Photograph for the test configuration 3. Sample Calculation 4. Measurement Data III. RADIATED EMISSION MEASUREMENT (Section 18.305) 8 1. Test Procedure 2. Photograph for the test configuration 3. Sample Calculation 4. Measurement Data IV . TEST EQUIPMENTS USED FOR MEASUREMENT 11 Ref. Report No. 06 - 341 – 007 Page 3 of 11 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 I. GENERAL INFORMATION 1.Grantee’s Name and : Novita CO., LTD. Mailing Address MT.22, Jaeungari, Gigsan-eup, Cheoan-shi, Chungnam, Korea 330-815. 2. Manufacturer's Name and : Novita CO., LTD. Mailing Address MT.22, Jaeungari, Gigsan-eup, Cheoan-shi, Chungnam, Korea 330-815. 3. Equipment Descriptions 3.1 Input AC Power : 120 V / 60 Hz / 120 W 3.2 Operating Frequency : 1.63 MHz 3.3 Model Name : VS207 3.4 Type of EUT : Ultrasonic Humidifier 4. Rules and Regulations : FCC Part 18 5. Measuring Procedure : MP-5 (1986) 6. Place of Measurement : Absorber-lined Room (KTL) Shield room (KTL) 7. Date of Measurement 7.1 Conducted Emission : March 09, 2006 7.2 Radiated Emission : March 13, 2006 Ref. Report No. 06 - 341 – 007 Page 4 of 11 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 II . CONDUCTED EMISSION MEASUREMENT (Section 180.307) 1. Test Procedure Conducted emission measurements on the EUT were performed by "AC Power Line Conducted Emissions Testing" procedure as per MP-5. The EUT was set up on a wooden table 0.8 meters height, 1.0 by 1.5 meters in size, placed in the shielded enclosed with a side of wall of which constituted a vertical conducting surface of 2.2 m x 3.1 m in size to maintain 40 cm from the rear of EUT LISN(Line Impedance Stabilization Network, R & S (ESH3-Z5, 3825/2, 50 ohm / 50 μH) was installed and electrically boned to the conducting ground plane. The EUT was connected to the LISN using a typical power adapter. One of two 50 ohm output terminals of the LISN was connected to the EMI Receiver(ROHDE & SCHWARZ, ESI7, 20 Hz to 7 GHz) and the other was terminated in 50 ohms. Measurements were again performed after interchanging such a connection oppositely. The frequency range from 9 kHz to 30 MHz was examined and the remarkable frequencies were measured with Quasi-peak and Average values using the EMI receiver instrument (ROHDE & SCHWARZ, ESI7, 20 Hz to 7 GHz ; Detector Function ; CISPR Quasi-Peak & Average). The 6 dB bandwidth of the Receiver was set to 9 kHz The position of connecting cables of the EUT was changed to find the worst case configuration during measurements. The maximum emission level from the EUT occurred in such configuration as shown in the following photograph. Ref. Report No. 06 - 341 – 007 Page 5 of 11 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 2. Photograph for the test configuration 3. Sample Calculation The emission level measured in decibels above one microvolt (dB㎶) was converted into microvolt (㎶) as shown in following sample calculation. For example : Measured Value at 0.01 MHz 67.9 dB㎶ @ Q-Peak mode + Cable Losses * 0.0 dB ---------------------------------------------------------------------- = Conducted Emission 67.9 dB ㎶ * In case of RG214/ RF cable 15 Ft, the loss is about 0.17 dB at the frequency of 30 MHz which is negligible. Ref. Report No. 06 - 341 – 007 Page 6 of 11 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 4. Measurement Data - Resolution Bandwidth : x CISPR Quasi-Peak (6dB Bandwidth : 9 kHz) x Average (6dB Bandwidth : 9 kHz) Emission Level Limit (*) Mar gin Power Lead Tested Frequency (MHz) Q-Peak (dB ㎶ ) Average (dB ㎶ ) Q-Peak (dB ㎶ ) Average (dB ㎶ ) Q-Peak (dB ㎶ ) Average (dB ㎶ ) 0.01 67.9 -- 110.0 - -42.1 -- 0.04 45.2 -- 110.0 - -64.8 -- 0.15 40.1 33.5 66.0 56.0 -25.9 -22.5 1.68 34.1 28.1 56.0 46.0 -21.9 -17.9 3.37 39.8 32.8 56.0 46.0 -16.2 -13.2 16.83 48.0 38.5 60.0 50.0 -12.0 -11.5 Live to Ground 26.96 54.9 41.9 60.0 50.0 -5.1 -8.1 0.01 63.7 -- 110.0 -- -46.3 -- 0.04 45.9 -- 110.0 -- -64.1 -- 0.15 20.3 19.8 66.0 56.0 -45.7 -36.2 3.36 39.8 33.1 56.0 46.0 -16.2 -12.9 16.80 47.2 36.4 60.0 50.0 -12.8 -13.6 23.59 43.1 32.4 60.0 50.0 -16.9 -17.6 Neutral to Ground 26.96 53.6 41.1 60.0 50.0 -6.4 -8.9 Note : Refer to measured graphs on next page. * Margin(dB) : Emission Level (dB) - Limit (dB) Note : if testing with a quasi-peak detector demonstrates that the equipment complies with the average limits specified in the appropriate table in this section, additional testing to demonstrate compliance using an average detector is not r…

Text truncated - open the document above for the full version.

Test photographs <Radiated emission> <Conducted emission>
