TFO-13010Wireless Cycle Computer (Speed Transmitter)

1 M1 WL www.vdocyclecomputing.com/service ENGLISH Installation video Operating video Settings video 2 M1 WL Preface Pack contents Table of contents Congratulations In choosing a VDO computer, you have opted for high-quality device with first rate technology. To optimally use the computer, we recommend that you read this manual carefully. It contains full operating instructions and many useful tips. We hope you enjoy cycling with your VDO computer. Cycle Parts GmbH First, please ensure that the contents of this pack are complete: 1 VDO computer, battery separate 1 speed transmitter, battery installed, rubber shim 1 universal handlebar bracket 1 spoke magnet (clip magnet) cable ties for attaching the bracket and the transmitter 1 quick-start instruction manual Display .................................................................. 03 Buttons ................................................................. 03 Functions .............................................................. 04 Operation while cycling ......................................... 05 Wireless transmission of the speed ....................... 06 Attaching the handlebar bracket ........................... 06 Attaching the speed transmitter ............................ 07 Inserting the computer into the bracket ................. 08 Testing the wireless transmission ......................... 08 Sleep mode and wireless receiver ......................... 09 Settings ................................................................ 10 Language ....................................................................... 10 Wheel circumference ..................................................... 11 Unit ................................................................................ 14 Clock ............................................................................. 15 Speed indicator settings ................................................. 18 Total distance ................................................................ 19 Resetting trip data after the trip ............................ 22 Battery status indicator ......................................... 23 Replacing the battery in the computer ................... 23 Replacing the battery in the transmitter ................ 24 Terms of guarantee ............................................... 25 Troubleshooting .................................................... 26 Technical specifications ........................................ 26 3 M1 WL Display The VDO M1 WL has a large, easy-to-read display that can be divided into three areas. – The top line of the display shows the value for the selected function. – The middle line displays “am” or “pm” if the 12-hour clock format is used. It also displays whether kmh or mph has been selected for the speed indicator. – The bottom line of the display shows the name of the selected function in clear text. Only ONE function at a time appears on the display. To return to the speed indicator from a selected function, e.g. ride time, press the SET button. The SETTINGS can also be used to establish that the speed indicator is automatically displayed from all other functions after five seconds. See page 18: Settings – speed indicator settings Buttons The VDO M1 WL has two buttons SET In function mode: – Return to the speed indicator from any display function – Open setting mode (press and hold) In setting mode: – Open the setting – Confirm the setting once ready – Exit setting mode and return to function mode TOP BOTTOM MIDDLE BIKE In function mode: – Access functions – Reset trip data to zero (press and hold) In setting mode: – Scroll in the setting menu – Change the data to be set 4 M1 WL Functions The VDO M1 WL has the following functions Current speed With a wheel circumference of 2,155 mm, the maximum possible speed is 199 kmh or 124 mph. Current distance The current distance counts up to 999.99 km or miles. If this maximum value is exceeded, the counter restarts the current distance calculation at zero. Current ride time The current ride time counts up to 99:59:59 HH:MM:SS. If this value is exceeded, the ride time counter restarts at zero. Current time (in 24-h or 12-h format) Total distance (Cumulative value for all trips) The total distance counts up to 99,999 km or miles. If this value is exceeded, the total distance counter restarts at zero. If the unit is switched from miles to km and the conversion result is greater than 100,000 km, the counter is reset to zero. 24-H format12-H format 5 M1 WL 1x SET BIKE Operation while cycling While cycling, the display functions can be accessed by pressing the BIKE button. Pressing the BIKE button shows the next function on the display. Only ONE function at a time is shown on the display. To once again display the speed, the SET button must be pressed. The SETTINGS can also be used to enable the automatic return to the speed indicator from all function displays. See page 18: Settings – speed indicator settings Wireless transmission of the speed The VDO M1 WL comes with analogue wireless transmission. The wireless range is approx. 75 cm between the transmitter on the fork and the computer/receiver on the handlebars. During attachment, make sure you attach the transmitter to the left-hand fork leg if you attach the computer to the stem or the left of the handlebar. If you attach the computer to the right of the handlebars, you can also attach the transmitter to the right-hand fork leg. Note: LED front lights can interfere with analogue wireless transmission. 6 M1 WL 90° 3 3 4 4 – – 1 2 1 Attaching the handlebar bracket You can attach the computer to the right or left of the handle- bars or the centre of the stem. Attach the handlebar bracket in the corresponding position. STEP 1 Decide whether you want to attach the computer to the handlebars or the stem. STEP 2 Rotate the foot of the handlebar bracket by 90° accordingly. To do so, undo the screws in the bracket, remove the foot and rotate it 90° t…

Text truncated - open the document above for the full version.

EUKONFORMITÄTSERKLÄRUNG Wir, CYCLE PARTS GmbH, Le Quartier Hornbach , D-  Neustadt / Weinstr., erklären, dass der VDO Fahrradcomputer mit Funkübertragung VDO M WL und der Sender A bei bestimmungsgemäßer Verwendung den grundlegenden Anforderungen gemäß Artikel  der R&TTE Richtlinie  /  / EG entsprechen. Die Geräte wurden nach folgenden Normen geprüft: Sicherheit: EN -: +A:  EMV/EMC: EN   - V..: / EN  - V..: Radio Spectrum: EN  - V..:  EU-DECLARATION OF CONFORMITY We, CYCLE PARTS GmbH, Le Quartier Hornbach , D-  Neustadt/Weinstr., declare under our responsibility that the product VDO M WL and the transmitter A-(SPD-TX) are compliant with the essential requirements and other relevant requirements of the R&TTE Directive  /  / EG. The above units have been tested using standards: Safety: EN -: +A:  EMV / EMC: EN   - V..:/ EN  - V..: Radio Spectrum: EN  - V..:  Neustadt / Weinstraße, October  Gerold Weindel Geschäftsführer Managing Director Artikel Nr.  ANALOGUE WIRELESS TRANSMISSION Artikel Nr.  ANALOGUE WIRELESS TRANSMISSION FCCADDENDUM This device complies with part  of the FCC Rules. Operation is subject to the following two conditions: () This device may not cause harmful interference, and () this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part  of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. Changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Artikel Nr.  ANALOGUE WIRELESS TRANSMISSION IC-CANADA-ADDENDUM This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: () this device may not cause interference, and () this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d‘Industrie Canada applicables aux appareils radio exempts de licence. L‘exploitation est autorisée aux deux conditions suivantes : () l‘appareil ne doit pas produire de brouillage, et () l‘utilisateur de l‘appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d‘en compromettre le fonctionnement. CAN ICES-(B)/NMB-(B)

Cycle Parts GmbH – Le Quartier Hornbach 13 – D-67433 Neustadt/Weinstraße Date (21/01/2014) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We, Cycle Parts GmbH, Le Quartier Hornbach 13, D-67433 Neustadt/Germany, hereby authorize Ray Cheung (TUV SUD HK LTD) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 31/12/2014. Sincerely, Hans-Joachim Noenen Company Officer: Hans-Joachim Noenen Telephone Number: +49-6321-95 82 713 Email: [email protected]

Cycle Parts GmbH – Le Quartier Hornbach 13 – D-67433 Neustadt/Weinstraße Date (21/01/2014) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: TFO-13010 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Cycle Parts GmbH hereby requests permanent confidential treatment of information accompanying this application as outlined below: • Schematics • Block Diagram • Operational Description Cycle Parts GmbH also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: • Internal Photos • External Photos • User Manual • Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Hans-Joachim Noenen Company Officer: Hans-Joachim Noenen Telephone Number: +49-6321-95 82 713 Email: [email protected]

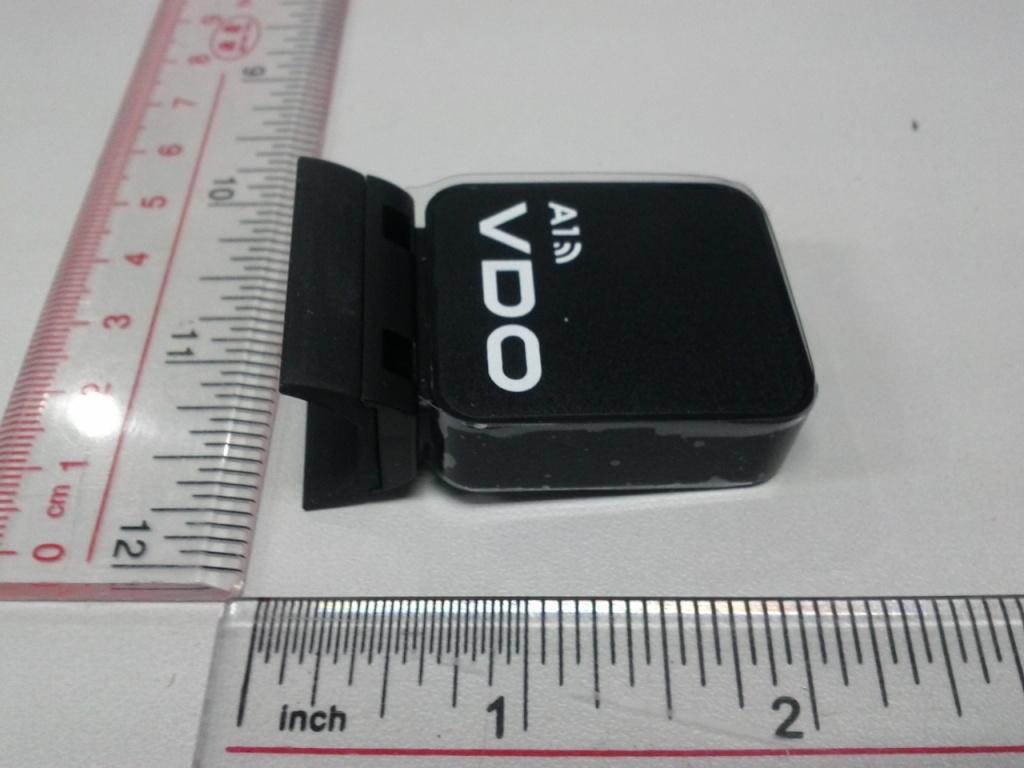

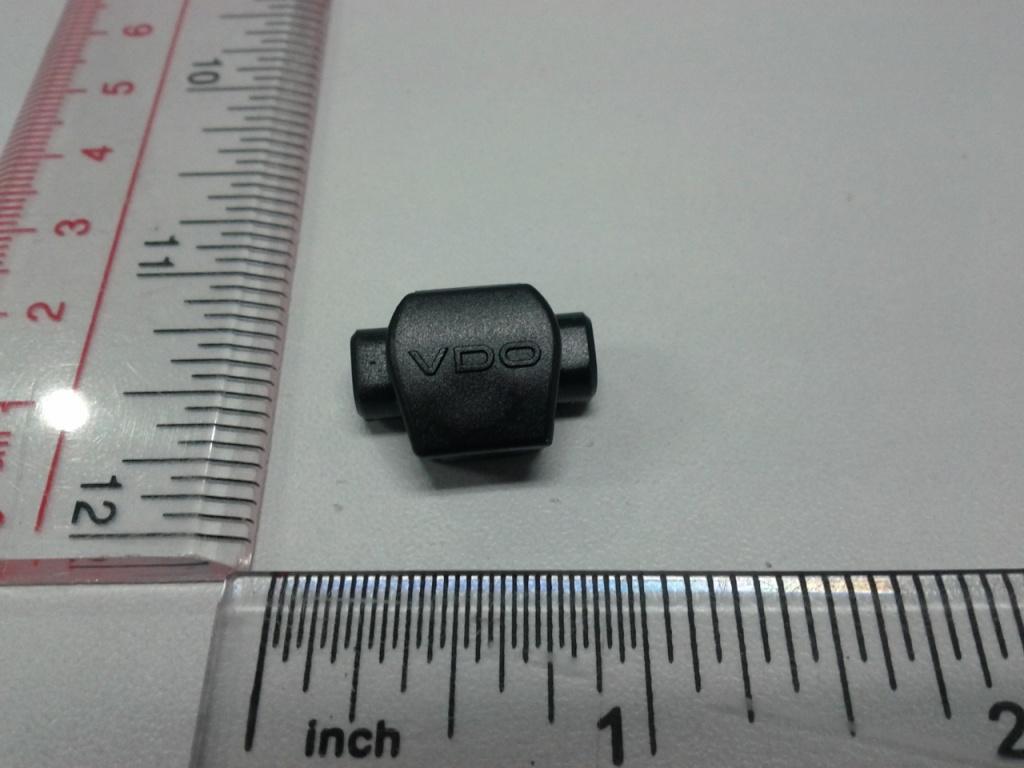

Appendix B Date: 2013-12-31 Report No.: 60.870.13.036.02F Model No.: A1SPD Photo of EUT – External EUT Photos Page 1 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2013-12-31 Report No.: 60.870.13.036.02F Model No.: A1SPD Photo of EUT – External EUT Photos Page 2 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2013-12-31 Report No.: 60.870.13.036.02F Model No.: A1SPD Photo of EUT – External EUT Photos Page 3 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2013-12-31 Report No.: 60.870.13.036.02F Model No.: A1SPD Photo of EUT – External EUT Photos Page 4 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong

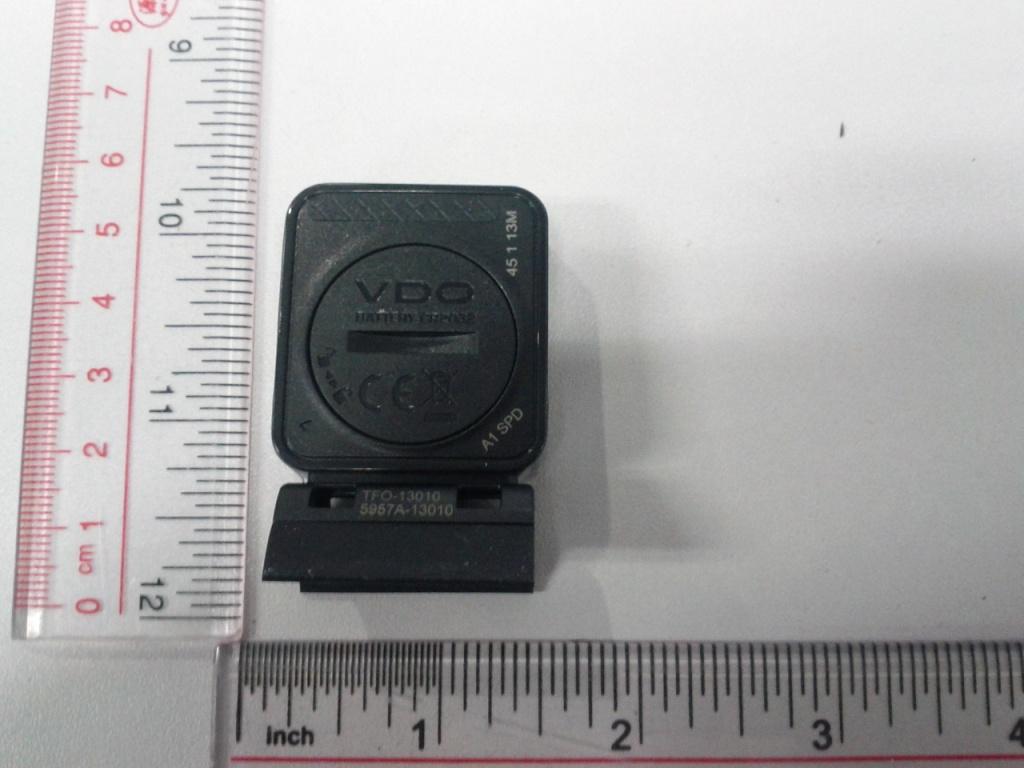

Appendix C Date: 2013-12-31 Report No.: 60.870.13.036.02F Model No.: A1 SPD Photo of EUT – Internal EUT Photos Page 1 of 1 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong

Report No.: 60.870.13.036.02F Date: 2013-12-31 Page 1 of 16 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. TEST REPORT Applicant: Cycle Parts GmbH Le Quartier Hornbach 13, D-67433 Neustadt, Germany Description of Samples:Model name: Wireless Cycle Computer(Speed Transmitter) Brand name: VDO Model no.:A1 SPD FCCID:TFO-13010 Date SamplesReceived:2013-12-04 Date Tested:2013-12-04 to 2013-12-30 Investigation Requested:FCC Part 15, Section 15.209 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- Ray CheungJeff Pong Project EngineerOperation Manager Wireless & Telecom departmentWireless & Telecom department Report No.: 60.870.13.036.02F Date: 2013-12-31 Page 2 of 16 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. CONTENT: Cover Page 1 of 16 Content Page 2 of 16 1.0General Details 1.1Test Laboratory Page 3 of 16 1.2Applicant Details Page 3 of 16 1.3Equipment Under Test [EUT] Page 4 of 16 1.4 Equipment Modification Page 4 of 16 1.5 Related Submittal(s) Grants Page 4 of 16 2.0Technical Details 2.1Investigations Requested Page 5 of 16 2.2Test Standards and Results Summary Page 5 of 16 3.0Test Methodology 3.1Radiated Emission Page 6 of 16 3.2Field Strength Calculation Page 6 of 16 3.3Conducted Emission Page 6 of 16 4.0Test Results 4.1Field Strength of Fundamental and Harmonics Page 7-8 of 16 4.2Spurious Radiated Emission Page 9-12 of 16 4.3Bandwidth Measurement Page 13-14 of 16 4.4Conducted Emission Page 15 of 16 5.0List of Measurement Equipments Page 16 of 16 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Report No.: 60.870.13.036.02F Date: 2013-12-31 Page 3 of 16 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 1.0General Details 1.1Test Laboratory Global United Technology Services Co., Ltd. 1 st Floor, Block No.2, Laodong Industrial Zone, Xixiang road Baoan District, Shenzhen, China RegistrationNumber:600491 File Number: 9079A-1 Tested by: John Zhi 1.2Applicant Details Applicant Cycle Parts GmbH Le Quartier Hornbach 13, D-67433 Neustadt, Germany. Manufacturer Sigma-Elektro (Hong Kong) Ltd Room 2010, 20/F, No.1 Hung To Road, Kwun Tong, Kowloon, Hong Kong Report No.: 60.870.13.036.02F Date: 2013-12-31 Page 4 of 16 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 1.3Equipment Under Test [EUT] Description of EUT Model Name:Wireless Cycle Computer (SpeedTransmitter) Brand Name: VDO Model Number: A1 SPD FCCID:TFO-13010 Rating:DC 3.0V (CR 2032 battery) Antenna Type:Integral Operated Frequency:112kHz No. of Channel:1 Accessories and Auxiliary Equipment:None EUT Exercising Software:None General Operation of EUT The Equipment Under Test (EUT) is a Speed transmitter of Cycle Computer operated at 112 kHz. 1.4Equipment Modification No modification was made to the tested unit by TÜV SÜD Hong Kong Ltd. 1.5Related Submittal(s) Grants This is a single application of certification for this transmitter. Report No.: 60.870.13.036.02F Date: 2013-12-31 Page 5 of 16 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with CFR 47, Part 15 and ANSI C63.4: 2003 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest Result PassN/A Field Strength of Fundamental and Harmonics Part 15.209 (a) Spurious Radiated EmissionPart 15.209 (a), Part 15.205 Bandwidth MeasurementPart 15.215 (c) Conducted EmissionPart 15.207 Note: N/A - Not Applicable Report No.: 60.870.13.036.02F Date: 2013-12-31 Page 6 of 16 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on astandard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. 3.2Field Strength Calculation The field strength at 3 m was established by adding the meter reading of the spectrum analyzer to the factors associated with antenna correction factor, cable loss, preamplifiers and filter attenuation. The equation is expressed as follow: FS = R + System Factor System Factor = AF + CF + FA – PA Where FS = Net Field Strength in dBuV/m at 3 meters. R = Reading of Spectrum Analyzer / Test Receiver in dBuV. AF = Antenna Factor in dB. CF = Cable Attenuation Factor in dB. FA = Filter Attenuation Factor in dB. PA = Preamplifier Factor in dB. FA and PA are only be used for the measuring frequency above 1 GHz. 3.3Conducted Emissions The EUT was placed on a non-metallic table 0.8m above the horizontal metal reference place and 0.4m from a vertical ground plane which is connected to the horizontal metal ground plane. Meanwhile, the AC main of EUT was connected to the distance of 0.8m line impedance stabilization network (LISN) during measurement. Initial measurements were performed in quasi-peak and average detection modes by the test receiver, any emissions recorded within 30dB of the relevant limit lines were re-measured using quasi-peak and average detection on the live and neutral lines with the worst case recorded in the…
