TG26500-60-AARemote Control

1 IMPORTANT MANUAL Do Not Throw Away Save These Instructions Wardrobe valet Owners Manual Models CW-100- CW-200 Closet Conveyor WARNING: Read this Manual and follow all Warnings and Safety Instructions. Failure to do so can result in Injury. 2 ATTENTION! YOUR WARDROBE VALET CONVEYOR DOES NOT HAVE ANY USER SERVICEABLE PARTS. YOUR WARDROBE VALET CONVEYOR SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL. For help with your conveyor, please call White Conveyors, Inc., Field Service Department toll-free, at: 1-800-524-0273 3 TABLE OF CONTENTS DESCRIPTION PAGE Important Safety Instructions 4-6 Product Specifications 7 Installation Instructions 8-17 Operation Instructions 17 Troubleshooting 18 Limited Warranty 19 Contact Information 19 ETL Certification 20 FCC Certification and Guidelines 22 4 IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING YOUR WARDROBE VALET CONVEYOR SAVE THESE INSTRUCTIONS Your Wardrobe valet Conveyor can be used as household appliance. Read this manual carefully. Be thoroughly familiar with the controls and the proper use of Wardrobe valet Conveyor. Know how to stop the Wardrobe valet Conveyor quickly. Never allow children to operate the Wardrobe valet Conveyor without supervision. Never allow adults to operate the Wardrobe valet Conveyor without proper instructions. Do Not Operate Wardrobe valet Conveyor if it is damaged. Disconnect power cord immediately if Wardrobe valet Conveyor is damaged. Do Not Operate Wardrobe valet Conveyor if it has a damaged power cord or plug. Do Not Operate Wardrobe valet Conveyor if Remote control is damaged or does not function properly, for example if conveyor chain does not move when button on Remote is pressed, or does not Stop immediately when button on remote is Released. DISCONNECT POWER CORD IMMEDIATELY IF CONVEYOR DOES NOT STOP WHEN BUTTON ON REMOTE CONTROL RELEASED. To disconnect conveyor, make sure that conveyor chain does not move, than remove plug from outlet. Do Not unplug by pulling on cord. To unplug, grasp the plug, not the cord. WARNING: Do Not wash conveyor. Wipe with dry cloth only. Unplug conveyor from outlet before cleaning. WARNING: Conveyor must be installed so the distance from floor to the lowest point of conveyor chain must be 6 Ft or greater Do Not place any objects or clothes on tubes or on sprocket, it could damage your conveyor and your items. Do Not load Wardrobe valet Conveyor with anything other than goods on hangers. 5 Do Not obstruct Conveyor chain movement. Do Not touch any Wardrobe valet Conveyor parts when conveyor is moving. Do Not allow anyone to hang or climb on Wardrobe valet Conveyor chain. Keep fingers out of the “pinch point” areas; the distance between sprocket and chain is necessary small, and the rollers riding over the tube. Those areas must be protected by location – the minimal distance from the floor to the bottom of chain must be 6 Ft or greater. Do Not use this product near water – for example, in wet basement, near a swimming pool. Stay away at least 2 ft from conveyor chain when conveyor is moving. Install or locate your Wardrobe valet Conveyor only in accordance with provided Installation instruction. Use your Wardrobe valet Conveyor only for its intended use as described in this manual. Keep power cord away from heated surfaces. Do not immerse power cord or plug in water. Your Wardrobe valet Conveyor must be grounded. Connect only to properly grounded outlet. DO NOT any circumstances, cut or remove the third (ground) prong from power cord. SEE GROUNDING INSTRUCTIONS on page ??? To reduce the risk of injury, close supervision is necessary when Wardrobe valet Conveyor is used near children. CAUTION: Items of interest to children should not be stored on shelves or in cabinets above your Wardrobe valet Conveyor – children climbing on conveyor to reach items could be seriously injured. Your Wardrobe valet Conveyor is intended for indoor usage only. The conveyor does not use or produce hazardous materials, and or grinding/lubricant exhaust . It does not require special ventilation. Your Wardrobe valet Conveyor must be loaded and unloaded when conveyor chain is not moving (completely stopped). 6 GROUNDING INSTRUCTIONS Your Wardrobe valet Conveyor must be grounded. In the event of malfunction or breakdown, grounding provides a path of least resistance for electronic current to reduce the risk of electric shock. Your Wardrobe valet Conveyor is equipped with cord having an equipment grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. DANGER: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. The conductor with insulation having an outer surface that is green with or without yellow stripes is the equipment-grounding conductor. Check with qualified electrician or serviceman if the grounding instructions are not completely understood, or if in doubt as to whether the appliance is properly grounded. DO NOT modify the plug provided with your Wardrobe valet Conveyor – if it will not fit the outlet, have a proper outlet installed by a qualified electrician. Your Wardrobe valet Conveyor is cord connected appliance rated less than 15 A and intended for use on nominal 120 V supply circuit and has a grounding plug that looks like the plug illustrated in sketch below. DO NOT use an adaptor plug with this appliance. For best operation, plug this appliance into its own electrical outlet to prevent flickering of light, blowing of fuse or tripping of circuit breaker . GROUNDING PLUG AND GROUNDED OUTLET BOX GROUNDING PIN COVER OF GROUNDED OUTLET BOX PLUG 7 Product Specifications Hanging Over all Overal l Capacity Lengt h Width Product 1-Tier Empty w/Garmen ts with Shipping Number Lengt h (Ft.) garme nts Weigh t CW-100 10 feet 4 Ft 6.00 Ft. 4 Ft. 150 Lbs . CW-120 12 feet 6 Ft 8.00 Ft…

Text truncated - open the document above for the full version.

³ ́ +DYLQJD:DUGUREH 9DOHWLQP\FORVHWKDV PDGHJHWWLQJUHDG\LQ WKHPRUQLQJDVQDS,W·V VRFRQYHQLHQW7KDQNV :DUGUREH9DOHW  +HUPLSSL:WLJROHY[ ³ ́ ,XVHGWRKDYHWRSDFN P\FORWKHVLQWRWKH DWWLFGHSHQGLQJRQWKH VHDVRQ1RZ,FDQNHHS P\VXPPHUDQGZLQWHU FORWKHVLQRQHSODFH )\UU`>OP[L ³ ́ $PLOOLRQWKDQNVIRUVXFK DJORULRXVDQGZRQGHURXV LQYHQWLRQ 2H[O`)LJRLY ³ ́ 1RZ,FDQÀQGWKH FORWKLQJWKDW,ZDQWZLWK WKHSXVKRIDEXWWRQ ,W·VWKDWHDV\ 1V`JL4\SSLU ³ ́ ,ZDVDPD]HGDWKRZ :DUGUREH9DOHWUHGXFHGP\ VWUHVVDOORIP\RXWÀWVDUH DOZD\VRUJDQL]HGDQGDW P\ÀQJHUWLSV ,SSLU.VSKZ[LPU ³ ́ $OORIP\IULHQGVDUH MHDORXVRYHUP\:DUGUREH 9DOHW:LWKWKHWRXFKRI DEXWWRQ,FDQEURZVH P\HQWLUHZDUGUREH,W·V SHUIHFWIRUVRPHRQH DOZD\VRQWKHJR /LH[OLY>OP[JVTI 29(5$// +(,*+7 VHHFKDUWIRU ':RYHUDOOKHLJKW  +$1*(5 +(,*+7   7239,(:)52179,(:6,'(9,(:   29(5$///(1*7+ :,7+*$50(176       3AMPLE#ONlGURATIONS ISdVdaTW ]HSL[ :KLWH&RQYH\RUV‡%RULJKW$YHQXH‡.HQLOZRUWK1-‡  ‡ ZZZZDUGUREHYDOHWFRP 6DIHDQGHDV\ SXVKEXWWRQRSHUDWLRQ &RQVWUXFWHGIRUORQJOLIH:LWKSURSHU PDLQWDQDQFHWKH:DUGUREH9DOHWZLOO GHOLYHU\HDUVRIRSHUDWLRQ 4XLHWDQGVPRRWKUXQQLQJRSHUDWLRQ (DV\LQVWDOODWLRQ OHVVWKDQKRXUVLQPRVWFDVHV  9SRZHU :DUGUREH9DOHWLVDUHPDUNDEO\VLPSOH DQGIXQFWLRQDO SHUVRQDO JDUPHQW GHOLYHU\ V\VWHP WKDW RUJDQL]HV DQG SUHVHUYHV \RXU YDOXDEOHZDUGUREH8VLQJDSSUR[LPDWHO\ VTXDUHIHHWRIFORVHWVSDFHWKH:DUGUREH 9DOHWFDQDFFRPRGDWHXSWRJDUPHQWV$ SXVKRIWKHKDQGVZLWFKEXWWRQDOORZV\RXWR EURZVH\RXUHQWLUHZDUGUREHGHOLYHULQJWKH JDUPHQW\RXZDQWZKHQ\RXZDQWLW :DUGUREH9DOHWEULQJVRUJDQL]DWLRQDQG VWUXFWXUH WR \RXU EXV\ OLIH 1RZ \RX FDQ VWRUHDQGDFFHVVJDUPHQWVHI¿FLHQWO\ZKLOH PD[LPL]LQJ\RXU H[LVWLQJ FORVHW VSDFH 6D\JRRGE\H WR WKRVH VWUHVVIXOO PRUQLQJV RIVHDUFKLQJIRUDSDUWLFODUEXVLQHVVRXW¿W 1HYHU DJDLQ ULVN VWUHVVLQJ \RXU JDUPHQWV IURPLPSURSHUVWRUDJH7UHDW\RXUVHOIWRD GD\ RQ WKH WRZQ LQVWHDG RI ZDVWLQJ WLPH SDFNLQJDQGXQSDFNLQJVHDVRQDOFORWKLQJ 2UJDQL]H\RXU YDOXDEOHZDUGUREH $FFHVV\RXU JDUPHQWVUDSLG\ 3UHVHUYHDQGPDLQWDLQ ZDUGUREHLQWHJULW\ $YRLGWKHVWUHVVRIVHDUFKLQJ IRUDVSHFLÀFVXLWRUGUHVV ISdVdaTW &RQYH\RUFDQEHFRQWUROOHGWKURXJKW\SLFDO ZDOOVZLWFKRURSWLRQDOIRRWSHGDO :DUGUREH9DOHWFDQEHFXVWRPL]HGWR DFFRPRGDWHDQ\FRPELQDWLRQRI VKRUWDQGORQJJDUPHQWV :DUGUREH9DOHW¶VGXUDEOH\HWVW\OLVK FRQVWUXFWLRQZLOOJLYH\RXGHFDGHV RIUHOLDEOHRSHUDWLRQ$GGVYDOXH WR\RXUKRPH 6YNHUPaLHUK,HZPS`(JJLZZ@V\Y>HYKYVIL

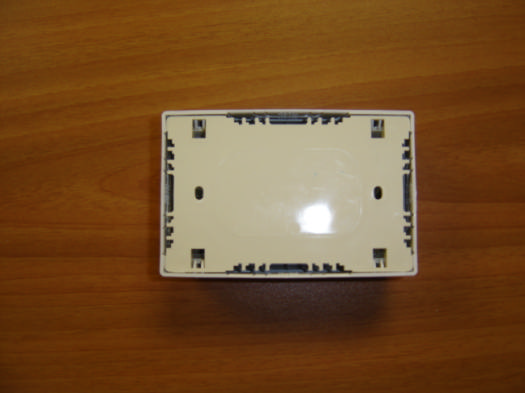

1. The Product 1.1 Outline The conveyor motor control transmitter is used for wireless bi-direction control of a motor which moves a garment conveyot. It is part of a system which also includes an RF receiver. The receiver, which is located in theconveyor motor control, receives, demodulates and decodes the RF transmission from the remote. This decoded transmission controls the motor. 1.2 Appearance The motor switch consists of a rectangular plastic box with a single pole, double throw momentary switch mounted on the top. The size is approximately 4 5/8" (long) x 3"(wide) x 1 5/8" (high) (117mm x 76mm x 41mm). There is a single red LED internal to the case. The LED indicates when the switch is transmitting. 1.3 Transmission Format The signals transmitted from the remote are encoded using PWM, employing 72 bits of data, with a modulation frequency of 833Hz and 100% amplitude modulation. 1.4 General Block Diagram Micro- Processor LED Power Cell 3VDC Modulation and RF Stage Output Forward Reverse rfPIC Processor

1 1/ 4 R e f 2 1/8 Ref FCC ID: TG26500-60-AA This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference 2) This device must accept any interference that may be received, including interference that may cause undesired operation. Country Of Origin: USA IC: 5989A-650060AA Model: 6500-60-AA

1. The Product 1.1 Outline The conveyor motor control transmitter is used for wireless bi-direction control of a motor which moves a garment conveyot. It is part of a system which also includes an RF receiver. The receiver, which is located in theconveyor motor control, receives, demodulates and decodes the RF transmission from the remote. This decoded transmission controls the motor. 1.2 Appearance The motor switch consists of a rectangular plastic box with a single pole, double throw momentary switch mounted on the top. The size is approximately 4 5/8" (long) x 3"(wide) x 1 5/8" (high) (117mm x 76mm x 41mm). There is a single red LED internal to the case. The LED indicates when the switch is transmitting. 1.3 Transmission Format The signals transmitted from the remote are encoded using PWM, employing 72 bits of data, with a modulation frequency of 833Hz and 100% amplitude modulation. 1.4 General Block Diagram Micro- Processor LED Power Cell 3VDC Modulation and RF Stage Output Forward Reverse rfPIC Processor 2 Operating Instructions 2.1 Normal Operation In response to a single press of a button, the transmitter will send a two messages indicating the direction of movement. Each message requires 121mSec to transmit. Once the message is sent, the transmitter turns off. If the button is held, the processor waits for about 2.5 seconds and then transmits another pair of messages. When the button is released, the transmitter sends 3 messages, each 121 mSec long, instructing the motor to stop. The receiver will timeout when no message is received and will stop the motor. 2.2 Test Modes Connecting all three wires together, the same as pushing both buttons, will place the transmitter in a test mode. In test mode, a fully modulated carrier is sent as long as the buttons are pressed. 3 Operation Description 3.1 Idle Mode When no buttons are pressed, the 3VDC battery supplies a small standby current to the processor chip, which is in a sleep mode. No power is supplied to the Modulation and RF stage. 3.2 Button Pressed When any button is pressed, the microprocessor encodes a 72 bit message indicating the direction of motion requested. The processor enables the RF stage. Once the RF stage is enabled, the 72 bit message is encoded as a PWM stream and transmitted twice. After the message is transmitted, the RF Stage is disabled. 3.4 Button Released When the button is released, the microprocessor encodes a 72 bit message directing the motor to stop. The processor enables the RF stage. Once the RF stage is enabled, the 72 bit message is encoded as a PWM stream and transmitted three times. After the message is transmitted, the RF stage is disabled. 3.3 Button Held As long as the button is held, the microprocessor will continue to transmit messages indicating motor movement every 2.5 seconds.

AA BB CC DD EE FF GG 1 1 2 2 3 3 4 4 5 5 Pacific Parallel Research, Inc. Notice of proprietary property. The information contained herein is the proprietary property of Pacific Parallel Research, Inc. The possessor agrees to the following: (i) To maintain this document in confidence. (ii) Not to reproduce or copy this document. (iii) Not to reveal or p ublish this document in whole or in p art. Title:Page:By: Created: Rev: Rev Date: of (7.2pF) Craig Davidson 1 1 7/14/05 7/14/05 60028 3v1 3.1 VSSRFVDDRFPSCLKOUTRFENINRFXTALGP3/VPPGP4/AN3/T1GGP5/T1CKVDD ANT VSSRF1 LF DATAASK DATAFSK FSKOUT GP2/AN2 GP1/AN1/ICSPCLK GP0/AN0/ICSPDAT VSS 12F675 10 987654321 11121314151617181920 U1 C1 0.1μF C2 330pF C5 6.8pF C6 7pF R1 220 Ω R2 R3 1k Ω R5 1k Ω R6 10k Ω L1 120nH X1 9.84375MHz 1 J1 1 J2 D1 1 J4a 2 J4b 3 J4c 4 J4d 5 J4e SM0805 C7 15pF Pan EJC-1VC1H040C SM0805 C8 4pF L2 27nH SM0603 3 v 0 12JUN2005 Change PI to order 5 Butterworth 1 J3 R41k Ω C4 6.8pF SM0603 L3 27nH SM0603 C3 330pF 3 v 1 30JUN2005 As tuned (C4,C5,C6)

M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 TG26500-60-AA (480) 926-3100 phone, fax (480) 926-3598 MFA p0540005, d0570053 Transmitter Certification of Model: 315 MHz control FCC ID: TG26500-60-AA to Federal Communications Commission Rule Part 15.231 and Confidentiality Date of report: July 12, 2005 Amended Report: December 8, 2005 On the Behalf of the Applicant: White Conveyors, Inc. At the Request of: Pacific Paralell Research, Inc. 922 Grange Hall Rd Cardiff By The Sea, CA 92007-1018 Attention of: Craig Davidson 760-436-6368 Email: [email protected] Supervised By: David E. Lee, Quality Assurance Manager M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 TG26500-60-AA (480) 926-3100 phone, fax (480) 926-3598 MFA p0540005, d0570053 List Of Exhibits (FCC Certification (Transmitters) - Revised 9/28/98) Applicant: White Conveyors, Inc. FCC ID: TG26500-60-AA By Applicant: 1. Letter Of Authorization 2. Identification Drawings Label Location of Label Compliance Statement Location of Compliance Statement 3. Documentation: 2.1033(B) (3) User Manual (4) Operational Description (5) Block Diagram (5) Schematic Diagram (7) Photographs Parts List Active Devices By M.F.A. Inc. A. TESTIMONIAL & STATEMENT OF CERTIFICATION M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 TG26500-60-AA (480) 926-3100 phone, fax (480) 926-3598 MFA p0540005, d0570053 The Applicant has been cautioned as to the following: 15.21 Information to User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 TG26500-60-AA (480) 926-3100 phone, fax (480) 926-3598 MFA p0540005, d0570053 Table Of Contents Rule Description Page . Test Report 1 . Standard Test Conditions and Engineering Practices 3 2.1033(c) General Information Required 4 2.1053(a) Field Strength of Spurious Radiation 7 2.1049(c)(1) Emission Masks (Occupied Bandwidth) 11 2.202(g) Necessary Bandwidth and Emission Bandwidth 13 M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Page 1 of 15 Chandler, Arizona 85225-7176 TG26500-60-AA (480) 926-3100 phone, fax (480) 926-3598 MFA p0540005, d0570053 Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) Test Report b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0570053 d) Client: Pacific Paralell Research, Inc. 922 Grange Hall Rd Cardiff By The Sea, CA 92007-1018 e) Identification: 6500-60-AA FCC ID: TG26500-60-AA Description: Remote Control f) EUT Condition: Not required unless specified in individual tests. g) Report Date: July 12, 2005 EUT Received: April 11, 2005 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: David E. Lee, Quality Assurance Manager n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Page 2 of 15 Chandler, Arizona 85225-7176 TG26500-60-AA (480) 926-3100 phone, fax (480) 926-3598 MFA p0540005, d0570053 Sub-part 2.1033(b): Test And Measurement Data All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Volume II; Part 2, Sub-part J, Sections 2.1031, 2.1033, 2.1035, 2.1041, 2.1043, 2.1045, and the following individual Parts: 15.209 Radiated emission limits; general requirements 15.211 Tunnel radio systems 15.213 Cable locating equipment 15.214 Cordless telephones 15.217 Operation in the band 160-190 kHz 15.219 Operation in the band 510-1705 kHz 15.221 Operation in the band 525-1705 kHz (leaky coax) 15.223 Operation in the band 1.705-10 MHz 15.225 Operation in the band 13.553-13.567 MHz 15.227 Operation in the band 26-27.28 MHz (remote control) 15.229 Operation in the band 40.66-40.70 MHz X 15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz 15.233 Operation within the bands 43.71-44.49, 46.60-46.98 MHz 48.75-49.51 MHz and 49.66-50.0 MHz 15.235 Operation within the band 49.82-49.90 MHz 15.237 Operation within the bands 72.0-73.0 MHz, 74.6-74.8 MHz…

Text truncated - open the document above for the full version.

M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 TG26500-60-AA (480) 926-3100 phone, fax (480) 926-3598 MFA p0540005, d0570053 Test Setup: Radiated Emissions
