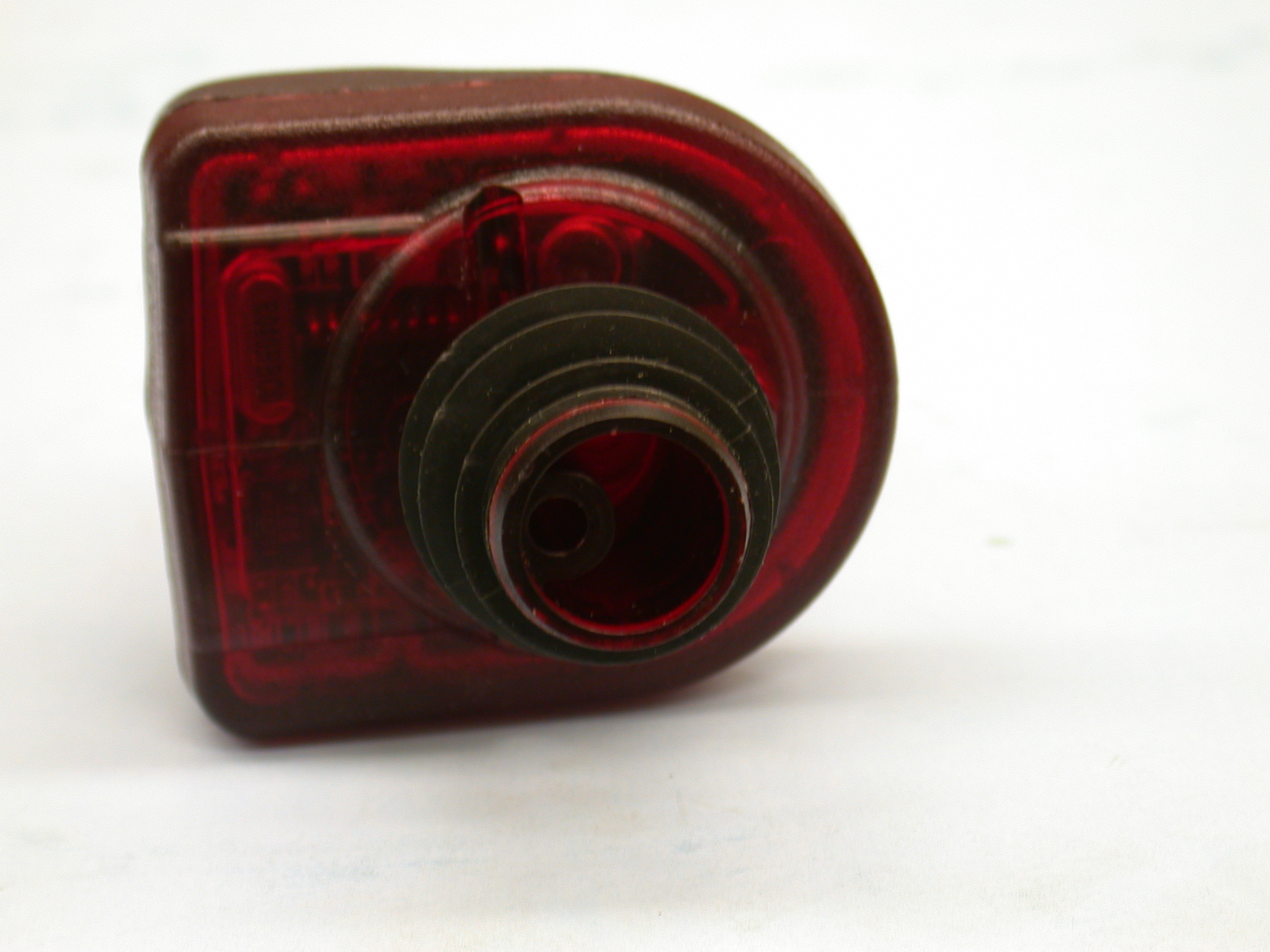

TGJ-SPRCV-F3Beverage Tracker Pour Top Transmitter

Beverage Tracker Desktop Software User Guide www.captoninc.com BEVERAGE TRACKER DESKTOP SOFTWARE USER GUIDE ?2005 CAPTON, Inc. All Rights Reserved. Visit us at www.captoninc.com. 1 Section Number/Title/Page Number 1 SYSTEM COMPATIBILITY AND SETUP OUTLINE Page 3 2 INSTALLATION - DETAILED INSTRUCTIONS Page 4 2.1 INSTALL BEVERAGE TRACKER SOFTWARE Page 4 2.2 UPGRADING PREVIOUS VERSIONS OF BEVERAGE TRACKER Page 5 2.3 STARTING BEVERAGE TRACKER Page 6 2.4 HARDWARE SETUP Page 6 3 LOGIN AND LOGOUT Page 7 4 NAVIGATION Page 8 4.1 MAIN MENU NAVIGATION Page 8 4.2 FILE MENU NAVIGATION Page 9 5 CHANGE USERNAME AND PASSWORD Page 10 6 SETUP BEVERAGE TRACKER SOFTWARE Page 11 6.1 LIQUOR LIBRARY SETUP Page 11 6.1.1 Add Liquor to Library Page 11 6.1.2 Delete Liquors from Library Page 11 6.1.3 Edit Existing Liquors Page 12 6.1.4 Save Liquor Library Changes Page 12 6.2 STATION ASSIGNMENT Page 12 6.2.1 Add Station Page 12 6.2.2 Delete Station Page 12 6.2.3 Edit Existing Station Page 13 6.2.4 Save Station Changes Page 13 6.3 SPOUT ASSIGNMENT Page 13 6.3.1 Add Spout Page 13 6.3.2 Delete Spout Page 14 6.3.3 Edit Existing Spout Page 14 6.3.4 Save Spout Changes Page 14 7 BEVERAGE TRACKER REPORTS Page 15 7.1 RUN REPORT Page 15 7.2 PRINT, EXPORT AND SAVE REPORT Page 15 7.2.1 Print Page 16 7.2.2 Export Page 16 7.2.3 Save Page 16 8 REPORT TYPES Page 17 8.1 POUR COST REPORT Page 17 8.2 POUR COST CHART Page 18 8.3 CONSUMPTION REPORT Page 19 8.4 POURS BY STATION REPORT Page 20 8.5 POURS BY STATION CHART Page 21 8.6 ENGAGE AND POUR REPORT Page 22 8.7 POUR LOG Page 23 8.8 BRAND POUR SUMMARY Page 24 8.9 THEORETICAL SALES REPORT Page 25 8.10 THEORETICAL SALES CHART Page 26 8.11 SETUP SUMMARY REPORT Page 27 8.12 SPOUT BATTERY LEVEL REPORT Page 28 APPENDIX A - SOFTWARE AND COMPUTER SYSTEM COMPATIBILITY Page 29 8.13 MINIMUM HARDWARE REQUIREMENTS Page 29 8.14 OPERATING SYSTEMS Page 29 APPENDIX B - EXPORT FORMATS FOR BEVERAGE TRACKER REPORTS Page 30 BEVERAGE TRACKER DESKTOP SOFTWARE USER GUIDE ?2005 CAPTON, Inc. All Rights Reserved. Visit us at www.captoninc.com. 2 THANK YOU FOR CHOOSING CAPTON BEVERAGE TRACKER 3.0! CAPTON’s Beverage Tracker is a wireless “free-pour” management system that measures liquor quantity as it is being poured. Pour quantities are instantly transmitted from the spout to your computer through a radio frequency. You can view all your real- time data by volume, by brand, by shelf type and by station for your location. The following guide provides all the steps and details for installing and configuring your Beverage Tracker software. Please consult the Beverage Tracker Hardware Installation Guide for instructions on how to install the Beverage Tracker receiver, spouts and connect the system to your computer. Once installed Beverage Tracker will allow you to manage your liquor operations more efficiently and effectively. It’s a whole new way of doing business. To learn more about the other products and services CAPTON offers to help you manage your business more efficiently, please visit our web site at www.captoninc.com. EQUIPMENT USE WARNING – FCC NOTICE Electronic pour spouts used in a Beverage Tracker system have been approved for specific use with this desktop software. Changes or modifications to this device not expressly approved by the manufacturer could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept all interference received, including interference that may cause undesired operation. BEVERAGE TRACKER DESKTOP SOFTWARE USER GUIDE ?2005 CAPTON, Inc. All Rights Reserved. Visit us at www.captoninc.com. 3 1 SYSTEM COMPATIBILITY AND SETUP OUTLINE Prior to installation, make sure you are installing the Beverage Tracker software on a compatible computer system. A complete list of compatible computer systems is available in Appendix A of this document. Setting up your Beverage Tracker system is quick and easy. When you are ready to install Beverage Tracker follow the 5 basic steps below to setup the product correctly: 1. Install the Beverage Tracker Software 2. Setup the Spout and Receiver Hardware 3. Setup the Liquor Library in Beverage Tracker 4. Setup you stations via Station Assignment in Beverage Tracker 5. Assign spouts to stations via Spout Assignment in Beverage Tracker BEVERAGE TRACKER DESKTOP SOFTWARE USER GUIDE ?2005 CAPTON, Inc. All Rights Reserved. Visit us at www.captoninc.com. 4 2 INSTALLATION - DETAILED INSTRUCTIONS 2.1 INSTALL BEVERAGE TRACKER SOFTWARE To install Beverage Tracker on your computer, insert the Beverage Tracker Install CD. The install program should auto-start. Follow the instructions on the screens shown below (left-to-right, top- to-bottom): BEVERAGE TRACKER DESKTOP SOFTWARE USER GUIDE ?2005 CAPTON, Inc. All Rights Reserved. Visit us at www.captoninc.com. 5 If the program does not automatically start the installation process when the CD is inserted, access your computer drive that contains the CD-ROM and find the file that is titled “setup.exe”. Double click the icon to initialize the setup process. Follow the above installation instructions. 2.2 UPGRADING FROM PREVIOUS VERSIONS OF BEVERAGE TRACKER If you are already a Beverage Tracker user and are installing v3.0 on top of an existing version, then you will see the following screen before starting the installation process. Answer Yes if you want to install Beverage Tracker 3.0 and keep your existing data. Answer No if you wish to exit the installation. If you decide to continue with the installation, you must select the version of spout that you will be using. Previous versions of Beverage Tracker worked only with 4-digit spouts. Beverage Tracker 3.0 will work with either 4-digit or 6-digit spouts, but not both at the same time. No matter which version of spouts you choose during an upgrade, Beverage Tracker 3.0 will keep your existing data intact. BEVERAG…

Text truncated - open the document above for the full version.

Nemko Test Report: 5L0196RUS1 REV 3 Applicant: Wyle Labs. 7800 Highway 20 West Huntsville, AL 35806 Equipment Under Test: Beverage Tracker In Accordance With: FCC Part 15, Subpart C For Low Power Transmitters Operating Periodically In The Band 40.66 - 40.77 MHz And Above 70 MHz Tested By: Nemko Dallas, Inc. 802 N. Kealy Lewisville, TX 75057-3136 Authorized By: Tom Tidwell, Frontline Manager Date: September 21, 2005 Total Number of Pages: 26 NVLAP LAB CODE: 100426-0 Nemko Dallas, Inc. FCC PART 15, SUBPART C POWER TRANSMITTERS EQUIPMENT: BEVERAGE TRACKER PROJECT NO.: 5L0196R Page 2 of 2 TABLE OF CONTENTS Section 1. Summary of Test Results ......................................................................................... 3 Section 2. Equipment Under Test (E.U.T.) ............................................................................... 5 Section 3. Equipment Configuration ......................................................................................... 8 Section 4. Transmission Requirements ................................................................................... 10 Section 5. Radiated Emissions ................................................................................................ 12 Section 6. Occupied Bandwidth .............................................................................................. 17 Section 7. Frequency Tolerance Devices in the Frequency Band 40.66 - 40.77 MHz........ 20 Section 8. Periodic Alternate Field Strength Requirements.................................................... 21 Section 9. Powerline Conducted Emissions ............................................................................ 22 Section 10. Block Diagrams ....................................................................................................... 23 Section 11. Test Equipment List ...............................................................................................26 ANNEX A - RESTRICTED BANDS ......................................................................................... 27 Nemko Dallas, Inc. FCC PART 15, SUBPART C POWER TRANSMITTERS EQUIPMENT: BEVERAGE TRACKER PROJECT NO.: 5L0196R Page 3 of 3 Section 1. Summary of Test Results Manufacturer: Vital Link Model No.: NA Sample No. Serial No. Date Received Modification Status 1 NA 4/17/2005 PRE PRODUCTION N/A - Not modified from original state General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.231. All tests were conducted using measurement procedure ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100426-0 NEMKO Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. NEMKO Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Dallas, Inc. FCC PART 15, SUBPART C POWER TRANSMITTERS EQUIPMENT: BEVERAGE TRACKER PROJECT NO.: 5L0196R Page 4 of 4 Summary Of Test Data Name of Test Paragraph No. Results Transmission Requirements 15.231(a) COMPLIES Radiated Emissions 15.231(b) COMPLIES Occupied Bandwidth 15.231(c) COMPLIES Frequency Tolerance 15.231(d) NA Alternate Field Strength Requirements 15.231(e) NA Powerline Conducted Emissions 15.207 NA Footnotes: Nemko Dallas, Inc. FCC PART 15, SUBPART C POWER TRANSMITTERS EQUIPMENT: BEVERAGE TRACKER PROJECT NO.: 5L0196R Page 5 of 5 Section 2. Equipment Under Test (E.U.T.) General Equipment Information Frequency Range: 418 MHZ FIXED Operating Frequency(ies) of Sample: 418 MHZ Type of Emission: OOK Supply Power Requirement: 1.5 VOLTS DC Battery Duty Cycle Correction Factor: NONE Nemko Dallas, Inc. FCC PART 15, SUBPART C POWER TRANSMITTERS EQUIPMENT: BEVERAGE TRACKER PROJECT NO.: 5L0196R Page 6 of 6 Description of E.U.T. The Beverage Tracker is a liquor-monitoring device. Modifications Incorporated in E.U.T. The EUT has not been modified from what is described by the brand name and unique type identification stated above. Nemko Dallas, Inc. FCC PART 15, SUBPART C POWER TRANSMITTERS EQUIPMENT: BEVERAGE TRACKER PROJECT NO.: 5L0196R Page 7 of 7 Test Configuration The E.U.T. was configured for testing as per typical installation. The following combinations were investigated to establish worst case configuration: (1) EUT was place in three orthogonal axis and was found to be worst case on its side. (2) The EUT was tested with a new battery. Exercise Mode The E.U.T. exercise mode used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. Exercise mode: (1) Modified to transmit rf carrier continuously Nemko Dallas, Inc. FCC PART 15, SUBPART C POWER TRANSMITTERS EQUIPMENT: BEVERAGE TRACKER PROJECT NO.: 5L0196R Page 8 of 8 Section 3. Equipment Configuration Equipment Configuration List: Item Description Model No. Serial. Rev. (A) Beverage Tracker NA NA - Inter-connection Cables: Item Description Length (m) (1) NO CABLES Nemko Dallas, Inc. FCC PART 15, SUBPART C POWER TRANSMITTERS EQUIPMENT: BEVERAGE TRACKER PROJECT NO.: 5L0196R Page 9 of 9 Configuration of the Equipment Under Test (E.U.T) Continuous Transmit Nemko Dallas, Inc. FCC PART 15, SUBPART C POWER TRANSMITTERS EQUIPMENT: BE…

Text truncated - open the document above for the full version.

Nemko Dallas, Inc. FCC PART 15, SUBPART C POWER TRANSMITTERS EQUIPMENT: BEVERAGE TRACKER PROJECT NO.: 5L0196R Page 14 of 14 Radiated Photographs (Worst Case Configuration) FRONT VIEW REAR VIEW
