10/02/05 NEW LIVE STEAM MIKADO 2-8-2 INSTRUCTION MANUAL ART-84100-01 ARISTO-CRAFT TRAINS / Polk’s Modelcraft Hobbies, Inc. 698 South 21st Street, Irvington, NJ 07111 USA Tel: (973) 351-9800 Fax: (973) 351-9700 http://www. aristocraft.com e-mail: [email protected] WWW.ARISTOCRAFT.COM Dear Model Railroader, Congratulations on your purchase of the Aristo- Craft 1:29 Live Steam Mikado! The fun of running a locomotive as they were intended to with real steam power is the key part of this locomotive and the technical hard work is Congratulations! done by the magic of our technology that takes work out of the project and leaves more running time for enjoyment. Should you have any questions regarding operation, proper usage or maintenance required on this or any other Aristo-Craft product, please do not hesitate to contact us at the following address: ARISTO-CRAFT TRAINS / Polk’s Model Craft Hobbies, Inc. 698 South 21st Street, Irvington, NJ 07111 USA Tel: (973) 351-9800 Fax: (973) 351-9700 e-mail: [email protected] Our customer service department phones are open from 10:00 AM to 5:00 PM Eastern time, Monday through Friday. Visit our website: www.aristocraft.com © 2005 Polk’s Modelcraft Hobbies, Inc. WWW.ARISTOCRAFT.COM1 Locomotive Features & Accessories This locomotive has the following features and accessories which makes it look and operate in a superior manner: • An integrated radio control system for speed control, reversing, and to activate several sound effects and front lights. This R/C system operates on the universally accepted 49-mhz frequency and is FCC-approved in the U.S. • A well for a warm water bath for the butane gas. • Auto-ignition for the flame using the tender control panel. • Easy-to-use-and-find butane fuel. • Wide-mouth oil access. (Oil not included) • D.C. electric motors for radio-controlled reverse and speed controls. • Two wall chargers for both 110v or 230v depending on the country where you are located. An adaptor plug may be necessary for your country if the supplied plug will not fit your receptacle. • A NiC_d battery pack to operate these electronic functions. • Tools such as two syringes for filling and removing the steam oil, a metal funnel to fill the boiler and butane bath, two metal screwdrivers for the live steamer locomo- tive adjusments and others. • Insulated wheels for running on powered layouts with other locos. • A Goodall valve and water bottle to refill the boiler under pressure before the water cools. WWW.ARISTOCRAFT.COM2 •Live Steam Trains should not be used by anyone under the age of 14. This is not a toy, and while not any more dangerous then the use of a stove while boiling water for a cup of tea, it does take some common sense and the ability to make rational actions if something doesn’t work as prescribed. •Hot water is scalding and must be treated as such, so do not open a pressurized locomotive water tank until it has cooled sufficiently. To do so would create a reac- tion much like opening an auto’s radiator cap under full pressure. DON’T do this. •Do not smoke when filling the butane into the tender. This is a flammable material and is similar to the situation when relighting a gas stove burner when the pilot light goes out. •Use only distilled water, available at supermarkets and drugstores widely, as regu- lar water has contaminates that could eat away at your copper boiler. This is espe- cially true if you do not thoroughly drain the water from the boiler after each use. The Aristo-Craft Live Steamer has a drain cock to allow you to do just that. •Do not tighten the hose to the boiler of the locomotive prior to adding the butane material to the input in the tender. Also insure that the butane valve on the tender is closed before adding butane. •Do not use boiling water in the supplemental hot water bath for the butane tank. It’s not necessary and could cause handling problems with the scalding water. If you like you can drain this hot bath water after steam-up and before you actually begin running. This will provide a fresh hot water bath for the running period after the water has reached the starting pressure. •Do not run your loco without proper steam oil that is formulated for the super-hot conditions of running a steam locomotive. This is not included, but is available from where you purchased your loco. •Do not overfill your boiler beyond the two cups of distilled water (500 ml total). Live Steam Operation Safety Please read all of these warnings very carefully before using your Aristo-Craft Live Steam Mikado for the first time! WWW.ARISTOCRAFT.COM3 •If your auto-igniter does not cause the flame to ignite and the butane container is filled, then send the loco in for service and do not try to adjust the flame yourself. •We have added spare O-rings that you can replace if the steam releases through those valves. Please write to us for spares rather than continue to operate without O-rings in top shape. •Please check you loco after 30 minutes of running to see that the water level in the sight glass still indicates that you have sufficient water in the boiler. DO NOT RUN YOUR LOCO WITHOUT WATER IN THE BOILER. •If your loco falls off the track, then immediately close the butane valve until all butane flow is off and the flame thus shuts off. •Do not use this loco indoors. It’s only for outdoor usage as there is residual oil and water that falls to the track. •Any modification of the loco will void our warranty and perhaps the safety of the loco. Do not modify the loco at all for proper safety. Live Steam Operation Safety (continued) WWW.ARISTOCRAFT.COM4 Locomotive History The Mikado 2-8-2 steam locomotive was one of the most common of the steam locomotives built and used in the United States and Canada. It was a workhorse, a locomotive that could do it all. Primarily used in freight operations, it was occasionally employed in passenger service, right up to the end of steam operations. Large and small railroads operated Mikado…

Text truncated - open the document above for the full version.

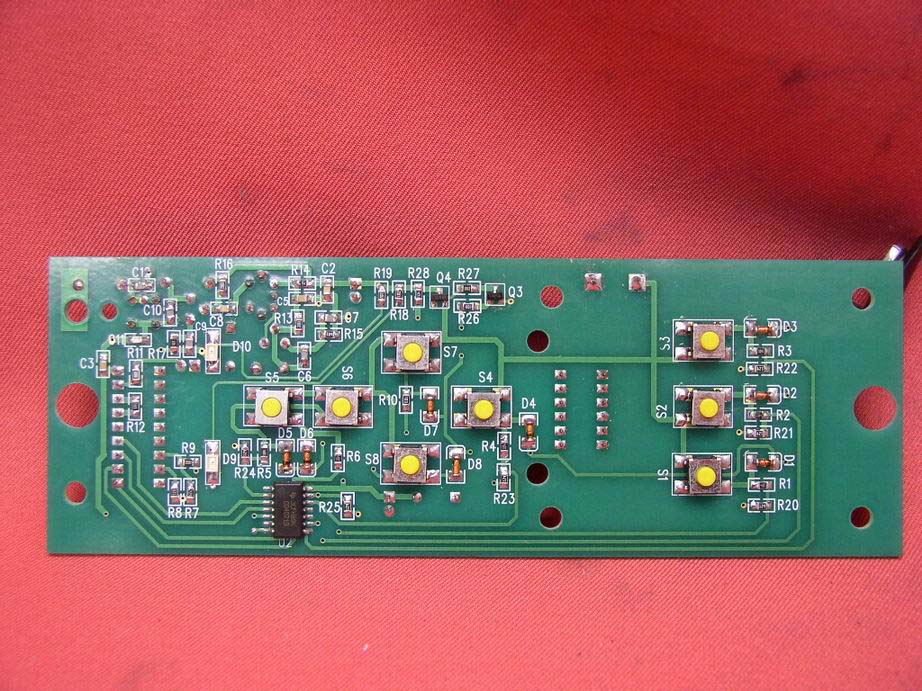

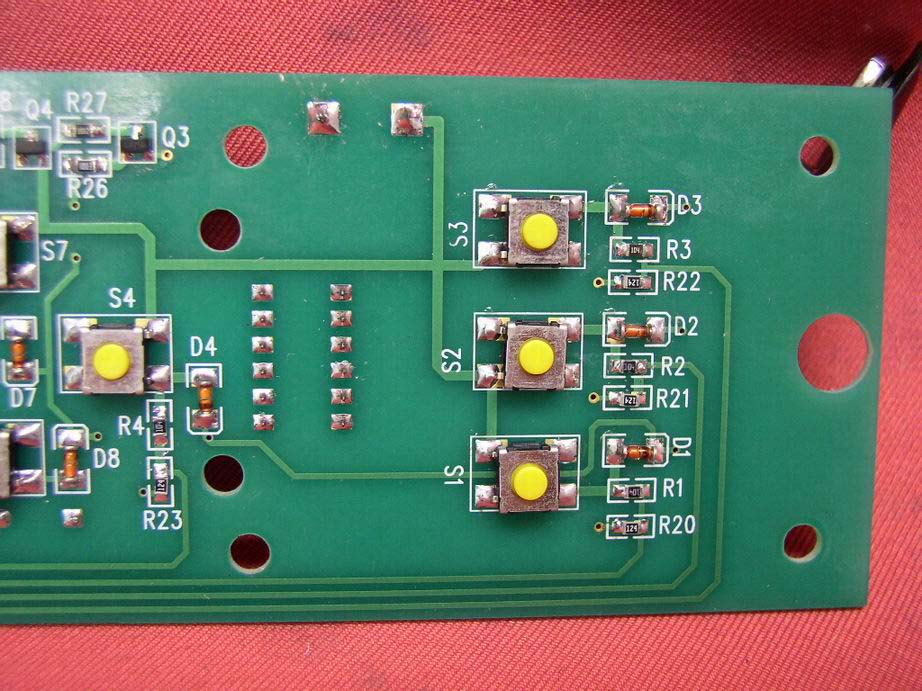

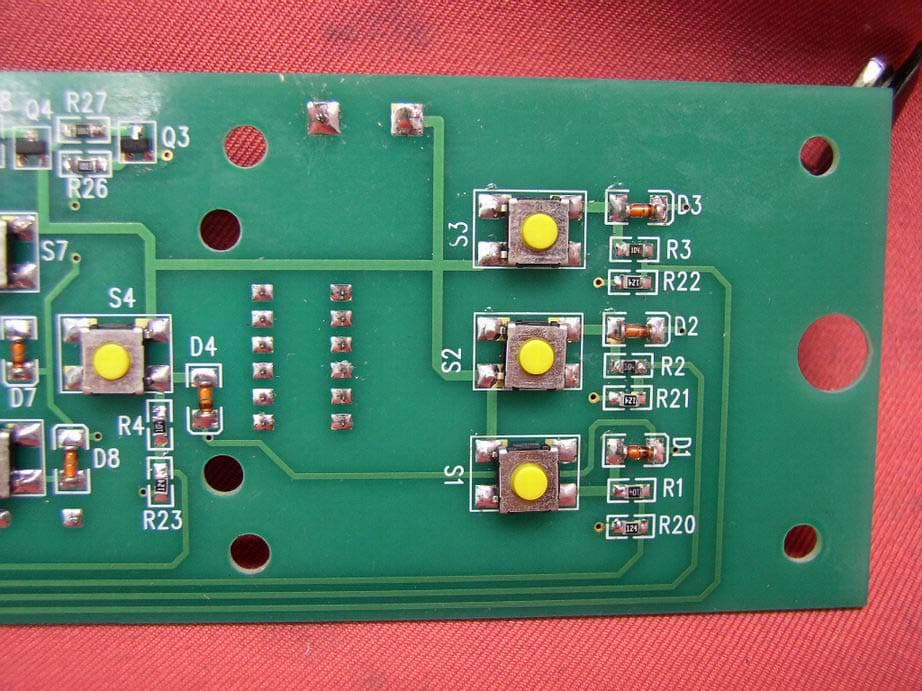

FCC ID: TGL-ART-84100-TX Iphoto1 Iphoto2 FCC ID: TGL-ART-84100-TX Iphoto3 Iphoto4 FCC ID: TGL-ART-84100-TX Iphoto5 Iphoto6 FCC ID: TGL-ART-84100-TX Iphoto7 Iphoto8

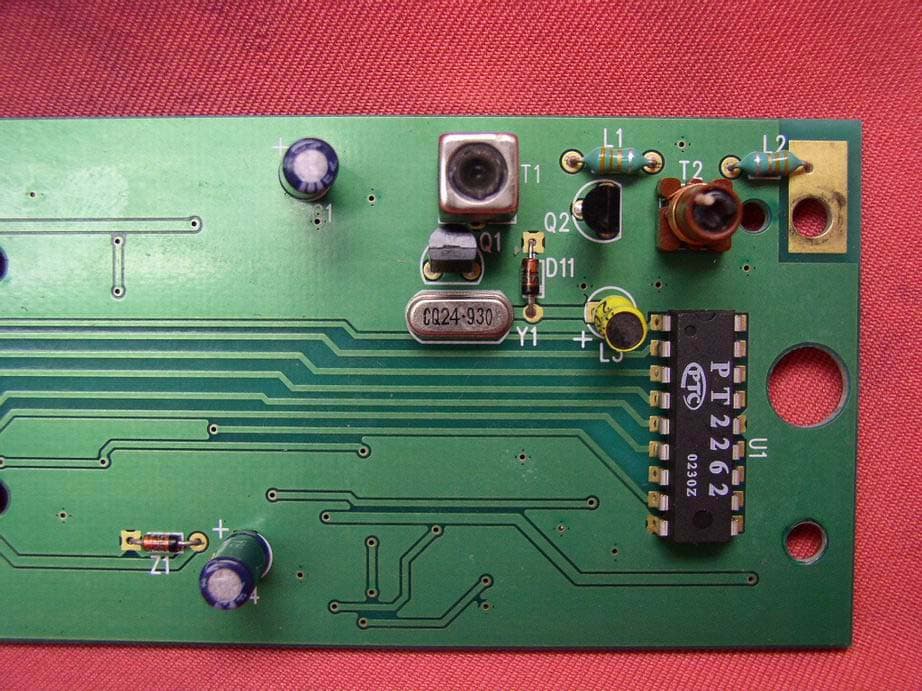

FCC ID: TGL-ART-84100-TX Technical Description : The brief circuit description is listed as follows : - Q1, T1 and associated circuit act as Frequency Multiplier (49.860 MHz). - Y1, D11 and associated circuit act as Modulator (FM) and Oscillator (24.930 MHz). - Q2 and associated circuit act as RF Power Amplifier. - U1 and associated circuit act as Encoder. - Q3, Q4, Z1 and associated circuit act as Voltage Regulator. - SW1 and associated circuit act as Channel Selection Switch. - S1 ~ S8, U2-A, U2-B, U2-C, U2-D and associated circuit act as Function Control Button. - D9, D10 and associated circuit act as LED Indicator. Antenna Used : An extendable antenna has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : TGL-ART-84100-TX Polk’s Model Craft Hobbies, Inc. Application For Certification (FCC ID: TGL-ART-84100-TX) Transmitter Sample Description : Live Steam 282 Loco Model : ART-84100 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-2004] 0511671 WL/at October 19, 2005 INTERTEK TESTING SERVICES FCC ID: TGL-ART-84100-TX i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: TGL-ART-84100-TX ii MEASUREMENT/TECHNICAL REPORT Polk’s Model Craft Hobbies, Inc. - MODEL: ART-84100 FCC ID: TGL-ART-84100-TX October 19, 2005 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-1- 2004 Edition] provision. Report prepared by: Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8502 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: TGL-ART-84100-TX iii Table of Contents 1.0 General Description................................................................................................ 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants................................................................................. 2 1.3 Test Methodology................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration..................................................................................... 5 2.1 Justification.......................................................................................................... 5 2.2 EUT Exercising Software ..................................................................................... 5 2.3 Special Accessories............................................................................................. 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Support Equipment List and Description .............................................................. 6 3.0 Emission Results .................................................................................................... 8 3.1 Field Strength Calculation .................................................................................... 9 3.1 Field Strength Calculation (cont’d) ..................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data .................................................................................... 12 4.0 Equipment Photographs ....................................................................................... 15 5.0 Product Labelling .................................................................................................. 17 6.0 Technical Specifications....................................................................................... 19 7.0 Instruction Manual ................................................................................................ 21 8.0 Miscellaneous Information................................................................................... 23 8.1 Measured Bandwidth......................................................................................... 24 8.2 Emission Test Procedures ................................................................................ 25 8.2 Emission Test Procedures (Cont’d).................................................................... 26 INTERTEK TESTING SERVICES FCC ID: TGL-ART-84100-TX iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: TGL-ART-84100-TX 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: TGL-ART-84100-TX 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a transmitter for a RC Locomotive operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by a 9V battery. The EUT has eight buttons and a channel switch inside the cabinet. The Fast button is used to accelerate the speed of the locomotive. The Slow button is used to decelerate the spee…
