TH7-ABC-200HCAdjustable Bed Controller (Hand Control)

User’s Manual: ABC-2 Series (SL) Revision 1.2 (August 23, 2005 ) Elisync Technologies LLC. -1- Adjustable Bed Controller (ABC-2 Series) User’s Manual User’s Manual: ABC-2 Series (SL) Revision 1.2 (August 23, 2005 ) Elisync Technologies LLC. -2- LABELLING REQUIREMENTS (FCC Part 15.19 (a)(3)) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. INFORMATION TO THE USER (Part 15.105(b)) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. WARNING (Part 15.21) The manufacturer is not responsible for any Radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. User’s Manual: ABC-2 Series (SL) Revision 1.2 (August 23, 2005 ) Elisync Technologies LLC. -3- DOCUMENT HISTORY REVISION DATE COMMENTS 1.0 2005.07.08 1 ST revision created 1.1 2005.07.12 UP/DOWN reversed 1.2 2005.08.23 FCC Information is added. User’s Manual: ABC-2 Series (SL) Revision 1.2 (August 23, 2005 ) Elisync Technologies LLC. -4- CONTENTS DOCUMENT HISTORY...................................................................................... 3 CONTENTS........................................................................................................ 4 1. Introduction .................................................................................................. 5 1.1 Features ................................................................................................. 5 1.2 Systems Configuration......................................................................... 6 2. Hand Control................................................................................................. 7 2.1 Specification.......................................................................................... 7 2.2 Photo...................................................................................................... 7 2.3 Dimension.............................................................................................. 8 3. Control Box................................................................................................... 9 3.1 Specification.......................................................................................... 9 3.2 Photos.................................................................................................... 9 3.3 Dimension............................................................................................ 10 4. Control Box - Details .................................................................................. 11 4.1 Front View Layout ............................................................................... 11 4.2 Rear View Layout ................................................................................ 11 4.3 ACTUATOR Connectors ..................................................................... 11 4.4 MASSAGE MOTOR Connectors......................................................... 12 4.5 AC INPUT Connector .......................................................................... 12 4.6 Safety SWITCH (Optional) .................................................................. 12 4.7 STATUS LED ........................................................................................ 13 4.8 PAIRING Button................................................................................... 13 4.9 PCB Layout (Fuse, Header) ................................................................ 13 5. System Setup Method ................................................................................ 14 5.1 Wireless PAIRING Setup..................................................................... 14 6. Hand Control Operation............................................................................. 15 6.1 Bed Position ........................................................................................ 15 6.2 Bed Position Save & Recall................................................................ 16 6.3 Massage Mode .................................................................................... 17 User’s Manual: ABC-2 Series (SL) Revision 1.2 (August 23, 2005 ) Elisync Technologies LLC. -5- 1. Introduction 1.1 Features ABC-2 series adjustable bed controller is for adjust the bed to fit any position you like. With wireless hand control, you can raise your head and/or your feet to a position that most comfortable to you. It controls the vibration motors for massage as well as the head and foot actuators. Various massage operation such as single massage, dual massage, and wave massage can be achieved with wireless hand control. User’s Manual: ABC-2 Series (SL) Revision 1.2 (August 23, 2005 ) Elisync Technologies LLC. -6- 1.2 Systems Configuration HE…

Text truncated - open the document above for the full version.

[Transmitter Block Diagram] Micro Controller U1 7 8 MHz 32.768 kHz TX DATA OSC Q3, Y2, C13 315 MHz Q2 SW × 12 DC 3V battery

August 29, 2005 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R) and Section §552(b)(4) of the Freedom of Information Act, Dadam Micro Inc. requests confidentiality for the following products: FCC ID Number Product Title / Model TH7-ABC-200HC Adjustable Bed Controller (Hand Control) / ABC-200HC-010 For the product stated above, we request that the following information be held confidential: 1) Circuit diagrams 2) Bill of materials (Part List) No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Dadam Micro Inc. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our products. This material is not customarily available to the general public and we request that it be withheld from public inspection. Sincerely, Iksoo Jun / President Dadam Micro Inc. 719 Keumkang Hightech Valley, 133-1 Sangdaewon1-dong, Jungwon-gu, Sungnam, 462-807, Korea TEL: +82-31-777-5432, FAX: +82-31-777-5436

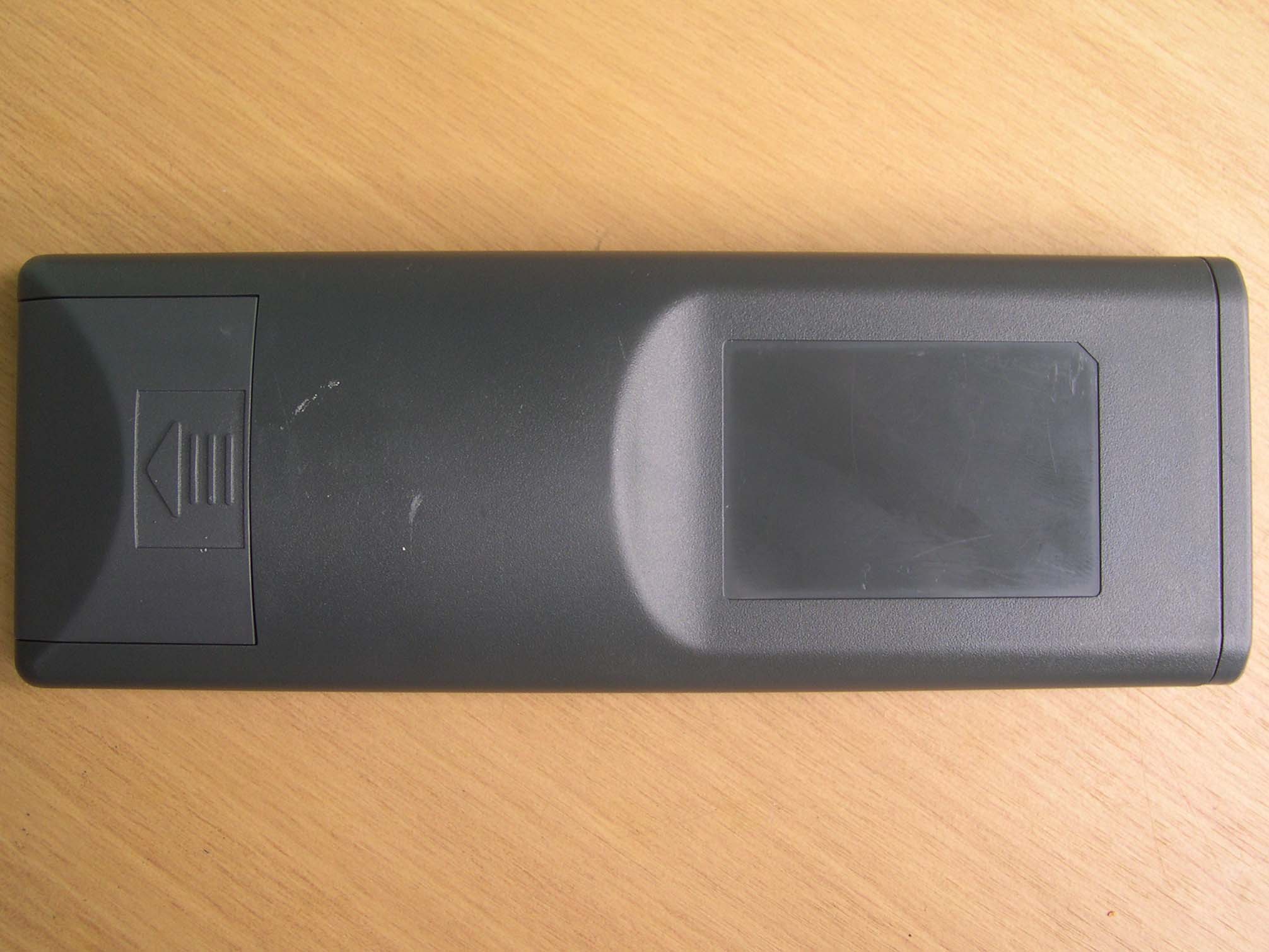

SK TECH CO., LTD. Page 1 of 2 SKT SKTTRT-050829-018 FCC ID: TH7-ABC-200HC External Photographs of EUT <Photograph 1: FRONT View> SK TECH CO., LTD. Page 2 of 2 SKT SKTTRT-050829-018 FCC ID: TH7-ABC-200HC <Photograph 2: REAR View>

SK TECH CO., LTD. Page 1 of 1 SKT SKTTRT-050829-018 FCC ID: TH7-ABC-200HC FCC ID Label Sample & Location Label is permanently attached on the rear of the product. LABEL SAMPLE LABEL LOCATION

SK TECH CO., LTD. Page 1 of 5 SKT SKTTRT-050829-018 FCC ID: TH7-ABC-200HC Internal Photographs of EUT <Photograph 1: Cover removed> SK TECH CO., LTD. Page 2 of 5 SKT SKTTRT-050829-018 FCC ID: TH7-ABC-200HC <Photograph 2: Front View – Main board> SK TECH CO., LTD. Page 3 of 5 SKT SKTTRT-050829-018 FCC ID: TH7-ABC-200HC <Photograph 3: Rear View – Main board> SK TECH CO., LTD. Page 4 of 5 SKT SKTTRT-050829-018 FCC ID: TH7-ABC-200HC <Photograph 4: Front View – Key board> SK TECH CO., LTD. Page 5 of 5 SKT SKTTRT-050829-018 FCC ID: TH7-ABC-200HC <Photograph 5: Rear View – Key board>

Operational Description 1) General description The product, ABC-200-HC-010, is a transmitter that transmits RF signals to the receiver to control the Actuators and Massagers. The product is operating at 315 MHz and transmits RF control signals that consist of 8bit-preamble, 16bit-address, 8bit-DATA (control signals), and 8bit checksum. 2) ENCORDER When the user presses any button on it, the micro controller (U1) transmits TX DATA to the oscillator through the R8. 3) OSCILLATOR The oscillator consists of Q3, Y2, C13, and other components. The frequency is generated via 315 MHz SAW resonators. 4) RF AMPLIFIER The RF signals from the oscillation circuit are amplified by Q2, through RF matching circuit, radiated via the antenna. 5) PCB PATTERN ANTENNA All tuning and verification are performed by the manufacturer and there are no adjustments required by the user. No external ground is required or used with this transmitter.

SK TECH CO., LTD. Page 1 of 14 SKT SKTTRT-050829-018 FCC ID: TH7-ABC-200HC Certificate of Compliance Test Report No.: SKTTRT-050829-018 NVLAP CODE: 200220-0 Applicant: Dadam Micro Inc. Applicant Address: #719 Keumkang Hightech Valley, 133-1 Sangdaewon1-dong, Jungwon-gu, Sungnam, 462-807, Korea Manufacturer: Dadam Micro Inc. Manufacturer Address: #719 Keumkang Hightech Valley, 133-1 Sangdaewon1-dong, Jungwon-gu, Sungnam, 462-807, Korea Device Under Test: Adjustable Bed Controller (Hand Control) FCC ID: TH7-ABC-200HC Model Name: ABC-200HC-010 Receipt No.: SKTEU05-0559 Date of receipt: August 18, 2005 Date of Issue: August 29, 2005 Location of Testing: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Specification: FCC Part 15 Rules FCC Equipment Class: DSC - Part 15 Security/Remote Control Transmitter Test Result: The above-mentioned device has been tested and passed. Tested & Reported by: Jong-Soo, Yoon 2005. 08. 29 Approved by: Jae-Kyung, Bae 2005. 08. 29 Signature Date Signature Date Other Aspects: Abbreviations: · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 14 SKT SKTTRT-050829-018 FCC ID: TH7-ABC-200HC >> CONTENTS << 1. GENERAL ············································································································· 3 2. TEST SITE ············································································································ 3 2.1 Location ········································································································· 3 2.2 List of Test and Measurement Instruments ···················································· 4 2.3 Test Date ········································································································ 4 2.4 Test Environment ··························································································· 4 3. DESCRIPTION OF The EQUIPMENT UNDER TEST ·········································· 5 3.1 Rating and Physical Characteristics ······························································ 5 3.2 Equipment Modifications ················································································ 5 3.3 Submitted Documents ···················································································· 5 4. MEASUREMENT CONDITIONS ··········································································· 6 4.1 Description of test configuration ···································································· 6 4.2 List of Peripherals ·························································································· 6 4.3 Type of used Cables ······················································································ 6 4.4 Uncertainty ····································································································· 6 5. TEST AND MEASUREMENTS ············································································· 7 5.1 ANTENNA REQUIREMENT ·········································································· 7 5.1.1 Regulation ······························································································· 7 5.1.2 Result ······································································································ 7 5.2 PERIODIC OPERATION CHARACTERISTICS ············································ 8 5.2.1 Regulation ······························································································· 8 5.2.2 Result ······································································································ 8 Figure 1: Measured value of the transmission duration ··································· 9 5.3 RADIATED EMISSIONS ·············································································· 10 5.3.1 Regulation ····························································································· 10 5.3.2 Measurement Procedure ······································································· 11 5.3.3 Calculation of the filed strength limits by linear interpolation ················· 11 5.3.4 Calculation of Average Correction Factor ·············································· 11 5.3.5 Test Results ··························································································· 11 Table 1: Measured values of the Field strength ·············································12 5.4 OCCUPIED BANDWIDTH ··········································································· 13 5.4.1 Regulation ····························································································· 13 5.4.2 Calculation of 20dB Bandwidth Limit ····················································· 13 5.4.3 Test Procedure ······················································································ 13 5.4.4 Test Results ··························································································· 13 Figure 2: Measured value of the Occupied bandwidth ····································14 SK TECH CO., LTD. Page 3 of 14 SKT SKTTRT-050829-018 FCC ID: TH7-ABC-200HC 1. GENERAL These tests were performed using the test procedure outlined in ANSI C63.4, 2003 for intentional radiators, and in accordance with the limits set forth in FCC Part 15.231 for periodic transmitter. The EUT (Equipment Under Test) has been shown to be capable of compliance with the applicable technical standards. We at…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 2 SKT SKTTRT-050829-018 FCC ID: TH7-ABC-200HC Test set up photos <Radiated Emissions – Front View> SK TECH CO., LTD. Page 2 of 2 SKT SKTTRT-050829-018 FCC ID: TH7-ABC-200HC <Radiated Emissions – Rear View>
