TH9P428TPMS

TPMS FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Notice This system is the use of wireless tire pressure sensors to measure pressure and temperature inside the tire and transmit the information through radio signal. Under the normal operation , the wireless tire pressure sensors will receive the normal value to represent the tire pressure or temperature. When the system detects one or more abnormal tire pressure or temperature, the wireless tire pressure sensors will send a wireless emergency signal to the Bluetooth receiver and the receiver and the smart phone will warn the drivers with a alarm sound and a warning light in orange color immediately. (And the driver could check the detailed tire information by smart phone) Then, in order to prevent any possible accidents causes by tire pressure or temperature, the driver shall immediately inspect the tire and get professional support when needed. Caution: the system is wireless RF product; therefore, it may not receive a signal due to the poor environment or incorrect operating or incorrect installation. When the system continually cannot receive any signal from any tire sensor more than 10 minutes since the system be switch on power for monitoring, the system will shown “ ”(Blank) and turn on the RED abnormal tire LED light and alert sound. In this case, it may cause by a RF interference environment, a driver need to drive the vehicle and leave this place. If the display still cannot receive any correct signal from tire sensor, then, a driver need to find a nearby qualified tire maintain service for checking and maintain. It may cause by a tire sensor damages or battery power consumption. (In abnormal condition, the tire sensor will continually send warning signal for driver, thus it wills consumption the battery quickly than normal prediction.) System Installation and Usage This system is suitable for use on a passenger car, SUV and 4X4 tires. Installation of the TPMS requires the qualified personnel to compelet the installation process according to instructions here. And any improper installation or dismantling to the device, the customer should be pay full responsebilities to it and won’t be able to get the product warranty Caution:Do not operate the TPMS tire pressure monitoring system while driving. The product development company and its developers are not responsible for any loss or liability damages resulting from the improper operation.

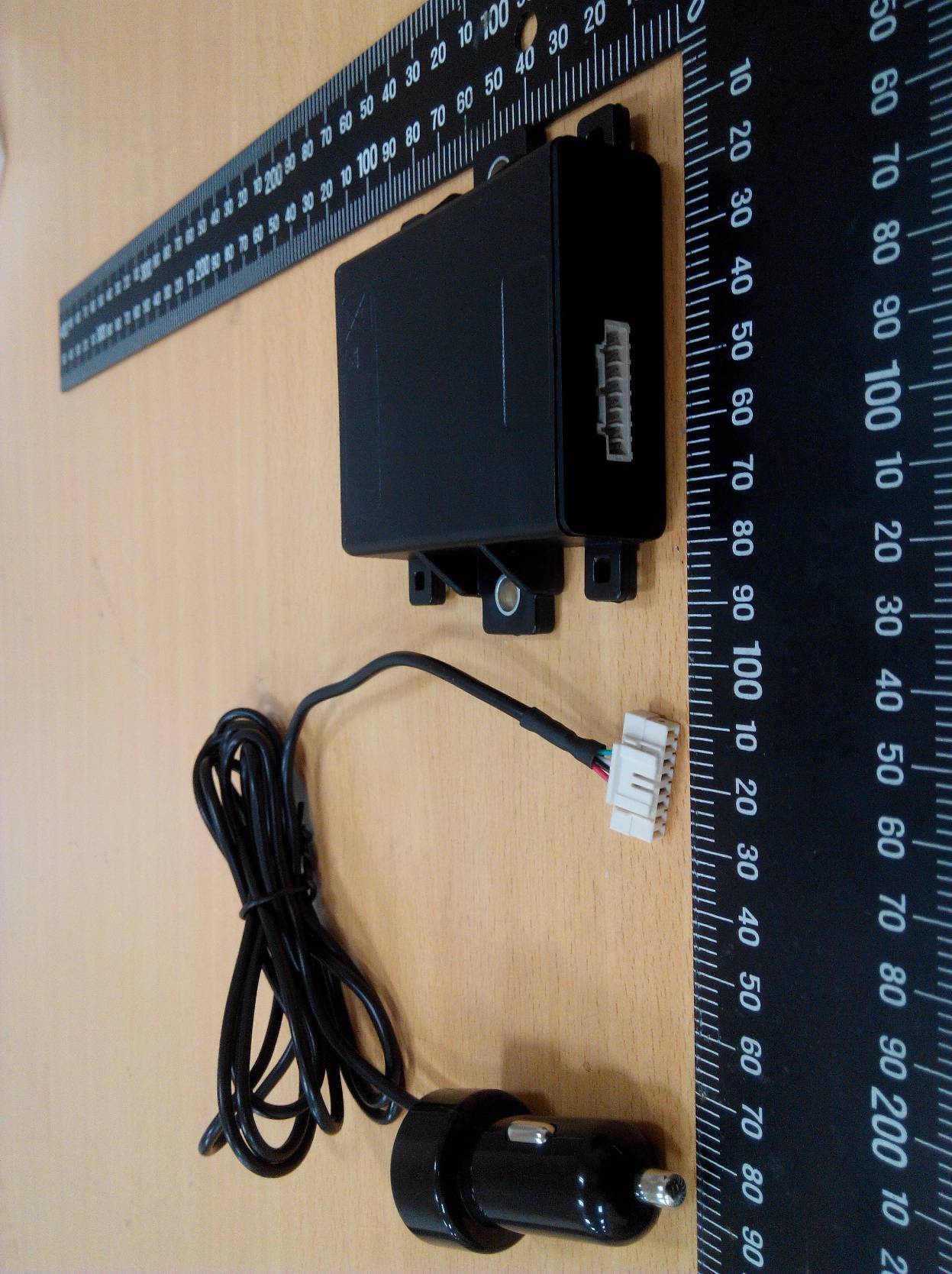

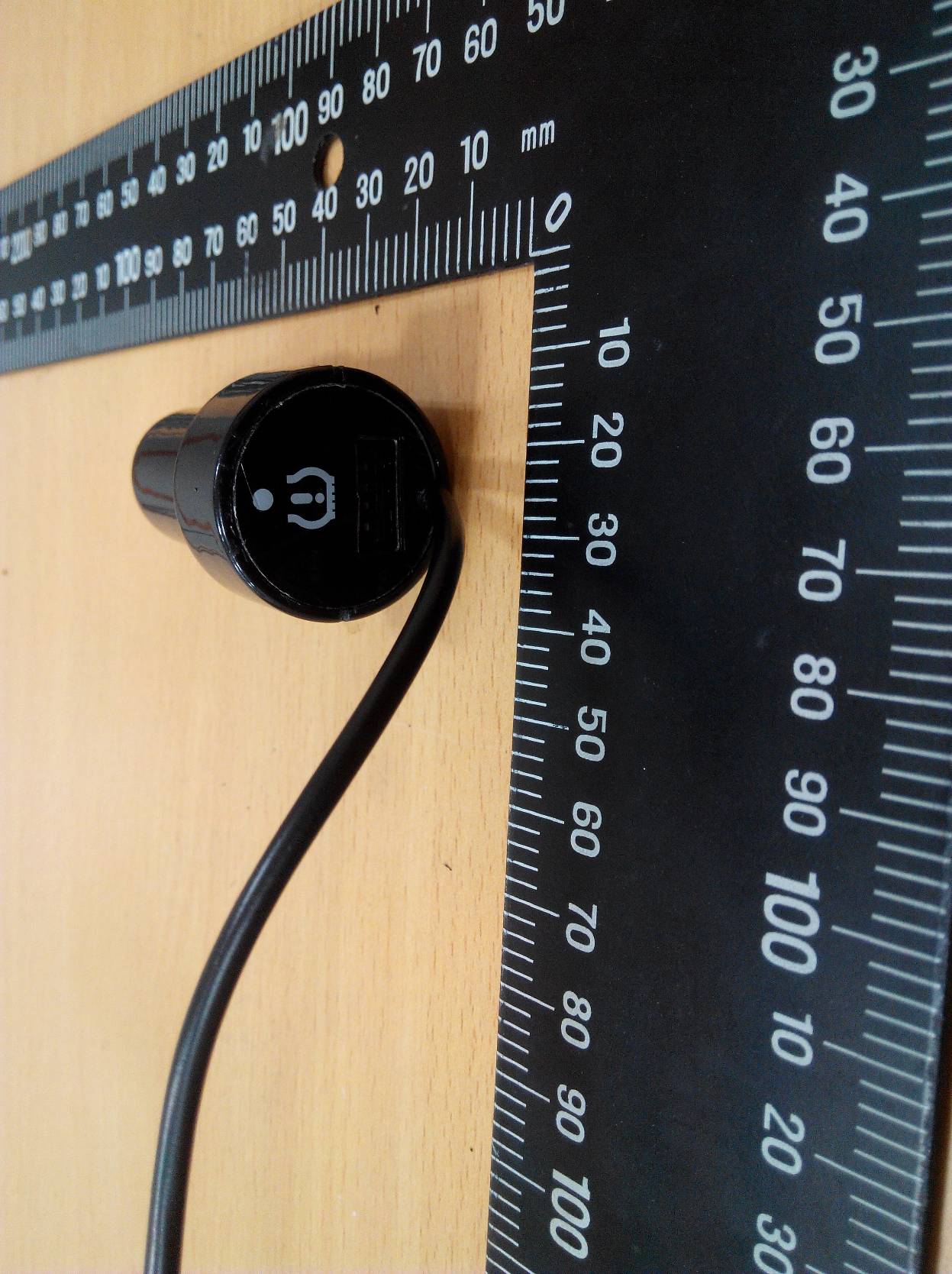

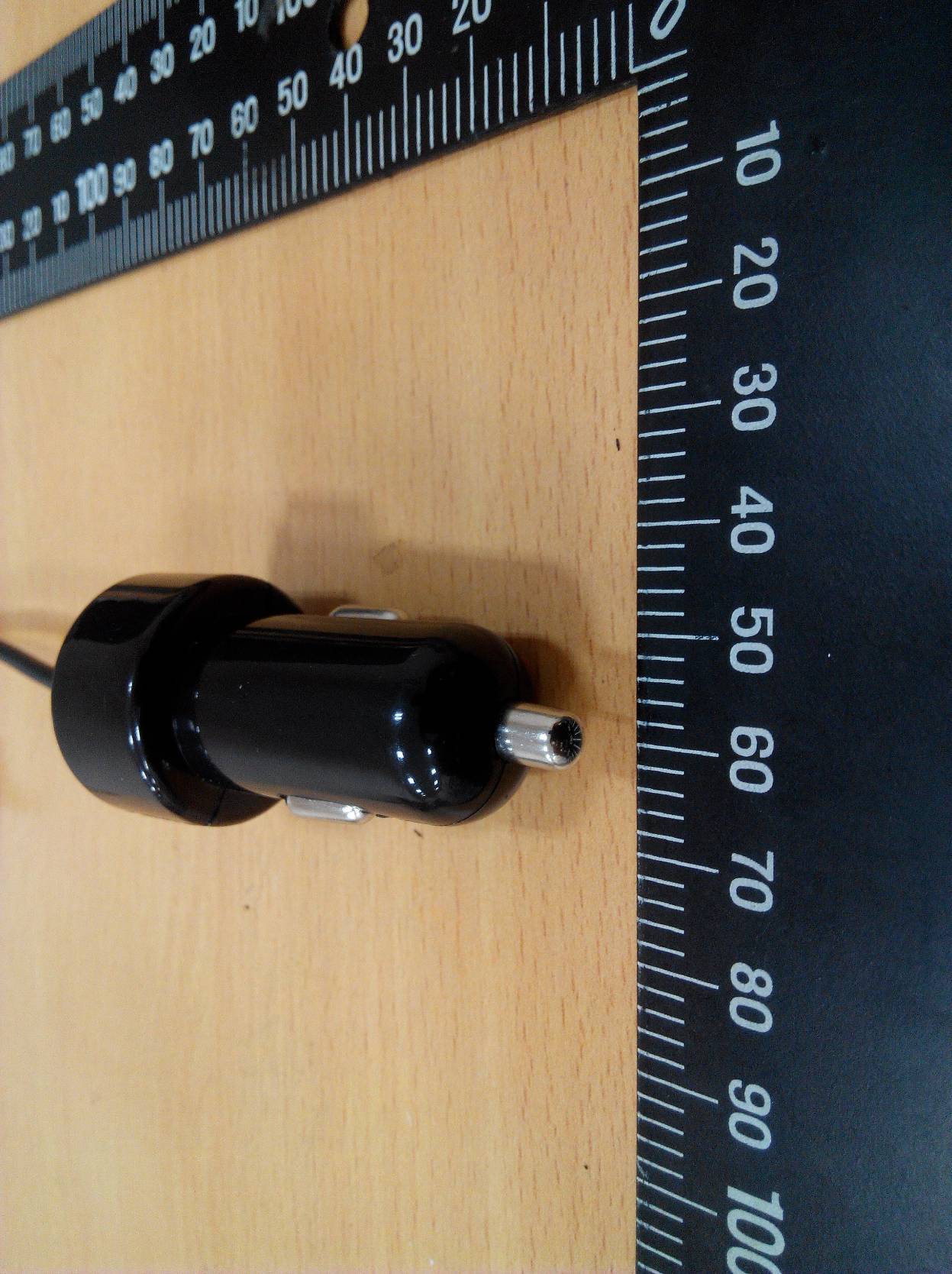

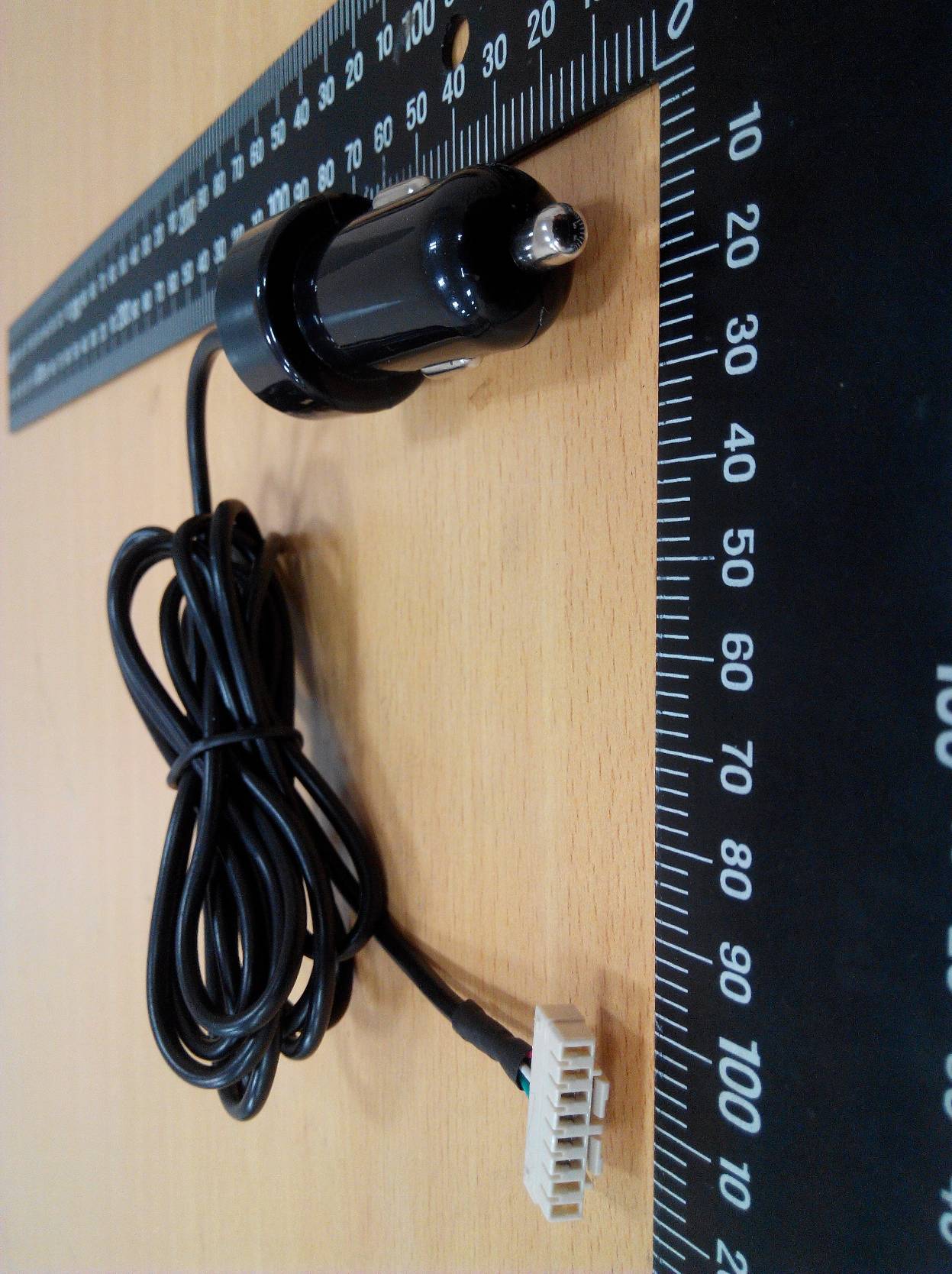

Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 24 External Photos Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 24 Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 4 of 24 Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 5 of 24 Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 6 of 24 Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 7 of 24 Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 8 of 24 Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 9 of 24 Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 10 of 24 Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 11 of 24 Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 12 of 24 Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 13 of 24 Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 14 of 24

Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 15 of 24 Internal Photos Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 16 of 24 Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 17 of 24 Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 18 of 24 Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 19 of 24 Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 20 of 24 Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 21 of 24 Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 22 of 24 Registration number: W6M21503-14849-FCC FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 23 of 24

Registration number: W6M21503-14849-C-1 FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Page 15 of 29 3.2 Equivalent isotropic radiated power FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain EIRP = -1.91 dBm + 0.5 dBi = -1.41 dBm Limit: EIRP = +36 dBm for Antenna gain <6dBi Test equipment used: ETSTW-RE 055 3.3 RF Exposure Compliance Requirements RESULT: Test standard : FCC KDB Publication 447498 10 D01v05 According to KDB447498 10 D01v05: SAR evaluation, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. The enclosure of the device provides ≥ 0.5 cm separation from the antenna elements to significant metal parts of the enclosure to minimize potential perturbations. Frequency Band:2400-2483.5 MHz Maximum Power fed to Antenna (BT4.0): 0.7228 mW Separation distances: Radiator to user: > 5 mm Distance prescribed in user manual: > 5 mm MHz 5 10 15 20 25 mm 2450 10 19 29 38 48 SAR Test Exclusion Threshold (mW) MHz 30 35 40 45 50 mm 2450 57 67 77 86 96 SAR Test Exclusion Threshold (mW) MHz 50 60 70 80 90 100 110120130140150160170 180 190 mm 2450 96 196 296 396496 596 696796896996109611961296 1396 1496 mW

of Applicant: Orange Electronic Co., Ltd Address: 15F., No.29, Keya Rd., Daya Dist., Taichung City 428, Taiwan (R.O.C.) Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1, IC 5107A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21503-14849-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for TPMS Model No.: P428 FCC ID: TH9P428 Registration number: W6M21503-14849-C-1 FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 29 TABLE OF CONTENTS 1 GENERAL INFORMATION ..........................................................................................................2 1.1 NOTES..........................................................................................................................................2 1.2 T ESTING LABORATORY................................................................................................................3 1.2.1 Location ..................................................................................................................................3 1.2.2 Details of accreditation status ................................................................................................3 1.3 D ETAILS OF APPROVAL HOLDER...................................................................................................3 1.4 A PPLICATION DETAILS.................................................................................................................4 1.5 G ENERAL INFORMATION OF TEST ITEM........................................................................................4 1.6 TEST STANDARDS.........................................................................................................................5 2 TECHNICAL TEST .........................................................................................................................6 2.1 S UMMARY OF TEST RESULTS........................................................................................................6 2.2 TEST ENVIRONMENT....................................................................................................................6 2.3 TEST EQUIPMENT LIST.................................................................................................................7 2.4 G ENERAL TEST PROCEDURE........................................................................................................9 3 TEST RESULTS (ENCLOSURE) ................................................................................................11 3.1 PEAK OUTPUT POWER (TRANSMITTER) ......................................................................................12 3.2 EQUIVALENT ISOTROPIC RADIATED POWER................................................................................15 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS............................................................................15 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS....................................................16 3.5 SPURIOUS EMISSIONS (TX) .........................................................................................................17 3.6 RADIATED EMISSION ON THE BAND EDGE..................................................................................20 3.7 MINIMUM 6 DB BANDWIDTH.....................................................................................................22 3.8 P EAK POWER SPECTRAL DENSITY.............................................................................................25 3.9 P OWER LINE CONDUCTED EMISSION.........................................................................................28 APPENDIX.............................................................................................................29 Registration number: W6M21503-14849-C-1 FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 29 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. Tester: April 17, 2015 Leon Chueh Date WTS-Lab. Name Signature Technical responsibility for area of testing: April 17, 2015 Kevin Wang Date WTS Name Signature Registration number: W6M21503-14849-C-1 FCC ID: TH9P428 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 29 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter semi-anechoic chamber No.35, Aly. 21, Ln. 228, Ank…
